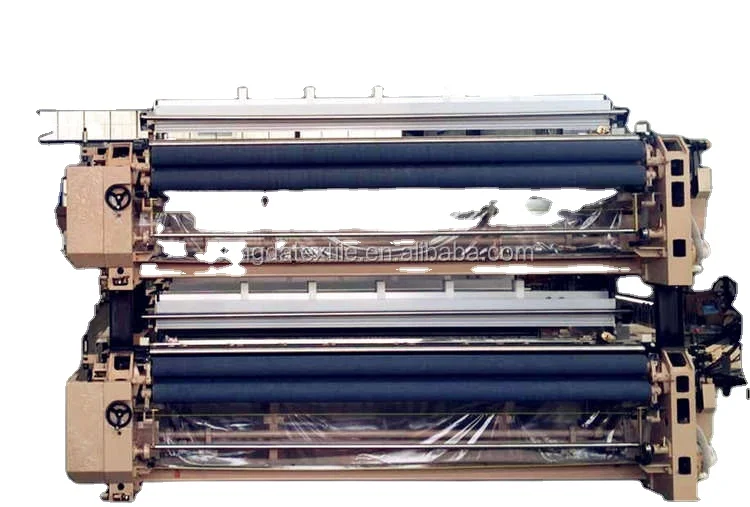

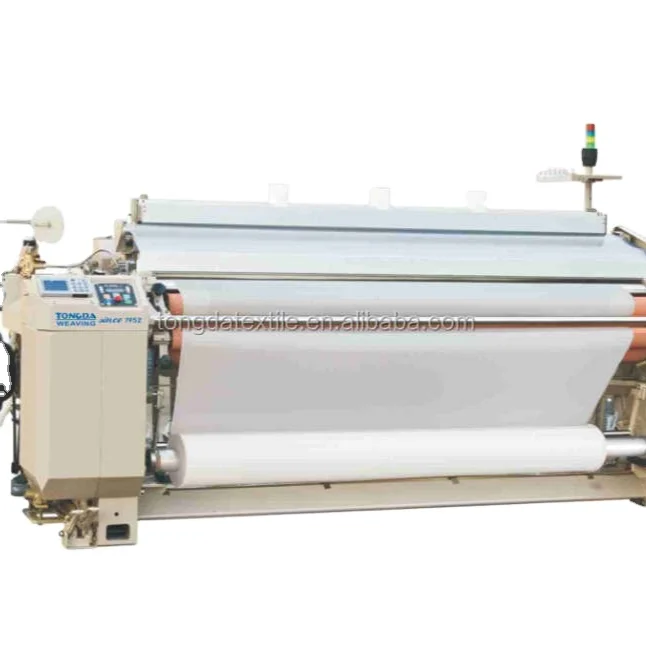

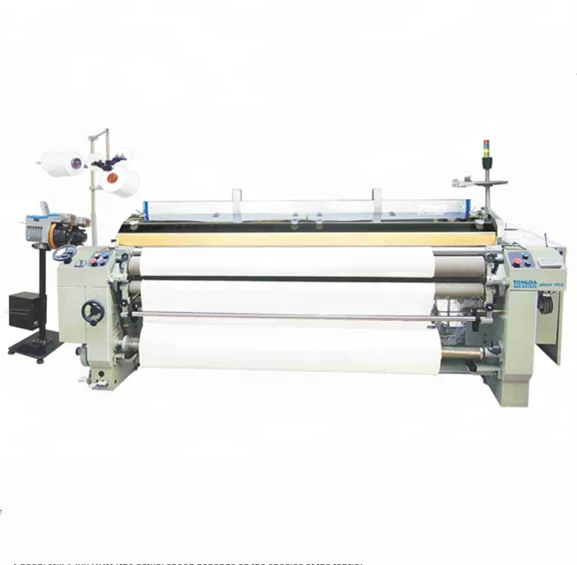

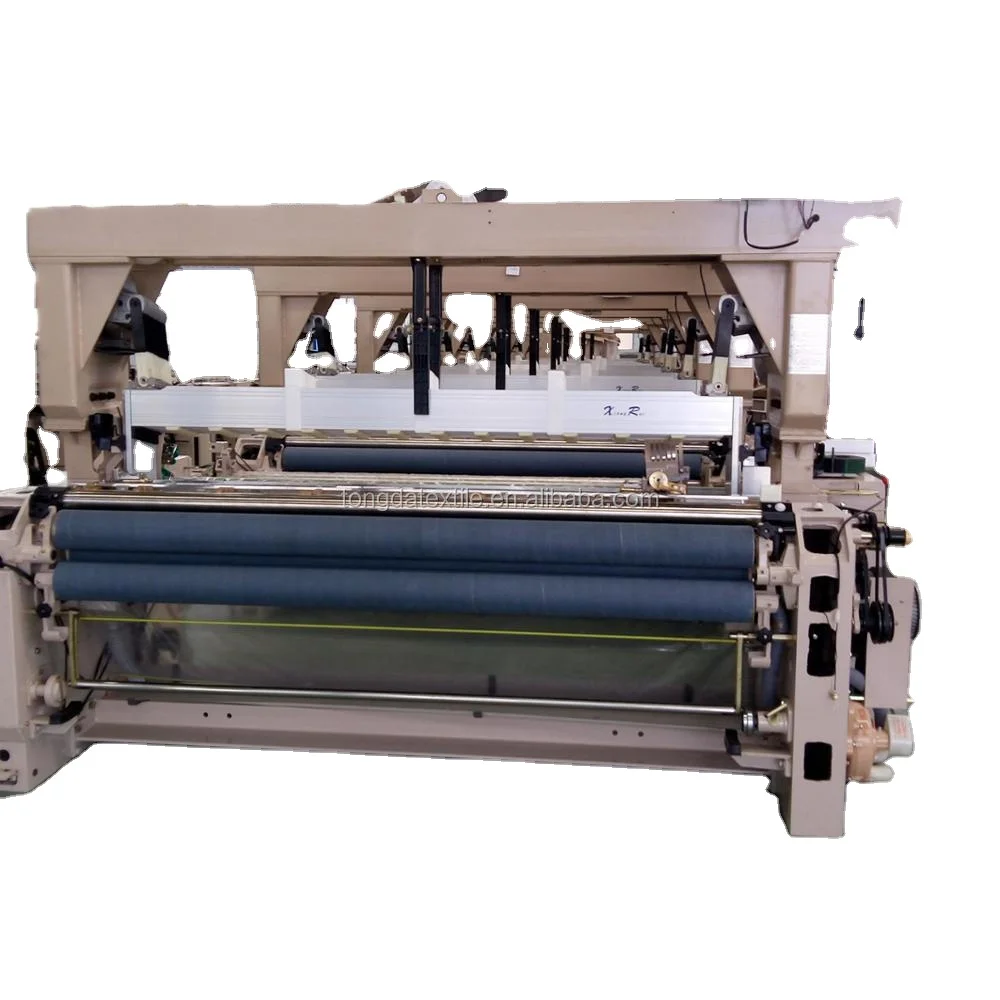

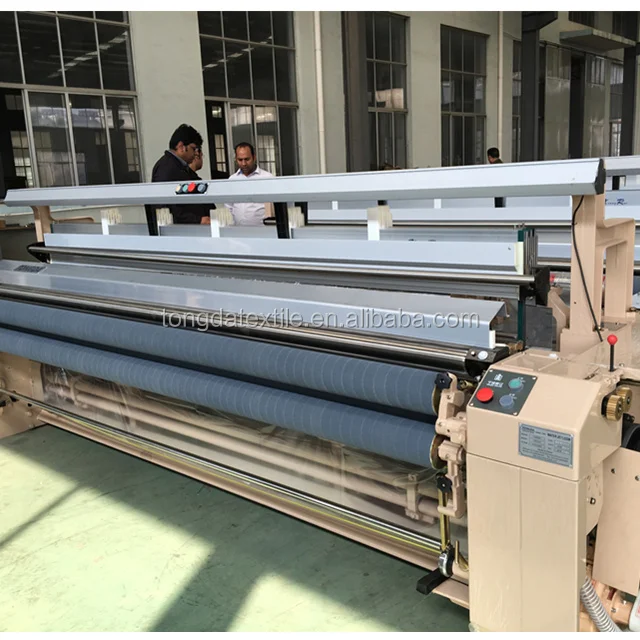

Текстильная техника TONGDA расширенная средняя пластина TD881 полиэфирная пряжа ткацкий станок для струйной

Description

Parameter

Model:

TDW-851

Reed width:

170,190,210,230,260,280,340,360cm

Nozzle/Color:

Single nozzle/ Double nozzle/ Three nozzle/ Four nozzle

Shedding:

Crank , Cam , Dobby

Weft insertion rate:

Max 2280 meter per minute

Speed:

Max 1200PRM

(the actual speed depends on the species of the fabric)

Power:

2.2KW,2.6KW,2.8KW,3.0KW,3.5KW,4.0KW,4.5KW

Range of weft destiny:

5-60 threads / cm

Let-off:

Mechanical Let-off/ Electronic Let-off

Take-up:

Mechanical Take-up/ Electronic Take-up

Description

Parameter

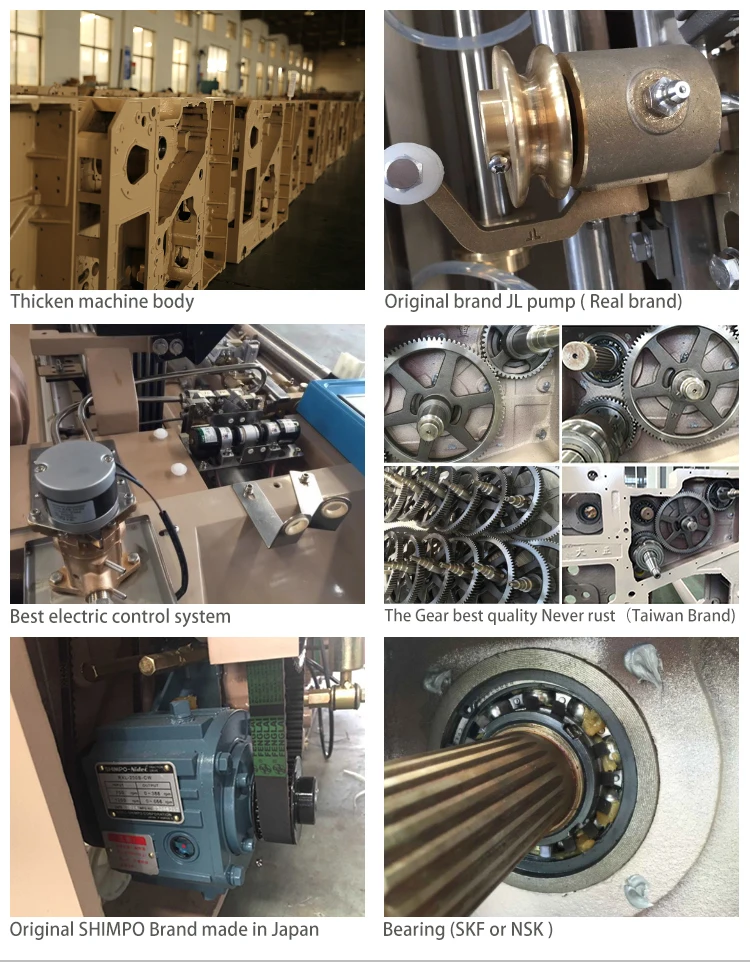

GEAR BOX IN LARGE BOX:

TAIWAN BRAND THE BEST BRAND FOR WATER JET LOOM WITH HIGHEST PRECISION ULTRA-QUIET, SUPER WEAR-RESISTANT, OIL IS NOT BLACK, LOW VIBRATION, HIGH PRECISION.

WALL BOARD:

WE ADOPTS HIGH-DENSITY REINFORCED, ACCORDING TO TSUDAKOMA DRAWINGS, LARGE CNC PRECISION MACHINING.(880*880*140)

BEAM:

ADOPT TSUDAKOMA STRUCTURE DESIGN, THE BEAM BEFORE AND AFTER USE DOUBLE ANGLE, THICKNESS IS 12 MM

OIL SEAL IN LARGE BOX:

TTO, MADE IN TAIWAN

ELECTRONIC FEEDER:

XINLIAO ( BEST BRAND IN CHINA),SANHE

ELECTRONIC CONTROL SYSTEM:

(1) XINLIAO (BEST IN CHINA)

BELT:

ALL THE BELT USE CHUNFANG BELT TAIWAN BRAND

PUMP &TEMPLE PARTS:

JILONG, Made in China

NOZZLE&PLUNGER :

MDH-KOREA (CERAMIC)

MAIN BEARING:

(1) SKF GERMANY BRAND

BEARING BUSH:

DUBANG

ONE WAY VALVE:

TEABEK, MADE IN KOREA

ALL COPPER PARTRS:

JR BRAND

ALL SPRINGS:

SS 304#

ALL THE BOLTS AND SCREWS USING:

304# SS WHICH ARE FREE OF RUST
