Ультратонкая мельница для порошка чили суперхимическая фармацевтическая пищевая машина измельчения

Поделиться:


Цена:13 000,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Specification

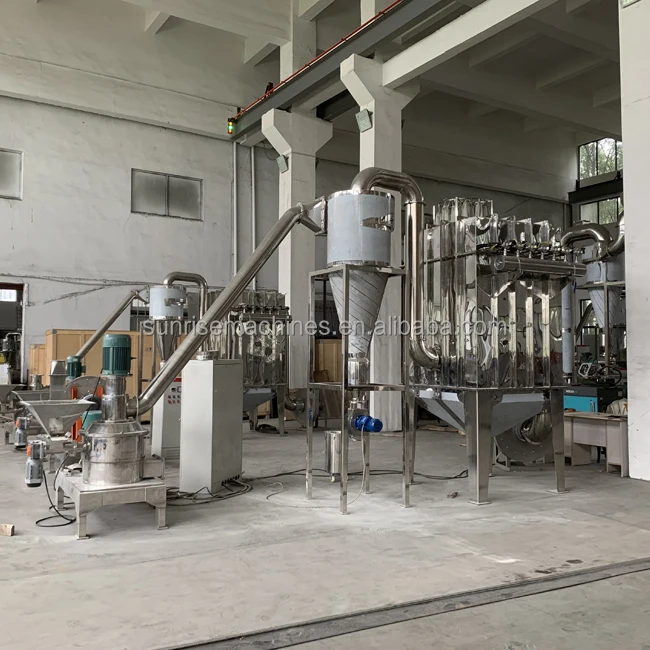

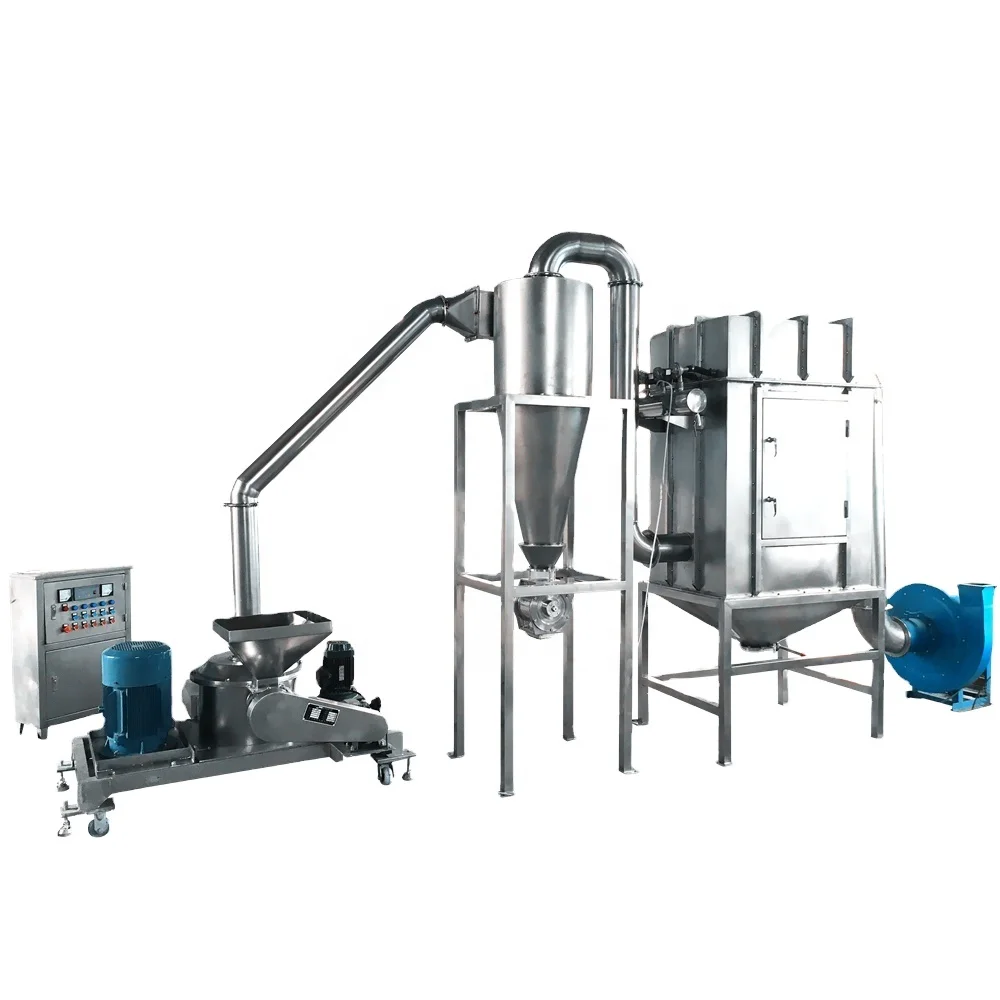

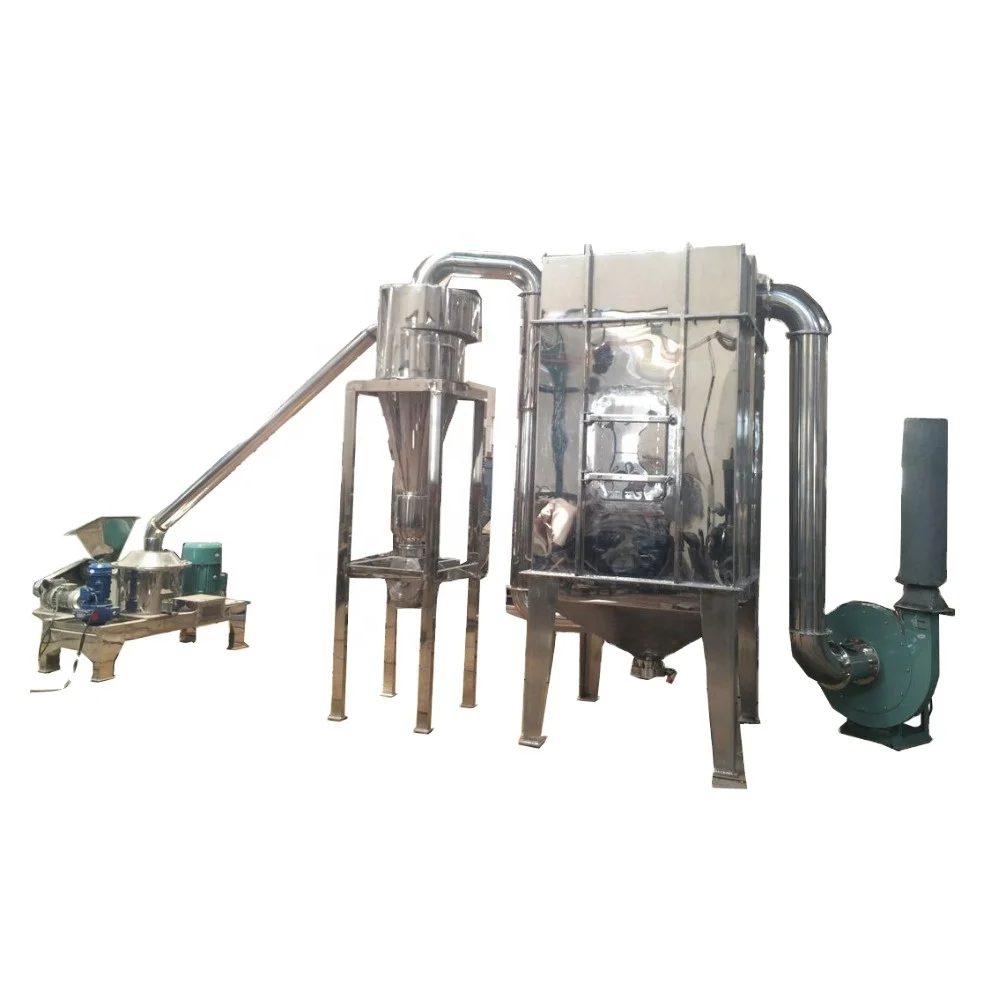

Super Fine Pulverizer
WFJ Ultra Fine Machine consists of feeding device, main machine (including classification device), transferring pipe, cyclone separator, bag filter and fan, etc. It features compact design, reasonable structure, and no sieve. There is classification device in the machine,
This is super fine pulverizer, you can called it ACM hammer mill, air classifier mill, super fine powder grinding machine, It is used to grind kinds of chemicals, stones, food, leaves, dried vegetable fruit, beans, seeds, PE wax, coffee bean, cocoa cake into fine powder. the final size of powder is 80-1000 mesh can be adjustable.

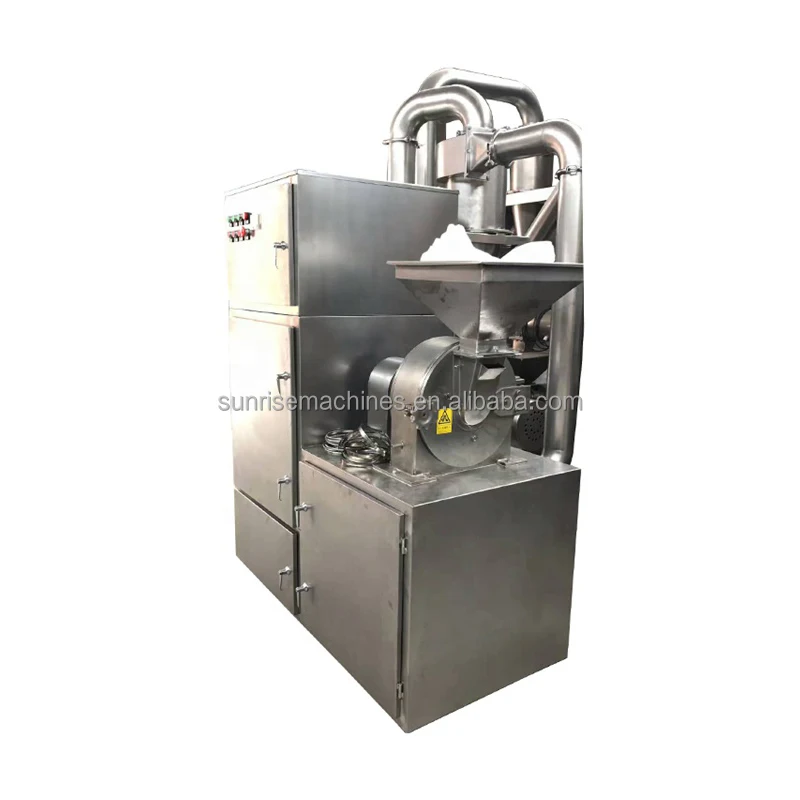

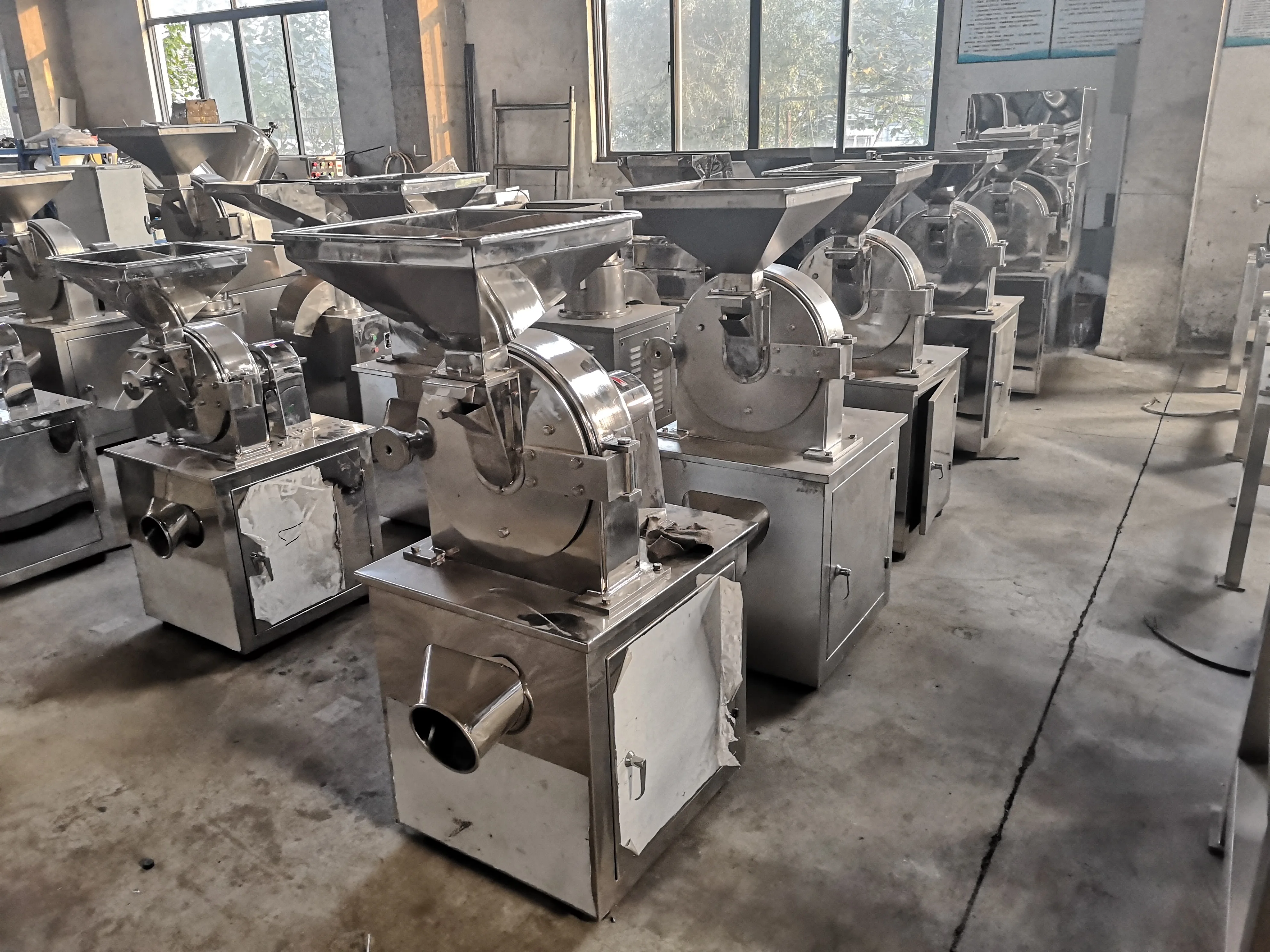

Grinder Machine With Cyclone And Dust Box
This machine is very suitable for grind chili, peppers, sugar, salt, spice into powder, because we match dust box for the grinder, it can be continuous to running, so increase the capacity of machine, if you need large capacity grinder, it is best choice for you. It can grind kinds of nuts, seeds, grain, spices into 10-120 mesh.


Details Images


Grinding Head
Made in Full 304 Stainless Steel Include Knives

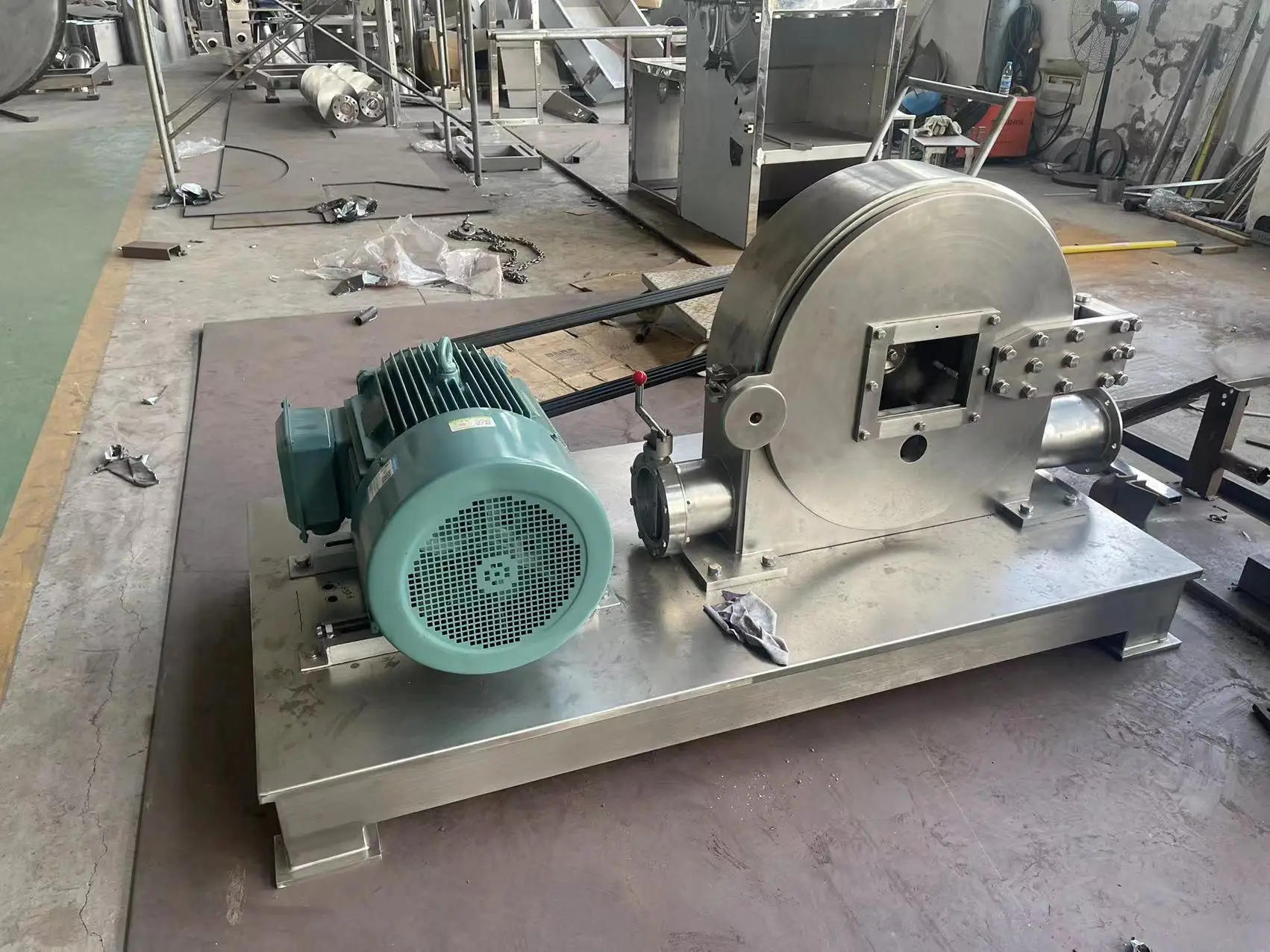

Head Of Super Fine Pulverizer
The Knives can be made in 9SiCr, SKD-II Or SS 420, and all other parts is made in 304 stainless steel.

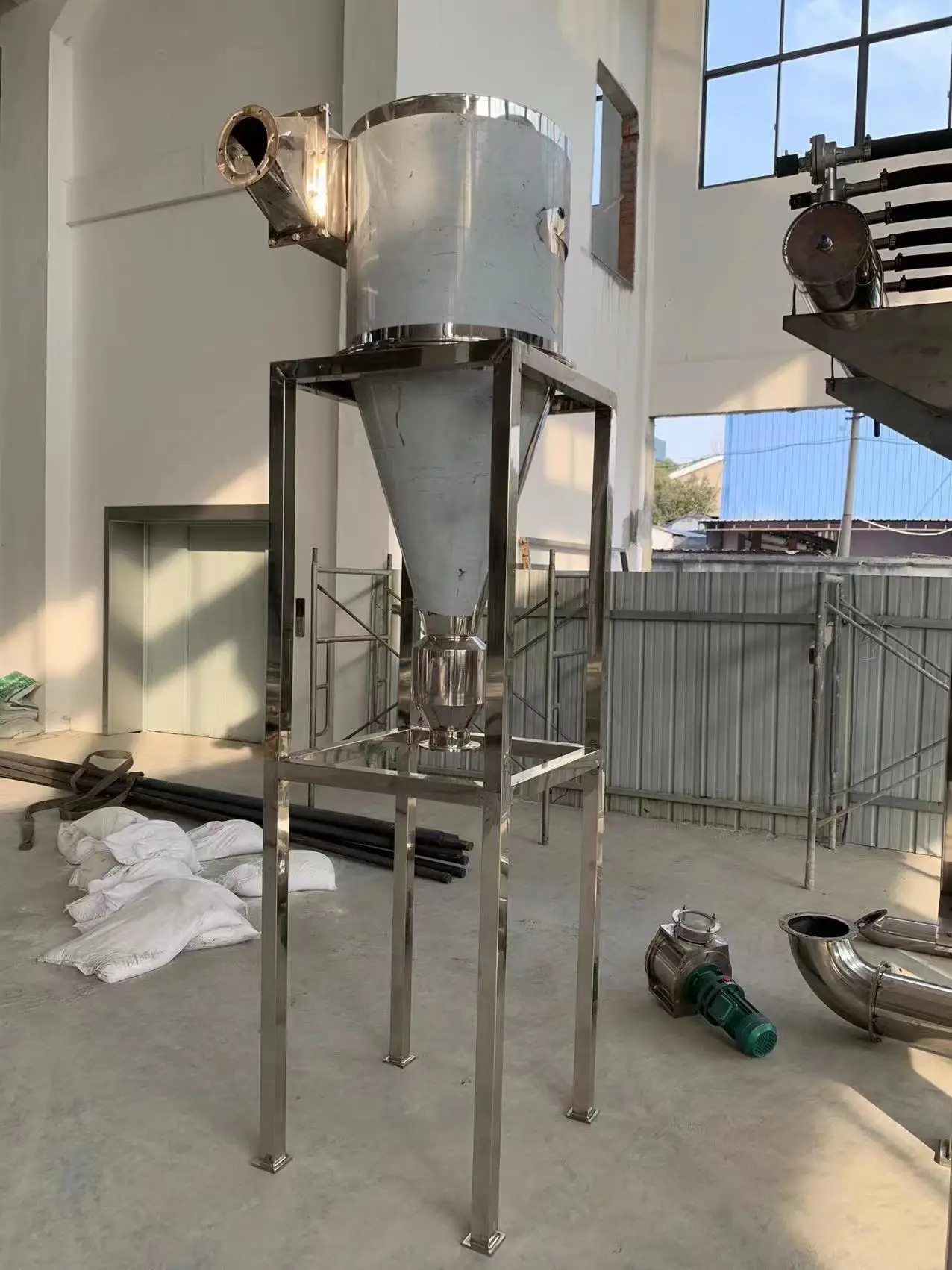

Cyclone With Air Lock
1) Cyclone can separate dust from powder
(2) Rotary valve make powder discharge speed even rotary valve is also made of stainless steel and to clean it and dismantle is convenient

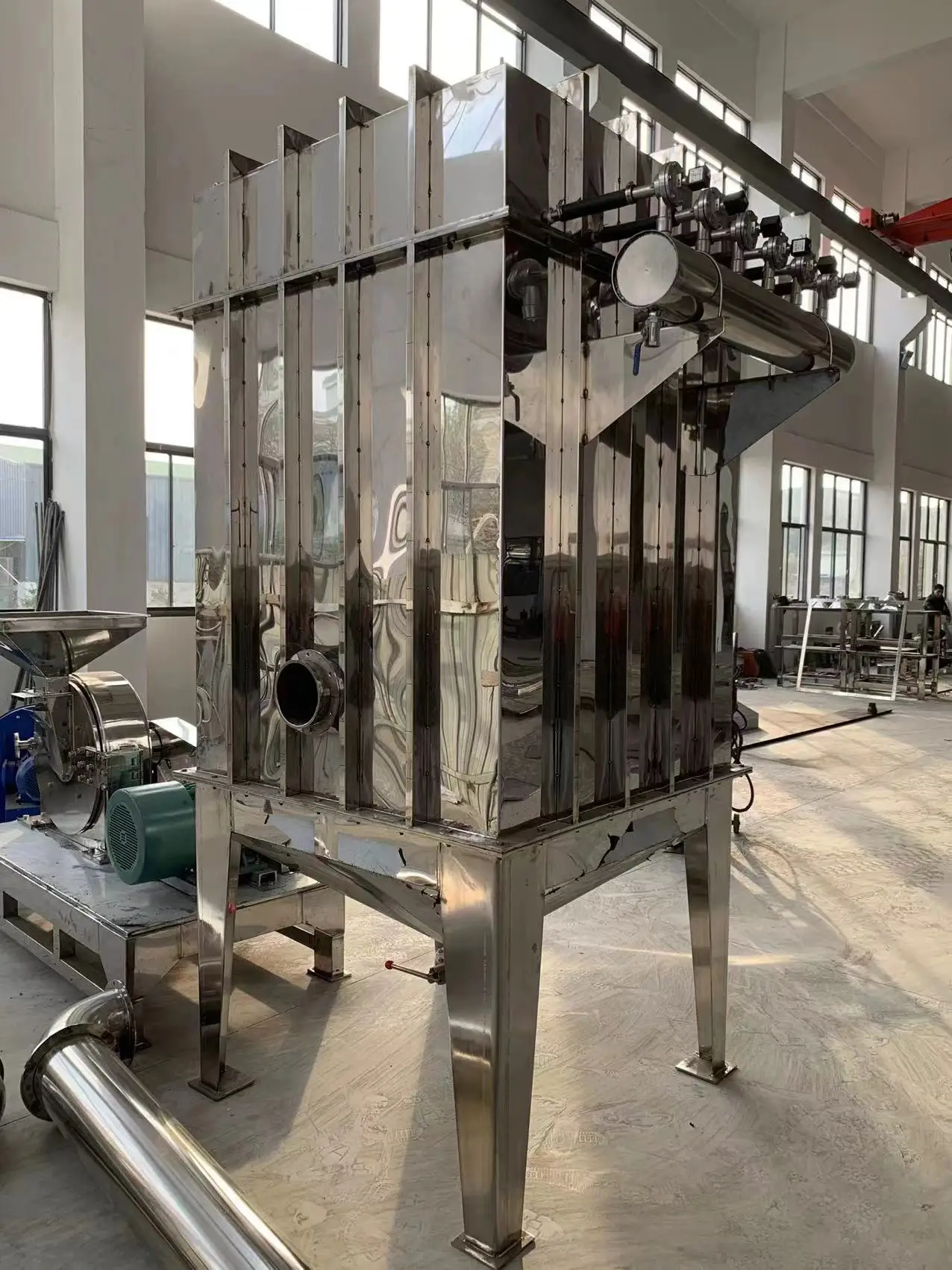

Pulse Dust Collector Box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled
easily.
(3) With pulse-jet cleaning, dust can be collected very convenient

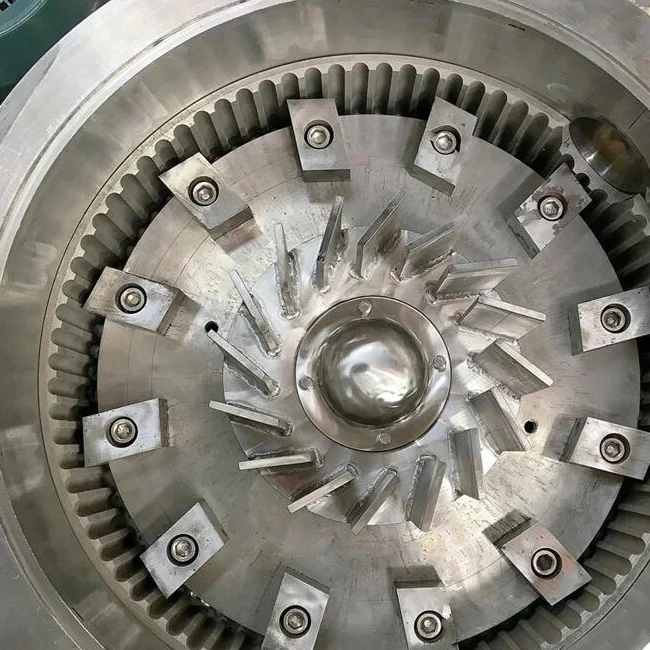

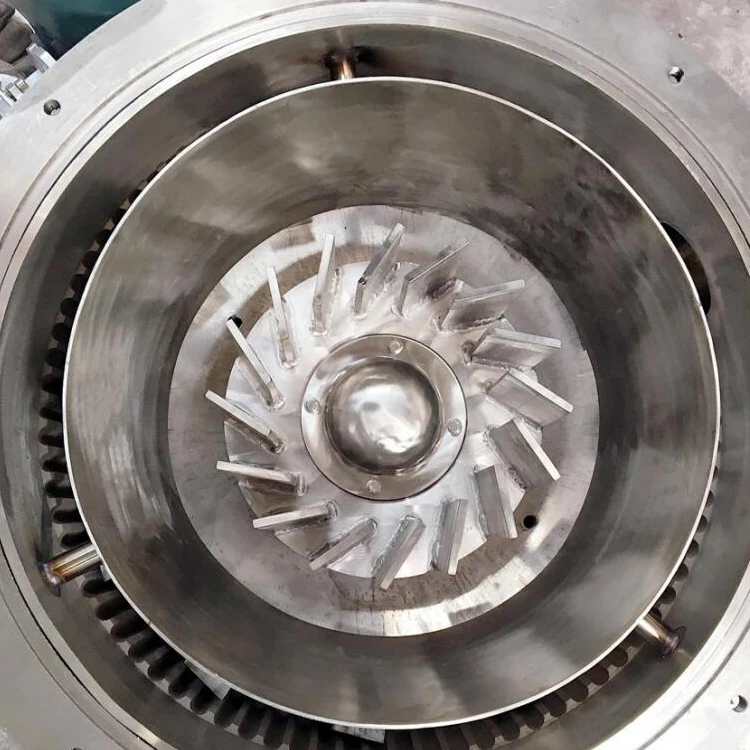

Grinder/Pulverizer Inside




Technical Data


Model
WFJ-15
WFJ-20
Capacity
30-150 kg/h
80-150 kg/h
Power of motor
11 kw
15 kw
Power of fan
5.5 kw
7.5 kw
Power of feeding motor
0.55 kw
0.55 kw
Change speed motor
1.5 kw
1.5 kw
Weight
980 kg
1200 kg
Dimension of machine
4200*1200*2700 mm
5800*1600*3200 mm
Final size
80-320 mesh
80-350 mesh ( can be adjustable)
Temperature of final product
Less than 65 ℃
Less than 65 ℃
Material of machine
304 stainless steel
304 stainless steel


Model
WFJ-15
WFJ-20
Capacity
30-150 kg/h
80-250 kg/h
Power of motor
11 kw
15 kw
Power of fan
5.5 kw
7.5 kw
Power of feeding motor
0.55 kw
0.55 kw
Change speed motor
1.5 kw
1.5 kw
Weight
980 kg
1200 kg
Dimension of machine
4200*1200*2700 mm
5800*1600*3200 mm
Final size
80-320 mesh
80-350 mesh
Temperature of final product
Less than 65 ℃
Less than 65 ℃
Material of machine
304 stainless steel
304 stainless steel


Model
WFJ-30
WFJ-60
Capacity
100-350 kg/h
200-800 kg/h
Power of motor
22 kw
37 kw
Power of fan
11 kw
22 kw
Power of feeding motor
0.75 kw
1.1 kw
Change speed motor
4 kw
5.5 kw
Weight
2000 kg
4000 kg
Dimension of machine
5800*1600*3800 mm
7500**2260*4530 mm
Final size
80-350 mesh
80-350 mesh
Temperature of final product
Less than 65 ℃
Less than 65 ℃
Material of machine
304 stainless steel
304 stainless steel


Model
WFJ-80
WFJ-110
Capacity
300-1000 kg/h
500-1500 kg/h
Power of motor
55 kw
75 kw
Power of fan
22 kw
37 kw
Power of feeding motor
1.5 kw
1.5 kw
Change speed motor
7.5 kw
18.5 kw
Weight
4500 kg
6800 kg
Dimension of machine
8200*2500*4600 mm
9000*2500*4800 mm
Final size
80-350 mesh
30-50 micron (can be adjustable)
Temperature of final product
Less than 65 ℃
Less than 65 ℃
Material of machine
304 stainless steel
304 stainless steel


Packaging And Delivery




Company Profile








Certifications

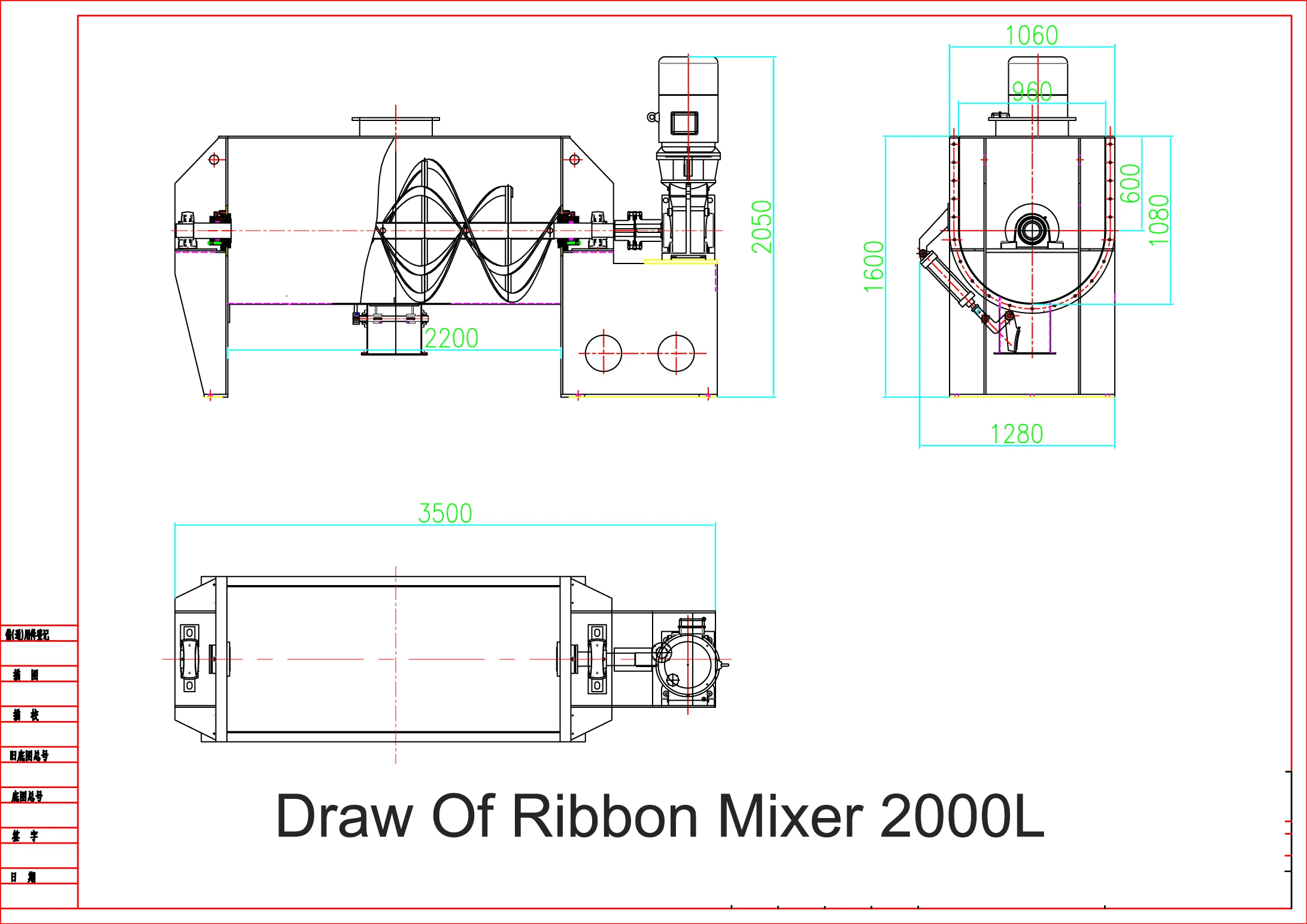

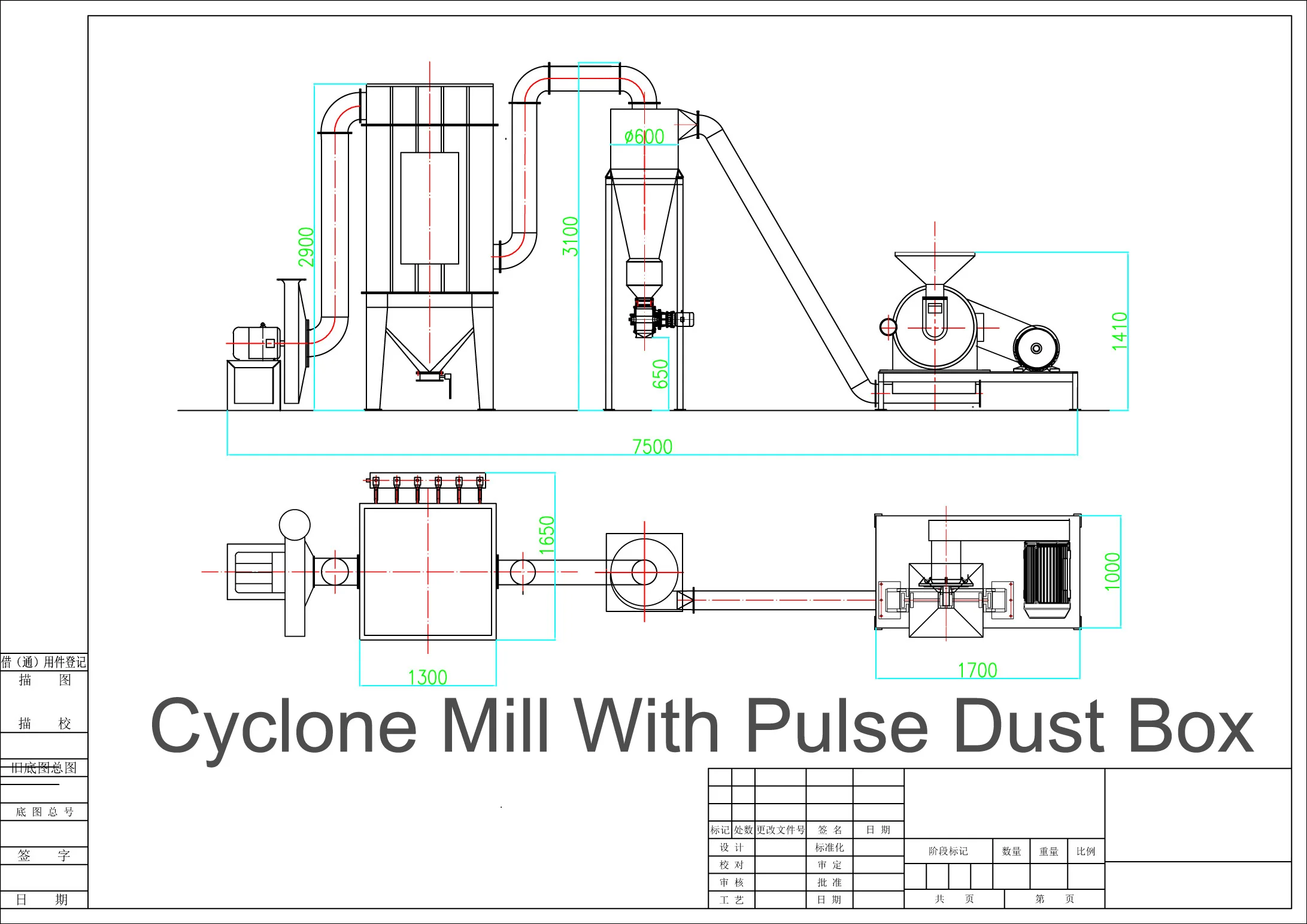

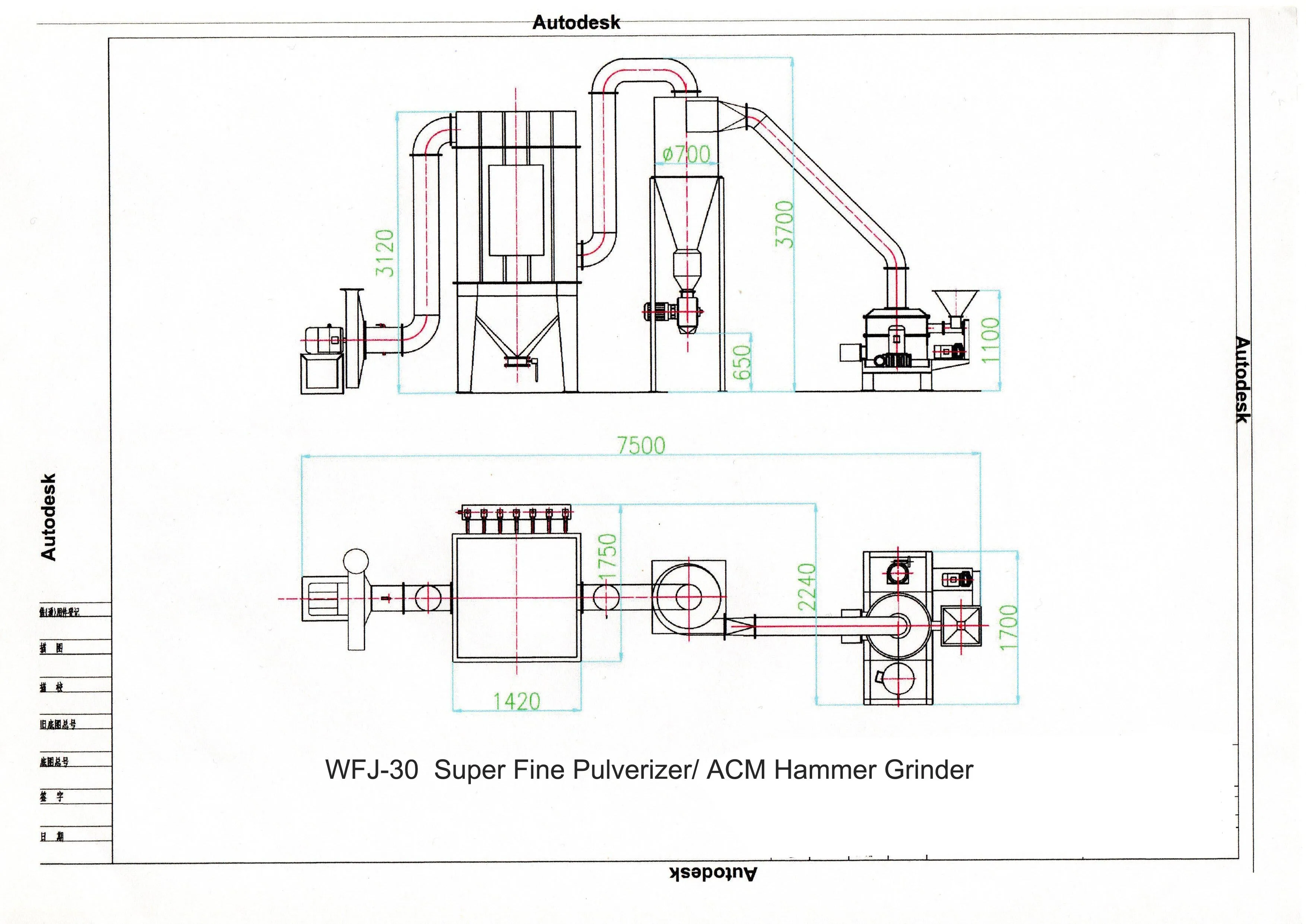

Draw Of Grinder And Mixer
