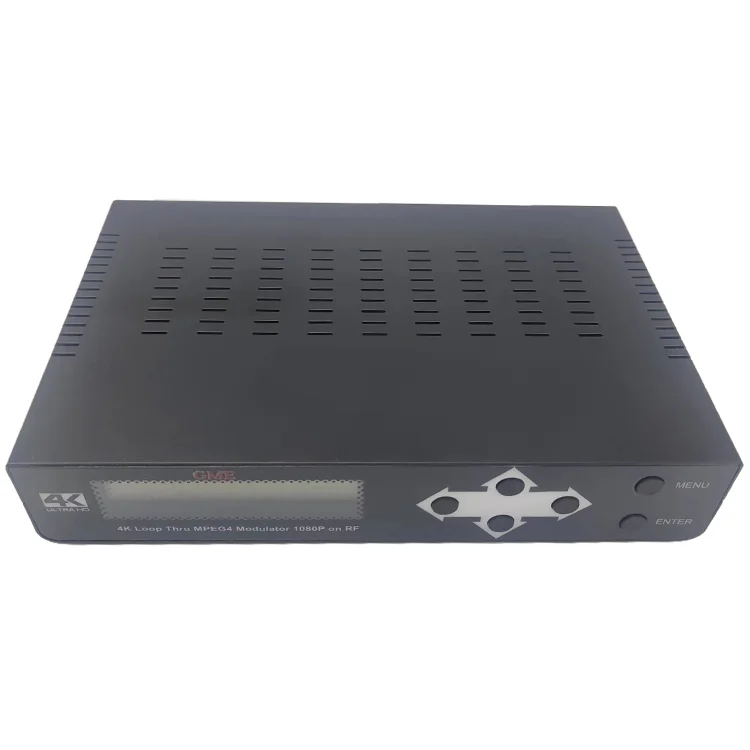

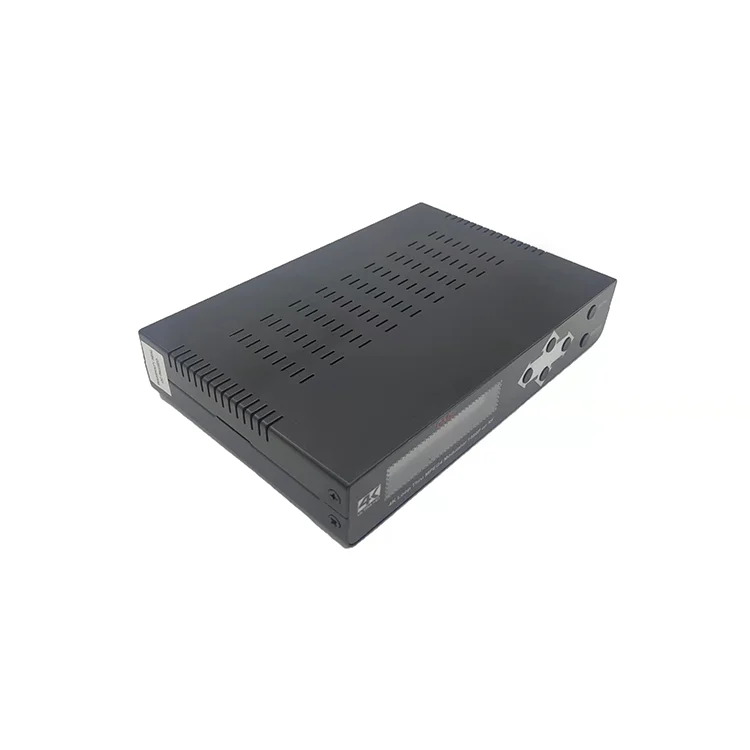

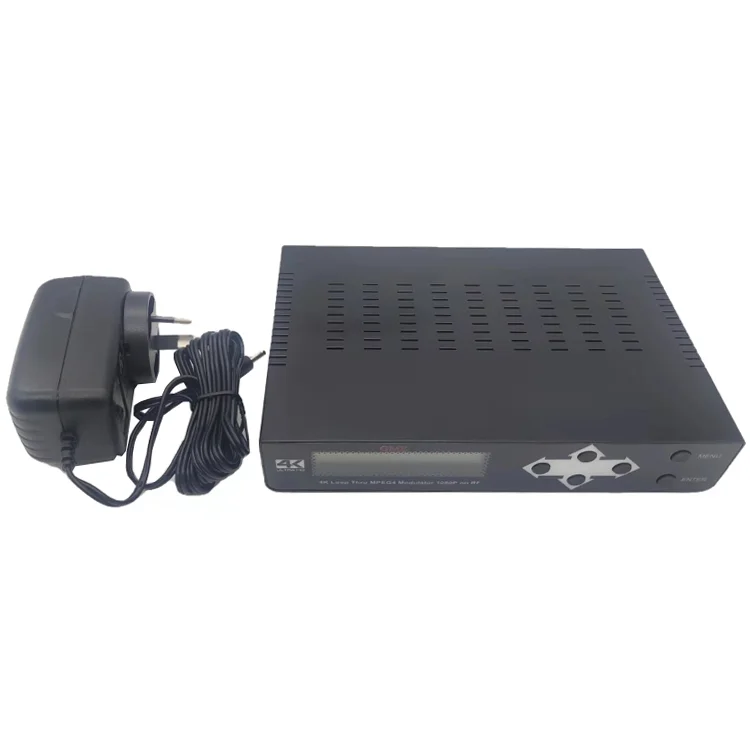

2022 новый стиль Full HD HDMI к DVB-T Rf модулятор с проходом
- Категория товара: Radio & TV Broadcasting Equipment >>>
- Поставщик (Оптовый магазин): Good,Mind,Electronics,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Place of Origin:Guangdong,China | ||||||||||||
Model Number:GDM-002(GTM-860E) | ||||||||||||
ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS | |||||||||
1. RF Output | ||||||||||||
Connector | Female TYPE-F | |||||||||||
Impedance | 75 ohms | |||||||||||
Output Frequency Range | CH5~CH74 | 177.5 MHz ~851.5MHz | ||||||||||
Low Band CH5~CH12 | 177.5 MHz ~226.5MHz | |||||||||||
High Band CH20~CH74 | 473.5MHz~851.5MHz | |||||||||||
RF Out Level | 97dBµV | 97dBµV ± 5dBµV | ||||||||||
RF Out Level ADJ | 0dBm~-30dBm | |||||||||||
MER | >30dB | |||||||||||
2. RF Input | ||||||||||||
Connector | Female TYPE-F | |||||||||||
Impedance | 75 ohms | |||||||||||
FREQ. RANGE | 50~ 950 MHz | |||||||||||
INSERTION LOSS | - 4.8dB | - 4.8 dB MAX. | ||||||||||
3.HDMI INPUT | ||||||||||||
Connector | HDMI JACK | |||||||||||
Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | |||||||||||
4.HDMI OUTPUT | ||||||||||||
Connector | HDMI JACK | |||||||||||
Needing the image and sound to export | There can’t be mosaic and The Sound is distorted | |||||||||||
Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P/4K | |||||||||||
5.Front Panel Function | ||||||||||||
Buttons | MENU | |||||||||||
ENTER | ||||||||||||
▲UP | ||||||||||||
▼Down | ||||||||||||
◀ Left | ||||||||||||
▶ Right | ||||||||||||
Display | LCD | |||||||||||
6. USB2.0 | ||||||||||||
Connector | USB2.0 JACK | |||||||||||
Signals | Firmware Update | |||||||||||
7. General Data | ||||||||||||
Software | Software Version | |||||||||||
Supply Voltage | AC100V~240V 50Hz/ 60Hz OUTPUT:DC12V/1A | |||||||||||
Power Consumption Max | 10W | 10W Max in AC input | ||||||||||
Working Temperature | +5℃ to + 40℃ | |||||||||||
Storage Temperature | -20℃ to + 65℃ | |||||||||||
Environmental | ||||||||||||
Temperature | 0℃ to + 40℃ | |||||||||||
Humidity | 40RH to 90RH | |||||||||||
Mechanical Specification | ||||||||||||
Dimensions | 172*126*32mm | |||||||||||
Weight | 0.6Kg approximate | |||||||||||
