Переключатель уровня воды в стиральной машине
US $1.00-$3.00

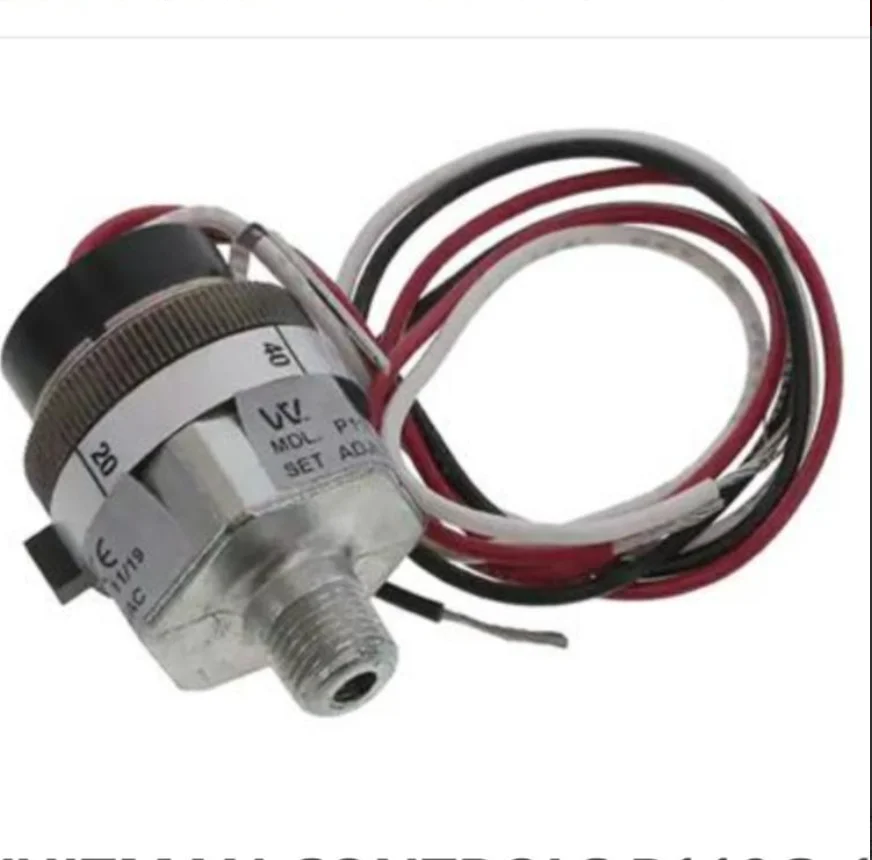

Whitman контролирует P119G цинка литья под давлением тела давления P119G-10H-C12TB
- Категория товара: Pressure Switches >>>
- Поставщик (Оптовый магазин): Shaanxi,Longjiemy,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification

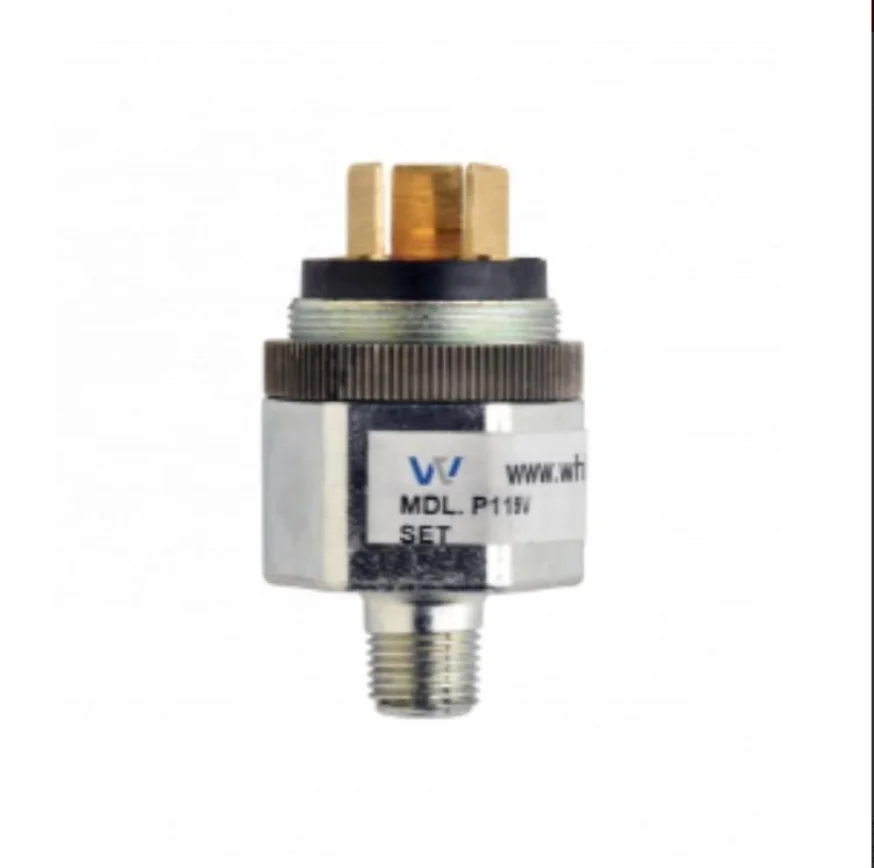

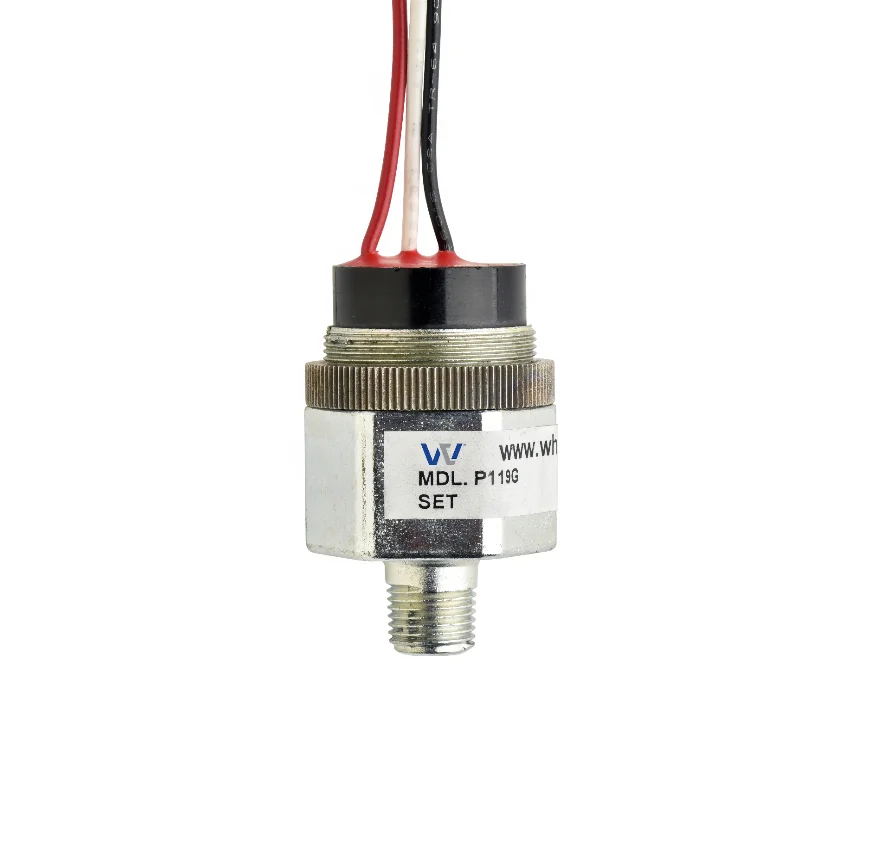

The Whitman Controls P119G Zinc Diecast Body Pressure Switches are the inexpensive version of the P117G and recommended for indoor
OEM use. It is used as a pressure limit switch on X-Ray tube and Cat Scan Tubes as well as a safety switch in numerous
applications. The compact nature of these switches make them ideal for tight spaces. They are available with a cast in ¼” NPT
fitting as an option. There are also several electrical interface options available.
Key Features:
* Zinc Diecast Body
* Set point options: Factory set, field adjustable, or a combination
* Extensive operating temperature range

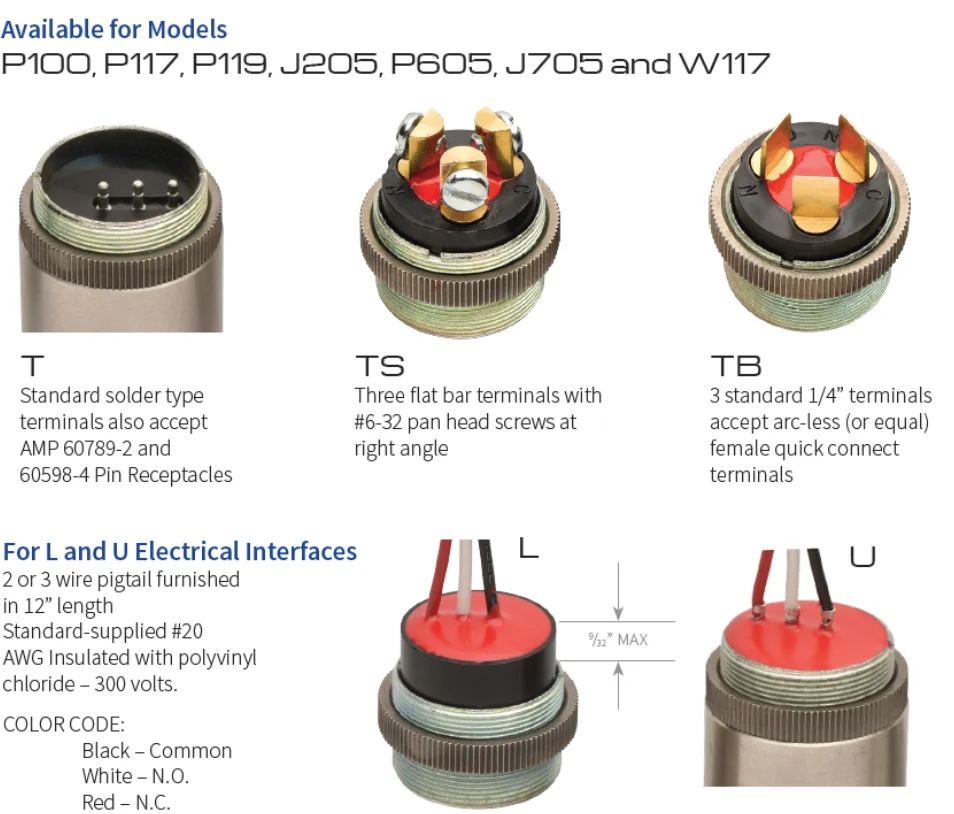

* Wide range of electrical interfaces available
* SPDT or SPST availability
Specifications:
* Set point range: 0.80 to 500 PSIG
* Max System pressure: 150% of sensor capacity
* Temperature range: -65°F to +225°F (-54°C to +107°C)
* Amps: 5 Amps Max
* Sensor Element: Capsule
* Weight: 2.0 oz (varies with electrical interface selection)
* Cycling: 3H/5H - Not to exceed 60 CPM, 10H/25H/50H - Not to exceed 20 CPM
* Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Body with Fitting: Round Body - Zamac 3 / Chromate finish, Hex Body - ZA8, chromate finish
Body: Anodized aluminum

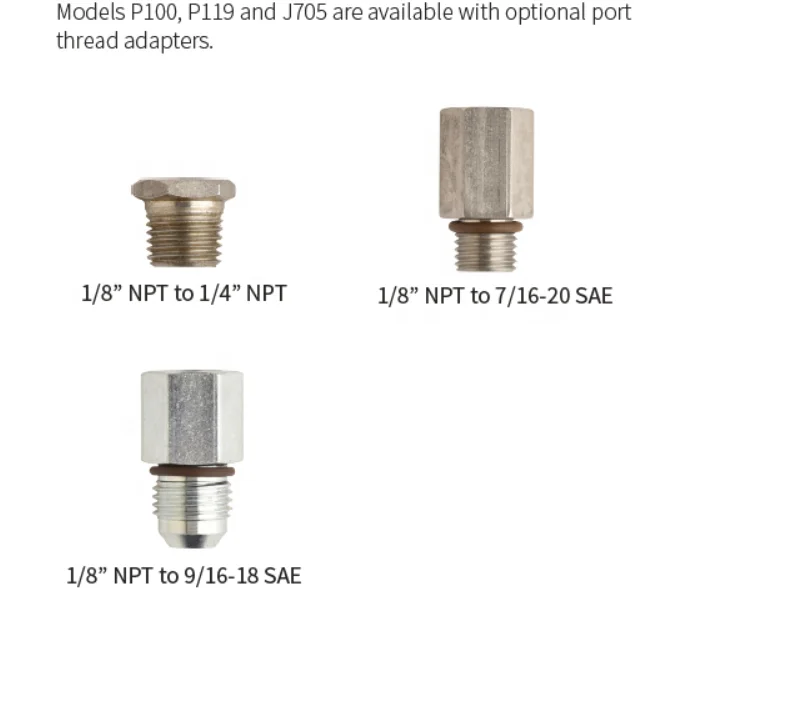

Standard Thread: ⅛-27 NPT male, Optional Threads: ¼-18 NPT male (Hex body only)
OEM use. It is used as a pressure limit switch on X-Ray tube and Cat Scan Tubes as well as a safety switch in numerous
applications. The compact nature of these switches make them ideal for tight spaces. They are available with a cast in ¼” NPT
fitting as an option. There are also several electrical interface options available.
Key Features:
* Zinc Diecast Body
* Set point options: Factory set, field adjustable, or a combination
* Extensive operating temperature range
* Wide range of electrical interfaces available
* SPDT or SPST availability
Specifications:
* Set point range: 0.80 to 500 PSIG
* Max System pressure: 150% of sensor capacity
* Temperature range: -65°F to +225°F (-54°C to +107°C)
* Amps: 5 Amps Max
* Sensor Element: Capsule
* Weight: 2.0 oz (varies with electrical interface selection)
* Cycling: 3H/5H - Not to exceed 60 CPM, 10H/25H/50H - Not to exceed 20 CPM
* Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Body with Fitting: Round Body - Zamac 3 / Chromate finish, Hex Body - ZA8, chromate finish
Body: Anodized aluminum
Standard Thread: ⅛-27 NPT male, Optional Threads: ¼-18 NPT male (Hex body only)
item | value |
Certification | CE; ISO9001 |
Whether the smart | Yes |
Place of Origin | American |
Brand Name | Whitman controls |
Model Number | P119G-10H-C12TB |
Max. Current | \t1 Amp |
Max. Voltage | 125 VAC |
Max. Working Pressure | 100 PSIG |
Product Description
