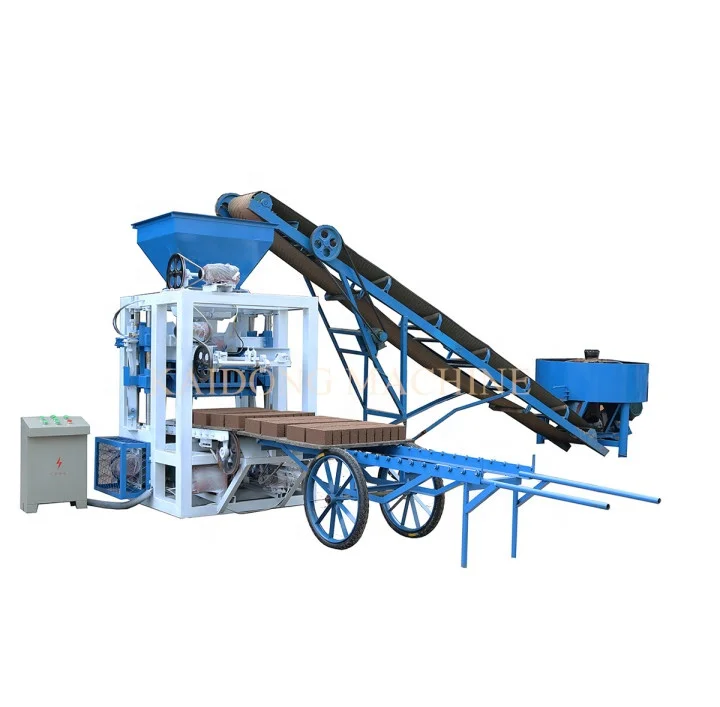

QT4-23A полуавтоматическая Заводская взаимозамыкающая машина для изготовления бетонных блоков для изготовления бетонна и пустотелого кирпича асфальтоукладчику кирпичному машины
- Категория товара: Brick Making Machinery >>>
- Поставщик (Оптовый магазин): Shandong,Kaidong,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Display
QT4-23A SEMI-AUTOMATIC MACHINE TECHNICAL PARAMETERS | ||||||||||
1 | Dimension of host machine | 2060×1730×2580mm | 6 | Host machine power | 13.45KW | |||||
2 | Moulding period | 25S | 7 | Vibration force | 33KN | |||||
3 | The size of the pallet | 850×550×25mm | 8 | Capacity | 22.05KW | |||||
4 | Weight of the machine | About 3T | 9 | Mixer model | JQ350 | |||||
5 | Voltage | 220V/240V/380V/415V/440V | 10 | Workers | 3 | |||||
QT4-25 Main technical parameter | ||||||||||
1 | Dimension of host machine | 3700x2100x2300 | 5 | total machine power | 18KW | |||||
2 | mould period | 20-24s | 6 | Vibration force | 35.5KN | |||||
3 | Pallet size | 850x550x25mm | 7 | Mixer model | JQ500 | |||||
4 | workshop area | 160m² | 8 | Voltage | 380V/415V/220V | |||||
QT4-35B SEMI-AUTOMATIC MACHINE TECHNICAL PARAMETERS | ||||||||||
1 | Dimension of host machine | 1350X1460X1800mm | 6 | Host machine power | 12KW | |||||
2 | Moulding period | 40S | 7 | Vibration force | 30KN | |||||
3 | The size of the pallet | 850×450×25mm | 8 | Capacity | 2600PCS | |||||
4 | Weight of the machine | About 1.2T | 9 | Mixer model | JQ350 | |||||
5 | Voltage | 220V/240V/380V/415V/440V | 10 | Workers | 3 | |||||
QT4-40 Main technical parameter | ||||||||||
1 | Dimension of host machine | 1350x1460x1700mm | 5 | total machine power | 16.3KW | |||||
2 | mould period | 40S | 6 | Vibration force | 30KN | |||||
3 | Pallet size | 850x450x25mm | 7 | Mixer model | JQ350 | |||||
4 | workshop area | 60m² | 8 | Voltage | 220V/380V/415V | |||||
Machine Details
Our Customers

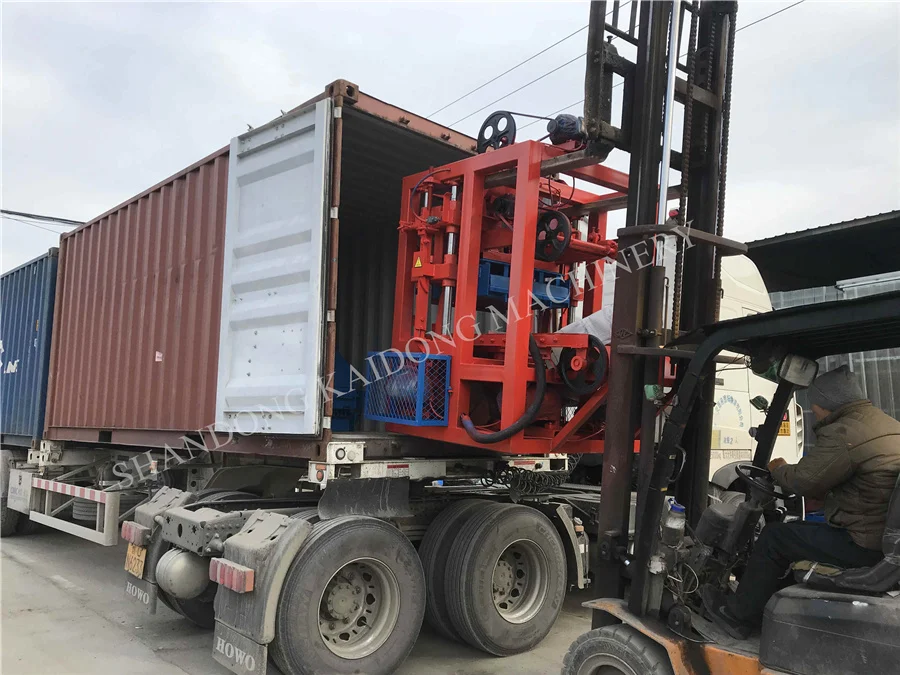

Packing & Delivery
