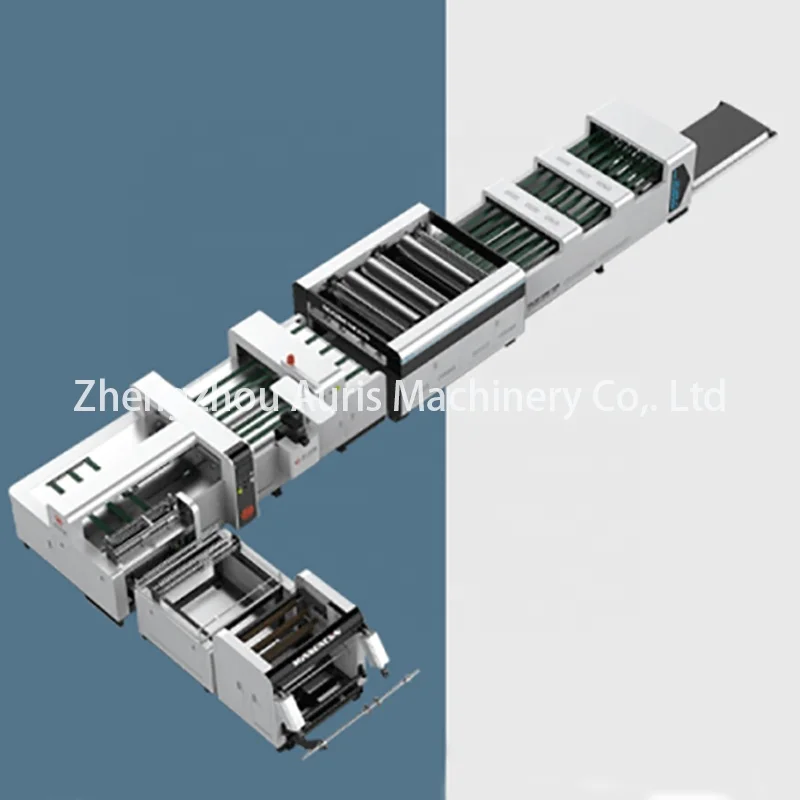

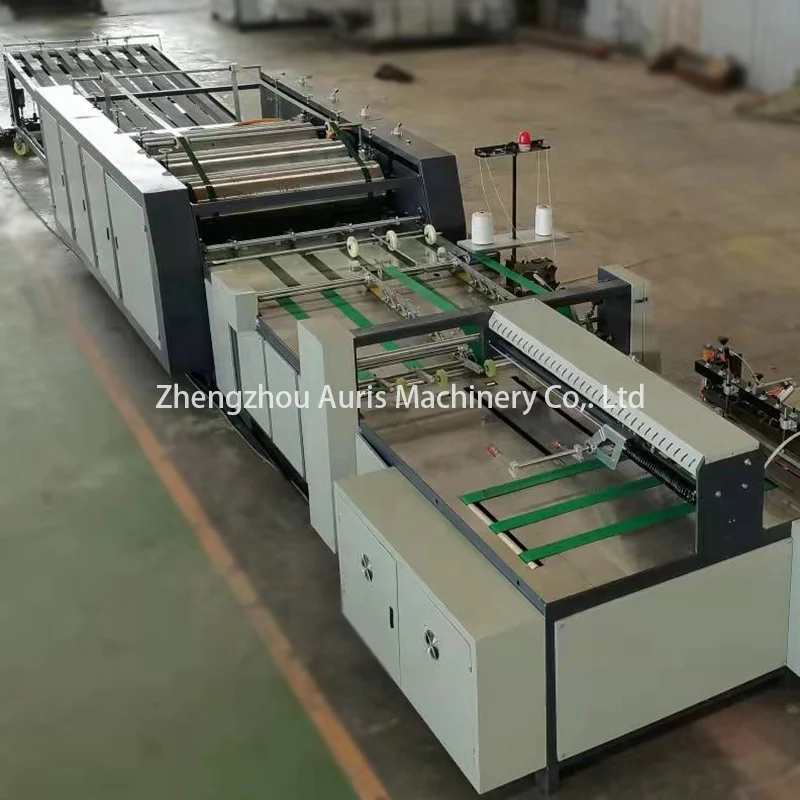

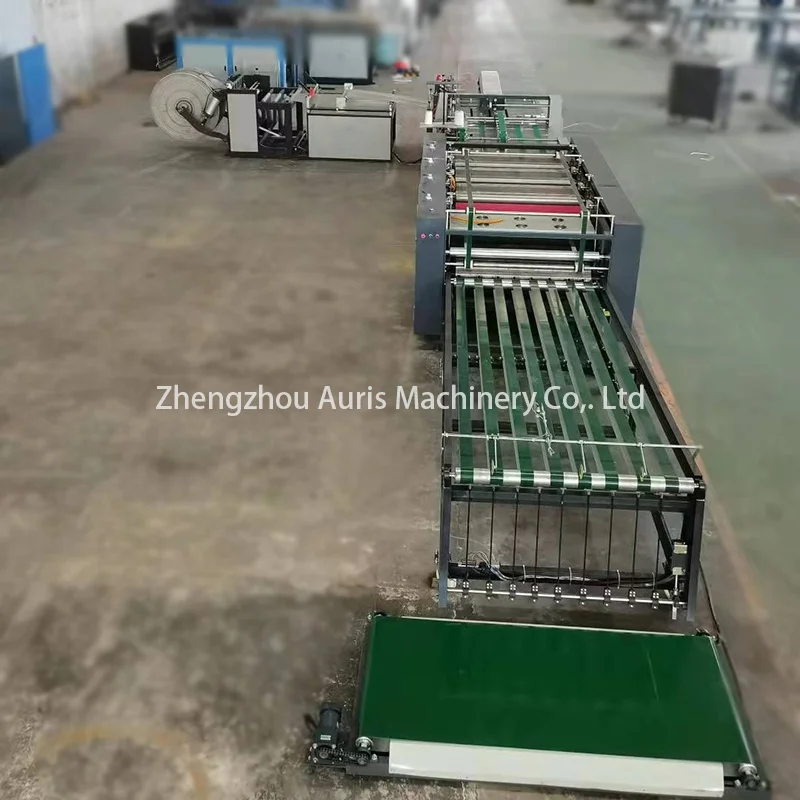

ПЛК-контроль, 3 дюйма, 4 цвета, плетеные мешки из ПП, цементные мешки, машина для производства резки, шитья, печати, сбора, изготовления
- Категория товара: Packaging Material Making Machine >>>
- Поставщик (Оптовый магазин): Zhengzhou,Auris,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
electric automatic multi color pp woven feed bags flour bags making cutting sewing printing maker machine
Servo PLC is used to centrally control the touch screen to set parameters, imported alloy smokeless knife is used for hot cutting, and servo motor is used to control flying knife for cold cutting. It has two functions of cold cutting and hot cutting, one key conversion. Discharge pneumatic lifting, automatic deviation correction, automatic bench marking, automatic length setting, cutting, automatic folding, automatic sewing, automatic thread breaking, automatic printing, counting and bag folding of cylinder cloth. Automatic mouth rubbing after hot rolling, the mouth of the bag is not sticky and easy to open. It adopts manipulator transportation, with fast speed and stable performance. A series of functions such as automatic alarm or shutdown when the line is broken. Accurate printing color registration, uniform ink transfer, equipped with automatic drying device. Simple and fast operation, high output and less energy consumption.
There are 1-6 color can be chosen. And there are other models, more information please contact us freely.
Product Parameters
Model | AGT |
Maximum width range | 300-800mm |
Maximum length range | 470-1280mm |
Maximum printing width | 800mm |
Maximum printing length | 1200mm |
Hem width | 20-30mm |
Production capacity | 40-55 pcs/min |
Power | 18kw |
Stitch space | 8-12mm |
Operator | 1 person |
Installation dimension | 13000*5500*1500mm |
Weight | 3.5t |

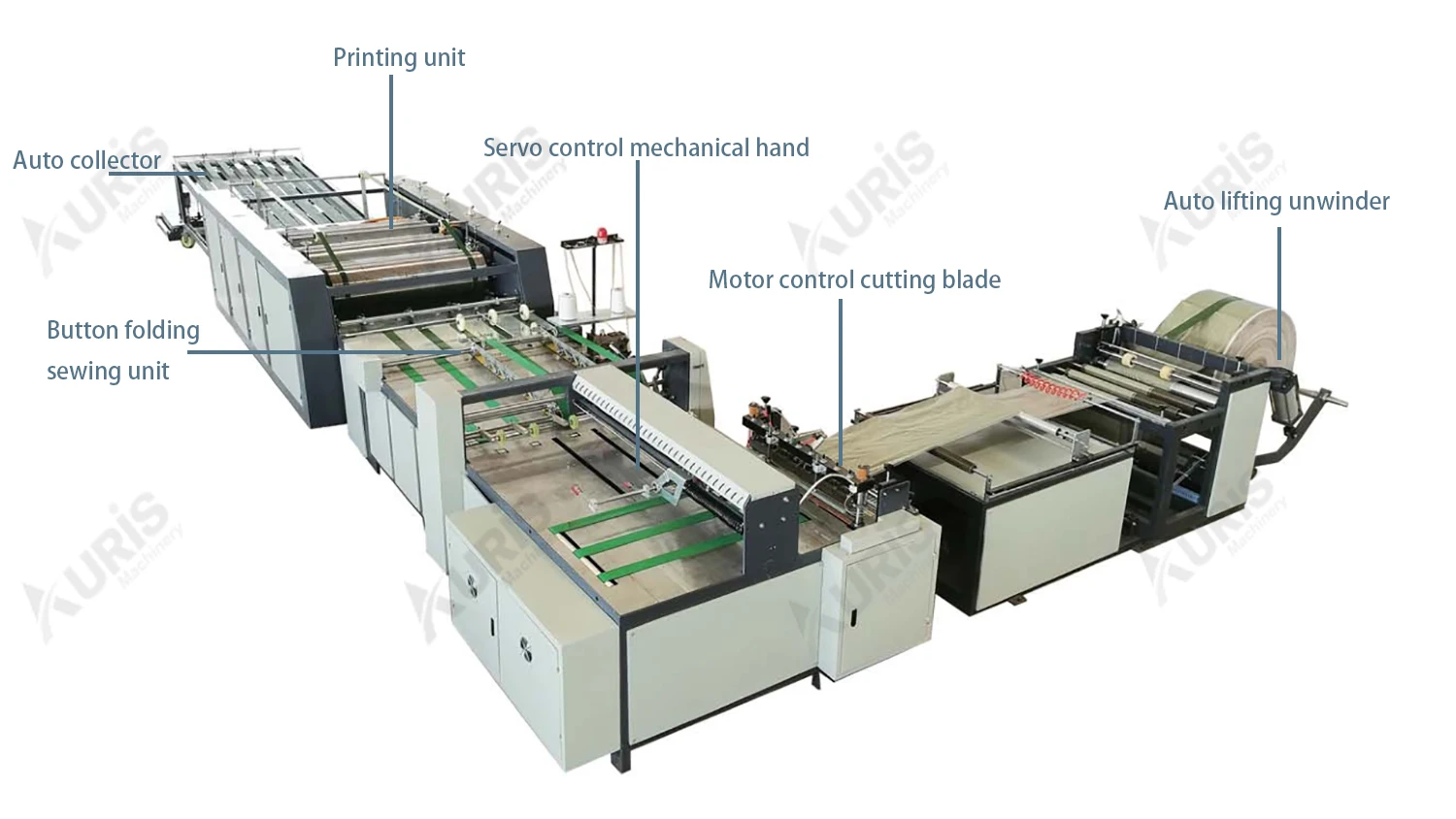

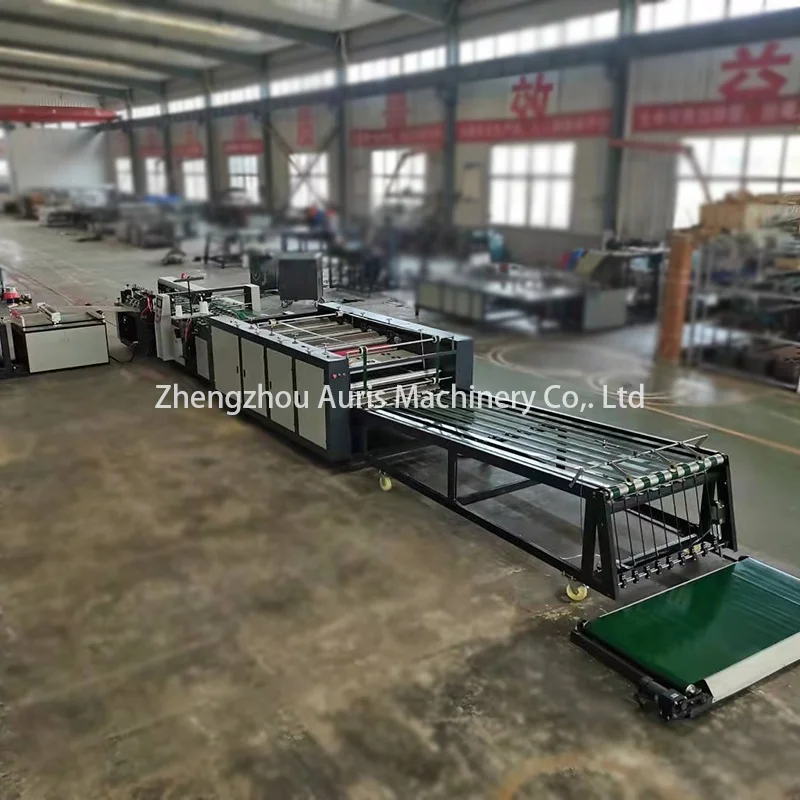

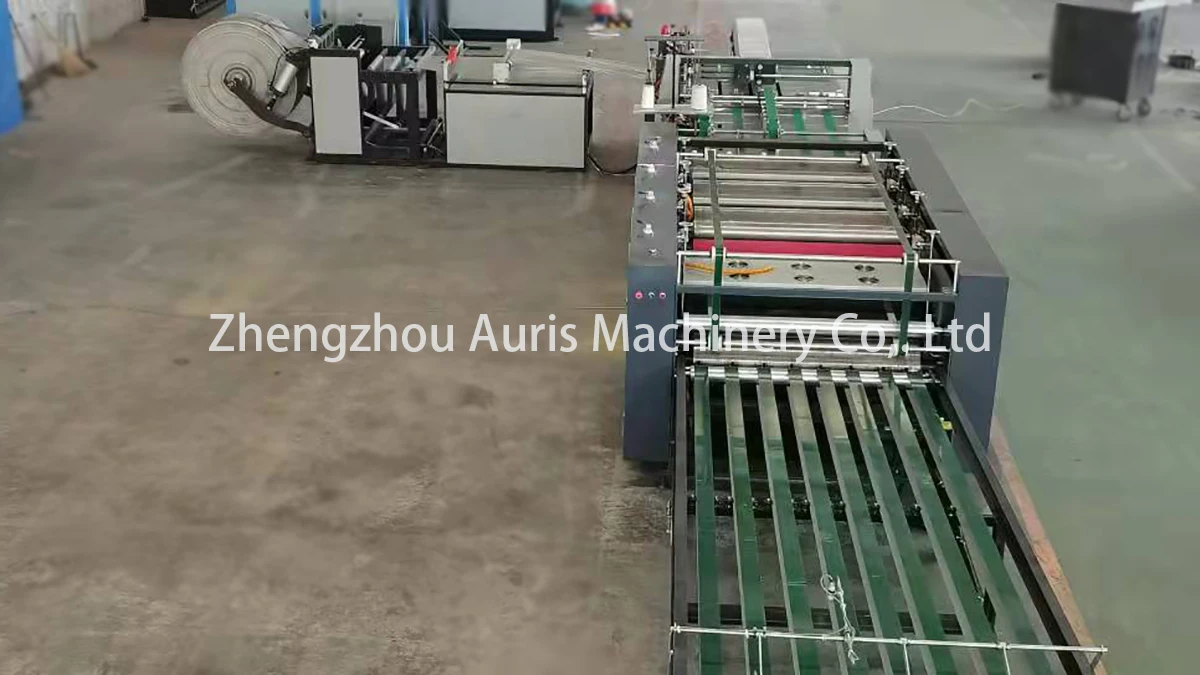

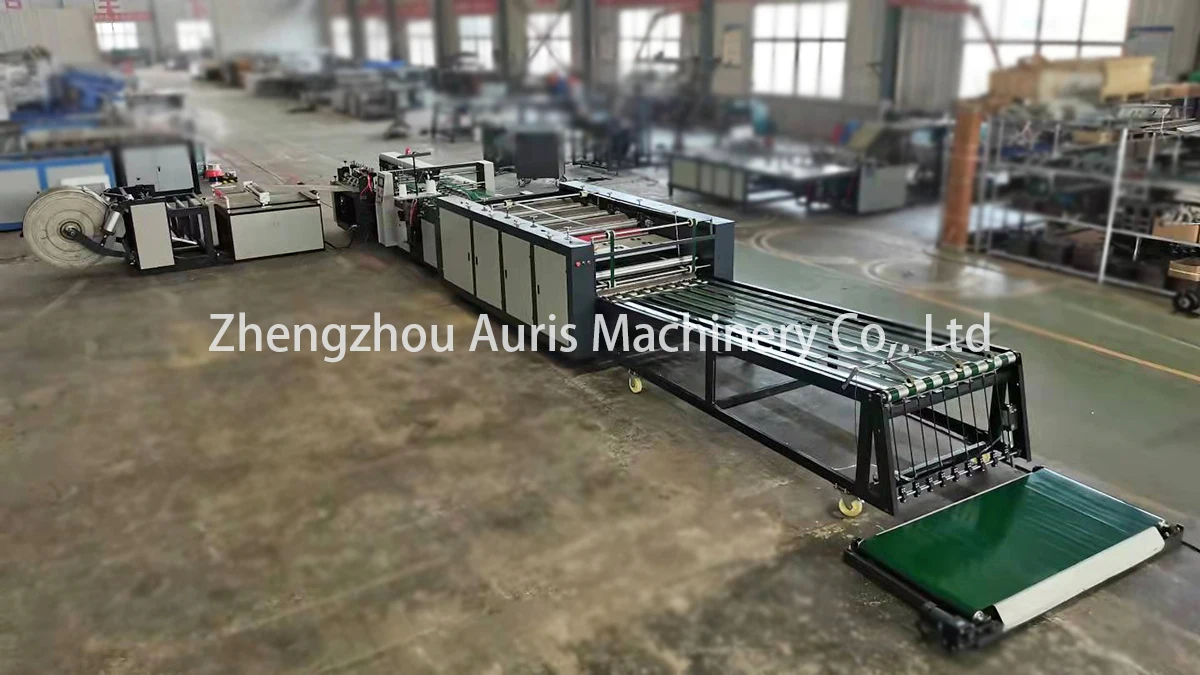

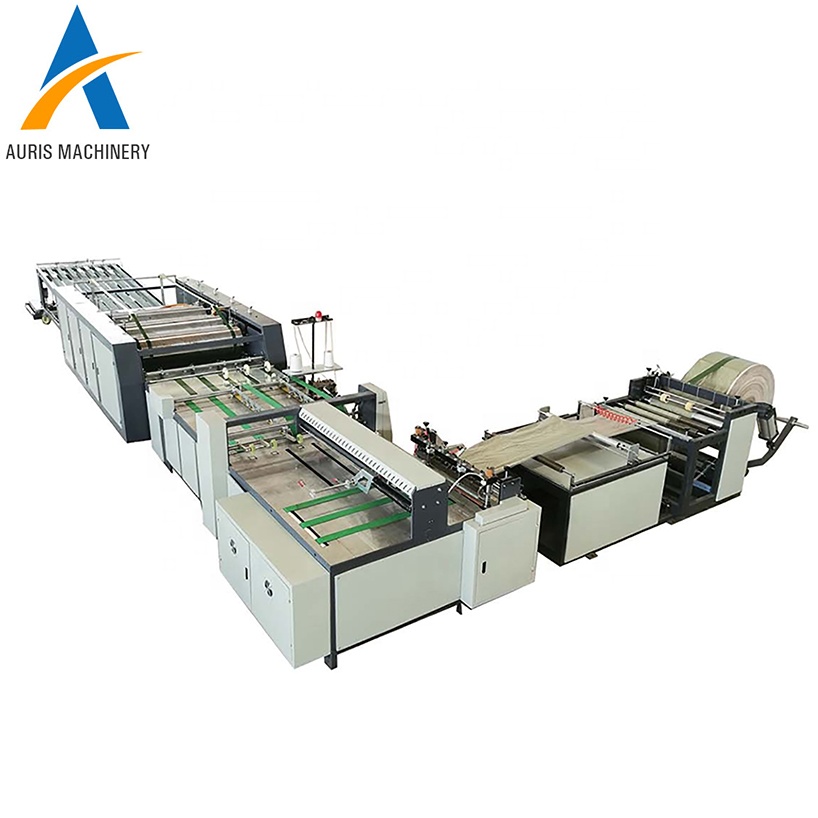

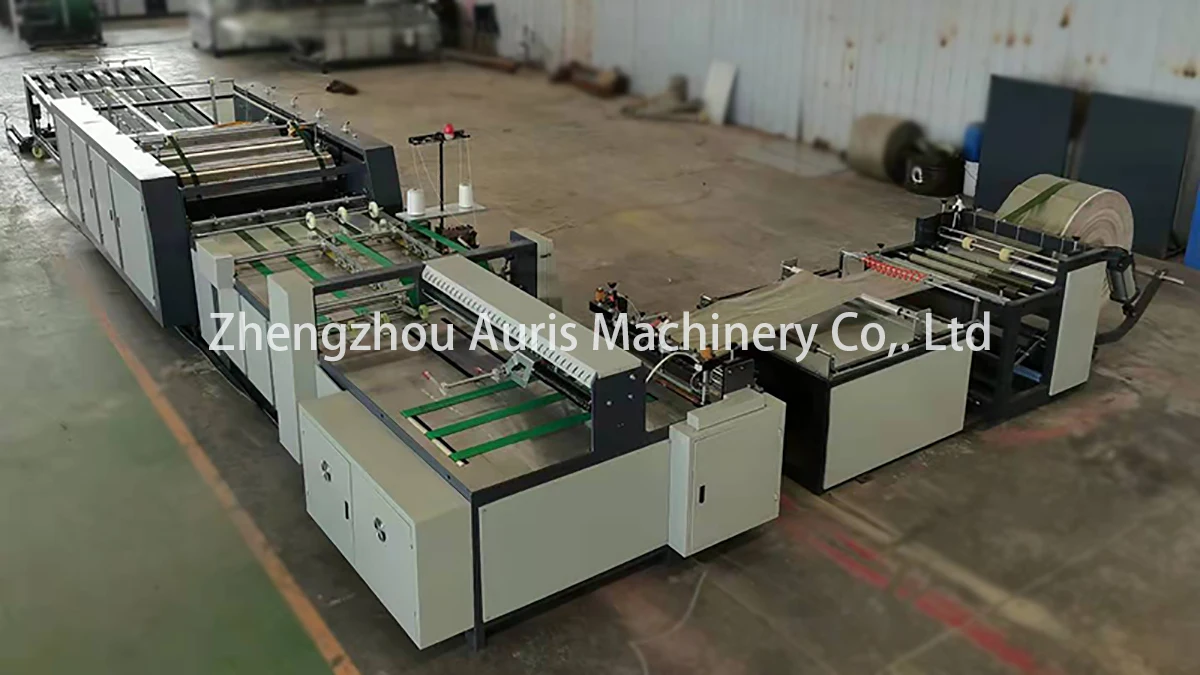

Product Pictures
Detailed Pictures

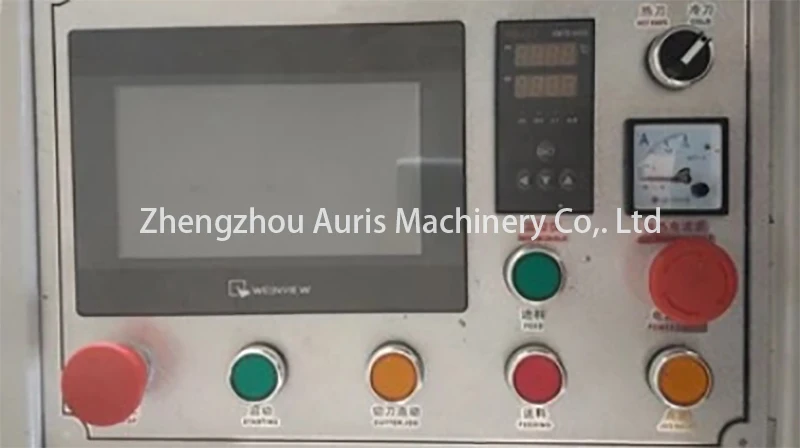

With touch screen operation, simple and intuitive, high automation level, system alarm.

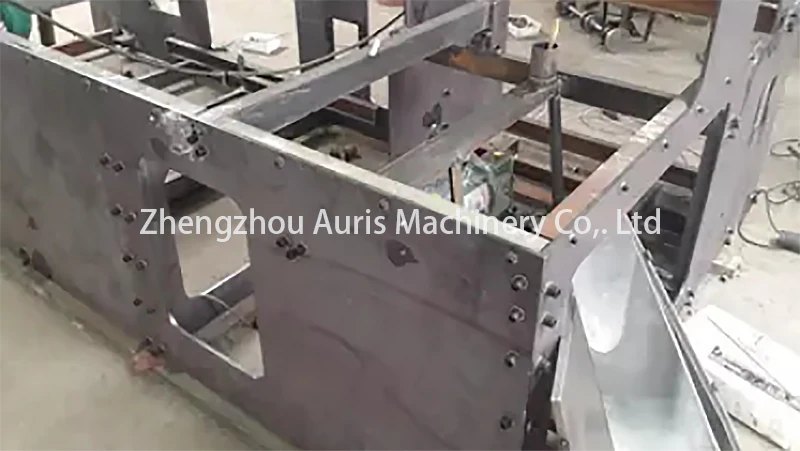

The whole frame is made of 10mm thick steel plate.

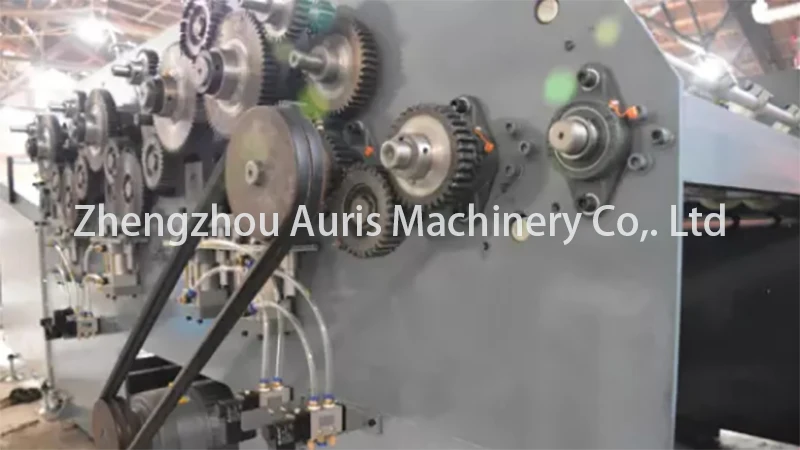

The printing press is made of 10mm thick steel plate and u-shaped steel. It adopts 4.5cm thick iron gear to ensure printing accuracy.

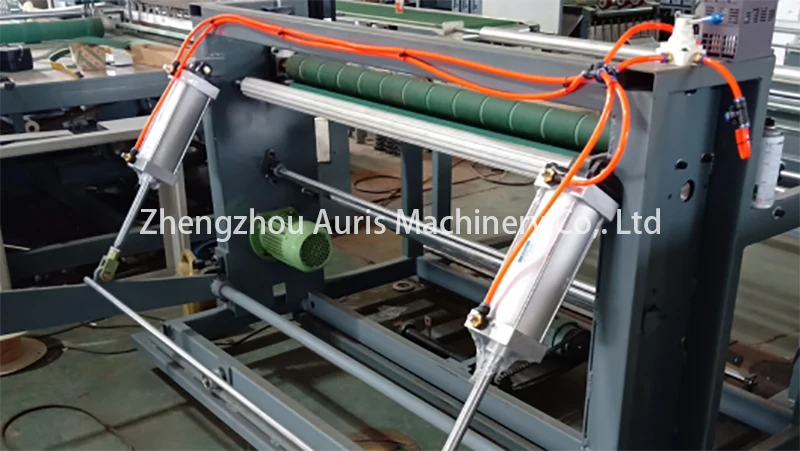

Pneumatic lifting up and down, easy to operate.

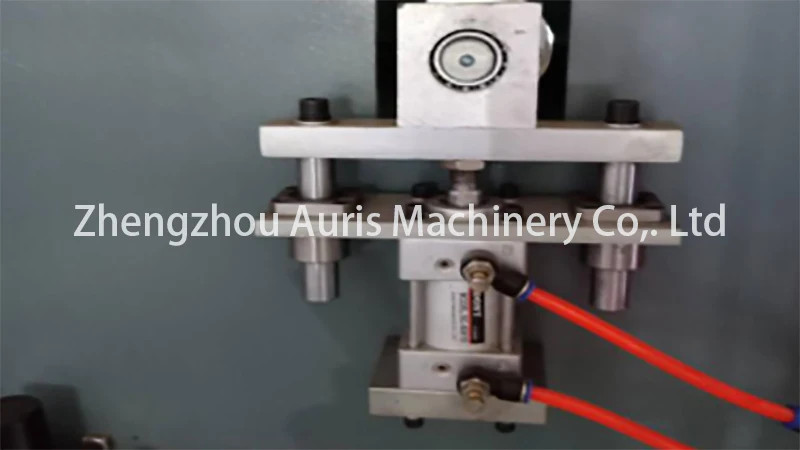

It adopts photoelectric induction pneumatic clutch and mechanical up and down lifting method, which is durable and stable.

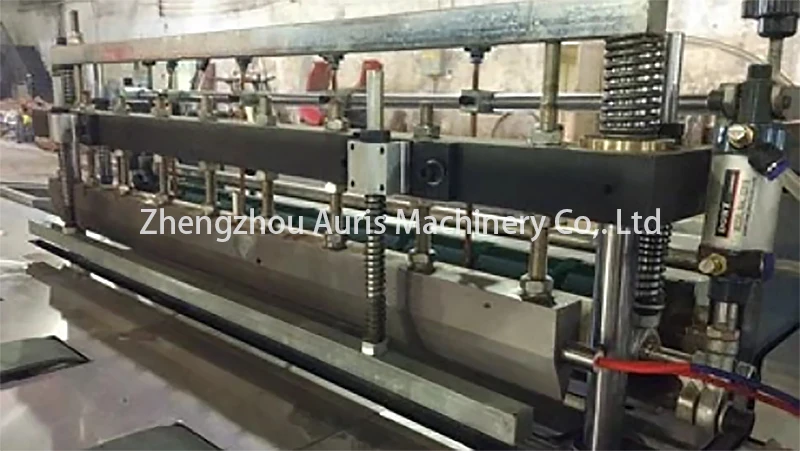

Motor control cold cutting blade to make cutting easier without frequent adjustments.
End Product
