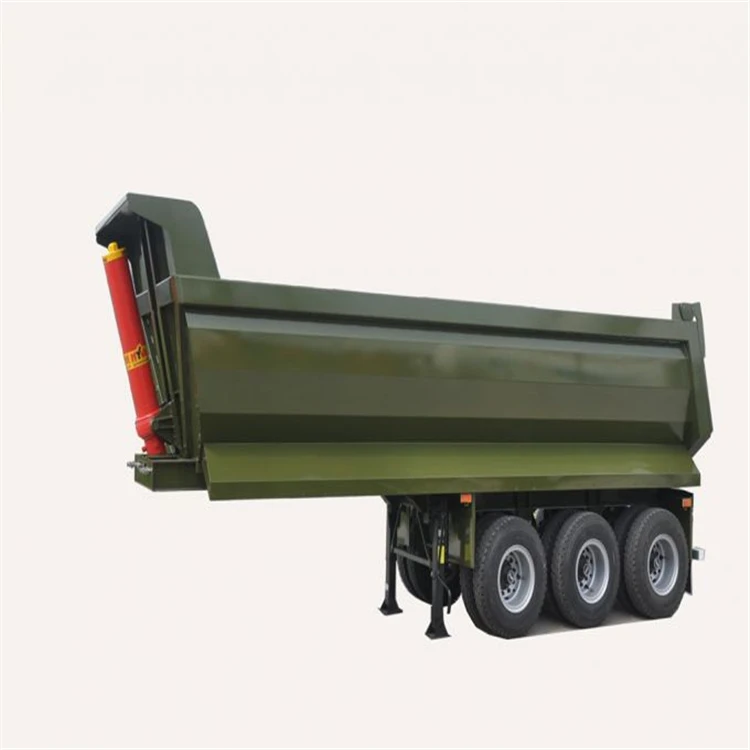

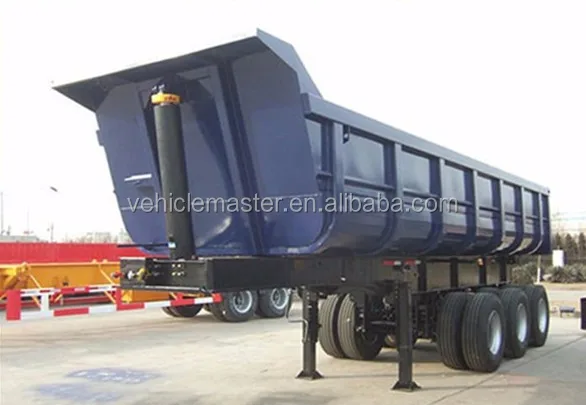

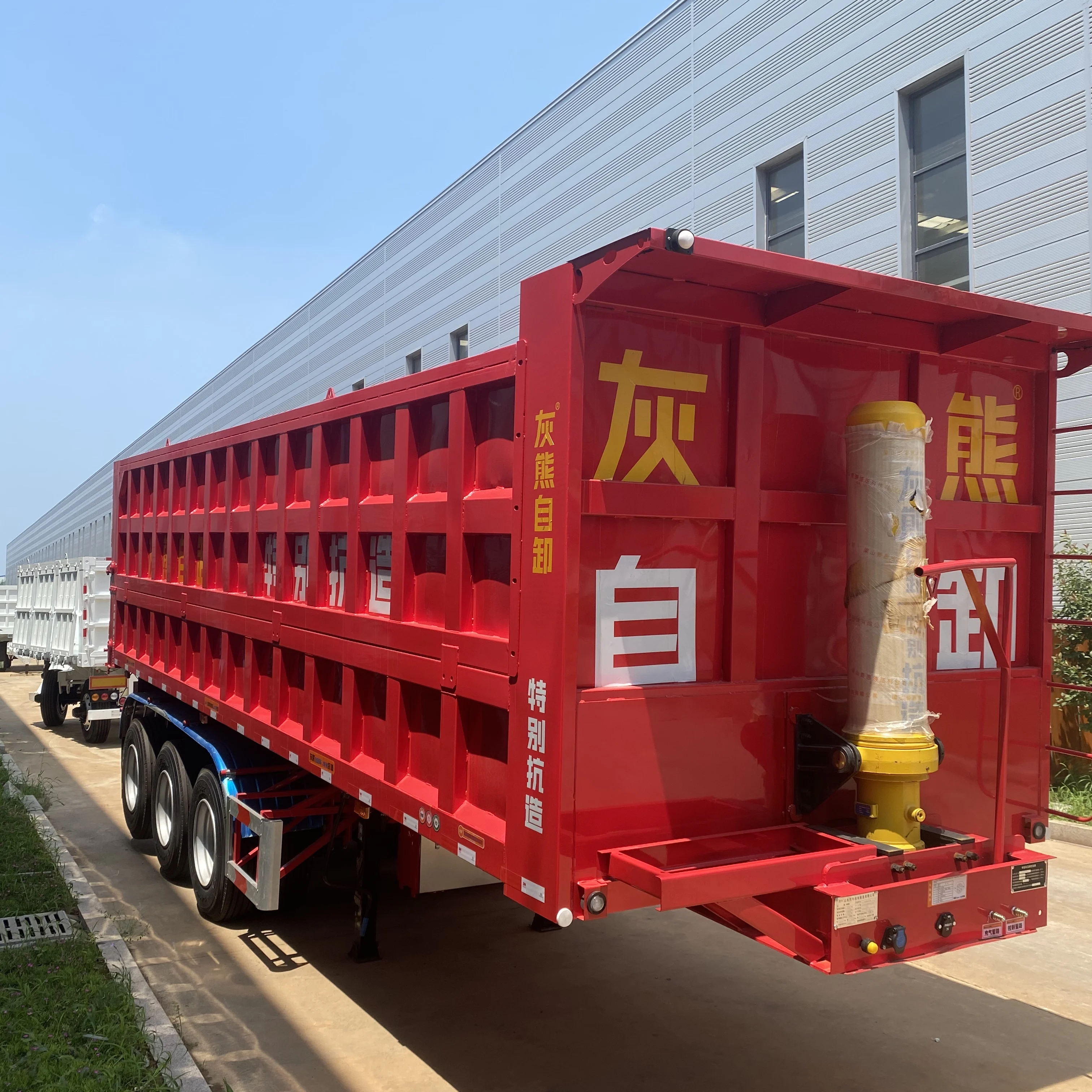

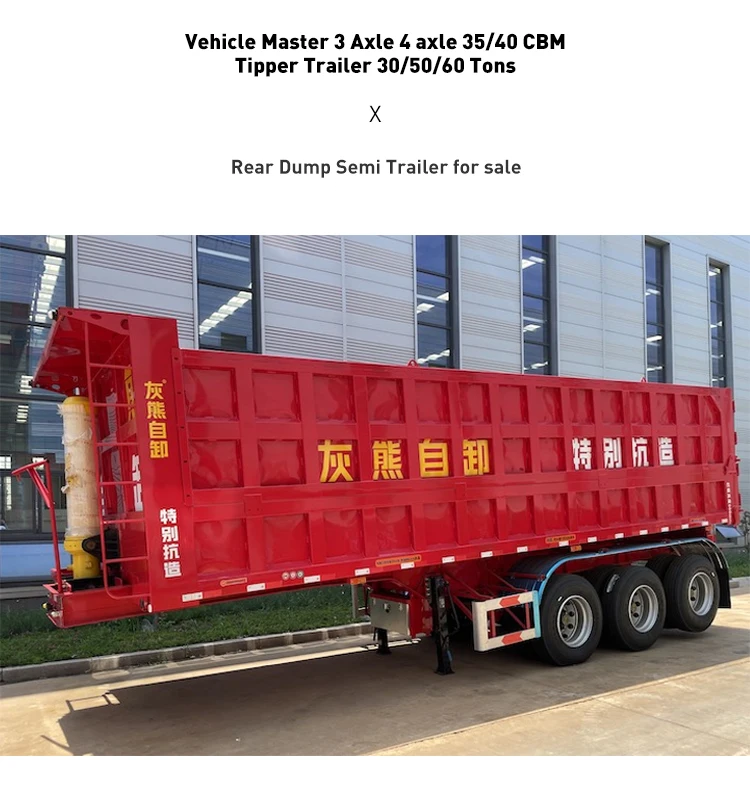

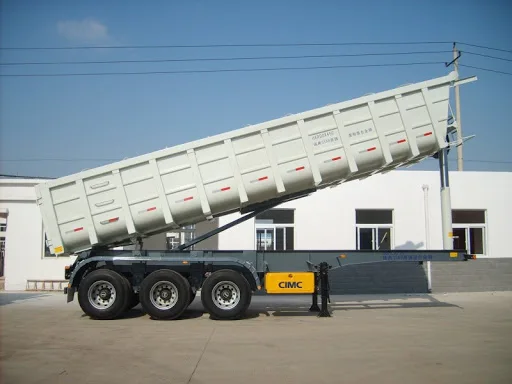

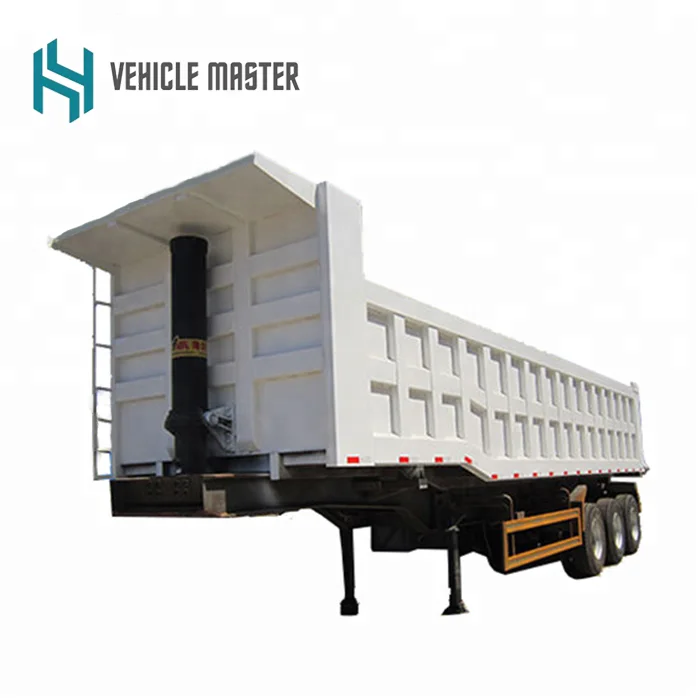

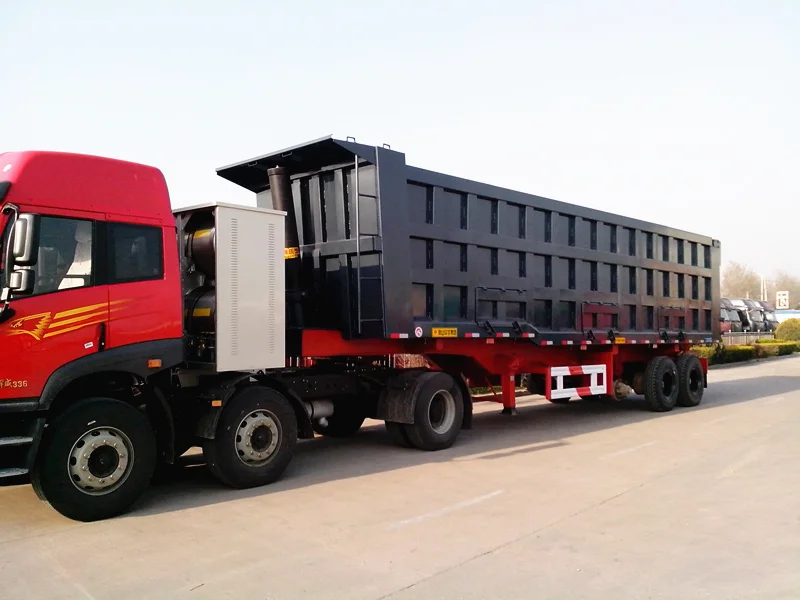

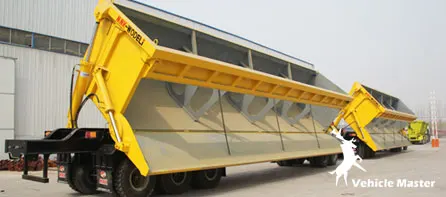

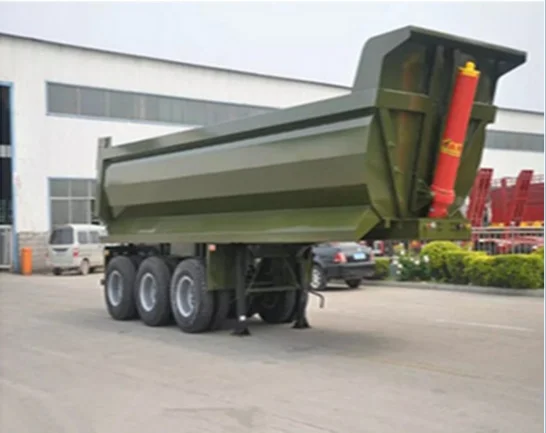

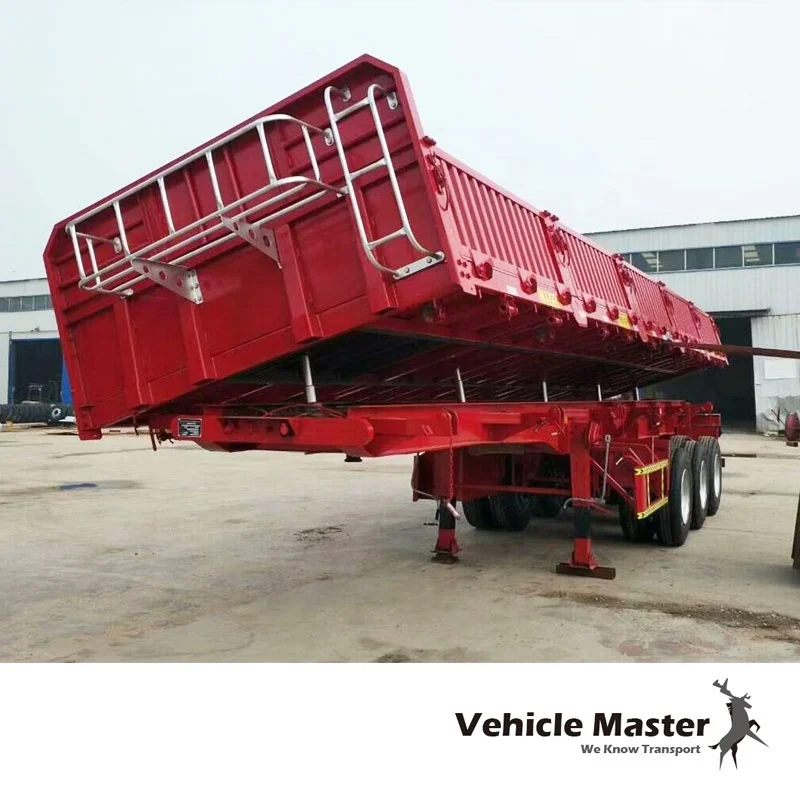

40-тонный u-образный транспортный самосвал полуприцеп
- Категория товара: Trailers >>>
- Поставщик (Оптовый магазин): Shandong,Haoyue,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Item | Specification |
Brand | Vehicle Master |
Application | Coal/Mine/Stand/Stone Loading |
Dump Style | Rear Dump |
Loading Capacity | 30T-100T |
Axle | 2/3/4*13/16T VEHICLE MASTER/FUWA/BPW |
Length | 11000mm |
Width | 2500mm |
Height | 2800mm |

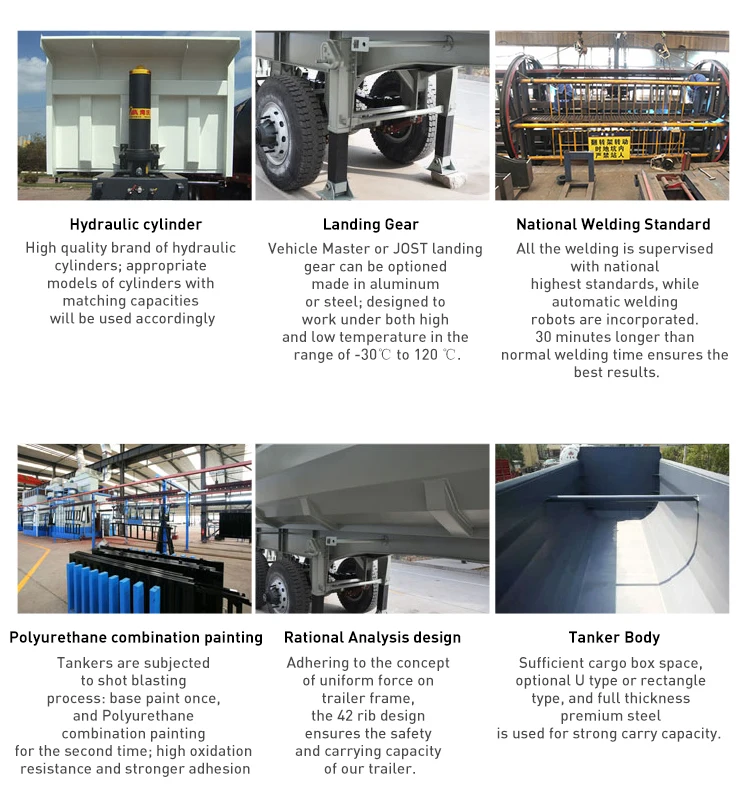

Cylinder | HYVA (model is according to the length of cargo box) |
Floor Plate Thickness | 5mm |
Cargo Thickness | 4mm |
Cargo Style | Rectanglular/Round |
Front Axle Lifting | Available |

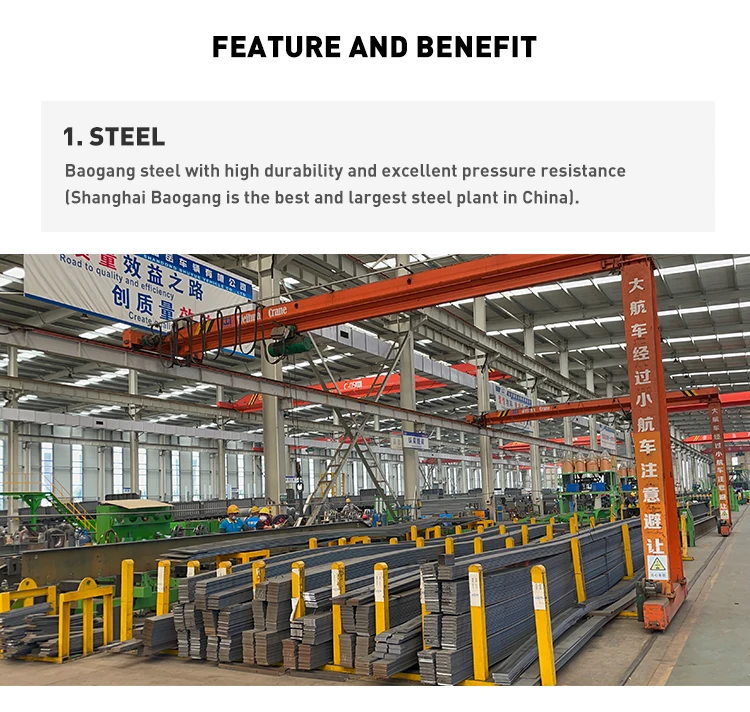

Main Beam | Material Q345/T700 |
Height: 500mm | |
Upper Plate: 14mm | |
Middle Plate: 8mm | |
Lower Plate: 16mm | |
Tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
Suspension | Mechanical/Airbag |
Leaf Spring | 90mm*13/16mm*10 pieces |
Landing Gear | 28T two-speed, JOST |
King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
Tool Box | Steel/aluminum |
