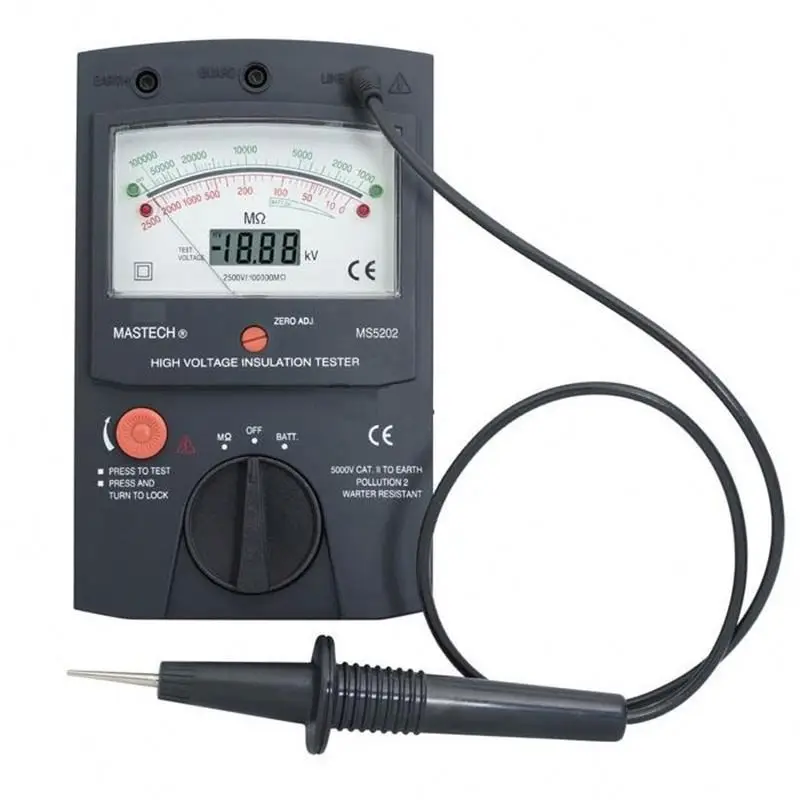

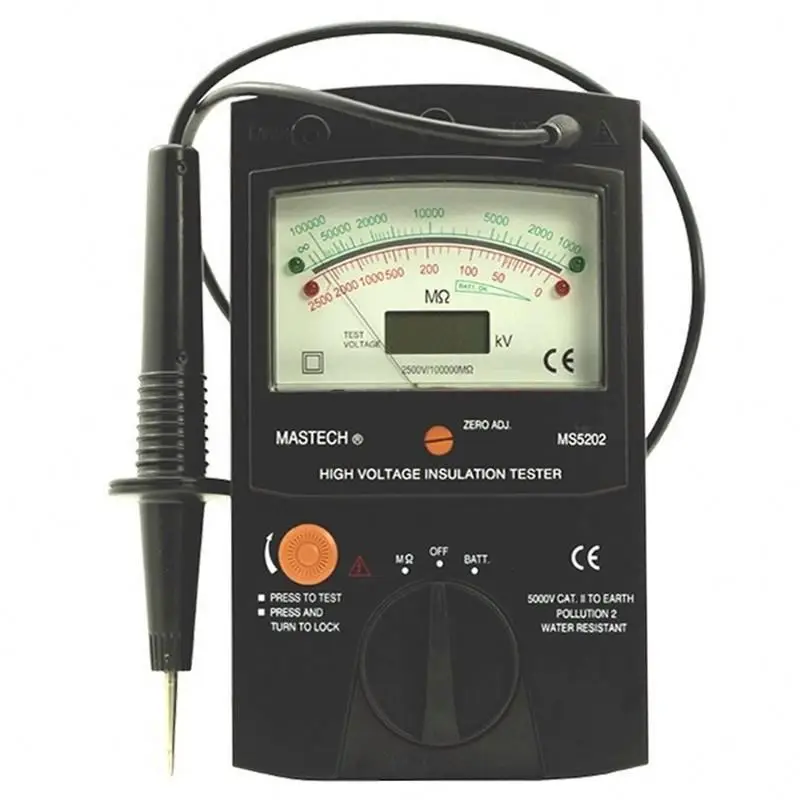

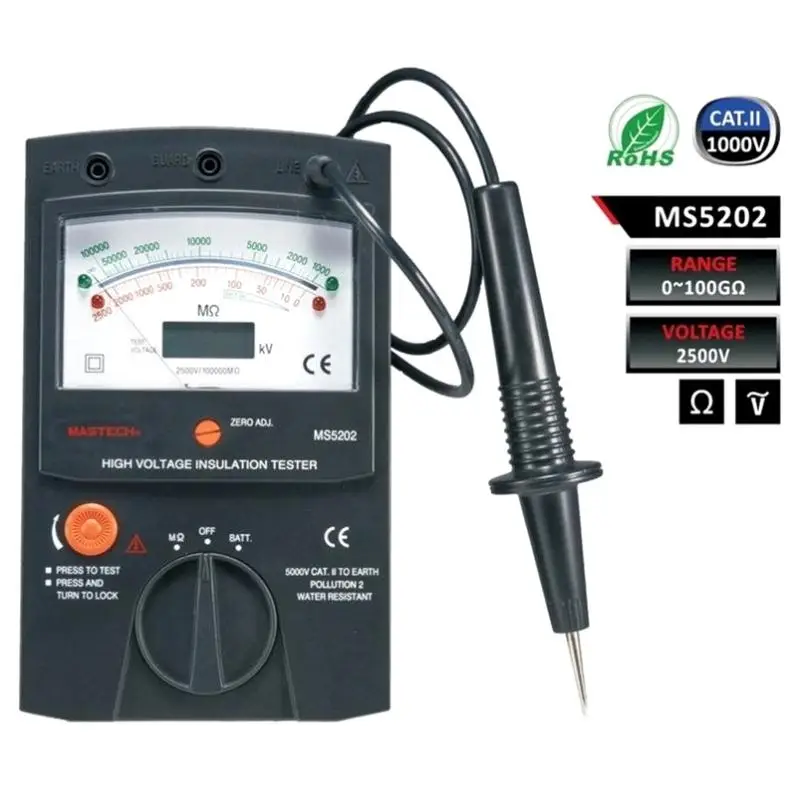

MASTECH MS5202 цифровой/аналоговый/двойной дисплей/указатель мегометр тестер сопротивления изоляции до 2500 в 100000

MASTECH MS5202 Digital/Analogue/Dual Display/Pointer Megger Megometro Insulation Resistance Tester Max to 2500V 100000 Mohm

Features
Dual measuring switch to avoid incorrect operation
Test insulation up to 100000Mohms at 2500V
Low battery indication
Inner battery test function is provided
Design according to the IEC1010-1 Standard CAT.II 5000V

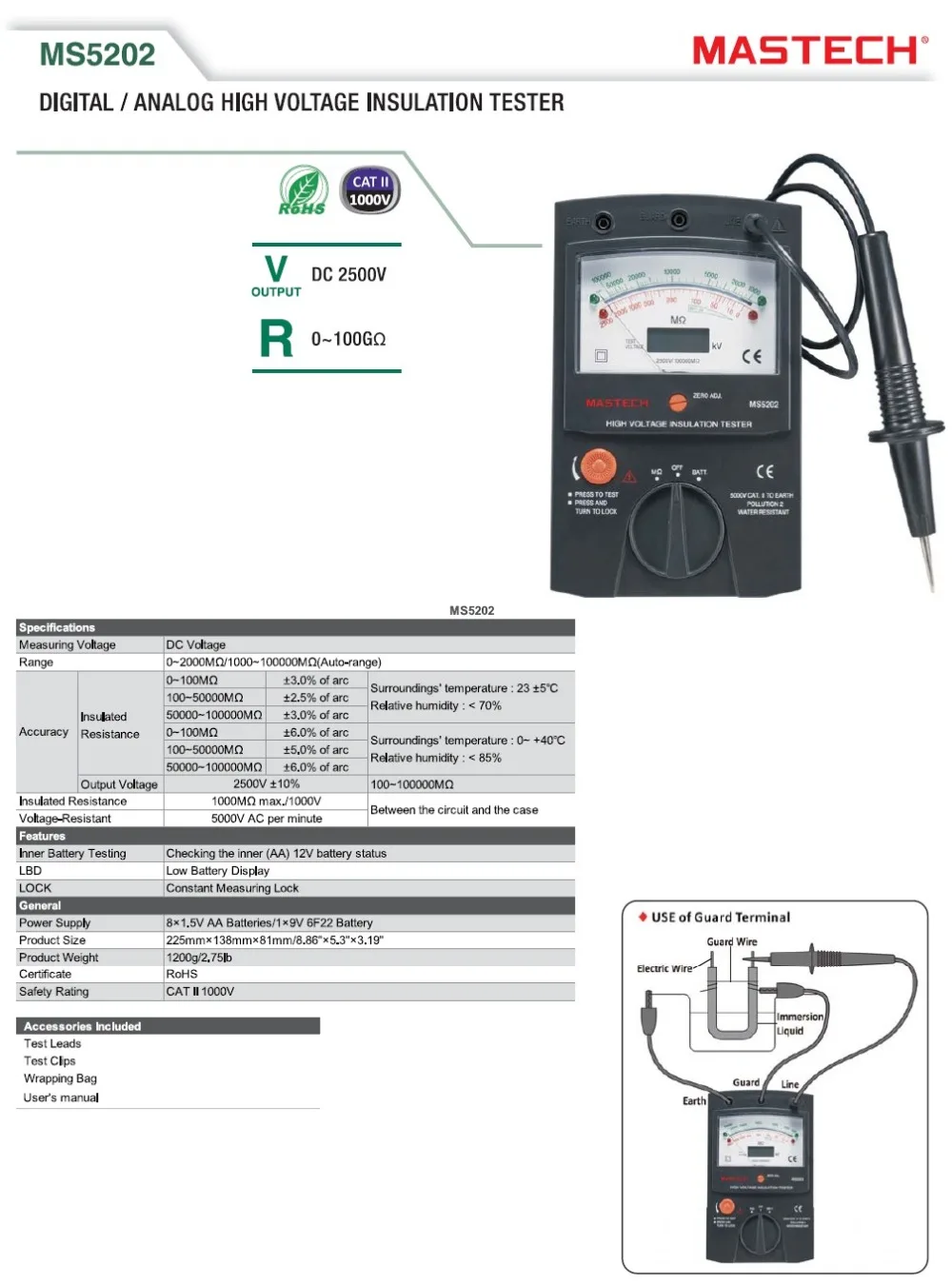

Specifications
Output voltage: DC 2500V±10%
Measuring range: 0 to 100M ohms, ±3% of arc; 100M ohms to 50000M ohms, ±2.5% of arc; 50000M ohms to 100000M ohms, ±3% of arc
Test voltage display: LCD
Measuring method: Dual-slope integration A/D converter
Sampling time: Approx.0.4 second
Power supply: 8*1.5V AA battery or 1*9V (6F22, 1604) battery (not included)
Power consumption: Approx.140mA (12V), Approx.2mA (9V)
Operating temperature: 0 to 40 Centigrade (32 to 104 Fahrenheit)
Operating humidity: =<85% R.H
Storage temperature: -10 to 50 Centigrade (10 to 122 Fahrenheit)
Dimension: 225*135*81mm

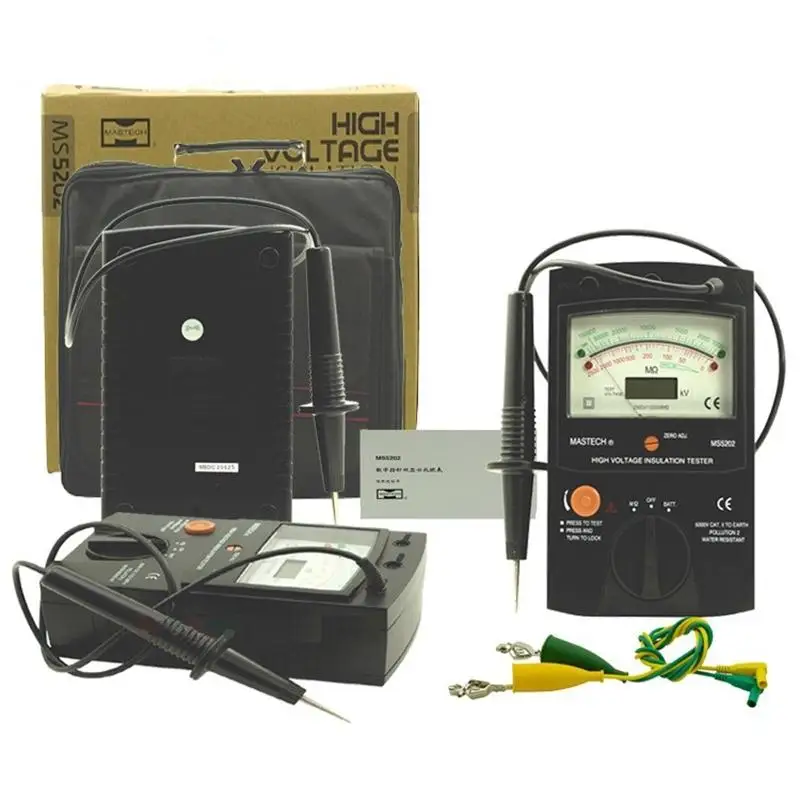

Package includes
1 * MS5202 Insulation Tester
1 * Test line
1 * Test clips
1 * User manual
