начес крышка делая машину
US $9200
Высокоскоростная машина для изготовления крышек, одноразовая машина для изготовления пластиковых крышек
- Категория товара: Cap Making Machines >>>
- Поставщик (Оптовый магазин): Shenzhen,Aituo,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Size of finished product flat: 25cm， stretching: 44/48/52cm
Production speed 120--180pcs/min
Host 1.5kw
Frequency converter 1.5kw
Total power 6kw
Dimensions 3500*1200*1800mm
Weight 750kg
Production speed 120--180pcs/min
Host 1.5kw
Frequency converter 1.5kw
Total power 6kw
Dimensions 3500*1200*1800mm
Weight 750kg
Performance and features:
1.This machine can produce disposable dust-proof non-woven strip caps of non-woven materials and plastic film materials. This machine has the advantages of good quality, low price and high output, saving labor and reducing costs, which can be based on customer requirements. Custom made.
2.The machine is automated. Automated operations from raw material feed to laminate to product count. Ultra-high power ultrasonic welding is used to effectively fix both ends of the non-woven fabric and the elastic band. From the raw material feeding to the finished product, the whole process is automated, and the computer stepless speed regulation operation is more flexible, and only one staff member is needed for the whole process.
3. Variable frequency control speed regulation.
4. Directly out of the finished product at one time.
5. Automatic constant temperature control.
6.Ultrasonic welding combined with electric heating to make the product more comfortable and firm.
7. The main components are made of aluminum to make the machine lighter and smoother.
Equipment process:
The equipment adopts ultrasonic heat sealing method, frequency conversion speed regulation, and produces non-woven materials and plastic film materials. The disposable dust-proof non-woven strip caps are integrated into the finished product from feeding to finished products.
Production Process:
Automated feeding - introduction - folding - welding - forming cut
Two options:
Our machine can produce two styles, one is iron frame and the other is aluminum frame. (Optional with PLC touch screen)
Parameters：
Raw material width 480mm
Width of finished product 2cm
Non woven fabric thickness 10-18g
Unwinding diameter 600mm
1.This machine can produce disposable dust-proof non-woven strip caps of non-woven materials and plastic film materials. This machine has the advantages of good quality, low price and high output, saving labor and reducing costs, which can be based on customer requirements. Custom made.
2.The machine is automated. Automated operations from raw material feed to laminate to product count. Ultra-high power ultrasonic welding is used to effectively fix both ends of the non-woven fabric and the elastic band. From the raw material feeding to the finished product, the whole process is automated, and the computer stepless speed regulation operation is more flexible, and only one staff member is needed for the whole process.
3. Variable frequency control speed regulation.
4. Directly out of the finished product at one time.
5. Automatic constant temperature control.
6.Ultrasonic welding combined with electric heating to make the product more comfortable and firm.
7. The main components are made of aluminum to make the machine lighter and smoother.
Equipment process:
The equipment adopts ultrasonic heat sealing method, frequency conversion speed regulation, and produces non-woven materials and plastic film materials. The disposable dust-proof non-woven strip caps are integrated into the finished product from feeding to finished products.
Production Process:
Automated feeding - introduction - folding - welding - forming cut
Two options:
Our machine can produce two styles, one is iron frame and the other is aluminum frame. (Optional with PLC touch screen)
Parameters：
Raw material width 480mm
Width of finished product 2cm
Non woven fabric thickness 10-18g
Unwinding diameter 600mm
Detailed Images
We will send to you within 7-10 working days
After Sales Service

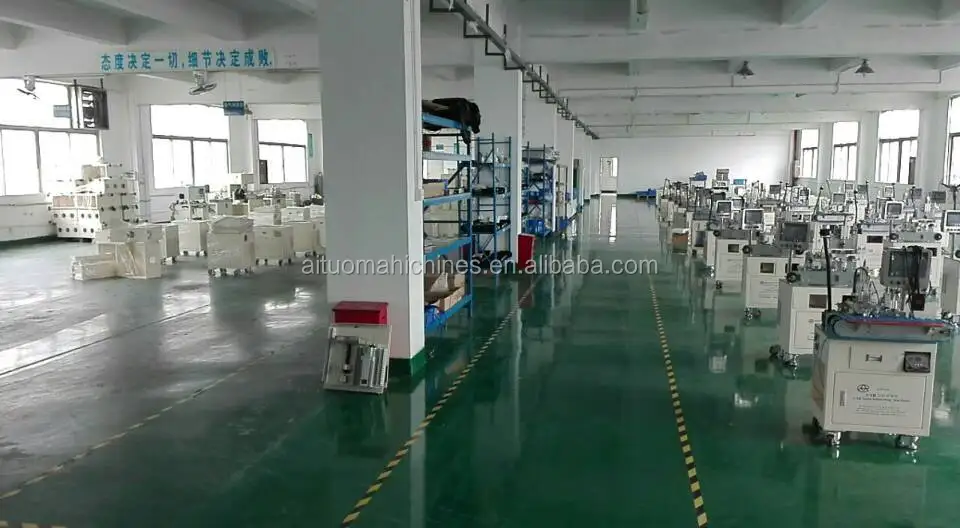

Company Introduction
