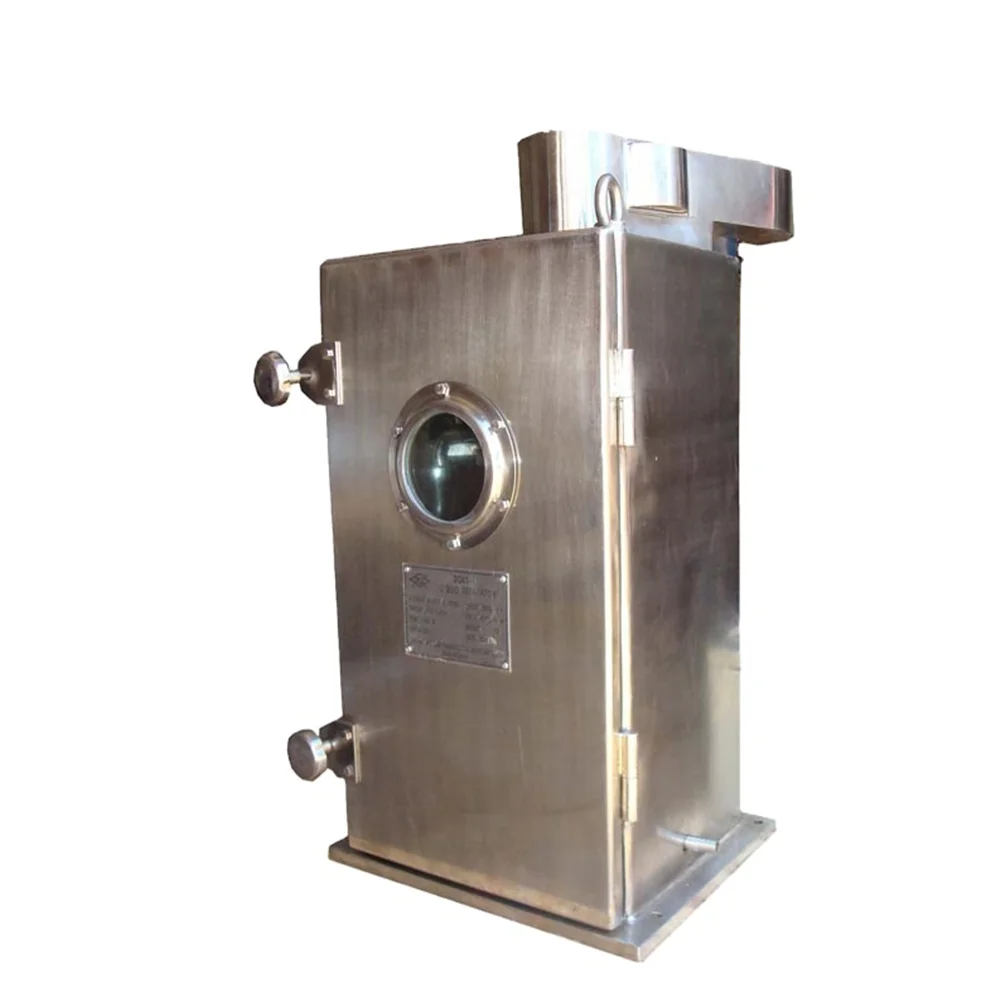

Высокоточная трубчатая центрифуга для сбора
- Категория товара: Chemical Machinery & Equipment >>>
- Поставщик (Оптовый магазин): Liaoning,Zonelink,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Noted:product name: centrifugal tube yeast centrifuge tubular separator centrifuge blood
The page price is only for reference only, please contact the sales at the bottom of the page, they will quote for you according to the actual situation of your needs.thank you
The page price is only for reference only, please contact the sales at the bottom of the page, they will quote for you according to the actual situation of your needs.thank you
VR

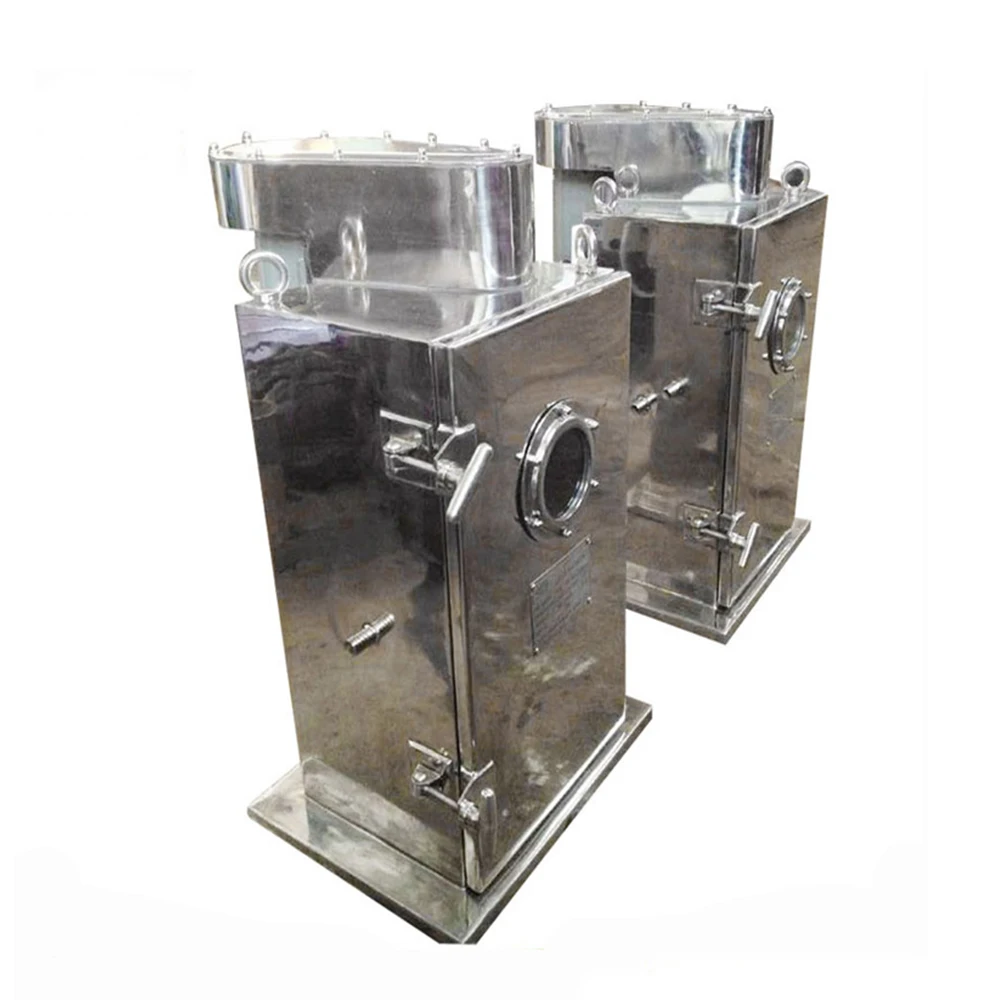

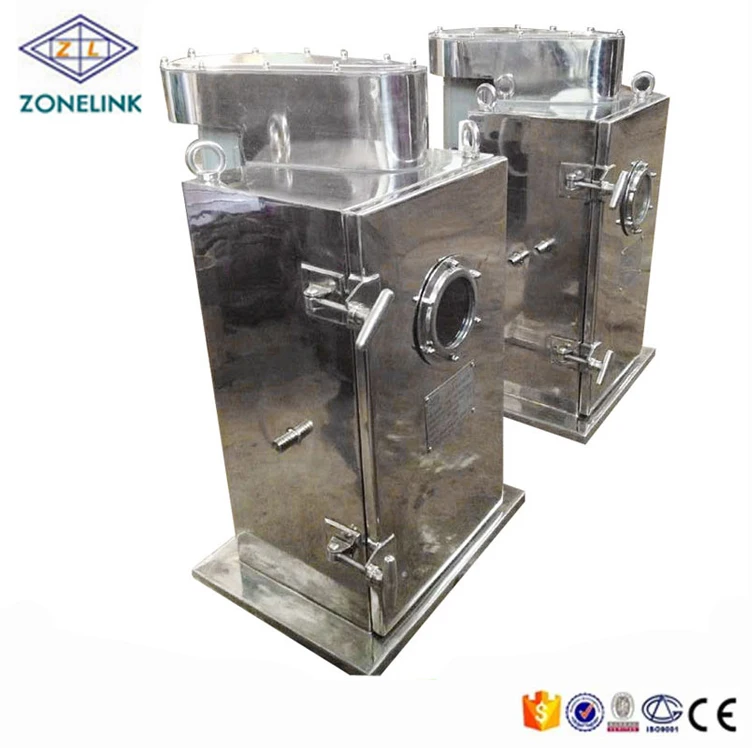

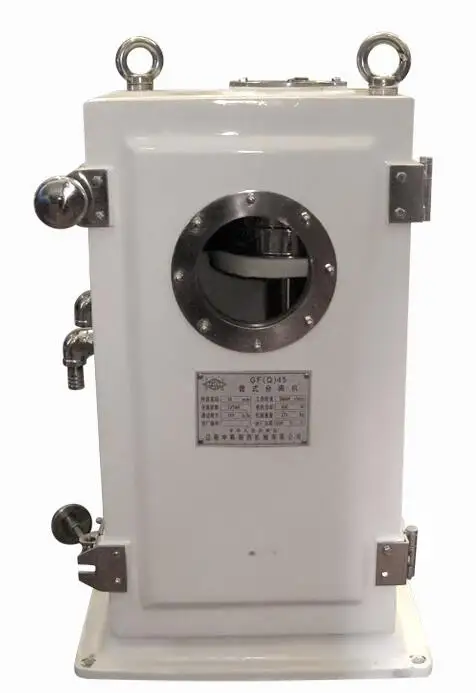

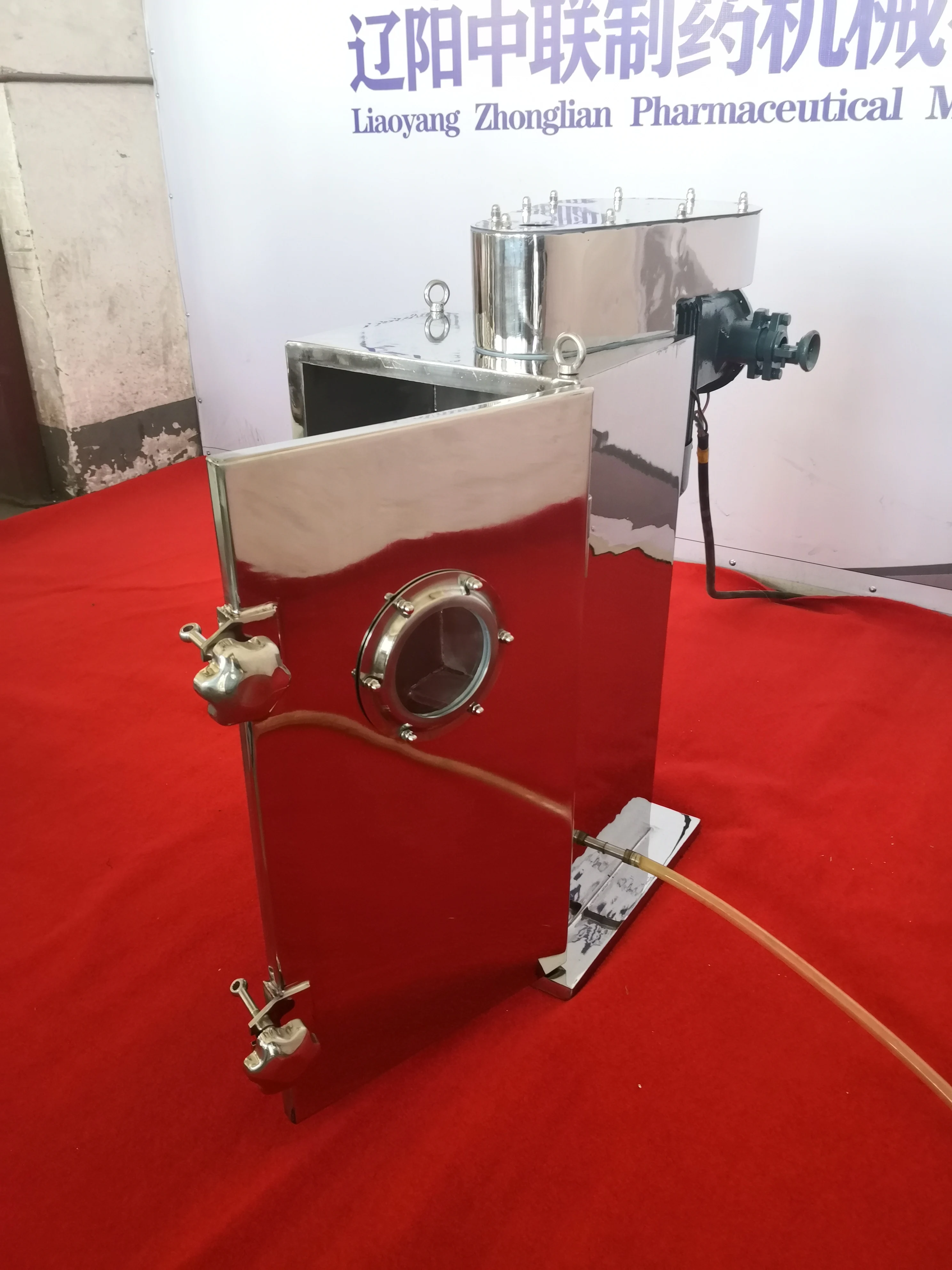

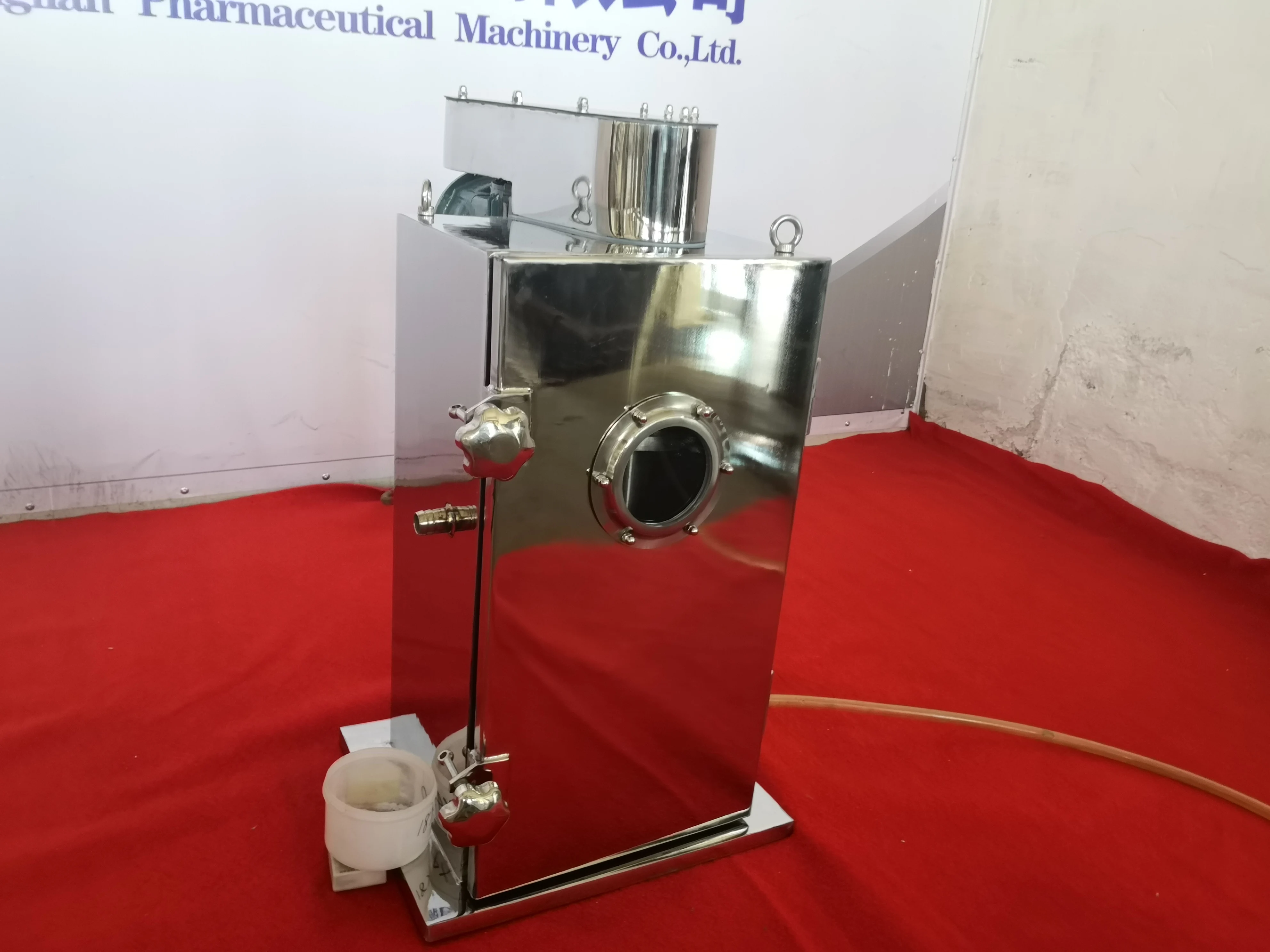

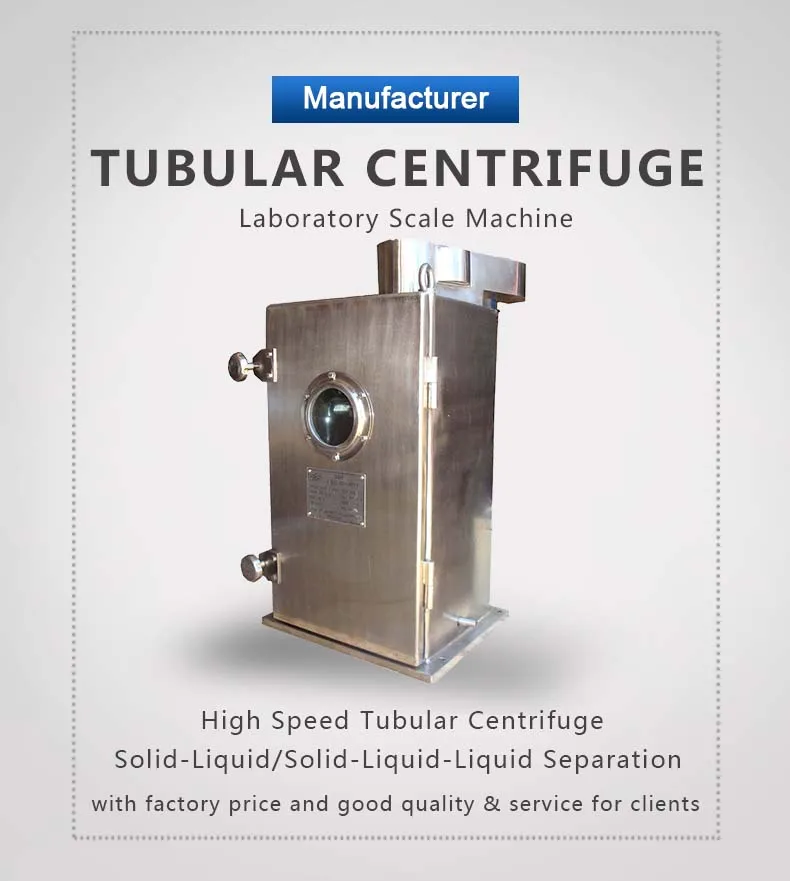

Tubular Centrifuge Separator Machine

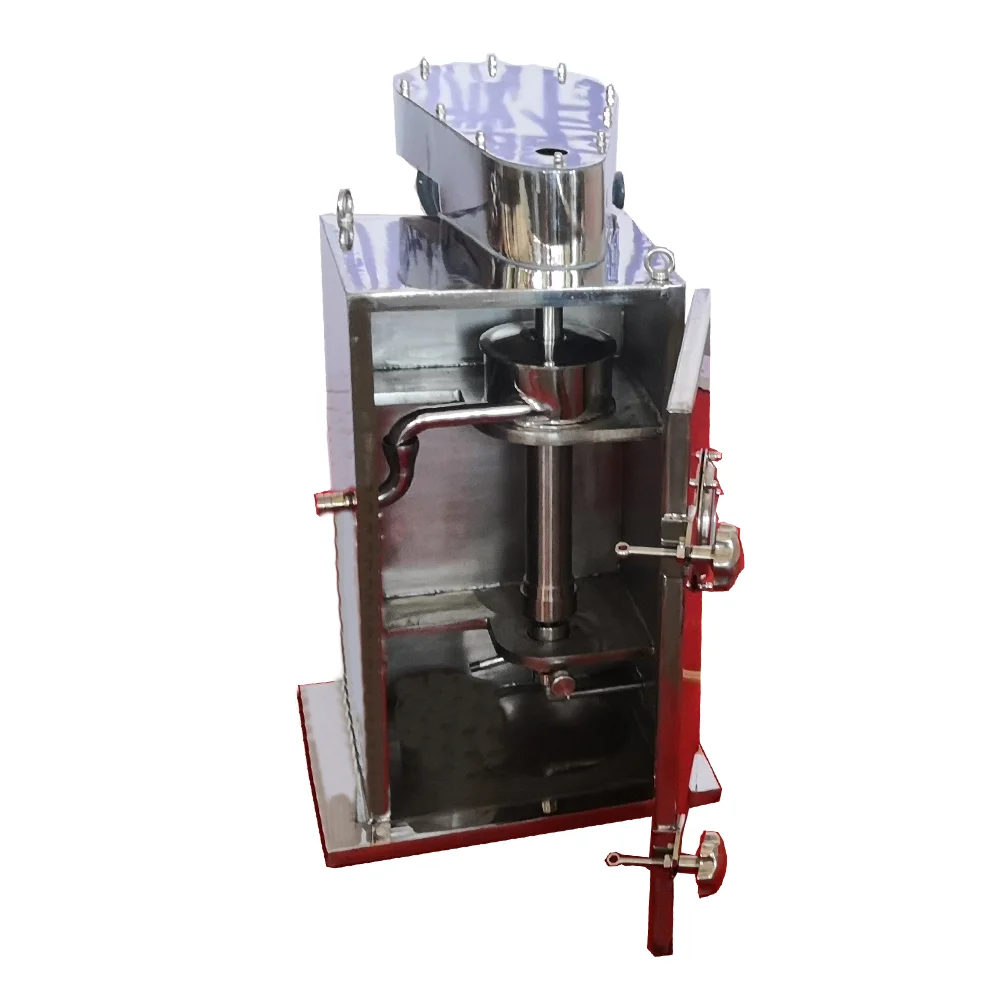

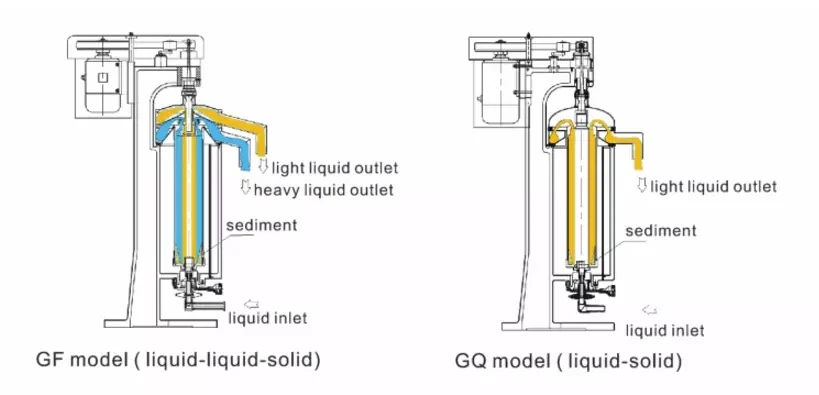

It is a high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor
through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
effect picture
Separated yeast
Separated coconut oil
tubular centrifuge is widely applied for the liquid-liquid or liquid-liquid-solid separating for emulsions (in which there is little impurities, including transformer oil, turbine oil, lubricant, fuel oil, dye, grease, saponification, oral liquid or
medical liquid, etc.), especially the plasma separating & extracting, the refining of edible oil, soak liquid, tea phenol or soybean, etc., the oil-water separating, and the sewage treatment, etc.
medical liquid, etc.), especially the plasma separating & extracting, the refining of edible oil, soak liquid, tea phenol or soybean, etc., the oil-water separating, and the sewage treatment, etc.
PRODUCT SPECIFICATIONS
Model | GF45 GQ45 | GF75 GQ75 | GF105 GQ105 | GF125 GQ125 | ----------- GQ150 |
Inner diameter(mm) | 45 | 75 | 105 | 125 | 142 |
Rotary speed(r/min) | 30000 | 19000 | 16300 | 15000 | 14000 |
Volume(L) | 0.4 | 2.2 | 6 | 8 | 10 |
Separation factor(w²r/g) | 21168 | 15700 | 15620 | 15750 | 15700 |
Productivity(water flow)(kg/h) | 100 | 600 | 1200 | 1500 | 2500 |
Power(kw) | 0.55 | 1.5 | 2.2 | 3.0 | 3.0 |
Weight(kg) | 90 | 300 | 570 | 610 | 665 |
Diamensions(mm)(L*W*H) | 480*460*800 | 760*450*1120 | 840*500*1600 | 900*550*1600 | 1020*600*1600 |

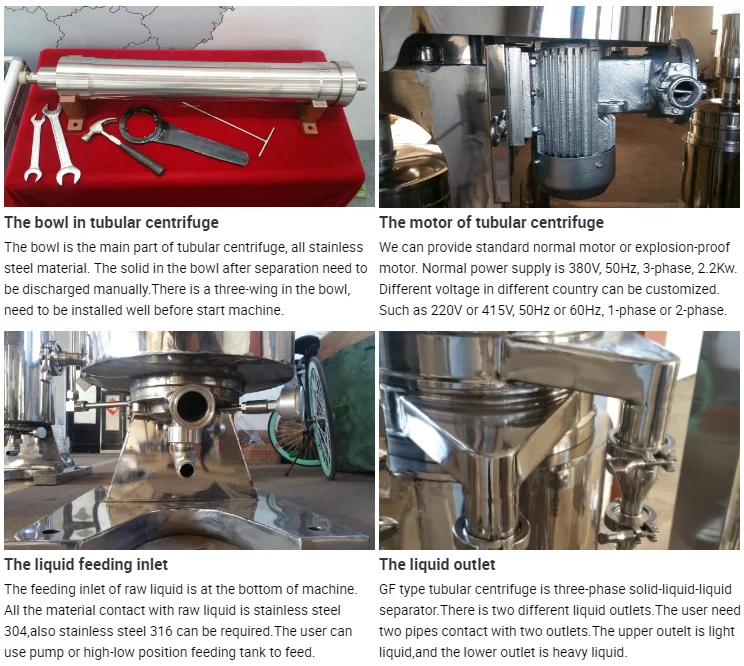

PRODUCT CONFIGURATION

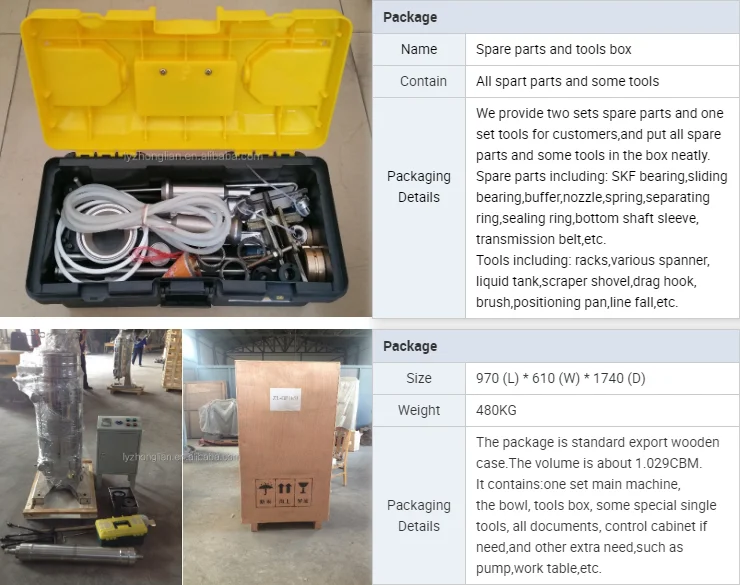

Product packaging
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,

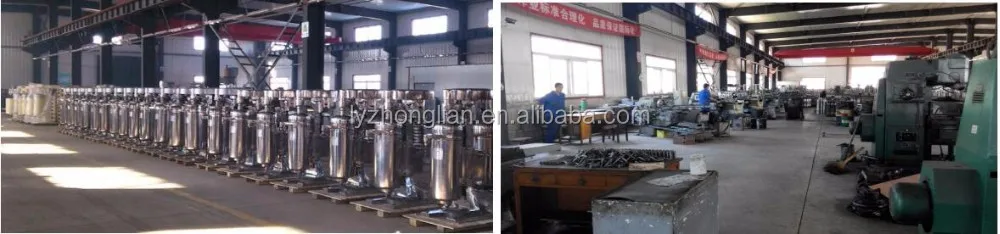

We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten
thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. Our aim is saving your valuable time and cost, providing you with the workable solution!
thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. Our aim is saving your valuable time and cost, providing you with the workable solution!
tube centrifuge juice centrifugal clarifier coconut oil machine virgin coconut oil filter blood separator wvo centrifuge

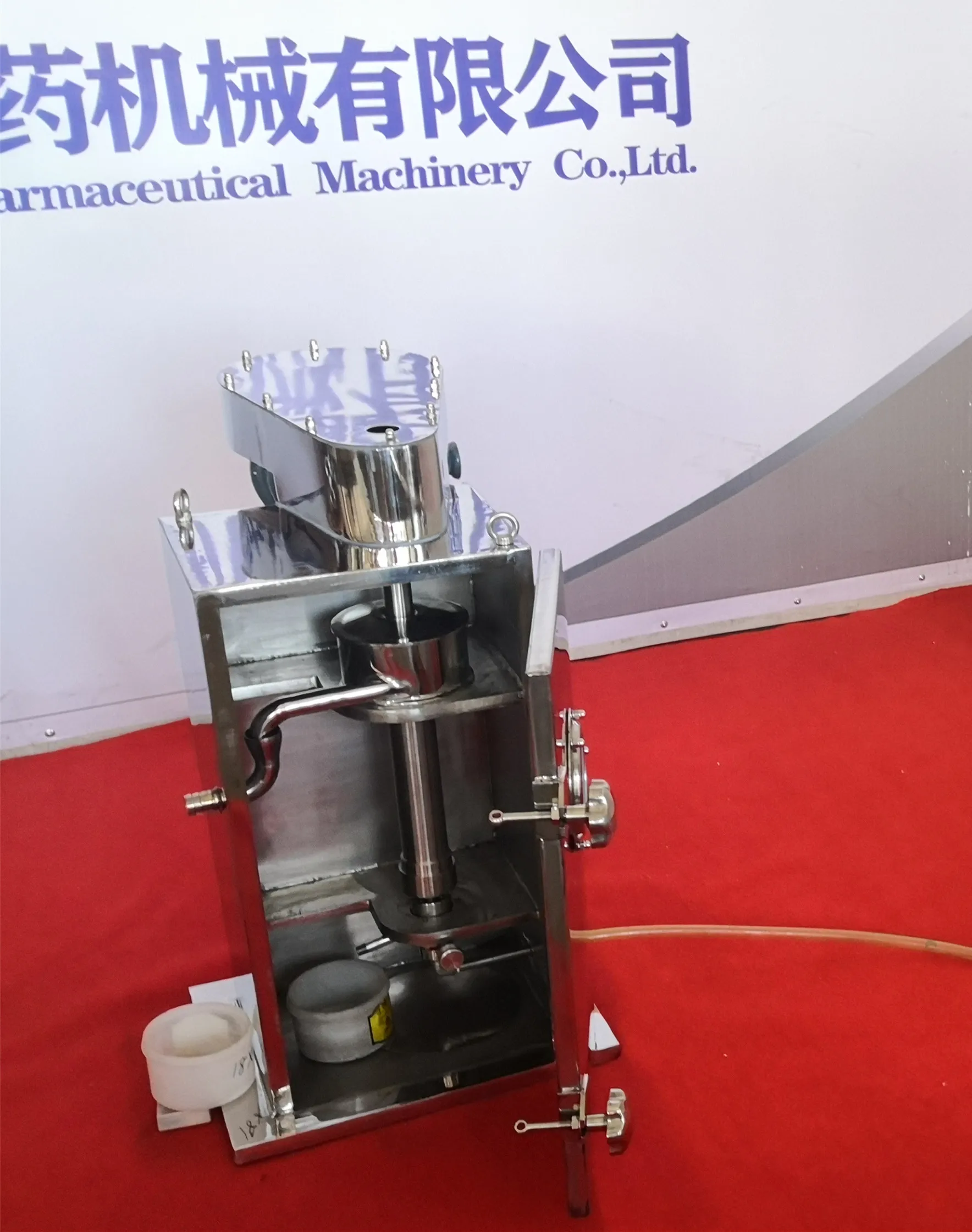

Exhibition
FAQ
Q:How to choose the suitable machine?
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material
moisture, viscous and corrosive etc:
* Name and feature of the raw material?
* Aim of using: get rid of impurity, filtration, grading
* Handling capacity: kg /h, L/h
* The raw material size: (mesh or mm)
* How many final materials you want, or how many layer you need?
* Local power supply (voltage and frequency)
* Note: You had better send us the relevant pictures about the details.
Q:How many kinds of material are supported?
A:All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: We found out the voltage supply is only 220V and our voltage requirement is 440VAC, could you please offer us those?
A:Yes, we can offer machines with any voltages and frequencies existing on the earth.
Q: How about the warranty of equipments purchased?
A: The warranty period is for one year for whole machine except the consumable and wearing parts. We are always glad to provide
technical supports and solutions for the whole using life.
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the packing of machine, can I use my own logo on packages?
A:Normally we are using fumigation-free plywood case to pack machines. We can mark your own logo on the packages. And also can be
neutral packing for your convenience.
Q:How to install and configure a rotary vibrating screen?
A:Very easy, we have served thousands of customers home and abroad,when delivering the machine we just attach a video manual,you may follow us on youtube Vibrating Screen Exper.
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material
moisture, viscous and corrosive etc:
* Name and feature of the raw material?
* Aim of using: get rid of impurity, filtration, grading
* Handling capacity: kg /h, L/h
* The raw material size: (mesh or mm)
* How many final materials you want, or how many layer you need?
* Local power supply (voltage and frequency)
* Note: You had better send us the relevant pictures about the details.
Q:How many kinds of material are supported?
A:All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: We found out the voltage supply is only 220V and our voltage requirement is 440VAC, could you please offer us those?
A:Yes, we can offer machines with any voltages and frequencies existing on the earth.
Q: How about the warranty of equipments purchased?
A: The warranty period is for one year for whole machine except the consumable and wearing parts. We are always glad to provide
technical supports and solutions for the whole using life.
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the packing of machine, can I use my own logo on packages?
A:Normally we are using fumigation-free plywood case to pack machines. We can mark your own logo on the packages. And also can be
neutral packing for your convenience.
Q:How to install and configure a rotary vibrating screen?
A:Very easy, we have served thousands of customers home and abroad,when delivering the machine we just attach a video manual,you may follow us on youtube Vibrating Screen Exper.
