W11-12x2500mm 3 роликовая Механическая листопрокатного машины стальная пластина для листопрокатного производства, оборудование для формования металлических для листопрокатного производства, оборудование для резки и гибки автоматический
- Категория товара: Industrial Machinery >>>
- Поставщик (Оптовый магазин): Anhui,Runbang,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Introduction
W11-12x2500mm 3 roller mechanical plate rolling machine
Main structure
The main structure of the equipment is composed of upper roller device and pressing device, lower roller device, main transmission device, tipping device, left and right frame and base.
1. Upper roller device and pressing device
The upper roller device consists of an upper roller, an upper roller bearing seat, etc.
The upper roller is made of 45# steel, heat-treated HRC48-52, and the bearing seats at both ends of the upper roller are equipped with sliding bearings.
The pressing device is powered by the auxiliary motor, and the torque is mechanically transmitted through the reducer, the worm gear and the screw nut to drive the upper roller to move up and down. Worm material is ductile iron.
2. Lower roller device
The lower roller device is composed of lower roller, lower roller bearing seat, lower roller open gear, lower roller sliding bearing, etc. The lower roller is the driving roller, and the torque is transmitted to the lower roller through the main drive output gear and the lower roller open gear.
The material of the lower roller is 45# steel, heat-treated HRC48-52; the material of the lower roller gear is 45# steel.
3. Main drive
The main transmission device consists of the main motor, gear reducer, brake and so on.
Applicable industries of plate rolling machine:
The plate rolling machine has a wide range of applications and can be used in shipbuilding, chemical industry, boilers, hydropower, pressure vessels, pharmaceuticals, metallurgy, papermaking, electric power, food processing and other machinery manufacturing fields. Plate rolling machine is an important equipment in sheet metal processing. It can roll metal sheet into cylindrical, arc, fan, cone and other workpieces. It is a general equipment specially used for metal sheet bending, forming and correction.
The Technical Parameters

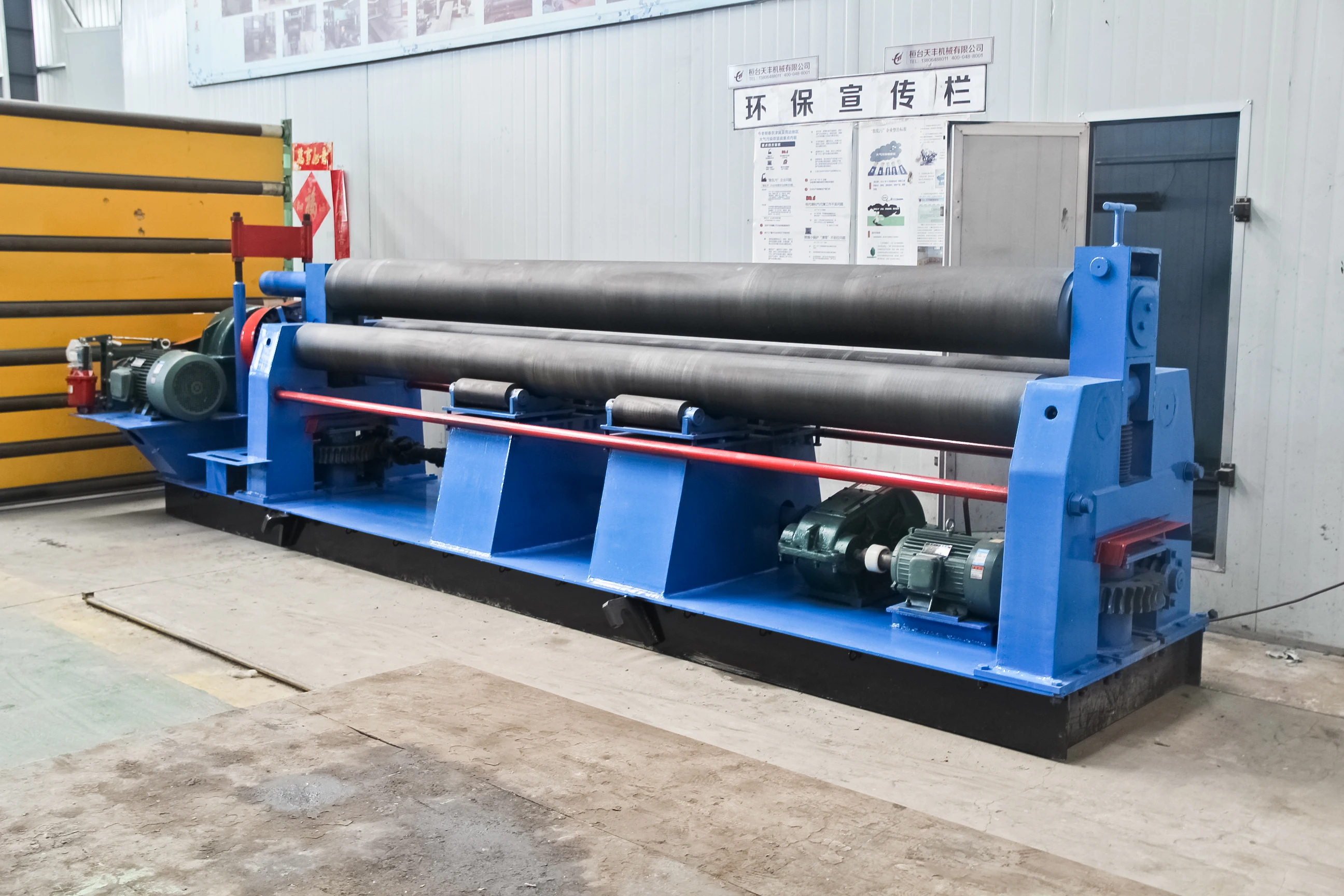

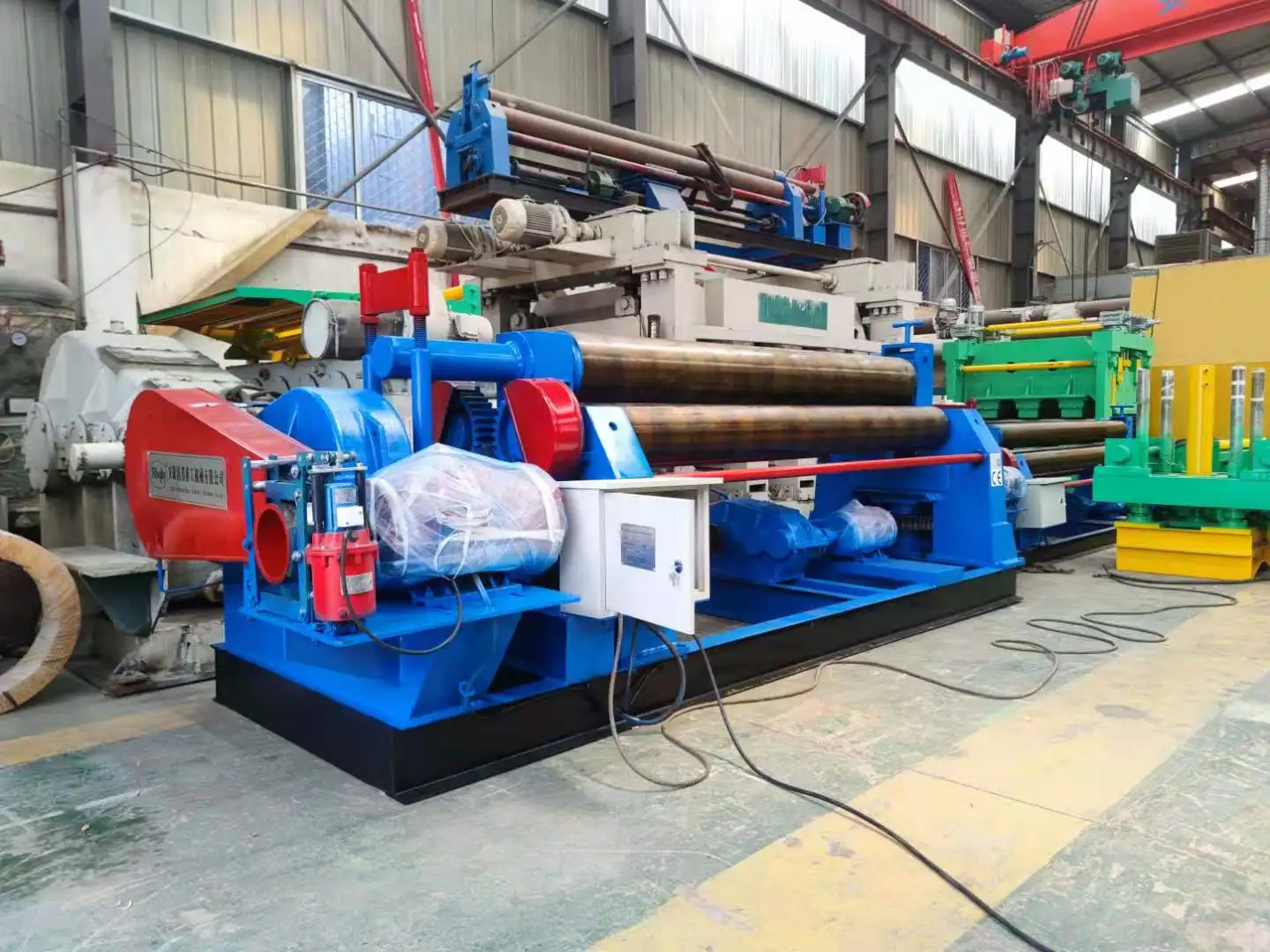

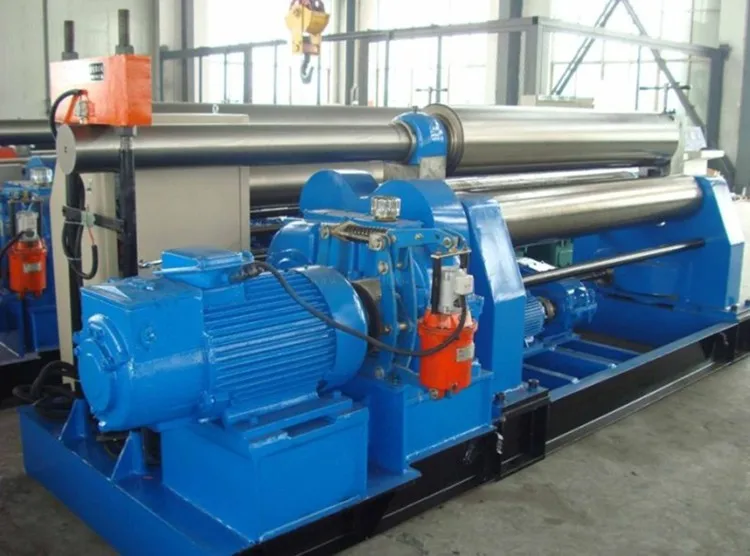

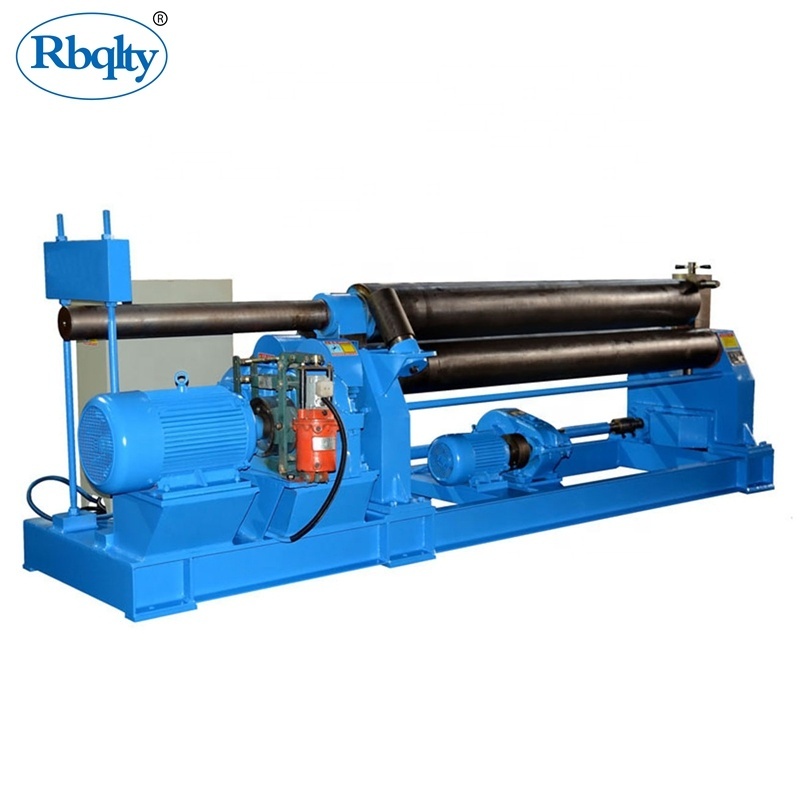

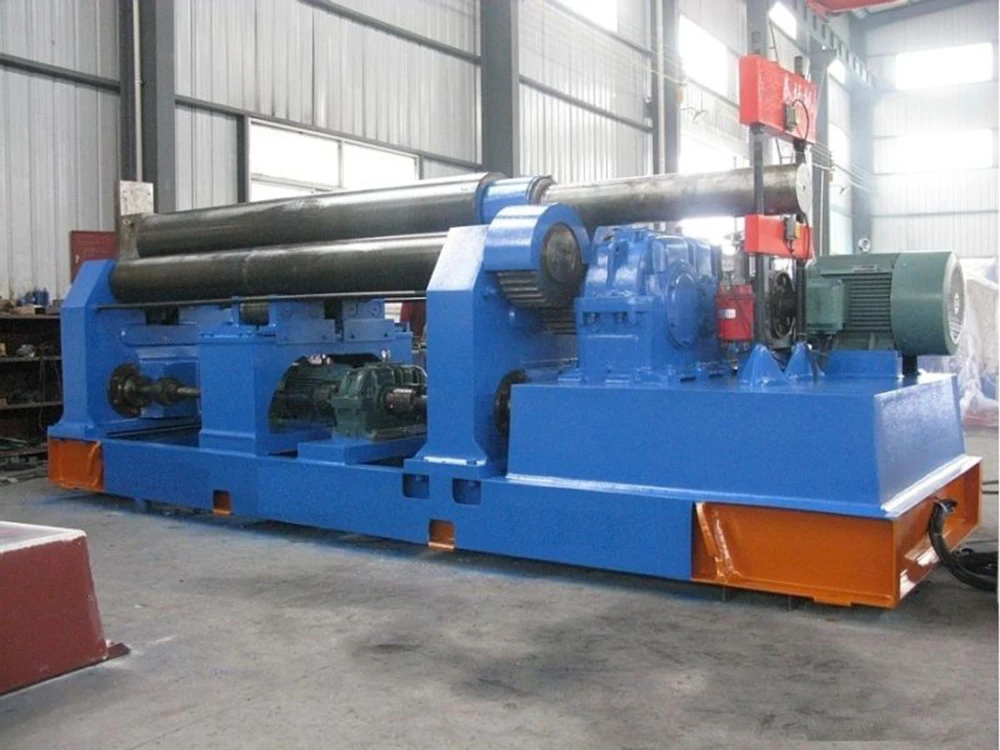

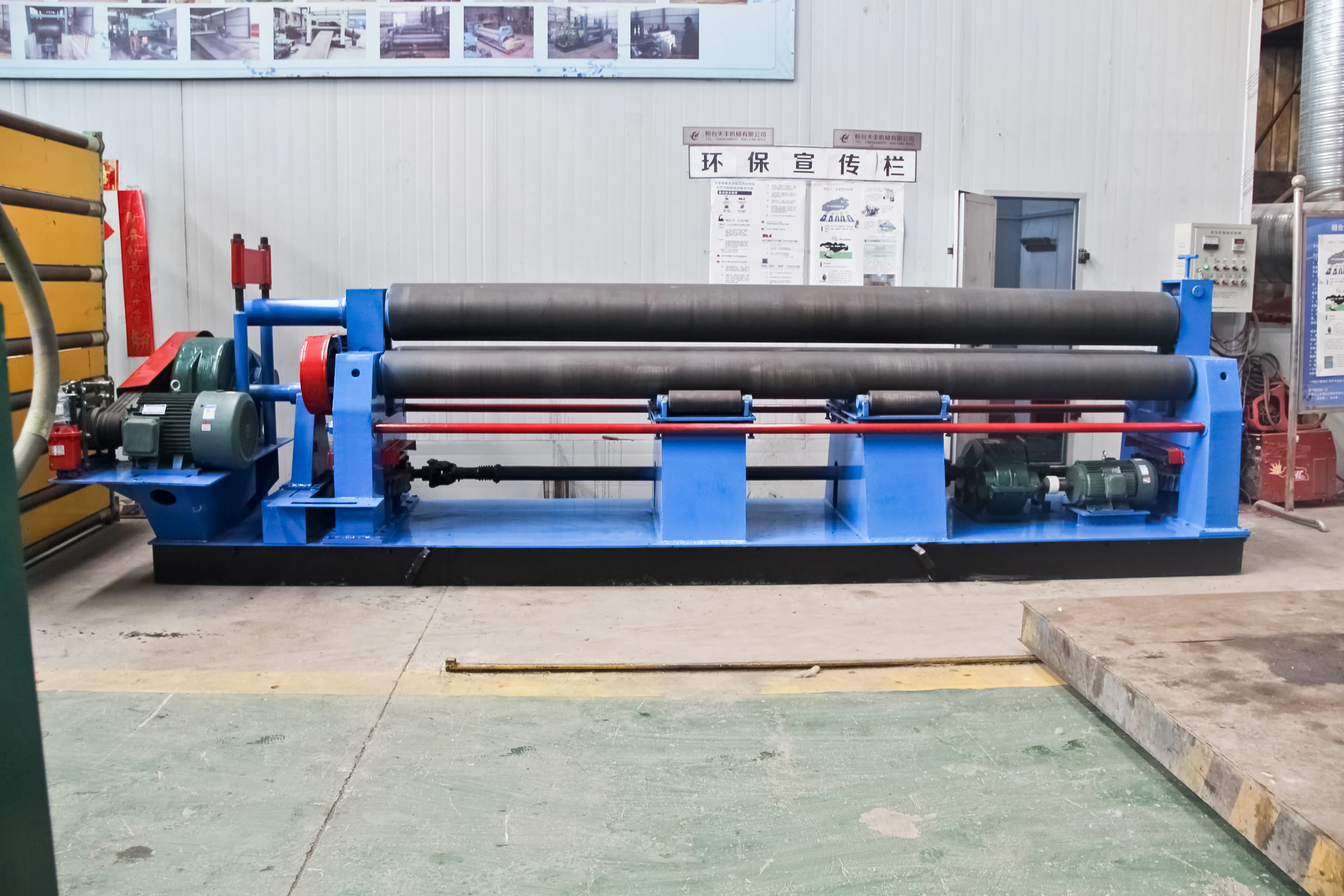

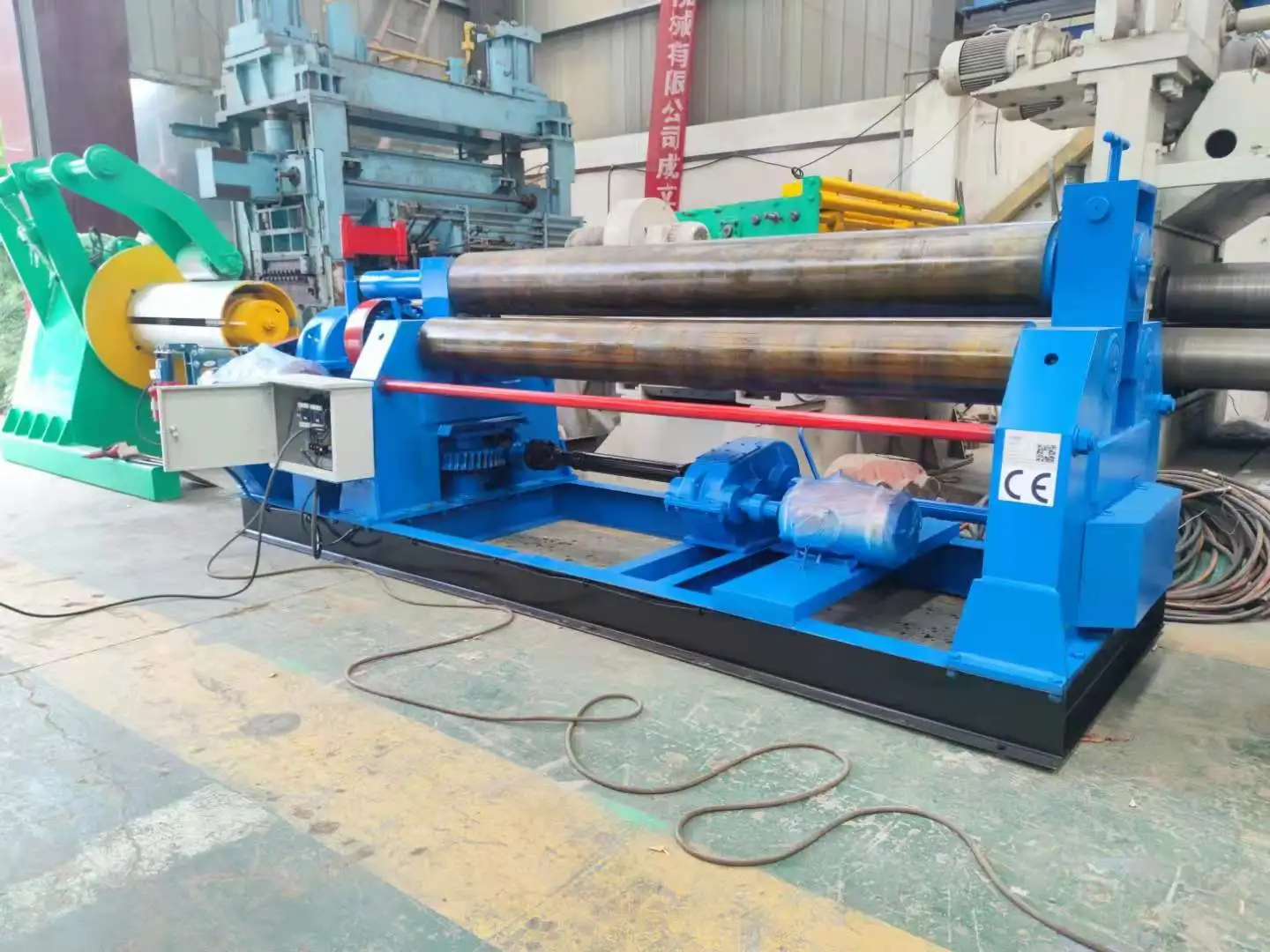

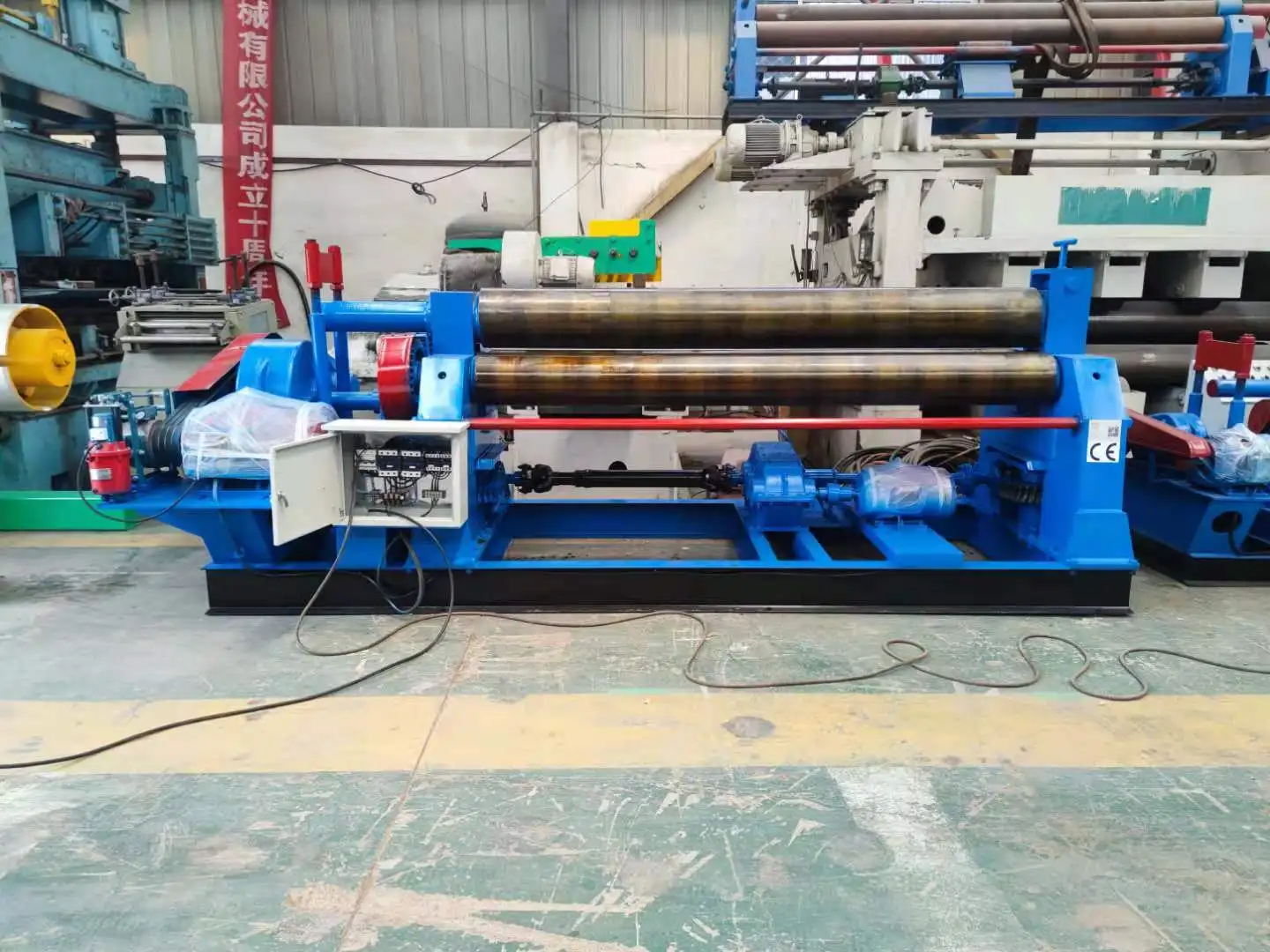

Products Show
Delivery&Payment
Payment terms | T/T | FOB | 30% T/T in advance, paid the balance before shipment | ||
C&F(CRF) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C at sight or L/C 30 days is also accepted | ||||
D/P | D/P is available for long-term cooperated customer | ||||
Lead time | Normally 7-15 days after deposit or L/C received | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
The normal package is waterproof plastic film, or can be also according to the requirement of customer.
Our Company
Runbang Heavy Machine Co.,Ltd
We make sheet metal processing machine like plate rolling machine ,bending machine, shearing machine,cutting machine and so on
Expert Team
With an expert team in R&D for more than 20 years, occupied the work shop of over 30,000 square meters, Runbang is able to support you with best quality machines.
Our service
1. Lifetime service, test before shipment
2. Online video and voice instruction3. Online or Oversea Installation service
4. Online or Oversea Training service
5. 2 year warranty, free machine parts
6. 100% response rate within 12 hours.
FAQ
Warranty
- 1 year for main parts except accessaries.
- Do not cover wrong operation, careless maintenance, deliberate damage
1.Are you factory or trading company?
We are factory but also do trading.
2.How to operate your machine after bought from you?
We have detailed installation and operation manual.
Telephone and online support available.
3.What are your payment terms?
We support T/T, L/C, Western Union and so on.
Trade Assurance payment method is welcome.
