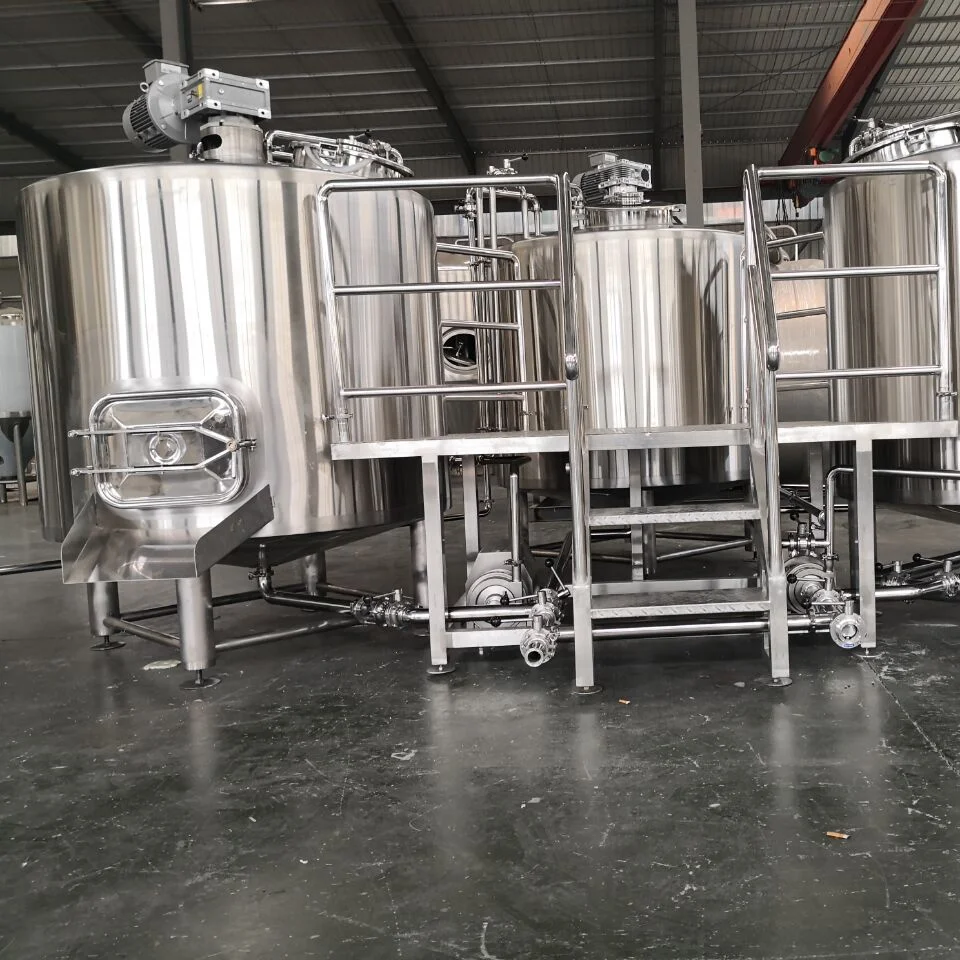

Copper Brewing brewery equipment used for beer factory beer making machine for sale

1.Component parts of each system

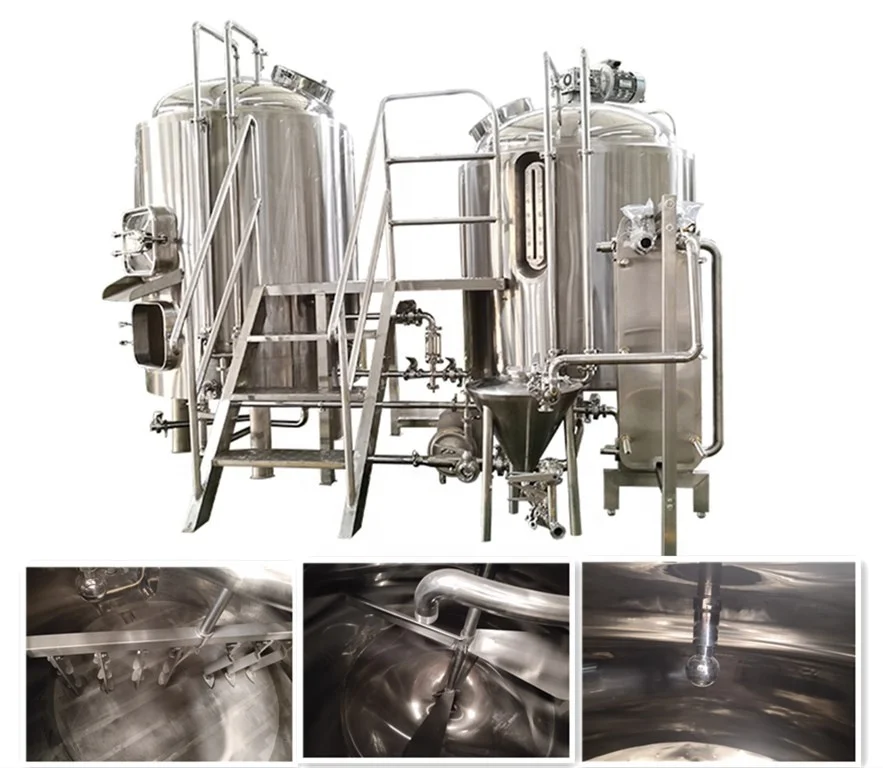

 Revelant photos

.Technical specification:

Product process diagram

 3.The Brewing Process

1.  (1)Infiltrating ,crushing malt
     (2)Heating the brewing water in brew kettle
2.  (1)Pumping a certain amount of appropriate temperature of hot water into mash tun
     (2)starting rotary blade,uniformly putting into material ,stopping rotary blade when stirring uniformly .  timing saccha
     (3)Controlling of water temperature and water quantity,keeping appropriate saccharification temperature ,stirring in every 15 minutes
3.  (1)refluxing turbid wort when saccharification ends .observing through the sight glass, beginning to filter when wort is charified
     (2)washing the tank when the tank exposes in the filtration process ,water temperature 78
     (3)Continue to filtrate after washing the tank,until sugar content meets the requirements.stopping washing the tank and filtrating
4.  (1)pumping all the wort into brew kettle ,heated to boiling for 60 to 90 minutes
     (2)in the first ten minutes of boiling,batch adding bitter hops
     (3) adding sweet hops before the end of boiling

5.  (1)after the end of boiling,immediately pumping wort into lauter tun&whirlpool tank.
     (2)starting to cyclotron precipitation,lay aside for 30 minutes
6.  (1)starding cold water valve and wort pump at the same time,cooling wort to a certain temperature in the plate heat exchanger
     (2) after wort is cooling ,oxygenating to 8mg/l,pumping wortto fermentation tank
     (3)adding special beer yeast into fermentation tank to ferment
7.  (1)controlling fermentation temperature and pressure,when brix  drop to 4.2,sealing tank to maintain pressure,automatically heating up to 12 °C,deoxidating cold diacetyl
     (2)at the end of deoxidating cold diacetyl,cooling uniformly and slowly,precipitating yeast in this process
     (3) wine temperature drop to 1 to 2 °C can be stored,tank bottom  yeast mud can be recycled


5.Overseas installation showcase

8.Our Services

1. Providing beer production technology, brewing formula, equipment installation and personnel training service;

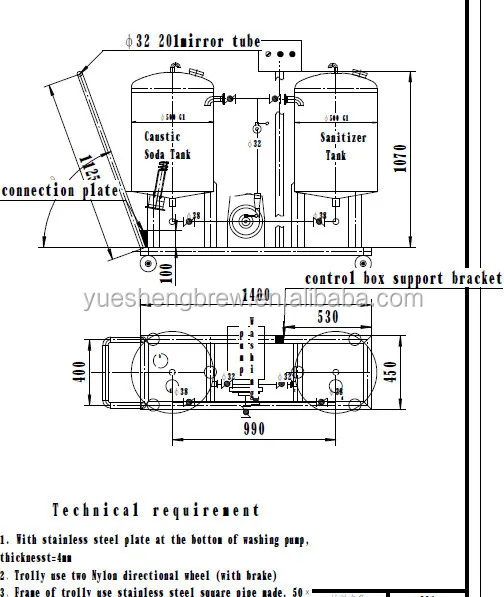

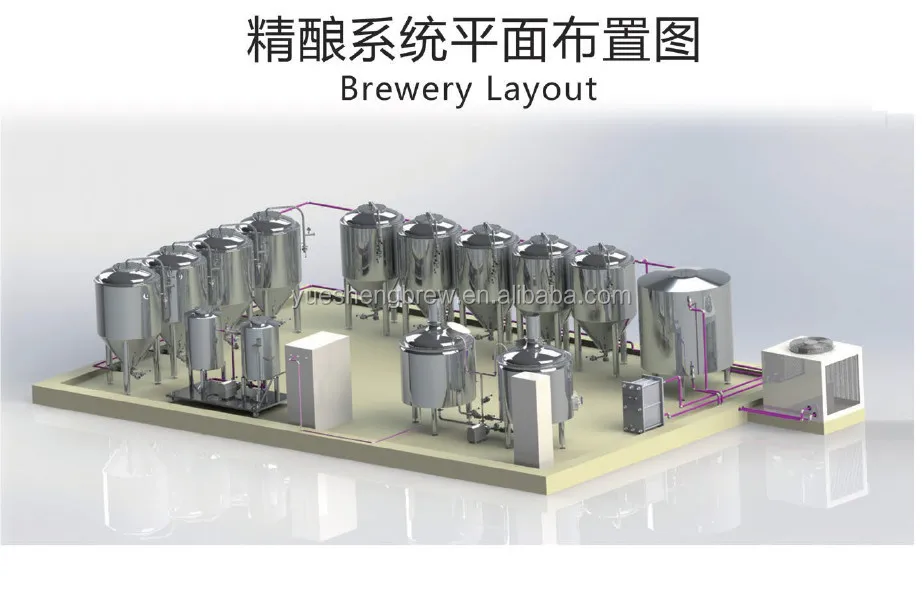

2. Offer tanks' drawings (includes 3D Views) and layout;

2. Seller will dispatch 1-2 technicians to buyer for equipment installation and commissioning, the number of the technicians according to the size of the equipment

3. Warranty of main machine is 3 years, life-long service;

1. Top cone is mirror polished

2. Shadowless manhole

3. Our skilled workers are with more than 10 years welding and related production experiences.

4. Our installation engineers are with more than ten years brewing experiences, which can train or help

 you brewing customers-liked beers.

5. High quality milled falsed bottom installation method: special discharging hangle, easy to discharge

 and clean,;

6. Led cold light, bright , lower power consumption and lasting, other suppliers only use normal light ball;

7. Imported food grade rubber hose, long lift-span, safe and firm.

8. Large spent grain door, reliable sealing, with hopper, easy to make the spent grain out without ground

 pollution.

9. Mechanical pressure adjustable valves: plus and minus pressure protection, ensure the tank safty.

10. Complete quality control and management system: material IQC complete inspection, PQC production

 process inspection, OQC inspection after finishing production -brewhouse installation 24 water leakage

 test and pressure test, fermenters cooling jacket pressure 24 hours test.

11. 3Years After-sales services for our goods.

12. Complete beer line to meet different capacities and all kinds of beer

13. Customize machine can be offered(voltage,material,dimension,heating source and so on)

We will only do better than you imagine!
