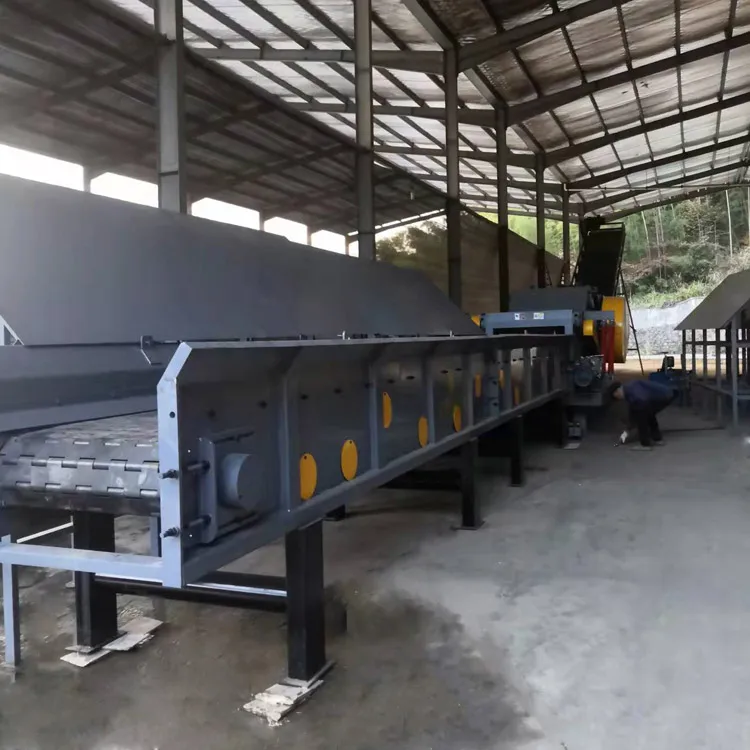

Дробилка для древесины большой мощности 160 кВт 12-15tph дробилка по хорошей
- Категория товара: Woodworking Machinery >>>
- Поставщик (Оптовый магазин): Shandong,Bolida,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

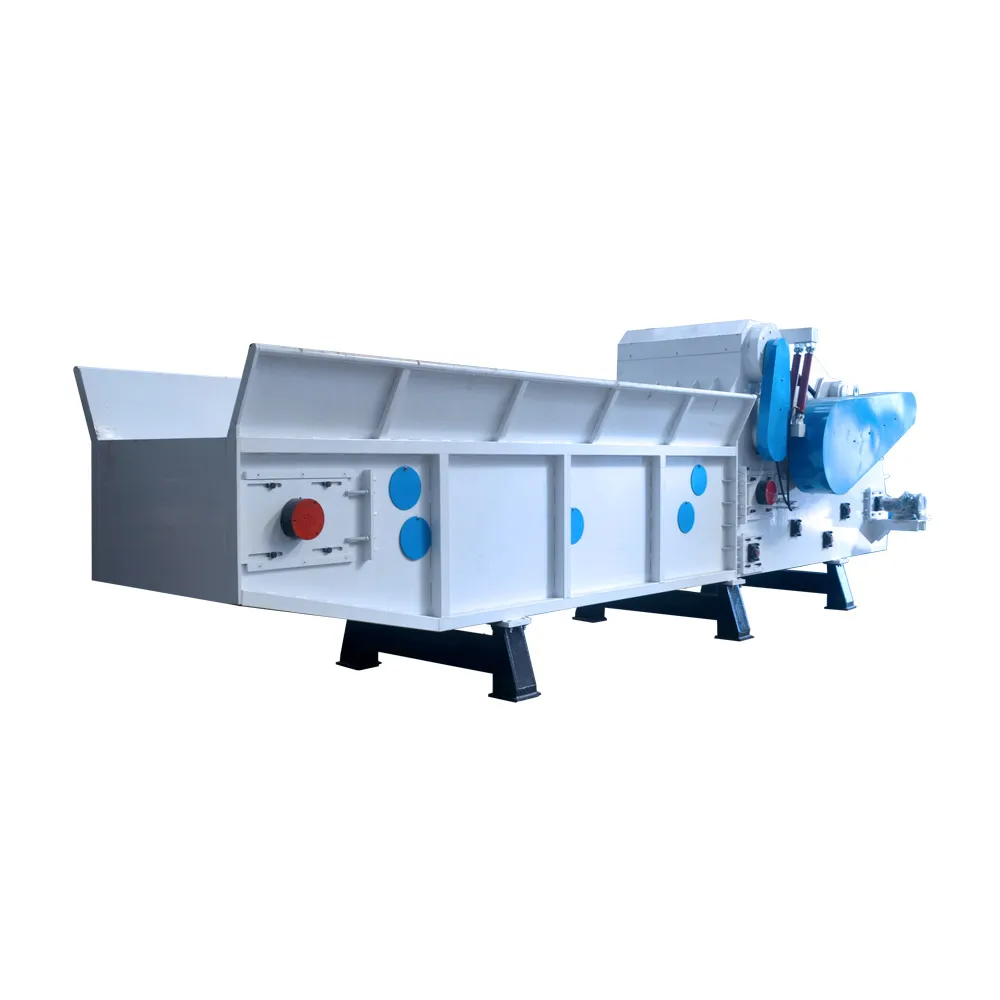

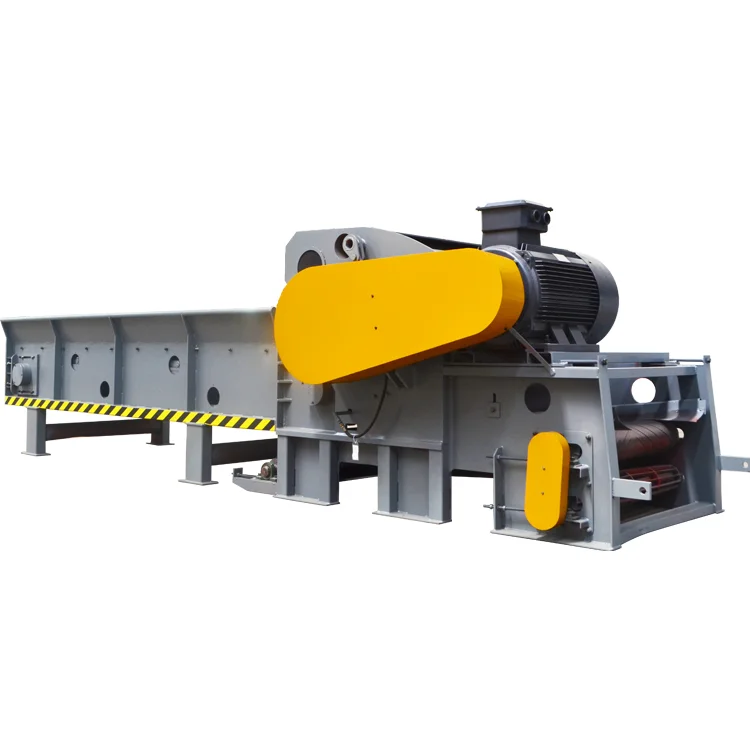

Bolida Drum Wood Chipper
For Bolida drum wood chipper, The technology is updated and optimized by using American Vermeer technology
The tool material is usually manganese steel；
The machine base is made of high-strength steel through CNC machining and robot welding and it is the supporting foundation of the whole machine.
2/4/6 pieces of flying blades are installed on the blade roller, and the flying blade are fixed to the blade roller by pressure
blocks with specially manufactured flying blade bolts.
blocks with specially manufactured flying blade bolts.
According to the different thickness of the raw material to be cut, the upper feeding roller assembly can be raised and lowered within a certain range with the help of a hydraulic system.
The discharge port is equipped with a durable alloy steel screen, and the qualified pieces of cutting material fall through the screen holes and will be discharged from the bottom through the discharging belt conveyor, and the material which is too large will be cut in the
machine.
machine.
Details Images

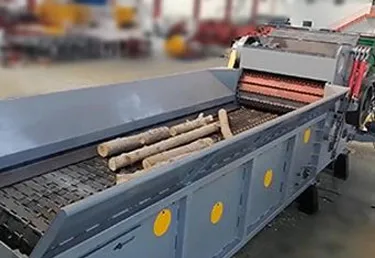

Chain Conveyor
Using chain conveyor instead of traditional belt conveyor, with long life time
Feeding Roller
The feeding Roller use cast steel 45;It comes with higher strength and good performance
than welded parts
than welded parts
Chipping Room
Hammers for Special Wood
Lifetime: 3000-5000 ton wood chips
Function:To hit waste wood pallets into small size
For material with nails
Function:To hit waste wood pallets into small size
For material with nails
Screen
Lifetime:4-6 months
Material: Carbon Steel
Size of Holes:3-5cm
Material: Carbon Steel
Size of Holes:3-5cm
Fixed Blades
65# manganese steel
Blade thickness 20mm, thin 1mm per grinding.
Lifetime:4-6 months
Blade thickness 20mm, thin 1mm per grinding.
Lifetime:4-6 months
Rotary blades
65# manganese steel
Lifetime:800-1200 hours
Lifetime:800-1200 hours

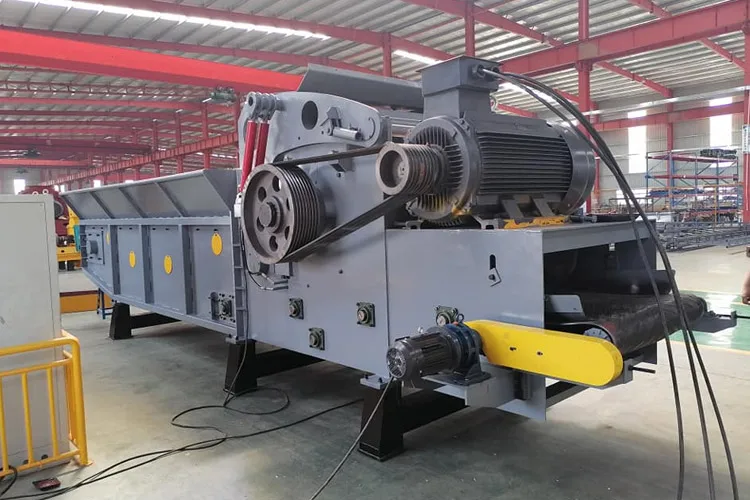

Motor
Use Siemens Beide motor
Remote device
With remote device, to control feeding raw material forward and
backward;
backward;
Product Paramenters
Model | Main Power (kw) | Capacity (t/h) | Feeding Hopper Size (L*H) mm | Note |
BMPJ216 | 55 | 3-5 | 545*230 | The size of raw material should better less than 15cm |
BMPJ218 | 110 | 6-10 | 710*360 | The diameter of raw material should better less than 30cm |
BMPJ1300-600 | 160 | 12-15 | 1300*600 | It could chip raw material with nails |
BMPJ 1400-700 | 220 | 15-20 | 1400*700 | It could chip raw material with nails |
BMPJ2113 | 315 | 20-25 | 1100*500 | The diameter of wood should less than 45cm |
Raw Material and Application
Raw Material for Wood Chipper Machine
Wood log, Diameter wood branches, waste template building, wood pallets, bamboo..
Customer Photos

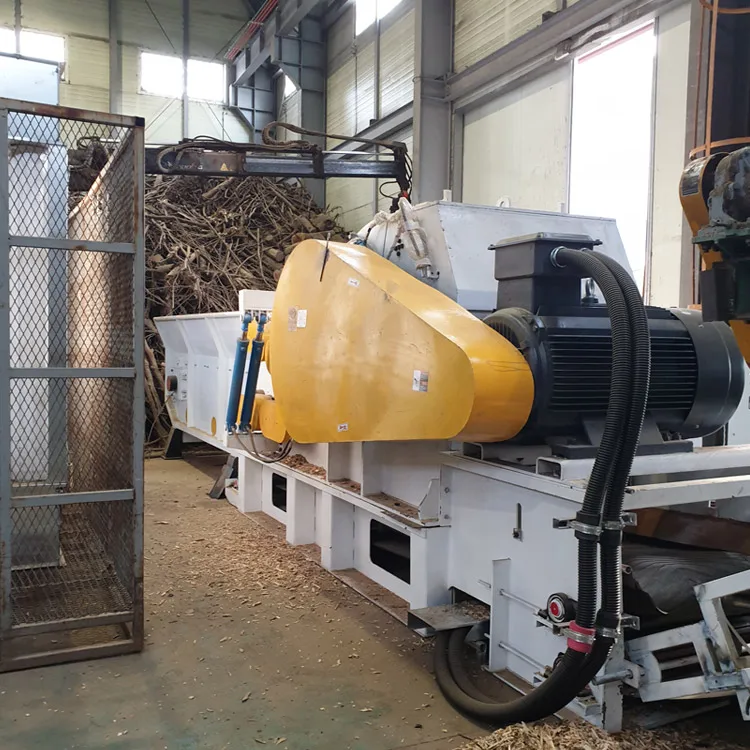

20-25t/h Wood Chipper South Korea Client
Bolida Heavy Duty Drum wood chipper , Main power 315kw, with 4m Feeding chain conveyor and 8m discharging belt conveyor
YMPJ2113 Drum Wood Chipper
Drum Wood Chipper, which is specially designed for clients 10m bamboo. The length of Chain conveyor is 10m, and the discharging belt conveyor is 12m.
Japan Diesel Type Wood Chipper
Diesel wood chipper is for Japan client, Mainly used in forest. Due to lack of electricity in forest, Use diesel engine instead of motor type.
Thailand Large Capacity Drum Wood Chipper

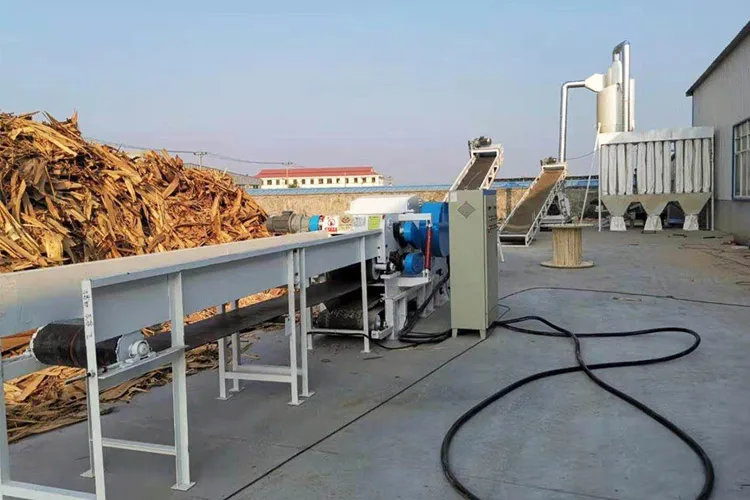

This drum wood chipper is used in biomass wood pellet plant. The first step to chip wood log into 3-5cm wood chips.
BOLIDA 216 Drum Wood Chipper
216 wood chipper with 55kw is the smallest model for industrial use. It comes with 4m feeding cuter and 6m discharge belt conveyor, for chipper waste verneer ..
BOLIDA 218 DRUM WOOD CHIPPER MACHINE
218 Drum wood chipper with 110kw, capacity is 8-10tph. Widely used in mainly biomass pellet plant. The diameter of wood should less than 30cm.
BOLIDA Hot Products
Bolida Biomass Pellet Machine
Biomass pellet mill machine, also called biomass pelletizer,or wood pellet press, it mainly used to press wood sawdust, rice husk and other size wood into 6mm/8mm sawdust.
Bolida Rotary Cutter
Rotary cutter is mainly for cut wheat straw, cotton stalk into 10-30mm .
Usually, the diameter of wheat straw is very large, it about 2m, and use a forklift to send wheat straw into rotary cutter.
Bolida Rotary Dryer/Three Pass Dryer
Bolida rotary dryer is mainly used to dry wet wood chips ,wood sawdust into suitable moisture content. Usually use hand stove, chain stove or pellet burner to offer heat for drying equipment.
Bolida Biomass Pellet Burner
Biomass pellet burner is used wood pellets, rice husk pellets as fuel. For big model biomass pellet burner, it comes with automatic ash removing system.
Bolida Diesel Type Wood Chipper
Diesel engine mobile drum wood chipper shredder machine is widely used in some place where lack of electricity. It comes with wheels ,so it is eays to movable .
Bolida High Efficiency Hammer Mill
Hammer mill , also called wood crusher machine, wood sawdust making machine. It comes with air lock, fan blower, bag dust collectors when working.
Certifications
CE Certifications
BOLIDA all equipments comes with CE Certifications
Company Profile

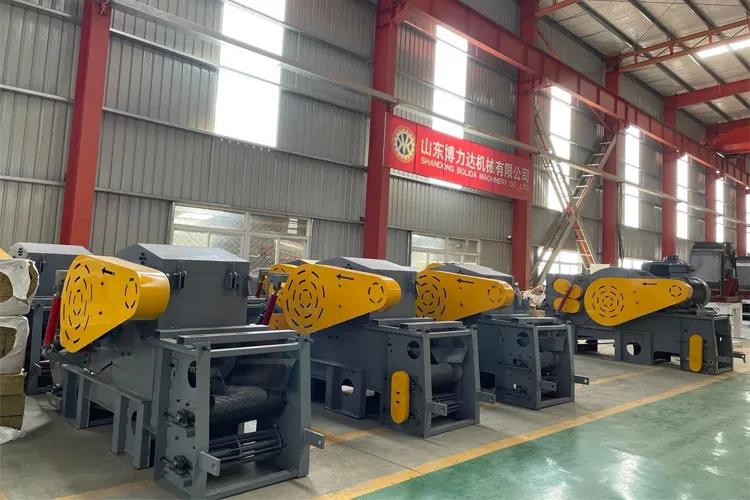

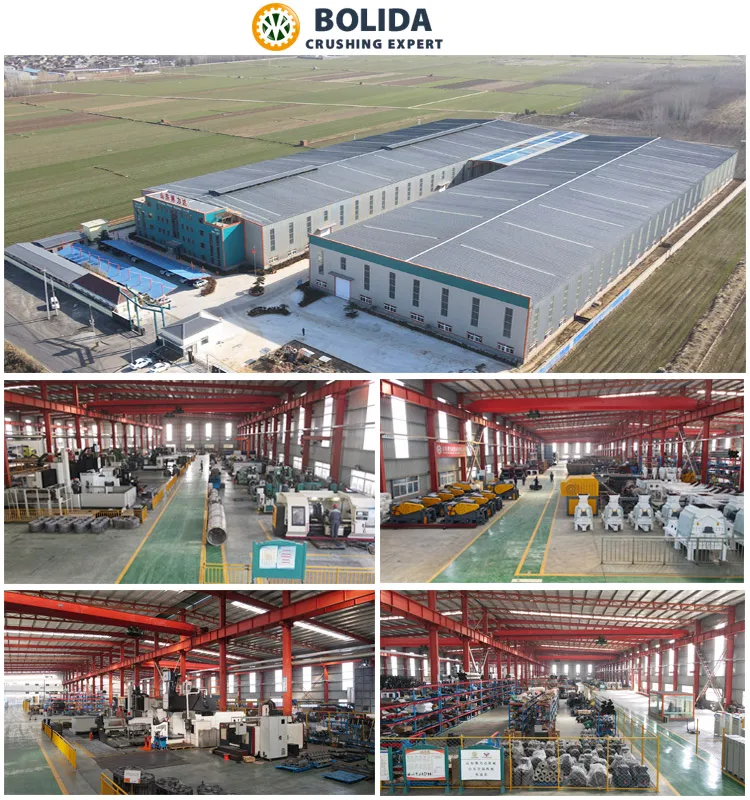

Bolida Factory
Bolida is a professional manufacture for biomass pellet machine, wood chipper, rotary dryer, biomass wood pellet line.
Bolida offer turnkey solutions for pelleting plans/Wood pellet plant, complete units or single process lines such as;
-Raw Material Processing;
Including(Debarking-Chipping-Wet Grinding) Debarker/Splitter/Wood Chipper /Diesel Wood Chipper/Chaff Cutter /Wet Hammer Mill/Crushers
-Thermal Drying
Including Completely Drying line(Drum Rotary dryers/Triple Dryers/China Stain/Chamber/Steel Frame/Chimmey/Pellet Burner
-Pellet Production
Including Pellet Mills/Hammer Mills/Coolers/Sieves/Packing Machines/Automatic Control System/Pulse Dust System
-Raw Material Processing;
Including(Debarking-Chipping-Wet Grinding) Debarker/Splitter/Wood Chipper /Diesel Wood Chipper/Chaff Cutter /Wet Hammer Mill/Crushers
-Thermal Drying
Including Completely Drying line(Drum Rotary dryers/Triple Dryers/China Stain/Chamber/Steel Frame/Chimmey/Pellet Burner
-Pellet Production
Including Pellet Mills/Hammer Mills/Coolers/Sieves/Packing Machines/Automatic Control System/Pulse Dust System
