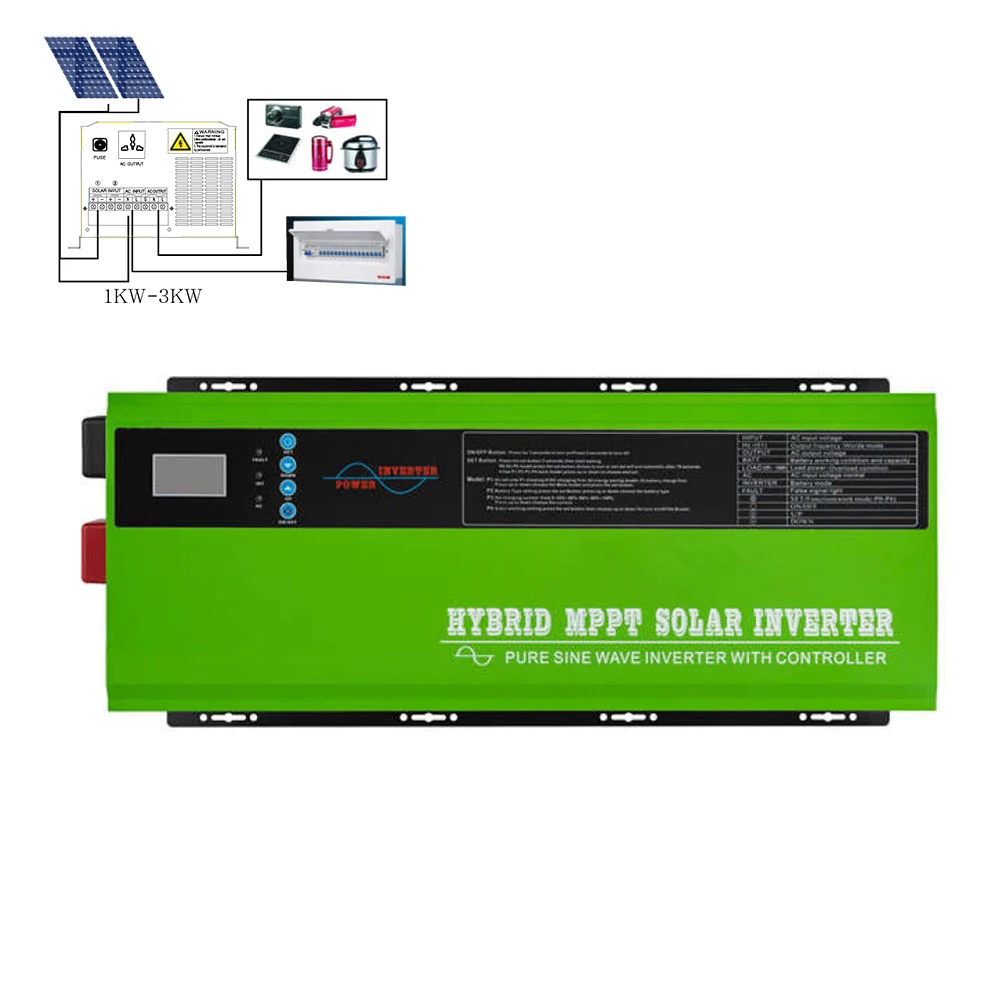

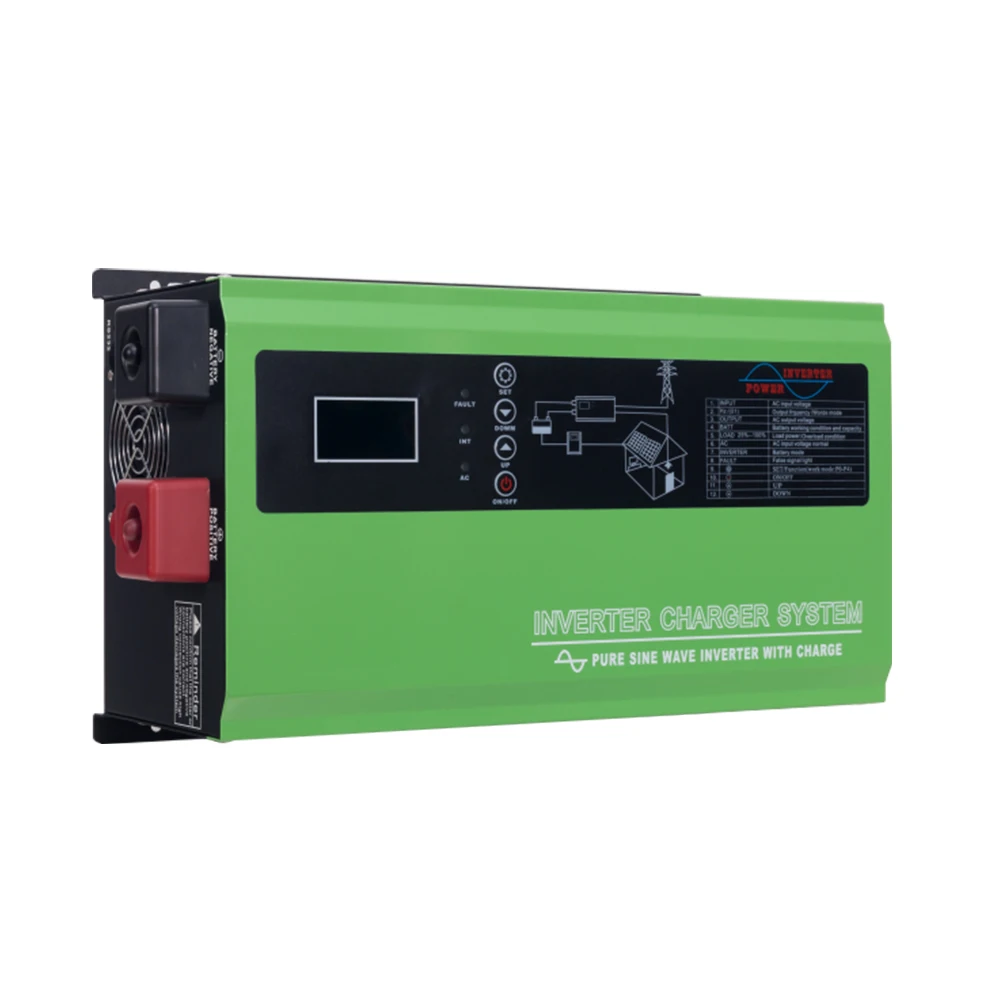

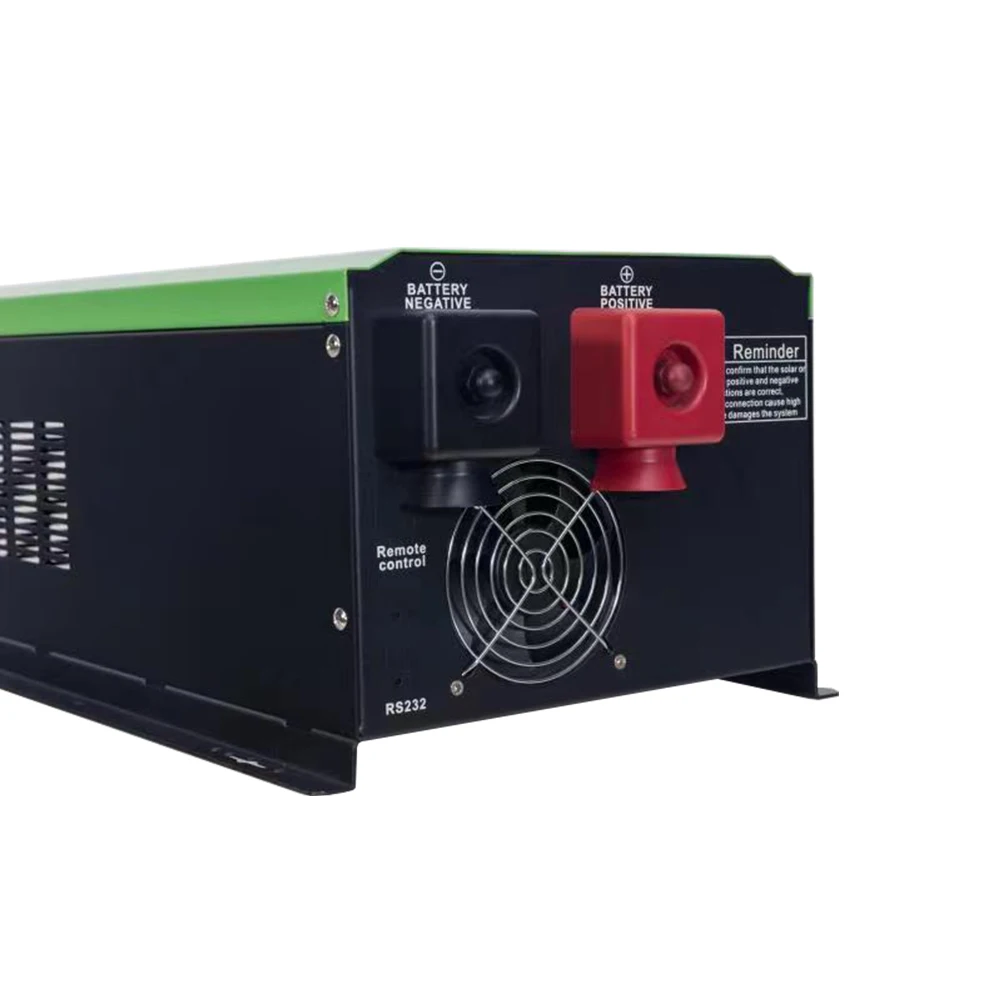

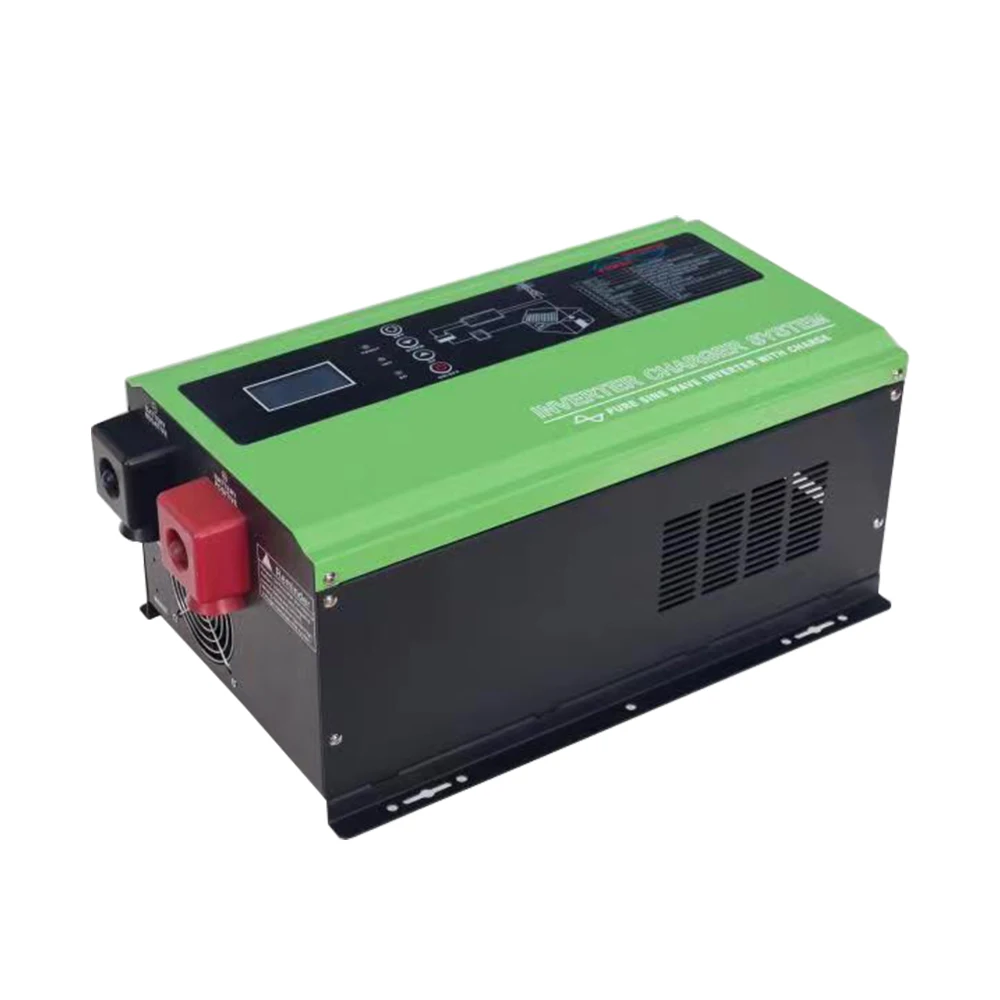

Слежением за максимальной точкой мощности решетки 3000W 5000W 5 кВт Гибридный 3.5KW солнечный инвертор 5KVA 3KW Гибридный солнечный инвертор с pwm со слежением за максимальной точкой мощности, контроль заряда
- Категория товара: Solar Energy Products >>>
- Поставщик (Оптовый магазин): Zhejiang,Mingch,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features:
1.Pure sine wave AC 110V 120V 220V 230V 240V ouput
2.With built-in MPPT solar charge controller 30A-120A optional
3.With UPS automatic switching function and grid power charging function
4.It has perfect protection functions such as overload,high voltage,low voltage,over temperature,short circuit etc.
5.DSP intelligent chip control,excellent performance.
6.Strong inverting capability,one-time soft start,3 times output peak power,with all inductive loads

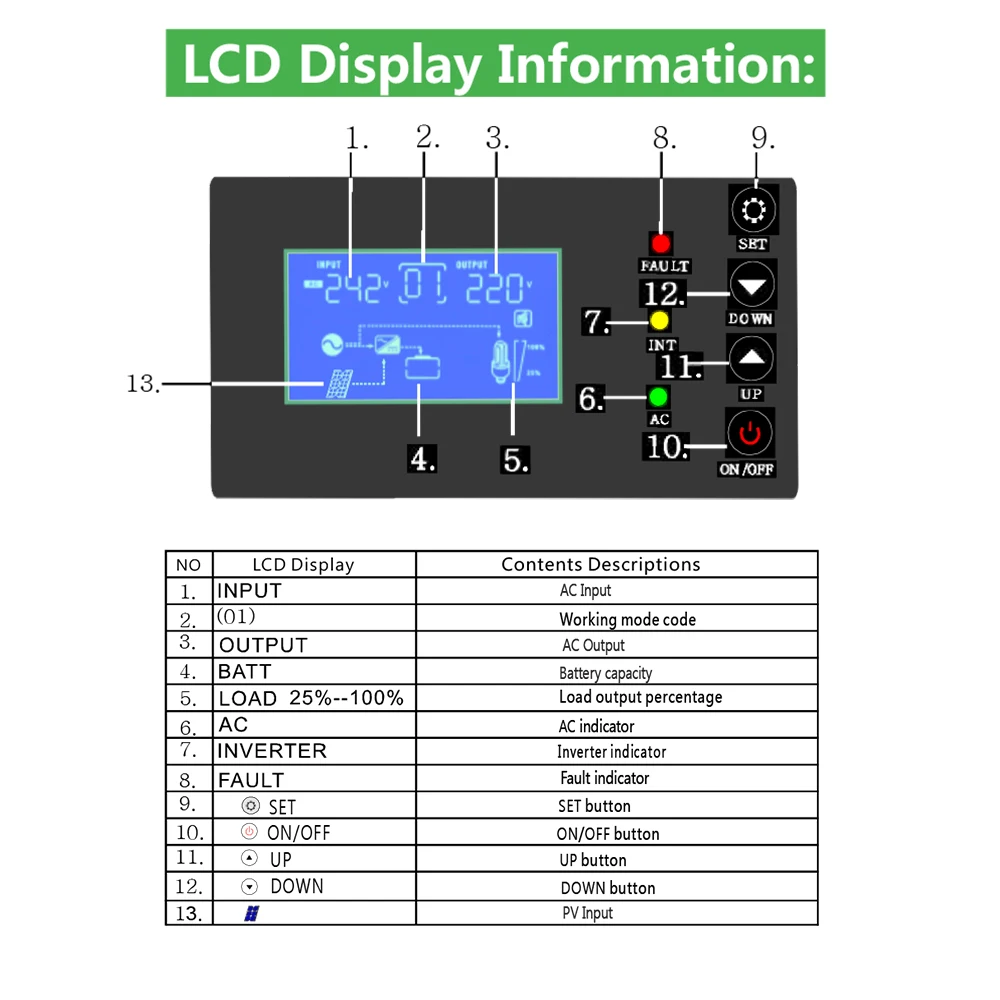

7.Full personalized LCD display, it can display various data information of inverter,solar charge controller

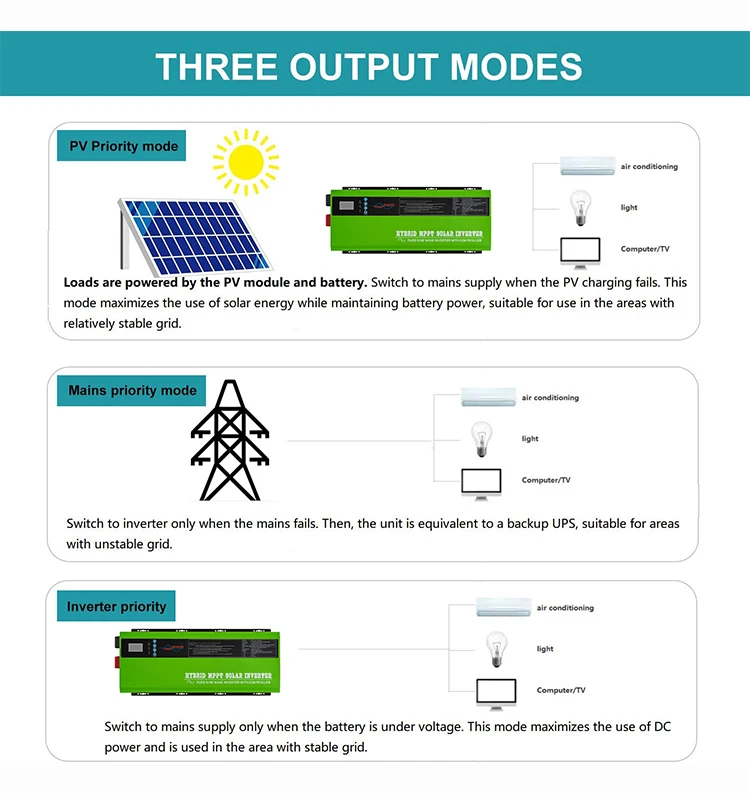

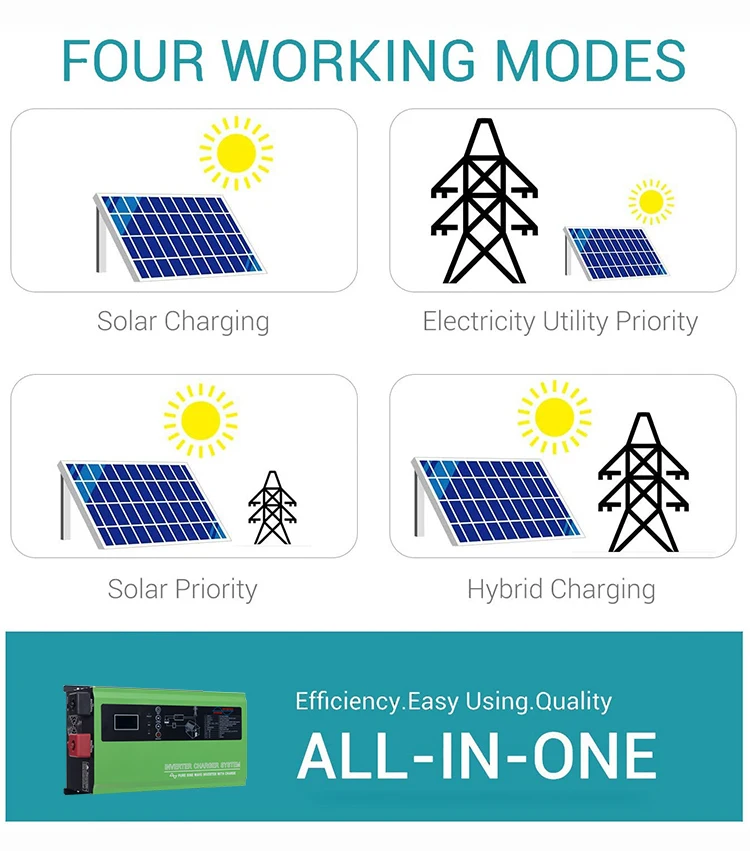

8.Grid power priority,energy saving mode and solar energy priority can be set freely to meet different occasions
9.Battery type,charging voltage grid power charging current(0-35A) can be set freely to meet the charging management of different types of batteries
Model | 1000W | 2000W | 3000W | 4000W | 5000W | |||||

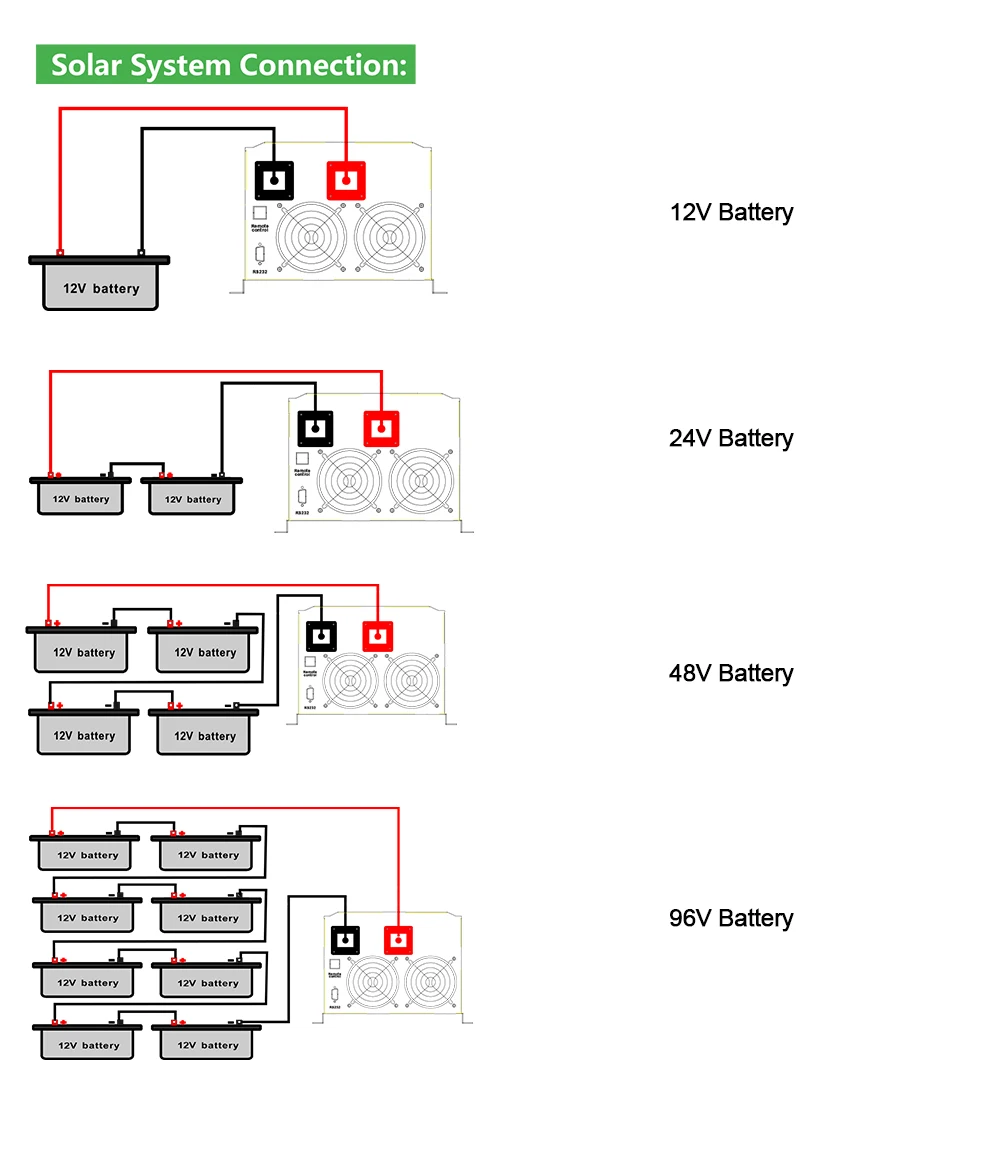

Battery system voltage | 12VDC/24VDC/48VDC | 24VDC//48VDC/96VDC | ||||||||
Inverter output | Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | ||||
Surge power(20ms) | 3000W | 6000W | 9000W | 12000W | 15000W | |||||
Capable motor | 0.5HP | 1HP | 2HP | 2HP | 3HP | |||||
Waveform | Pure sine wave | |||||||||
Output voltage | 110V/120V/220V/230V/240V+-3% | |||||||||
Output frequency | 50Hz60 z±0.3Hz | |||||||||
Efficiency | >85% | |||||||||
Line mode efficiency | >95% | |||||||||
Transfer time | 8ms(Max) | |||||||||
AC input | Voltage | 110V/120V/220V/230V/240V | ||||||||
Selectable voltage range | 85-138V(110V);170-275V(220V) | |||||||||
Frequency range | 50Hz:45-65Hz; 60Hz:55Hz-65Hz;50Hz/60Hz(auto setting) | |||||||||
Battery | Low battery protection | 10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC) | ||||||||
Low battery cut off | 10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC) | |||||||||
High battery alarm | 15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC) | |||||||||
High battery protection | 16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC) | |||||||||
AC charger | Charging current | 0-35A settable | ||||||||
Protection | Overload | Rated power over 110%,shut down automatically | ||||||||
Temperature | Built-in temperature sensor real-time induction, ,≥85 a larm, ,≥85 shut down the whole machine | |||||||||
Short circuit | Automatic shut down | |||||||||
Solar charge controller | Max charging current | 30A/40A/50A/60A/80A | ||||||||
Voltage | 12V,24V,48V,96V | |||||||||
Max input power | 12V-30A:360W; 12V-50A:600W; 12V-60A:720W; 12V-80A:960W;12V-100A:1200W; 12V-120A:1440W | |||||||||
24V-30A:720W; 24V-50A:1200W; 24V-60A:1440W;24V 80A 1920W; 24V-100A:2400W; 24V 120A 2880W | ||||||||||
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W; 48V-80A:3840W; 48V-100A:4800W; 48V-120A:5760W | ||||||||||
96V-80A:7680W; 96V-100A:9600W; 96V-120A:11520W | ||||||||||
PV array voltage range | 12V:18V-130V; 24V:36V-130V; 48V:72V-160V,96V:144V-280V | |||||||||
Efficiency | >99% | |||||||||
Other | Mounting | Wall mount | ||||||||
Display | LCD+LED | |||||||||
Cooling fan | Intelligent fan cooling system | |||||||||
Audible noise | <60db | |||||||||
Communication | RS-232,SNMP,Wi-Fi,Dry contact(Optional) | |||||||||
Appearance | Product size | 510*325*215mm | 645*325*215mm | |||||||
Packing size | 580*385*270mm | 725*410*290mm | ||||||||
Net weight | 16kg | 19kg | 22kg | 31kg | 33kg | |||||
Gross weight | 18kg | 21kg | 24kg | 34kg | 36kg | |||||
