20K 2600W special offer intergrated design,high efficiency and stronger power ultrasonic polysaccharide extractor
Product Description

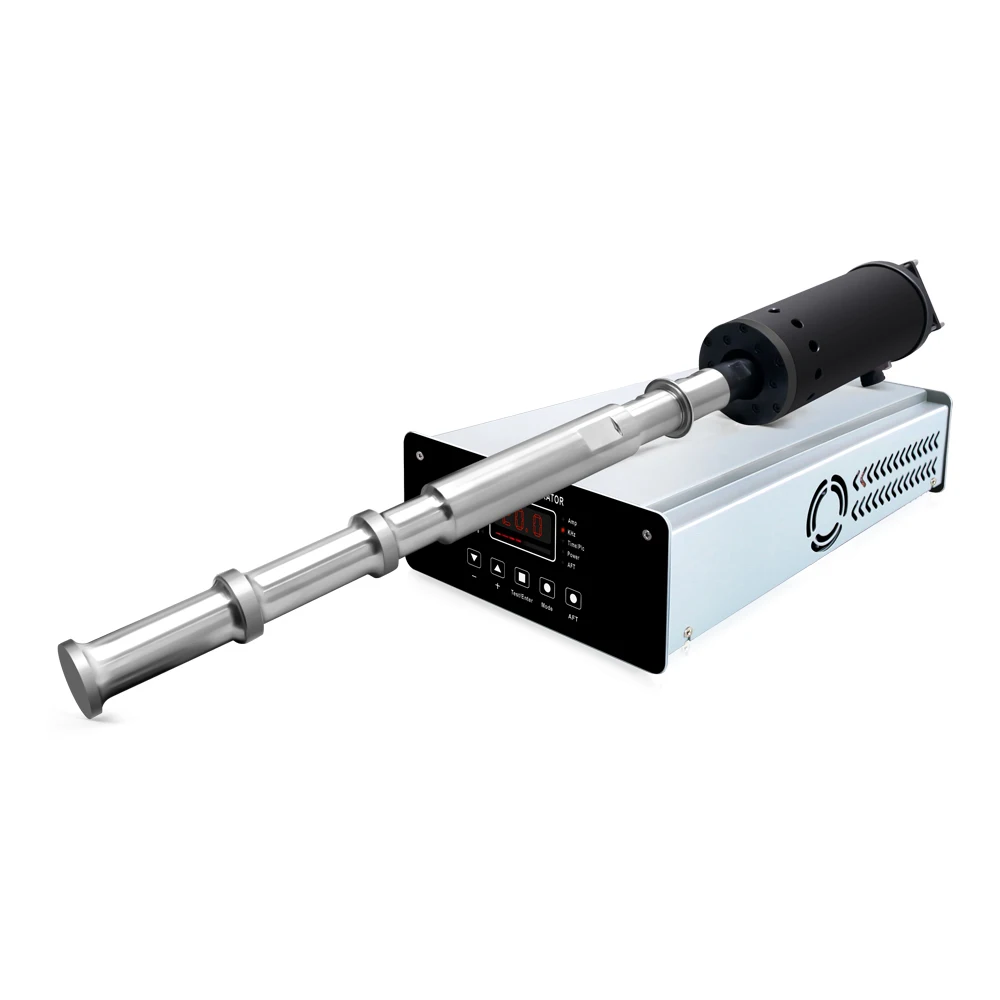

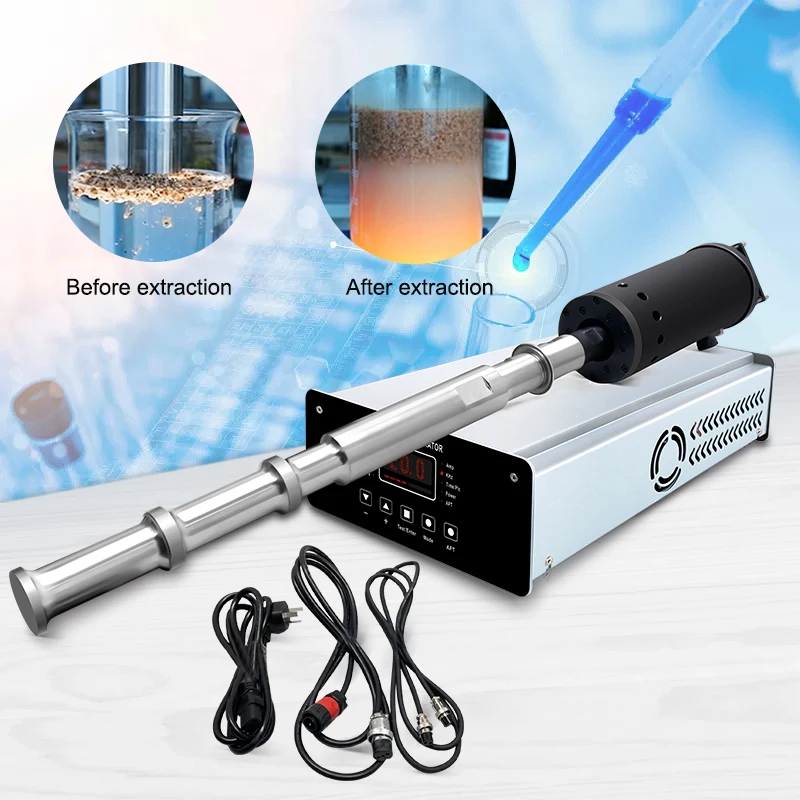

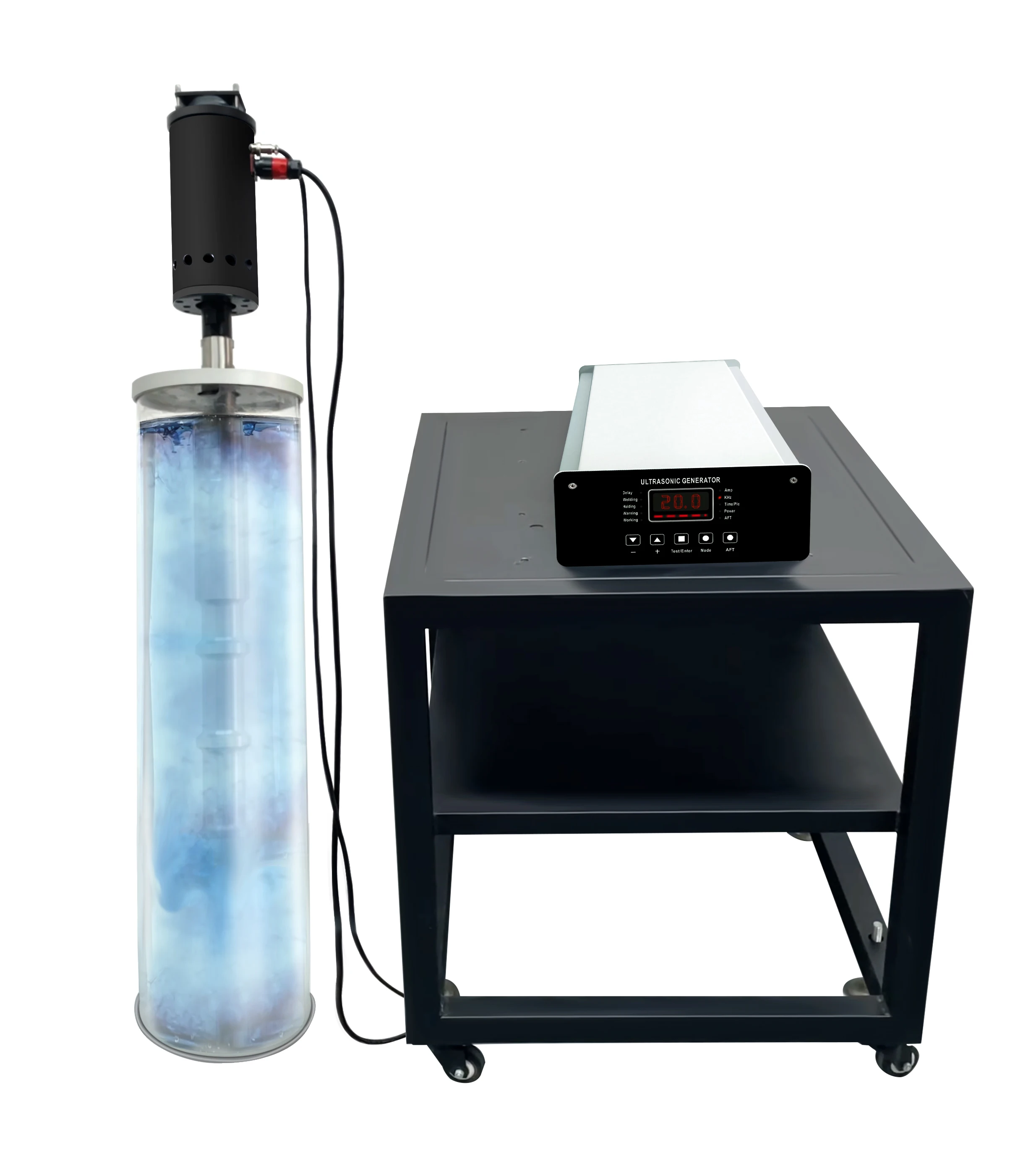

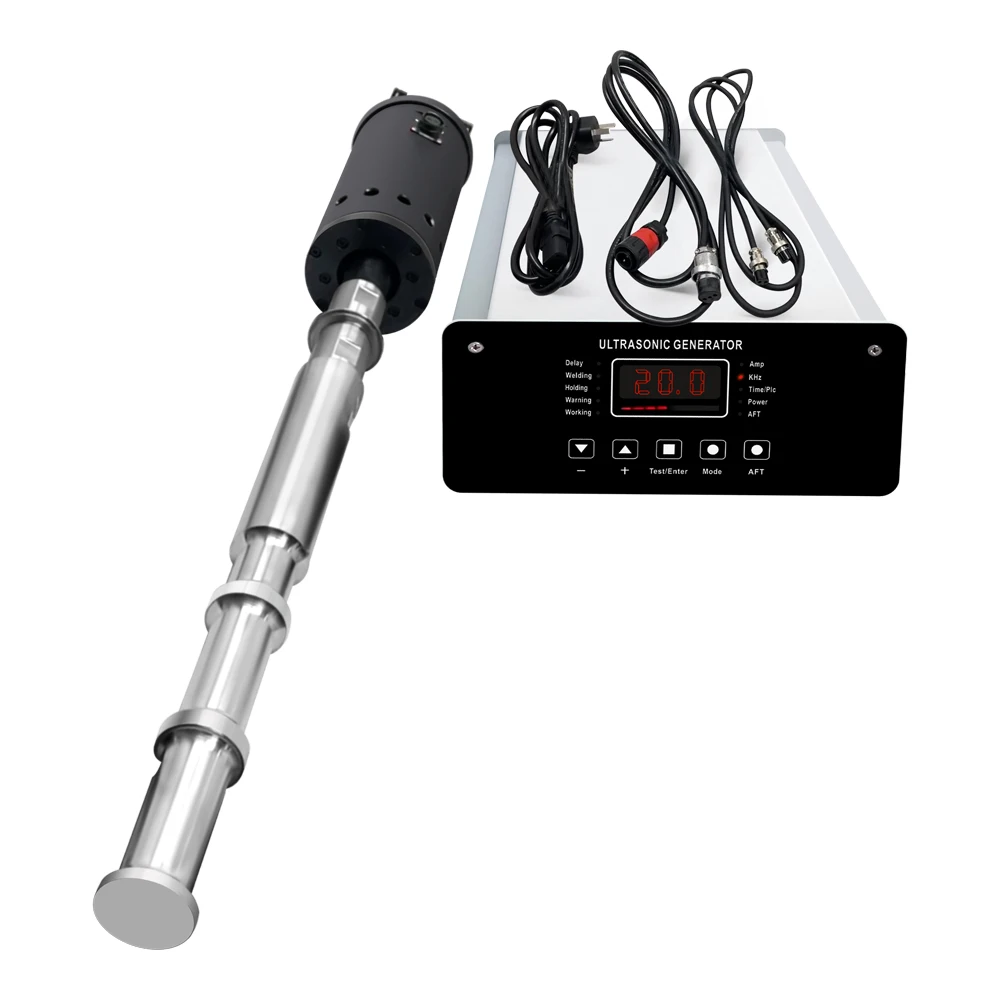

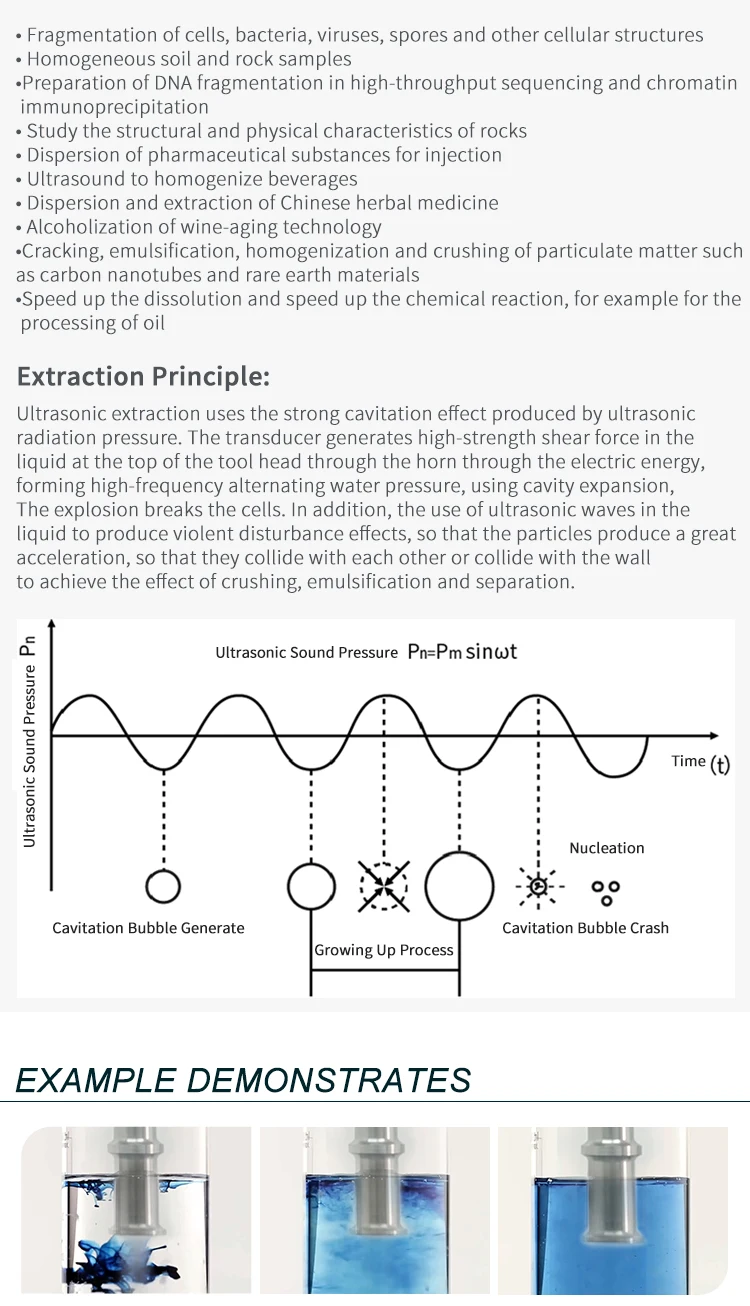

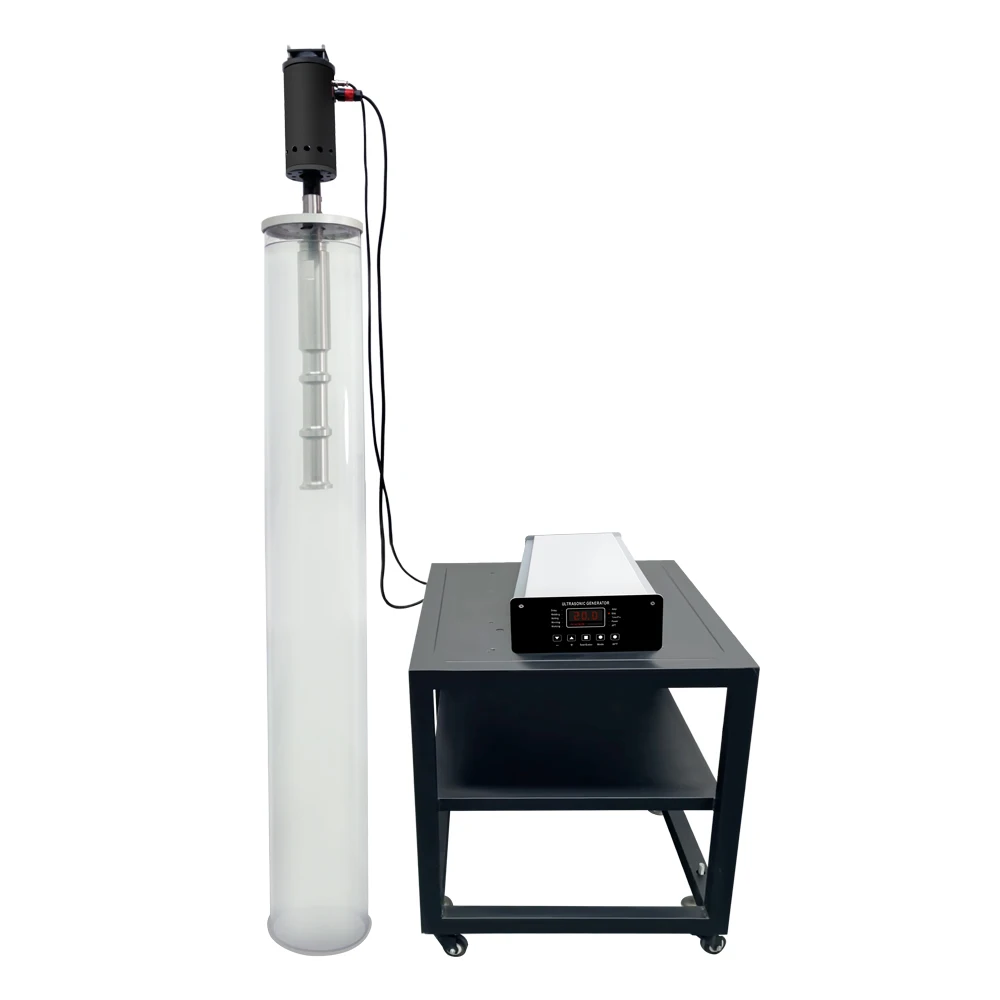

CQ20 Ultrasonic Extraction System is an ultrasonic product for the matching of extraction equipment. The ultrasonic core accessories composed of intelligent automatic frequency tracking ultrasonic generator, high-Q high-power transducer, and titanium alloy extraction tool head have good performance in extraction, homogenization, stirring, emulsification and other aspects. The system has functions such as automatic frequency tracking, adjustable power, adjustable amplitude, and abnormal alarm. Equipped with RS485 communication, various parameters can be changed and observed through HMI.
Parameter
| Model | CQ20-D50H490 |
| Working frequency | 19.90±0.8khz |
| Ultrasonic power | 2600W |
| Operating Voltage | 220V±10% |
| Working diameter | 50mm |
Features

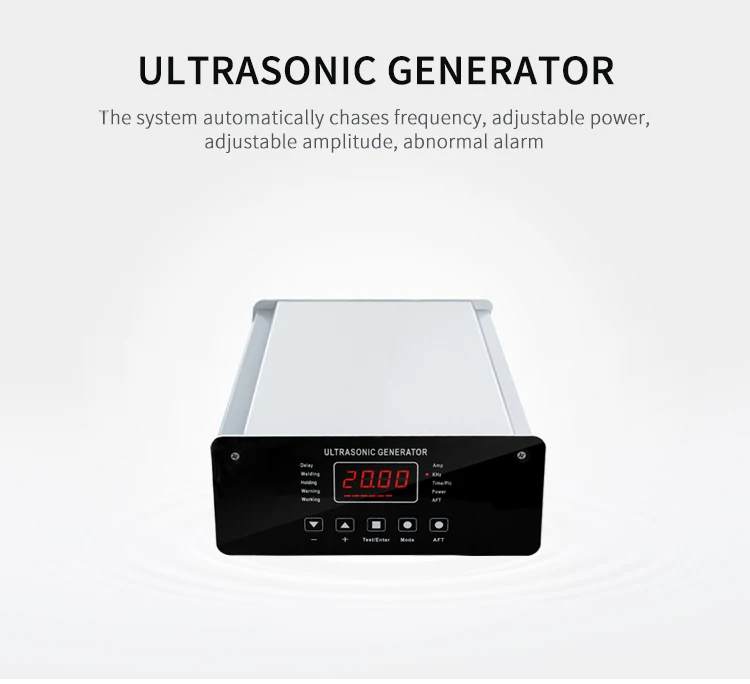

- Intelligent automatic frequency tracking ultrasonic generator, real-time frequency tracking, to ensure that the ultrasonic wave is in the best effect range
- 20khz 2600W high-power transducer, low impedance, high conversion efficiency, strong amplitude

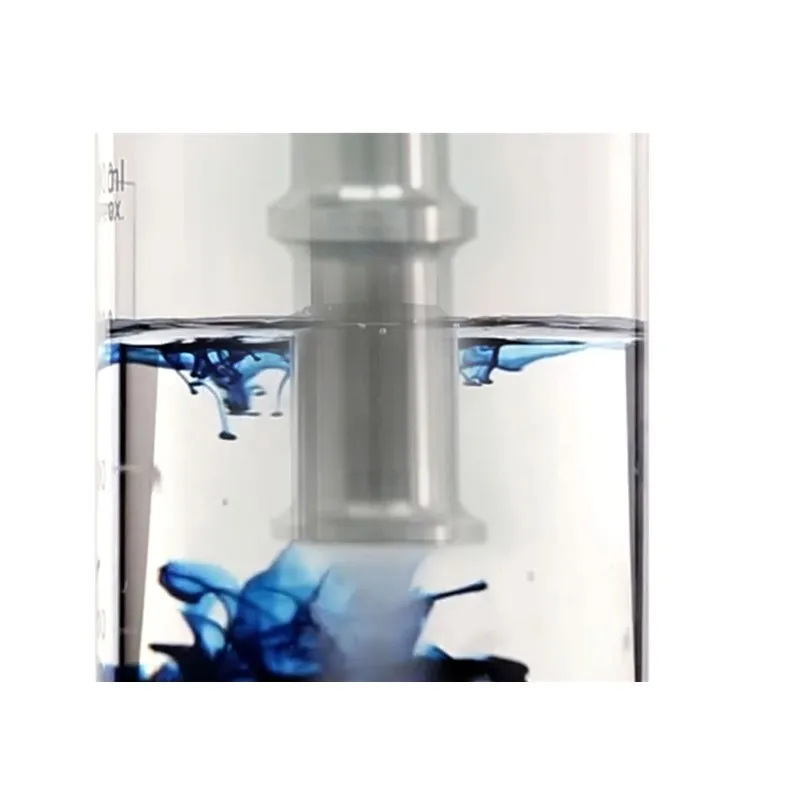

- Titanium alloy extraction application tool head has high conversion efficiency and long service life
- PLC or RS485 control function, with error output port
- Abnormal protection of frequency, power, transducer current, etc.
