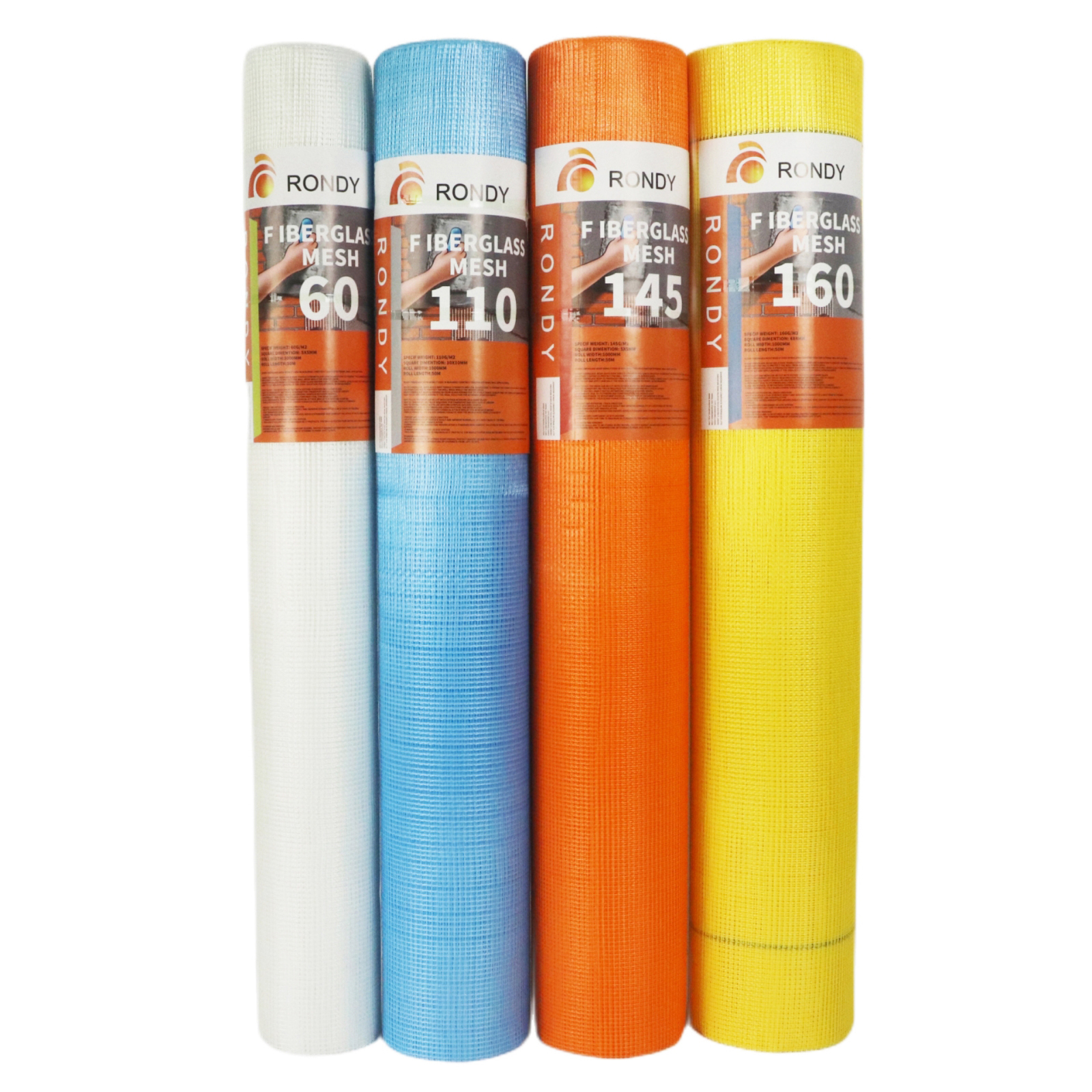

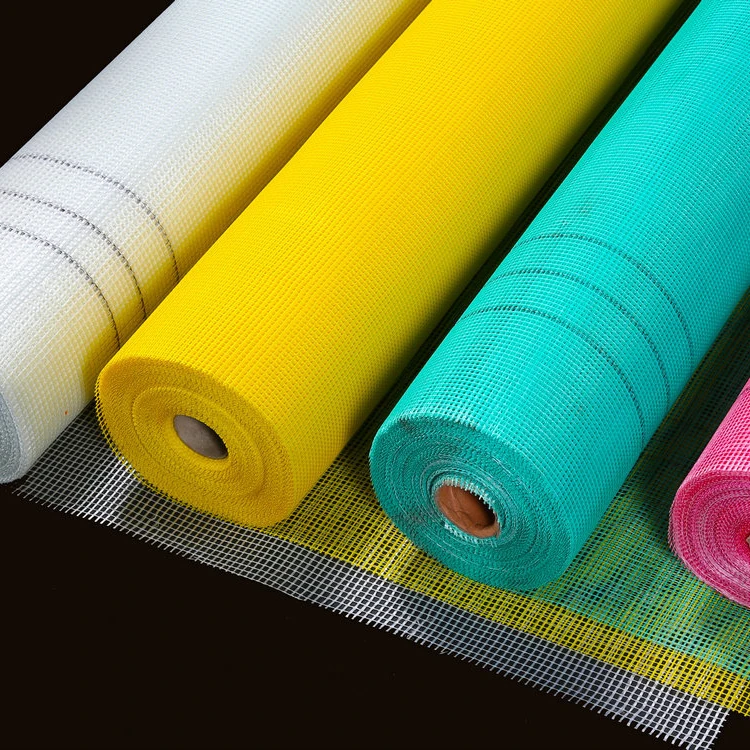

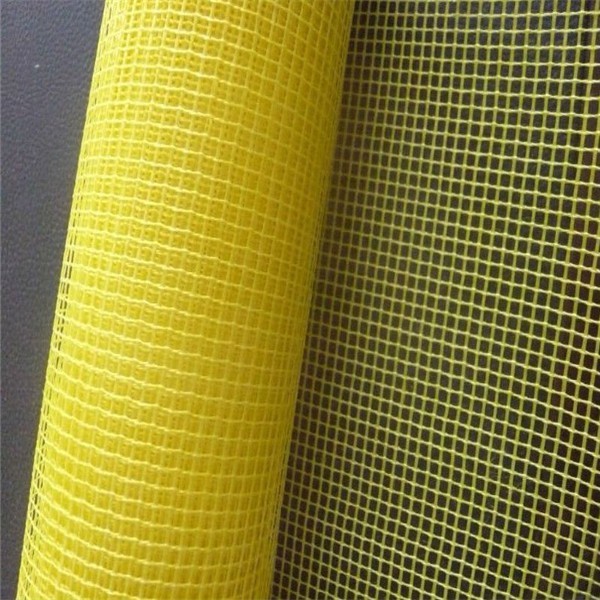

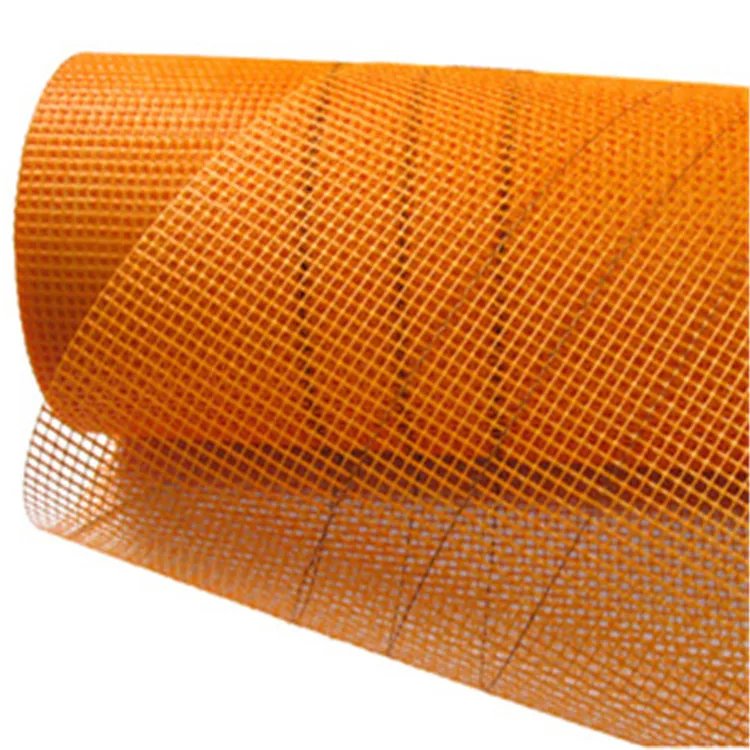

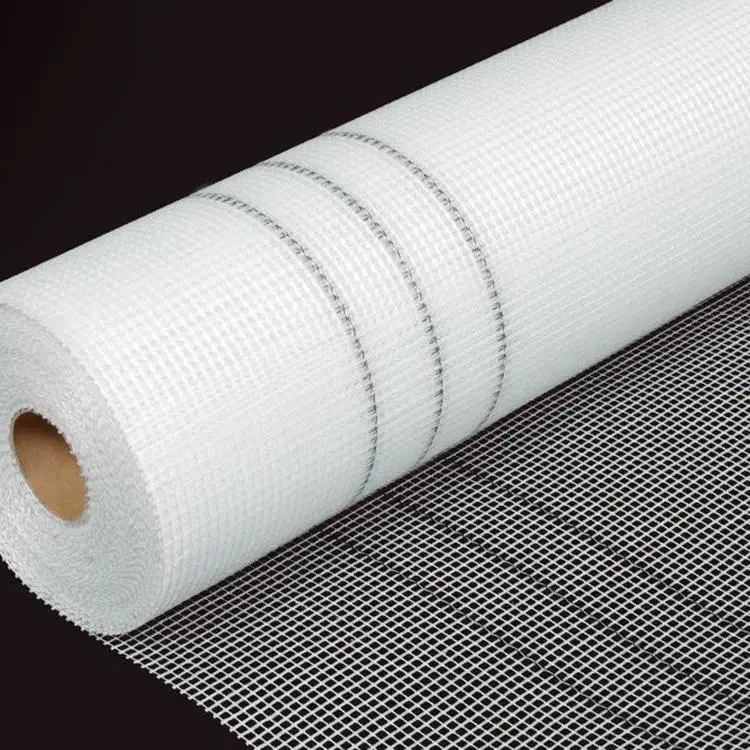

Пластмассовая сетка из
- Категория товара: Fiberglass Mesh >>>
- Поставщик (Оптовый магазин): Hebei,Gabion,Hardware,And,Mesh,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specifications
1.Alkali resistant fiberglass mesh size: 2X2mm-10X10mm,etc
2.Roll size:1x20m,50m-300m
3.Weight:45g-300g
4.High strength
1.Performance
Our fiberglass mesh have good grid fixity, and high strength, good adhesion with cement mortar, excellent fitting positioning, excellent alkali resistance is very prominent, resistant to high alkaline substances concrete erosion. Strength retention rate> 90%, elongation <1%, the durability of more than 50 years. High elastic modulus 80.4Gpa, is can't reach by other chemical fibers.
2.Specifications
1) Alkali resistant fiberglass mesh size: 2.5X2.5mm 4X4mm 5X5mm 10X10mm etc .
2) The weight of Alkali resistant fiberglass mesh :45g,60g,75g,100g,145g,165 etc .

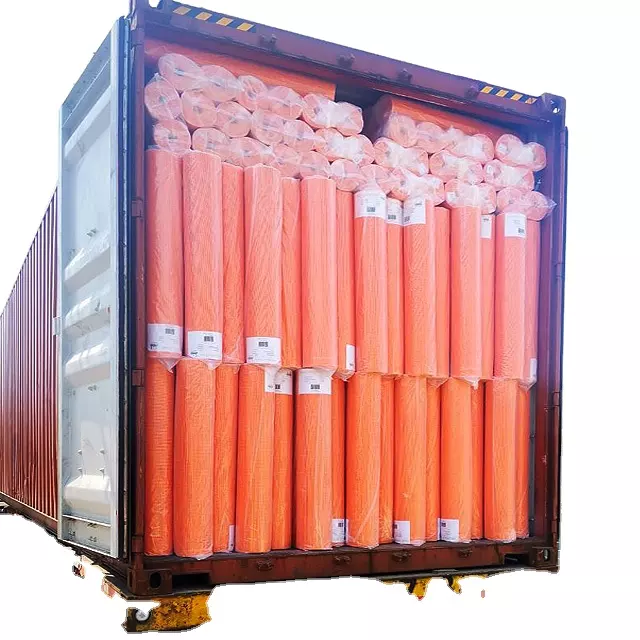

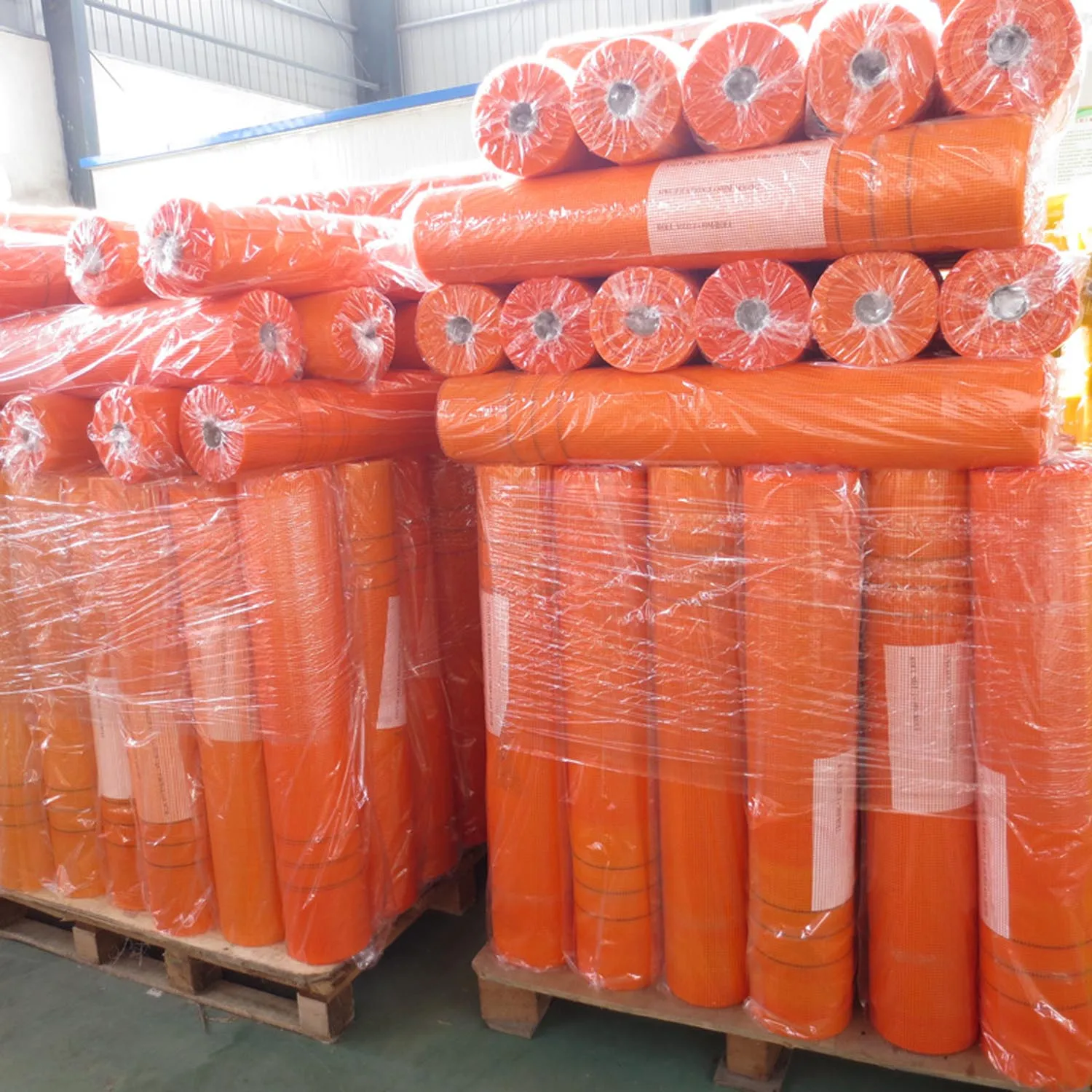

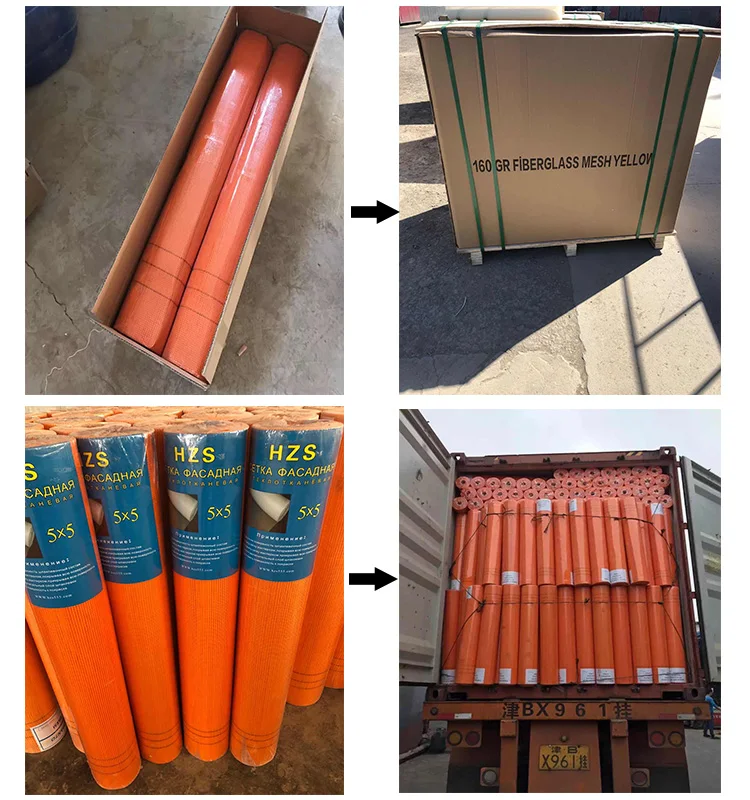

3) We can produce many specifications and use different packagings according to customers' requests.
3.Technical date sheet
| Item Number | Yarn(Tex) | Mesh(mm) | Density Count/25mm | Finish Weight(g/m2) | Tensile Strength × 20cm | Woven Structure | Content of resin%(≥) | ||||
| Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||||
| 5x5-70 | 45×2 | 200 | 5 | 5 | 5 | 5 | 70 | 550 | 850 | Leno | 16 |
| 5x5-80 | 67×2 | 200 | 5 | 5 | 5 | 5 | 80 | 700 | 850 | Leno | 16 |
| 5x5-90 | 67×2 | 250 | 5 | 5 | 5 | 5 | 90 | 700 | 1050 | Leno | 16 |
| 5x5-110 | 100×2 | 250 | 5 | 5 | 5 | 5 | 110 | 800 | 1050 | Leno | 16 |
| 5x5-125 | 134×2 | 250 | 5 | 5 | 5 | 5 | 125 | 1200 | 1300 | Leno | 16 |
| 5x5-135 | 134×2 | 300 | 5 | 5 | 5 | 5 | 135 | 1300 | 1400 | Leno | 16 |
| 4x4-135 | 100×2 | 250 | 4 | 4 | 6 | 6 | 135 | 1000 | 1300 | Leno | 16 |
| 5x5-145 | 134×2 | 360 | 5 | 5 | 5 | 5 | 145 | 1200 | 1300 | Leno | 16 |
| 4x5-150 | 134×2 | 300 | 4 | 5 | 6 | 5 | 150 | 1300 | 1300 | Leno | 16 |
| 5x5-160 | 134×2 | 400 | 5 | 5 | 5 | 5 | 160 | 1450 | 1600 | Leno | 16 |
| 4x4-160 | 134×2 | 300 | 4 | 4 | 6 | 6 | 160 | 1550 | 1650 | Leno | 16 |
| 4x5-165 | 134×2 | 350 | 4 | 5 | 6 | 5 | 165 | 1300 | 1300 | Leno | 16 |

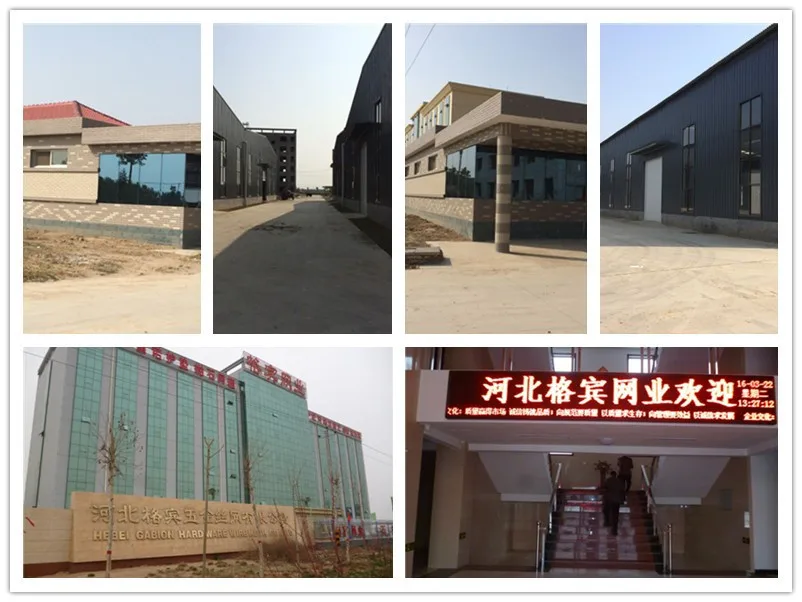

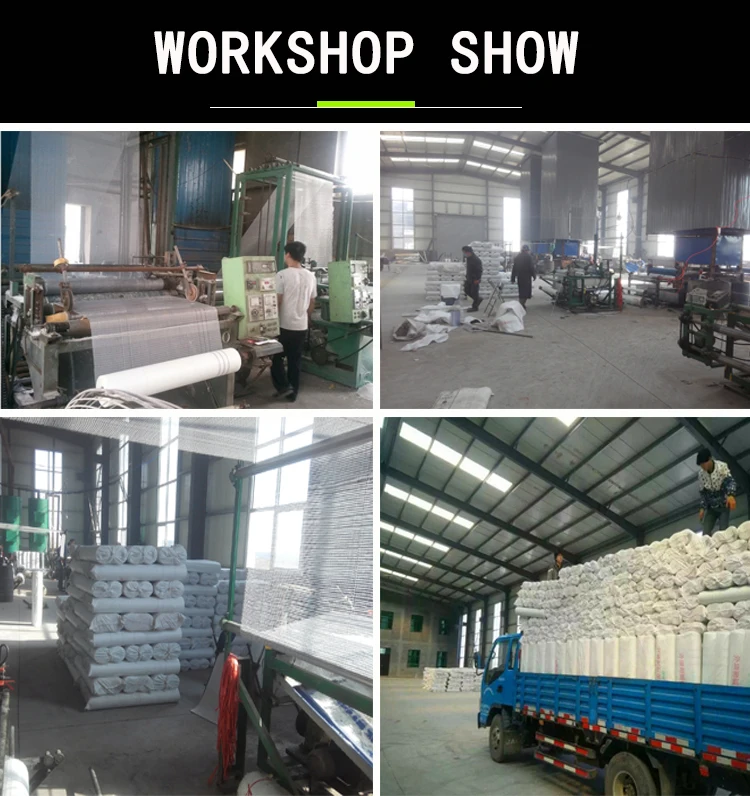

Our Factory
