Products Description
Fiber Alignment | Core/cladding alignment / Manual alignment |
Splicing Time | 5s |
Heating Time | 15s |
Heating Mode | Automatic heating（Preheating） |
Focus Mode | Six motors Auto focus |
Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、 NZDS（G.655） |
Splice Loss | 0.025dB（SM）、0.01dB（MM）、0.04dB（DS/NZDS） |
Control Technology | Real-time control and calibration of fusion ARC |
Return Loss | Better than 60DB |
Fiber Diameter | Cladding Diameter：80-150μm Coating Diameter：100-1000μm |
Fiber Cleave Length | Coating less than 250µm：8-16mm Coating less than 250-1000µm:16mm |
Software upgrade | Mobile APP update,Turn on Bluetooth sync to the machine |
Lighting | External |
Fiber Holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification | 300 for X or Y view, 150 for X or Y view |
Screen | 5 inch TFT color display |
Splicing Mode | Normal / high precision splicing |
Splicing Method | Fully automatic、Step by step splicing |
Splicing Record Storage | Synchronize to the phone, the server to cloud storage unlimited |
Built-in battery | 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times |
Power Supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
Shrinkable Tube | 60mm、40mm |
Optical Power Meter | Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |

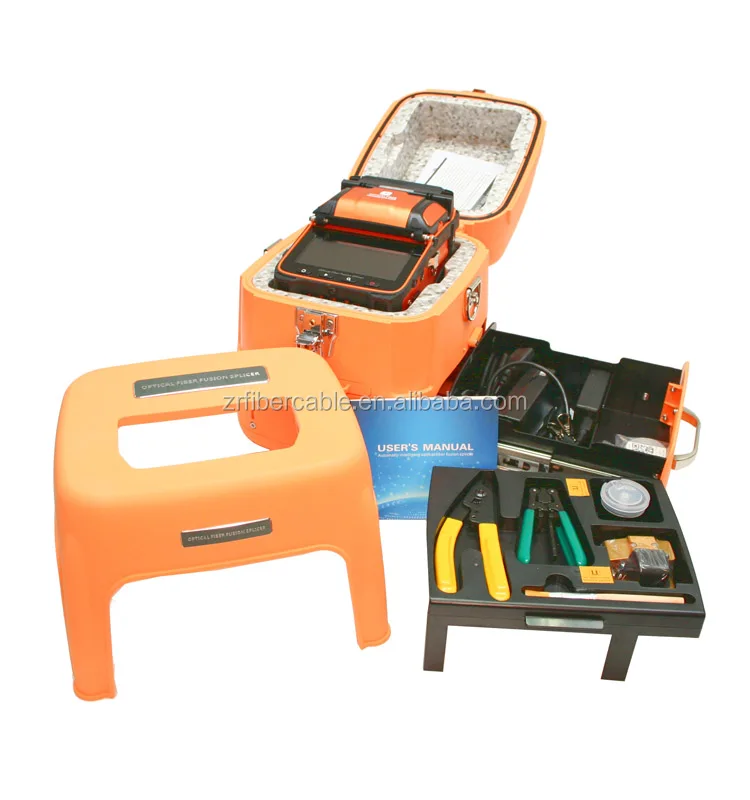

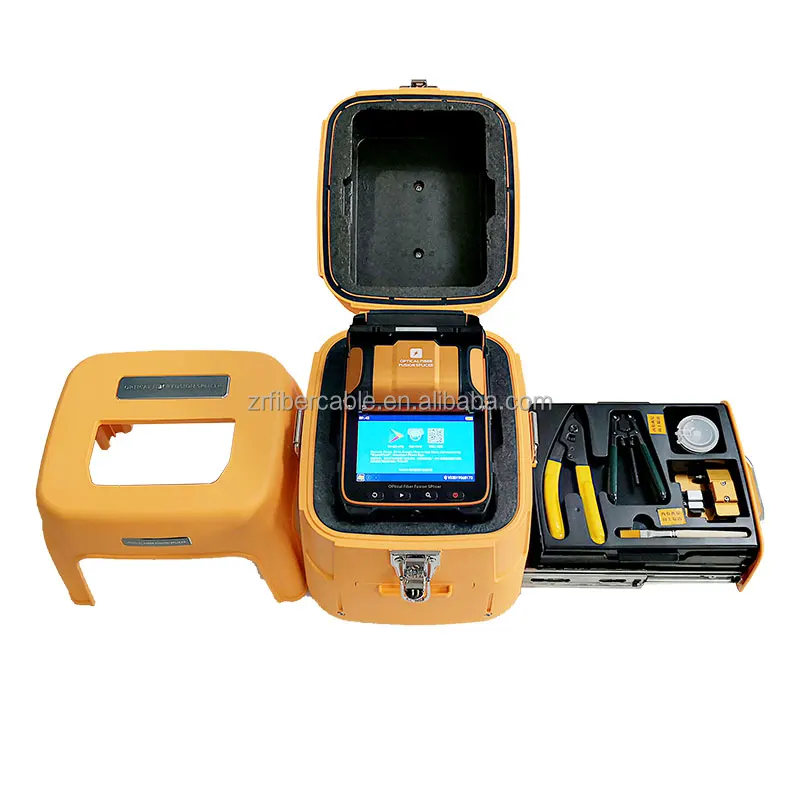

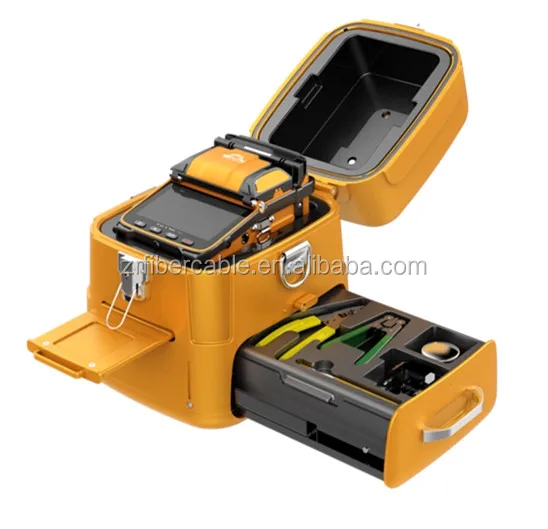

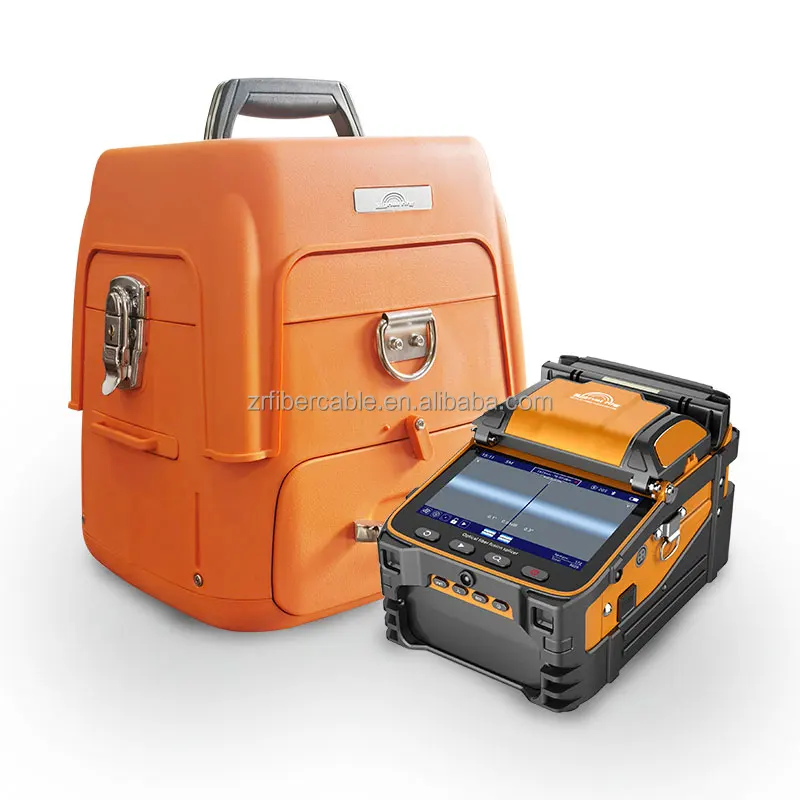

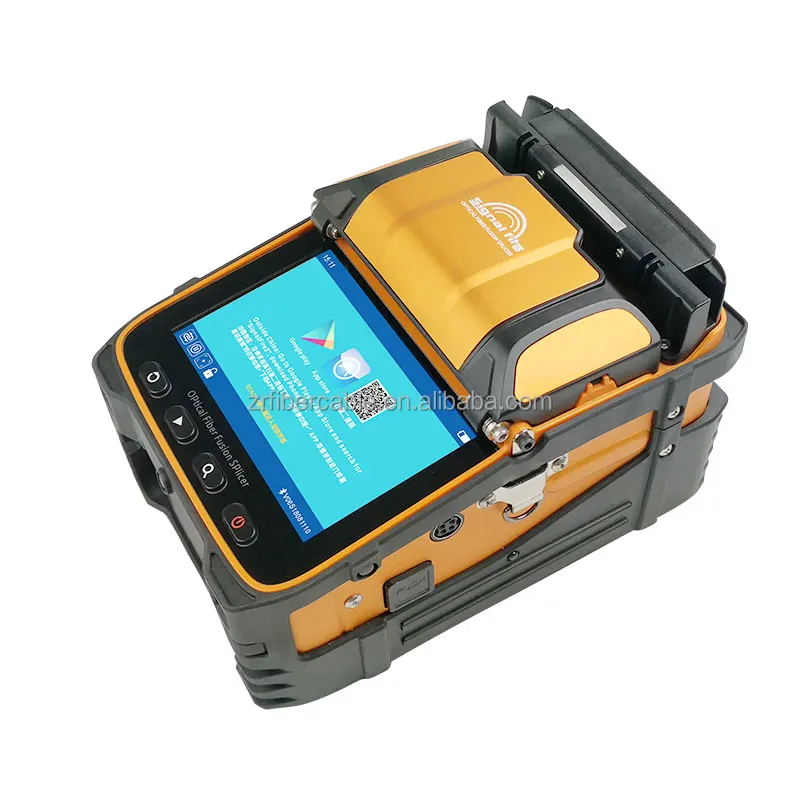

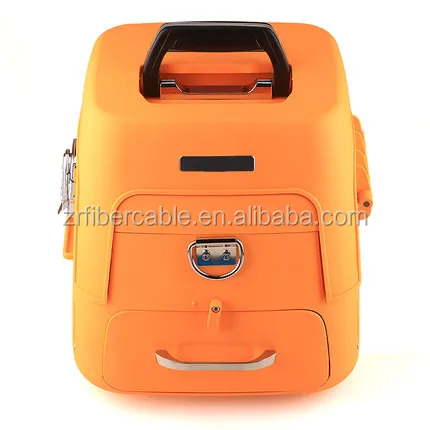

Product Display
