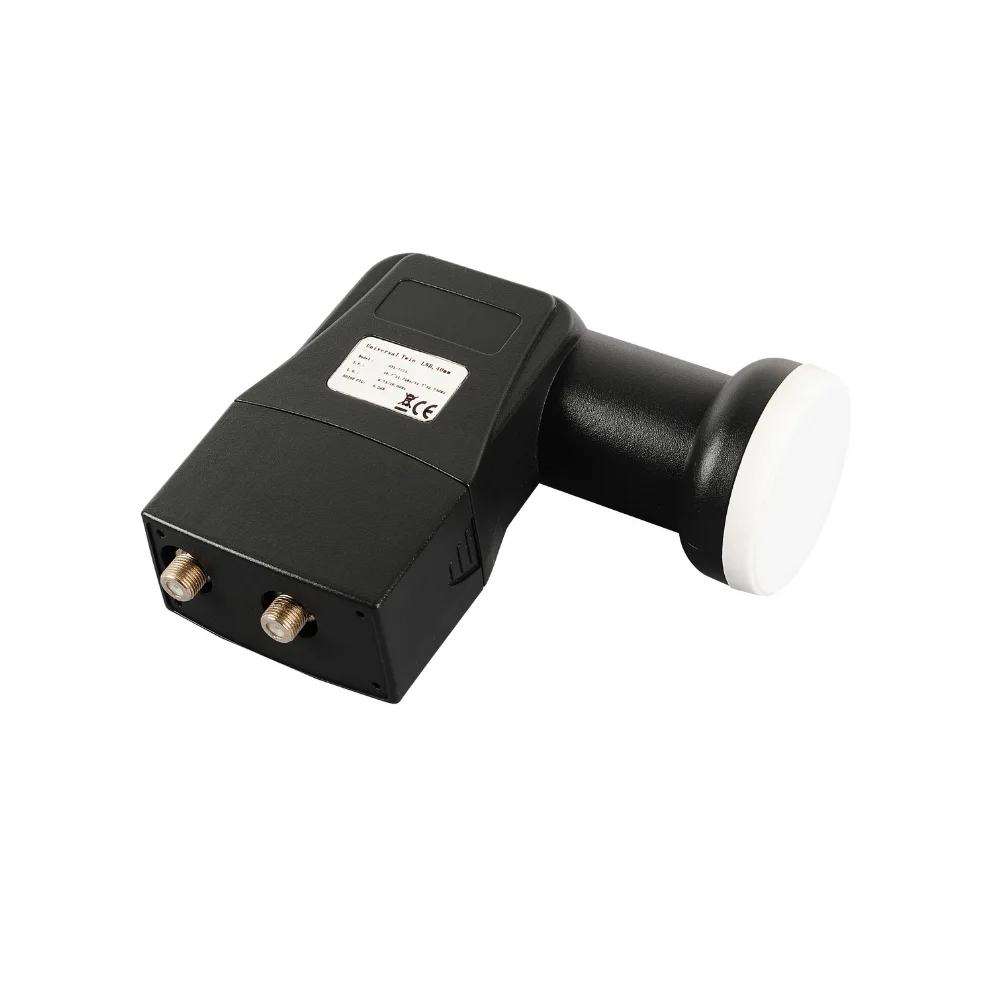

Высококачественный HD черный однодиапазонный LNB спутниковый аксессуар
- Категория товара: Satellite TV Receivers >>>
- Поставщик (Оптовый магазин): Zhongshan,Hejia,Electrical,Industrial,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

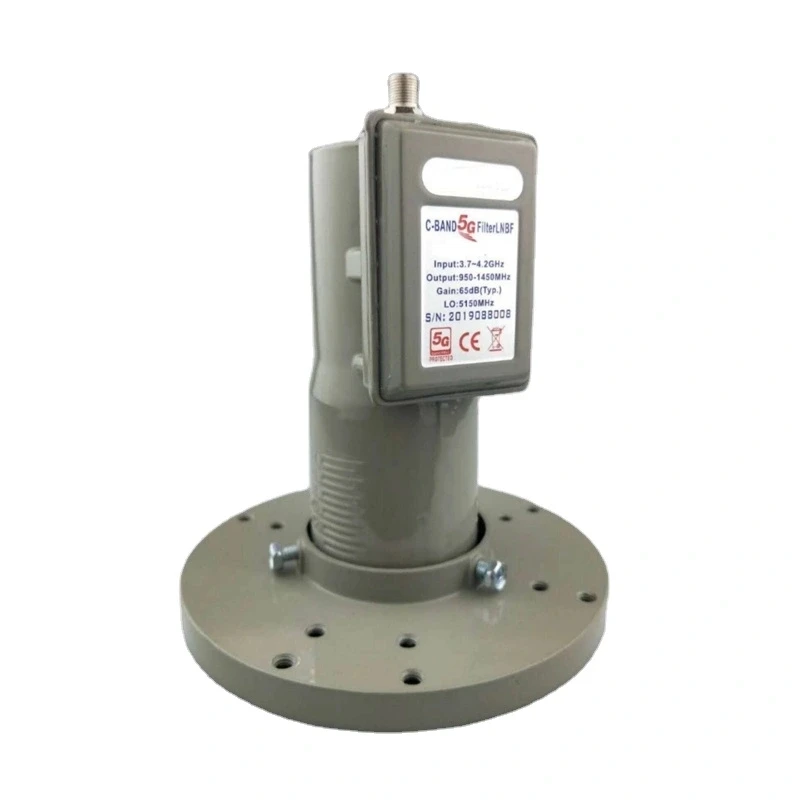

Excellent Polarization Isolation waterproof c band lnb 17K Full HD 1080 5G filte
Specifications:
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof. Specifications Ku-band LNB Dual polarization and single
output Input frequency Low band 10700-11700MHz High band 11700-12750MHz Output frequency Low band 950-1950MHz High band
1100-2150MHz Noise figure 0.5dB(Min)-1.1dB(Max) Gain 55dB(Min) Gain Flatness +4.0dB Gain ripple +1.0(36MHz)/+0.5(26MHz)dB LO
frequency range 97500-10600MHz LO frequency stability +3@-30° C to + 60° C MHz LO frequency stability +1.0@25° C MHz Input
Isolation 18(Min)dBc 1dB compression < 0(Min)dBm In-band spurious level -50(Min)dBc Supply voltage Ca: 9.5-14.0(vertical) CB:
16.0-21.0(horizontal) L. O. Phase Noise -50dBc/Hz@ 1kHz -75dBc/H@ 10kHz -95dBc/H@ 100kHz Output VSWR 2.5: 1 Current 160(max. )mA
Consumption(max. ) 100(max. )mA Output Impedance 75 Ohms
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof.
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof. Specifications Ku-band LNB Dual polarization and single
output Input frequency Low band 10700-11700MHz High band 11700-12750MHz Output frequency Low band 950-1950MHz High band
1100-2150MHz Noise figure 0.5dB(Min)-1.1dB(Max) Gain 55dB(Min) Gain Flatness +4.0dB Gain ripple +1.0(36MHz)/+0.5(26MHz)dB LO
frequency range 97500-10600MHz LO frequency stability +3@-30° C to + 60° C MHz LO frequency stability +1.0@25° C MHz Input
Isolation 18(Min)dBc 1dB compression < 0(Min)dBm In-band spurious level -50(Min)dBc Supply voltage Ca: 9.5-14.0(vertical) CB:
16.0-21.0(horizontal) L. O. Phase Noise -50dBc/Hz@ 1kHz -75dBc/H@ 10kHz -95dBc/H@ 100kHz Output VSWR 2.5: 1 Current 160(max. )mA
Consumption(max. ) 100(max. )mA Output Impedance 75 Ohms
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof.
Feature
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof.
Product Description 1. Universal single LNB ku band for satellite receiver 2. Receiving horizonta or vertical KU-Band satellite
single. 3. High reliability, low phase noise, super-low noise. 4. Qualified for working in harsh environments 5. Dual L. O and
single output, connect with multiswitch. 6. High quality and waterproof.
Frequency range | GHz | 10.7-12.75 |
Control signals horizontal | Vdc | 16-20 |
Control signals vertical | Vdc | 12-14 |
Output frequency range | MHz | 950-2150 |
L.O.Frequency OKHz | GHz | 9.75 |
L.O Frequency 22KHz | GHz | 10.6 |
Gain | dB | 60 |
Noise figure | dB | 0.3 |
L.O.stability | MHz | -1.5~1.5 |
Polarities discrimination | dB | ＞18 |
Phase noise(@10KHz) | dBc | -75 |
Powering | Vdc | 10-20 |
Max current | mA | 110 |
Impedance | Ω | 75 |
Clamp diameter | mm | 40 |
Operating temperature | ℃ | -30~60 |
Hightlight
1.Low visual impact design and small casing High gain Low noise figure Outstanding linearity and careful equalization
2.High discrimination between polarities Very high IP protection index (IP66) Can be used under extreme temperature conditions Main
3.Features Light-weight Compatible with 40-mm supports Low power consumption Power feeding either through the receiver or the
4.multiswitch Simple connection Multisatellite-compatible solutions
5.Package:
50pcs a carton,0.06CBM each carton
6.Delivery Options :
20days after received the despoit and confirm the box artwork.
Company Profile
Certifications
Exhibition
Packing and Sipping
1. Normal lead time: 7days for sample order;30 days for production order.
2. Payment: T/T,
3. DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4. Shipping port: Guangzhou/ ShenZhen/ ZhongShan
5. Discounts are offered based on order quantities.
6. Payment condition: 30% before production, 70% before delivery.
2. Payment: T/T,
3. DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4. Shipping port: Guangzhou/ ShenZhen/ ZhongShan
5. Discounts are offered based on order quantities.
6. Payment condition: 30% before production, 70% before delivery.
Why Choose Us
HEJIA GROUP
Hejia Group was founded in 2003 which located in Zhongshan City, Guangdong Province of China, is in the line of R&D, manufacturing and sales of satellite accessories, extending switch accessories products and cables ( speaker cable,HDMI cable, Solar cable, Vehicle charge cable,New energy cable), of high-tech enterprises for domestic and international market.
In the year of 2013 , Hejia group set up a subsidiary Jiangxi Hejia Technology Co. Ltd in Shangrao city Jiangxi province. Hejia has rich experience in international market operation for 20 years, and Hejia set up its own quanlity managment system, passed ISO9001:2000 certification, ISO14001:2004, OSAH18000 system certification and reached the UL,CSA and other national safety standards certification.
At present, the company keeps increasing OEM/ODM business, with rapid response for marketing, considerate service and good reputation, supply goods and service to big and famous companies chain shop more than 120 countries and redins. Warmly welcome you trust Hejia and choose Hejia for your partner.
Our Services:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM ODM is available.
4. Sample is available.About US
* 19 Years Manufacture Of Cable AND Muiltswitch.
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Warmly welcome you trust Hejia and choose Hejia for your partner.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM ODM is available.
4. Sample is available.About US
* 19 Years Manufacture Of Cable AND Muiltswitch.
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Warmly welcome you trust Hejia and choose Hejia for your partner.
WHY CHOOSE US？
Abundant Industry Experience With 19 Years
Professional Team To Offer Good Service
Strict Test For High Quality
Product OEM&ODM Support With Various Model
Product OEM&ODM Support With Various Model
Lower Price And Delivery On Time
FAQ
Q1:Are you trading company or manufacturer?
A: We are the factory.and we can export the goods by ourselves.
Q2.How long is the delivery time?
A: We have fast delivery time
Sample leading time:Within 10 days
Production leading time: Within 20 days
Q3.Can you provide the free sample? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost.If you need many items, or need more qty for each item, we will charge for the samples.
Q4.How does your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.
Q5:What's your terms of payment?
A: Usually by TT, Western Union and Alibaba assurance order.
If other terms,welcome to discuss with us.
Q6:Can you make customized products and customized packing?
A:Yes.We made a lot of customized products for our customer before.
And we made many models for our customers already.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.
Q7:For the cables,May i know the method of packing you have now?
A:The method of packing as below for you reference: a.Paper Reel,
b.Plastic Reel,
c. Wooden Durm
d.Gift box e.Pull box
Q8:How about the afer-sale service?
A: Any feedback or comment are welcomed,we will try to make the best assistant to let you maximum satisfaction.
A: We are the factory.and we can export the goods by ourselves.
Q2.How long is the delivery time?
A: We have fast delivery time
Sample leading time:Within 10 days
Production leading time: Within 20 days
Q3.Can you provide the free sample? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost.If you need many items, or need more qty for each item, we will charge for the samples.
Q4.How does your factory do regarding quality control?
A: All the products will be 100% checked before the shipment.
Q5:What's your terms of payment?
A: Usually by TT, Western Union and Alibaba assurance order.
If other terms,welcome to discuss with us.
Q6:Can you make customized products and customized packing?
A:Yes.We made a lot of customized products for our customer before.
And we made many models for our customers already.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.
Q7:For the cables,May i know the method of packing you have now?
A:The method of packing as below for you reference: a.Paper Reel,
b.Plastic Reel,
c. Wooden Durm
d.Gift box e.Pull box
Q8:How about the afer-sale service?
A: Any feedback or comment are welcomed,we will try to make the best assistant to let you maximum satisfaction.
About US
* 19 Years Manufacture Of Audio Cable and Muiltswitch.
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Click”Contact Supplier” or “Chat now” for more details,Ms. Shel Qiu will reply you within 30 minutes.
* 19 Years Manufacture Of Audio Cable and Muiltswitch.
* We provide high quality products and priority customer service.Customer's satisfaction is Hejia pursue.
* Every customer is important to Hejia,If you feel satisfied with our product and service,please give us your comments and
feedback,thank you for your effort and support!
* If you intersting in our products, pls send the enquiry now.Free sample will be deliveried to your address soon!
Click”Contact Supplier” or “Chat now” for more details,Ms. Shel Qiu will reply you within 30 minutes.
