Взрывозащищенная электрическая мини-лебедка с двумя барабанами 110 В, подземная скребок для угольной шахты, лебедка для продажи
- Категория товара: Energy & Mineral Equipment >>>
- Поставщик (Оптовый магазин): Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hot Sale Model
Products Description
Introduction of Explosion-Proof Two Drum Electric Mini Winch 110v Underground Coal Mine Scraper Winch For Sale
Scope of JP Series Explosion-Proof Two Drum Scraper Winch application:
The scraper winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.
Mine Scraper Winch factory / Scraper winch/ mining pulling winch / underground winch/ rake winch/ horizontal pulling scraper winch manufacturer/ mine rake winch for pulling small rocks
1. Scraper winch Feature:
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
Remark: The scraper winch cannot be used as the lifting equipment. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.
The scraper winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.
Mine Scraper Winch factory / Scraper winch/ mining pulling winch / underground winch/ rake winch/ horizontal pulling scraper winch manufacturer/ mine rake winch for pulling small rocks
1. Scraper winch Feature:
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
Remark: The scraper winch cannot be used as the lifting equipment. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.
Product Paramenters
Parameters of Explosion-Proof Two Drum Electric Mini Winch 110v Underground Coal Mine Scraper Winch For Sale
Item | Unit | Model of winch | ||||||||||||||
2JP-7.5 3JP-7.5 | 2JP-15 3JP-15 | 2JP-30 3JP-30 | 2JP-55 3JP-55 | 2JP-75 | 2JP-90 | 2JP-110 | ||||||||||
Volume of scraper pan | 0.1 | 0.25 | 0.4 | 0.6 | 1.0 | 1.5 | 1.6 | |||||||||
Average puling Force of working drum | KN | 8 | 14 | 28 | 50 | 54 | 62 | 78 | ||||||||
Average Speed of wire rope | m/s | 1.0 | 1.1 | 1.2 | 1.2 | 1.3 | 1.3 | 1.3 | ||||||||
Diameter of wire rope | mm | 9.3 | 12.5 | 15.5 | 18.5 | 20 | 23 | 24.5 | ||||||||
Rope capacity of drum | m | 45 | 80 | 90 | 100 | 180 | 125 | 110 | ||||||||
Electric power | KW | 7.5 | 15 | 30 | 55 | 75 | 90 | 110 | ||||||||
Motor speed | m/s | 1440 1210 | 1460 1525 | 1470 1685 | 1485 2070 | 1480 | 1480 | 1480 | ||||||||
Overall dimension | length | mm | 1210 | 1525 | 1685 | 2070 | 2350 | 2400 | 2600 | |||||||
width | mm | 565 | 660 | 380 | 1010 | 1515 | 1515 | 1515 | ||||||||
height | mm | 490 | 620 | 735 | 890 | 1300 | 1300 | 1300 | ||||||||
Details Images

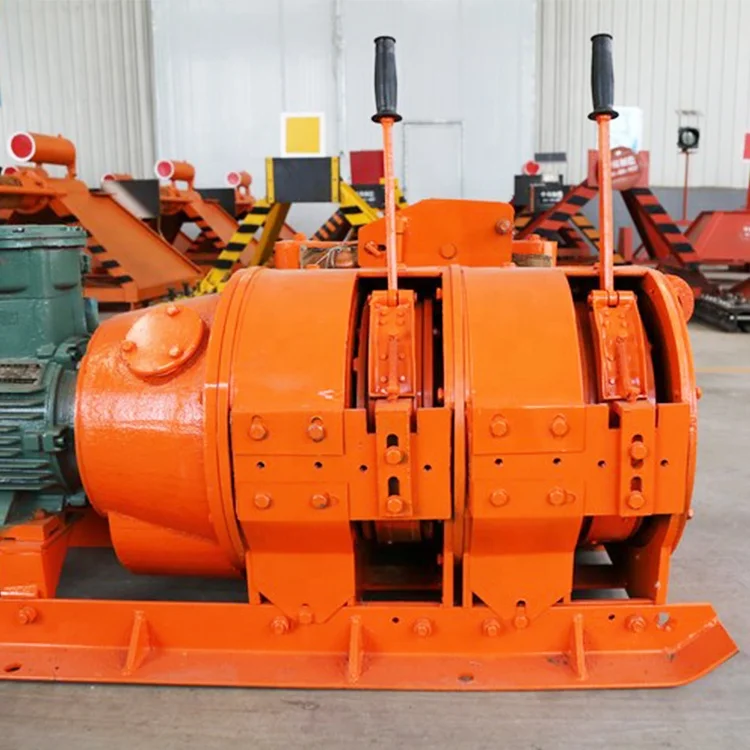

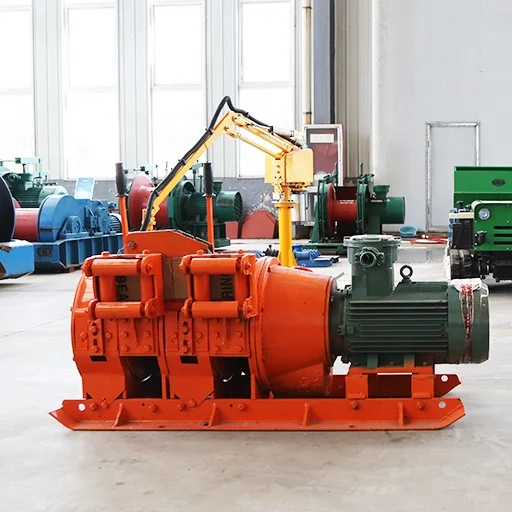

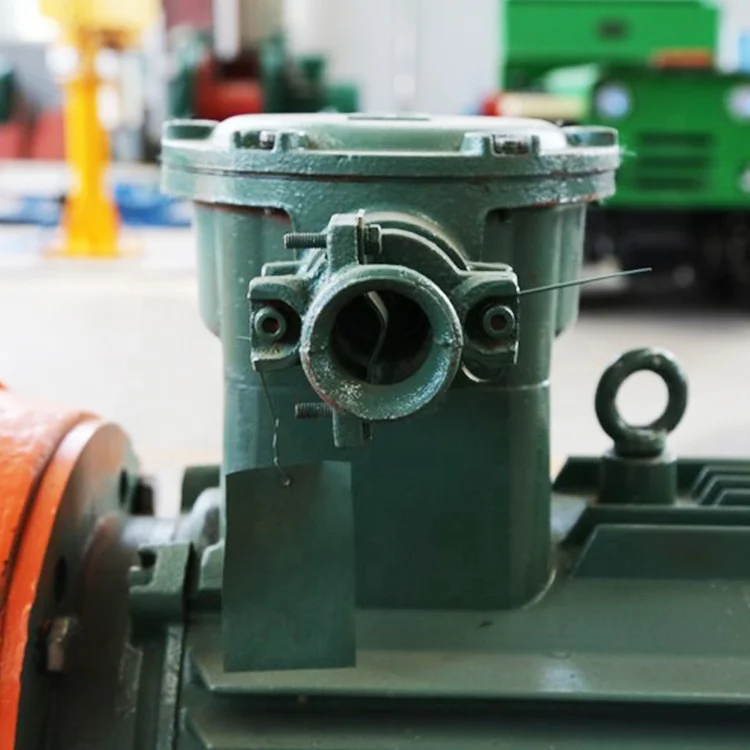

Photos of Explosion-Proof Two Drum Electric Mini Winch 110v Underground Coal Mine Scraper Winch For Sale
