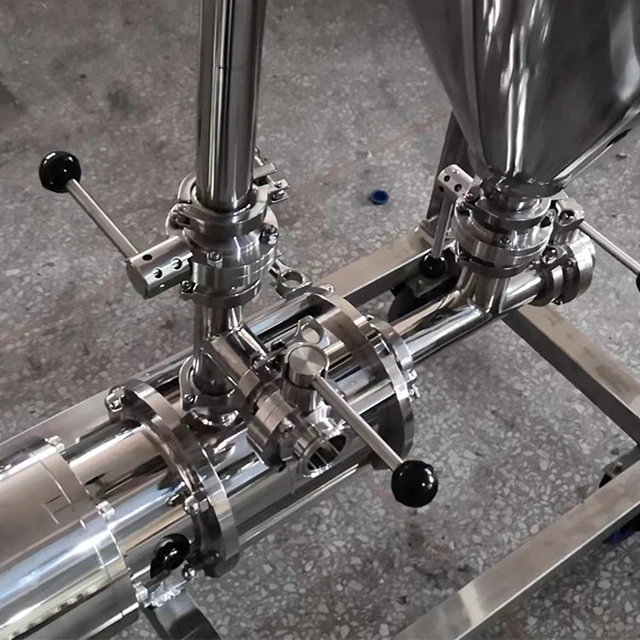

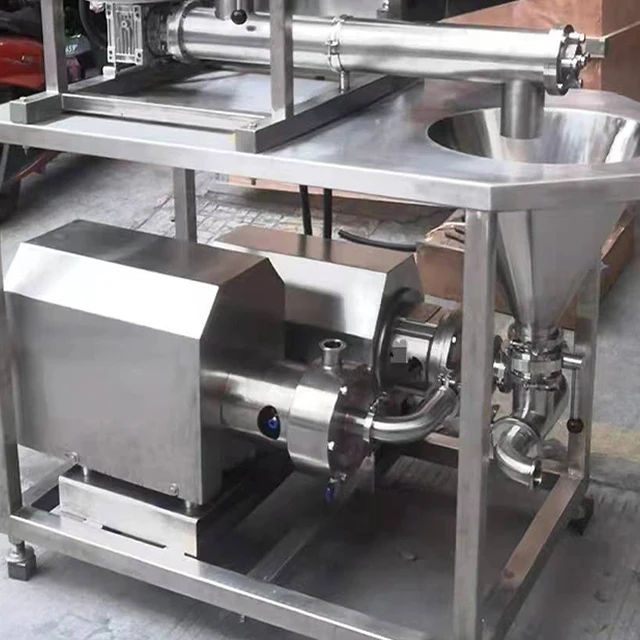

Широко используемый гомогенизирующий насос высшего качества для пищевых продуктов
- Категория товара: >>>
- Поставщик (Оптовый магазин): Wenzhou,Zion,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

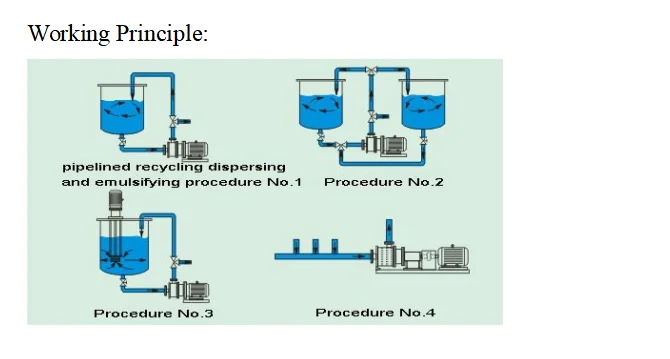

Working Method:

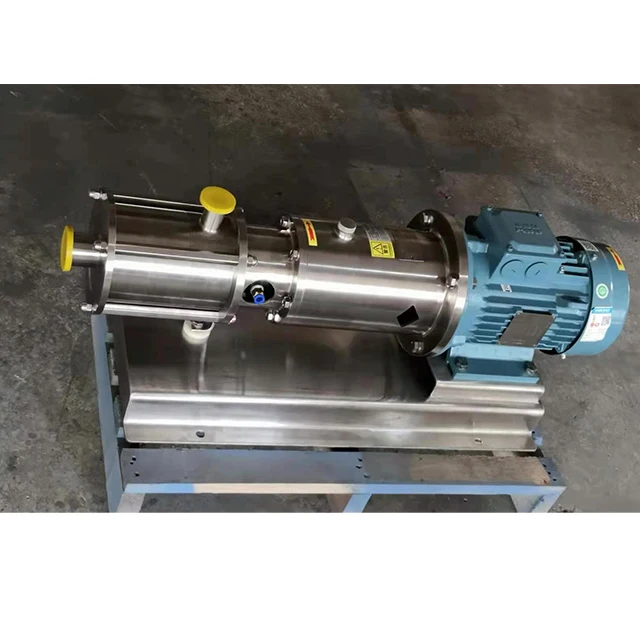

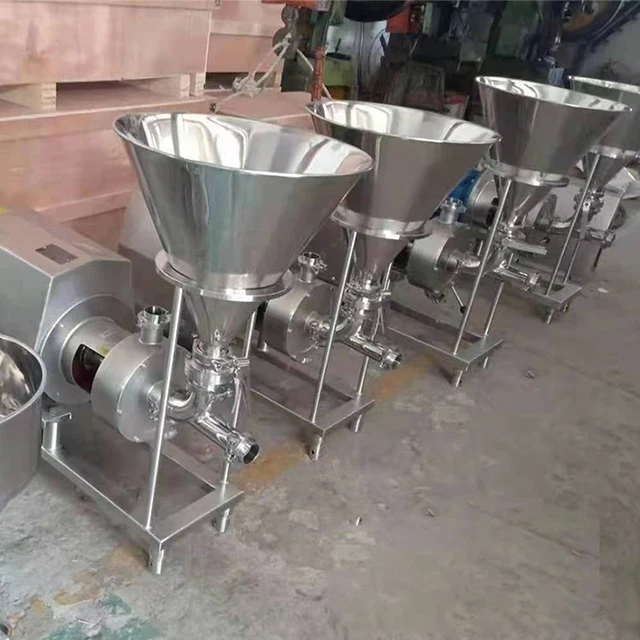

In-line emulsifier(Pump) has similar work theory with high shear emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Emulsification pump could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.Inline emulsifier is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.
Features of the InLine Emulsifier
1.All wetted parts are grade 304 or 316 Stainless steel
2.Mechanical Seal for Sanitary Operation
3.Quick opening for easy cleaning
4.Hygienic Design.
5.Explosion-proof ABB Motor 3 Phase
6.Two Machine in one, an emulsifier and a centrifugal pump
7.With Batch Emusifier and Inline emulsifier working together, The efficiency of emulsification process would be much higher.
8. Suitable for industrial online continuous production
9.Wide viscosity range than in batch high shear mixer
10.No batch difference
11. High efficiency, low noise

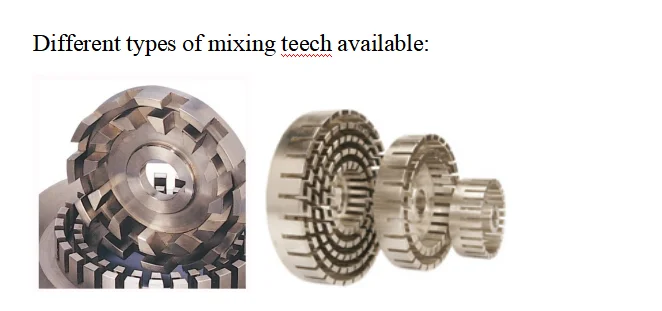

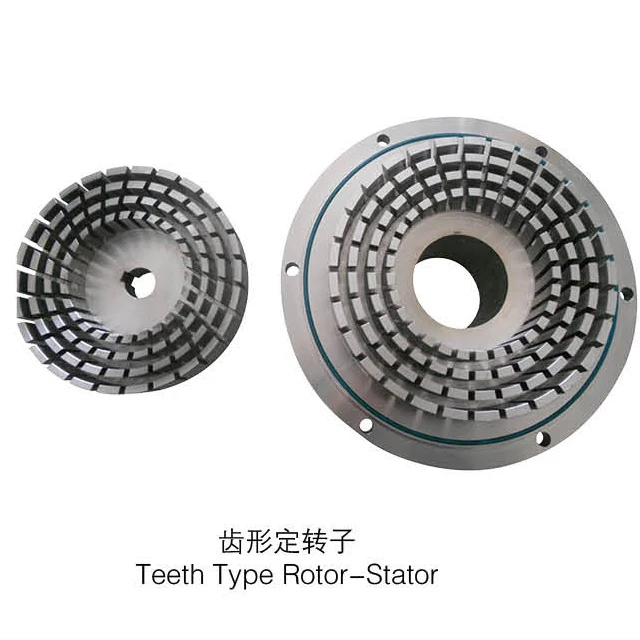

12.Special designed three stages rotor/stator for greater shear.
In-line emulsifier(Pump) has similar work theory with high shear emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Emulsification pump could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.Inline emulsifier is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.
Features of the InLine Emulsifier
1.All wetted parts are grade 304 or 316 Stainless steel
2.Mechanical Seal for Sanitary Operation
3.Quick opening for easy cleaning
4.Hygienic Design.
5.Explosion-proof ABB Motor 3 Phase
6.Two Machine in one, an emulsifier and a centrifugal pump
7.With Batch Emusifier and Inline emulsifier working together, The efficiency of emulsification process would be much higher.
8. Suitable for industrial online continuous production
9.Wide viscosity range than in batch high shear mixer
10.No batch difference
11. High efficiency, low noise
12.Special designed three stages rotor/stator for greater shear.
Tech Data
Model | Power | Rotation speed | Diameter of inlet | Diameter of outlet | Capacity |
(Kw) | (r/min) | (mm) | (mm) | (m3/h) | |
ZIM3-60 | 4 | 2900 | 38 | 32 | 0-1.5 |
ZIM3-100 | 5.5 | 2900 | 38 | 32 | 0-3 |
ZIM3-120 | 7.5 | 2900 | 38 | 38 | 0-4 |
ZIM3-140 | 11 | 2900 | 51 | 38 | 0-5 |
ZIM3-165 | 15 | 2900 | 63 | 51 | 0-8 |
ZIM3-180 | 22 | 2900 | 63 | 51 | 0-12 |
ZIM3-185 | 30 | 2900 | 76 | 63 | 0-18 |
ZIM3-200 | 45 | 2900 | 76 | 63 | 0-25 |
ZIM3-210 | 55 | 1470 | 87 | 76 | 0-35 |
ZIM3-230 | 90 | 1470 | 87 | 76 | 0-50 |
Product Details

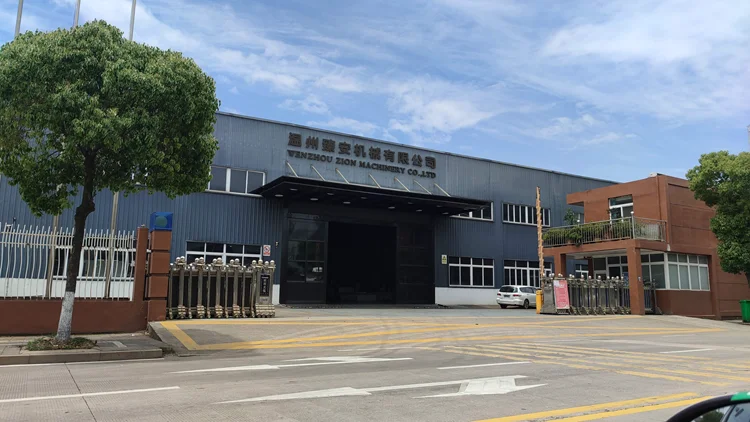

Company Profile
Wenzhou Zion Machinery Co.,ltd ,established in 2010, is a machinery factory specialized in manufacturing stainless steel tanks, sanitary pumps,mixers,filters and valve fittings. Our high quality products have met various demands for the industry of pharmacy, biology, food, beverage ,dairy,chemical,etc
We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc
Our advantage:
1.Professional Engineer team support,
2.Strict production control including material inspection ,welding and polishing inspection ,testing. FAT available. Surface finish up to 0.2um
3.According to CE,3A,ASME Certification
Our product series:
1.Stainless steel tanks (mixing tanks, storage tanks,IBC, milk cooling tanks)
2.Mixers ( Magnetic mixer, high shear mixer,homogenizer,etc)
3.Sanitary pumps ( Centrifugal pump,lobe pump,high shear pump,sine pump,twin screw pump)
4.Filters (Lenticular filter,bag filter,cartridge filter housing)
5.Valves( Butterfly valve,ball valve, diaphragm valve)
6.Pipe fittings ( flanges, elbows,tees, sight glasses, manway, cleaning balls)
We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc
Our advantage:
1.Professional Engineer team support,
2.Strict production control including material inspection ,welding and polishing inspection ,testing. FAT available. Surface finish up to 0.2um
3.According to CE,3A,ASME Certification
Our product series:
1.Stainless steel tanks (mixing tanks, storage tanks,IBC, milk cooling tanks)
2.Mixers ( Magnetic mixer, high shear mixer,homogenizer,etc)
3.Sanitary pumps ( Centrifugal pump,lobe pump,high shear pump,sine pump,twin screw pump)
4.Filters (Lenticular filter,bag filter,cartridge filter housing)
5.Valves( Butterfly valve,ball valve, diaphragm valve)
6.Pipe fittings ( flanges, elbows,tees, sight glasses, manway, cleaning balls)
Production Process
1 Plate Cutting
2 Tank body forming

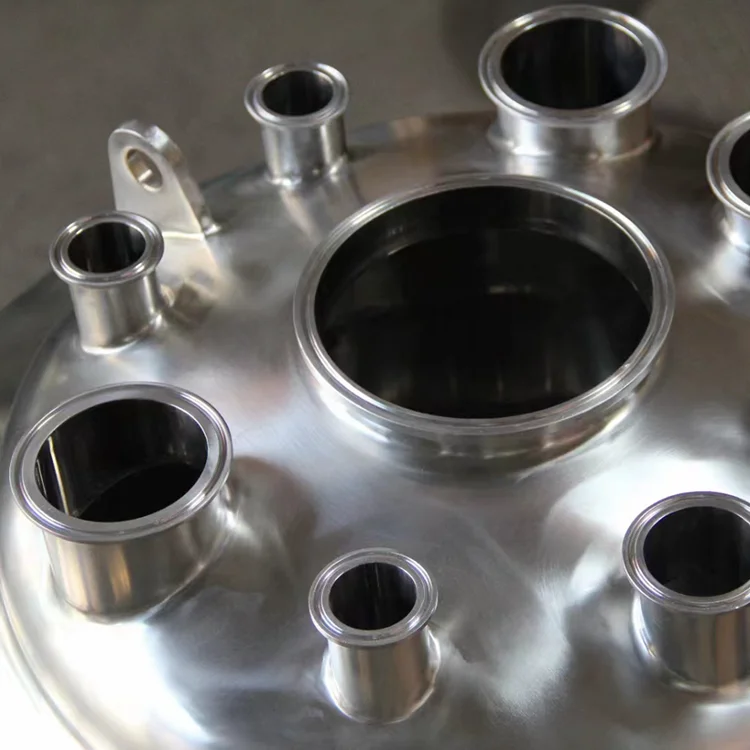

3 Dish head forming

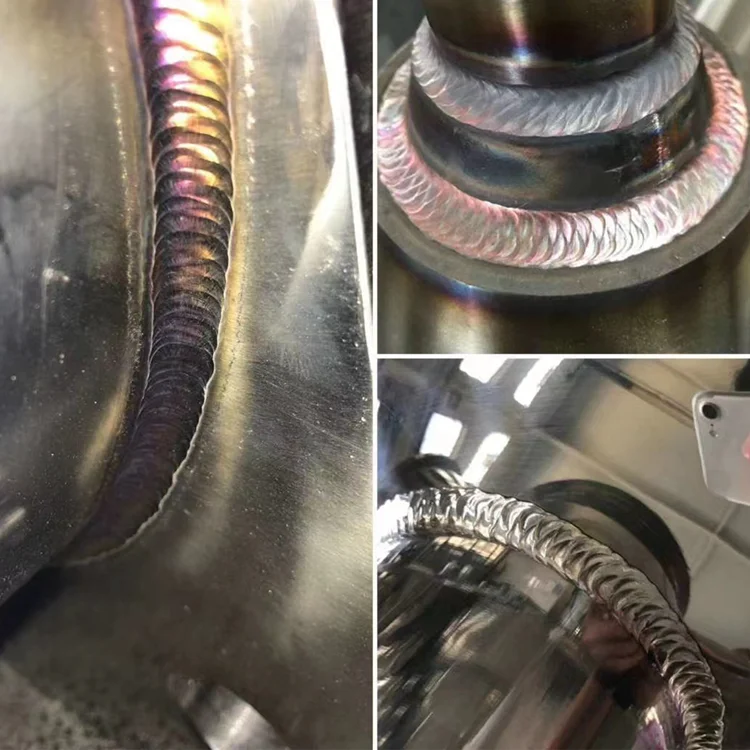

4 Automatic welding
5.Automatic polishing
6.Assembly
7.Final polishing
8.Testing
9.Cleaning

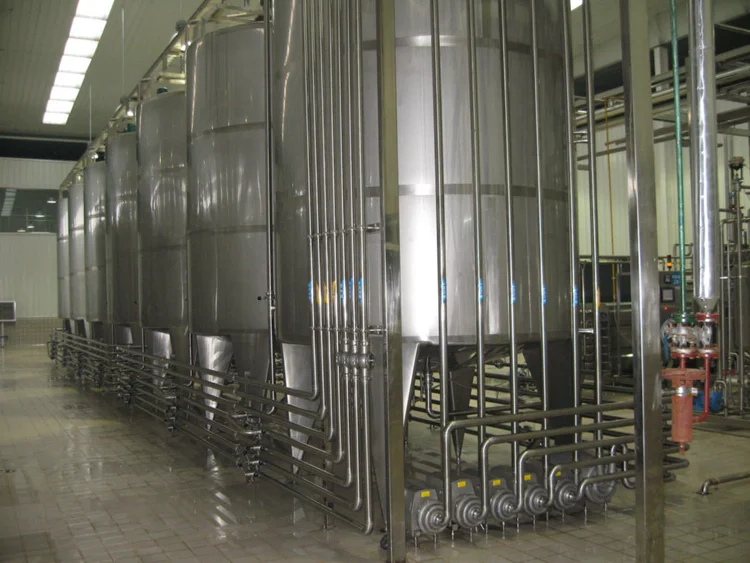

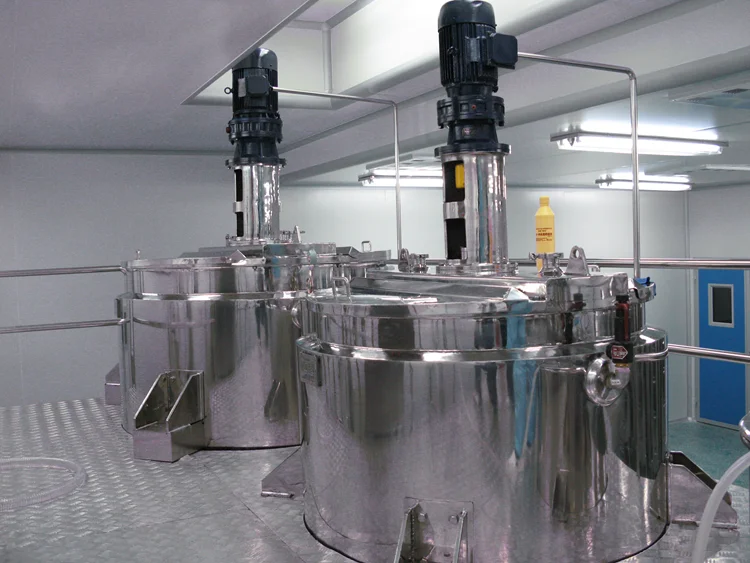

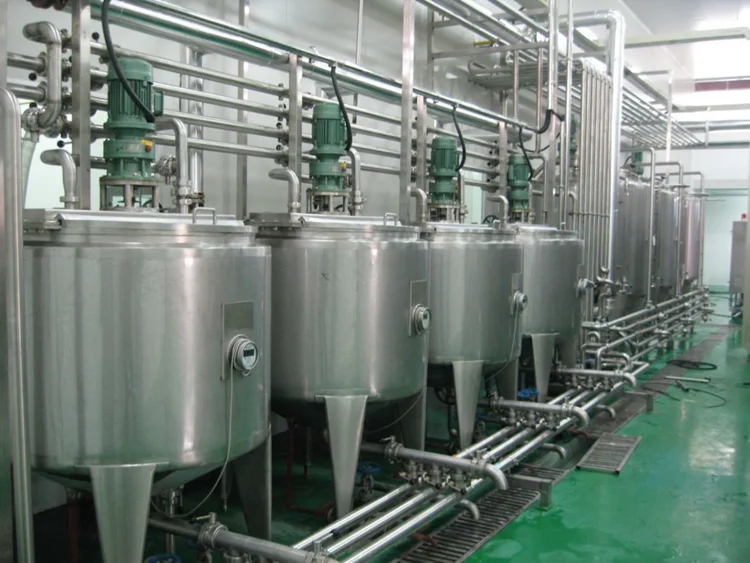

Engineering Case

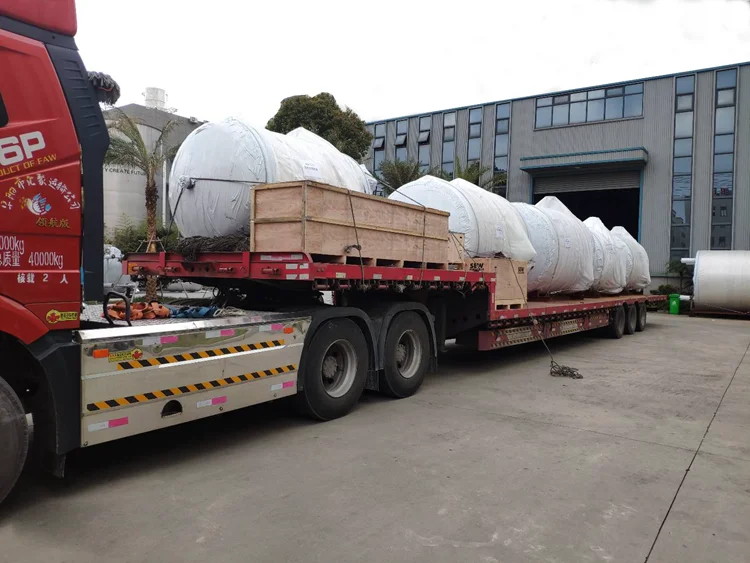

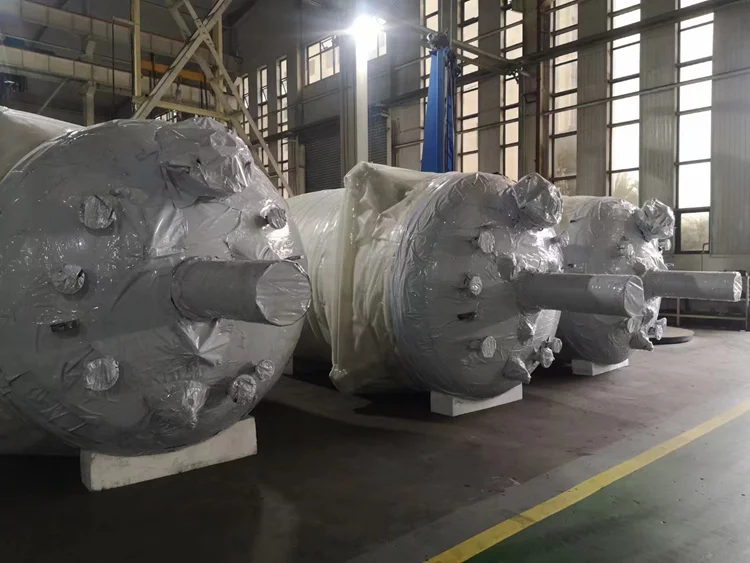

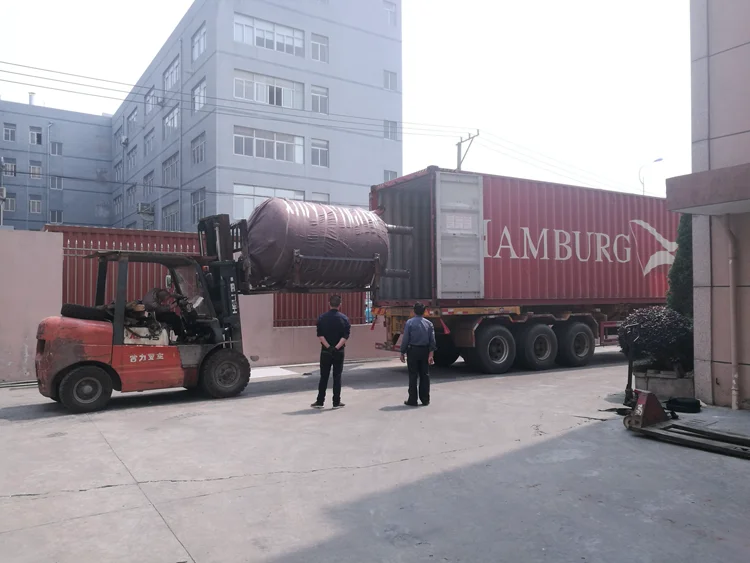

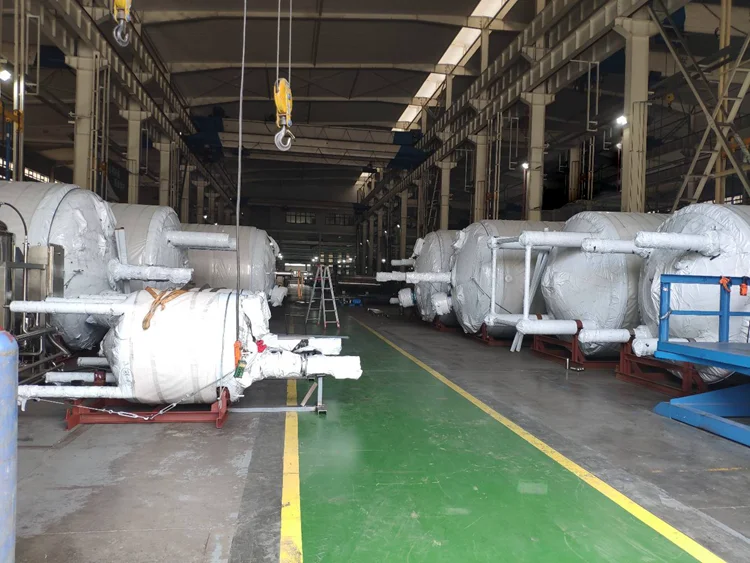

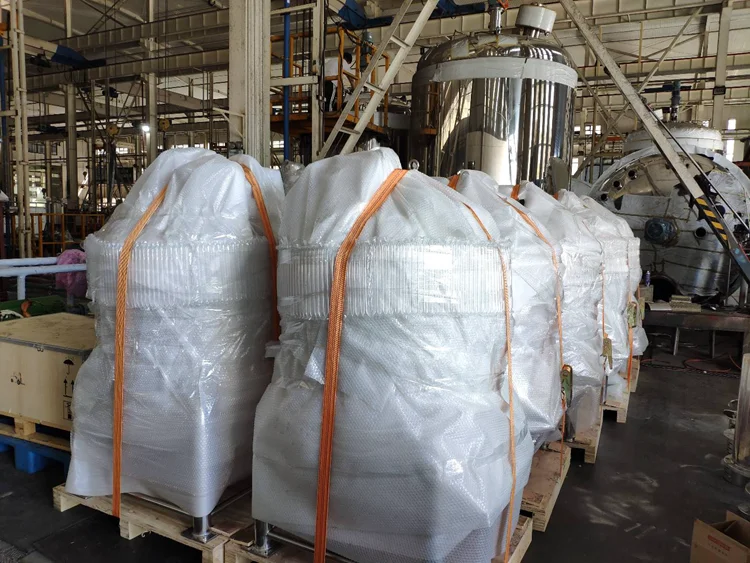

Packing & Delivery
FAQ
Q: Are you manufacturer or trading company?
A: ZION is a professional manufacturer with more than 10 year'experience. Welcome to visit our factory.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: How about the installation and repair?
A: We provide online instruction or we send our engineer to your company to fix the problem.
But round-trip ticket and accommodation fees are on your side.
Q: What’s the payment term?
A: 30% advance ,the balance be paid before shipment .we will take the photo and video of your order before delivery for your confirm.
Q: How to ship?
A: we have cooperated with professional shipping agent, CNF (seaport or airport) ,or DDU (door to door) both available.
Q: How long the warranty will be?
A: 1 Year warranty,but we will keep after-sale service for ever.
A: ZION is a professional manufacturer with more than 10 year'experience. Welcome to visit our factory.
Q: How could we confirm the products?
A: Our professional engineers will follow up all the designs and ajustments according to your requirement.OEM and ODM available.
Q: How about the installation and repair?
A: We provide online instruction or we send our engineer to your company to fix the problem.
But round-trip ticket and accommodation fees are on your side.
Q: What’s the payment term?
A: 30% advance ,the balance be paid before shipment .we will take the photo and video of your order before delivery for your confirm.
Q: How to ship?
A: we have cooperated with professional shipping agent, CNF (seaport or airport) ,or DDU (door to door) both available.
Q: How long the warranty will be?
A: 1 Year warranty,but we will keep after-sale service for ever.
