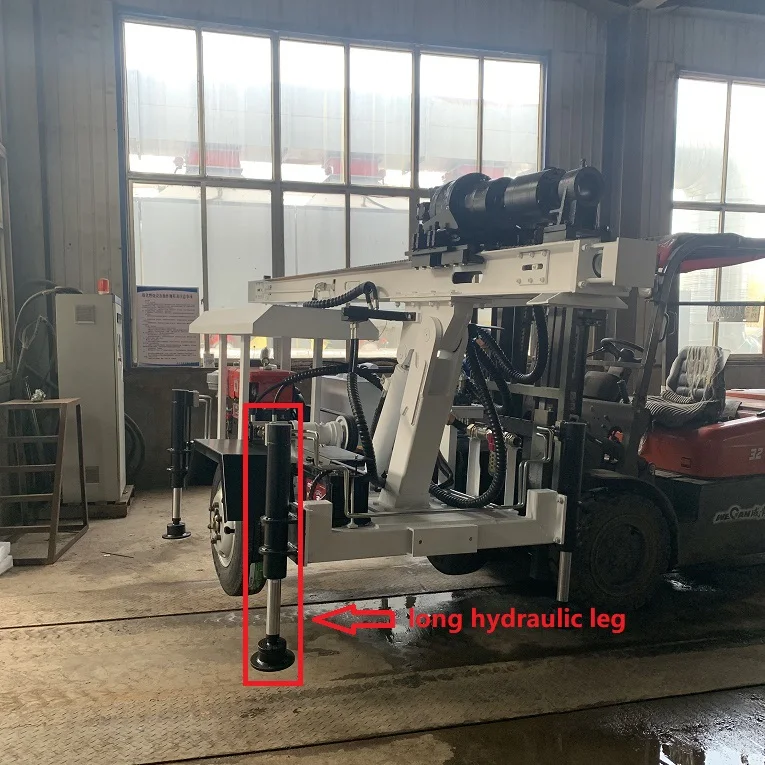

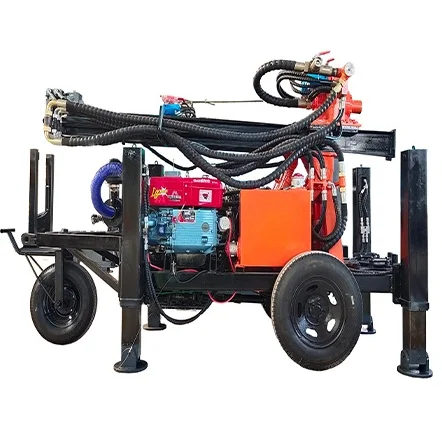

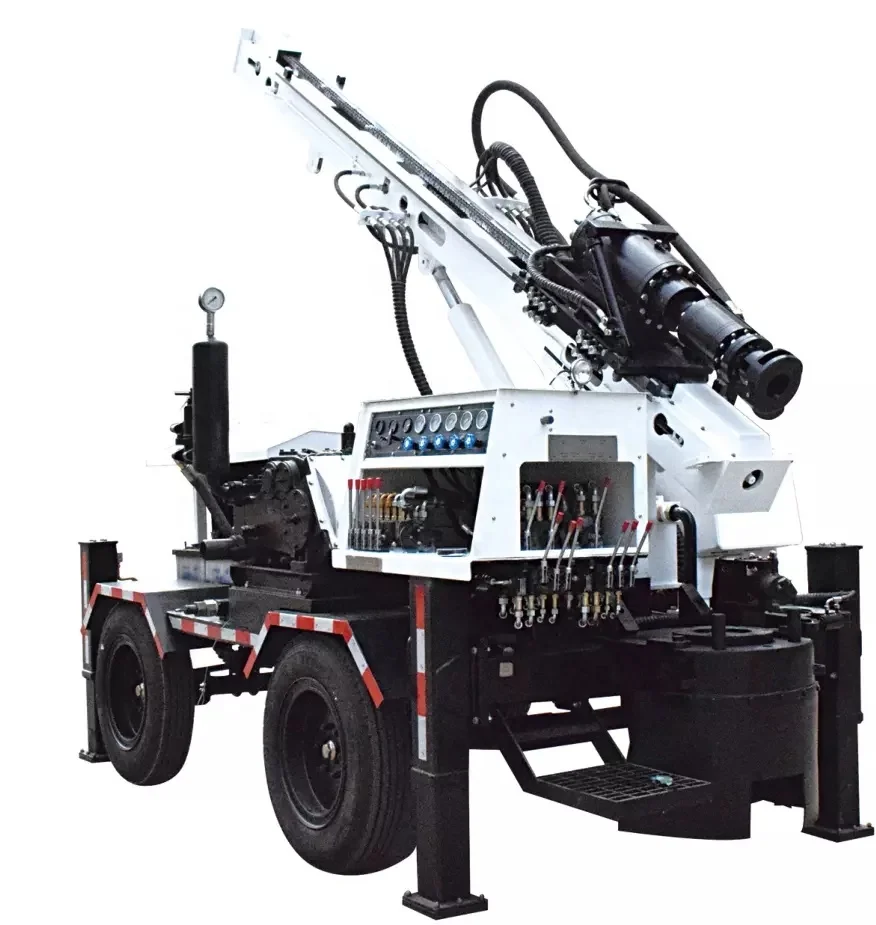

120 м/130 м/200 м/260 м установка для бурения водяных скважин с прицепом гидравлическая ножка двухколесная
- Категория товара: Energy & Mineral Equipment >>>
- Поставщик (Оптовый магазин): Zhejiang,Kaishi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

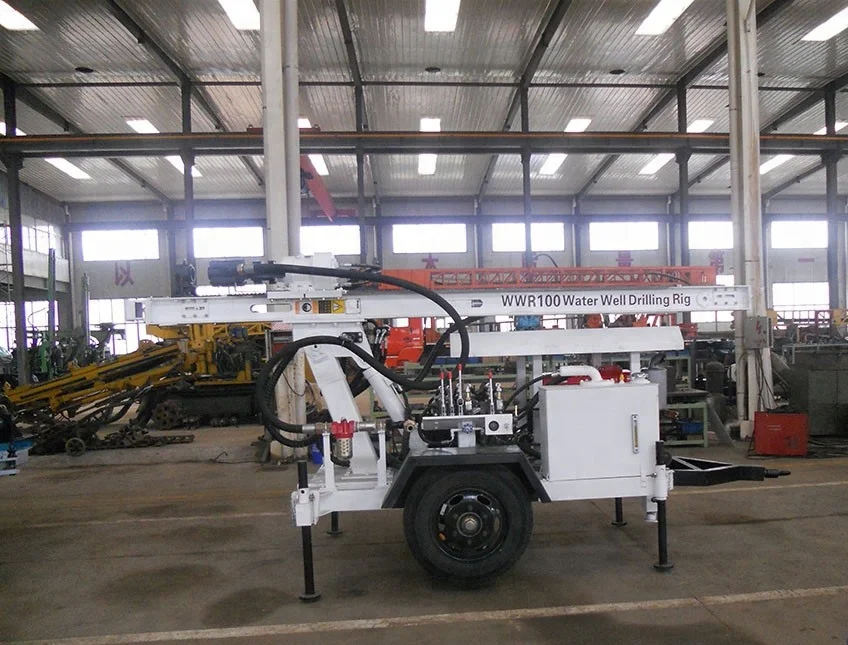

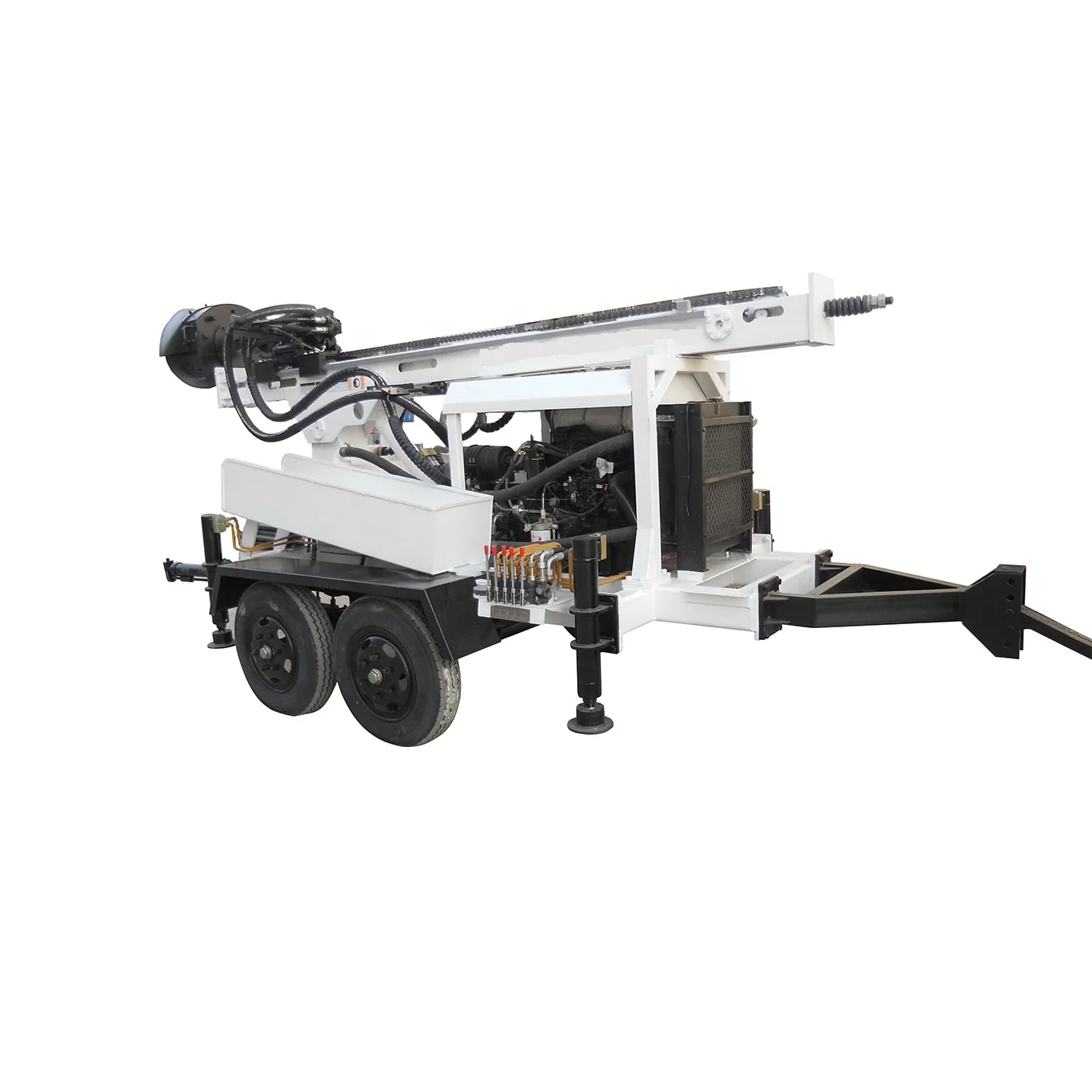

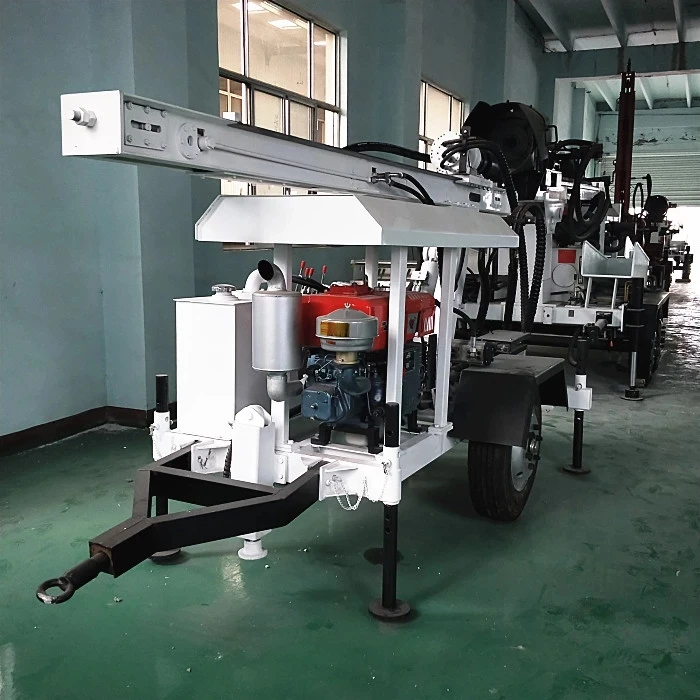

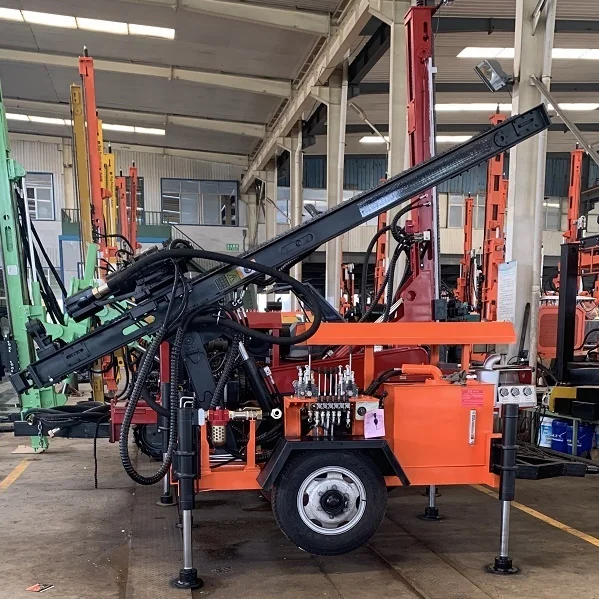

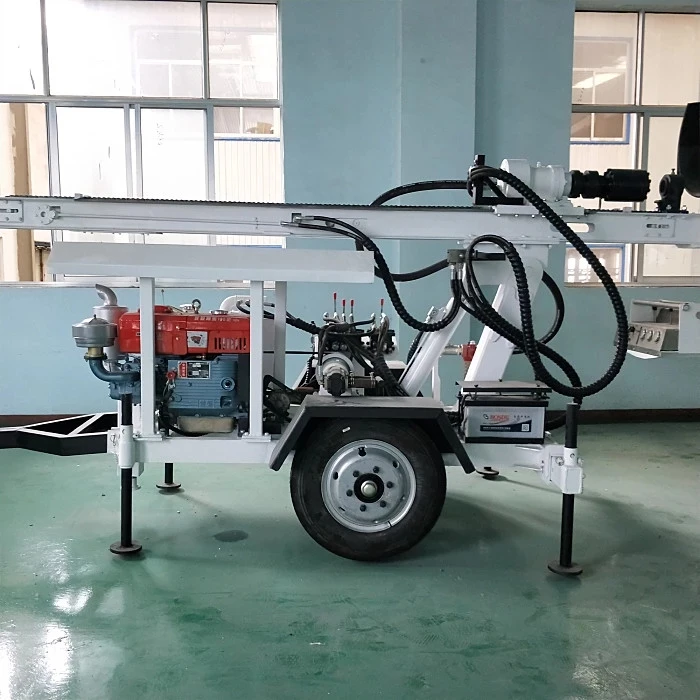

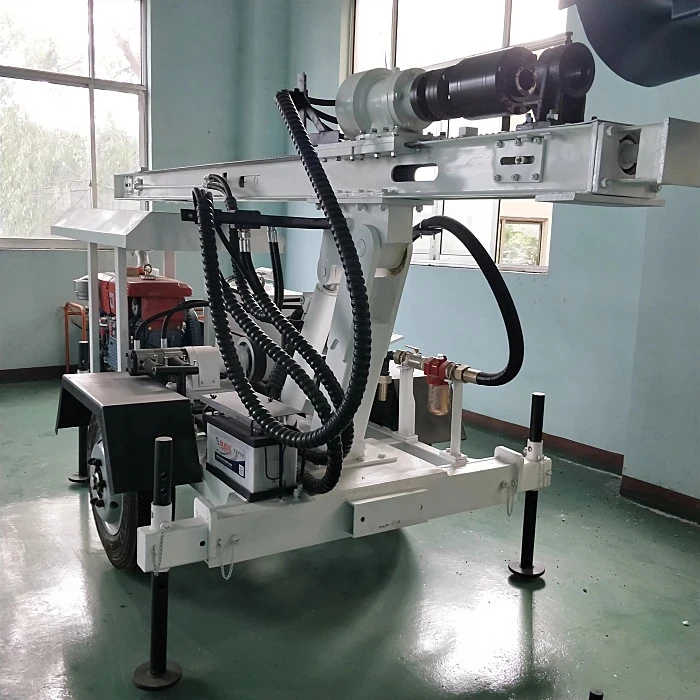

Trailer mounted water well drilling rig
Application of trailer mounted water well drilling rig:
Trailer mounted water well drilling rig is punctured equipment for light, efficient, versatile, it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.
Trailer mounted water well drilling rig is punctured equipment for light, efficient, versatile, it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.
Advantage of trailer mounted water well drilling rig:
1. Safe and stable traveling system, two wheels type
2. Centralized operating system, easy to operate
3. Powerful feeding and rotating system, two hydraulic rotary and lifting motor to balance the speed and force.
4. As the ball type chuck and driving rod, it can complete no-stopping rotating while the spindle relift.
5. The pressure indicator of bottom hole can observe and control the well conditions easily.
6. Close levers, convenient to operate.
7. Compact size and light in weight are easy to set up and transport o working plains and mountain area.
Model | Drilling depth | Drilling diameter | Diesel power | Dimension |

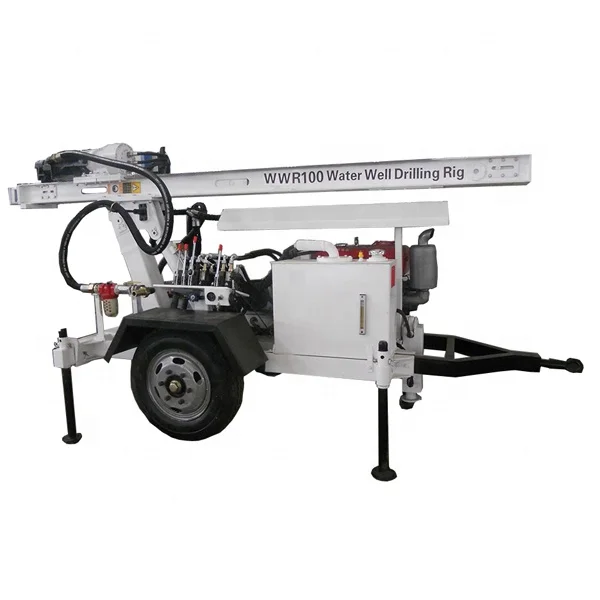

WWR100 | 120m | 90-150mm | 16.2KW | 4375*1650*1920mm |
WWR130 | 130m | 100-219mm | 23KW | 4000*1450*2050mm |
WWR200 | 200m | 90-200mm | 45KW | 5520*2100*2200mm |
WWR260 | 260m | 115-300mm | 87KW | 5525*2250*2470mm |
Recommend Products

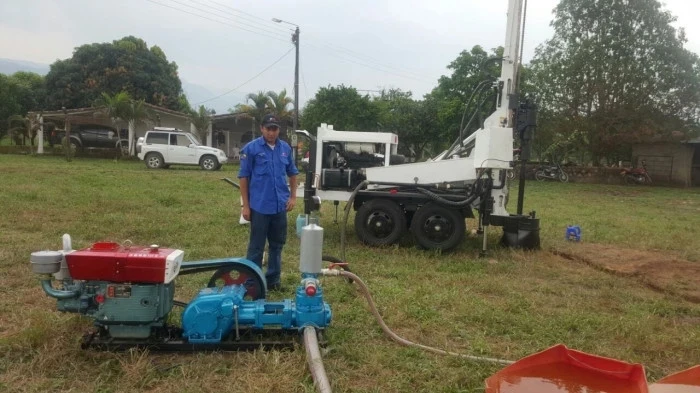

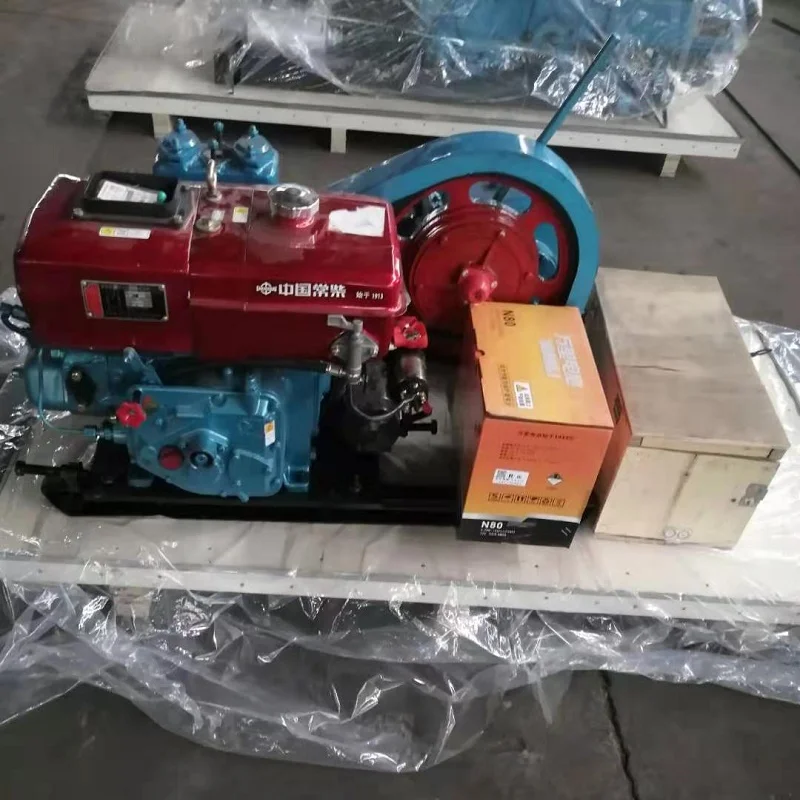

Mud pump for trailer mounted water well drilling rig

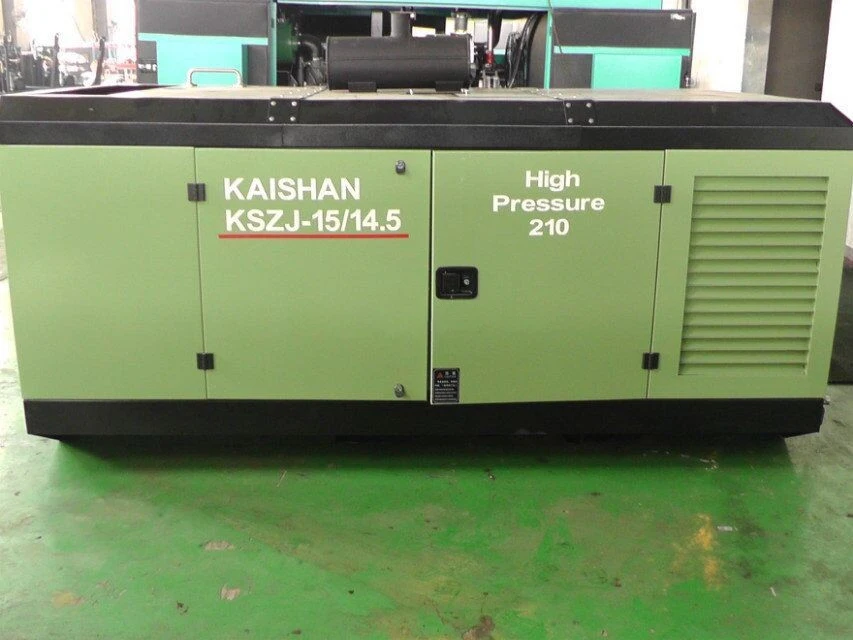

Diesel screw air compressor for trailer mounted water well drilling rig

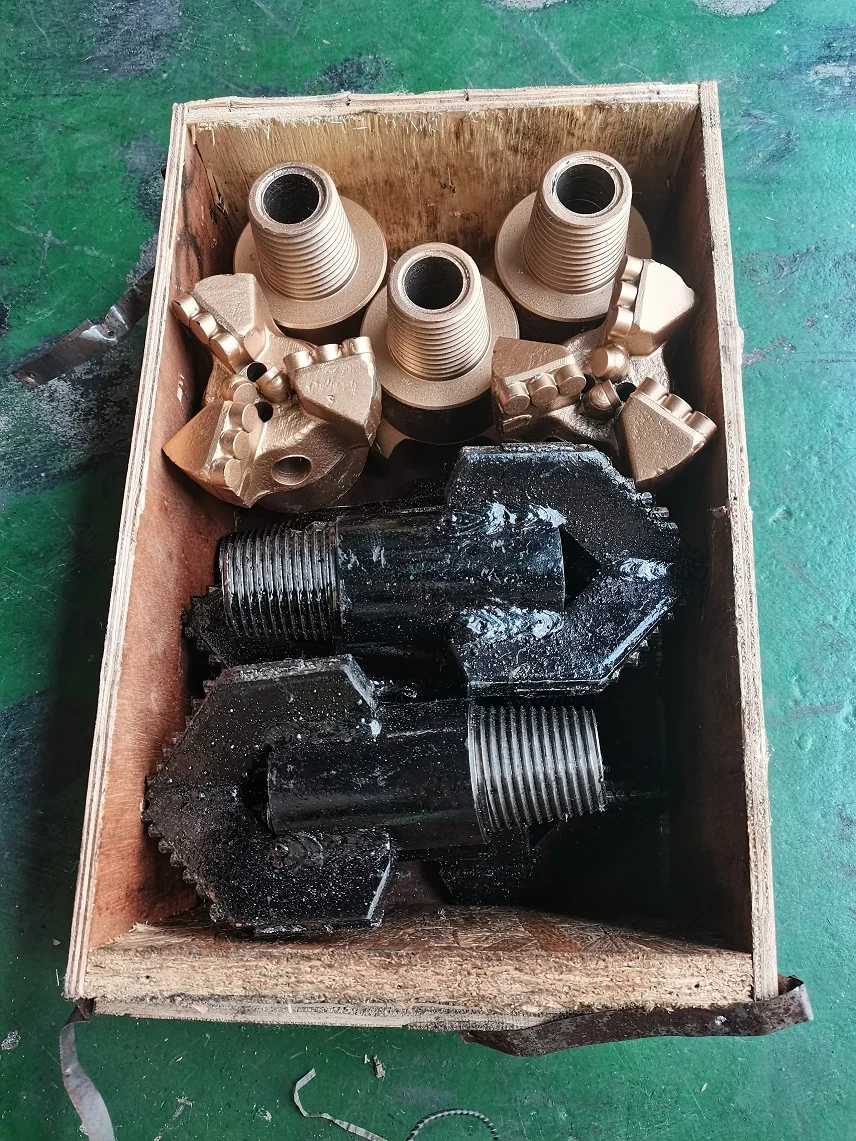

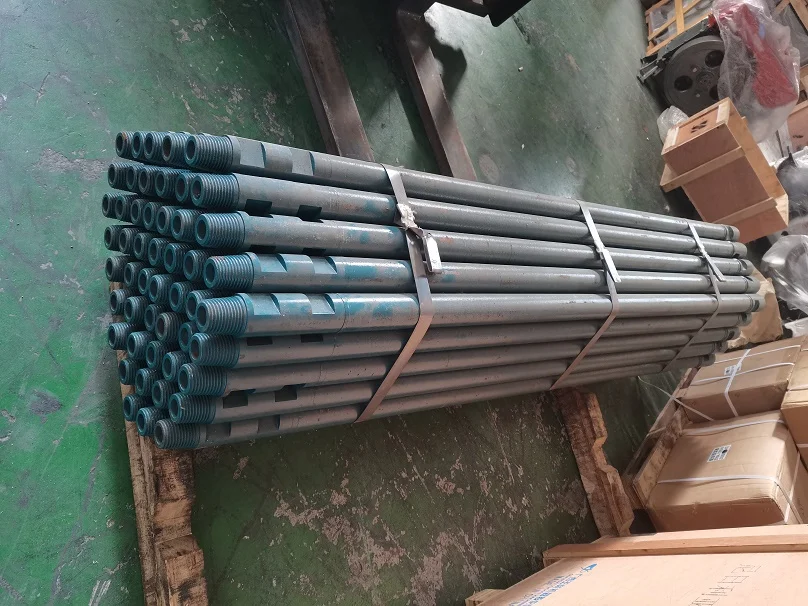

Other drilling accessories for trailer mounted water well drilling rig

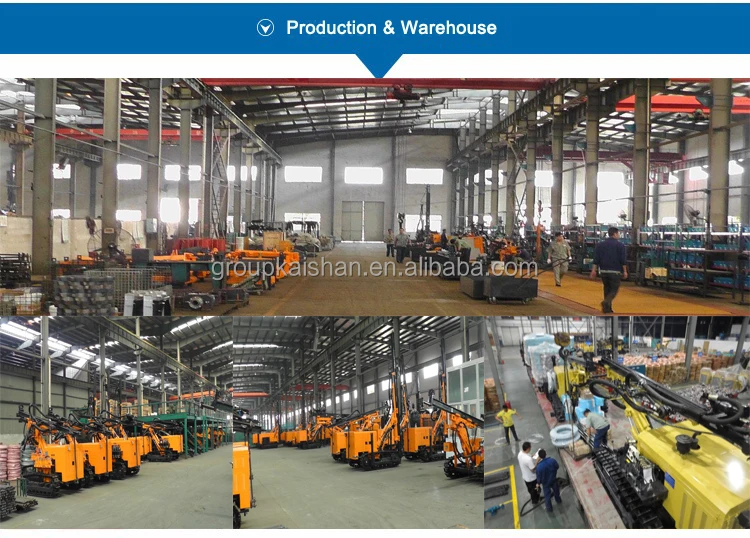

Company Profile
If you need to add drill pipe, drill bit etc for water drilling rig, please kindly inform us your required drilling hole diameter and depth, then we can fit the suitable drilling tools for you.
