Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня
Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня

Высококачественная стальная структура, простой в эксплуатации производитель магнитного датчика уровня

Поделиться:


Цена:50,00 $ - 100,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Specification


item
value
Grade
DIY, Industrial
Customized support
OEM, ODM
Place of Origin
China
Brand Name
LingYan
Model Number
level gauge
Product name
Magnetic level gauge
Application
Liquid
Material
Stainless Steel
Type
level gauge





Product Description

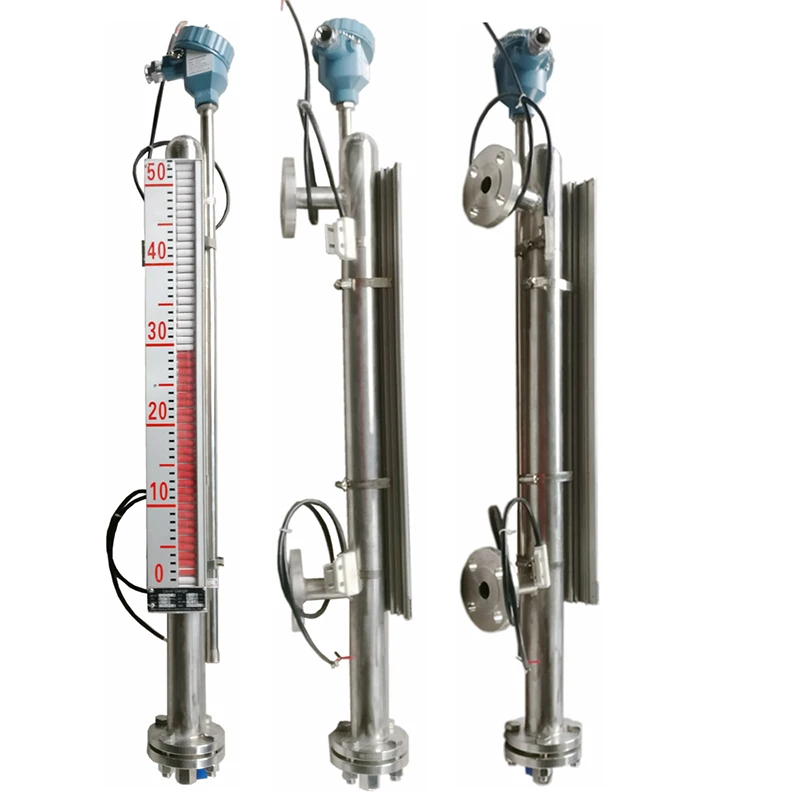

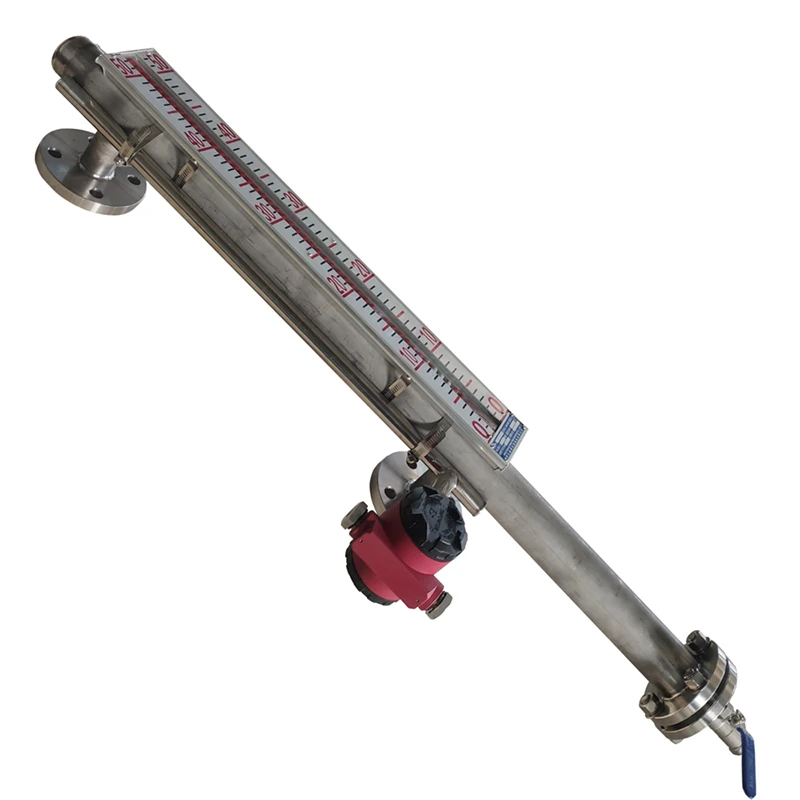

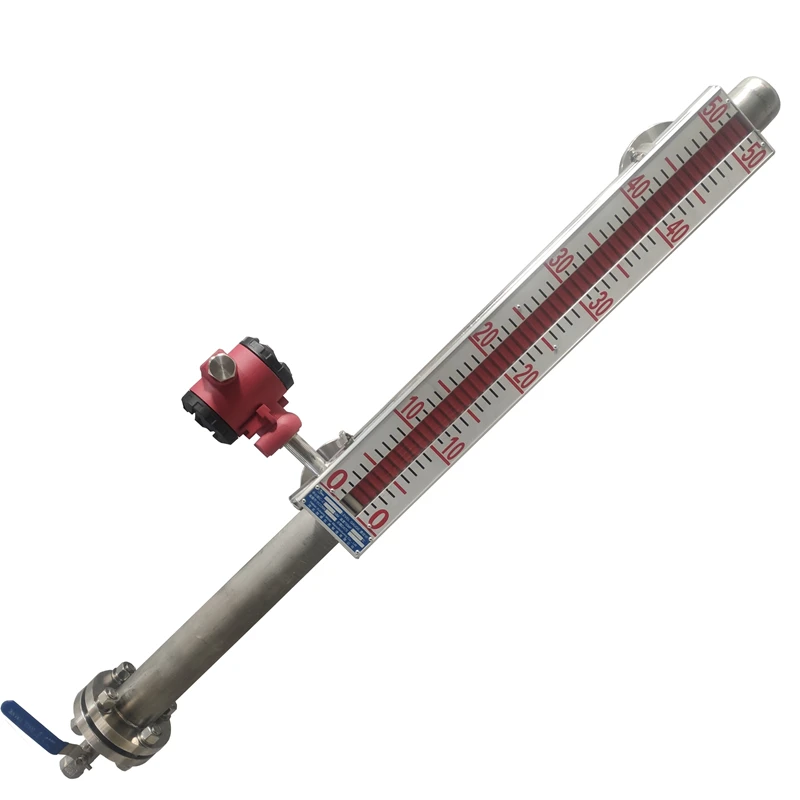

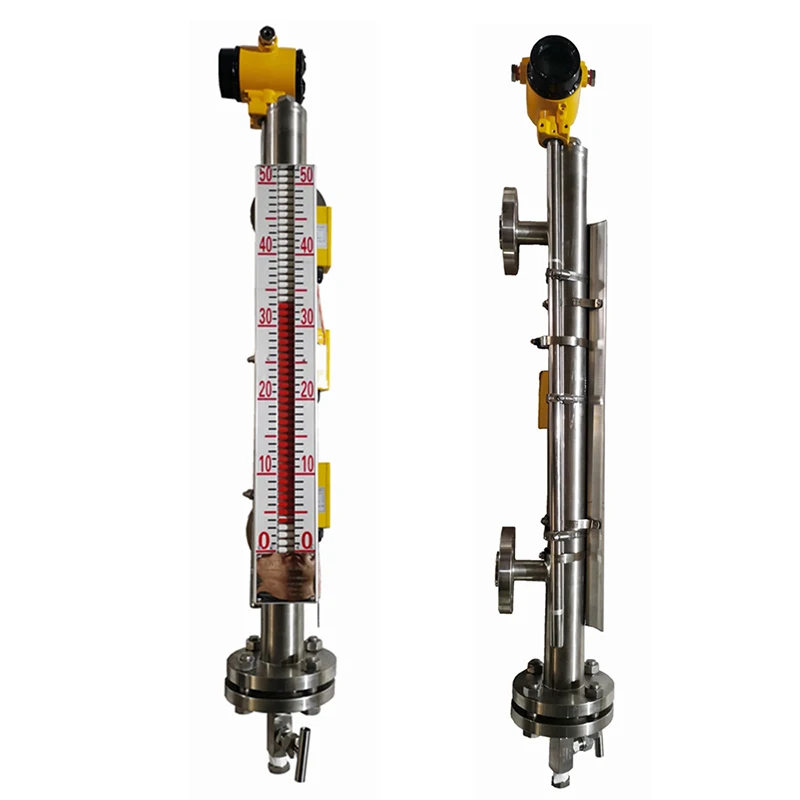

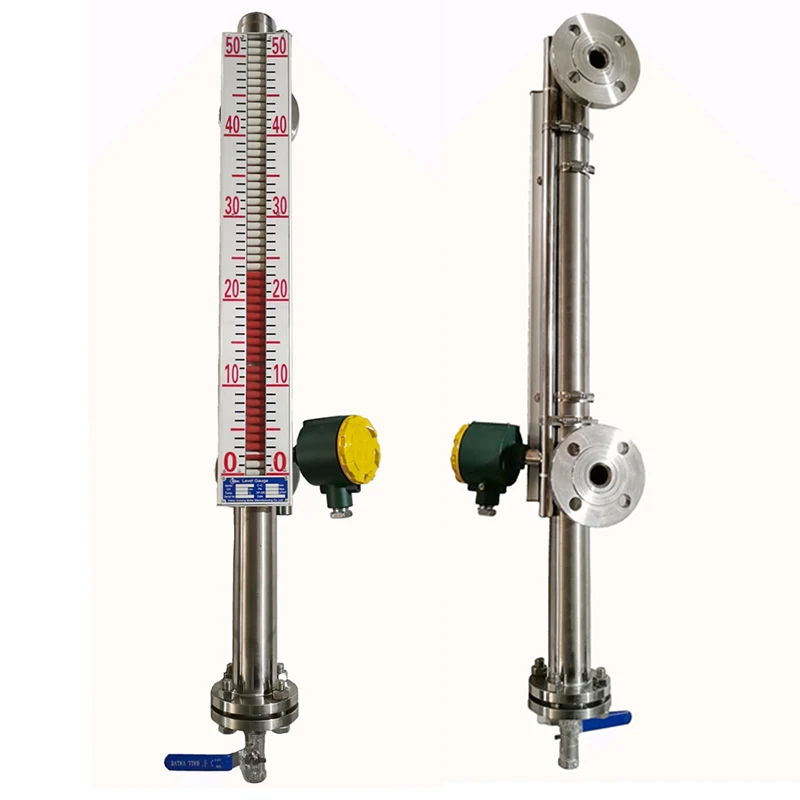

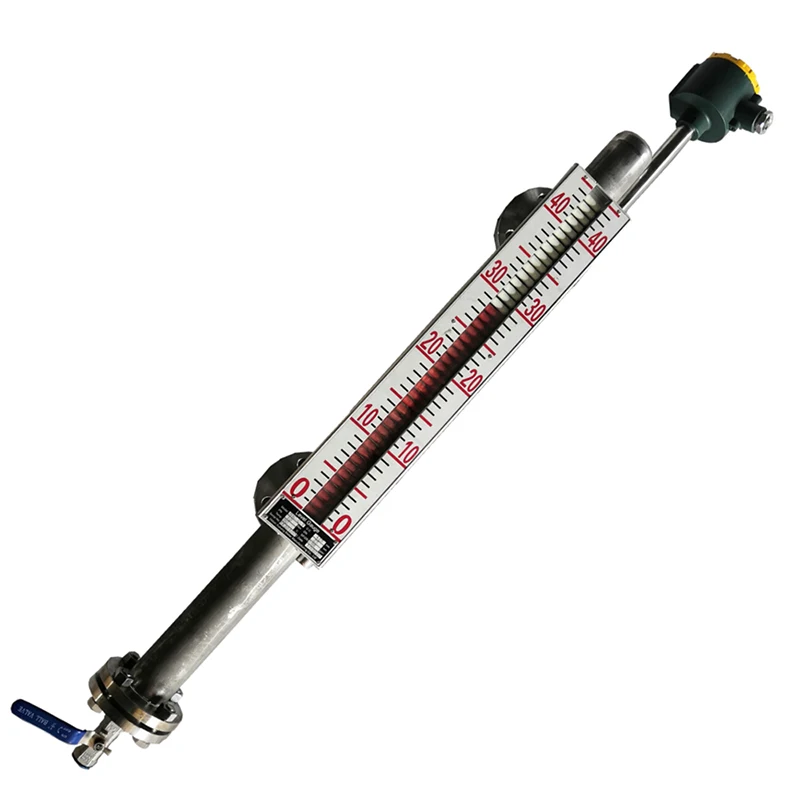

These models consists of Red or Black/white magnetic rollers equipped with small rod magnets which are rotated one after another at an angle of 180° by the magnetic field of the permanent magnet put inside the float. The rollers change from white to red on rising level and red to white on falling level. Plastic rollers are suitable for liquid temperature up-to 100°C & Aluminium rollers for temperature up-to 250°C and ceramic rollers for temperature up-to 450°C.






The level in a tank or agitating machine is permanently indicated as a Red or Black column even in the case of power failure.



In addition, Level Sensing elements can be fixed directly to the float cage, so that-simultancous, contact less sensing is measured electrically. Electronic Level indicator with set point can be connected with the sensor to have reading in remote. Single or double set point relays can also be provided in the electronic indicator for control purposes.




It is suitable for high temperature, high pressure, strong acid, strong alkali explosion-proof requirements, simple structure,
reliable and durable, and a variety of optional spare parts are installed to make the control easier.


Float Cage Material
SS304, SS316, PTFE, PP, PVC, PVDF
Max. Centre to Centre Distance
6000 mm, greater lengths on request
Connecting Flanges
According to DIN or ANSI B16.5
Rated Pressure
< 10.0 Mpa for ss & 0.3 Mpa for PP, PVC & PVDF
 Higher pressure rating can also be provided
Temperature of Liquid
450℃ (Max.) for SS, 80℃ (Max.) for PVDF
60℃(Max.) for PVC, 50℃ (Max.) for PP
Specific Gravity
Min. 0.40g/cm3
Scale
Graduated in cm, Aluminium or SS304
Measuring Accuracy
+/- 5 mm


Packing & Delivery


Wooden case, pallet, carton


Company Profile




Lingyan specialize in glass products for more than 10 years and earn trust of customers from USA, Korea, Brazil, Thailand, Finland and so on.
We have technically advanced machinery, skillful worker as well as professional salesman, so that we have confidence to provide the satisfactory high quality products to customers. Our main glass products include glass packing tube, gauge glass, optical glass, step glass, glass disc and tube, lab glassware, glass rod and glass panel.


FAQ


1. who are we?
We are based in Hebei, China, start from 2022,sell to North America(40.00%),Southeast Asia(20.00%),Mid East(10.00%),South America(5.00%),Eastern Europe(5.00%),Africa(5.00%),Western Europe(5.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
glass tube,glass packing tube,glass jars,gauge glass,level gauge

4. why should you buy from us not from other suppliers?
We have more than 10 years exporting experience and can provide professional suggestion in goods choosing, safe packing and shipping.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
