Products Description

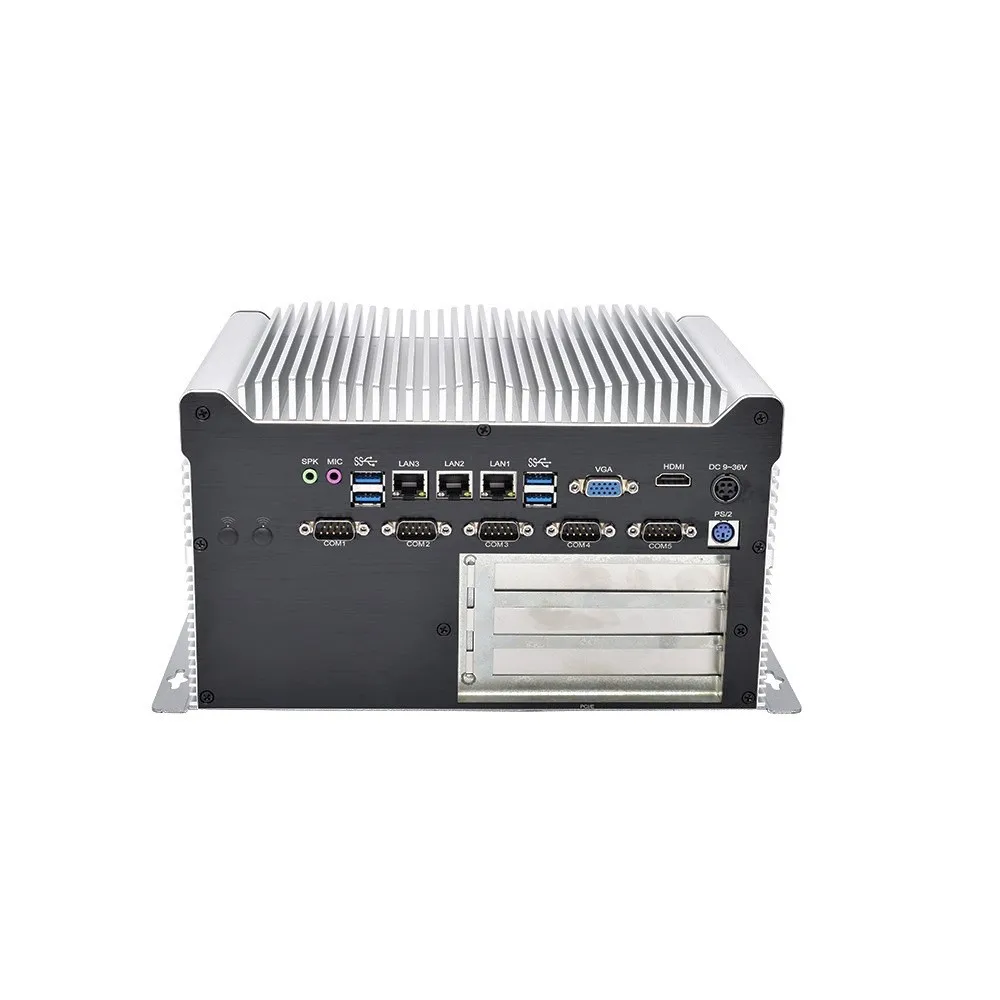

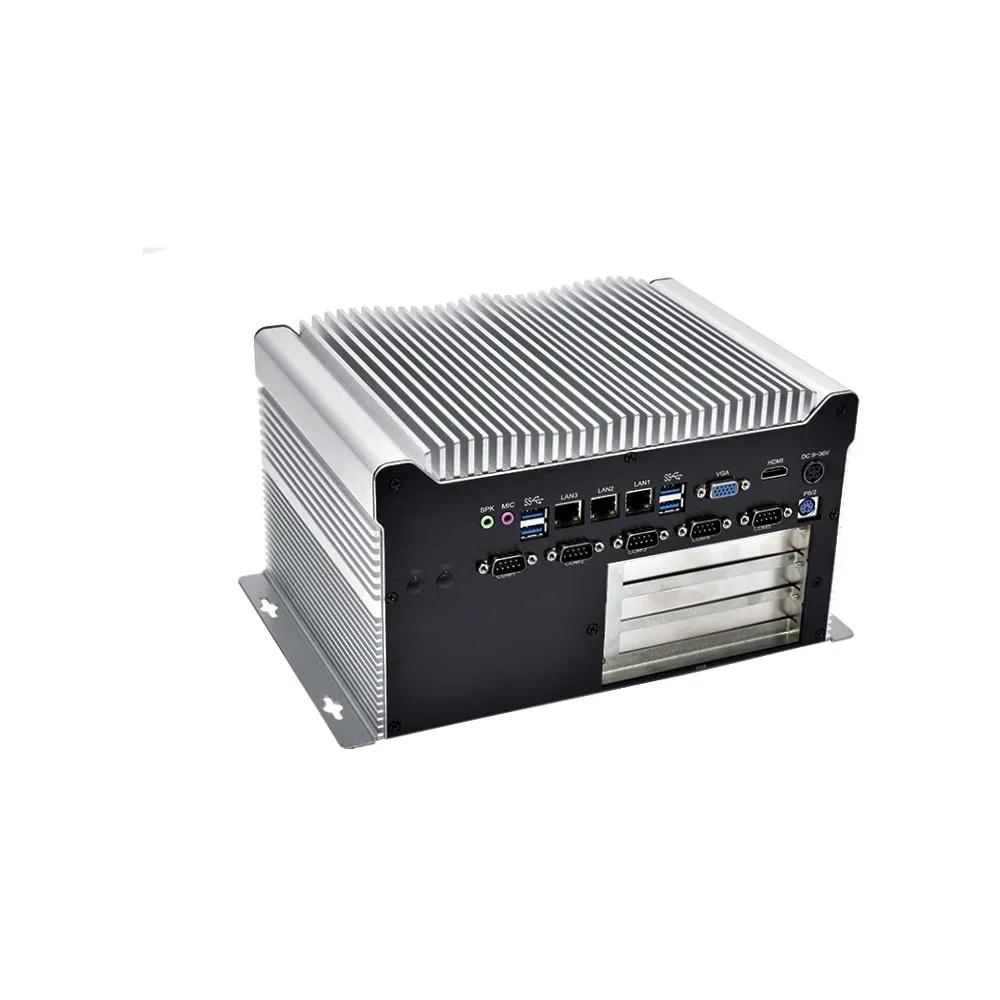

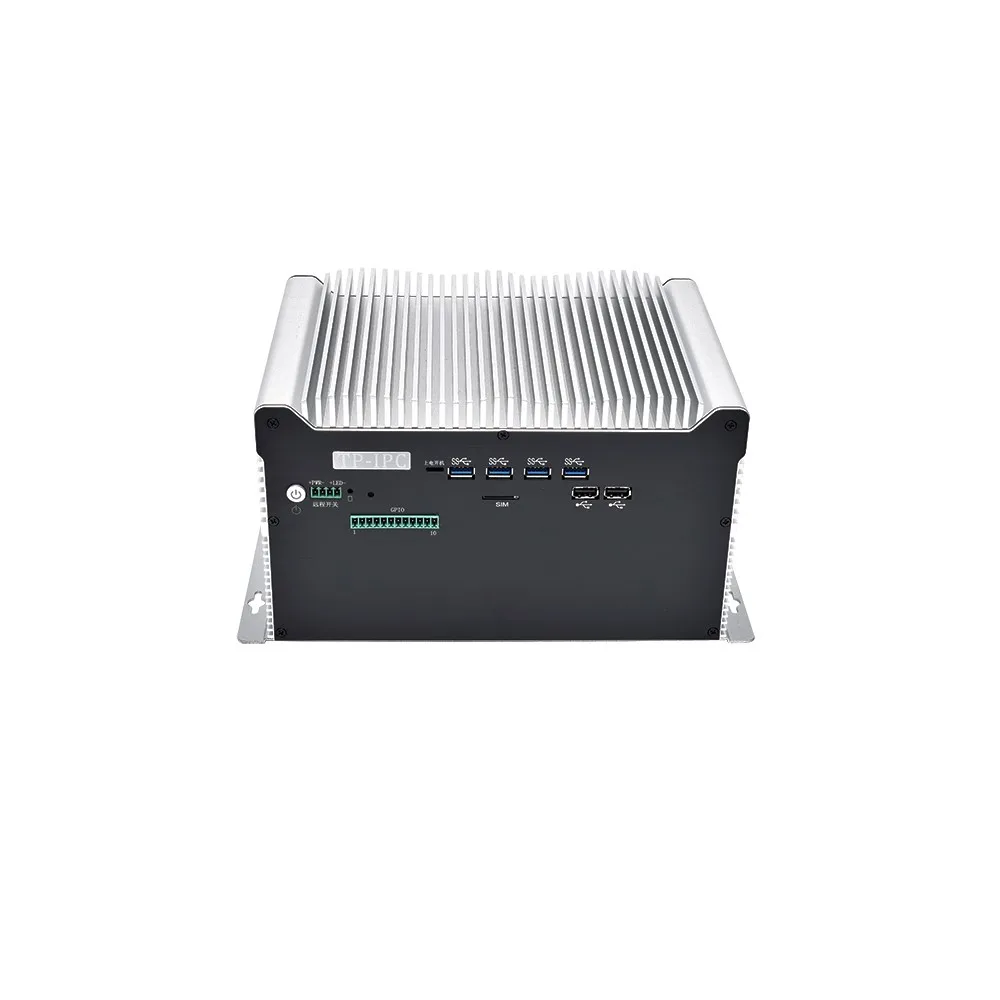

Mini Pc X86 Industrial Embedded Box Computer Host With Expansion Slot For Industrial Equipment Automation
Notice: All products can be customized, contact us if you need, thank you.
Processors | Total Cores | Base Frequency | Max Turbo Frequency | Cache | Memory Types |
2 | 3.70 GHz | - | 3 MB Intel® Smart Cache | DDR4 | |
4 | 3.20 GHz | 3.60 GHz | 6 MB Intel® Smart Cache | DDR4 | |
4 | 3.40 GHz | 4.00 GHz | 8 MB Intel® Smart Cache | DDR4 | |
4 | 3.60 GHz | - | 6 MB Intel® Smart Cache | DDR4 | |
6 | 2.90 GHz | 4.10 GHz | 9 MB Intel® Smart Cache | DDR4 | |
6 | 3.20 GHz | 4.60 GHz | 12 MB Intel® Smart Cache | DDR4 | |
2 | 3.10 GHz | - | 2 MB Intel® Smart Cache | DDR4 | |
4 | 3.00 GHz | 3.50 GHz | 6 MB Intel® Smart Cache | DDR4 |
Related Info.
Notice: If you would like to know the price of device with other processors, please click the processors model directly.
SPECIFICATION | ||||
MODEL | IBOX-602-6C3L2P | |||
Supported OS | Win 7, Win 8, Win 10, Linux (Ubantu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||
CPU | Intel® Core® | Standard Voltage 6th~9th Generation I3, I5, I7 CPU | ||
Intel® Celeron® | Standard Voltage G4900 | |||
RAM | S-DIMM | 2* S-DIMM, DDR4-2400/2666 MHz, up to 32GB | ||
Storage Devices | SATA | 1* 2.5 inch SATA on board | ||
MSATA | 1* MSATA, support Intel protocol SSD, 6Gbps | |||
M.2 | 1* M.2 slot onboard, support M.2 2280 NVME/PCIEx4/SATA adaptive standard SSD | |||
I/O INTERFACE | COM | 4* Isolated RS232/RS485 + 1* RS232; 1* Internal RS232 (Can be installed as DB9 or Terminal connector) | ||
Ethernet | 3* Intel i211 (Gigabit RJ45 port) | |||
USB | 8* USB 3.0, USB 2.0* 2 | |||
Video & Audio | 1* HD, 1* VGA, 1* Line out, 1* Mic in | |||
Phoenix Terminal | 8* GPIO (4* Input, 4* Output); 1* Remote Power Port | |||
SIM | 1* External SIM card slot | |||
Power Supply | DC 9V-36V (19V-36V is recommended) | |||
PS/2 | 1* PS/2 for Keyboard | |||
Extended Capabilities | Additional Interface | 1* Mini PCIE; 2* PCI+1* PCIEx16 or 3* PCI | ||
Functionality Extension | COM, LAN, USB, CAN BUS, WiFi, 4G | |||
Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow | ||
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||

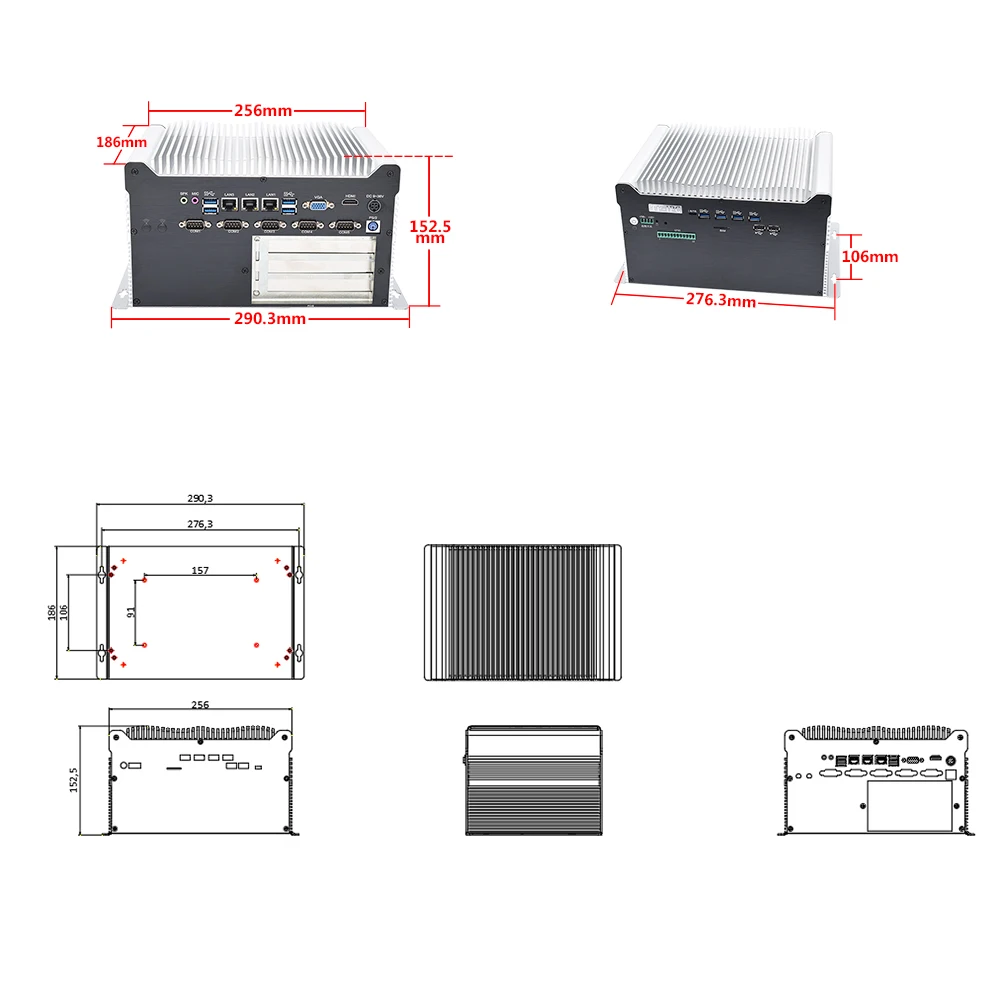

Physical Characteristics | Dimensions | 290.3* 186* 152.5 mm (W* D* H) | ||
Net Weight | 4.85 KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC | |||
All products and company names listed are trademarks or trade names of their respective companies. | ||||
Related Accessories
Details & Installation Tips

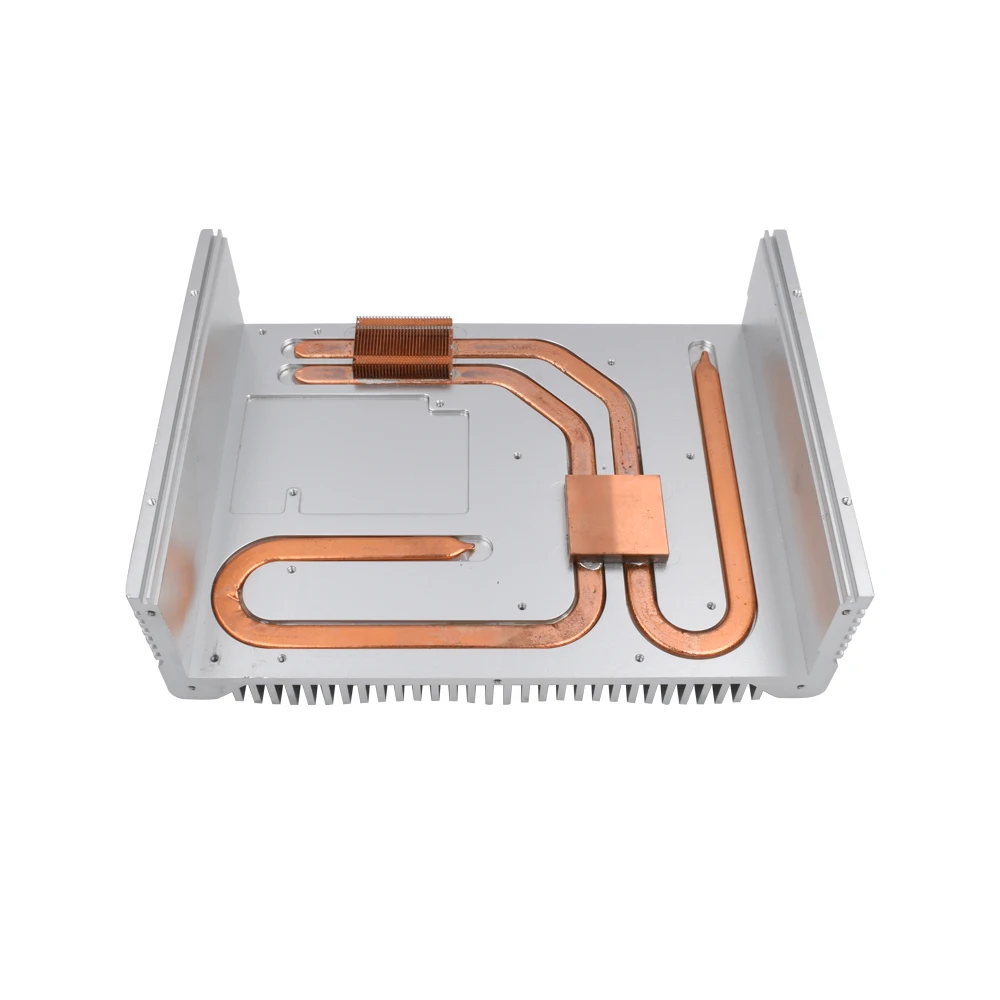

Cooling system with copper tube
Package & Delivery
Packing Details | ||||||
Net Weight | 4.85 kg | Gross Weight | 6.35 kg | |||
Demension | 290.3*186*152.5 mm | Packing Size | 46*36.5*19.5 cm | |||

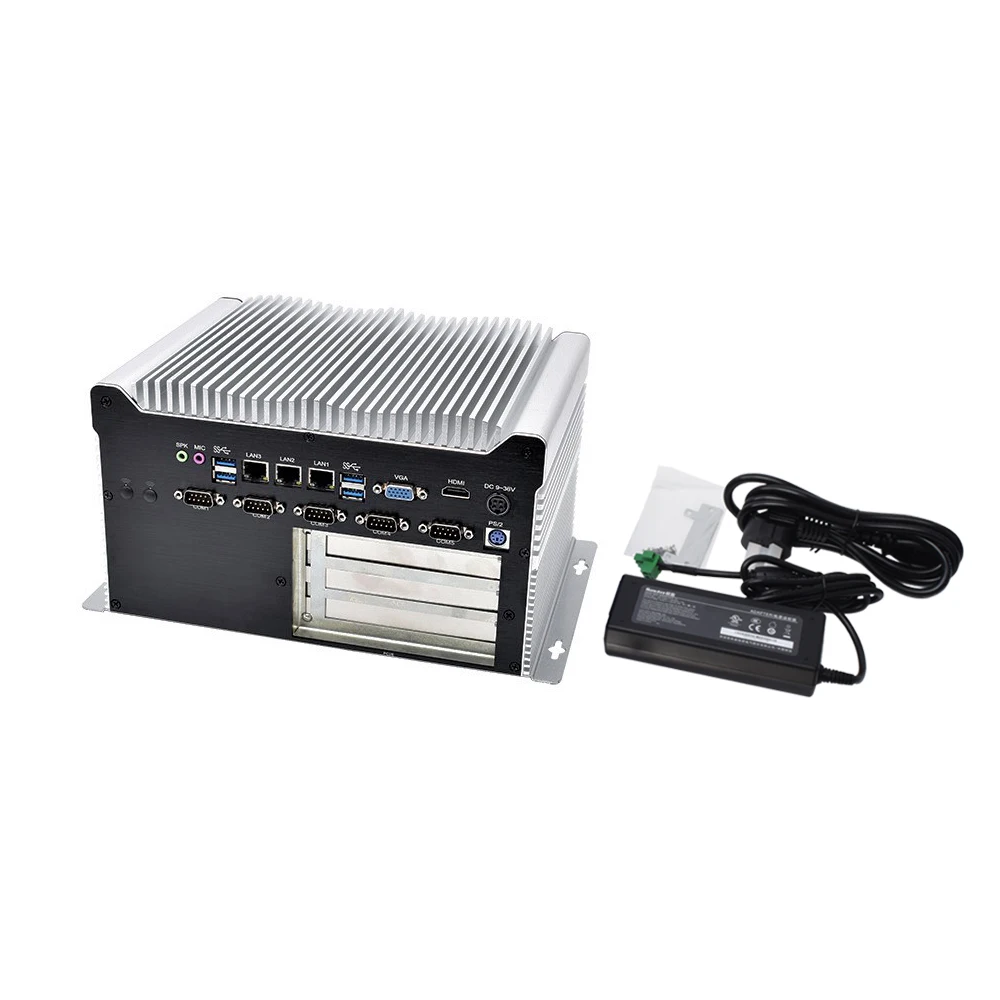

Delivery day | In 10 days after payment | Packing List | PC*1; Adapter*1 | |||
Full set list
Thickened anti-vibration foam
Single box for accessories
Thickened rigid carton
Custom Services
OEM SERVICE
Operation System
Do you want to make the device with your own booting logo? Do you want to short the booting time and reduce useless program of pc? Let us help you to achieve the goal.
Appearance
For example, the color, size, structure, and so on, make it different from others, make it as your own things
Configuration
Tell us the requirements of I/O and devices‘ usage scenarios, let us help you to select the best option for your business.
Appearance
For example, the color, size, structure, and so on, make it different from others, make it as your own things
Configuration
Tell us the requirements of I/O and devices‘ usage scenarios, let us help you to select the best option for your business.
Applications
Smart Transportation
Industrial computers are transforming the transportation industry by interconnecting vehicles, traffic signals and other devices, and the Internet into systems. Intelligent transportation systems improve the efficiency of the global transportation system by reducing congestion, preventing accidents, allowing vehicle tracking and reducing emissions.
Intelligent Medical
In the process of medical intelligence, Industrial PC is used to realize medical equipment equipment for network connection and collect and analyze through medical big data in order to help medical staff simplify the workflow and task volume, and finally achieve the purpose of building a smart medical network.
Industrial Automation
The hardware systems of IPCs are very rugged, and they can adapt to harsh industrial field environments such as strong vibration and high temperatures. At the same time, the use of IPC control appears to be simpler and easier to operate than program controlling.
Automatic visual positioning
In the CCD vision system, the industrial PC as the brain of the system to govern the operation of the whole system, it can not only simulate the function of human vision, but also extract information from the image of objective things and the processing of this information and understanding, and finally used for the detection, measurement and control of the driver.
Motion Control
In a common industrial robot control systems, the IPC is responsible for system file management, parameter setting, robot language interpretation, teach check, system program coordination and scheduling, fault diagnosis, robot kinematics forward and reverse solution, and interpolation operation.
