4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy
4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy

4-осевой прицеп 3*13T осевой S-образный 2 3 4 бульдозер транспортировочный полуприцеп Lowboy

Поделиться:


Цена:13 000,00-18 000,00 $
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики





4 Axles Trailer 3*13T Axles Gooseneck 2 3 4 Axles Bulldozer Transport Lowboy Semi Trailer

Product Description:
1.Advanced Technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.

2.Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.

3.Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.

4.Hot-Rolled Structural Steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.

5.Tested And Proven Structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.


Product Paramenters


Dimension and Weight
Overall Dimension(mm)
(13000,12500,12000)x(2500,2550)x(1580,1680,2700,2900,3100)
Wheelbase(mm)
6880+1310+1310
Payload(kg)
40,000
Tare weight(kg)
6,500
Function
Transport container, mechanical equipment etc.
Material
T700
Running System
Main beam
height of the beam is 500mm, upper plate is 14mm,
down plat is 16mm, middle plate is 8mm.
Side beam
16#
Axle
3x13Ton
Tire
12R22.5, 12 pcs.
Suspension system
Mechanical Suspension
Steel Spring
10 leaf spring with 90mm(wide) *13mm(thickness)
Brake system
Dual line pneumatic brake, no ABS
Brake air chamber
6 units (4 double 2 single)
King Pin
2" and 3.5" JOST
Landing Gear
Built-in /external ,JOST
Accessories
Tool box
1pcs
Mud guard
Mud guard and front mudguard
Spare wheel carriers
2 pcs
Bumper
Rear bumper with adjustable height
Packing
Nude, Polish with wax before shipping

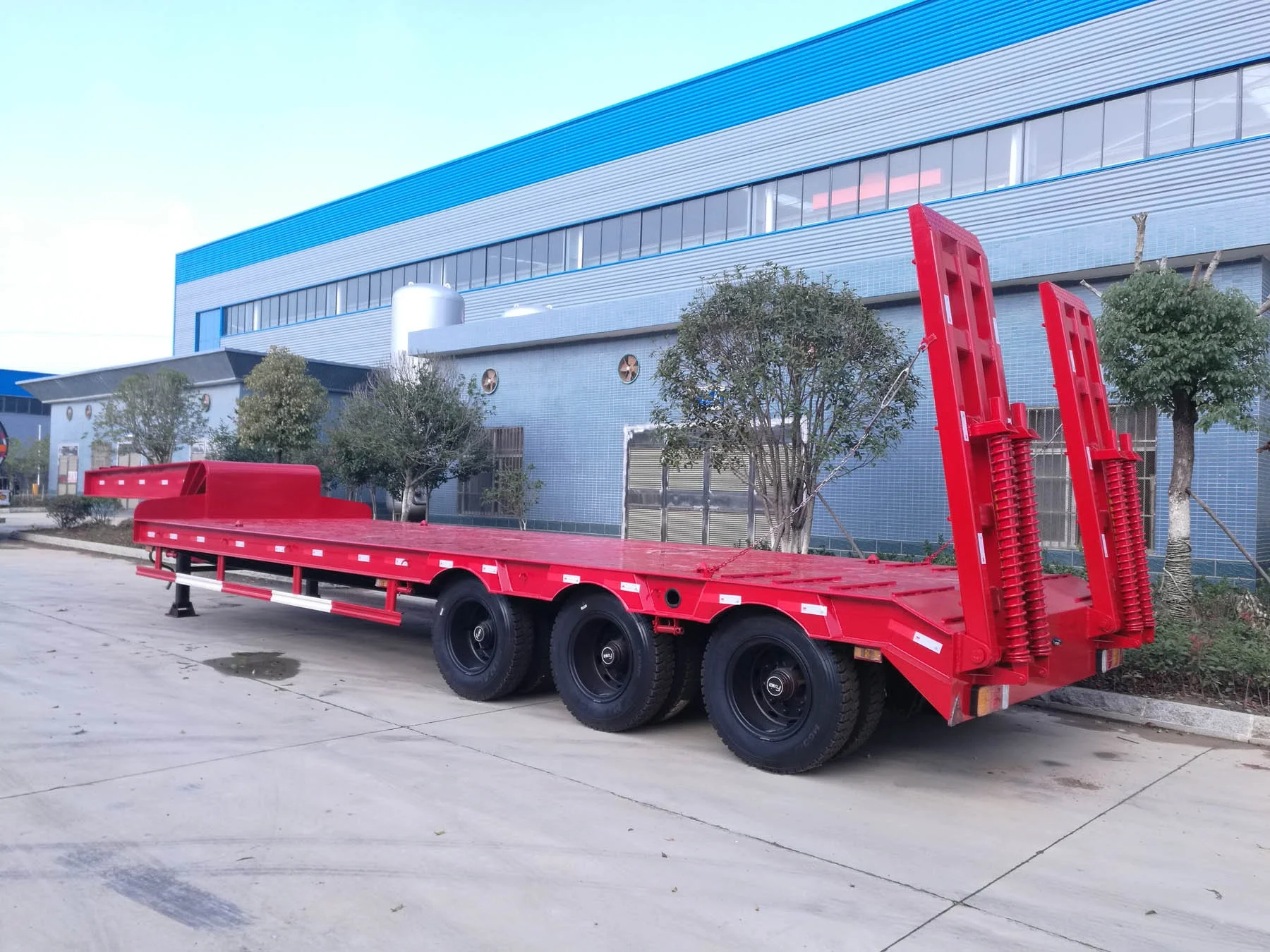

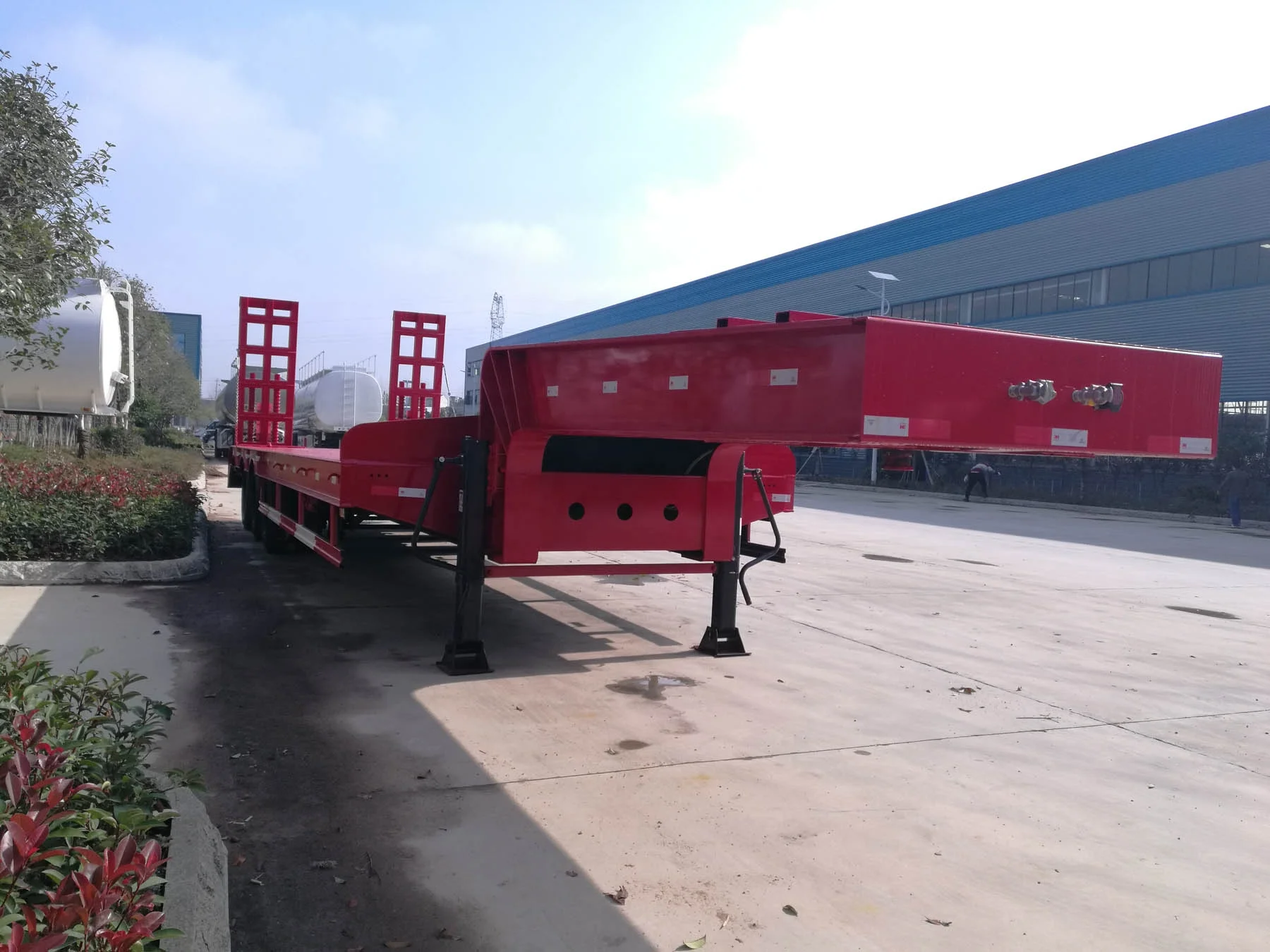

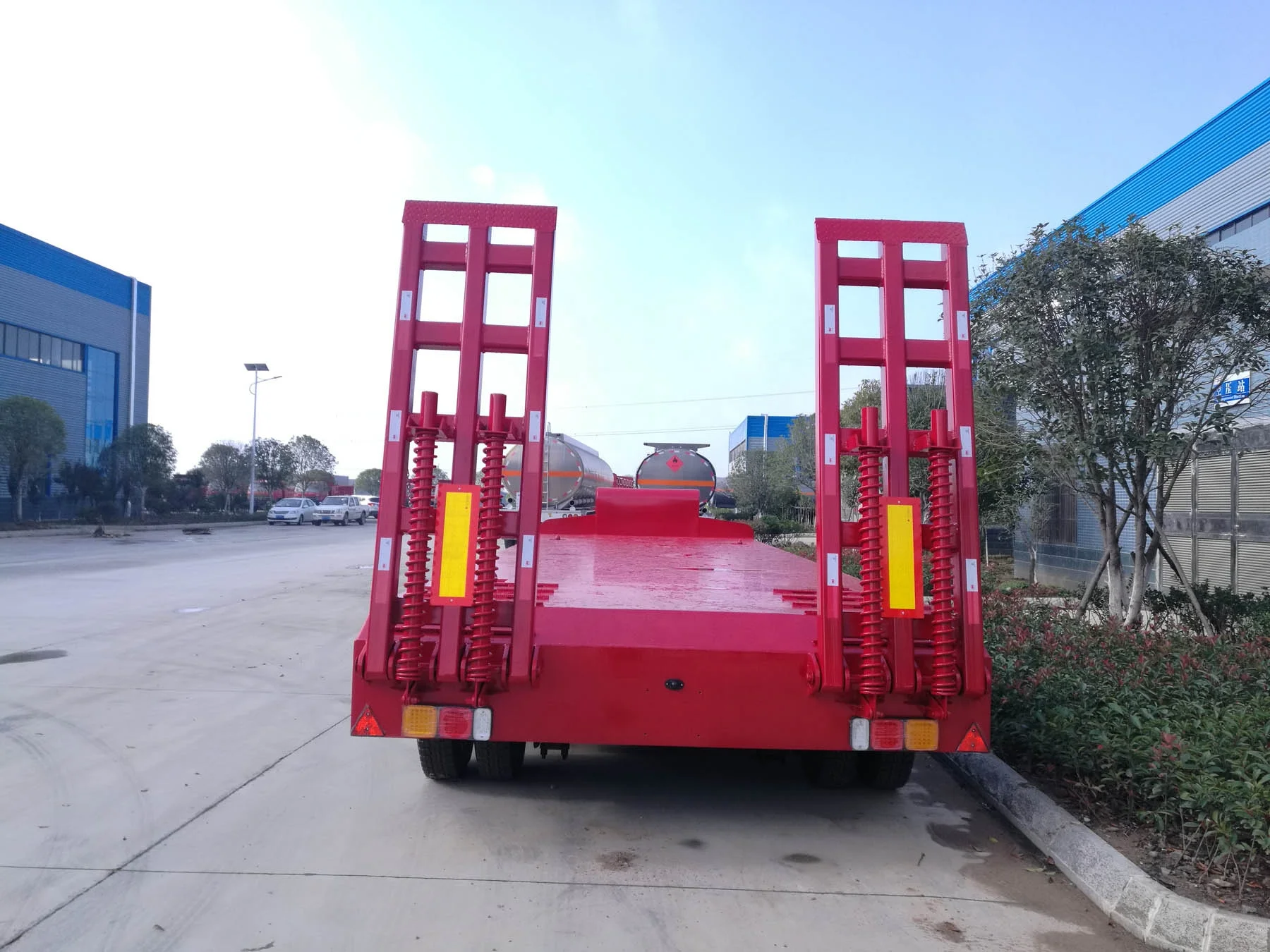

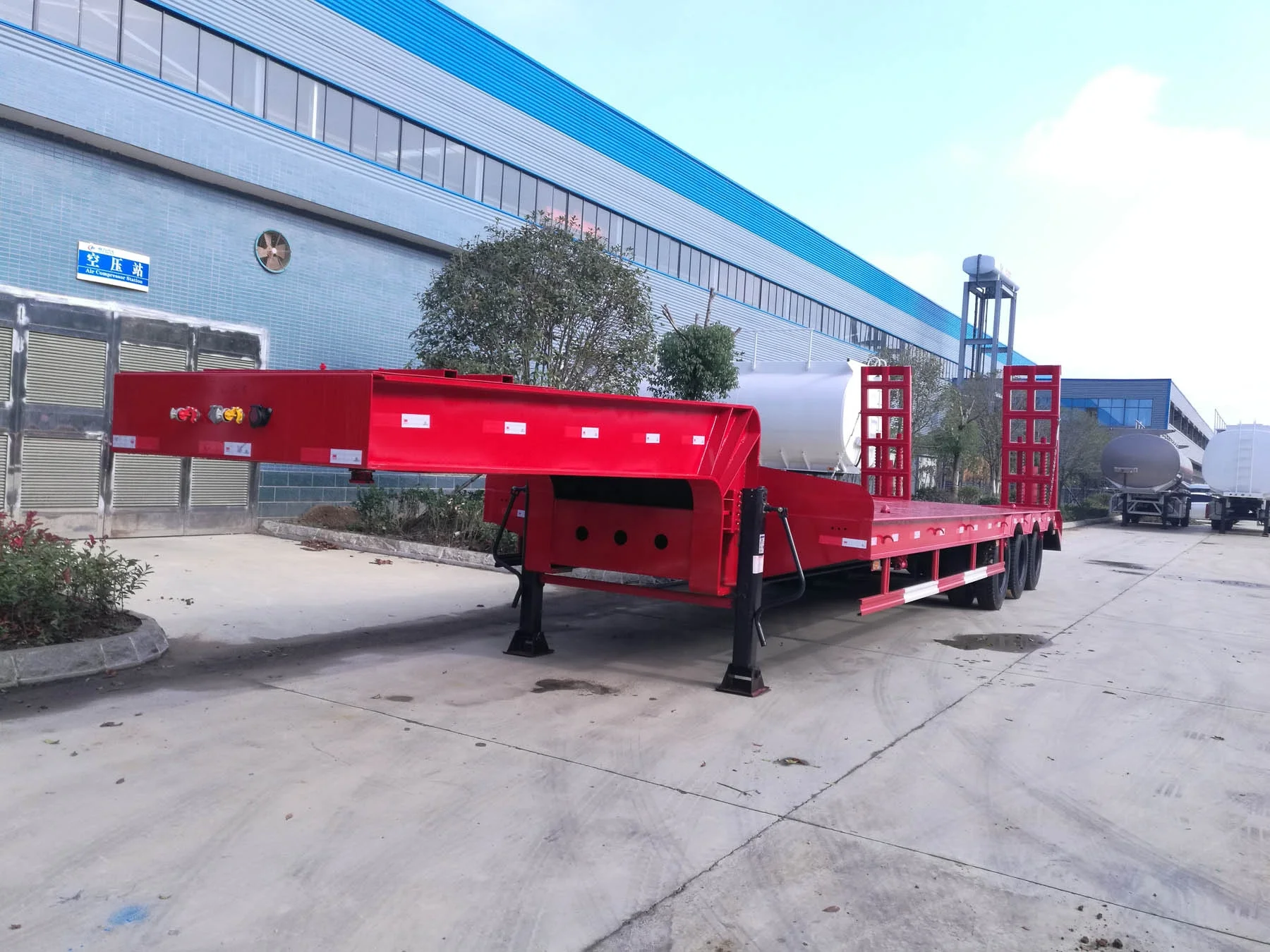

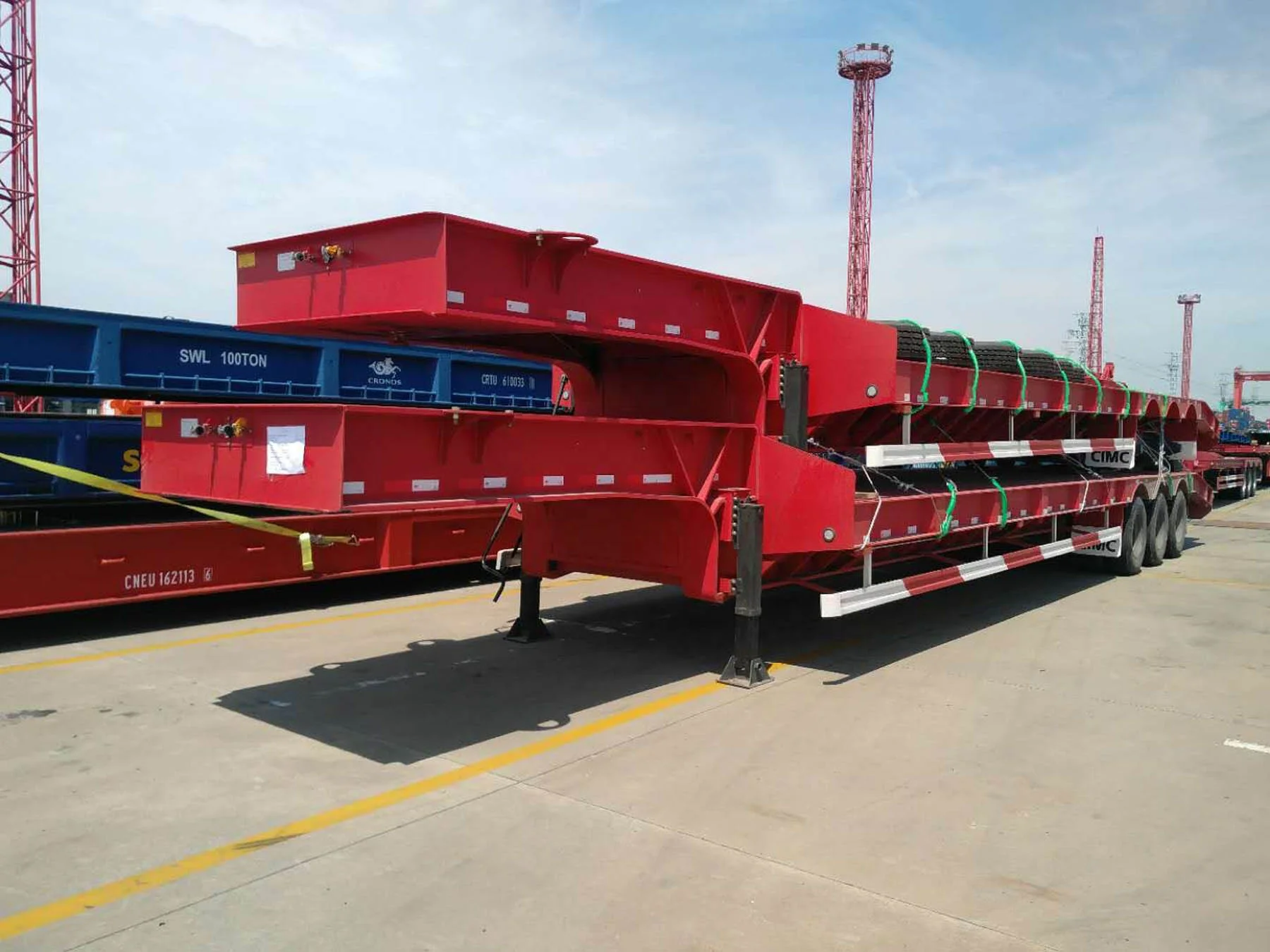

Product Show




Product Packing & Shipping




Our Advantages








Sales and Service Network






Customer Photos






FAQ
