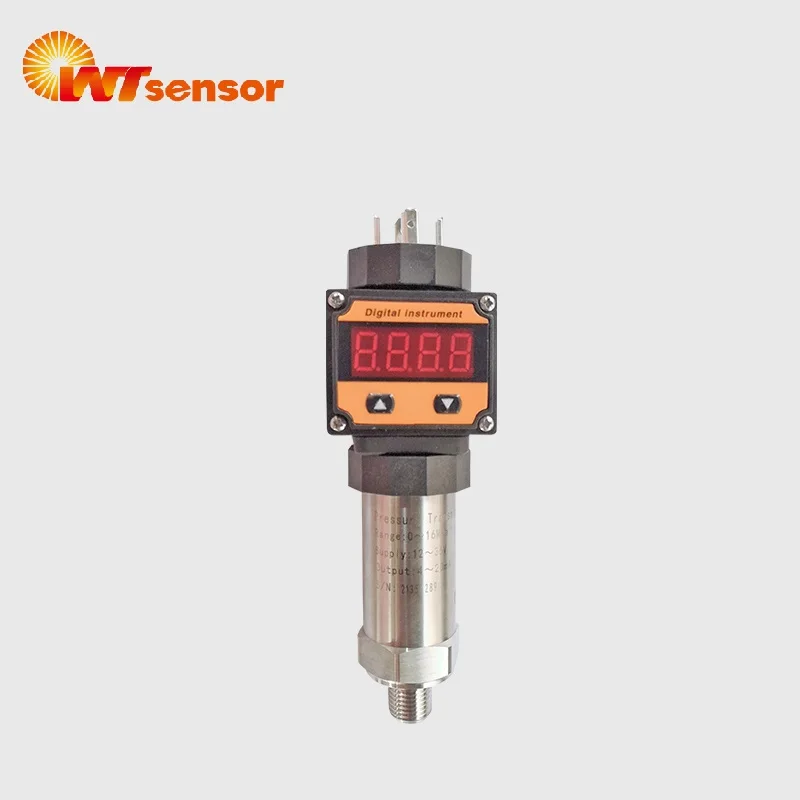

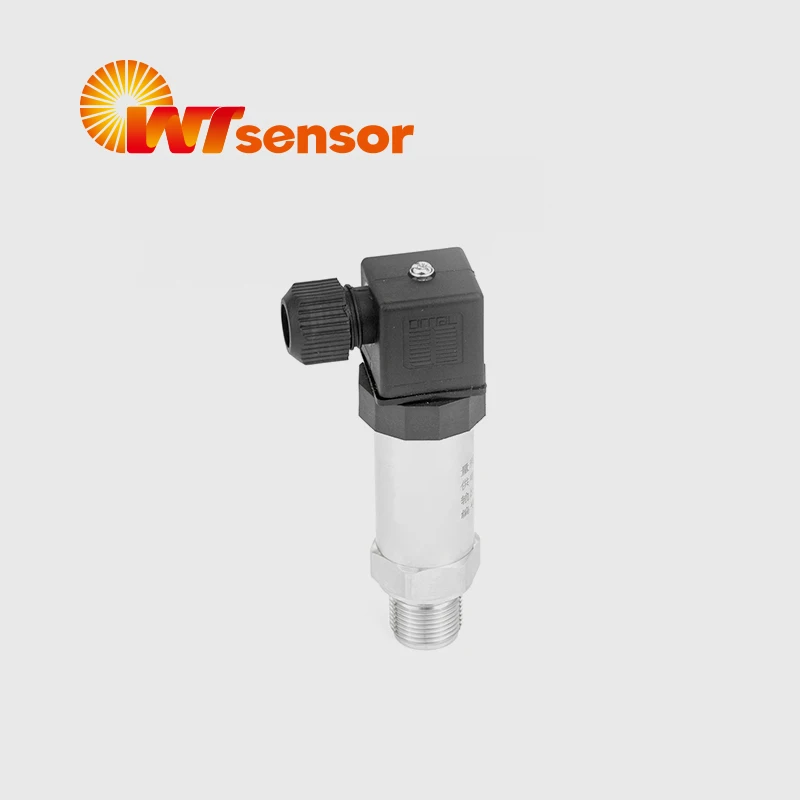

Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в
Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в

Пьезорезистивный силиконовый датчик давления CE, 4-20 мА 0 ~ 5 В, 1 ~ 5 В, 0 ~ 10 в

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики



Features



 • 316L stainless steel diaphragm structure
• High precision, all stainless steel structure
• Small size and light weight
• Strong anti-interference, good long-term stability
• Diversified formal structures, easy installation and use
• Wide measuring range, can measure absolute pressure, gauge pressure and sealed gauge pressure
• Excellent vibration and shock resistance
• Zero, full scale span adjustable

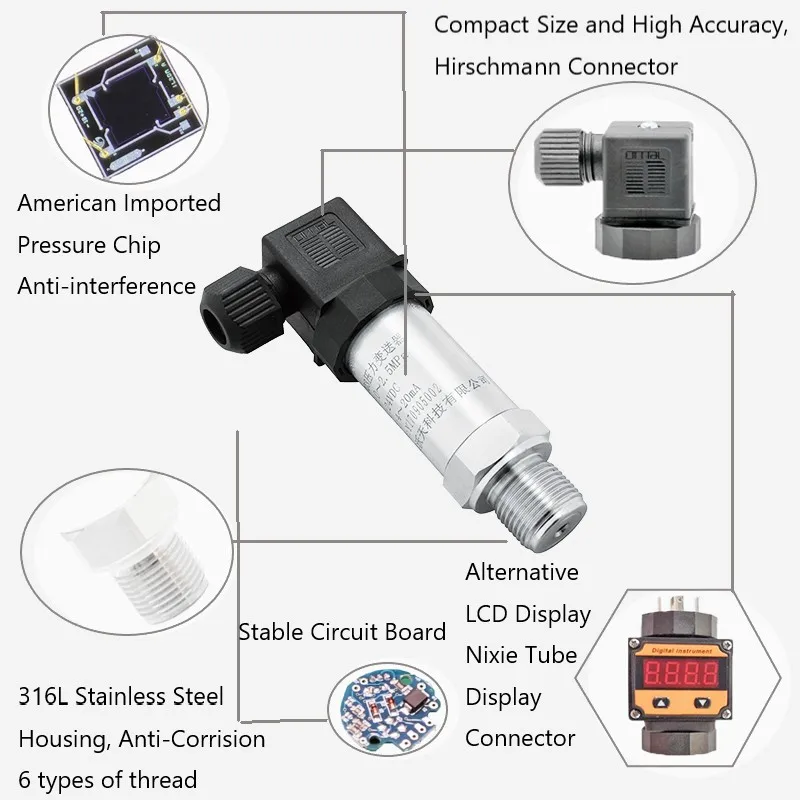

 PCM303xijie1 800x800px.jpg


































































































Performance parameters


Pressure range


-100kPa...0~10kPa...100MPa


Pressure reference


Gauge pressure, Absolute pressure, Sealed gauge pressure


Supply & output


4~20mA, 0~5V, 1~5V, 0~10V, 1~10V (12~30VDC), 0.5~4.5V R/M(5VDC), CANBUS


Accuracy


2%FS (-5~5kPa); 0.5%FS(Other ranges)


Hysteresis & repeatability


0.1%FS


Temp. drift


1.5%FS(-20℃~85℃)


Response time


≤1ms(Up to 90%FS)


Overpressure


150%FS(≤60MPa), 120%FS(60~100 MPa)


Service life


≥10×106 pressure cycles


Ambient temp.


-20℃~85℃


Medium temp.


-30℃~105℃


Storage temp.


-40℃~125℃


EMC-interference


IEC 61000-6-3


EMC-immunity


IEC 61000-6-2


Insulation resistance


≥100MΩ/500VDC(200MΩ/250VDC)


Vibration resistance


Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6; Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64


Shock resistance


Shock: 200g/1ms; IEC 60068-2-27; Free fall: 1m; IEC 60068-2-32


Protection


IP65


Medium compatibility


All the medium compatible with 316L


Net weight


150~180g


Ex-proof


ExiaⅡCT6 (For 4~20mA only)


Size of hexagon


HEX27

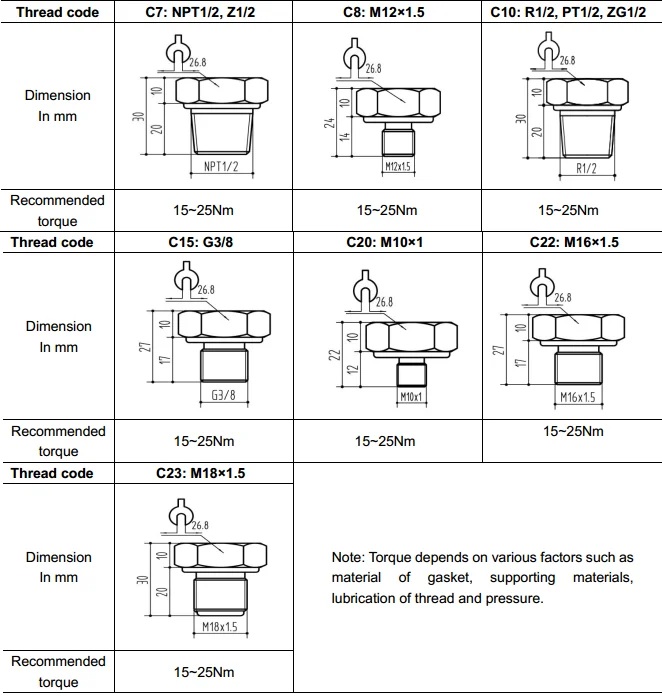

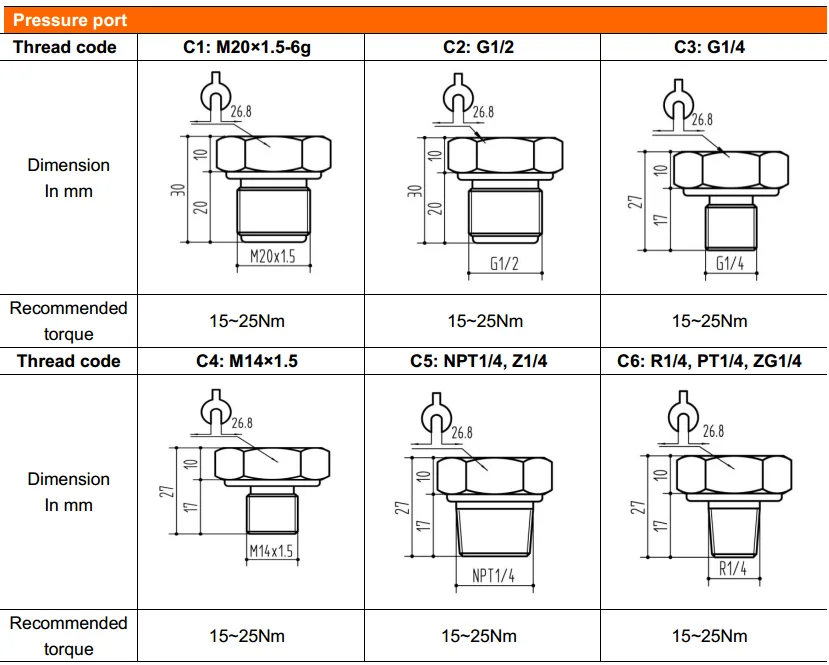

Drawings

Drawings


































.jpg








 FAQ





Q:What kind of products do you offer ?

A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.


Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.


Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.


Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.


Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

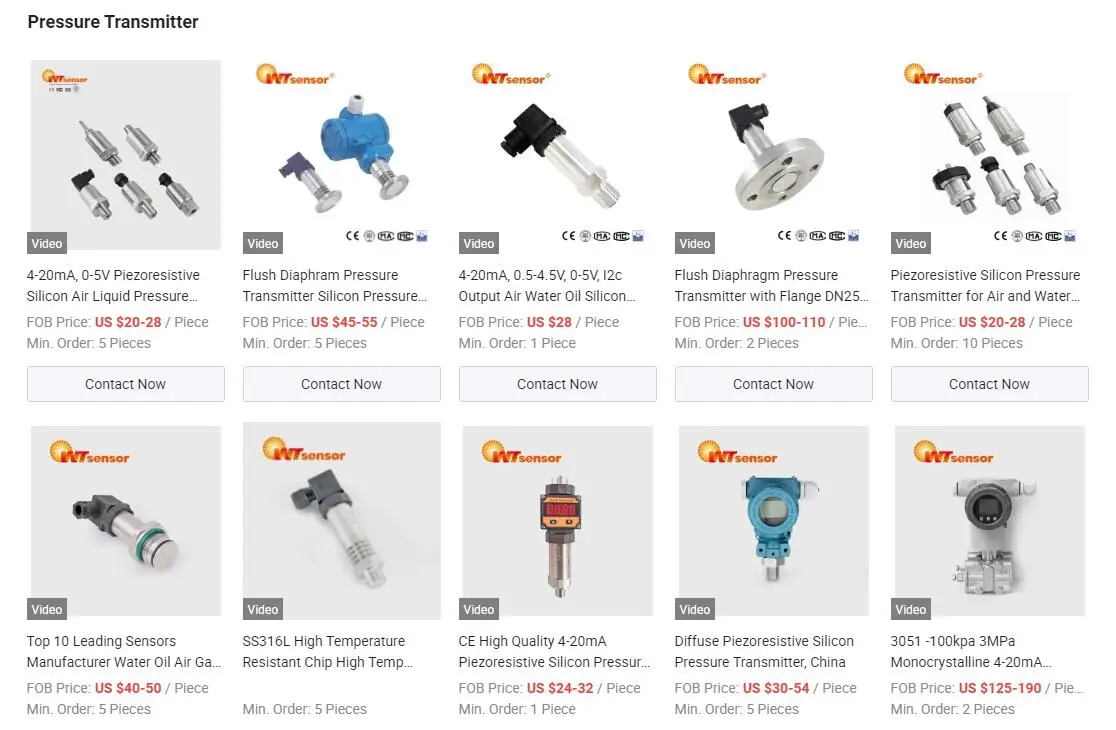

Похожие товары
