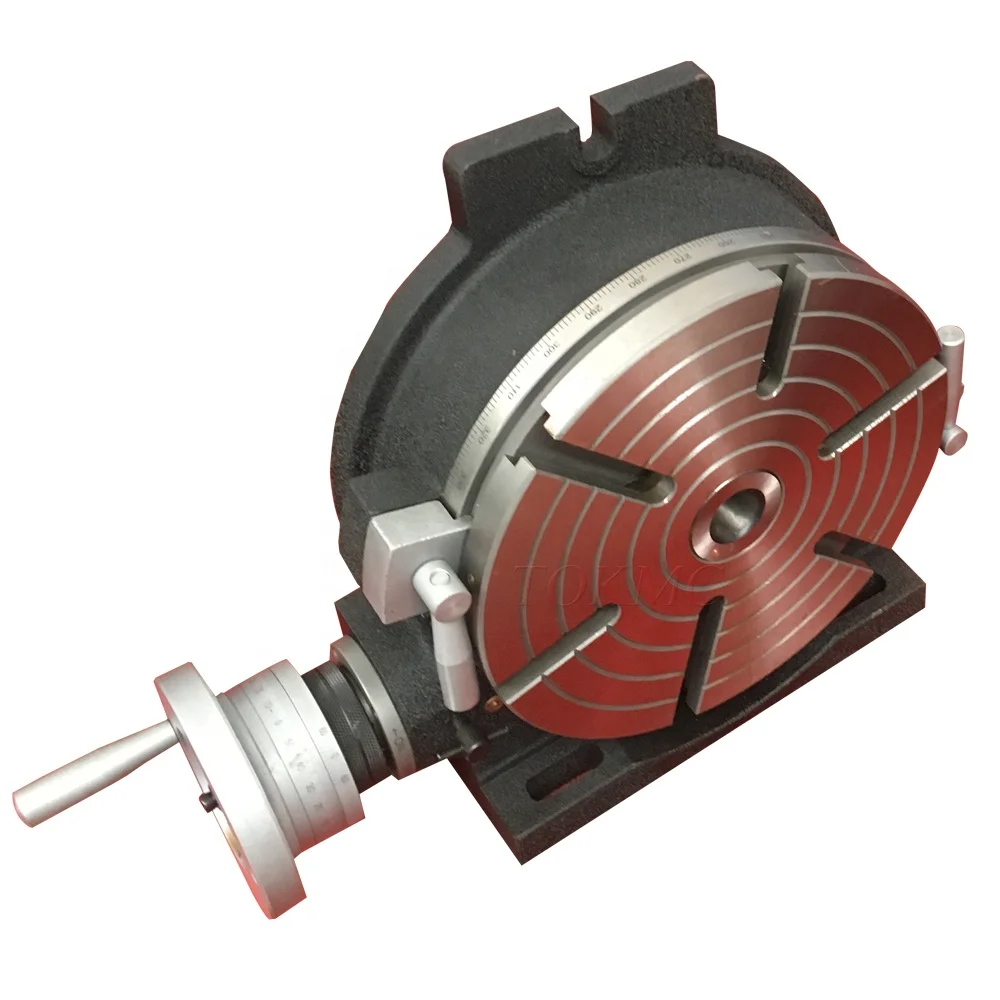

Моторизованный клапан поворотный стол RT-HV6
Моторизованный клапан поворотный стол RT-HV6

Моторизованный клапан поворотный стол RT-HV6

Поделиться:


Цена:
Стоимость в USD:Узнать цену

Количество:

Купить

Описание и отзывы


Характеристики

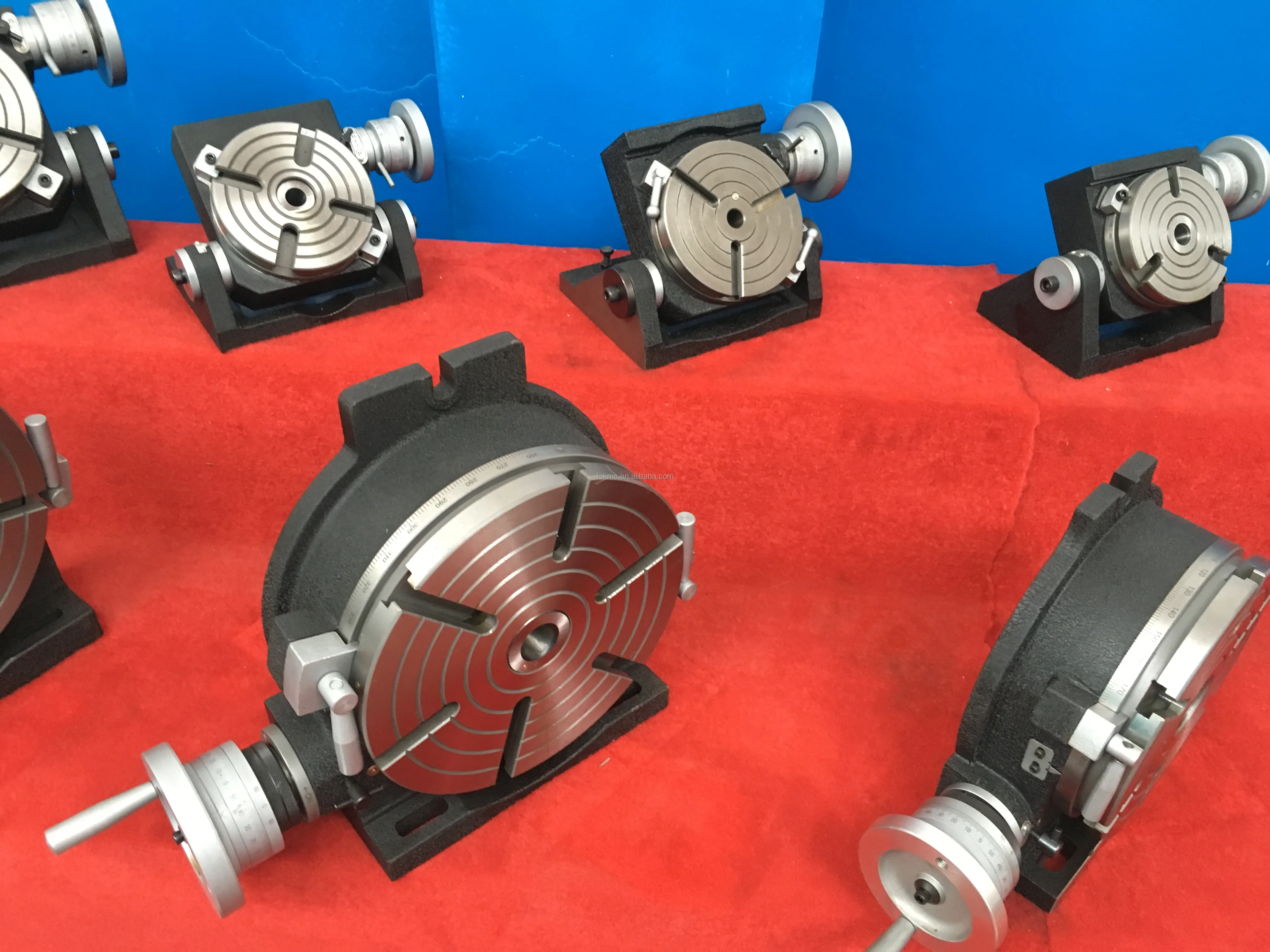

Works as an index center in the vertical position as well as a conventional rotary table for circular cutting,angle setting,boring and spot facing. The table is made of Meehanite the base for the body,table surface and the rotating parts are groud finished,permitting very smooth rotation




Model
Table
Outer diameter
Height
D
A1
H
RT-HV6
150
78
83
5.19
3.07
3.26
RT-HV8
200
100
105
7.87
3.94
4.13
RT-HV10
250
110
115
9.84
4.33
4.53
RT-HV12
300
128
132
11.81
5.04
5.19
RT-HV14
350
128
138
13.78
5.04
5.43
RT-HV16
406
150
155
15.98
5.90
6.10


Accuracy
Max.Variation
Clamping surface flathess (concave)
0006” 015 m/m
Parallelism of clamping surface to base
0008” 02 m/m
Squareness of clamping
surface tod angle face
0008”
02 m/m
True running of clamping surface
0006” 015 m/m
True running of centre hole
(1) Measured at hole eage
(2) Measured at arbor 4”long
(1)0008” 02 m/m
(2)0012” 03m/m
INDEXING ACCURACY OF DIRECT INDEXING MECHANISM
MAX.cumulative spacing error
45 sec


















-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ，L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
