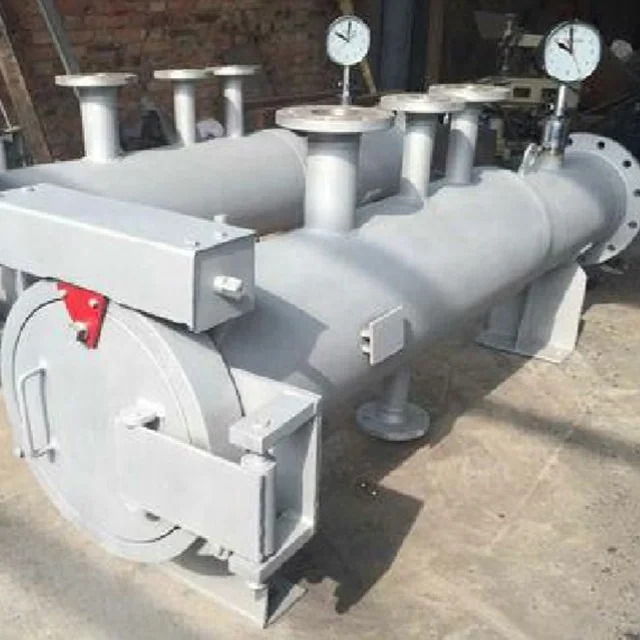

DN150 - DN2000 конвейерная система пускового устройства для свиней с быстроразъемной крышкой
- Категория товара: Oil Field Equipment >>>
- Поставщик (Оптовый магазин): Shenyang,Emt,Piping,Technology,Co.,ltd.Shenyang,ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

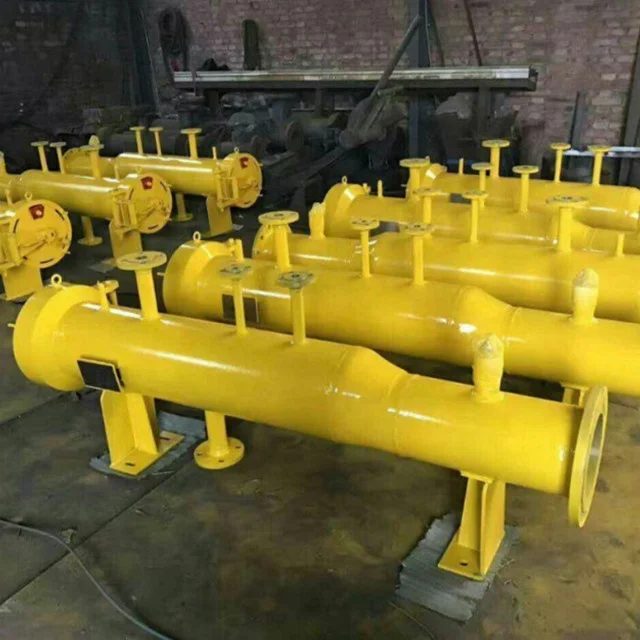

PIG launchers and PIG receivers are the sections of the pipeline which allow the PIG to enter and exit the pipeline. They are generally funnel, Y-shaped sections of the pipe which can be pressurized or depressurized and then safely opened to insert or remove PIGs.
They could be horizontal or vertical as your request.
Product Details

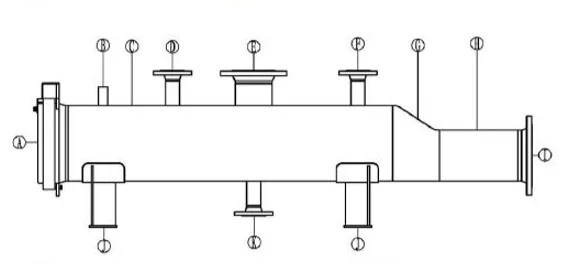

·Pig Launcher Structure Drawing
A. Quick Opening Closure B. Pressure Gauge C. Major Barrel D. Utility Nozzle E. Inlet F. Vent
G. Reducer H. Minor Barrel I. Pipeline Connection J. Support K. Drain

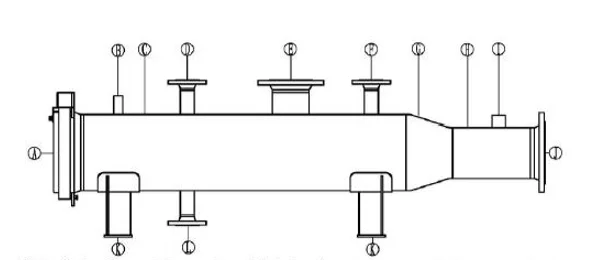

·Pig Receiver Structure Drawing
A. Quick Opening Closure B. Pressure Guage C. Major Barrel D. Utility Nozzle E. Inlet F. Vent
G. Reducer H. Minor Barrel I. Indicator J. Pipeline Connection K. Support L. Drain
DN150 - DN2000 Pipeline Pig Launcher Receiver System With Quick Opening Closure | ||||
1. | Pipeline Size | From 6" up to 56" | ||
2. | Design Code | ASME VIII Div 1; ASME B31.3; ASME B31.4; ASME B31.8, etc. | ||
3. | Design Factor | 0.5, 0.6, 0.7, etc. | ||
4. | Corrosion Allowance | 0-5mm or more | ||
5. | Design Pressure | CL150, CL300, CL600, CL900, CL1500, CL2500, or as required. | ||
6. | Design Temperature (Min/Max) | -50℃ / 200℃ | ||

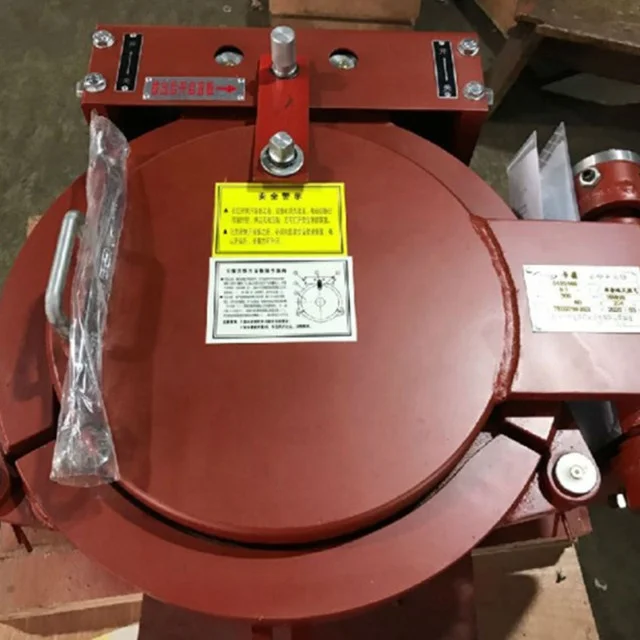

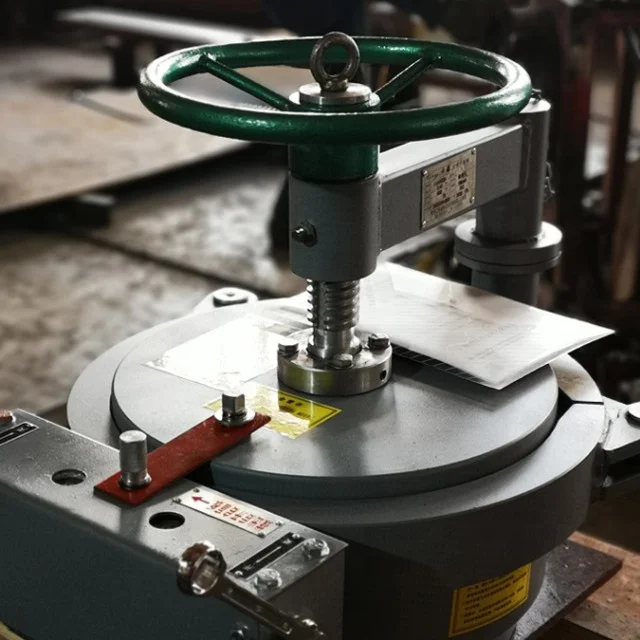

7. | Closure Type | Band Lock and Clamps Type Quick Opening Closure | ||
8. | Installation Orientation | Horizontal, Vertical, Inclined | ||
9. | Applicable Medium | Gas, Oil, Petroleum, Chemical Materials, Water, etc. | ||
Structure and Main Materials | ||||
1. | Major Barrel/Min Barrel | ASTM A106, ASTM A516 Gr.70, APIX42 X52 X60 X65, or as required. | ||
2. | Quick Opening Closure (with Interlock System) | ASTM A515 Gr.70, ASTM A516 Gr.70, ASTM A105, ASTM A350 LF2 Class1, ASTM A694 F42 F46 F48 F50 F52 F56 F60 F65 F70, or as required. | ||
3. | Sealing Ring for the Closure | Viton, Nitrile | ||
4. | Saddle Support | Q235, or as required. | ||
5. | Flange | ASTM A105, ASTM A694 F70, or as required. | ||
6. | Lifting Lug/Eyes | Q235, or as required. | ||
7. | Grounding | Yes | ||
8. | Name Plate | Stainless Steel, or as required. | ||
Certificates | ||||
1. | ASME U Stamp Certificate | Applicable | ||
2. | Third Party Inspection | BV, SGS, ABS, DNV, or as required. | ||
Customize
If you have any request of our products, please feel free to contact us.
EMT has responsible sales staff and professional engineers. We will timely feedback your questions and provide solutions.
Why Choose Us
2. Samples will be offered to attest to the quality and our services.
3. The fastest feedback!
4. The fastest delivery time.
5.24 hours,7 days online.
EMT has own factory and reliable raw material supplier, so you can enjoy no MOQ and prompt delivery!
Packaging & Shipping
PLYWOOD CASE
We use PLYWOOD CASE as packaging, it has the following advantages:
2.No fumigation required.
Transport
By Air
We cooperate with many express companies. That could help you choose a courier company with cheaper freight.By Sea
Shenyang is close to Dalian Port, inland transportation costs almost nothing and takes short time.
