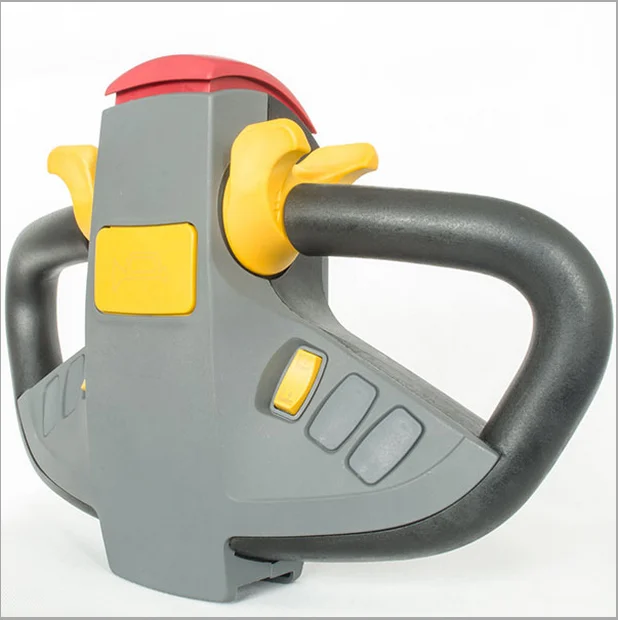

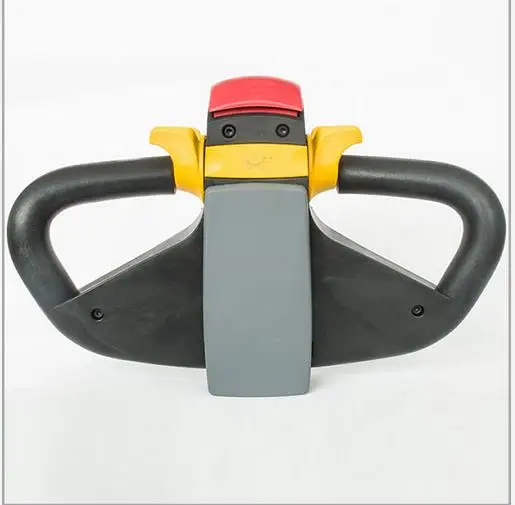

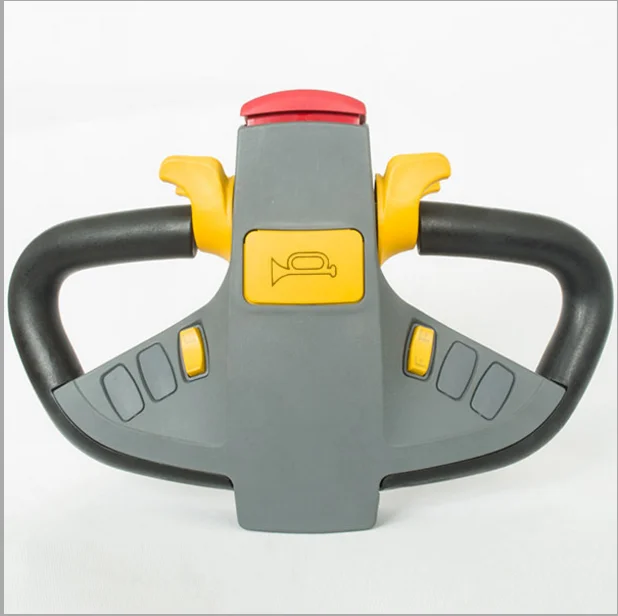

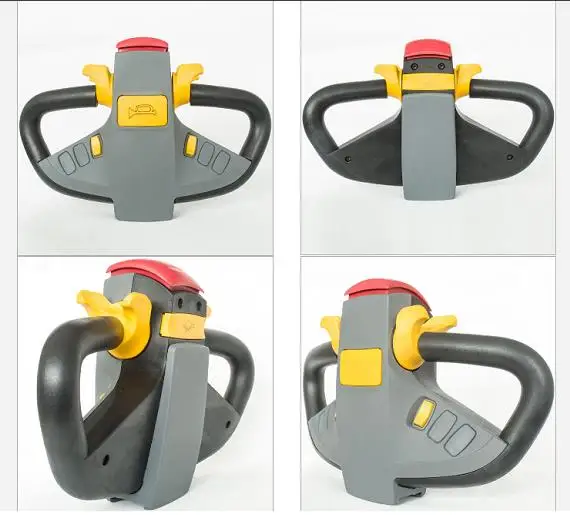

Ручка управления электромобилем OEM T600 48 в 24
- Категория товара: Material Handling Equipment Parts >>>
- Поставщик (Оптовый магазин): Hefei,Huanxin,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant |
Weight (KG) | 4 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2022 |
Model Number | T600 |
Working Temp | -40°C to 85°C |
Type | Control Handle |
OEM | Yes |
Application | Pallet Truck |
After Warranty Service | Online support |
Specifications:
Model: T600
Operating temperature:: –40°C to +85°C
Vibration test: According to IEC 68-2-6
Protection class (DIN 40050) Tiller head IP 40 Operation elements and traction switch minimum IP 54
Features:
The T600 series are tiller heads packaged in a rugged housing that offer an attractive and practical method of controlling electric vehicles.
The tiller head has space for two operating switches, covering the basic functions in a tiller head controlled vehicle (for example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options you can customise design to fit your requirements.
Button/rocker switch/switches:
Max. breaking capacity 48VDC / 1A
Min. breaking capacity 24VDC / 10mA
Analogue switches:
Max. breaking capacity 48VDC / 4mA switching current
Wiper current < 0.1mA
Signal horn: Micro-switch NO with Connector 2-pin
Optimum switch current: 5mA / 5V – 1.5A / 24V
Throttle Unit:
Supply
24V – 48V nominal
14V – 69V maximum
Output
0 – 5V
+24V Forward
+24V Reverse
Model: T600
Operating temperature:: –40°C to +85°C
Vibration test: According to IEC 68-2-6
Protection class (DIN 40050) Tiller head IP 40 Operation elements and traction switch minimum IP 54
Features:
The T600 series are tiller heads packaged in a rugged housing that offer an attractive and practical method of controlling electric vehicles.
The tiller head has space for two operating switches, covering the basic functions in a tiller head controlled vehicle (for example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options you can customise design to fit your requirements.
Button/rocker switch/switches:
Max. breaking capacity 48VDC / 1A
Min. breaking capacity 24VDC / 10mA
Analogue switches:
Max. breaking capacity 48VDC / 4mA switching current
Wiper current < 0.1mA
Signal horn: Micro-switch NO with Connector 2-pin
Optimum switch current: 5mA / 5V – 1.5A / 24V
Throttle Unit:
Supply
24V – 48V nominal
14V – 69V maximum
Output
0 – 5V
+24V Forward
+24V Reverse
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

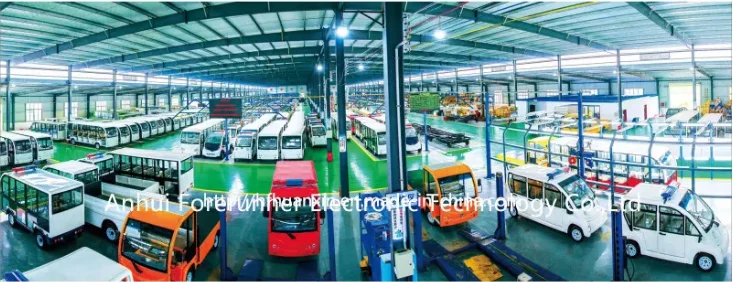

Company Profile
Hefei Huanxin Technology Development Co.,Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of Motor Controller, DC-DC Converter, Drive Wheel Assembly, Instrument Cluster, Switch, Accelerator and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.
Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Certifications
Related Products
FAQ
1. who are we?
We are based in Anhui, China, start from 2004,sell to Domestic Market(33.00%),North America(15.00%),Southeast Asia(10.00%),South America(8.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Western Europe(3.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Battery,Battery Charger,Tiller Head,DC Converter,Accelerator,Battery Meter
4. why should you buy from us not from other suppliers?
Established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our products are mainly exported to Europe, USA, Asia,
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2004,sell to Domestic Market(33.00%),North America(15.00%),Southeast Asia(10.00%),South America(8.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Western Europe(3.00%),Central America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Battery,Battery Charger,Tiller Head,DC Converter,Accelerator,Battery Meter
4. why should you buy from us not from other suppliers?
Established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of electric vehicle controller, handle, meter, electronic accelerator and so on. Our products are mainly exported to Europe, USA, Asia,
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
