Products Description
Product Information

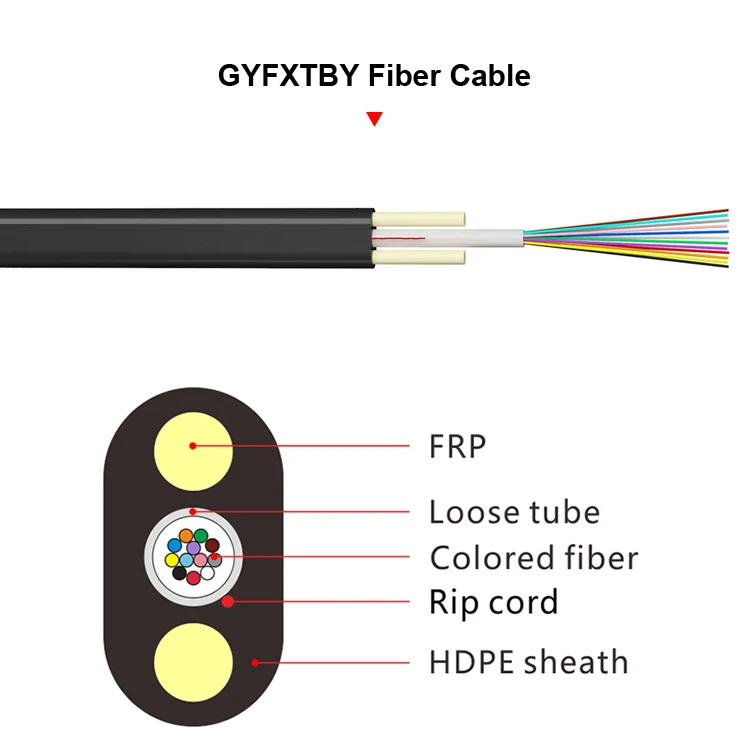

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.
Characteristics：
•YD / T769-2010, GB / T 9771-2008, IEC794 and other standards ;
Optical Characteristics：
G.652 | G.655 | 50/125μm | 62.5/125μm | |||
Attenuation | @850nm | ≤3.5B/km | ≤3.5B/km | |||
(+20℃) | @1300nm | ≤1.5B/km | ≤1.5B/km | |||
@1310nm | ≤0.45/km | ≤0.45/km | ||||
@1550nm | ≤0.30/km | ≤0.30/km | ||||
Bandwidth | @850 | ≥500MHZ·km | ≥20MHZ·km | |||
（Class A） | @1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Optical Characteristics：
ber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
mm | Kg/km | Long/Short Term | Long/Short Term | Static/Dynamic | |
N | N/100m | mm | |||
1-12 core | 4.5*8.5 | 46 | 400/1200 | 300/1000 | 30D/15D |
About Us
Certification
Exhibition
Customer Reviews
FAQ

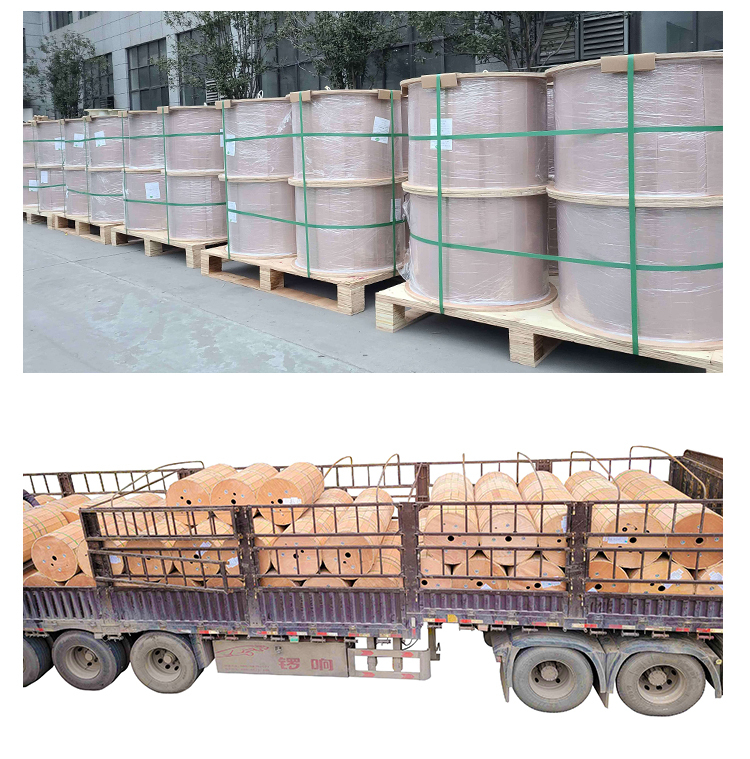

Shipment
