Двойной разъем для батареи 20-72 В увеличения емкости путем подключения двух батарей в параллельном модуле
- Категория товара: Electric Bicycle Battery >>>
- Поставщик (Оптовый магазин): Honghui,(shenzhen),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification

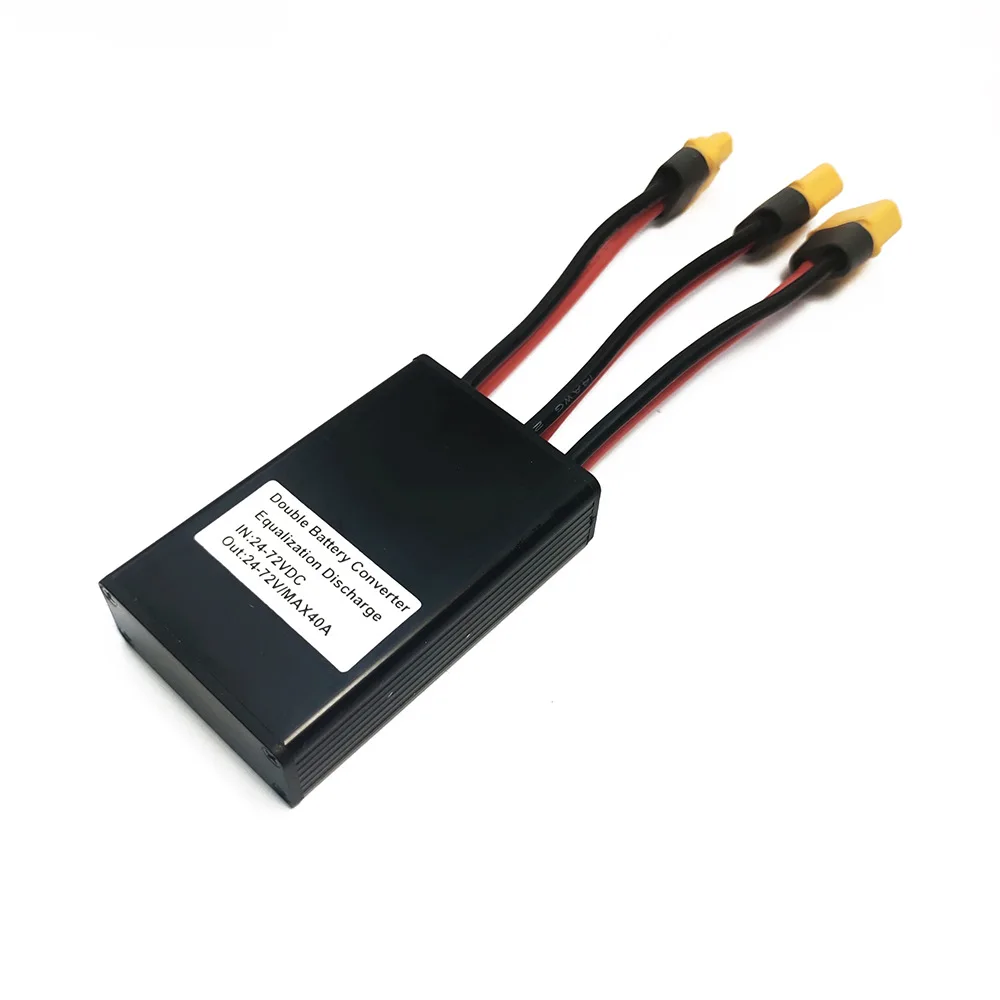

Product Name | ebike dual battery connector |
Voltage | 20V-72V |
Maximum output current | 30A OR 40A |

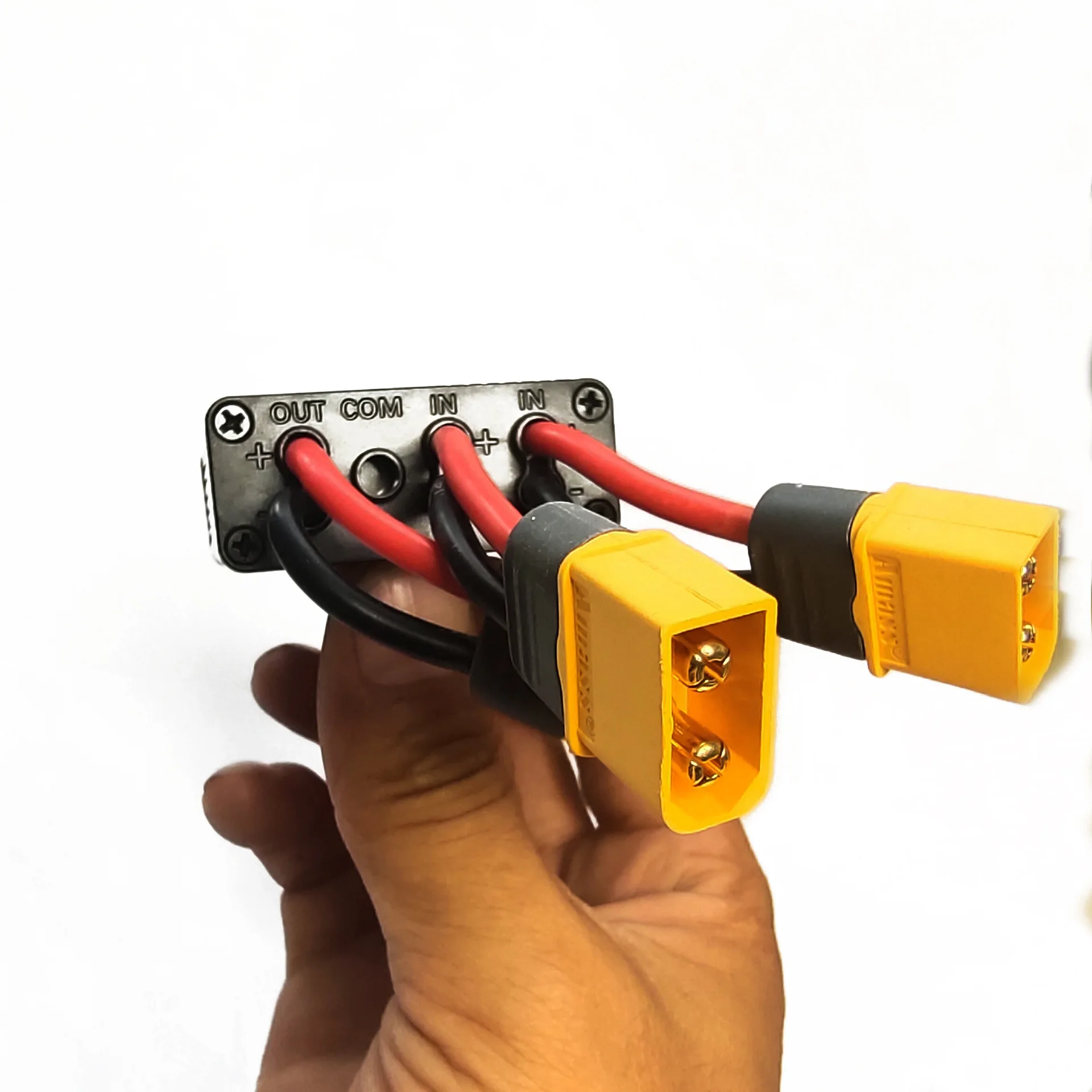

Connector | XT60 |
wire | 14AWG Silicone Wire 10cm |
Used For | Wire 2 Batteries in Parallel / Double Capacity |

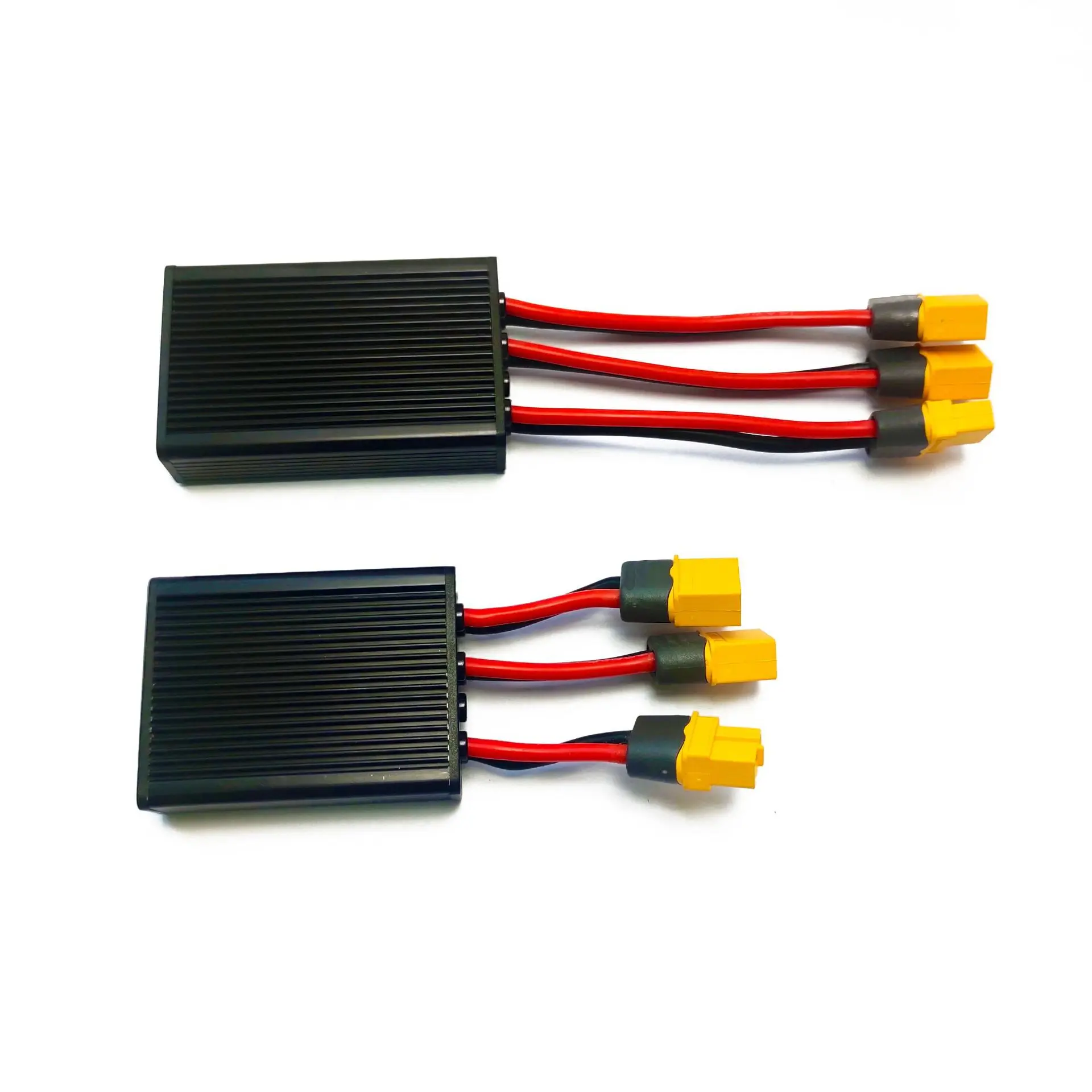

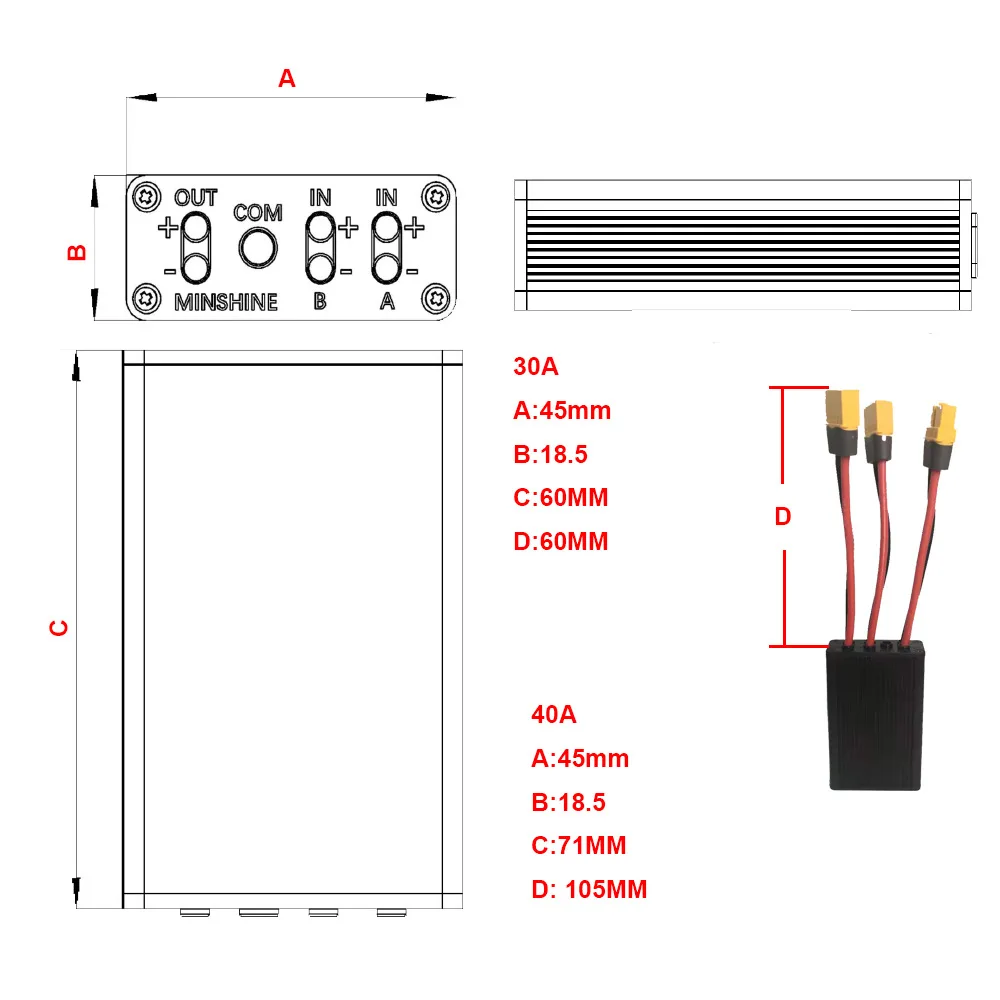

30A Model Size | 6*4.5*1.8cm |
40A Model Size | 7*4.5*1.8cm |

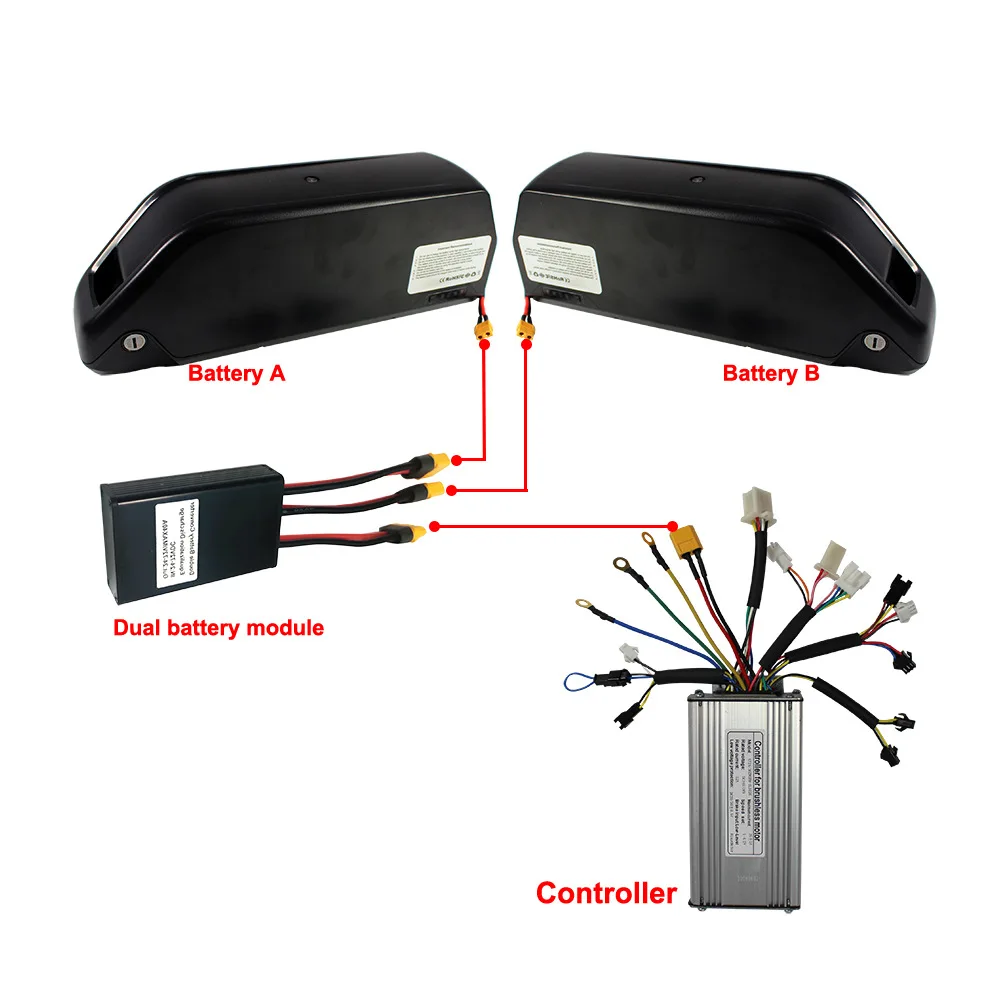

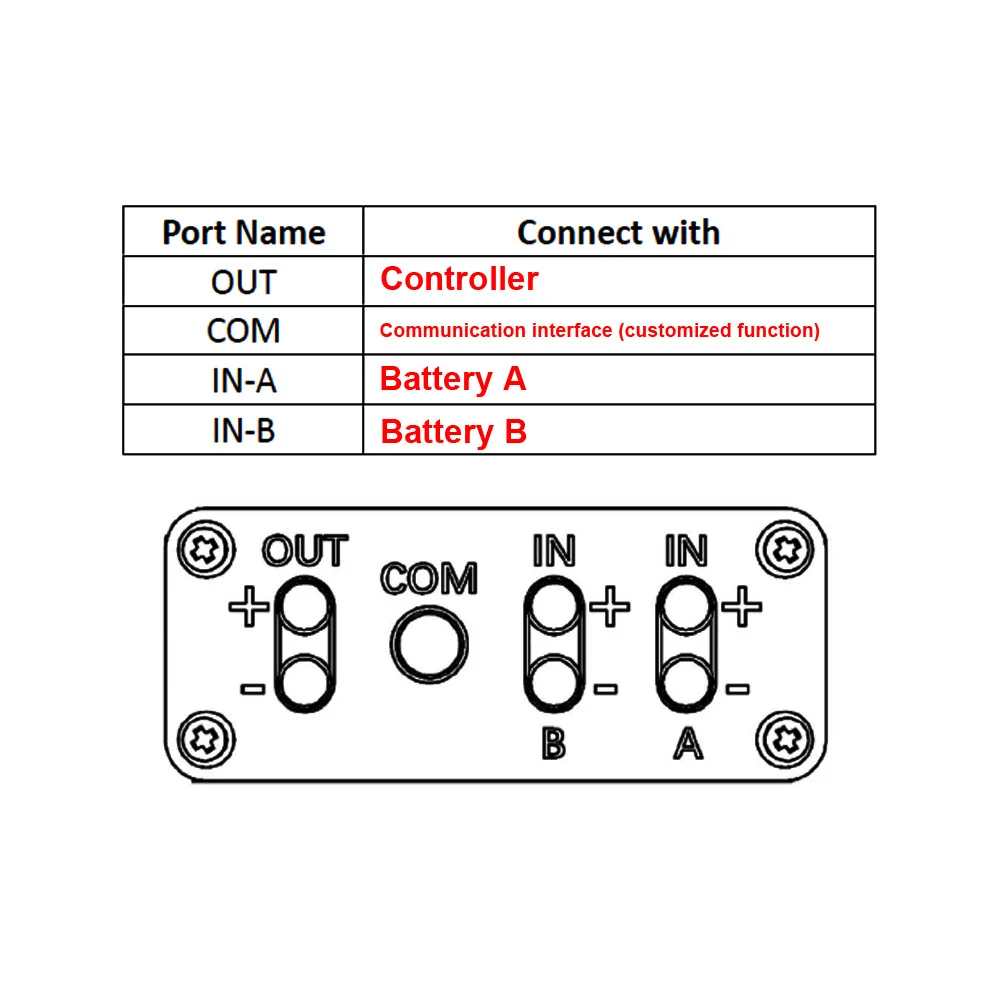

Connection definition OUT | Connect with controller |
Connection definition COM | UART interface (Default) |
Connection definition IN-A | Connect with Battery Pack A |
Connection definition IN-B | Connect with Battery Pack B |
Double Battery Pack Switcher can manage two battery packs which fixed on your bike, low power， Consumption design ,real-time detect the voltage of both two battery packs, Battery on-line check . switch to another battery pack automatically to power your bike again when one battery power become empty while riding.
Module will stop power output when voltage low than low-cut voltage to protect the battery.
Module will stop power output when voltage low than low-cut voltage to protect the battery.
Working Process
1. MCU monitor voltage of both batteries in real time and send the volatage value by UART if UART interface is available.
2. Auto Battery on-line detecting. Switch to the battery and make power output if only one battery was connected with this module.
3. Switch to BAT-B automatically when the voltage of BAT-A is low than switch point.
4. Stop power output when the voltage of both batteries are low than low-cut point.
important hint:
Thank you for Purchasing our Double Battery Pack Switcher, Read this manual carefully, Contact your supplier if you can not understand this instruction well.
Make sure battery pack which connected with module has the same technical parameters you provided for us . unpredictable results can occur if you use the incompatible Double Battery Pack Switcher with your battery pack.
Attention: DO NOT MIX ANDOE AND CATHODE connecter on Double Battery Pack Switcher , and ensure both two battery packs power is off before connecting.
Warning: Do not touch it by your hand directly. it will become more hotter during discharging .
Notice: You have to provide the technical parameters related with your battery as details before ordering.
1. MCU monitor voltage of both batteries in real time and send the volatage value by UART if UART interface is available.
2. Auto Battery on-line detecting. Switch to the battery and make power output if only one battery was connected with this module.
3. Switch to BAT-B automatically when the voltage of BAT-A is low than switch point.
4. Stop power output when the voltage of both batteries are low than low-cut point.
important hint:
Thank you for Purchasing our Double Battery Pack Switcher, Read this manual carefully, Contact your supplier if you can not understand this instruction well.
Make sure battery pack which connected with module has the same technical parameters you provided for us . unpredictable results can occur if you use the incompatible Double Battery Pack Switcher with your battery pack.
Attention: DO NOT MIX ANDOE AND CATHODE connecter on Double Battery Pack Switcher , and ensure both two battery packs power is off before connecting.
Warning: Do not touch it by your hand directly. it will become more hotter during discharging .
Notice: You have to provide the technical parameters related with your battery as details before ordering.
