Large-Scale Cryogenic Liquid Storage Solutions
Large Atmospheric Pressure Cryogenic Liquid Storage Tank/Flat Bottom Tank

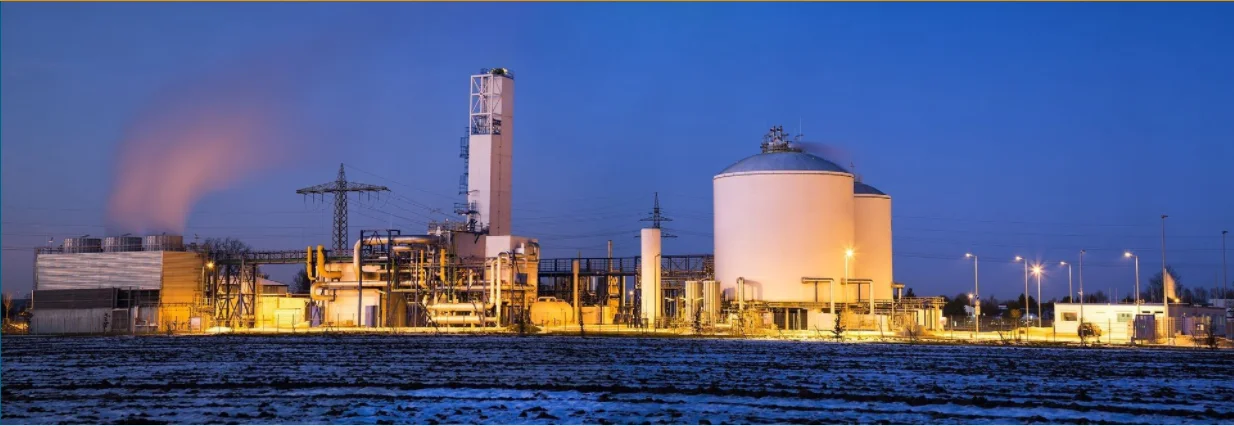

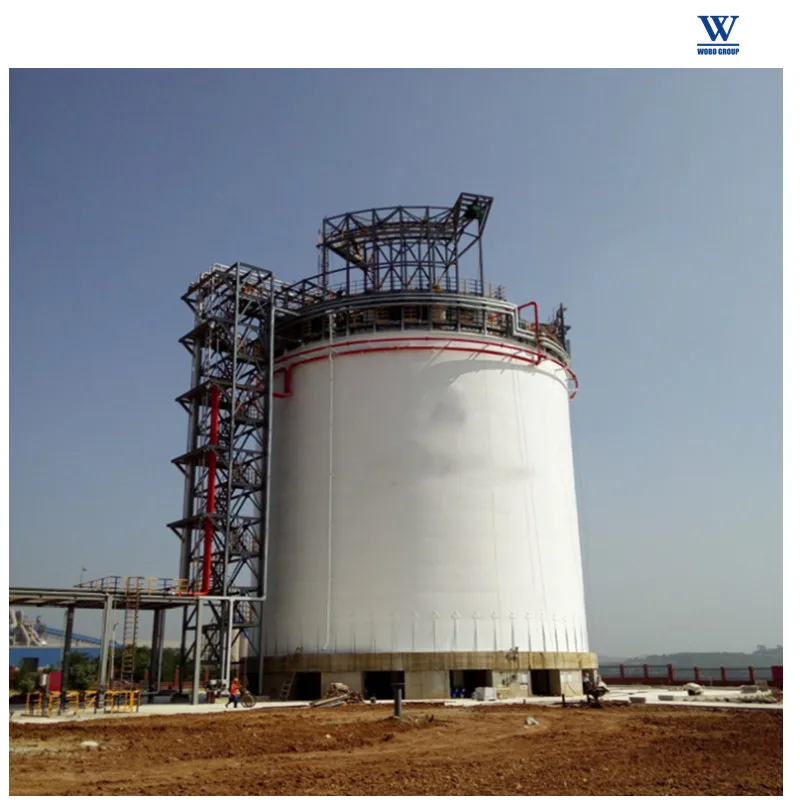

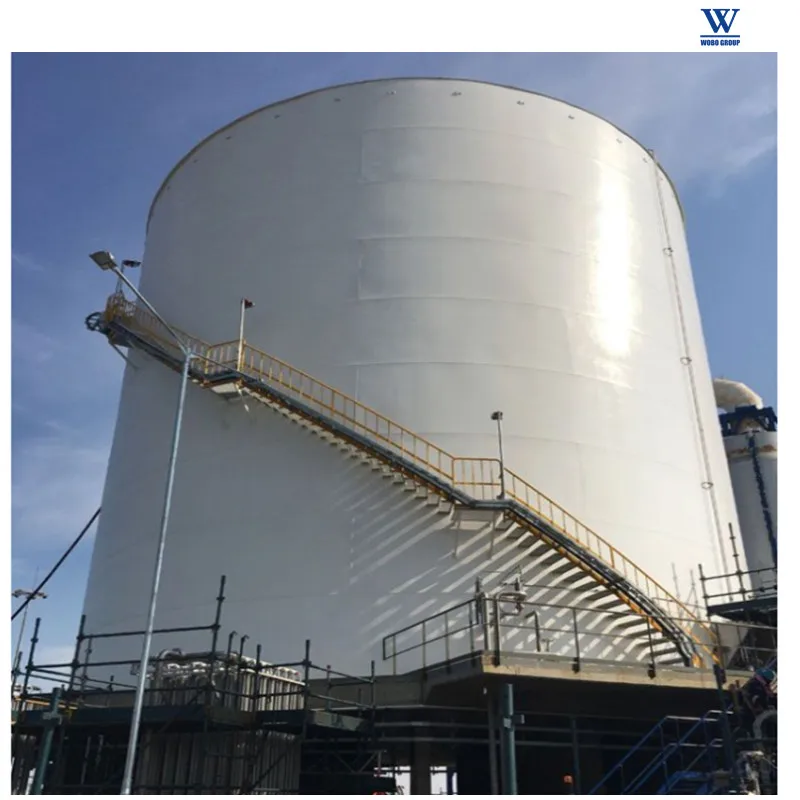

Large Atmospheric Flat Bottom Storage Tank For Storing Huge Quantities Of Crude Oil And Petroleum Products
Product Description
Flat bottom tanks are storage structures that present a round cylinder shape and a flat base. These systems can help preserve and store a wide array of substances and can thus be fabricated to specifically meet each substance and business needs. It represent an efficient storage system for a number of substances, including cryogenics and liquefied gases. As more and more businesses and industries are dependent on optimal storage of substances in order to have immediate access to them, flat bottom tanks are increasingly demanded.

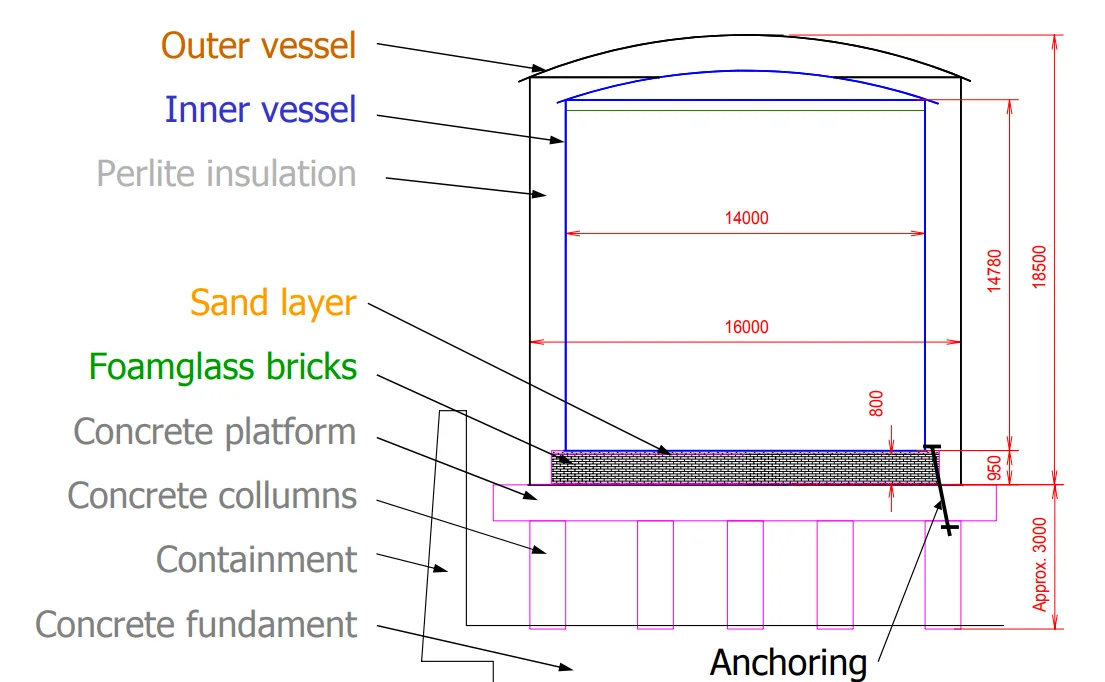

Type Of Flat Bottom Tank

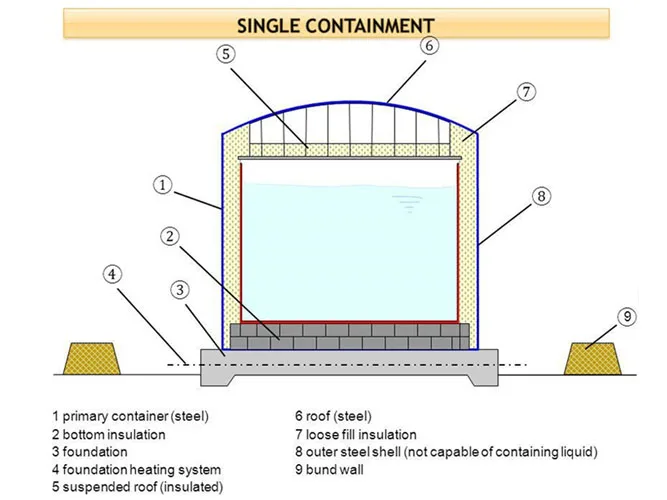

Single Containment Storage Tank：
This type of storage tank has the basic construction of ordinary dome roof tanks. The outer surface of shell and its adjoining area is insulated against heat leak and humidity penetration with polyurethane foam, foamglas or similar materials. This unit can be used to store liquefied gases such as butane and ammonia, which have a relatively high critical temperature.

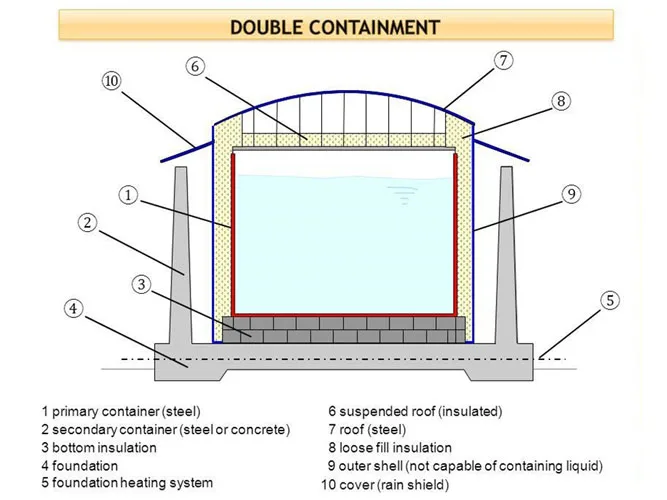

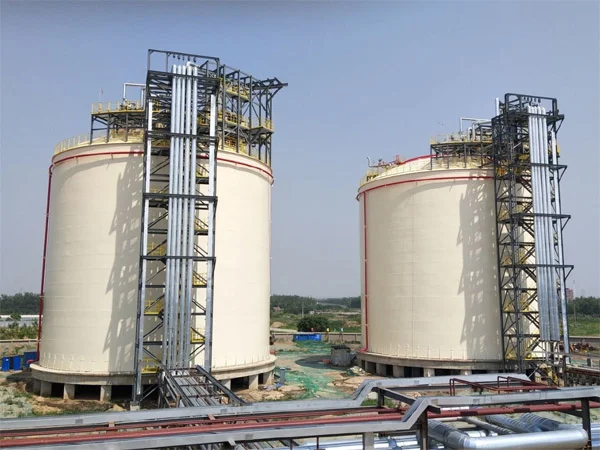

Double Containment Storage Tank：
Basic structure is same on the below. This type of tank is suitable for the low temperature storage product such as LNG, and Ethylene.
Basic structure is same on the below. This type of tank is suitable for the low temperature storage product such as LNG, and Ethylene.

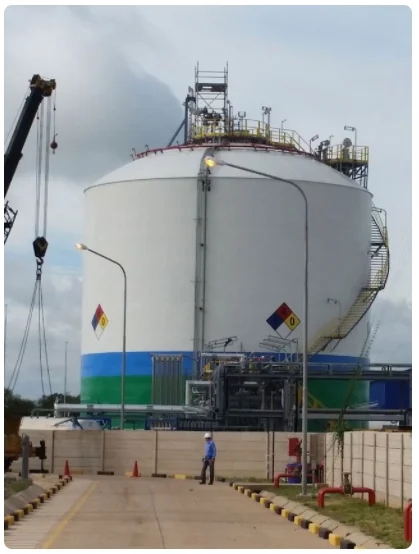

Full Containment

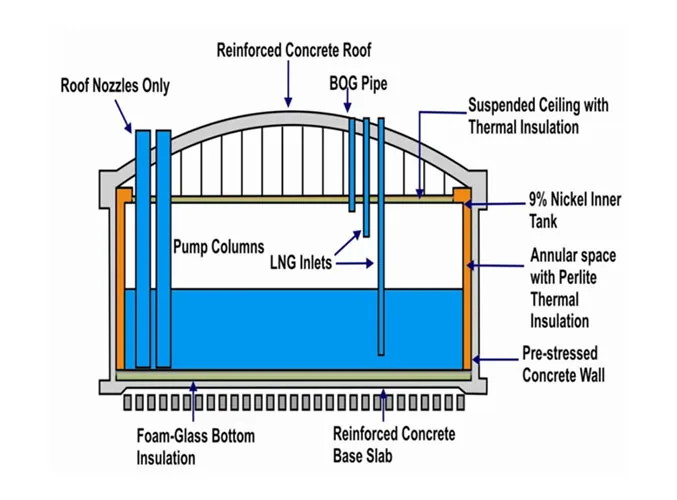

A full containment tank design is defined as a double tank designed and constructed so that both the inner tank and the outer tank are capable of independently containing the refrigerated liquid stored. The inner tank contains the refrigerated liquid under normal operating conditions. The outer roof is supported by the outer tank. The outer tank is intended to be capable of both containing the refrigerated liquid and controlled venting of the vapour resulting from a product leakage after a credible event. A full containment tank may be referred to as a full integrity LNG container.
A full containment tank design is defined as a double tank designed and constructed so that both the inner tank and the outer tank are capable of independently containing the refrigerated liquid stored. The inner tank contains the refrigerated liquid under normal operating conditions. The outer roof is supported by the outer tank. The outer tank is intended to be capable of both containing the refrigerated liquid and controlled venting of the vapour resulting from a product leakage after a credible event. A full containment tank may be referred to as a full integrity LNG container.

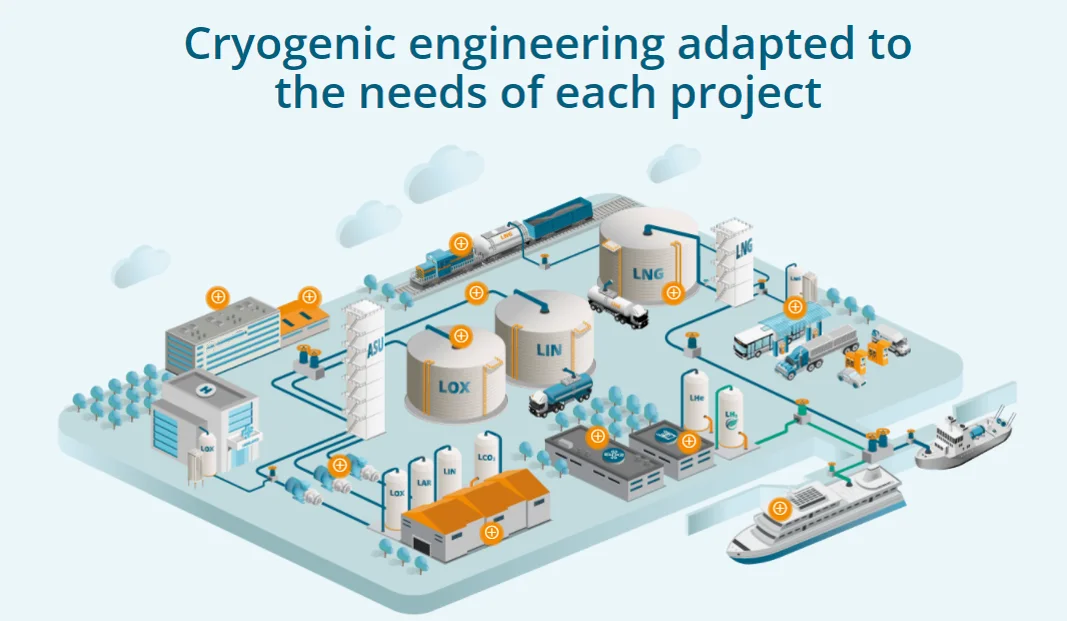

Process System & Configuration Parameters
01. Purge system
02. Liquid inlet system
03. Drainage system (external and submersible)
02. Liquid inlet system
03. Drainage system (external and submersible)
04. Backflow system after pump
05. Interlayer nitrogen supply system
06. Liquid level and pressure measurement system
07. Temperature measurement system
08. Gas discharge system
09.BOG pipeline system
10. Analytical sampling system
11. Security System
12. Voltage stabilization system
13. Fire fighting system
05. Interlayer nitrogen supply system
06. Liquid level and pressure measurement system
07. Temperature measurement system
08. Gas discharge system
09.BOG pipeline system
10. Analytical sampling system
11. Security System
12. Voltage stabilization system
13. Fire fighting system
Capacity(m3) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 20000 | 30000 | 50000 | ||||||||
Inner Tank Size（mm） | φ 12400*14235 | φ 13500*15750 | φ 16200*17195 | φ 20000*19415 | φ 23000*21810 | φ 25000*22000 | φ 38000*20000 | φ 41500*26000 | φ 50000*38600 | ||||||||
Outer Tank Size（mm） | φ 13000*14805 | φ 16000*18500 | φ 12400*14235 | φ 22400*21870 | φ 25300*25000 | φ 40000*29760 | φ 40000*29760 | φ 43500*35198 | φ 52000*38600 | ||||||||
Medium | LIN/LNG/LOX/LPG/LAR/LNH3/Liquid Ethylene/Liquid Ethane/Liquid Propane | ||||||||||||||||
Working Pressure（Kpa） | 10~50 | ||||||||||||||||
Remark | Can design manufacture and install storage tanks of any size between 200-50000m³ according to the needs of users | ||||||||||||||||
We design our gas storage tanks with double- wall steel structures using high tech insu-lating materials (cellular glass, expanded perlite, rockwool, etc.).
All the cryogenic storage equipment we produce complies with the most recognized quality and safety certificates on an international level.
Mechanical and seismic design:
• API620, API650, ASME
•EN14620, EN14015, EUROCODE
Relevant certifications:
• ISO
• IAF
• CNAS
Other regulations used:
• EIGA/CGA/127/13/E.
•NFPA 59A.
Mechanical and seismic design:
• API620, API650, ASME
•EN14620, EN14015, EUROCODE
Relevant certifications:
• ISO
• IAF
• CNAS
Other regulations used:
• EIGA/CGA/127/13/E.
•NFPA 59A.
Flat bottom cryogenic tanks advandages:

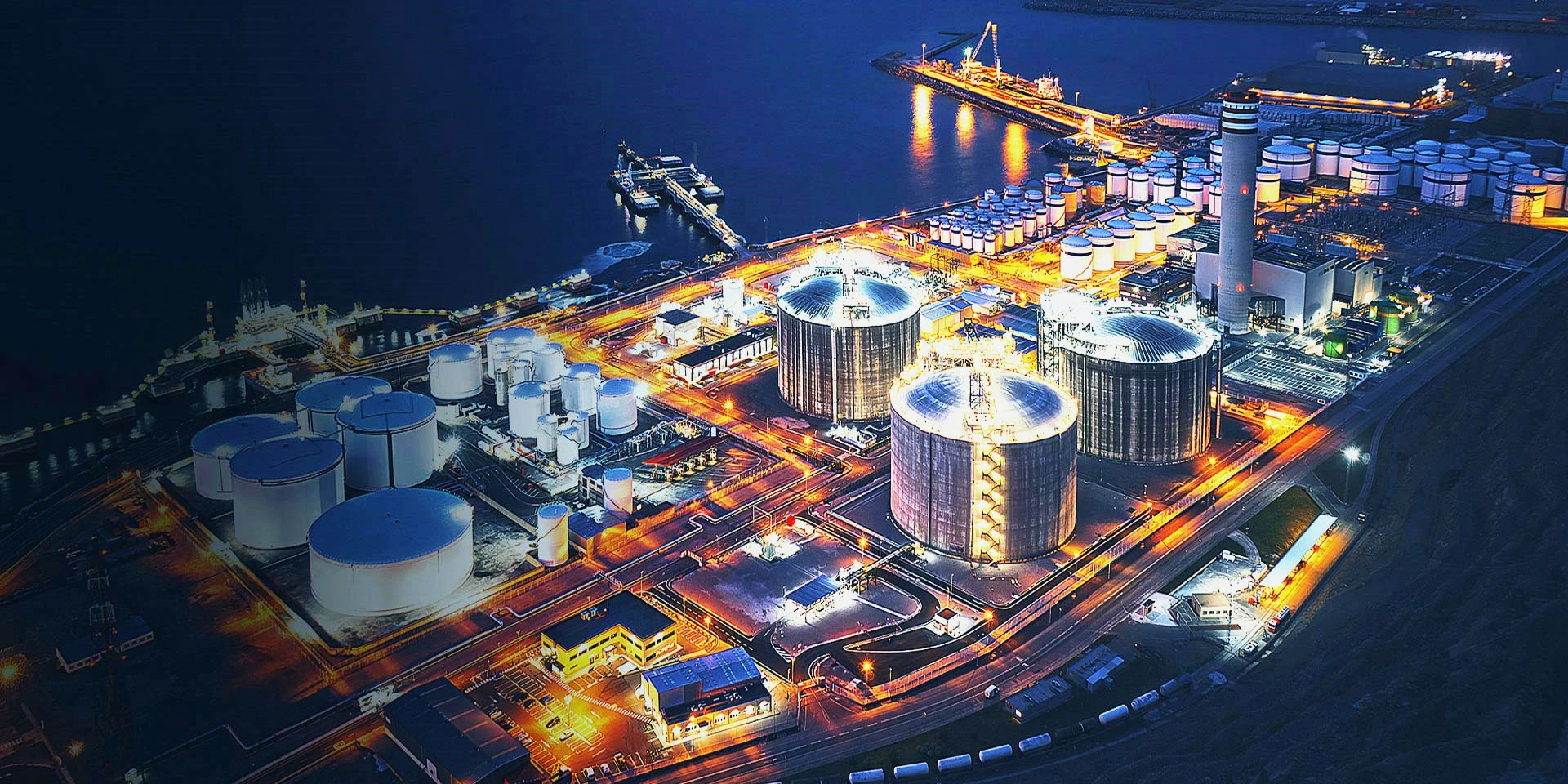

Project Case
Related Products
Spherical Type Tank
Spherical Type Tank

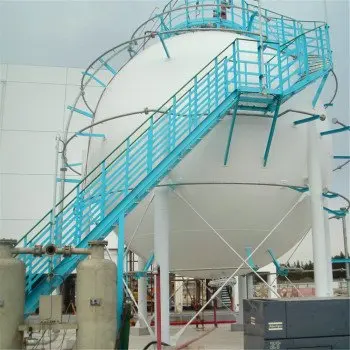

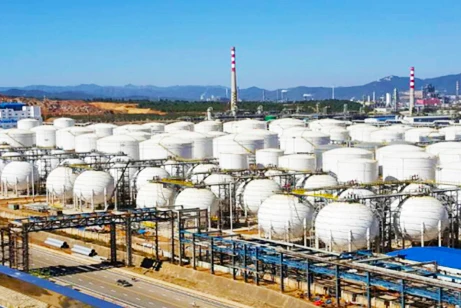

Spherical shaped storage are used in gas and liquid storage in many industries including midstream, downstream, petrochemical,chemical, waste water, and aerospace. Spheres can store many products such as anhydrous ammonia, LPG, NGL, gasoline, naphtha,butadiene, ethylene, hydrogen, oxygen, nitrogen, argon, LNG, biogas, sewage gas and waste water.
A spherical shape offers uniform stress
distribution under internal loading resulting in highly efficient pressurized storage. Sphere storage results in the lowest land space for pressurized storage and offers lower costs for foundations, coatings, accessories, and piping than other options.
A spherical shape offers uniform stress
distribution under internal loading resulting in highly efficient pressurized storage. Sphere storage results in the lowest land space for pressurized storage and offers lower costs for foundations, coatings, accessories, and piping than other options.
Capacity | 10m3-10000m3 | ||||||
Medium | Oxygen/Nitrogen/Liquid Carbon Dioxide/Argon/Dimethyl Ether/Liquid Ammonia/Liquefied Petroleum Gas/Carbon4/Carbon5/Chloromethane/Propane/Butane/Ether/Chloroethane/Light Hydrocarbon Products, Etc. | ||||||
Material | Q245R (0/-20℃)、 Q345R (0/-20℃) 、 16MnDR (-40℃ )、 Q370R (-20℃ ) 、 07MnMoVR (-20℃ ) 、07MnNiMoDR (-50℃ ) 、JFE-HITEN610U2 (-20℃)、JFE-HITEN610U2L (-50℃ ) 、08Ni3DR (-100℃ ) 、15MnNiNbDR (-20℃ ) 、 SA-516Gr70 、 SA-537CL.2 0 (-20℃ ) Cr18Ni9(S30408) (-196℃ ), Etc. | ||||||
Thickness Of Spherical Shell Plate | 12MM-68MM | ||||||
Remark | Can be customized according to the specific needs of customers | ||||||
