Product Overview

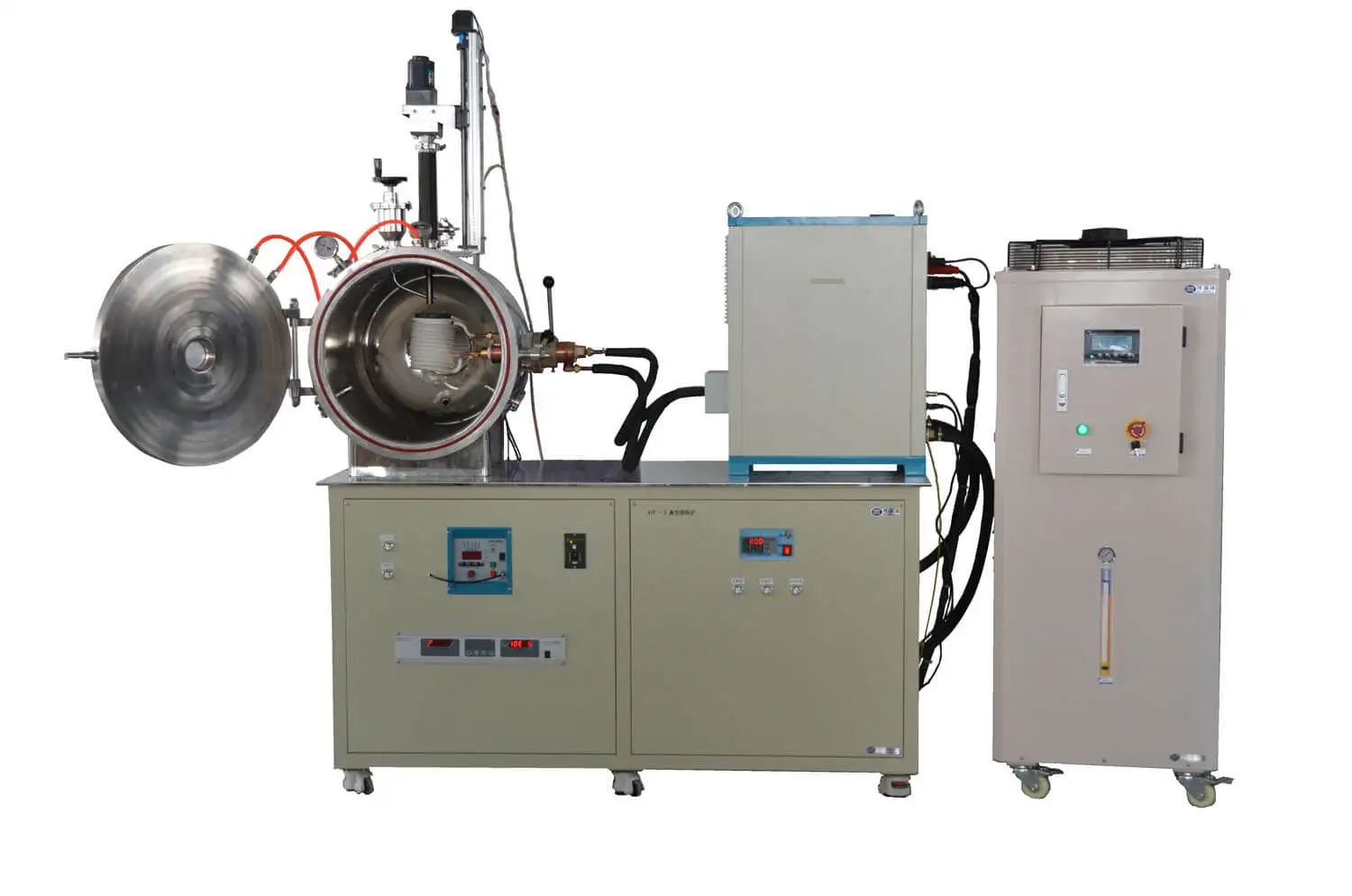

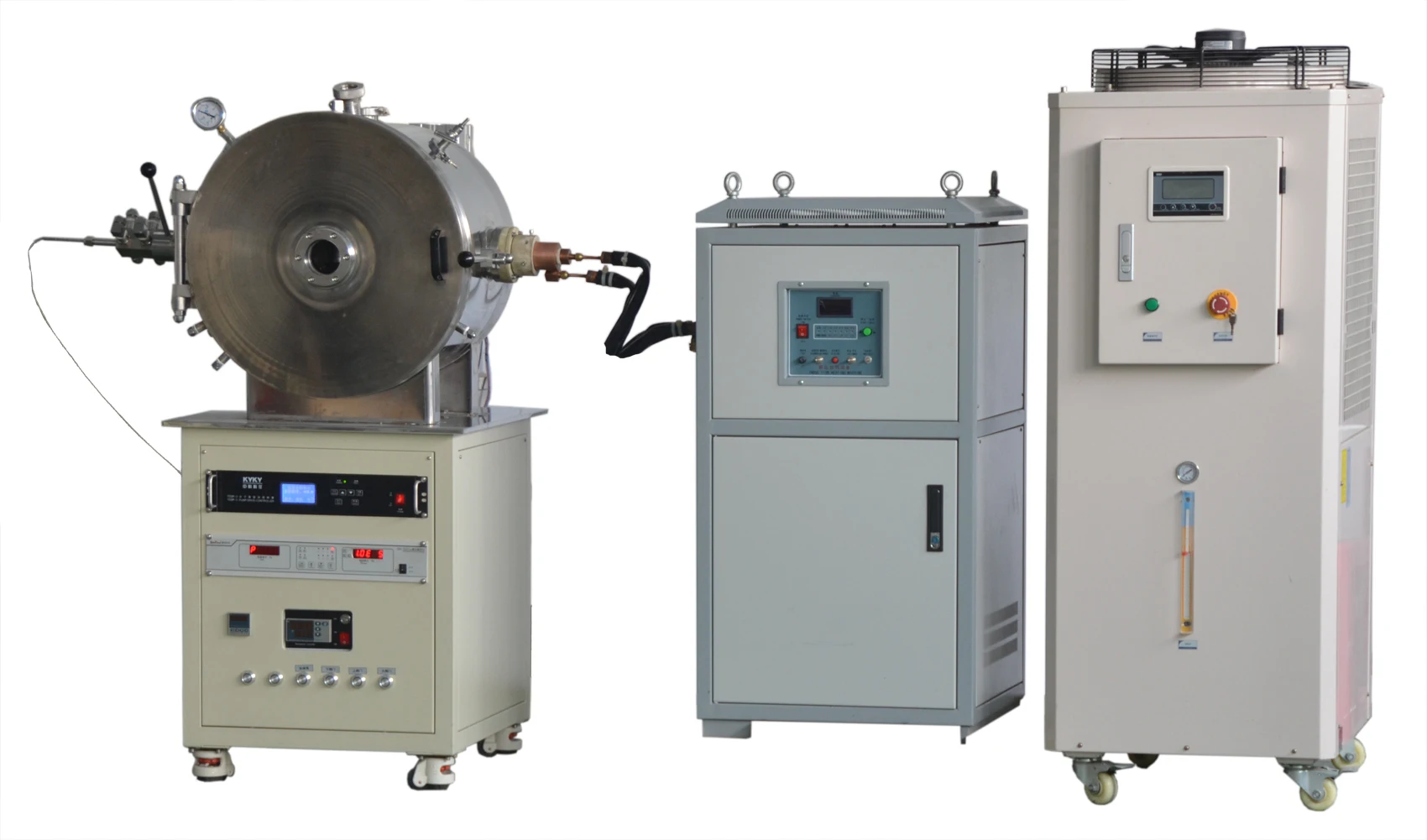

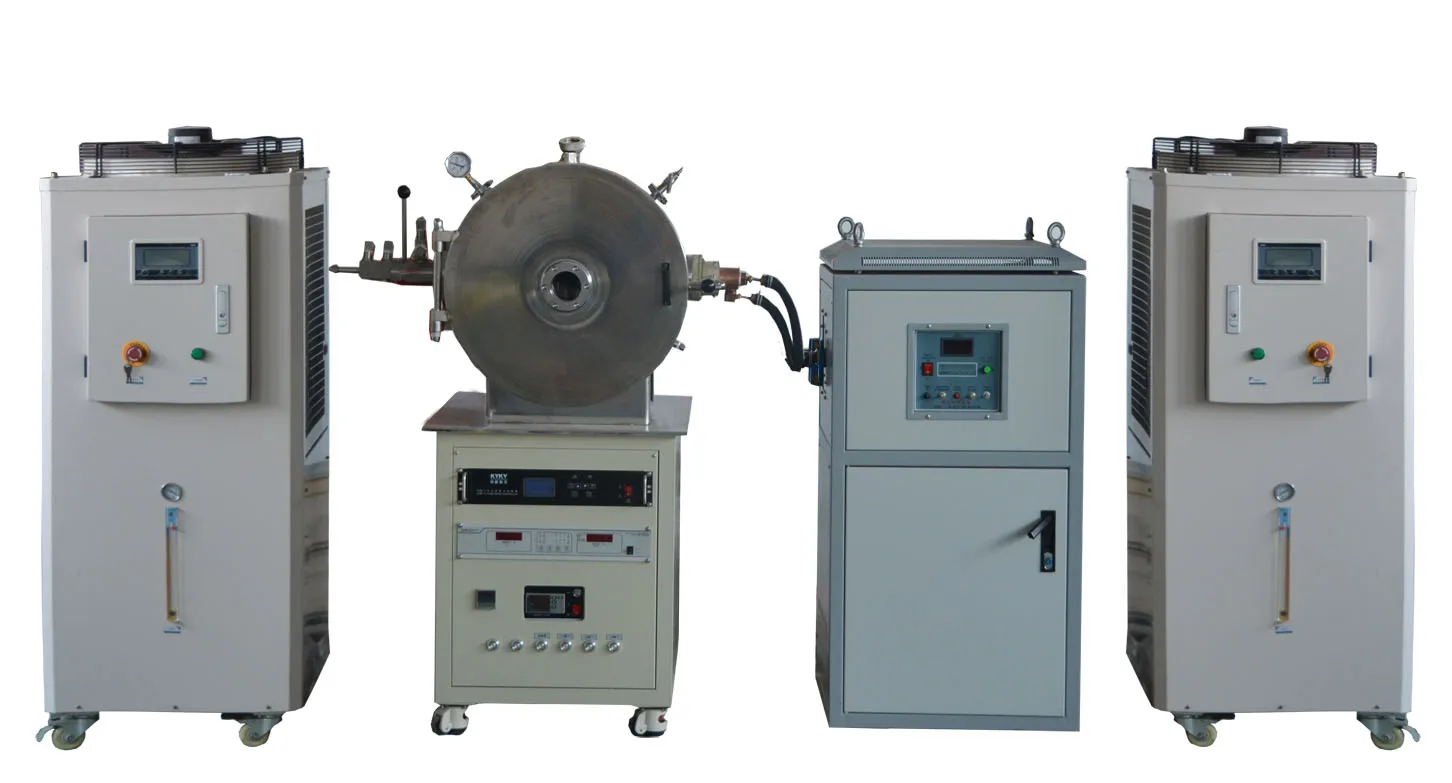

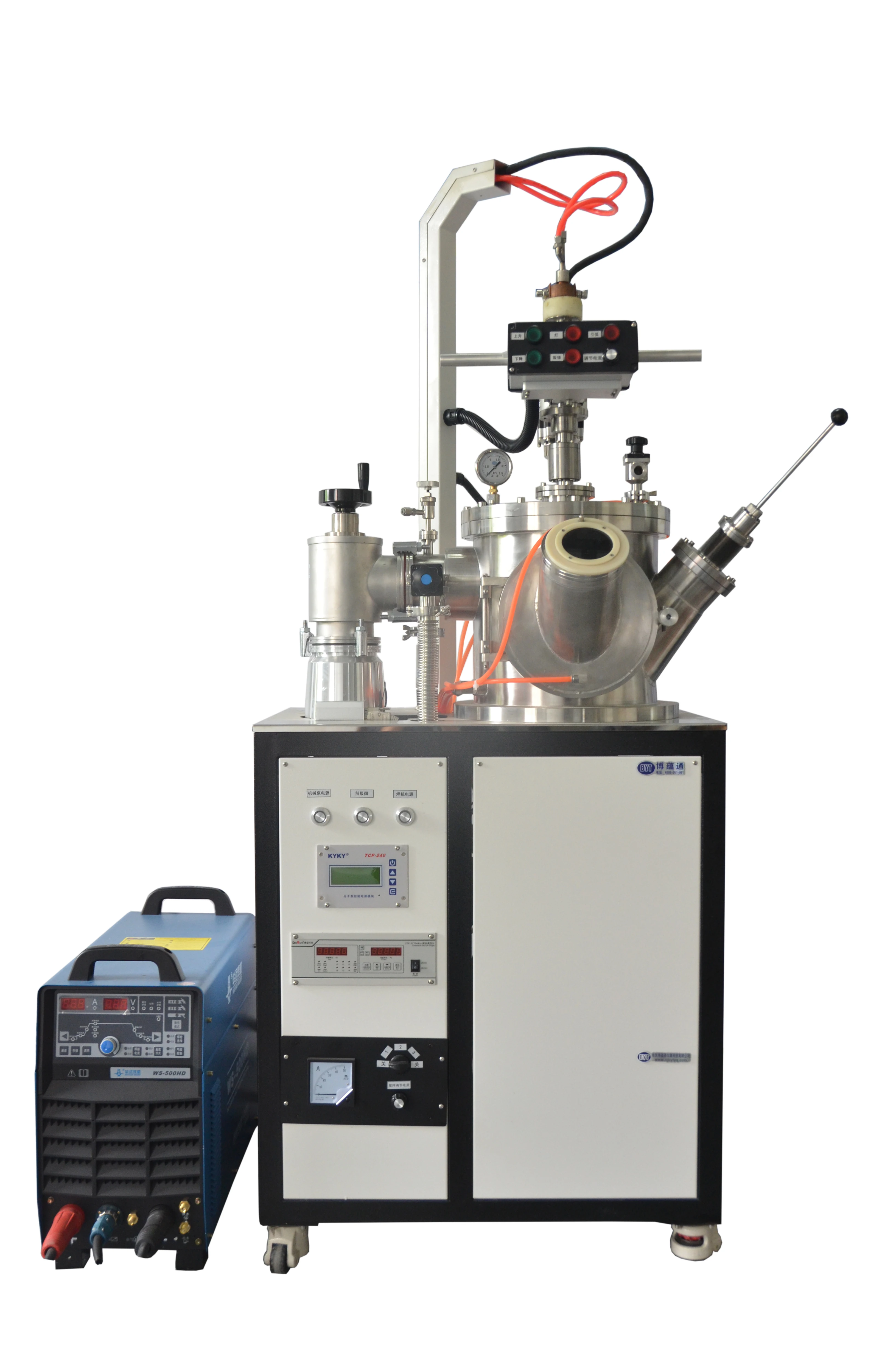

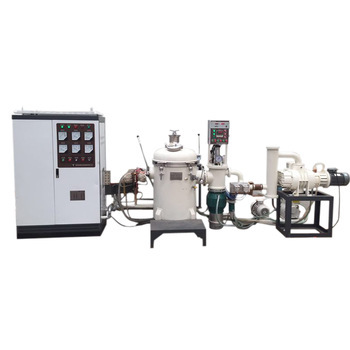

500grams 1kg 2kg 3kg 5kg 10kg 15kg 25kg small laboratory vacuum melting furnace
.
PRODUCT SPECIFICATIONS
Model number | VIF-1 | VIF-2 | VIF-3 | VIF-5 | VIF-10 | VIF-25 | |||||
Max melting weight (calculated by molten iron) | 1KG | 2KG | 3KG | 5KG | 10KG | 25KG | |||||
Max heating temperature ℃ | 1900℃ | 1900℃ | 1700℃ | 1700℃ | 1700℃ | 1700℃ | |||||
Power supply | HF induction power supply | IF induction power supply | |||||||||
Oscillation frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | 1-20KHZ | 1-20KHZ | 1-20KHZ | |||||
Maximum input power | 15KW | 15KW | 35KW | 45KW | 60KW (can be changed according to material) | 80KW (can be changed according to material) | |||||
Heating current | 2-50A | 2-52A | 12-70A | 15-95A | 10~90A | 20~130A | |||||
Cooling water requirements | ≥0.2MPa ≥6L/min | 10P (Change according to different requirements) | |||||||||
Power supply weight | 35KG | 35KG | 68KG | 45KG | 70KG | 80KG | |||||
Input voltage | 3P 380V 50/60HZ | ||||||||||
Feature
1. Small vacuum melting furnace has fashionable appearance and compact structure, covering an area of less than 2 square meters
2. The vacuum furnace can be designed as a side door opening structure, which is convenient for taking and placing materials.
4. The furnace shell adopts double-layer water cooling structure, and the surface temperature does not exceed 40 ℃, which is more
safe and reliable.
5. An observation window is arranged on the furnace cover to facilitate the observation of material melting. Gas inlet and outlet
are installed on the furnace body, and multiple KF interfaces are reserved to facilitate connection to other devices.
6. The electrode can rotate.
7. Equipped with a secondary feeding device, other elements can be added in the smelting process to make various alloy materials.
8. IGBT special power supply and all digital circuit are adopted. The electrical system is equipped with overcurrent, overvoltage
feedback and protection circuit. The electric control panel box is made according to Siemens standard, with high temperature
control accuracy and convenient operation.
9. Small vacuum melting furnace can adopt two-stage pump, that is, mechanical pump and molecular pump, and the vacuum degree can
reach 8 × 10-4P.
2. The vacuum furnace can be designed as a side door opening structure, which is convenient for taking and placing materials.
4. The furnace shell adopts double-layer water cooling structure, and the surface temperature does not exceed 40 ℃, which is more
safe and reliable.
5. An observation window is arranged on the furnace cover to facilitate the observation of material melting. Gas inlet and outlet
are installed on the furnace body, and multiple KF interfaces are reserved to facilitate connection to other devices.
6. The electrode can rotate.
7. Equipped with a secondary feeding device, other elements can be added in the smelting process to make various alloy materials.
8. IGBT special power supply and all digital circuit are adopted. The electrical system is equipped with overcurrent, overvoltage
feedback and protection circuit. The electric control panel box is made according to Siemens standard, with high temperature
control accuracy and convenient operation.
9. Small vacuum melting furnace can adopt two-stage pump, that is, mechanical pump and molecular pump, and the vacuum degree can
reach 8 × 10-4P.
FAQ
1. What is your advantage to compared to others?
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of
strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video
how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for
free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the
aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost
price for the whole machine lifetime.
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of
strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video
how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for
free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the
aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost
price for the whole machine lifetime.
