TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Высокопроизводительная полностью автоматическая машина для ламинирования гигиенических
- Категория товара: Paper Product Making Machinery >>>
- Поставщик (Оптовый магазин): Foshan,Xinyan,Commerce,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction:
2.Adopt modular construction design, PLC program control, integrated HMI operation.

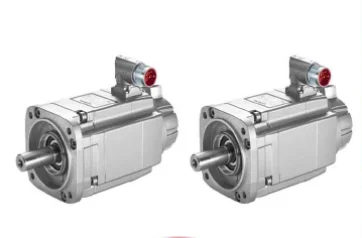

3.All main line drive by global famous brand frequency motor, SAP spread by Mitsubishi servo motor, Precision metrological materials spreading amount, measuring accuracy can control within ±3%.
4.Unique pulp crush and conveying system can enable that pulp is evenly applied on the surface of base material, and the weight accuracy of pulp can be controlled within ±5%.
5.Unique hot-rolled laminating mechanism is able to efficiently laminate base materials, pulp, sap. And able to position pulp and sap while laminating, effectively improve the weight of products in the whole area.
6.Full-auto winding station with automatic changing roller function, muti-conbination slitter, online cut into predetermined
specifications of the product.
1.Main deature of the equipment: continuously spread wood pulp/SAP omline, positioning pulp and sap with hot-rolled laminating mechanism, full auto splicing and roll changing, effectively control loss in production process and improve efficiency.
2.Adopt modular construction design, PLC program control, integrated HMI operation.
3.All main line drive by global famous brand frequency motor, SAP spread by Mitsubishi servo motor, Precision metrological materials spreading amount, measuring accuracy can control within ±3%.
4.Unique pulp crush and conveying system can enable that pulp is evenly applied on the surface of base material, and the weight accuracy of pulp can be controlled within ±5%.
5.Unique hot-rolled laminating mechanism is able to efficiently laminate base materials, pulp, sap. And able to position pulp and sap while laminating, effectively improve the weight of products in the whole area.
6.Full-auto winding station with automatic changing roller function, muti-conbination slitter, online cut into predetermined
specifications of the product.

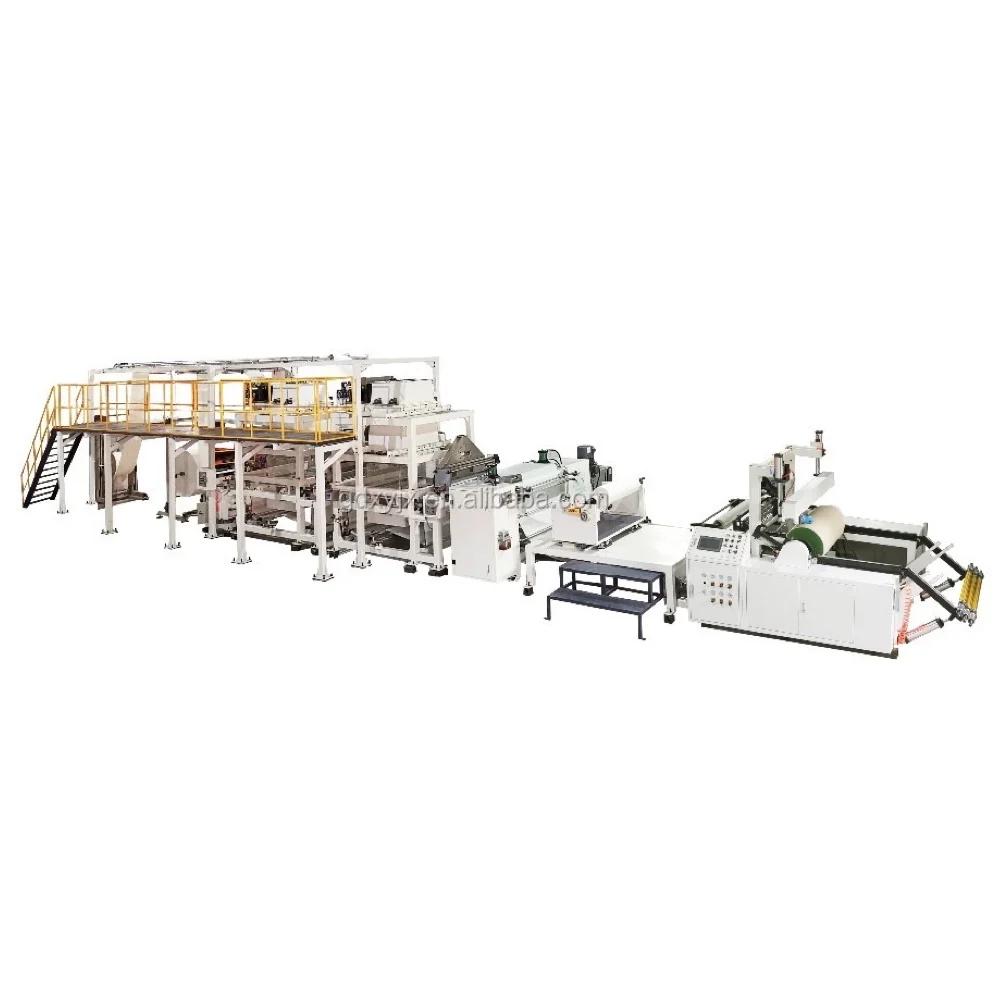

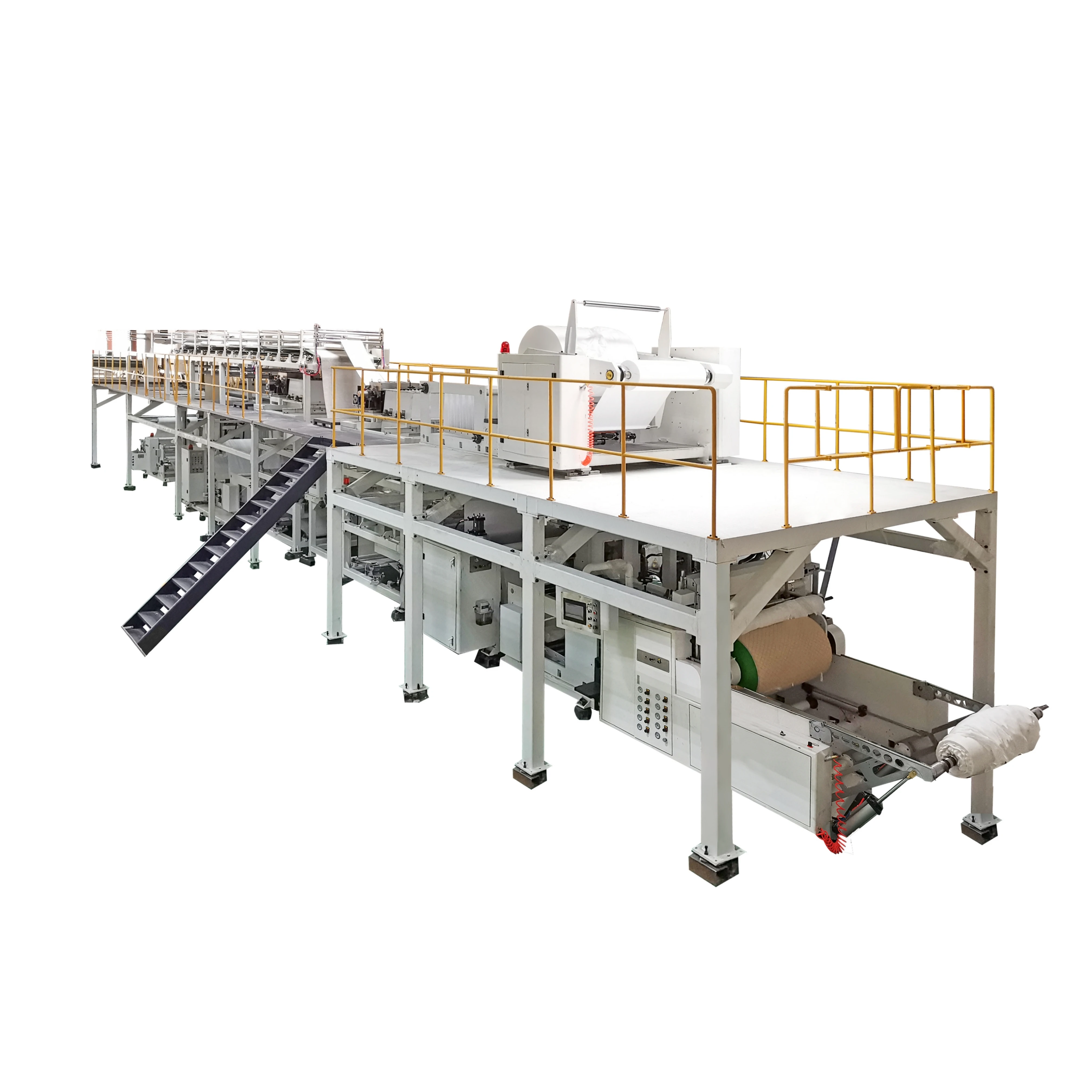

High Capacity Full Automatic Sanitary pad SAP Sheet Laminating Machine | ||||||||
Max design speed | 80m/min | |||||||
Normal working speed | 50m/min | |||||||
Effective laminating width | 1200mm | |||||||
Effective width of SAP spreading | 1200mm, adjustable | |||||||
Applied amount for each SAP feeding unit | 15-100gsm | |||||||
Accuracy deviation control of SAP spreading | ±3% | |||||||
Applied amount for each pulp feeding unit | 30-120gsm | |||||||
Accuracy deviation control of pulp spreading | ±5% | |||||||
Unwinding diameter for airlaid paper | ø1200mm | |||||||
Overall dimension | About 21500mm*3010mm*21200mm(L*W*H) | |||||||
Applicable material: Tissue paper, Fluff Pulp, Sap, Airlaid paper
Structure: tissue paper/airlaid paper + pulp + SAP + pulp + SAP + tissue paper/airlaid paper → embossing lamination→ slitting and winding
Structure: tissue paper/airlaid paper + pulp + SAP + pulp + SAP + tissue paper/airlaid paper → embossing lamination→ slitting and winding

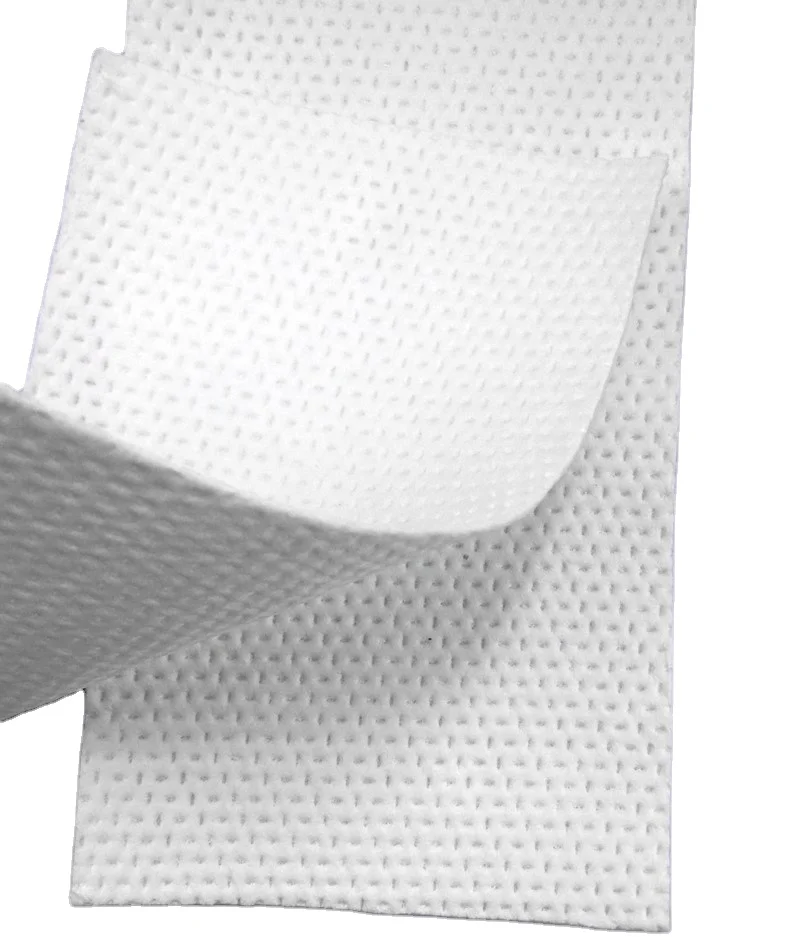

FINISHED PRODUCT
Long Term business partner
Q1: Are you a manufacturing factory or a trading company?
A1: We are a professional machinery manufacturing factory.
Q2 : I am interested in your machine, when can I receive your quotation list?
A2: We will offer you our quotation list within 24 hours after we receive your inquiry. If you urgently need our quotation, please Email us or call us and we will take your inquiry as the first priority.
Q3: I want a machine that runs well, how is the quality of your machine?
A3: We are professional machinery manufacturer, we have more than 10 years of manufacturing experiences of different kinds of hygienic product machines.We are sure our product is of top quality.
Q4: When will the machine be ready?
A4: 200days after receive payment in advance by T/T.
Q5: Can you customize the machine for me if I have special needs?
A5: Yes, we can. Our engineers have rich experience. They can precisely design the machine for you to meet your requirements if you have special needs.
Q6: What is the location of your factory? If I want to visit your factory, what should I do?
A6: Our factory is located in FOSHAN, GUANGDONG. The nearest airport is BaiYun Internation Airport. If you are interested in visiting our factory, we sincerely welcome you at any time.
Q7: I wonder what is your terms of payment ?
A7:Normal type machine: payment by T/T, 30% in advance, 70% balance before shipment. Customized machine: payment by T/T, 40% in advance, 60% balance before shipment.
