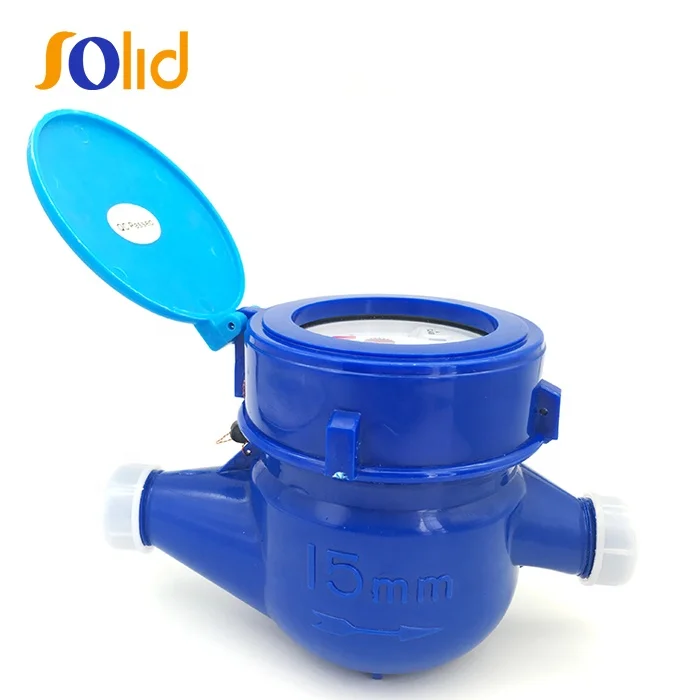

Высококачественный горизонтальный многоструйный счетчик холодной воды из АБС-пластика класс
- Категория товара: Water Meters >>>
- Поставщик (Оптовый магазин): Shanxi,Solid,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Class B High Quality Horizontal Plastic ABS Multi-Jet Super Dry Type Cold Water Meter
Product Description
Specification:
Plastic watler meter
1.Plastic material
2.Multi-jet, dry-dial, rotary vane wheel
3.Accuracy ISO4064
Feature:
1. Working pressure and condition are all conform to international standards.
2. Corrosion resistance and Anti-aging.
3. Environmental protection and long service life.
4. Magnetic drive, resistance to exterioor magnet interference.
5. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
6. Measuring accurancy conform to ISO 4064 Class B standard.
7. Selected high quality & nontoxic plastic materials for steady, reliable characteristic and good looking.
Working condition:
Water temperature: 0.1°C~40°C for cold water meter .
0.1°C~90°C for hot water meter.
Water pressure : ≤1.0Mpa or 1.6Mpa
Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Hot water meter ±3%
Main Technical Data:
| Meter Size (mm) | Class | Overload Flow | Nominal Flow | Transitional Flow | Min Flow | Min Reading | Max Reading |
| m3/h | m3 | ||||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
| 32 | A | 12 | 6 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | |||||
| 40 | A | 20 | 10 | 1000 | 400 | 0.0001 | 99999 |
| B | 800 | 200 | |||||
| 50 | A | 30 | 15 | 1500 | 600 | 0.0001 | 99999 |
| B | 1200 | 300 | |||||
Detailed Images
Related Products
Factory Overview
Our Services
------SAMPLE ROOM------
------CERTIFICATIONS------
Company Information
------ABOUT US------
------OUR EXHIBITION------
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
