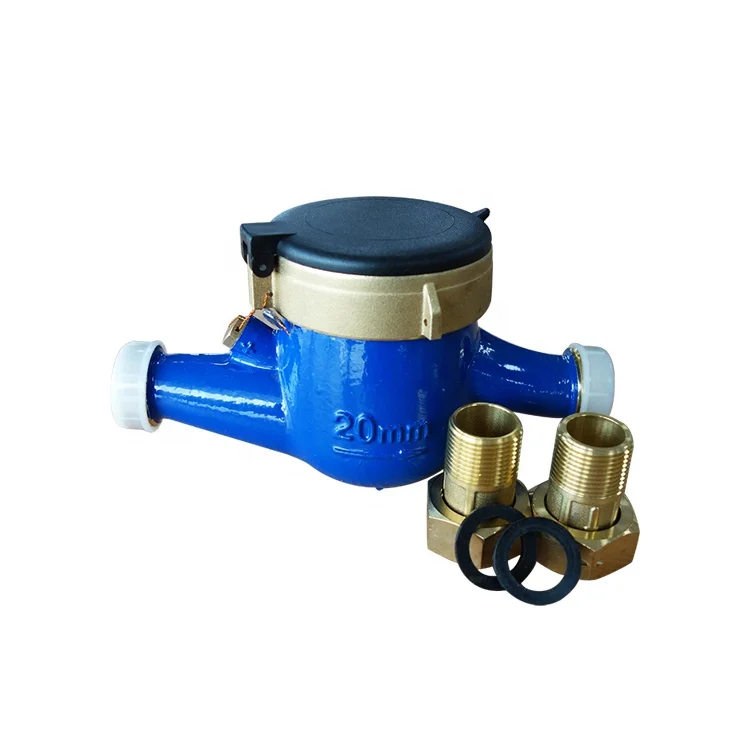

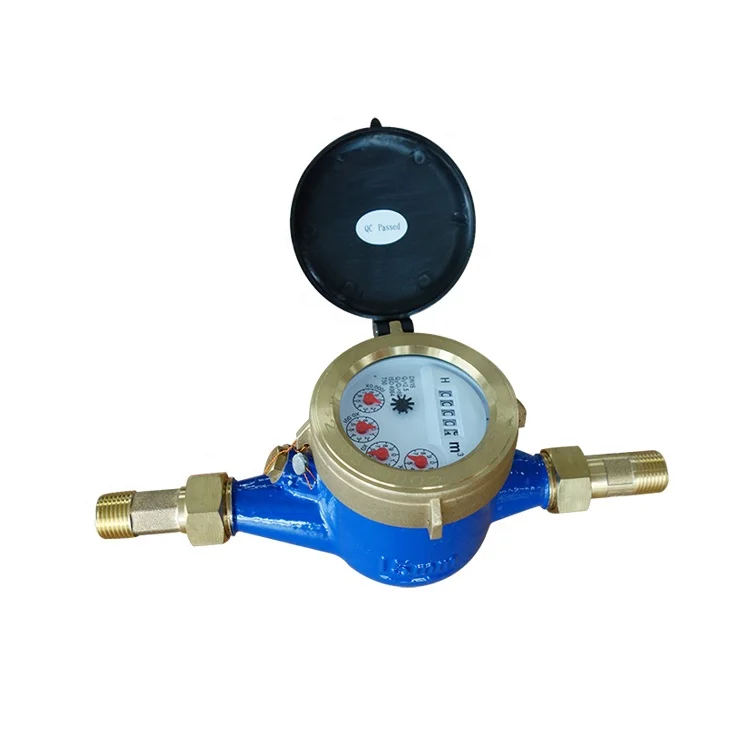

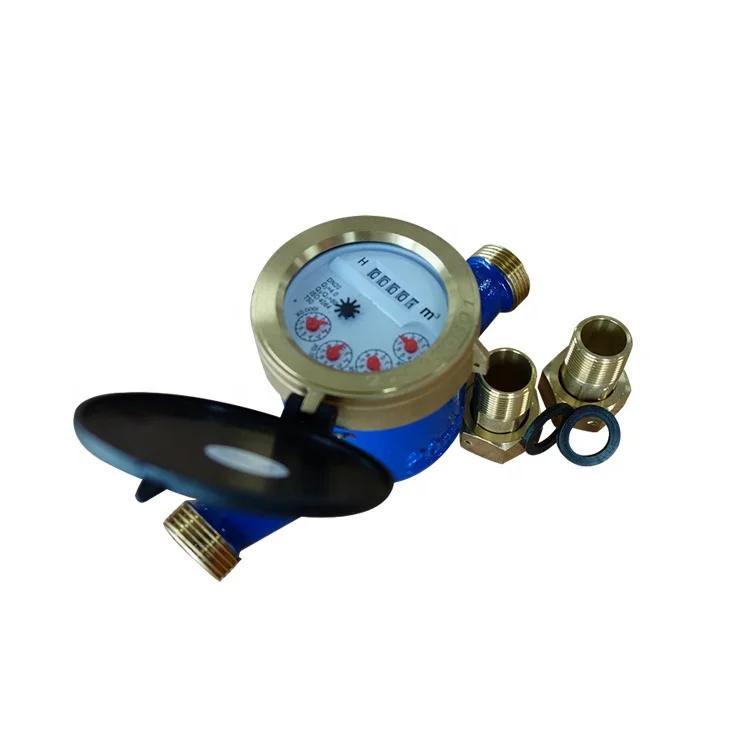

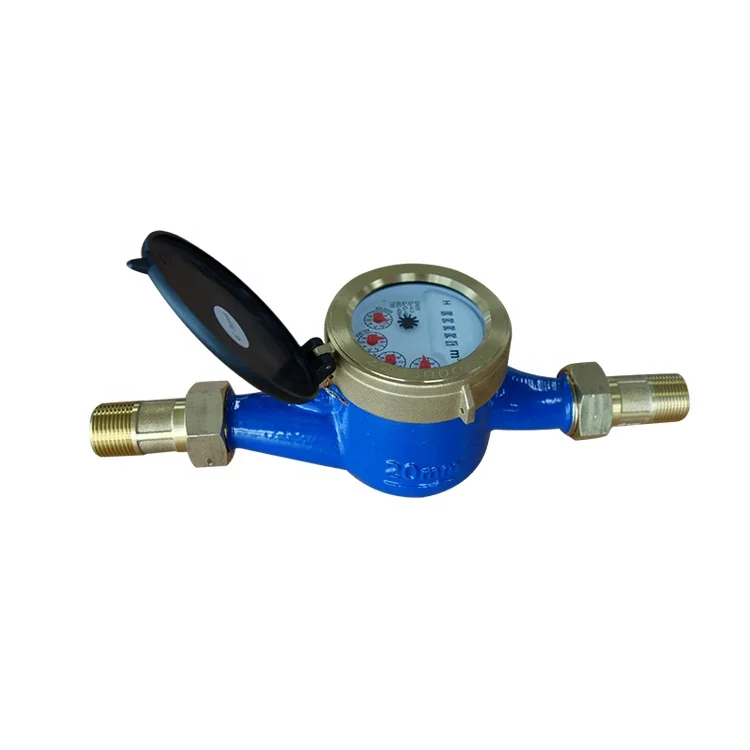

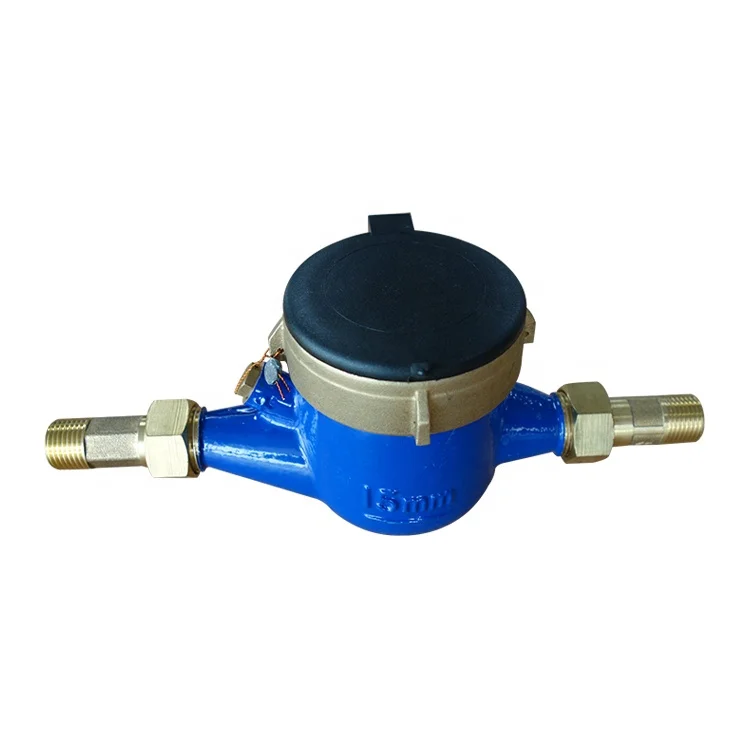

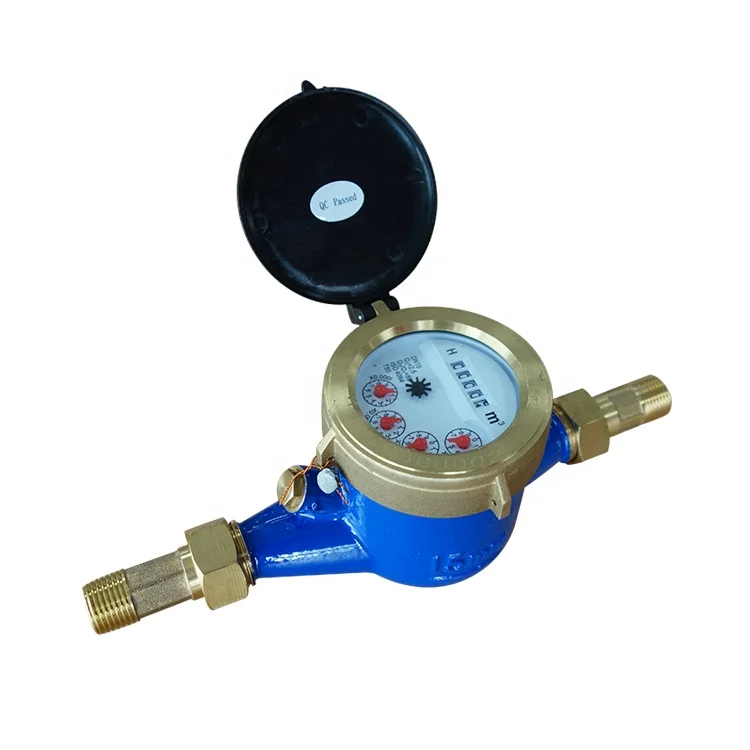

15mm DN15 Propeller Class B Mulit Jet Super Dry Type Cold Brass Body Water Flow Meter
Product Description
Feature:
- Multi-jet, dry-dial, easy for maintenance;
- Magnetic drive reliable characteristic, long working life;
- Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long
term service; - Technical data conform to international standard ISO4064 Class B
Note:
- Measuring accuracy conform to ISO 4064 class B standard..
- Available with different length on request. Available in hot water meter on request.
Working condition:
- Water temperature:0.1℃~40℃( 0.1℃~90℃ for hot water meter)
- Water pressure: ≤1.0Mpa
Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
(3) Hot water meter ±3%
MAIN TECHNICAL SPECIFICATIONS
Type | Size(mm) | Q3/Q1 | Overload Flow | Permanent Flow | Transitional Flow | Min. Flow | Min. Reading | Max. Reading |
m3/h | L/h | M3 | ||||||
LXSG-15 | 15 | 80 | 3.125 | 2.5 | 0.05 | 0.03125 | 0.0005 | 999,999 |
LXSG-20 | 20 | 5 | 4 | 0.08 | 0.05 | 0.0005 | 999,999 | |
LXSG-25 | 25 | 7.875 | 6.3 | 0.126 | 0.07875 | 0.002 | 999,999 | |
LXSG-32 | 32 | 12.5 | 10 | 0.2 | 0.125 | 0.002 | 999,999 | |
LXSG-40 | 40 | 20 | 16 | 0.32 | 0.2 | 0.002 | 999,999 | |
LXSG-50 | 50 | 31.25 | 25 | 0.5 | 0.3125 | 0.002 | 999,999 | |
