Product Description
windows 11 waterproof ip65 front wall mounted computer fanless embedded mount tablet all in one touch screen industrial panel pc
Features
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.

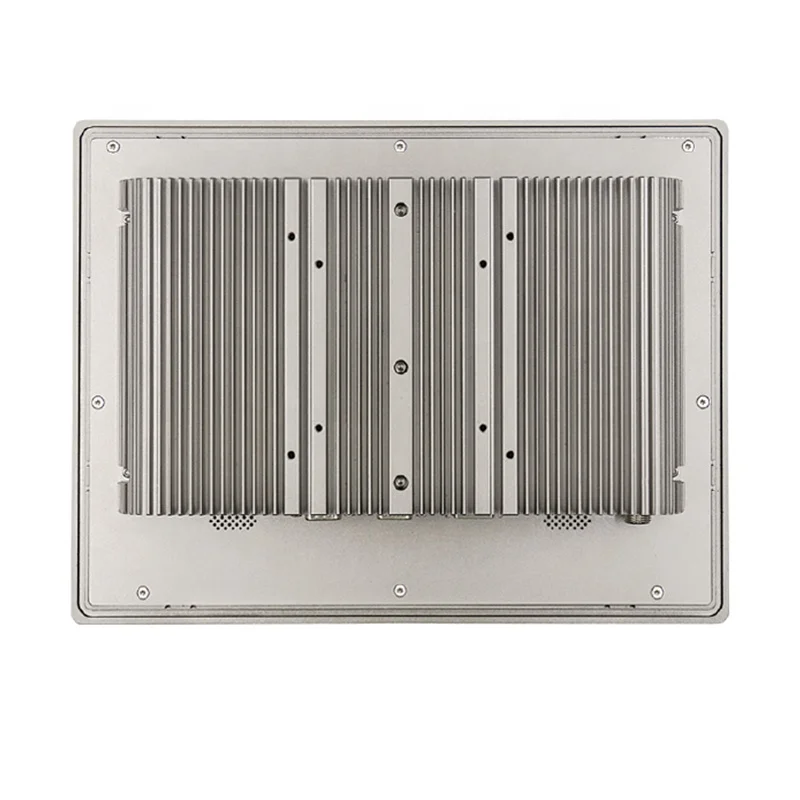

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
7. Covered with 2mm tempered glass for vandalproof.
8. 9V-36V wide voltage, 4 Pin aviation plugs sockets, Shock - proof.
9. Equipped with Intel 10th Celeron J4125/J6412 processor, optional Intel 8/10/11th Core i5/i7, support Windows 11.
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dustproof.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. With Rubber waterproof ring on the back side.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
7. Covered with 2mm tempered glass for vandalproof.
8. 9V-36V wide voltage, 4 Pin aviation plugs sockets, Shock - proof.
9. Equipped with Intel 10th Celeron J4125/J6412 processor, optional Intel 8/10/11th Core i5/i7, support Windows 11.
Specification
Model:SC800M | ||
PC | ||
CPU | lntel Celeron J4125/J6412 CPU, lntel Core 8/10/11th i5/i7 CPU | |
Memory | J4125/J6412: 1*DDR4 SODIMM, lntel Core i5/i7: 2*DDR4 SODIMM | |
Hard Drive Capacity | 1*M.2 2242/2260/2280 SATA, 1*SATA(2.5'' SATA ), 1*M.2 2280 NVME | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |
Network | 2x 2.5 GbE RJ45 Intel® i225V (4 x 2.5GbE RJ45 Intel i225V) | |

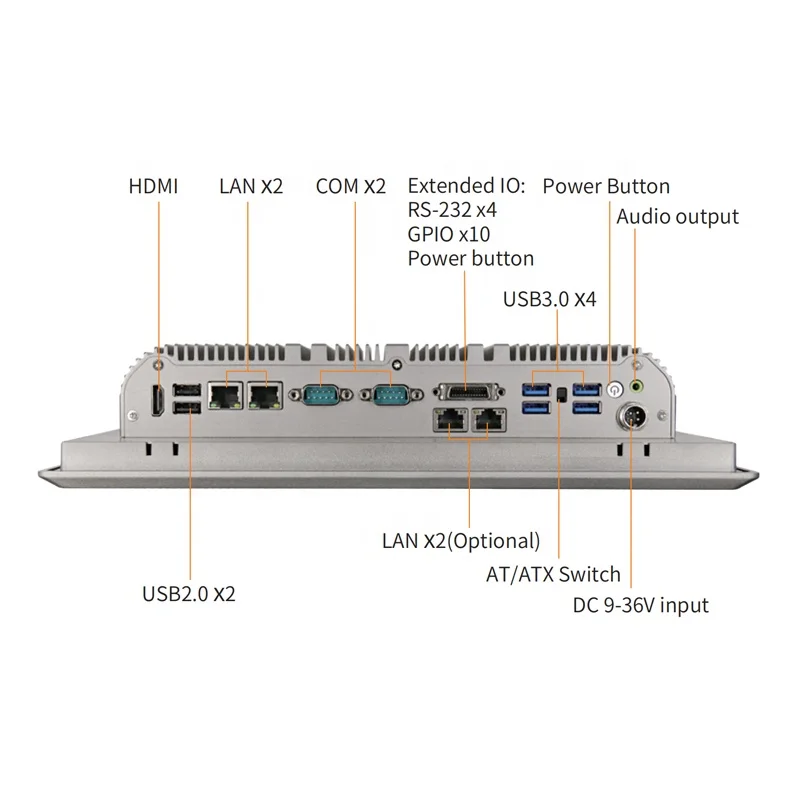

I/O Interface | 4*USB2.0, 2*USB3.0 (J4125/J6412)/ 2*USB2.0, 4*USB3.0 (lntel Core 8/10/11th i5/i7) | |
2*DB-9 COM1&COM2,RS-232/422/485 | ||
1*Expansion IO: 4*3 wire COM, 1*GPIO, 1*remote switch interface | ||
2*8Ω 1W speaker(optional) | ||
1x AT/ATX switch | ||
1x HD-MI/Audio Line-out/ Power Button | ||
1x 14 bit GPIO optional | ||
2x 8Ω 1W Amplifier out optional | ||
Expansion slot | 1*M.2 3042/3052 3G/4G/5G, on board SIM card slot | |
1*M.2 2230, support WIFI/ Blue-tooth | ||
Watchdog timer | 1~65535 second Programmable Setting | |
Operation System | Windows 10/11, WES 10, LINUX | |
LCD panel | ||
Panel size | 8", 10.1", 12.1", 13.3", 15", 15.6", 17", 19", 21.5" | |
Resolution | 800x600, 1024*768, 1280*1024, 1920*1080 | |
Aspect ratio | 4:3, 16:9 | |
Support Color | 16.7M colors | |
Brightness (cd/m²) | 500 | |
Response time | 5ms | |
Contrast ratio | 800:1, 1000:1 | |
View angle | 85°/85°/85°/85° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | Project Capacitive Touch (10 points) | |
Touch Interface | USB (RS232 optional) | |
Touch response time | 2ms | |
Luminousness | 90% | |
Surface Hardness | 7H | |
Working life | >50 million times | |
Touch options | (5 wire resistive touch optional) | |
Power Supply | ||
External Power Supply | AC 100-240V | |
Working voltage | DC 9 ~ 36V 4-pin | |
Power consumption | ≤24W | |
Enclosure | ||
Material | Aluminum Alloy | |
Color | Grey | |
VESA mounting | 75*75mm, 100*100mm | |
IP grade | Front panel IP65 waterproof | |
Operating Environment | ||
Temperature Range | Operating: -20 to +60°C, storage: -30 to +70°C | |
Relative humidity | 10%~90% @ 30° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Accessories | Power adapter, embedded screws | |
Other | ||
Mounting (options) | Embedded mounting screws | |
Wall mounting brackets (optional) | ||
Desk stand holder (optional) | ||
Warranty | 2 year warranty | |
Certificate | CE, FCC, RoHS | |
Certifications
Company Introduction
FAQ
1. We offer a life-long maintenance that is free in the two year.
2. In the two year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units,
for replacing the defective product. The number of spare units depends on the
quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
2. In the two year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units,
for replacing the defective product. The number of spare units depends on the
quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
