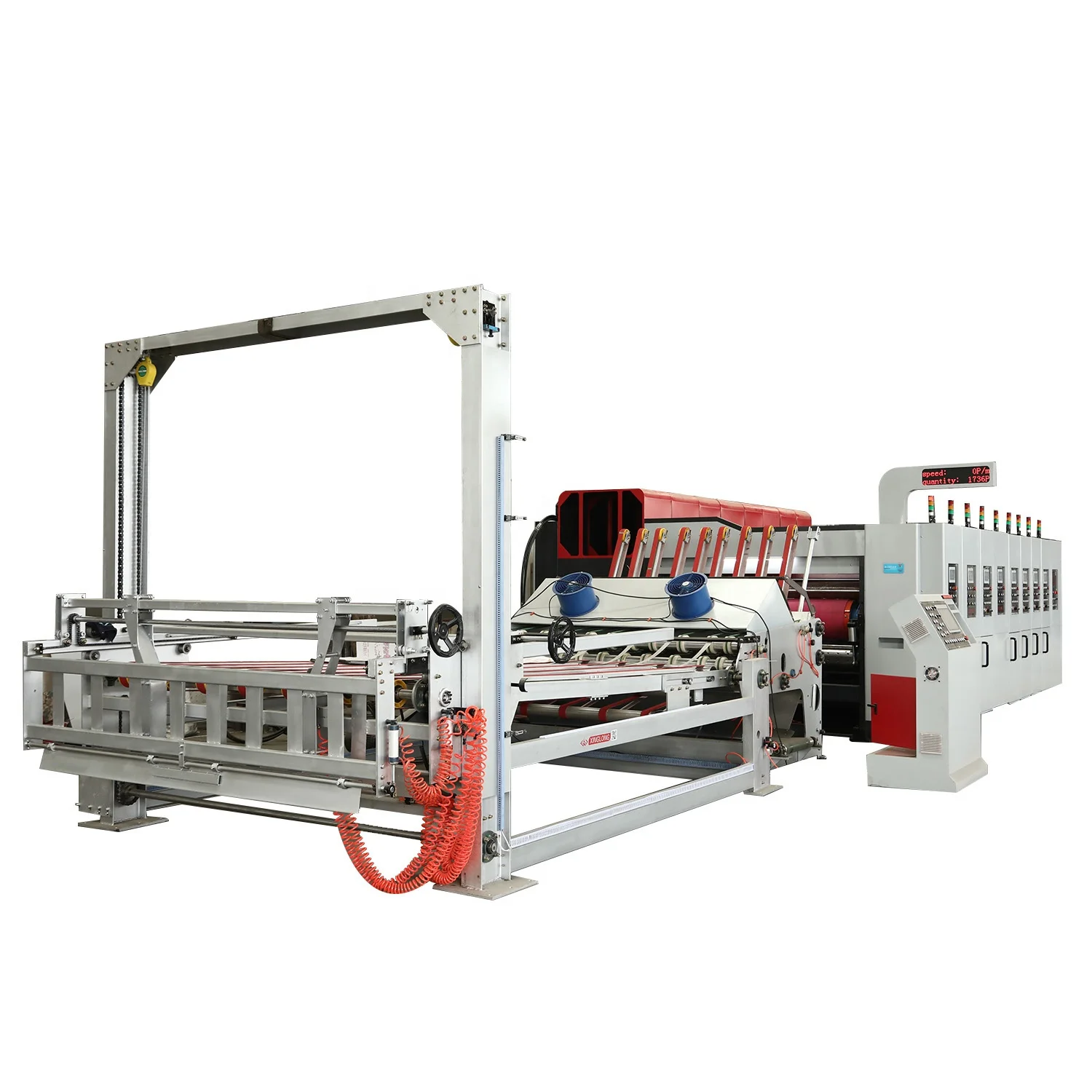

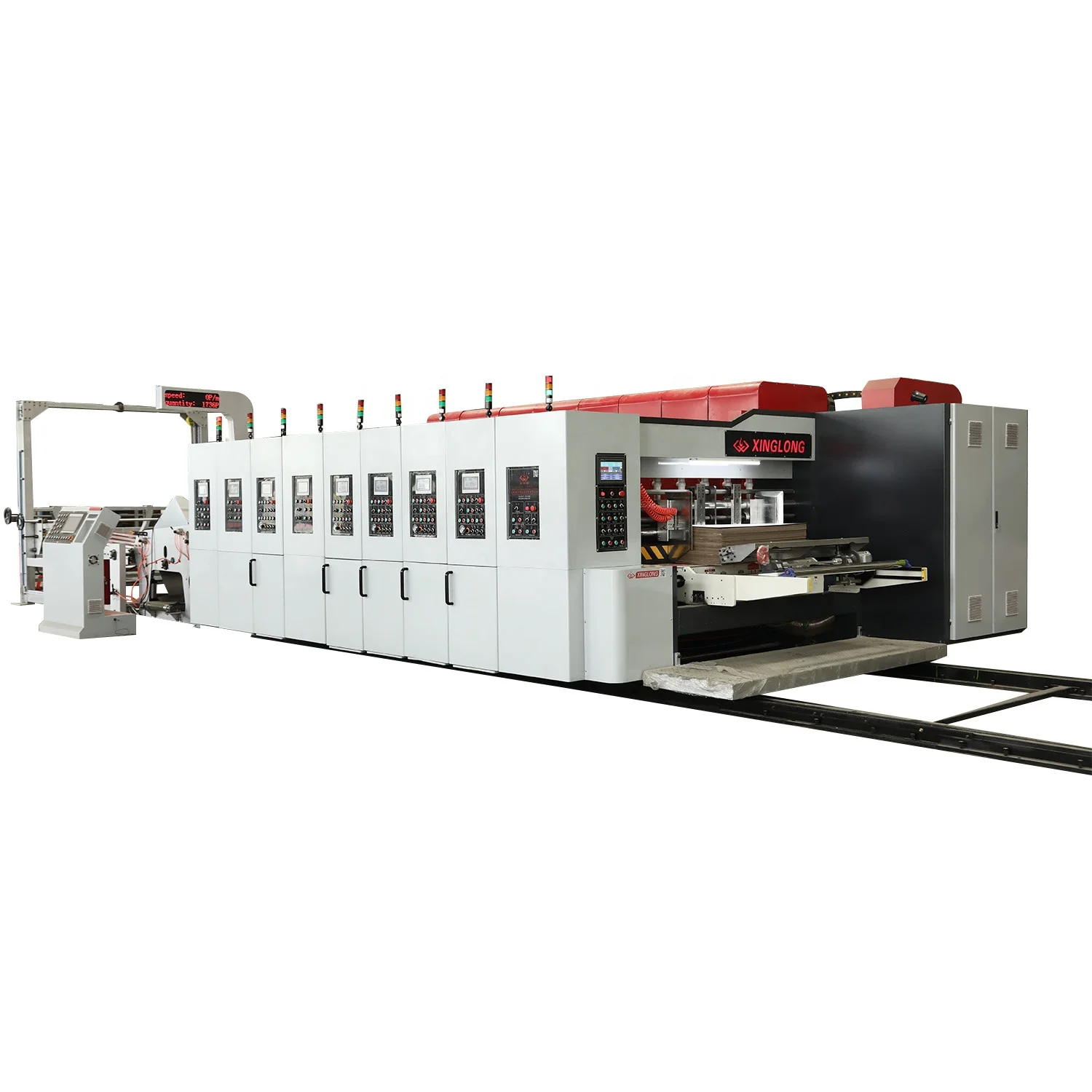

Автоматический флексографский гофрированный картонный ящик печатный долбежный высекальный Упаковочный

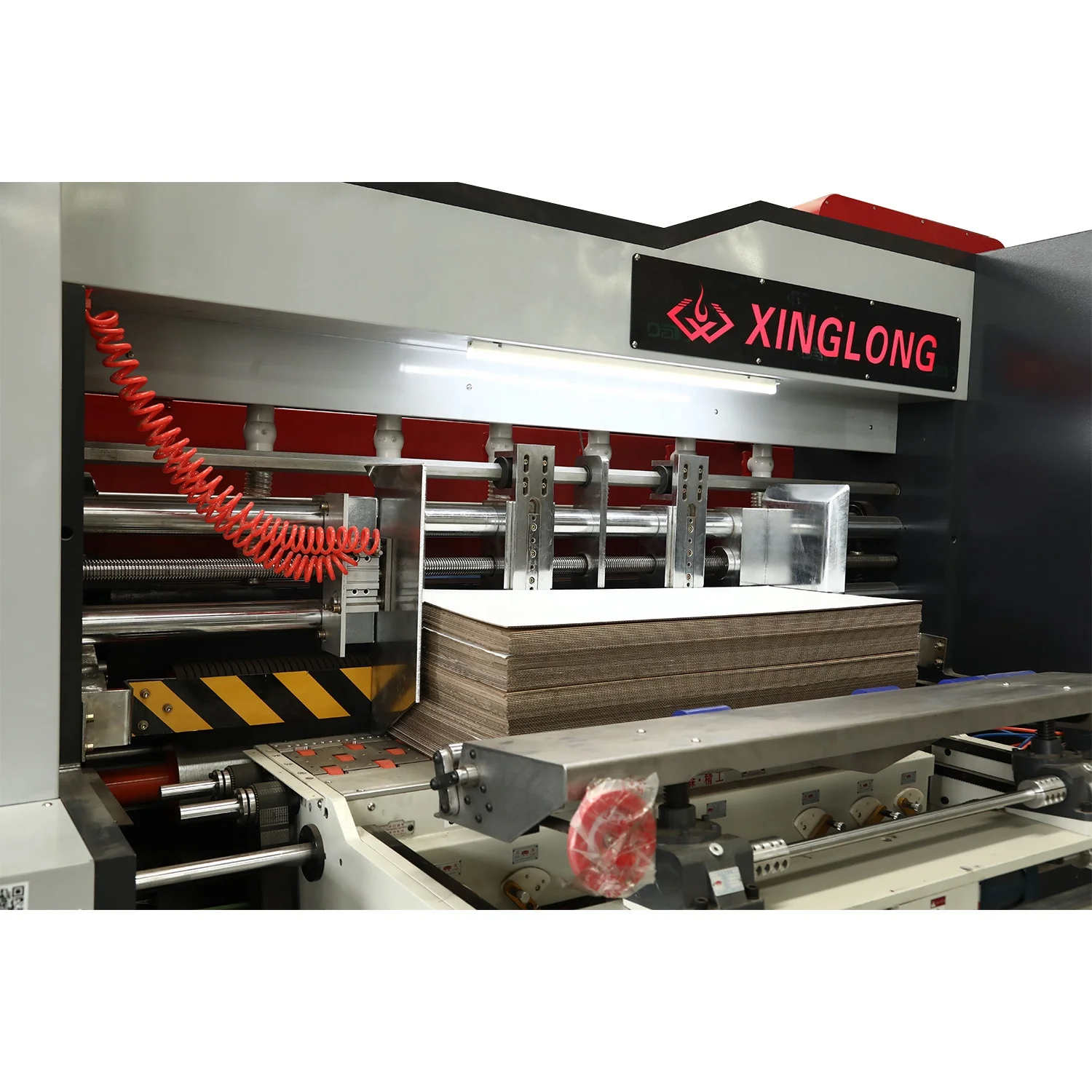

servo free-pressure feeding unit

lServo type None-pressure Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.

lMain motor with start protecting device, machine cannot run when machine units aren’t lock.

lContinuous or skip feeding available

lDouble feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet

lLeft-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.

lDust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size

lMachine units move by motorized and move with alarm belling to make sure safety.

lThe independent electric box controls the whole machine, and each group can control the machine alone and operate more simply

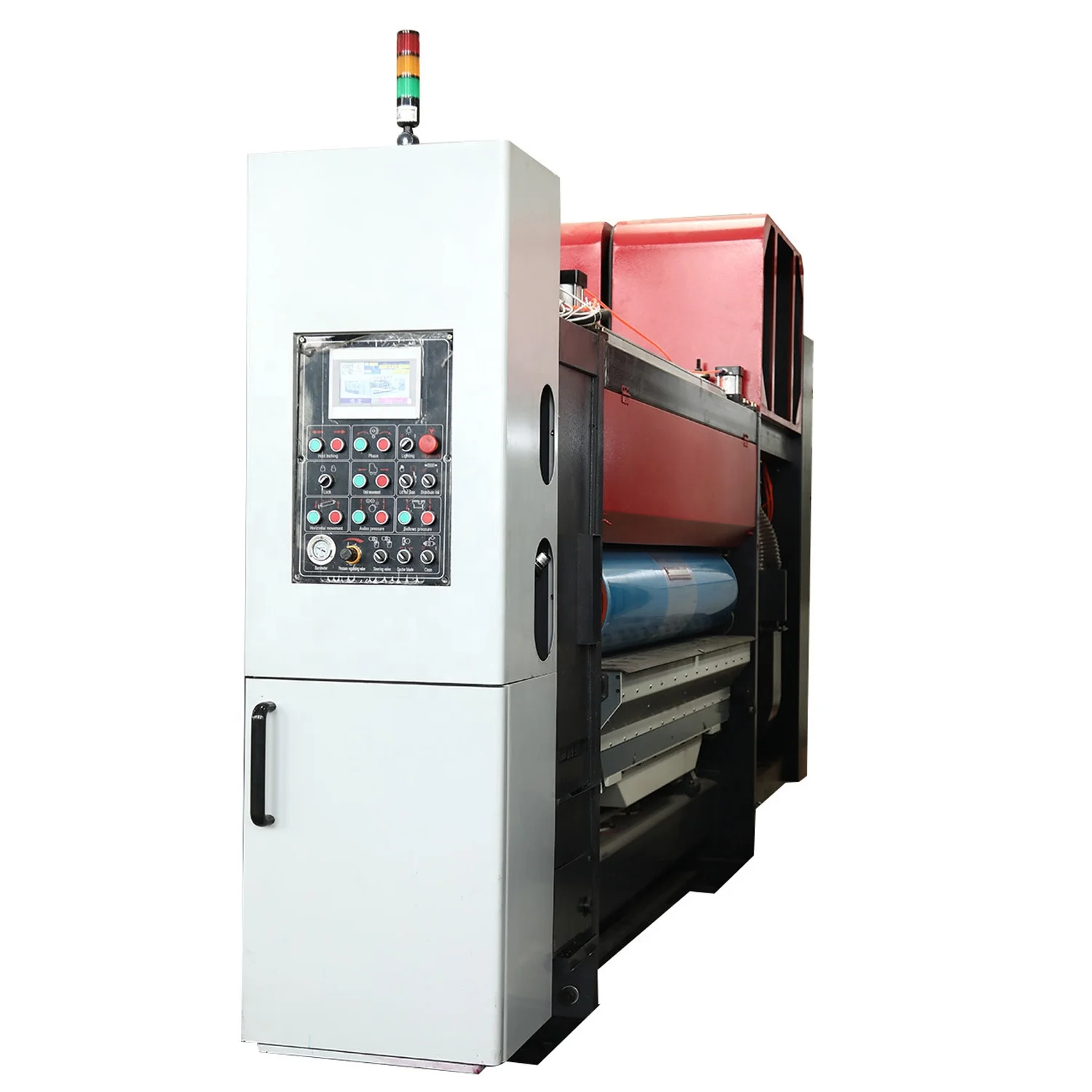

 vaccum transfer printing unit

lFast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise

lFeed roller, press roller, rubber roller, anilox roller gap adjust with electric self-lock part

lPrinting phase adjusted by PLC in 360degree with digital input, do when machine running or stop

lPneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.

lPneumatic lift anilox roller for ink, motorized ink will no dry.

lPrinting cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.

lLift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)

lDouble diagram pump ink, recycle automatically, Ink supply is controlled by PLC, automatic cleaning and ink addition,With filter, simple operation, easy maintenance, ink supply more stable.

lMemory function, after clean plate it back to original position

lPrinting precision: +-0.5mm

lPrinting cylinder horizontal move by motorized

l5 units ceramic roller with doctor blade,high printing quality

lCeramic roll adopts Jiangsu Haili brand(China famous brand)

lThe doctor blade adopts the pneumatic propulsion mode, the doctor blade is closer together to the ceramic roller, and the ink is more uniform

lAir suction box table adopts electric adjustment clearance, PLC control digital display,The worktable adopts centrifugal high pressure fan, and the wind force size is controlled by frequency converter. The imprint roller is refined with high quality seamless steel pipe, surface grinding and hard chromium plating.

IR drying unit

lInfrared drying system

lInfrared heating system, temperature rise quickly and stably. About 30 kw. of heating power per group

lTmperature constant temperature control, section heating, save electric heating power.

lTemperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.

lStrong fan circulation, make drying speed more rapid.

lDrying box pneumatic adjustment lift, easy to install and replace the lamp tube, at the same time the drying effect.

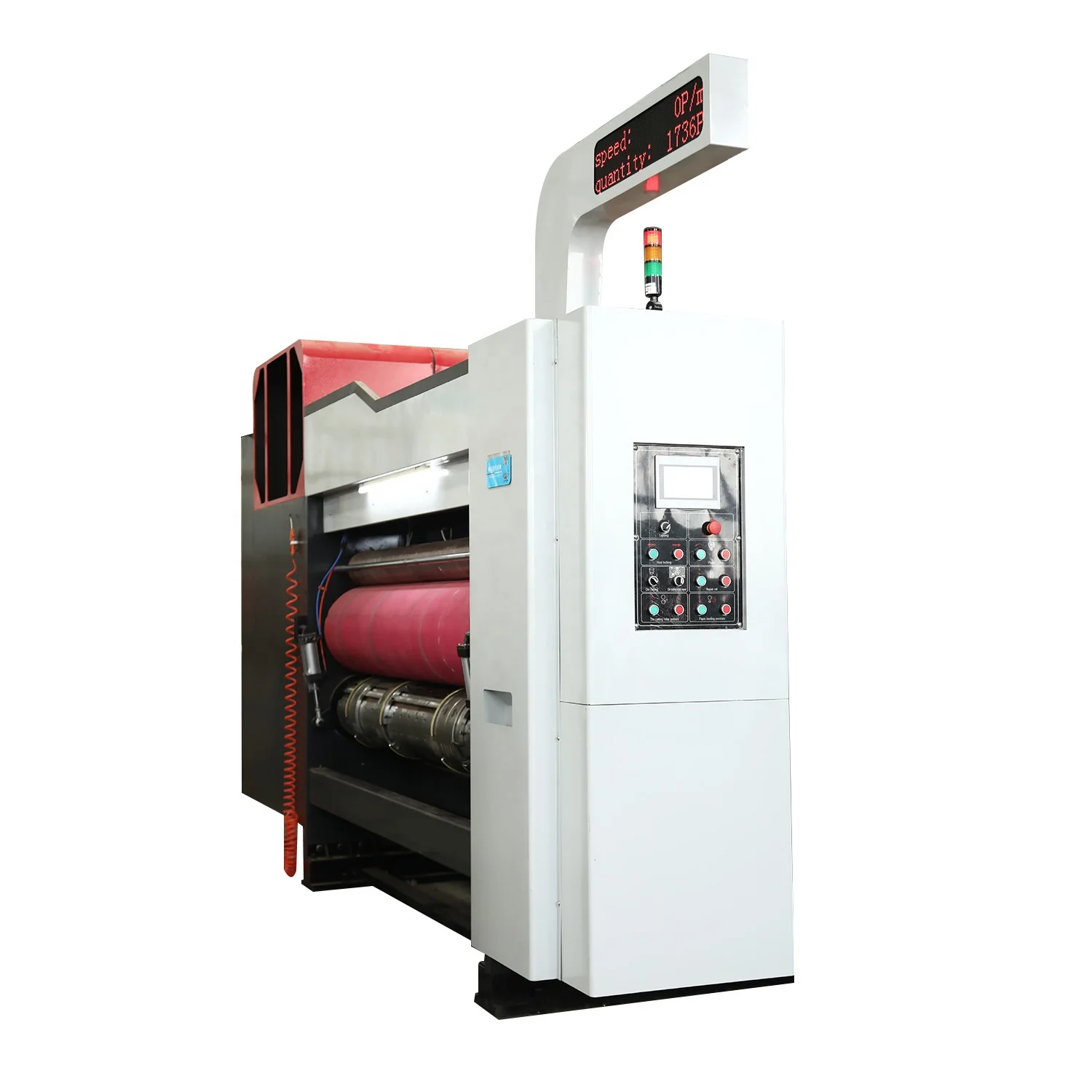

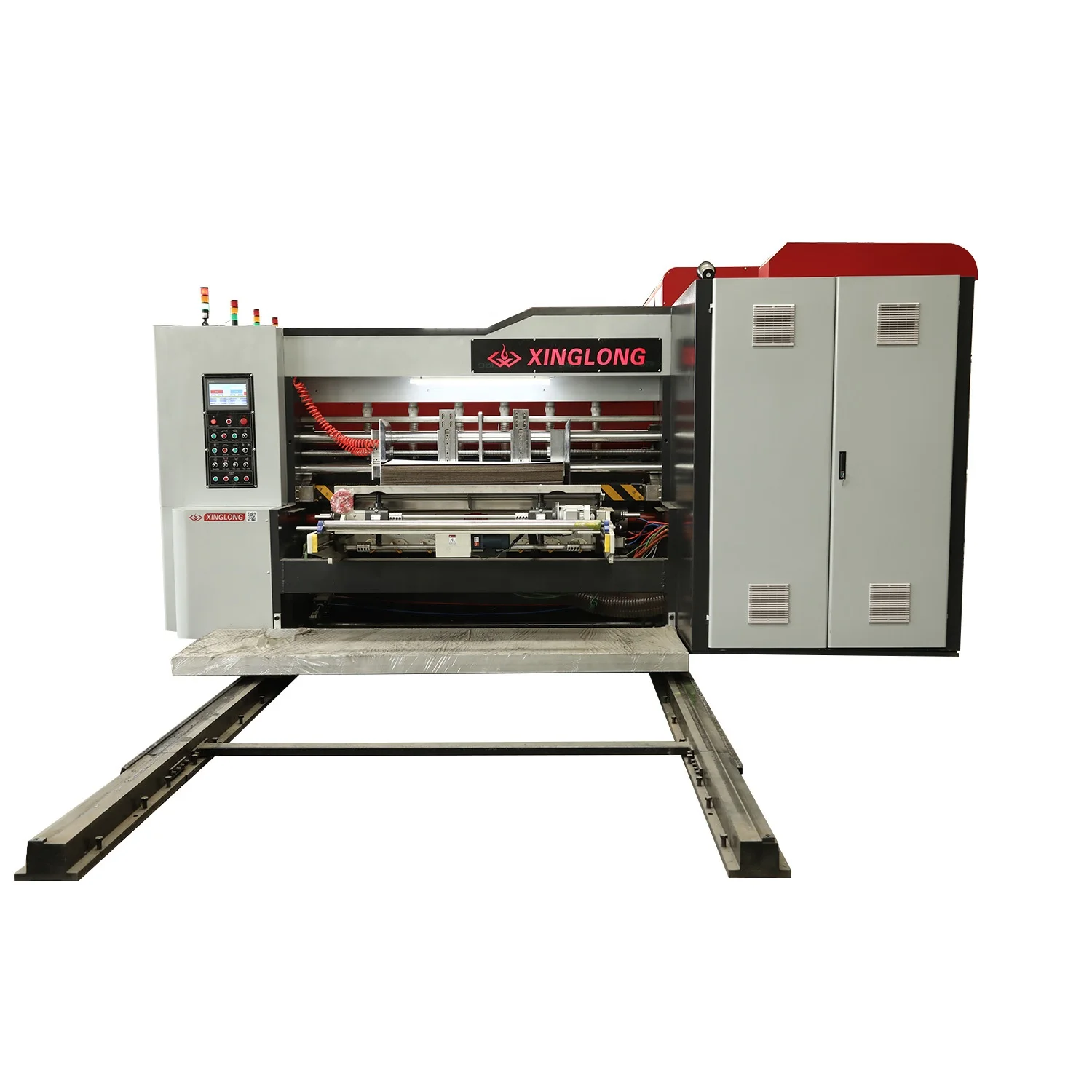

Die cutting unit

lservo indepedently drive ,runing more stable and high precision.

lRubber roller: made of good quality steel, be grinded with chrome plated.

lDo balance treatment, improve machine running steady

lRubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.

lDie roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets)

lRubber roller move 40mm in left and right, wearable average prolong use-life

lRubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.

lPlanetary gear structure used for phase adjustment.

lPhase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise)

lMachine have repair roller to grind blanket, so it can use many times.

lEquipped with automatic waste cleaning device, waste paper can be discharged automatically

lEquipped with slotting knife,when produce regular carton,no need to make wooden die,easy operate and adjust, save time labor and space.

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

    2) Skillful workers care every details in handling the producing and packing process

    3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

    2) To solve the problems with videos/pictures.

    3) One year warranty for spare parts change.
