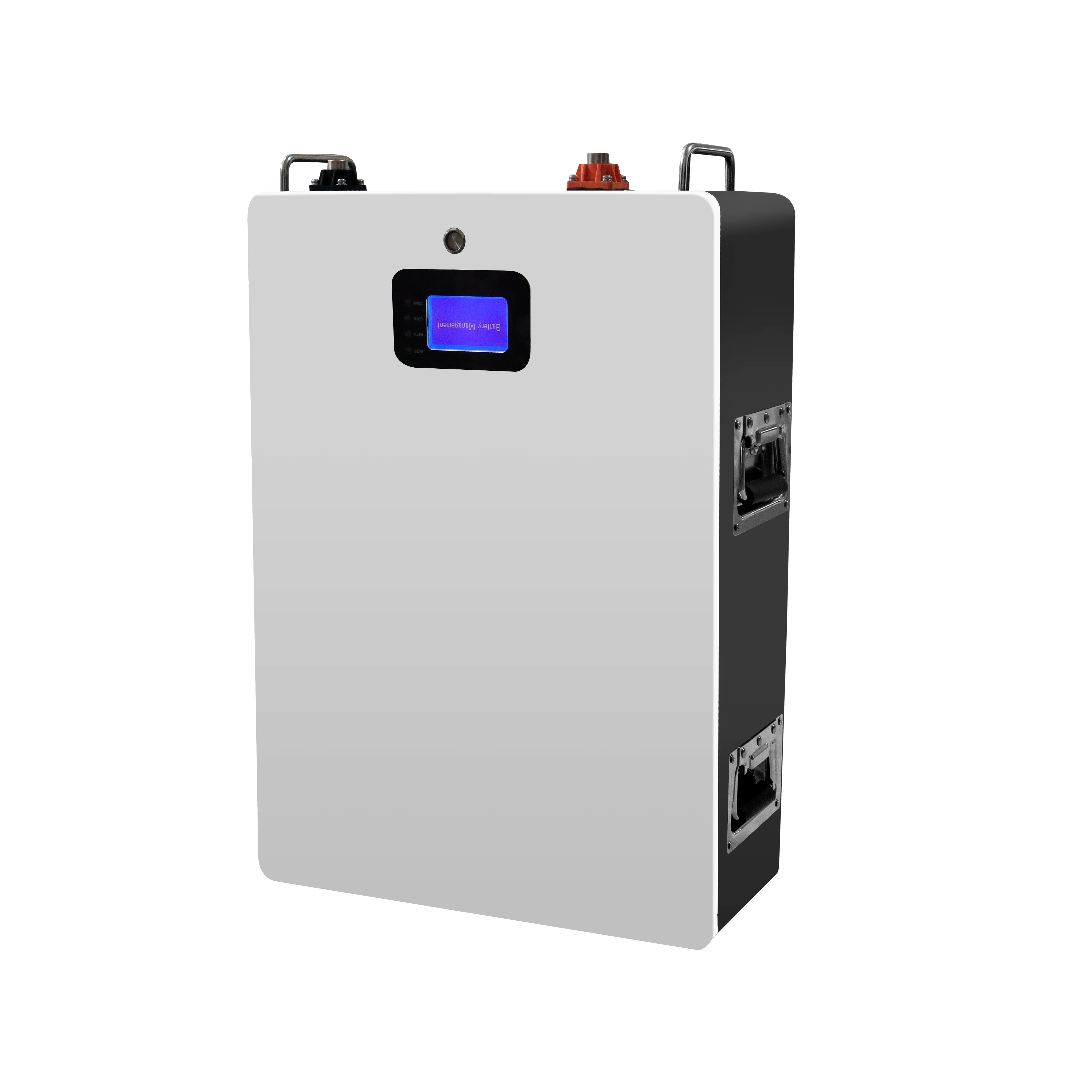

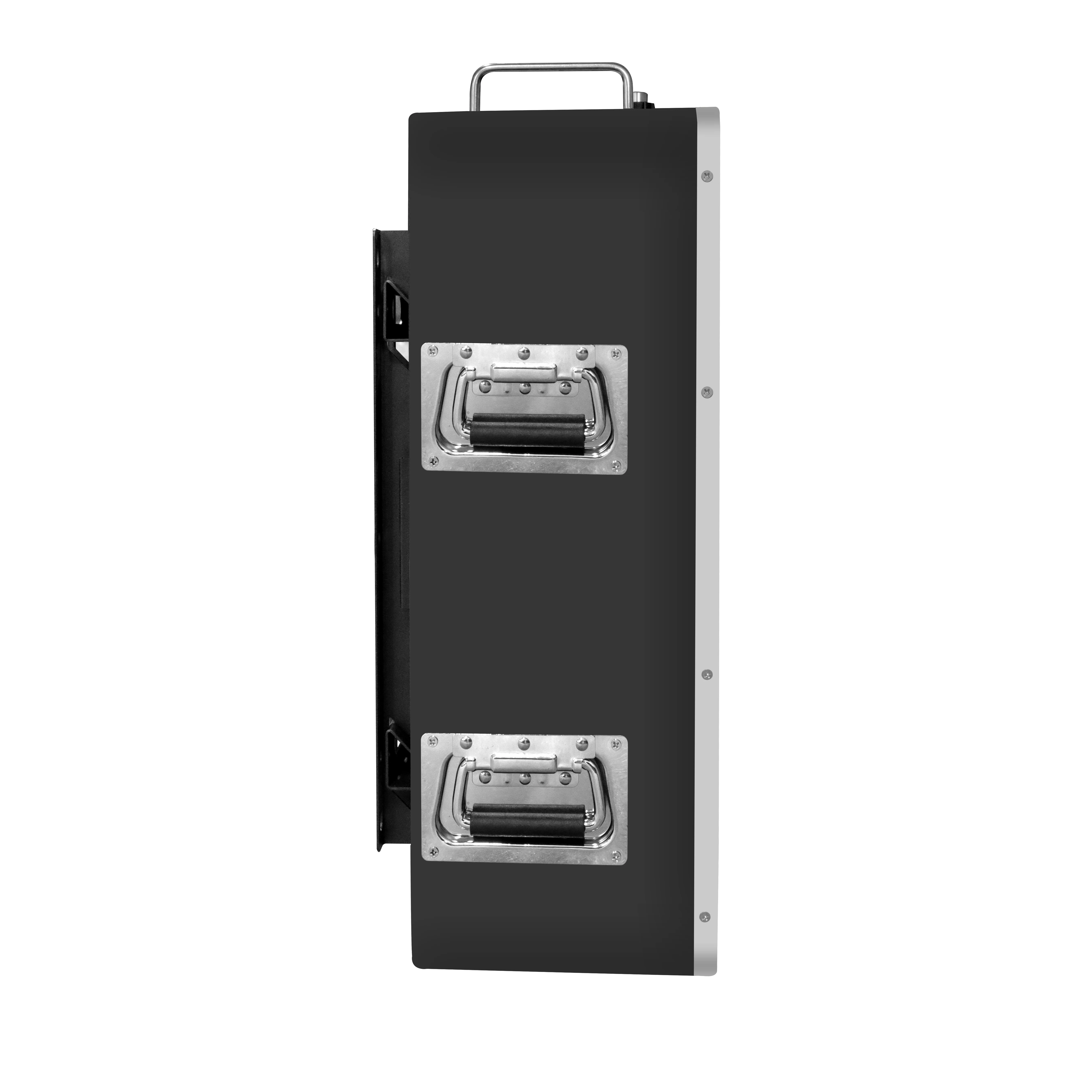

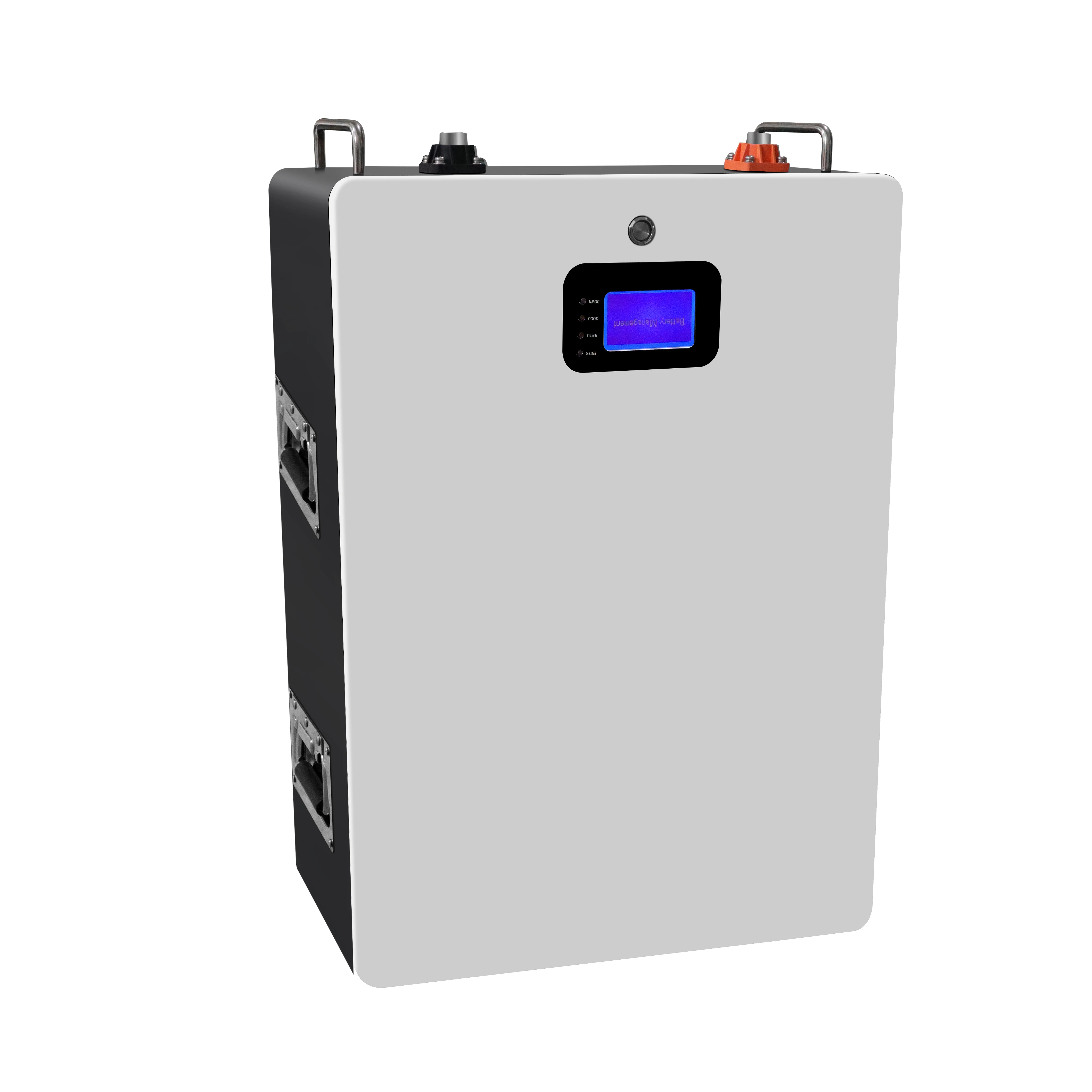

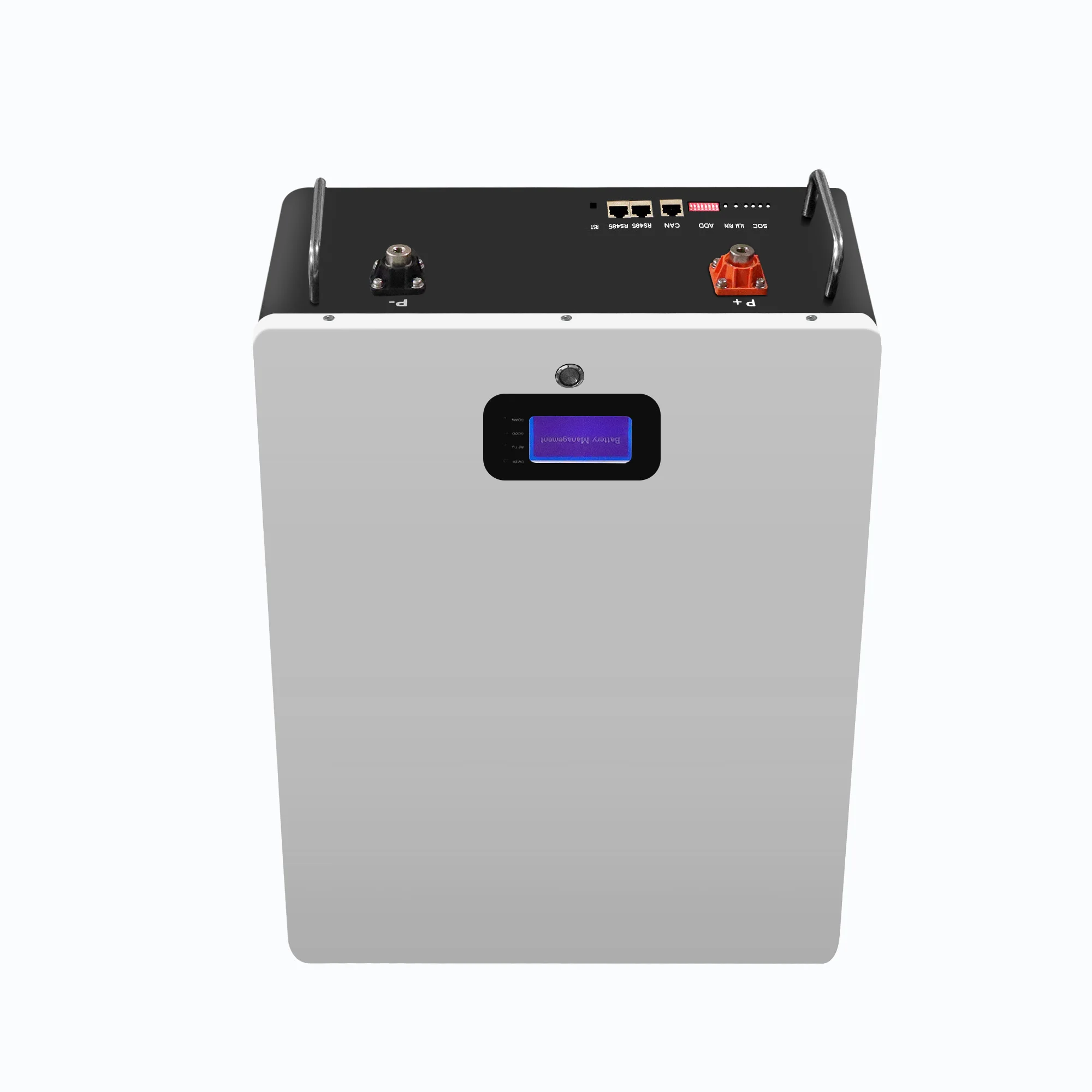

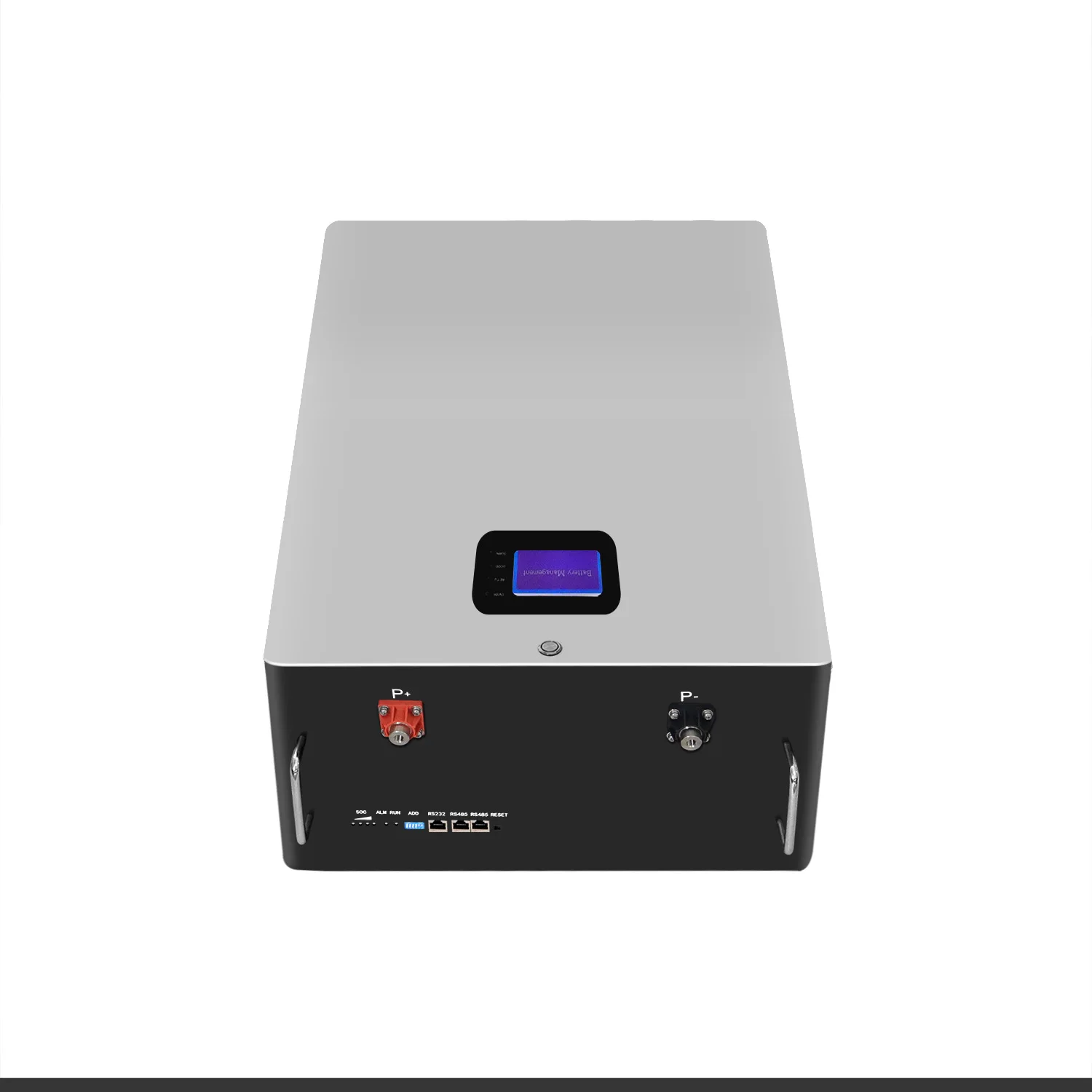

Бассейн перезаряжаемая литиевая батарея 10 кВт LiFePO4 48 в 100 Ач 200
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shenzhen,Basen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Model | BR48100 | BW-48230 |
Nominal Voltage | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 230Ah |
Energy | 5120Wh | 11776Wh |
Self Discharge | <3%/month | <3%/month |
Series or Parallel Connection | 16S1P | 16S1P |
Recommended Charge Current | 10A-60A | 50A- 100A |
Maximum Charge Current | 100A | 200A |
Charge Current (-20 to - 10 ºC) | ≤0.05C | ≤0.05C |
Recommended Charge Voltage | 56V-57.6V | 56V-57.6V |
BMS Charge Voltage Cut-Off | 57.6V (3.75±0.025vpc) | 57.6V (3.75±0.025vpc) |
Reconnect Voltage | 54.6V (3.34 ±0.05vpc) | 54.6V (3.34 ±0.05vpc) |
Dimensions (L x W x H) | 440*435*222mm (17.3x17.1x8.74”) | 480*248*618mm |
Weight | 54.5kg (120.1 lbs) | 54.5kg (120.1 lbs) |
Communication Interface | RS485 (Optional) | RS485 (Optional) |
Case Material | Metal | Metal |
Enclosure Protection | IP54 | IP54 |
Maximum Continuous Discharge Current | 100A | 200A |
BMS Discharge Current Cut-Off | 105A | 230A |
Reconnect Voltage | 45V | 45V |
Discharge Temperature | -20 to 60ºC (-4 to 140 ºF) | -20 to 60ºC (-4 to 140 ºF) |
Charge Temperature | 0 to 45ºC (32 to 113 ºF) | 0 to 45ºC (32 to 113 ºF) |
