Биобазовая китайская сублимационная сушилка, лиофилизатор 9,5 л, мини-химическое оборудование для пищевых продуктов, сублимационная сушилка
- Категория товара: Chemical Machinery & Equipment >>>
- Поставщик (Оптовый магазин): Biobase,Youth,Co.,Ltd.Biobase,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

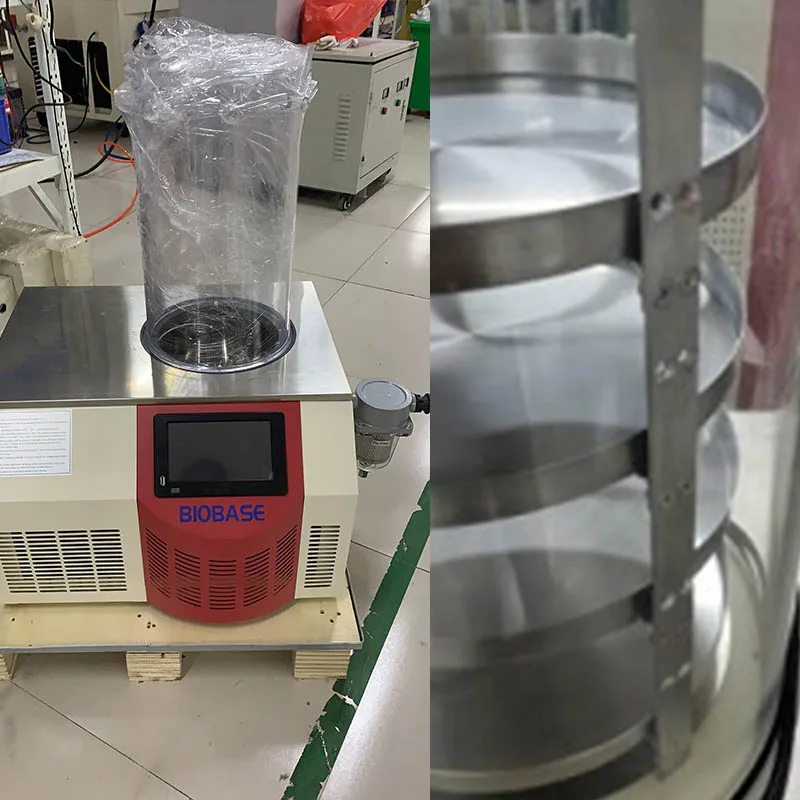

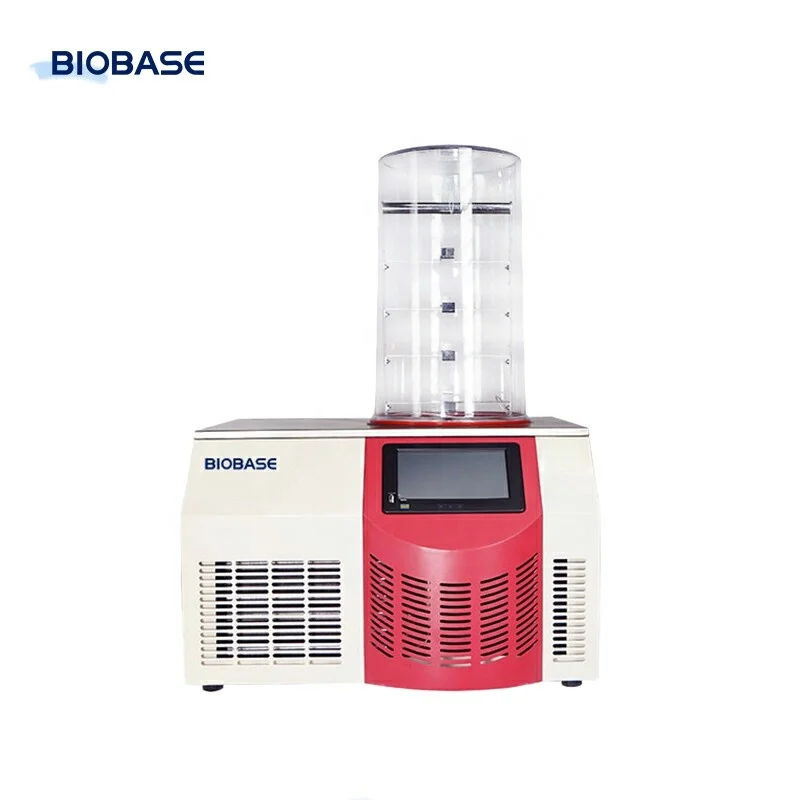

Tabletop Freeze Dryer

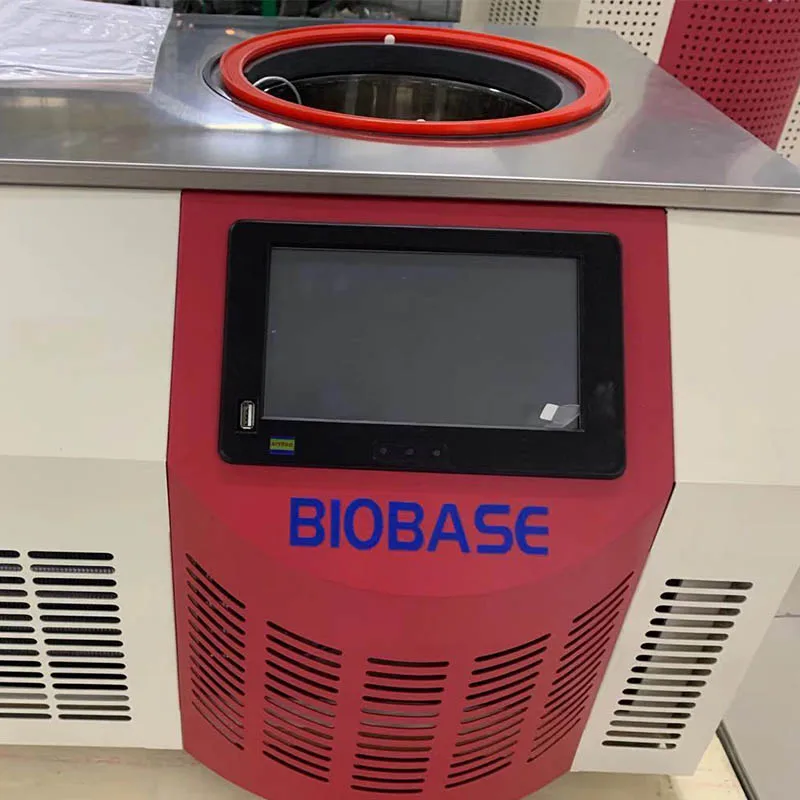

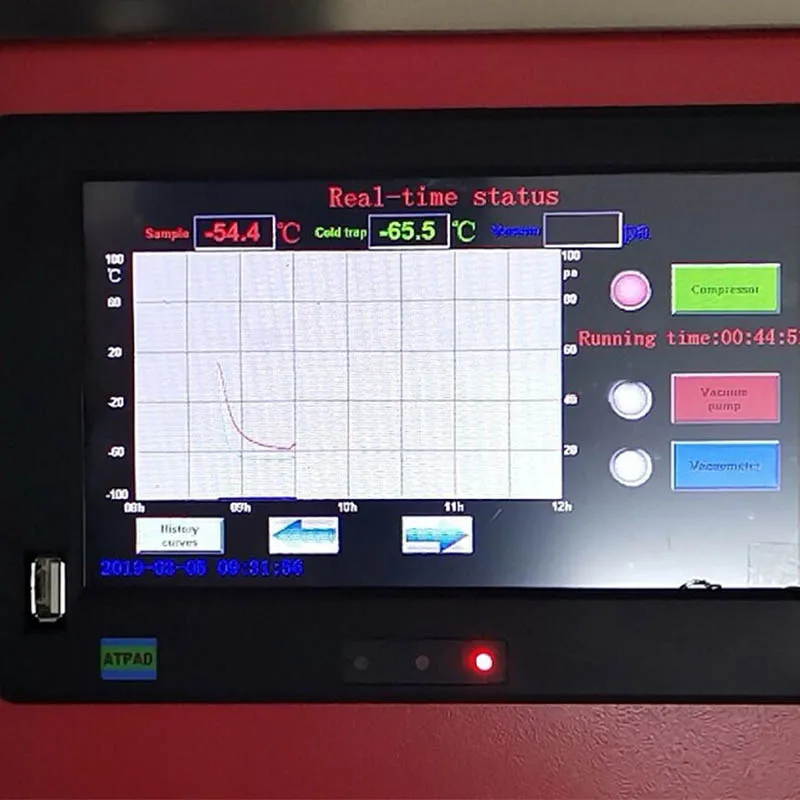

1. LCD touch screen.
2.With historical data inquiry function.
3.With USB interface to export the data.
4.Large capacity ice condenser trap and without coil inside.
5.With cascade refrigeration technology.
3.With USB interface to export the data.
4.Large capacity ice condenser trap and without coil inside.
5.With cascade refrigeration technology.
Specification
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||

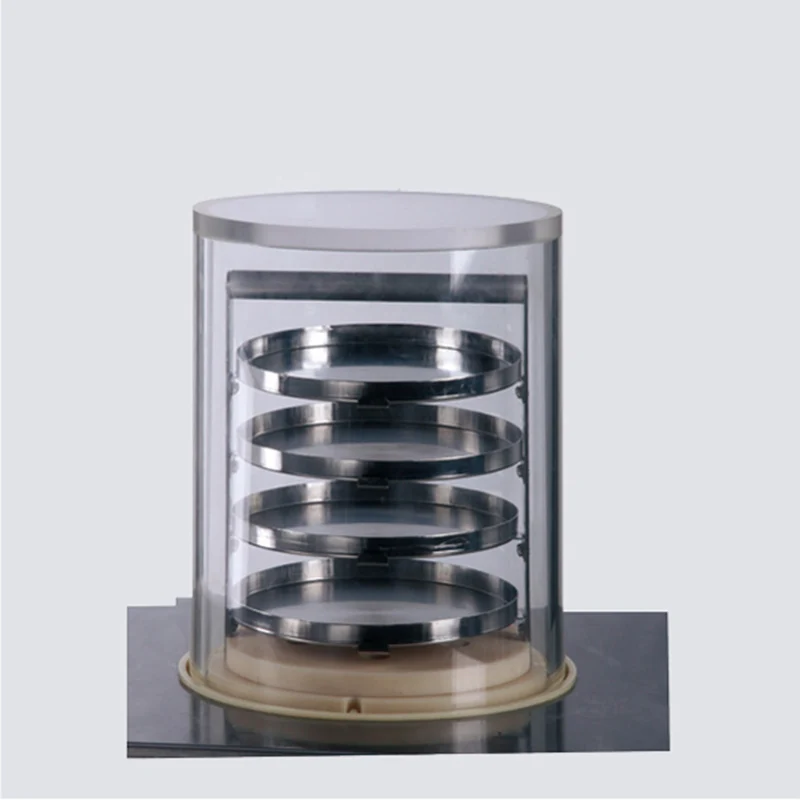

Tray | 4 pcs | 3 pcs | |||||||
Height Between Trays | 50mm | 68mm | |||||||
Cold Trap Temperature | ≤-56℃ | ||||||||
Cold Trap Capacity | 9.5L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*260mm | ||||||||
Vacuum Degree | <10 Pa | ||||||||
Water Capture Capacity | 3kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Power Supply | 220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) | ||||||||
Power Consumption | 1.3KW | ||||||||
Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||||||

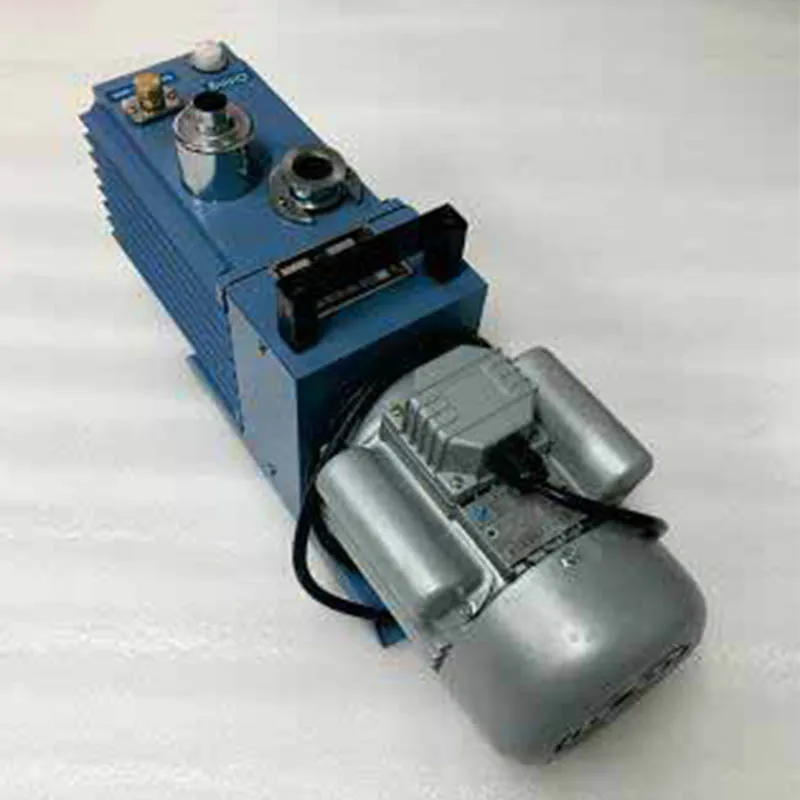

Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump | ||||||||
External Size (W*D*H) | 640*610*550/810mm | 640*610*550/950mm | 640*610*550/990mm | ||||||
Package Size(W*D*H)mm/ Gross Weight | Main Body | 720*705*730(85kg) | |||||||
Drying Chamber /Vacuum Pump | 705*590*530 (50kg) | 705*590*530 (55kg) | 705*590*530 (60kg) | 720*705*730 (65kg) | |||||
Hot-sale Products
Contact Us

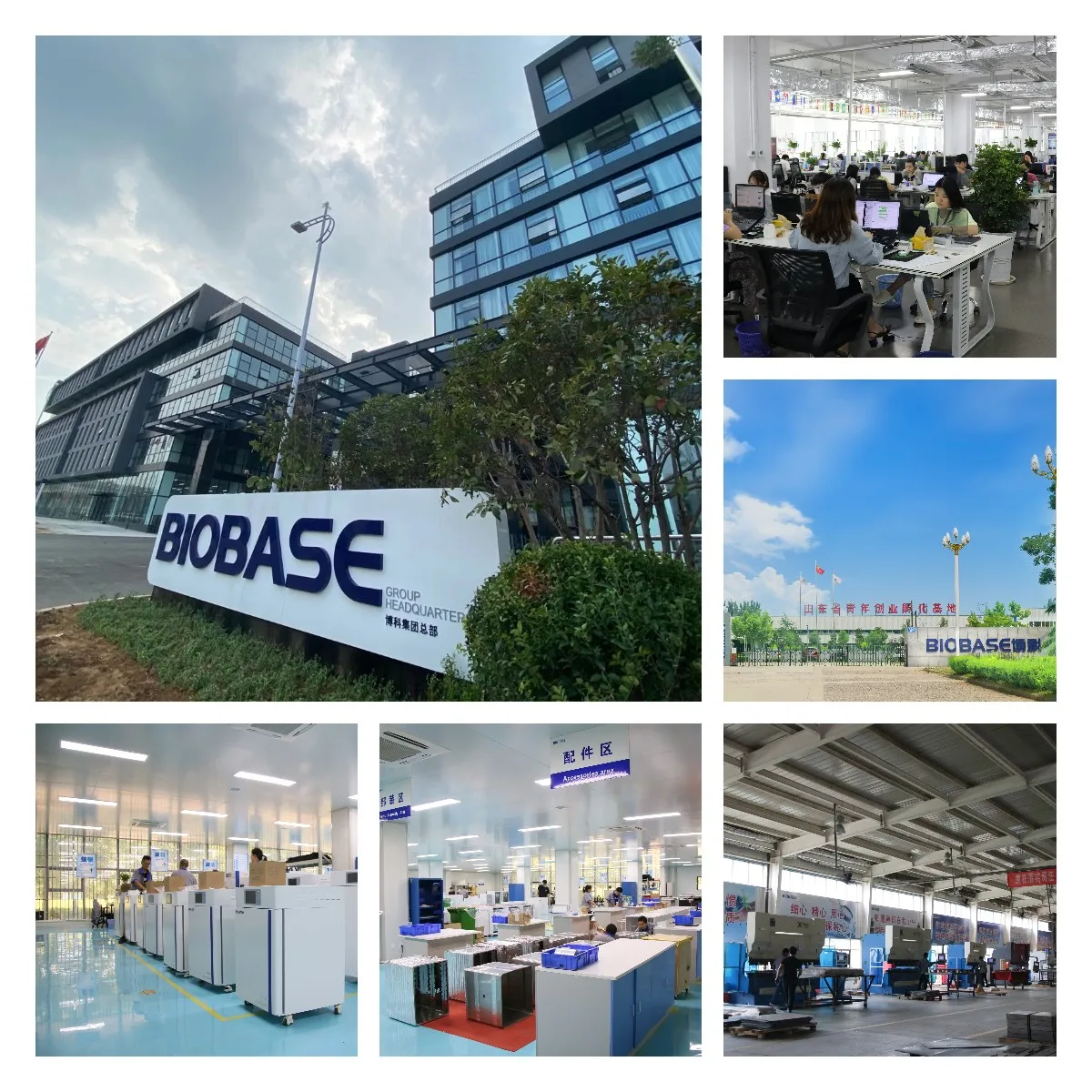

Company Profile
