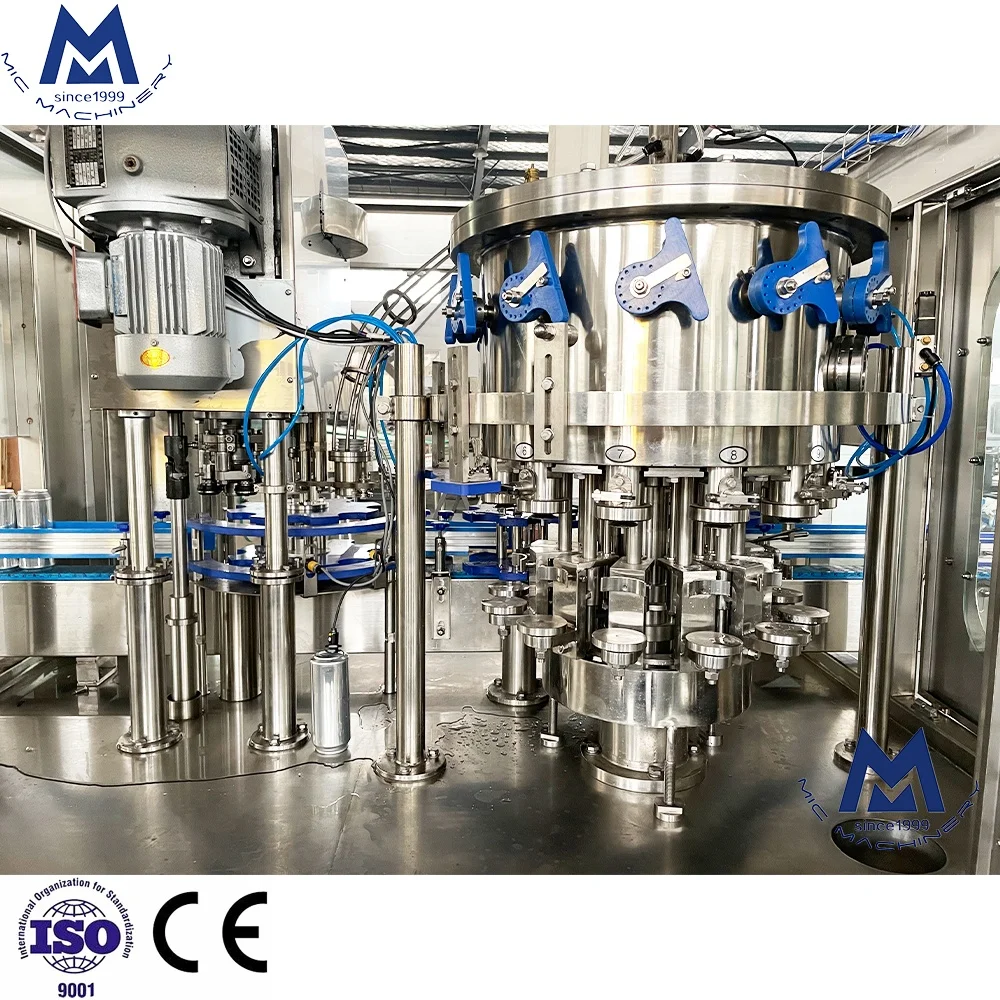

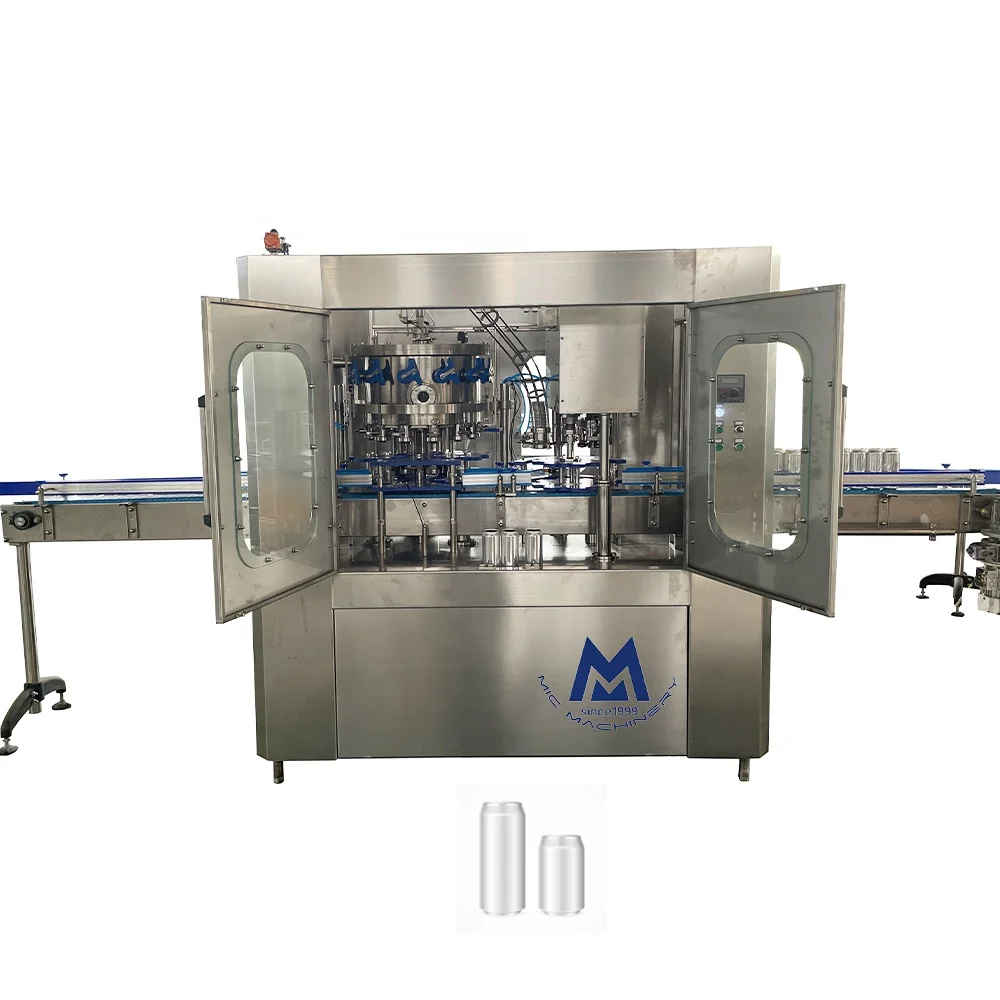

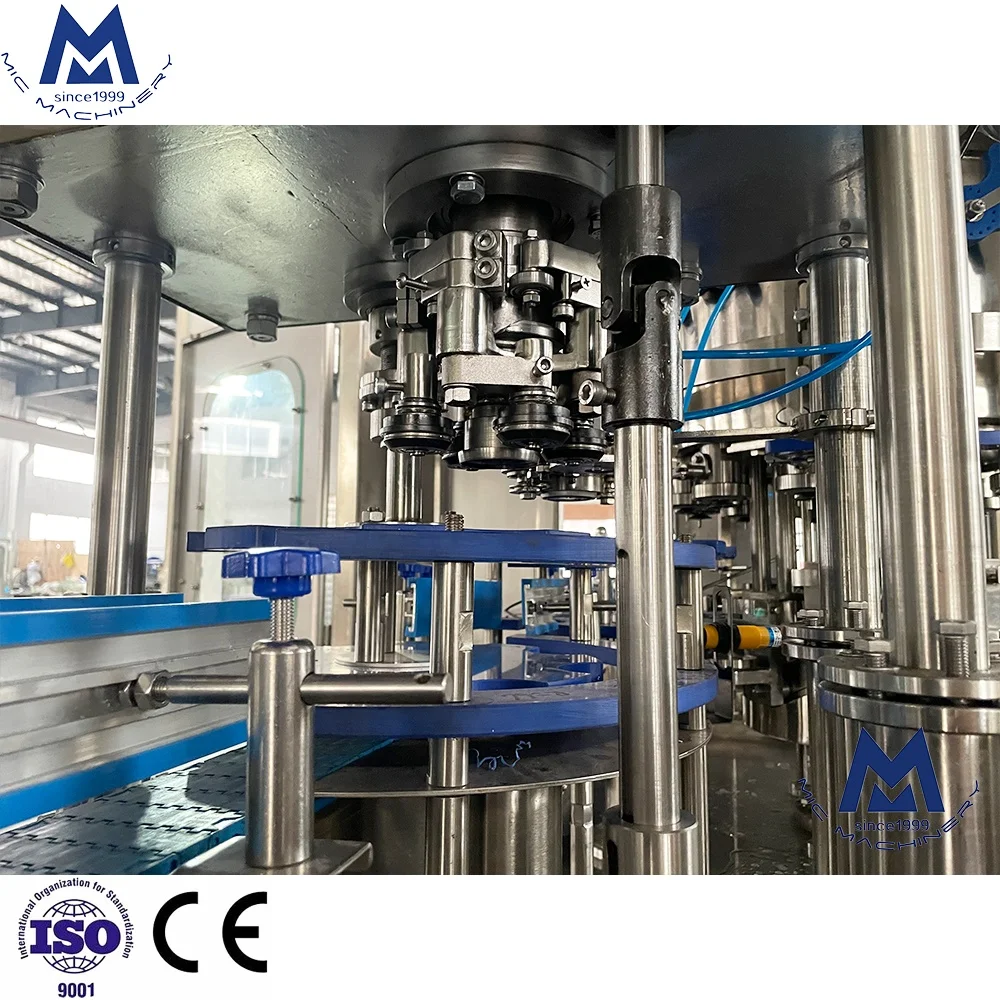

Автоматический завод по производству газированных напитков, газированных напитков, пива, алюминиевая машина для розлива банок
- Категория товара: Packaging Machines >>>
- Поставщик (Оптовый магазин): Zhangjiagang,Mic,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

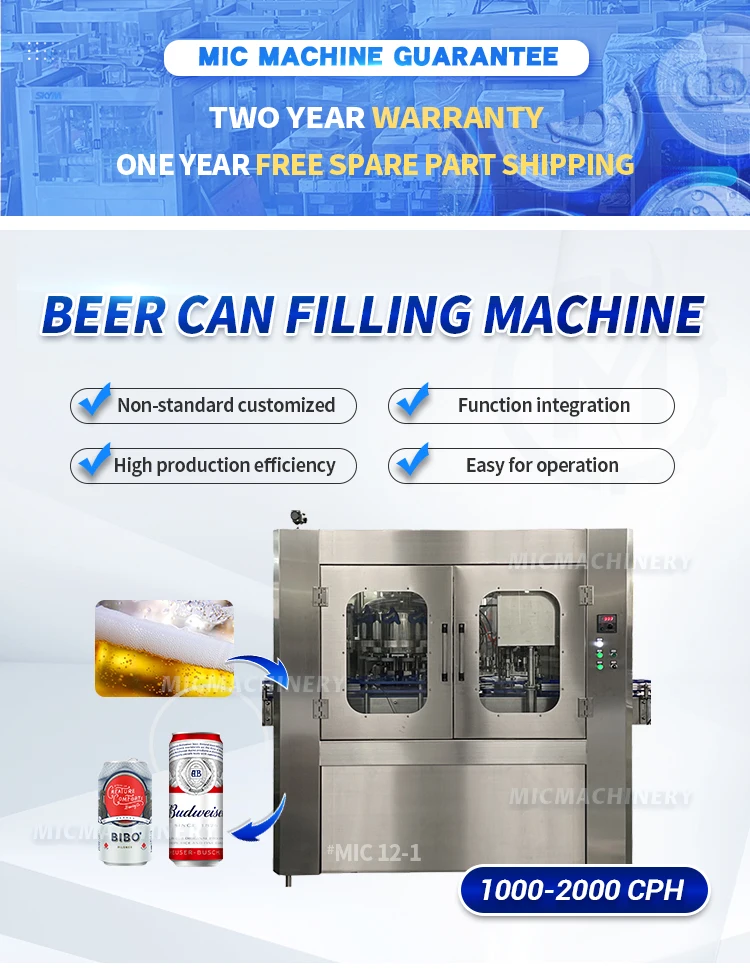

Mic 12-1 beer canning machine adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius)
If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.
— MACHINE APPLICATION —

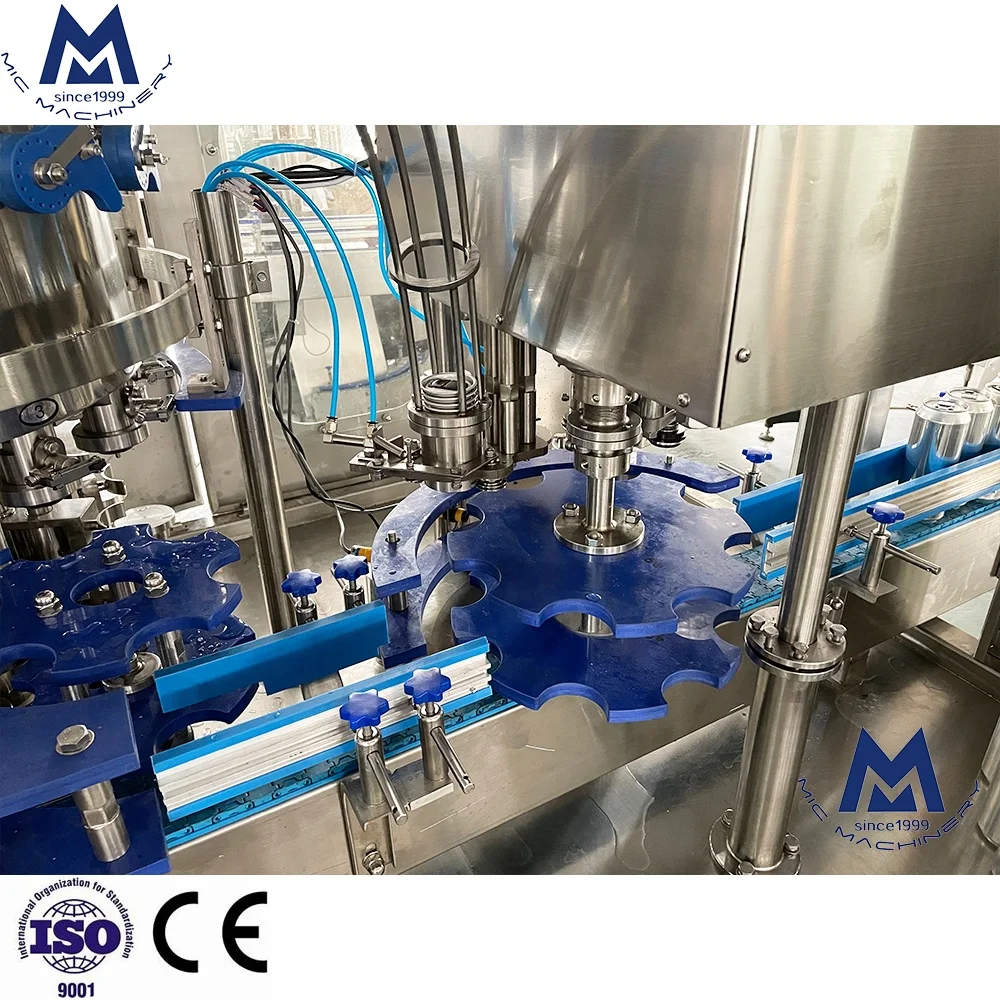

Mic 12-1 beer can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant.
It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant.
— TECHNICAL PARAMETER —
Power | 0.75Kw |
Filling heads | 12 heads |
Sealing heads | 1 head |
Production capacity | 1000-2000CPH based on 330ml |
Filling temperature | 0-4 ℃ |
Filling pressure | Max 5bar/0.5Mpa |
Can diameter range | Ф40-90MM |
Can height | 92-168MM |
Dimension | 1800*1300*1950mm |
Weight | 1800Kg |

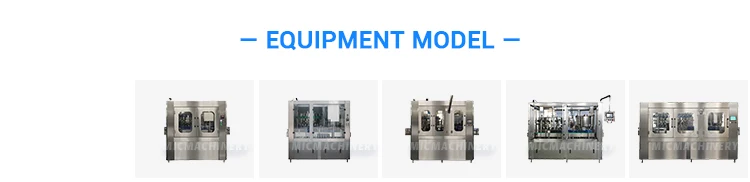

Model/Parameter | MIC-32/8 | ||||||||
Application | Beer, carbonated drinks, gas beverage, cold coffee, sparkling water, cider, soda water, herbal tea, non-carbonated drinks and so on | ||||||||
Packing Type | Aluminum cans, tin cans, pet cans, etc | ||||||||
Capacity | 2000CPH(12oz) | 2000CPH(1L) | 3000-6000CPH | 4000-8000CPH | 10000CPH | ||||
Filling Range | 130ml, 250ml, 330ml, 355ml, 500ml, 12oz, 16oz, 1L and so on (0.1-1L) | ||||||||
Power | 0.75KW | 1.5KW | 3.7KW | 3.7KW | 4.2KW | ||||
Size | 1.8M*1.3M*1.95M | 1.9M*1.3M*1.95M | 2.3M*1.4M*1.9M | 2.58M*1.7M*1.9M | 2.8M*1.7M*1.95M | ||||
Weight | 1800KG | 2100KG | 2500KG | 3000KG | 3800KG | ||||

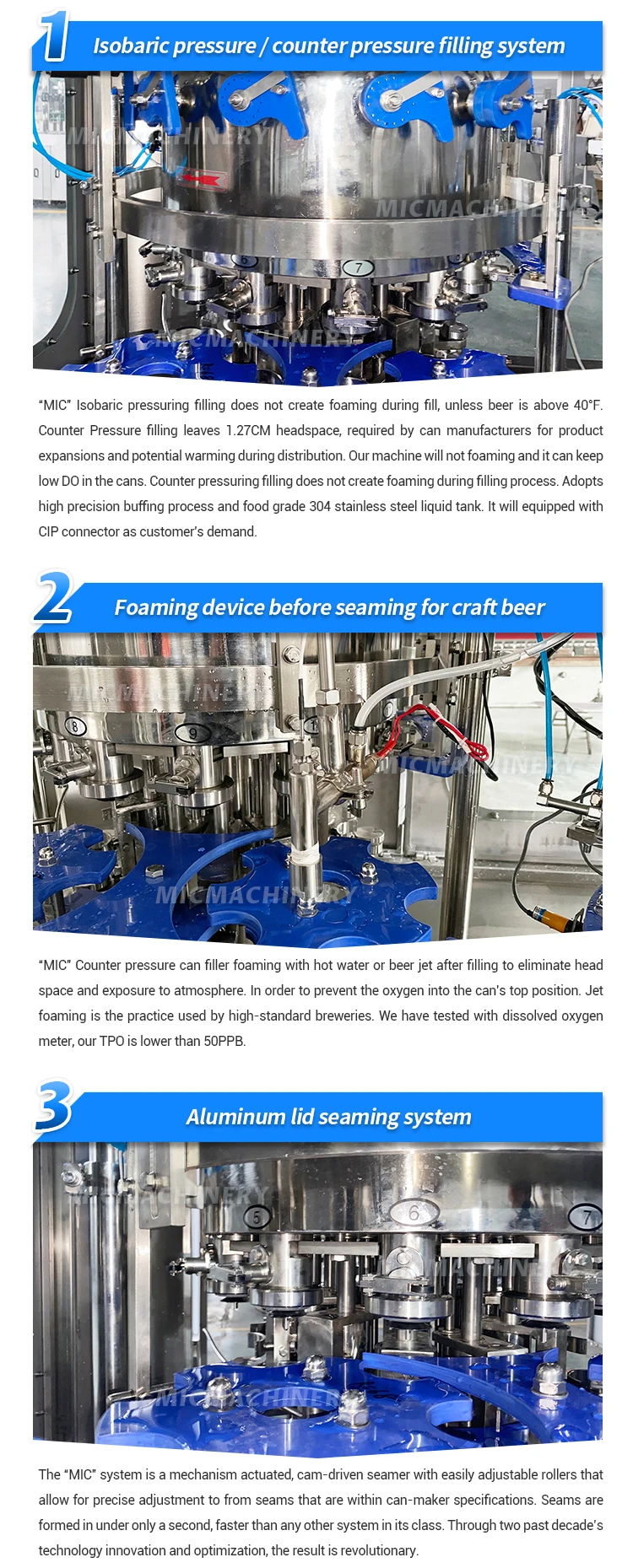

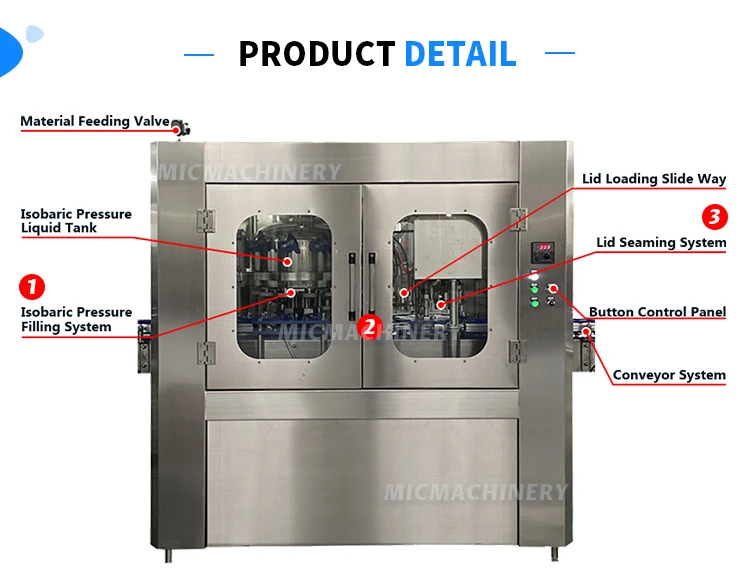

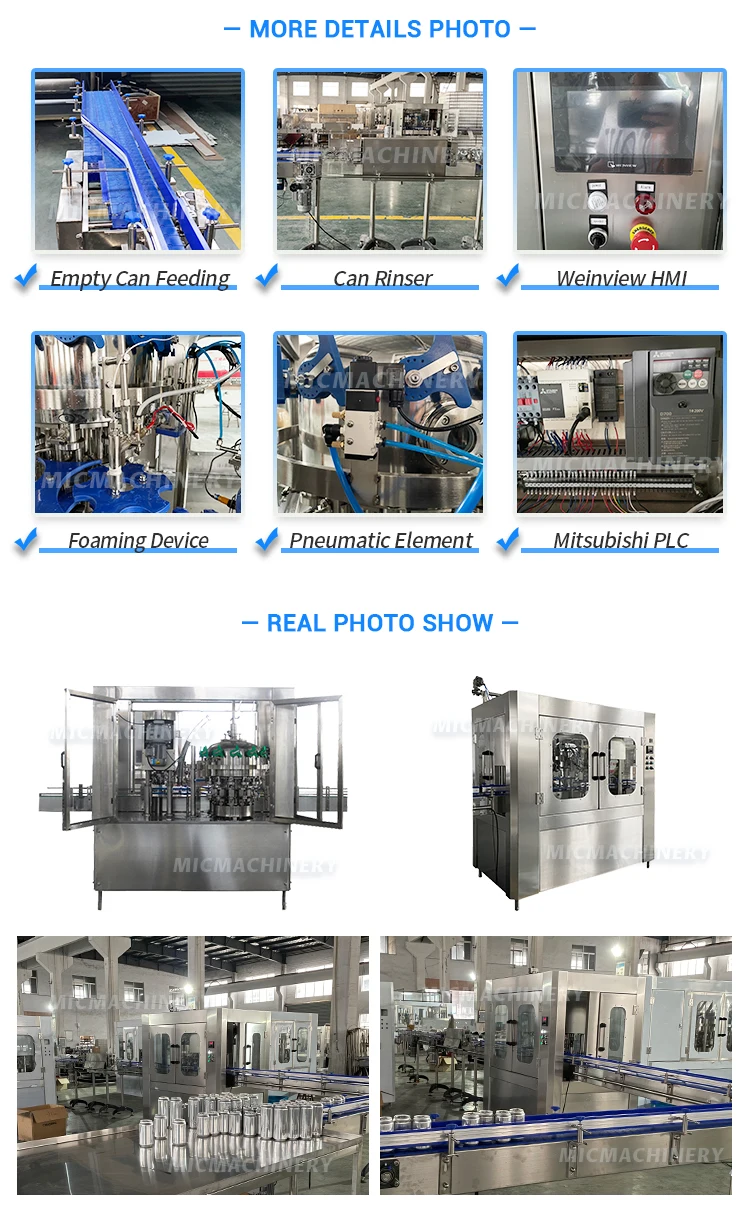

— DETAILS IMAGES —
— OTHER RECOMMEND PRODUCTS —
— FACTORY VIEW —
— FAQ —
Q1.Are you trading company or manufacturer ?
>> We are factory. Our factory is located in Zhangjiagang near Shanghai.
Q2.What is the payment of your company?
>> 100% T/T, 30% of prepaid contracts entered into force, 70% paid before delivery. L/C is supported also.
Q3.Do you provide a complete production line and customized services?
>> We are a company that provides a complete production line. We can design the machine according to your requirements (material, power, filling type, bottle type, etc), and we will give you our professional advice. As you know, we have beenin this industry for many years.
Q4.If we buy your machine, what is your guarantee or quality assurance?
>> We provide you with high- quality machines with 1 year warranty and lifetime technical support.
Q5.How long does it take to install?
>> According to your machine order, we will send one or two engineers to your factory, about 10 days. Customers need to provide round-trip air tickets, visa fees, local transportation, accommodation, food, 120 US dollars/ day / person.
Q6.What kind of after-sales service is provided?
>> After the production is completed, we will debug the production line, take photos, video and send to customers via email or instant tools. After the commissioning is completed, we will package and ship the equipment according to the standard export packaging. Operating manuals will be sent with machine or by email. According to the customer' s requirements, we can arrange our engineers to the customer's factory for installation and training. Engineers, sales managers, and after-sa les service managers form an after-sales team to follow up on customer projects online and offline.
