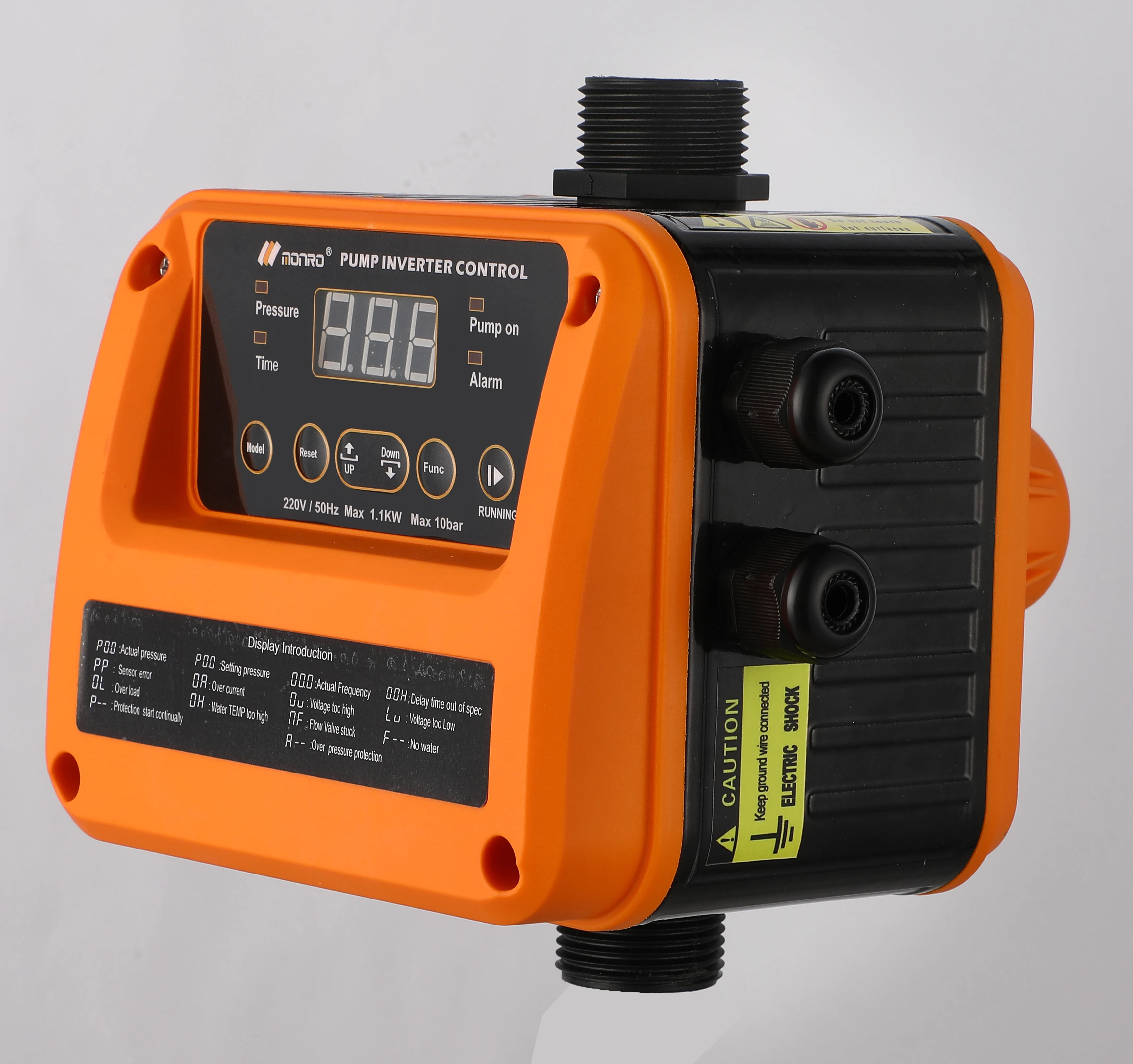

2022 Монро IPC-01 частотно-регулируемым приводом переменной скорости контроллер насоса автоматический выключатель
- Категория товара: Pressure Switches >>>
- Поставщик (Оптовый магазин): Zhejiang,Monro,M&E,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

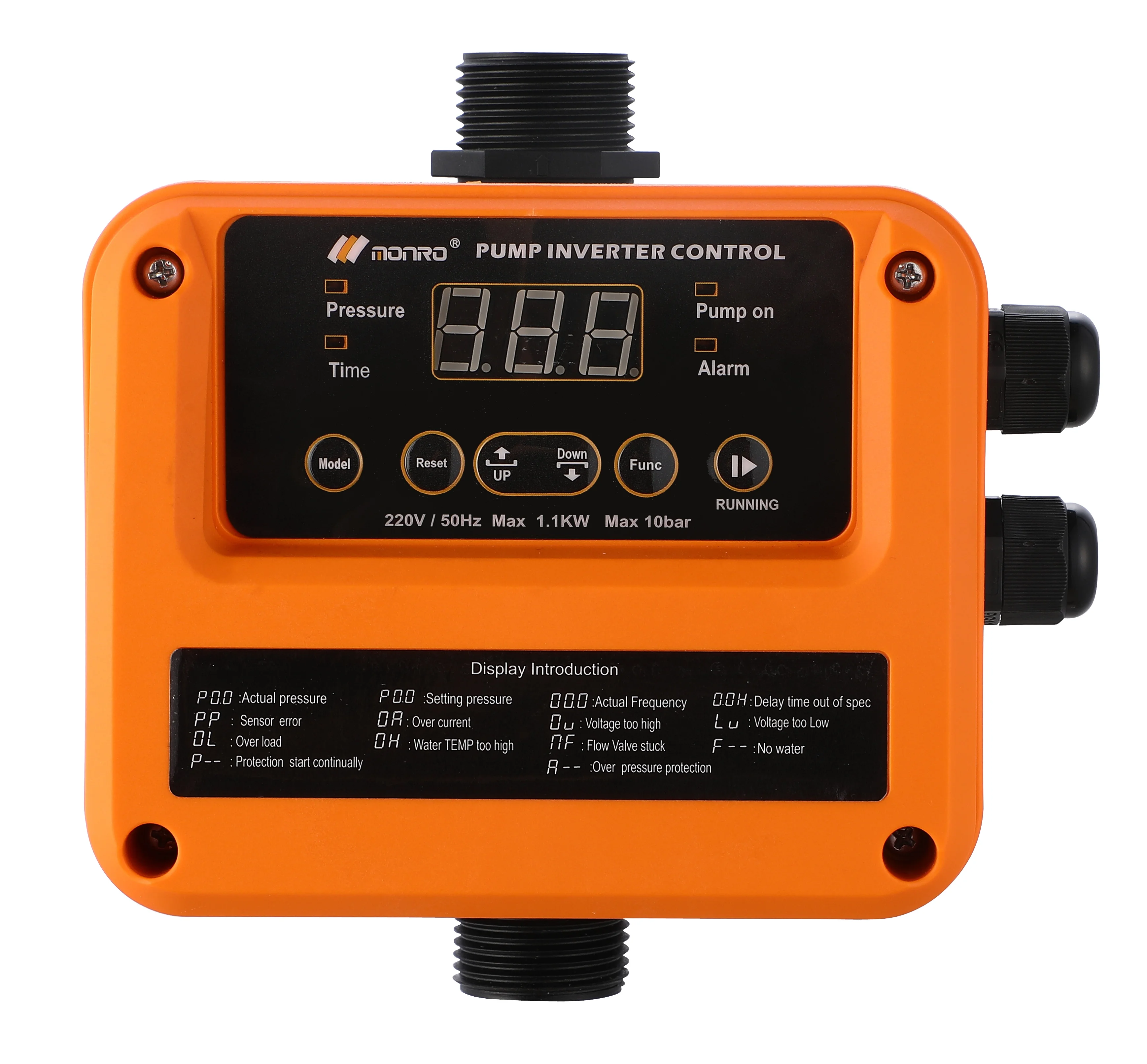

IPC-01 INVERTER PUMP CONTROL 1.1kW

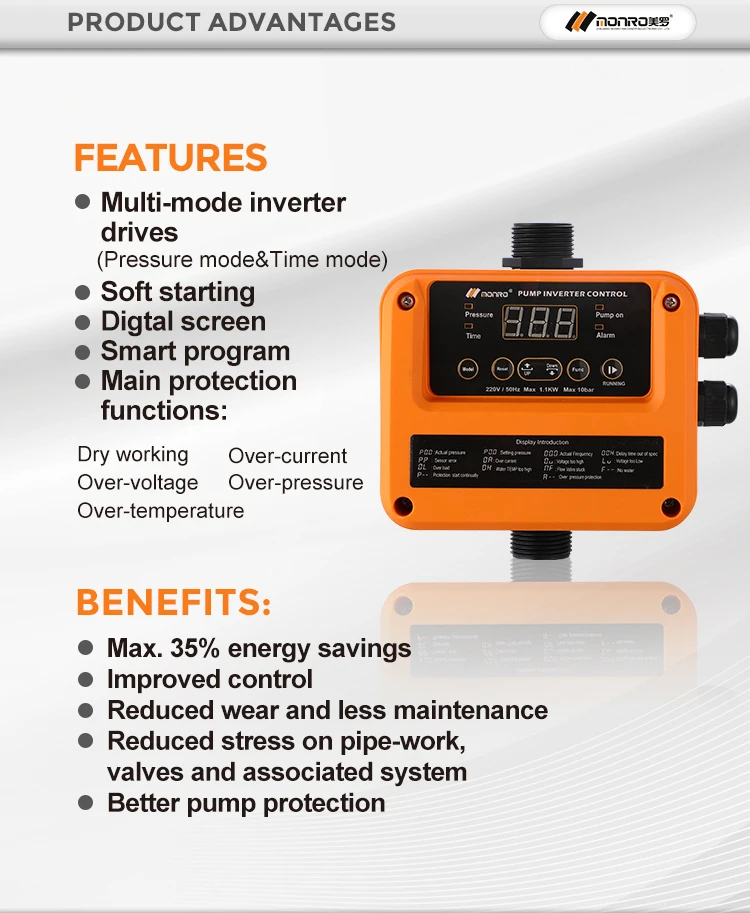

Monro IPC (Inverter Pump Control) series, is also called VFD (Variable Frequency Drive) pump control,it works to control how a pump is used. The variable frequency drive ensures it supplies a CONSTANT PRESSURE - within the ability of the pump - according to the flow rate. The inverter pump control can be treated as the pump “protector”, which increase the lifespan of a pump. Firstly, its soft starting comes to reduce wear and tear on the pump. Secondly, variable frequency drive can save energy due to the reduced use of the pump, resulting in less money spent on electricity. Thirdly, its multi protection functions promise a good performance of a control. So choose an inverter pump control is vitally important.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

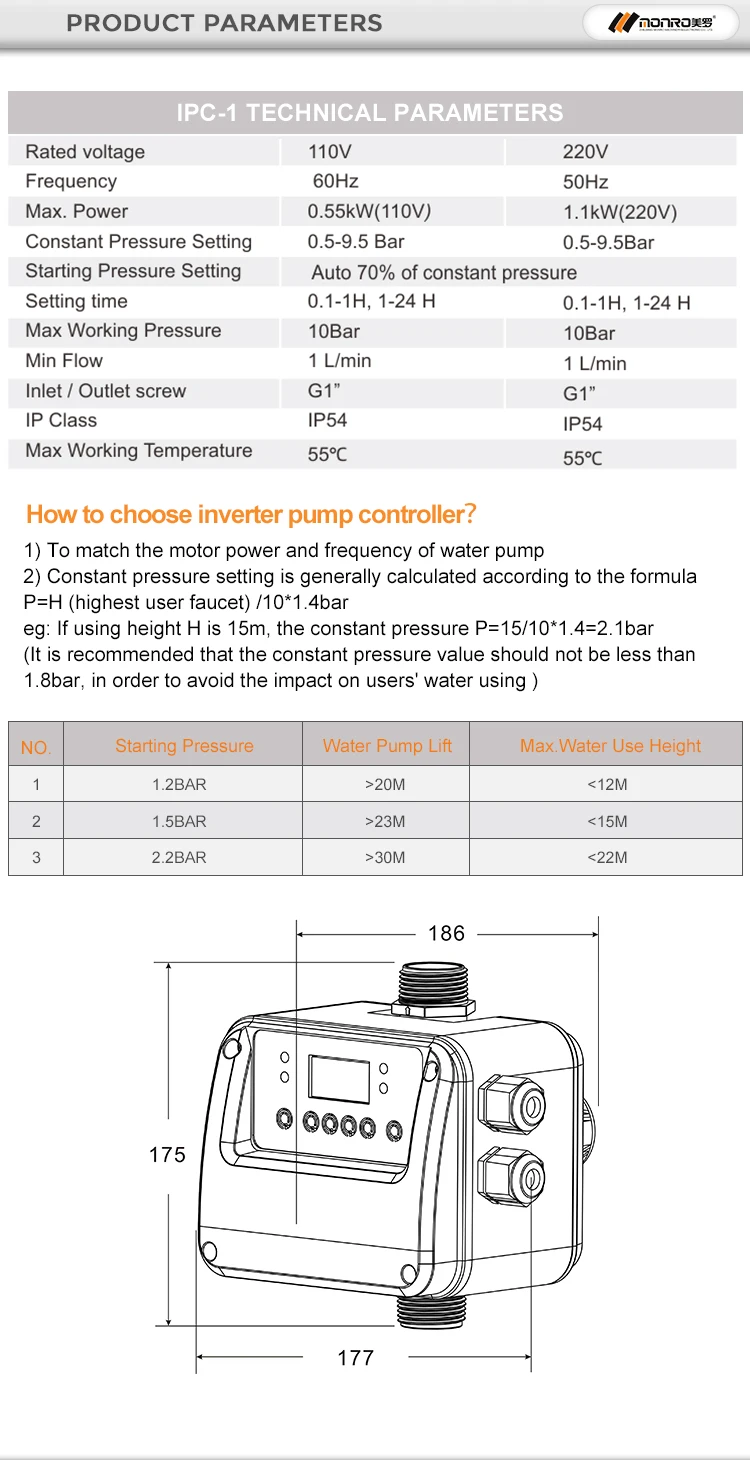

PRODUCT SPECIFICATIONS
No | Rated voltage | 110V | 220V | ||
1 | Frequency | 60Hz | 50Hz | ||
2 | Max. power | 0.55kW | 1.1kW | ||
3 | Constant pressure setting | 0.5-9.5bar | 0.5-9.5bar | ||
4 | Starting presure setting | auto 70% of constant pressure | |||
5 | Setting time | 0.5-1H;1-24H | 0.5-1H;1-24H | ||
6 | Max working pressure | 10bar | 10bar | ||
7 | Min Flow | 1L/min | 1L/min | ||
8 | Inlet/Outer screw | G1" | G1“ | ||
9 | Protection rating | IP54 | IP54 | ||
10 | Max working temperature | 55℃ | 55℃ | ||
（How to choose inverter pump controller?）
1) To match the motor power and frequency of water pump
2) Constant pressure setting is generally calculated according to the formula P=H (highest user faucet) /10*1.4bar
eg: If using height H is 15m, the constant pressure P=15/10*1.4=2.1bar
1) To match the motor power and frequency of water pump
2) Constant pressure setting is generally calculated according to the formula P=H (highest user faucet) /10*1.4bar
eg: If using height H is 15m, the constant pressure P=15/10*1.4=2.1bar
NO | Starting pressure | Water Pump Lift | Max. Water Use Height |
1 | 1.2BAR | >20M | <12M |
2 | 1.5BAR | >23M | <15M |
3 | 2.2BAR | >30M | <22M |

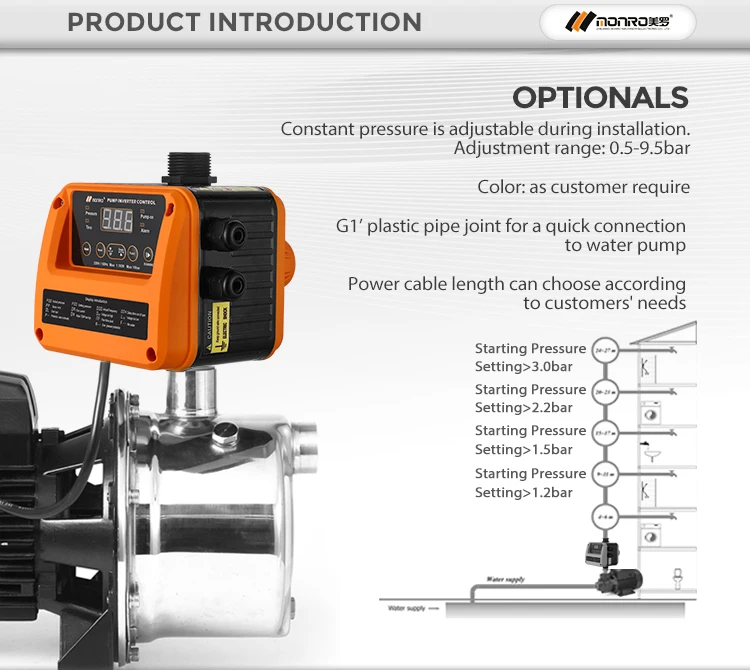

(It is recommended that the constant pressure value should not be less than 1.8bar, in
order to avoid the impact on users' water using )
order to avoid the impact on users' water using )

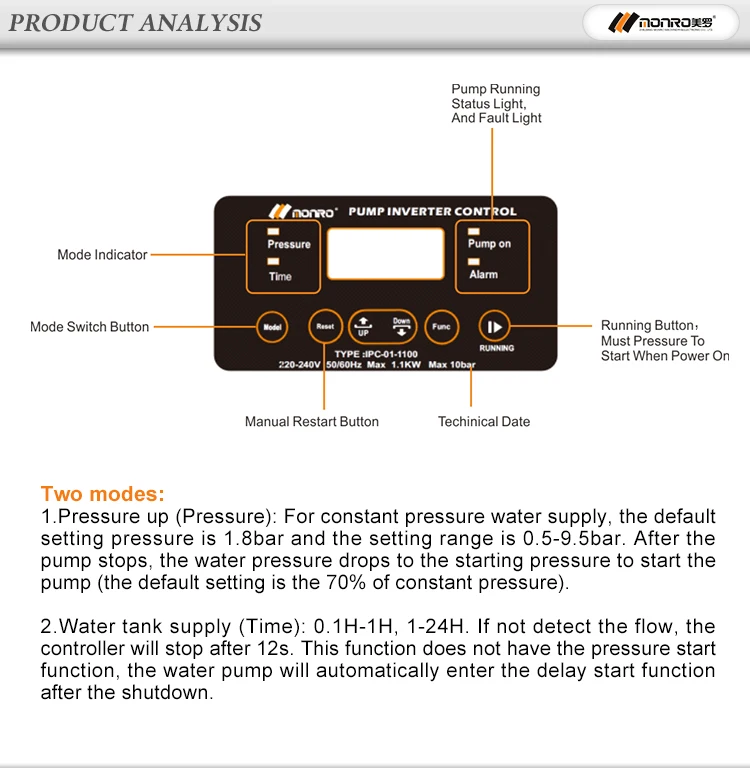

Two modes：
Pressure up (Pressure): For constant pressure water supply, the default setting pressure is 1.8bar and the setting range is
0.5-9.5bar. After the pump stops, the water pressure drops to the starting pressure to start the pump (the default setting is the70% of constant pressure).
Water tank supply (Time): 0.1H-1H, 1-24H. If not detect the flow, the controller will stop after 12s. This function does not have the pressure start function, the water pump will automatically enter the delay start function after the shutdown.
Pressure up (Pressure): For constant pressure water supply, the default setting pressure is 1.8bar and the setting range is
0.5-9.5bar. After the pump stops, the water pressure drops to the starting pressure to start the pump (the default setting is the70% of constant pressure).
Water tank supply (Time): 0.1H-1H, 1-24H. If not detect the flow, the controller will stop after 12s. This function does not have the pressure start function, the water pump will automatically enter the delay start function after the shutdown.
FAQ
Q1. Are you a manufacturer or a trading company?
A: We monro is a top level quality manufacturer for Pressure controller over 10 years.
Q2.What's your payment terms?
A: we accept T/T,L/C,D/A,D/P.
Q3.What's your MOQ?
A: 204pcs for stardard packing (white & black box), 1200pcs for OEM
Q4.Do you test all your goods before delivery?
A: 100% inspection for 3 steps: PCB, performance & package
Q5.What's your delivery time?
A: 45days after Deposit for first order, trial order can be finished within 20days.
Q6.What's your warranty for the pressure controller?
A:1 year warranty for pressure controller, support to solve problem in whole life long.
Q7.Can you provide OEM customization services?
A: Yes, we provide OEM & ODM service, much experience with Famous brand in the field.
A: We monro is a top level quality manufacturer for Pressure controller over 10 years.
Q2.What's your payment terms?
A: we accept T/T,L/C,D/A,D/P.
Q3.What's your MOQ?
A: 204pcs for stardard packing (white & black box), 1200pcs for OEM
Q4.Do you test all your goods before delivery?
A: 100% inspection for 3 steps: PCB, performance & package
Q5.What's your delivery time?
A: 45days after Deposit for first order, trial order can be finished within 20days.
Q6.What's your warranty for the pressure controller?
A:1 year warranty for pressure controller, support to solve problem in whole life long.
Q7.Can you provide OEM customization services?
A: Yes, we provide OEM & ODM service, much experience with Famous brand in the field.
