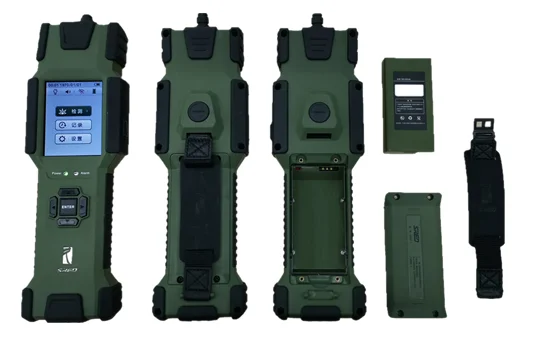

IWILDT AN-SR3300 portable explosive detector

Product introduction

Iwildt an-sr3300 portable explosive detector is a micro trace explosive detector with fluorescence sensitive film material as the core technology. The instrument realizes high sensitive detection of the object to be measured by detecting the change of fluorescence intensity when the film is stimulated by radiation. The equipment is small in size, light in weight and easy to carry. It can quickly and accurately detect explosives through wiping inspection. Simple operation without professional training. Small size; Ultra high sensitivity; Explosive detection; Fast sensing response; Easy to operate;

The equipment can collect volatile or residual explosive components on the surface of the tested object through direct air sampling for detection, so as to determine whether the tested object has hidden explosives inside or whether its surface has been in contact with explosives.

The equipment shall have the inspection report issued by the product quality supervision and inspection center of the national security alarm system / the quality inspection center of security and police electronic products of the Ministry of public security;

Liquid type

The dangerous liquids that the instrument can detect include: trinitrotoluene (TNT), dinitrotoluene (DNT), RDX, nitroglycerin (NG), triperoxide (TATP), PETN, an, BP, HMX, tetryl, NT, MNT, Gina, HNS, at Hexamethoxyamine (hmtd), plastic explosive C4 and other dangerous goods;

Place of use

The instrument can be widely used in public security security inspection, armed police anti-terrorism investigation, court law enforcement and evidence collection, etc.

Transportation department: safety inspection in railway, station, airport, subway, port, port border inspection and customs and other important areas;

Product parameters

Host size: less than or equal to 332mm (L) x 90mm (W) x 46mm (H)

Sampling method: it has two sampling methods: aspirating and wiping

Enclosure protection: the equipment has good enclosure protection, and the protection grade meets the requirements of ip50 in gb4208-2008;

Equipment startup time: ≤ 2.7 seconds;

False alarm rate: ≤ 1%

Detection rate: on the premise that the detection rate of the equipment is greater than or equal to 90%, the detection limit of the instrument for TNT can reach 0.1ng (100PG), belonging to peak level

Equipment alarm response time: ≤ 1.3s;

Recovery time after equipment alarm: ≤ 3.8 s;

Equipment overload recovery time: ≤ 5 seconds, or equipment to 1 μ G TNT samples shall be sampled and analyzed, and the time from the end of the alarm to the recovery of readiness shall be less than or equal to 5S;;

Equipment alarm mode: at the same time, it has sound, graphics, light, characters, wireless and other alarm prompts. The alarm mode can be modified by authorized users. It has hidden alarm (headset prompt);

The weight of equipment host (excluding battery and sampler) ≤ 0.78 kg, which is easy to carry and work for a long time;

Requirements for operating environment conditions: temperature: -20oc ~ +55 OC; Humidity: ≤ 95% (no condensation);

Storage temperature: temperature: -30oc ~ +65 OC;

220V power supply or battery power supply mode shall be used for the equipment: the standby working time shall be ≥ 10 hours after the battery is saturated charged, and the detection times shall be greater than or equal to 120 times.

The equipment can be charged in three ways: the host of the equipment can be charged by connecting the mains (220V AC) through the power adapter, connected to the on-board charger, and the host battery can be charged by connecting to the charging base;

Management authority requirements: the time and password of the instrument can be set and modified by authorized users.

With wireless communication function;

The alarm sound level shall be adjustable, and the maximum alarm sound level shall be greater than or equal to 80dB (a).

Alarm threshold parameters can be set and modified by authorized users;

The equipment has self inspection and failure alarm functions;

The equipment shall sample and analyze TNT samples with a sampling quality of 100ng, and the equipment shall work normally for more than 50 times without replacing the sensitive devices coated with fluorescent polymers in the equipment.

The equipment has the functions of real-time storage, retrieval and export of data, and the storage capacity shall not be less than 100000 times

The equipment has a built-in communication module, which can be networked through WiFi. After the equipment alarms, the alarm information can be immediately uploaded to the background management system.

The equipment can be reset automatically or manually after alarm;

Why choose Wuhan Aiwei Technology Co., Ltd. ?

^{1.National high-tech enterprises
2.Wuhan famous brand products}
_{3..To improve customer service system to provide customers with high quality pre-sale, sale, after-sales service and professional technical support is our mission, and provide the overall solution and the whole process of support services.}

Trade Shows



Q1: Are you a factory or trading company?
A: We are the biggest professional manufacturer of security equipment with almost 15 years experiences in Shenzhen china.

Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.

Q3: What is your leadtime?
A: 3-7 working days after received the payment.

Q4: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification

Q5: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support.
