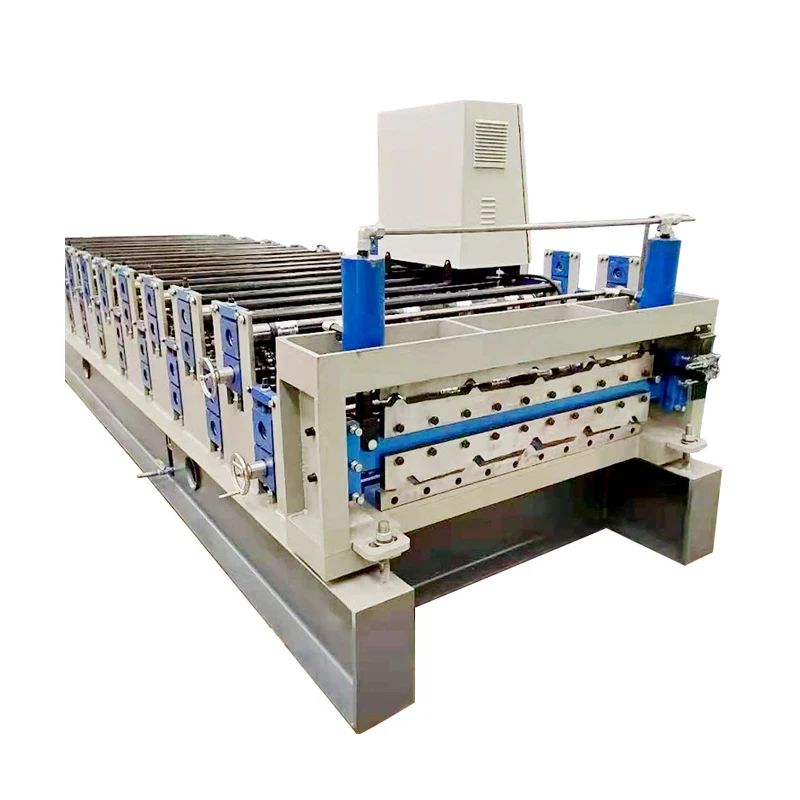

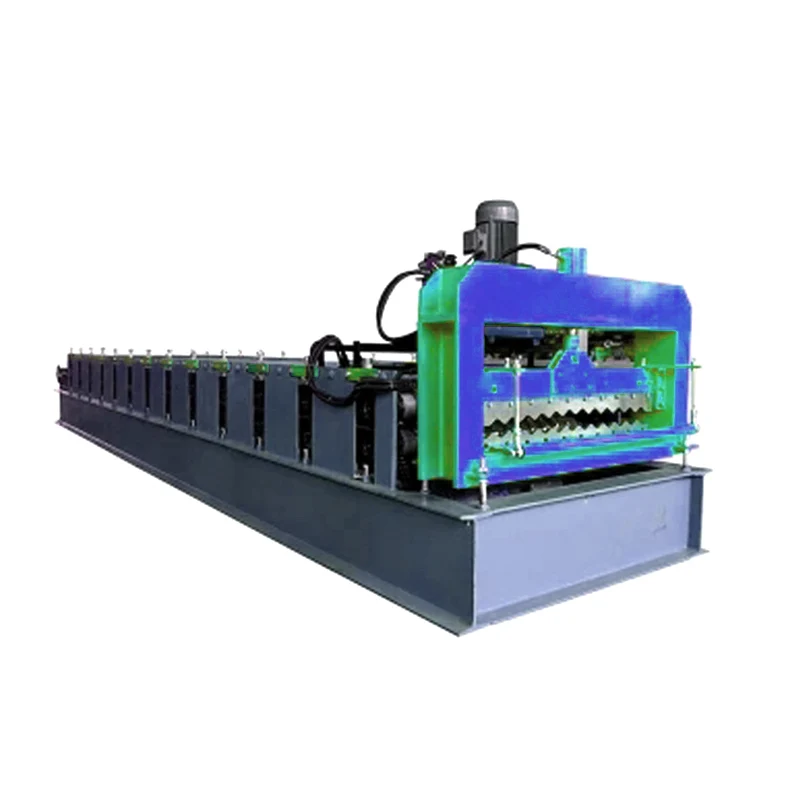

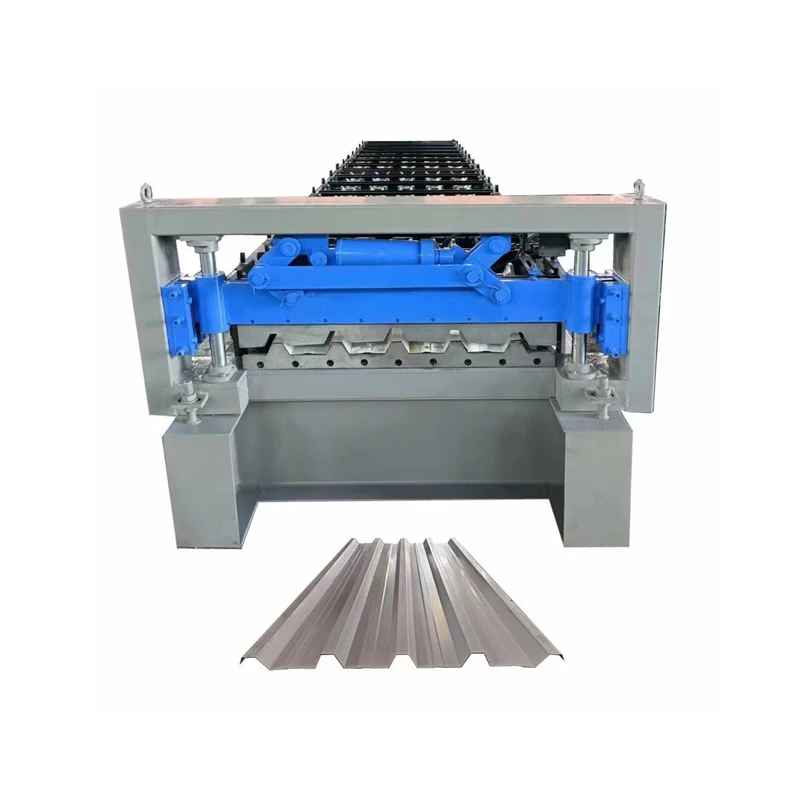

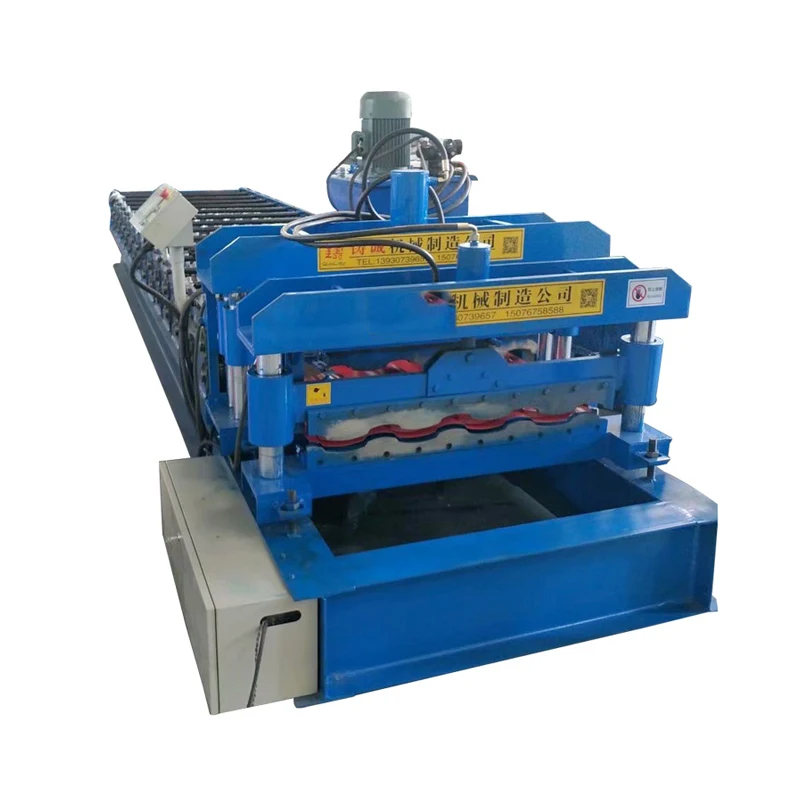

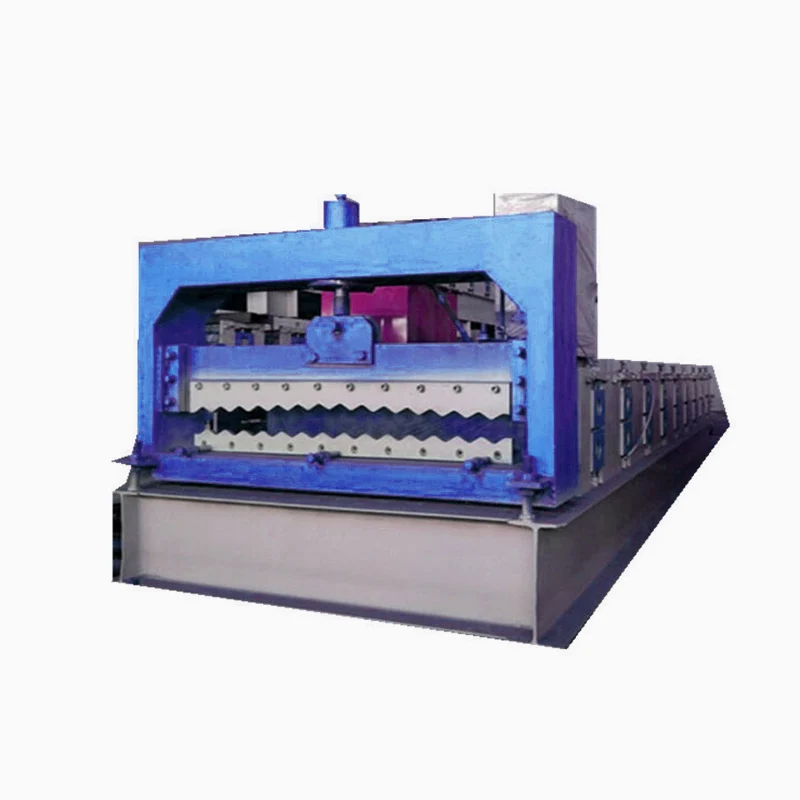

Машина для прокатки листового металла
US $10000
Черепица для крыши, оборудование для строительных материалов, металлическая черепица, машина для формовки рулонов
- Категория товара: Tile Making Machinery >>>
- Поставщик (Оптовый магазин): Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

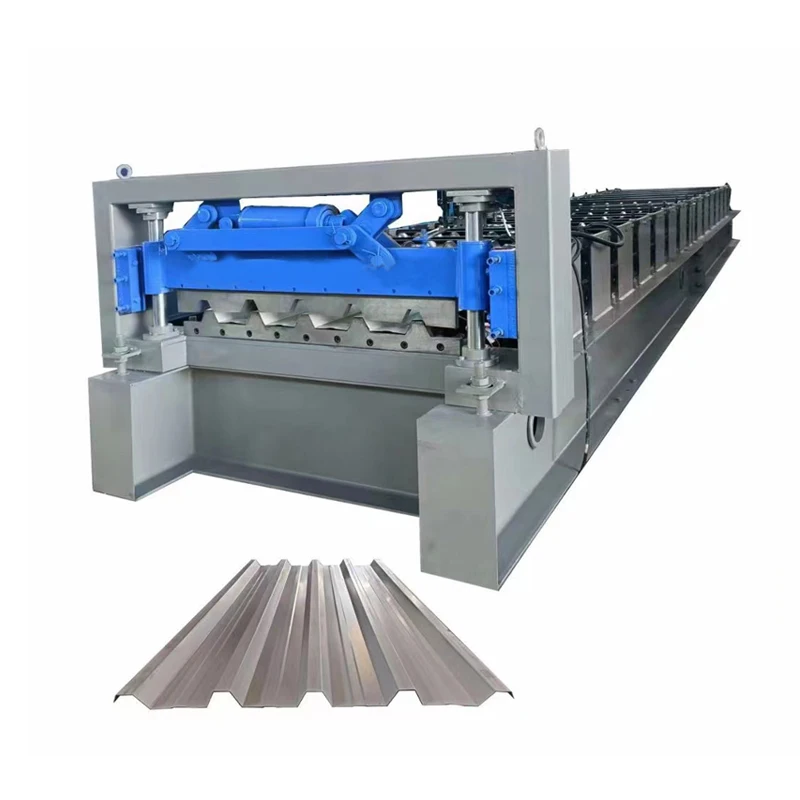

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Product Description
Roll Forming Machine
Yugong Sheet Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.25mm to 0.8mm. We adopt 16mm thick wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
Product Application

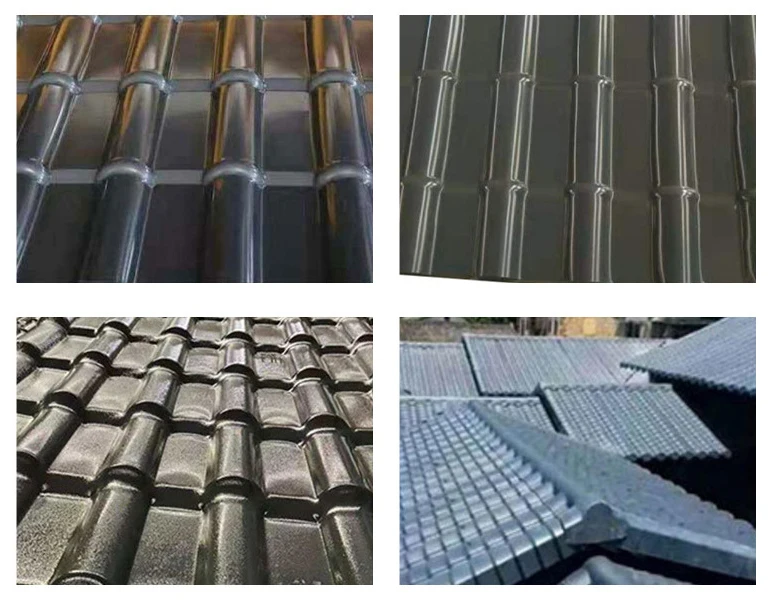

Color Steel Tile Forming Machine

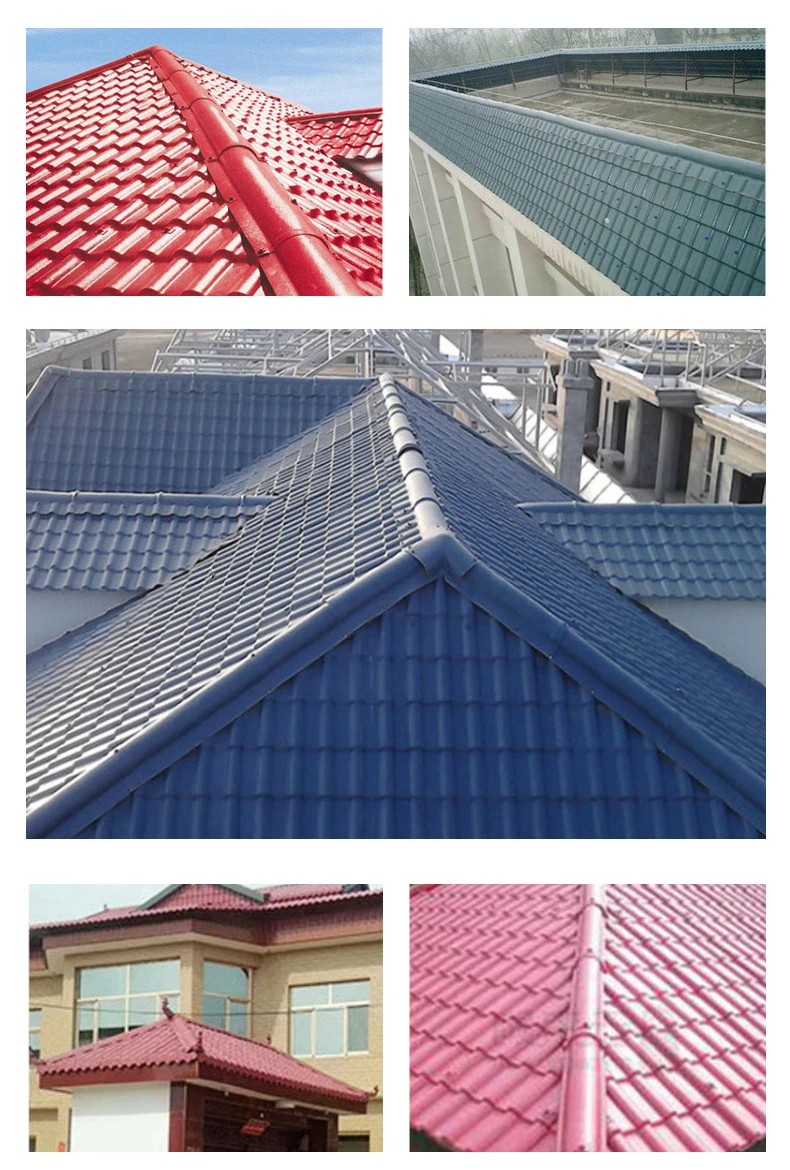

The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Parameter
Main parameter of Yugong Cold Steel Corrugated Iron Sheet Roofing Tile Making Forming Machine | ||
Suitable to process | Color steel plate | |
Width of the plate | 1250mm | |
Rollers | 14rows | |
Dimensions | 7.8*1.5*1.4m | |
Power | 4KW | |
Thickness of the plate | 0.3~0.8mm | |
Productivity | 8~15m/min | |
Diameter of the roller | Φ75mm | |
Weight | 5600Kg | |
Voltage | 380V 50Hz 3phases | |
Rolling material | Carbon Steel 45# | |
Material of the cutting plate | Cr12 | |
Processing precision | Within 1.00mm | |
Control system | PLC control | |
Side panel of machine | 14mm | |
Main structure of the machine | 450H Beam | |
Product Advantages
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

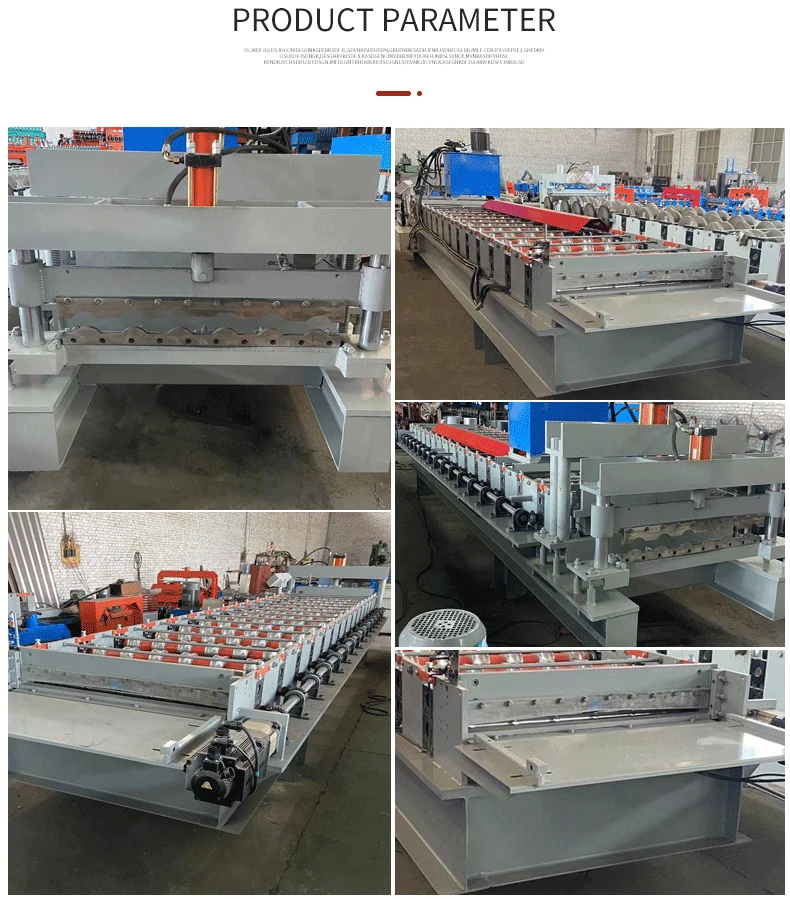

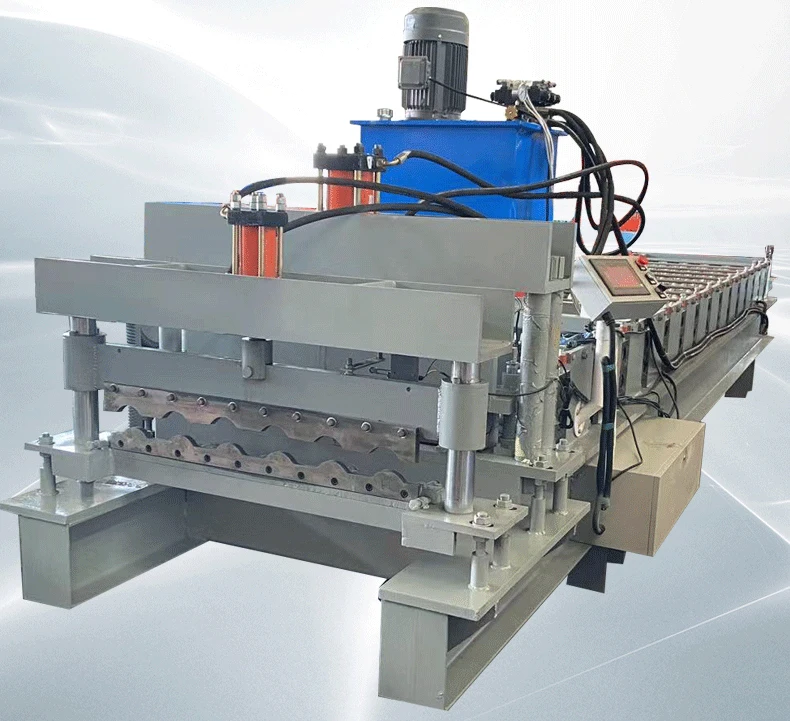

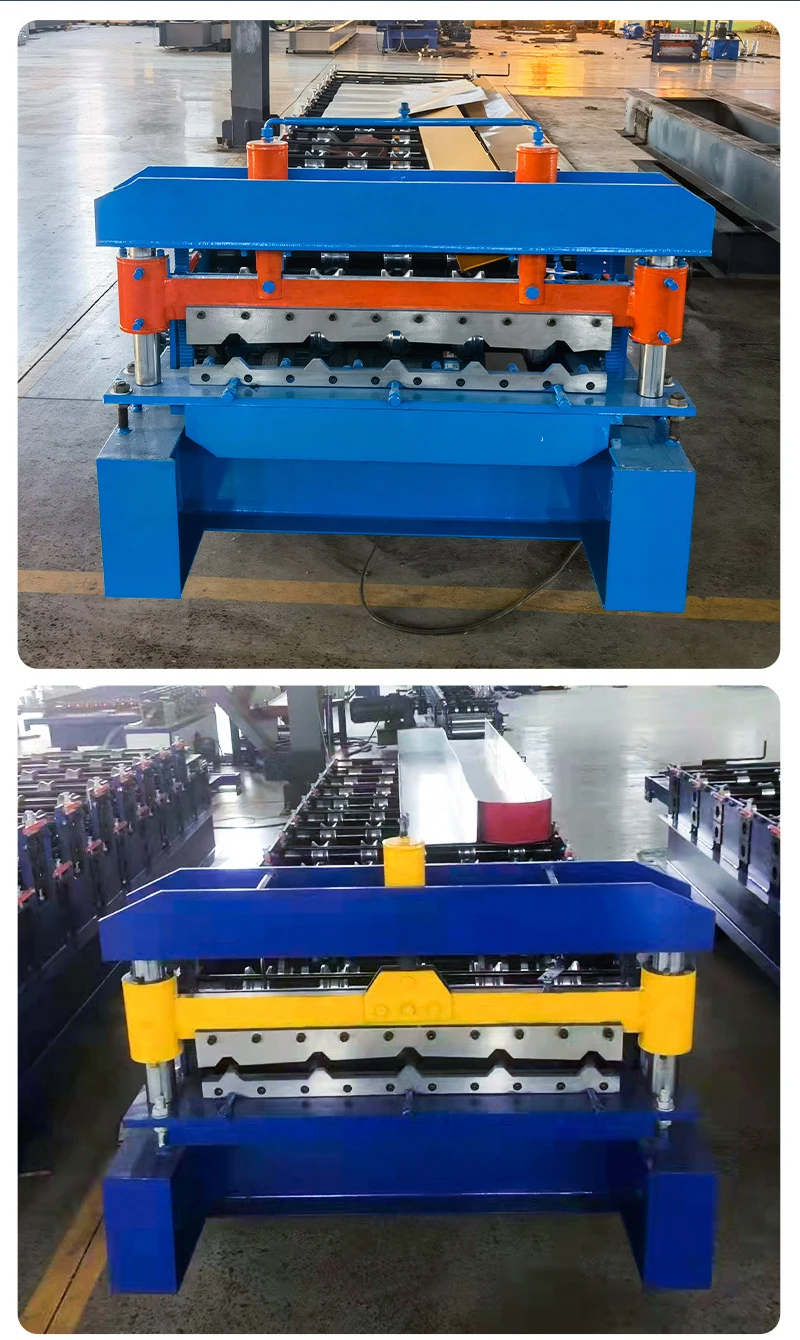

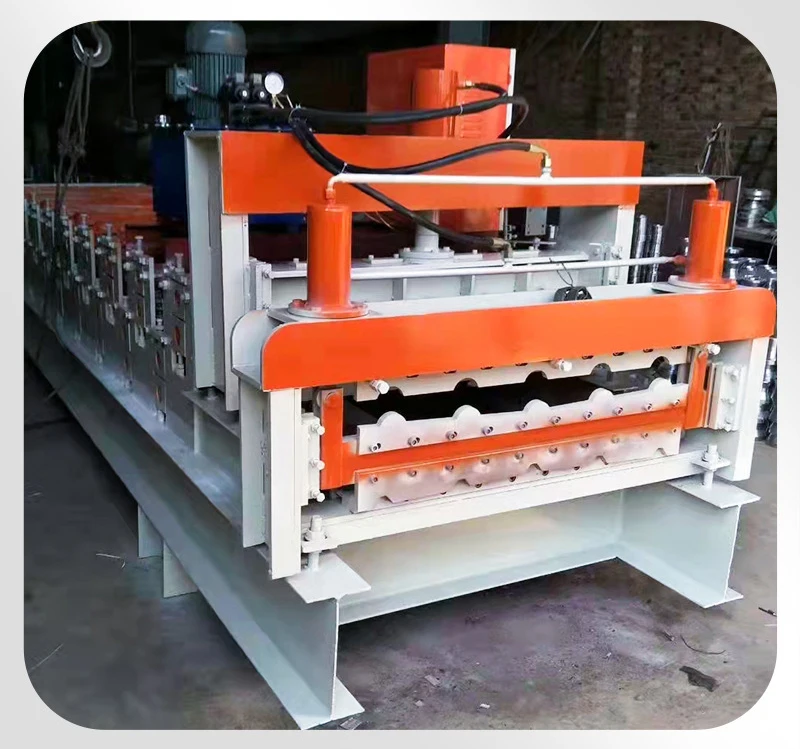

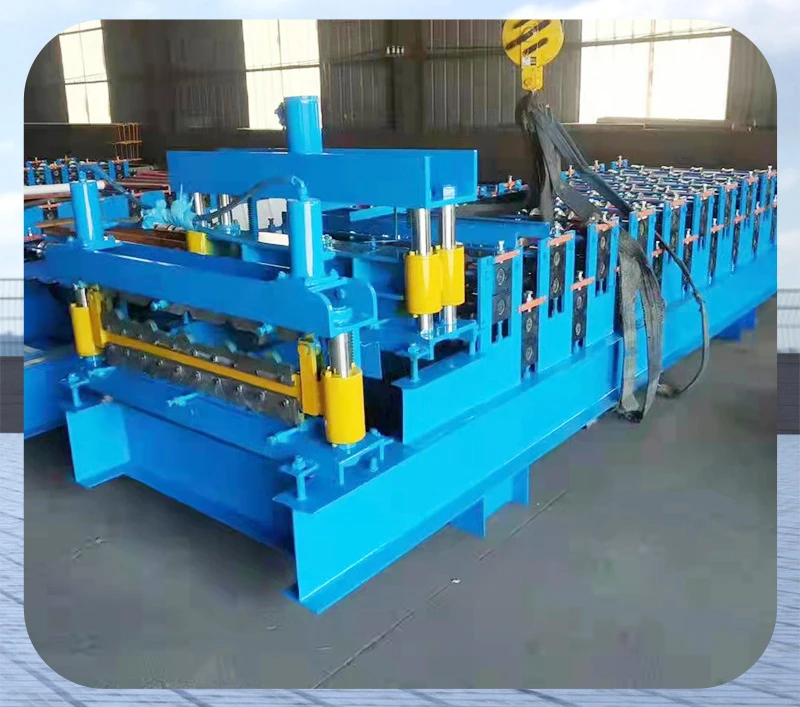

Product Real Shot

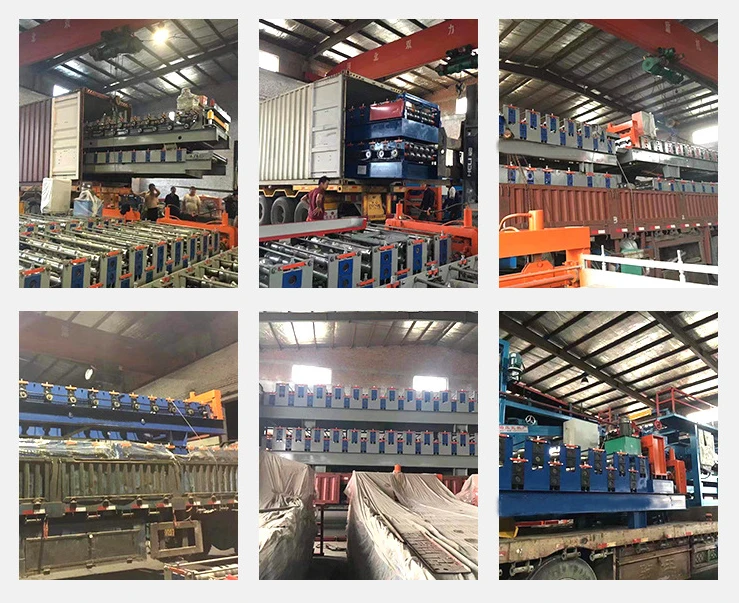

Product Packaging
Packaging And Delivery
1. Machines need one 20/40 feet container to load .
2. We have professional technicians for loading to make sure machine has no damage.
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
2. We have professional technicians for loading to make sure machine has no damage.
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
