OEM 635nm лидар дальний Высокоточный лазер лазерный прибор для определения дистанции 100 м Радарный промышленного класса лазерный дальномер модуль
- Категория товара: Sensors >>>
- Поставщик (Оптовый магазин): Dongguan,Xinchangda,Precision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Laser ranging sensor/module selection table | ||||||||||||||||||
working principle | Phase method | TOF pulse | ||||||||||||||||
Principle characteristics | Accurately measure the distance value, with an accuracy of 0.5-2mm, and a measurement rate of up to 30Hz | Quickly measure the distance value. Speed 100-3500Hz, error centimeter level | ||||||||||||||||
Product number | SK-60 | SK-100 | SK-A100 | SK-Pro | SK-07 | SK-12 | SK-20 | SK-40 | SK-1000 | |||||||||
Indoor（m） | 60 | 100 | 100 | 30/60/ 100 | 7 | 12 | 20 | 40 | 600 | |||||||||
Outdoor(m) | 40 | 60 | 60 | * | * | 35 | ||||||||||||
Accuracy (mm) | 2 | 0.5 | 5 | 50 | 30 | 30 | 500 | |||||||||||
Maximum frequency (Hz) | 3 | 30 | 200 | 500 | 3500 | 3500 | 10 | |||||||||||
Interface | TTL | TTL/RS232/RS485/4-20mA/0-10V /IO/Canbus | TTL | TTL/RS232/RS485/4-20mA/ /IO/CAN/ⅡC | TTL/485 | |||||||||||||
Light source | 635nm visible red laser | 850nm LED | 905nm Invisible laser | |||||||||||||||
Working temperature (°C) | -40～60 | -20～60 | -10～60 | -20～60 | -40～85 | -10～50 | ||||||||||||
Weight(g) | 9 | 13 | 115 | 560 | 7 | 5 | 39 | 39 | 37 | |||||||||
Length mm | 48 | 63 | 90 | 112 | 31 | 42 | 45 | 50 | ||||||||||
Width mm | 26 | 40 | 56 | 70 | 16 | 15 | 40 | 43 | ||||||||||
Height（mm） | 13 | 18 | 28 | 55 | 24 | 17 | 40 | 26 | ||||||||||
Shell | None | Aluminum shell | Plastic | None | ||||||||||||||

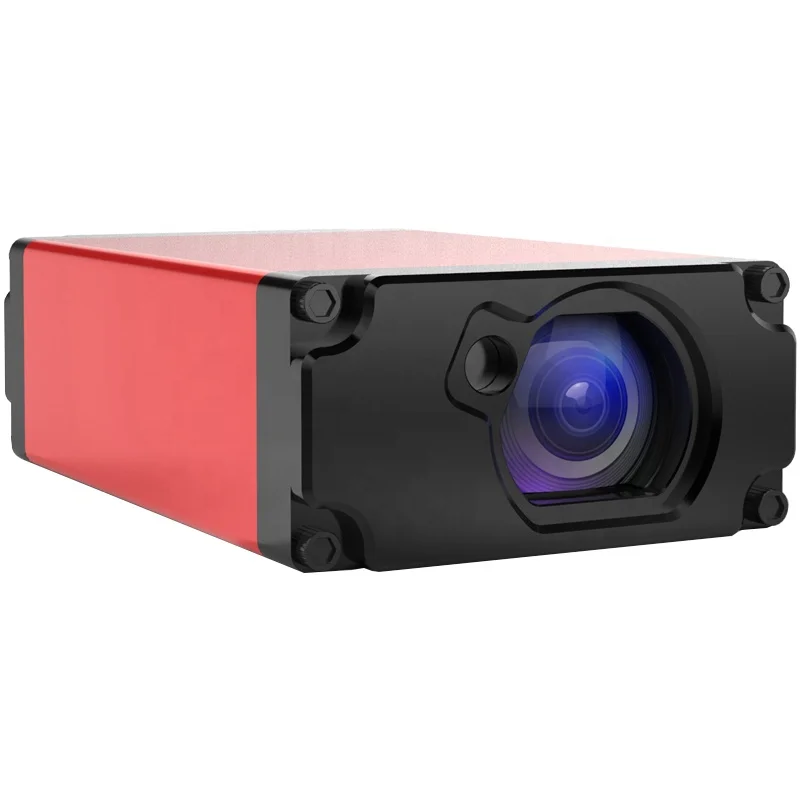

OEM 635nm Lidar Long Range High Precision Lazer Laser Distance Sensor 100M Radar Industrial Grade Laser Rangefinder Module

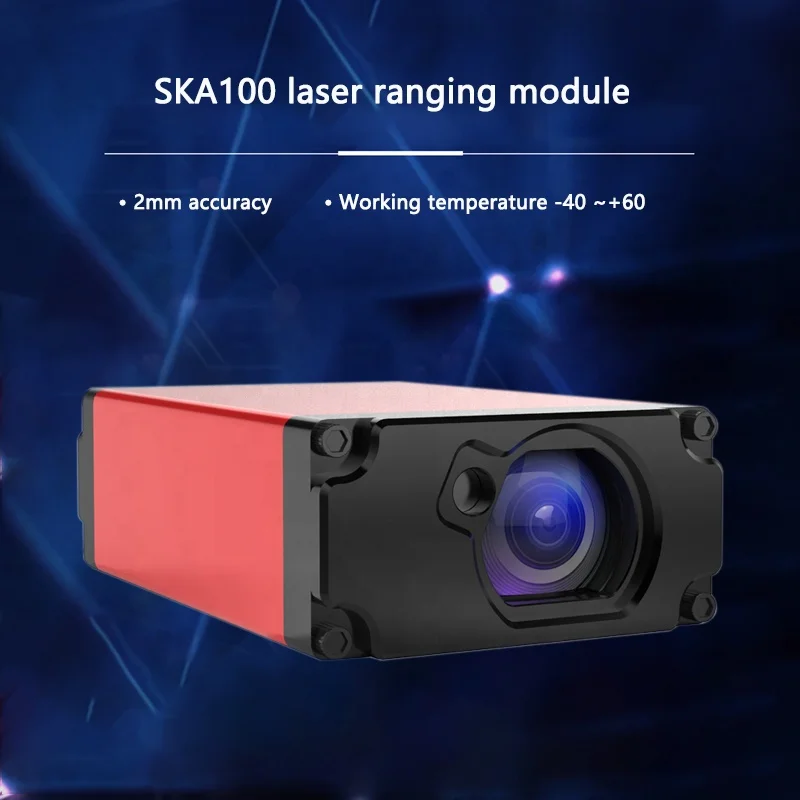

Laser ranging sensor
SK-A100 series laser ranging sensor adopts the laser phase method ranging principle. Through laser emission and reception, the distance between natural targets can be measured quickly and accurately in a non-contact manner.
PRODUCT SPECIFICATIONS
Performance parameter | ||||||
Model | SK-A100 | SK-Pro60 | SK-Pro100 | |||
Measuring range | 0.03-100m | 0.05~60m | 0.05~100m | |||
Measuring rate | 3Hz | |||||
Light source | 635nm Visible Red Laser Class II Eye Safety | |||||
Mechatronics parameters | ||||||

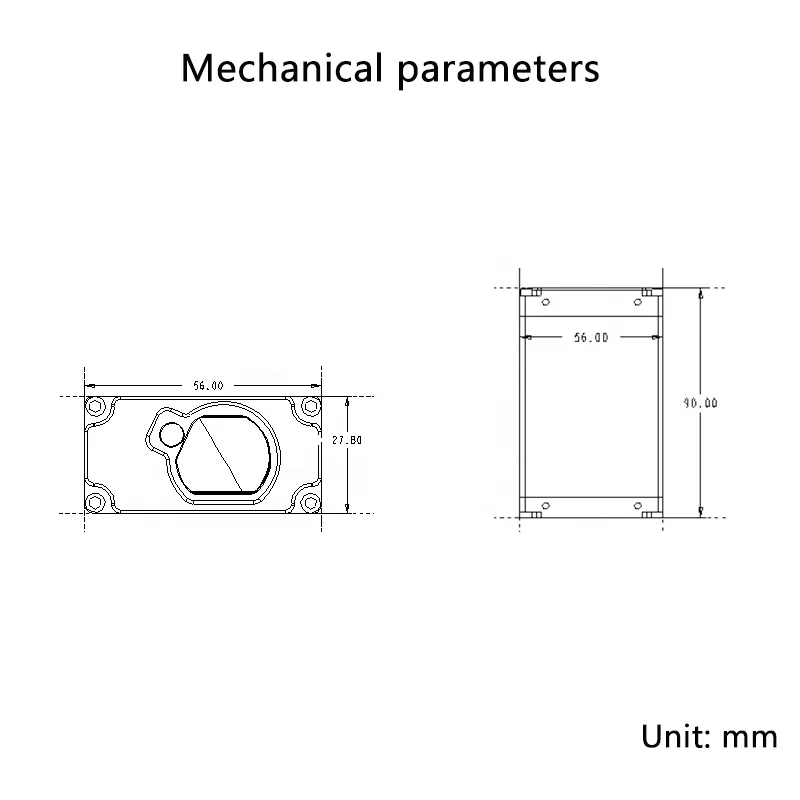

Supply voltage | DC8~24V | Specification size L*W*H | 90×56×27.8mm | |||
Power consumption | ＜0.85W | Enclosure rating | IP65 | |||
Shell material | Aluminum | Weight | 145g | |||
Data interface | ||||||
Digital interface | RS485 | With isolation; support up to 128 sets of networking | ||||
RS232 | ||||||
Analog interface | 4-20mA | The corresponding range can be set freely | ||||
0-5V | ||||||
Cable | 1m long 4-core wire | |||||
Way of working | ||
Single measurement | Automatic mode | |
Continuous measurement | Quick test mode | |
Multiple parallel polling mode | Precision test mode | |
FEATURES AT A GLANCE

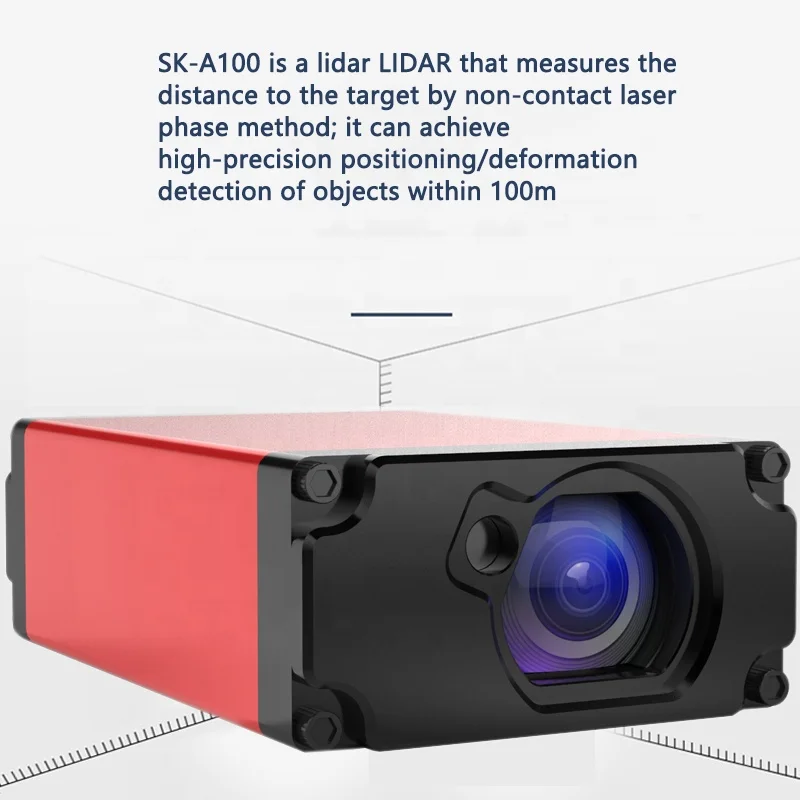

SK-A100 is a lidar LIDAR that measures the distance to the target by non-contact laser phase method; it can achieve high-precision positioning/deformation detection of objects within 100m
SALES AND SERVICE NETWORK
Successful Project
Product Overview
SIMILAR PRODUCTS
FAQ
Q1. Highly Specialized Technical Team
Our R&D Team has solid backgroud required by LiDAR industry, including the optical, mechanics, electronic and algorithm areas. Over 20% of our R&D engineers are graduated from top universities in the world, including University of Washington, University of Toronto, Ecole Centrale Marseille, Wake Forest University, Peking University, Tsinghua University.
Q2. Intellectual Properties
At present, more than 200 patent applications have been filed, including 12 international patent applications. 1 invention patent, 2 design patents in US and 10 invention patents, 61 utility model patents, 24 design patents in China have been authorized.
Q3. Variety of Application Scenarios
Products are mainly applied to UAV, robots, intelligent transport system, level measurement, AGV (warehouse logistics),IoT, security and other application scenarios.
Q4. World Leader in Commercial LiDAR
We have launched different types of LiDAR products including single point series and solid state array series.
Our R&D Team has solid backgroud required by LiDAR industry, including the optical, mechanics, electronic and algorithm areas. Over 20% of our R&D engineers are graduated from top universities in the world, including University of Washington, University of Toronto, Ecole Centrale Marseille, Wake Forest University, Peking University, Tsinghua University.
Q2. Intellectual Properties
At present, more than 200 patent applications have been filed, including 12 international patent applications. 1 invention patent, 2 design patents in US and 10 invention patents, 61 utility model patents, 24 design patents in China have been authorized.
Q3. Variety of Application Scenarios
Products are mainly applied to UAV, robots, intelligent transport system, level measurement, AGV (warehouse logistics),IoT, security and other application scenarios.
Q4. World Leader in Commercial LiDAR
We have launched different types of LiDAR products including single point series and solid state array series.
