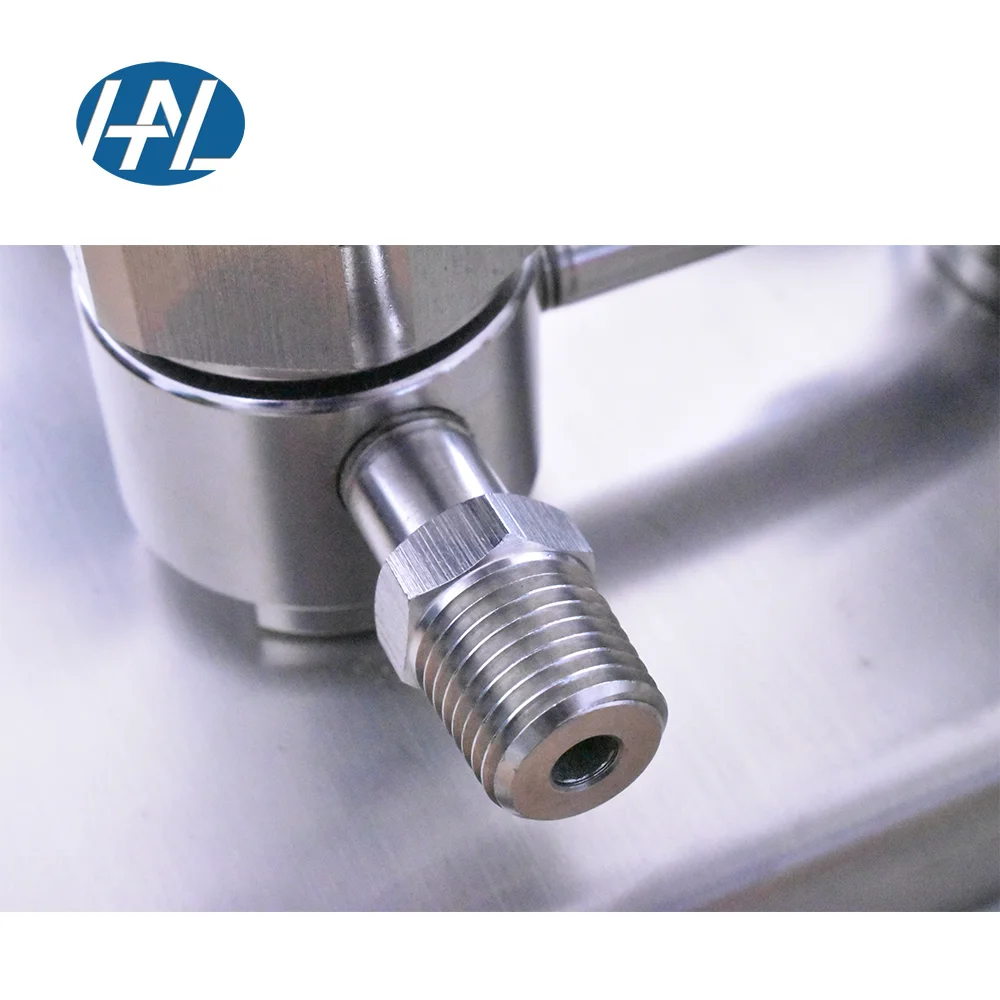

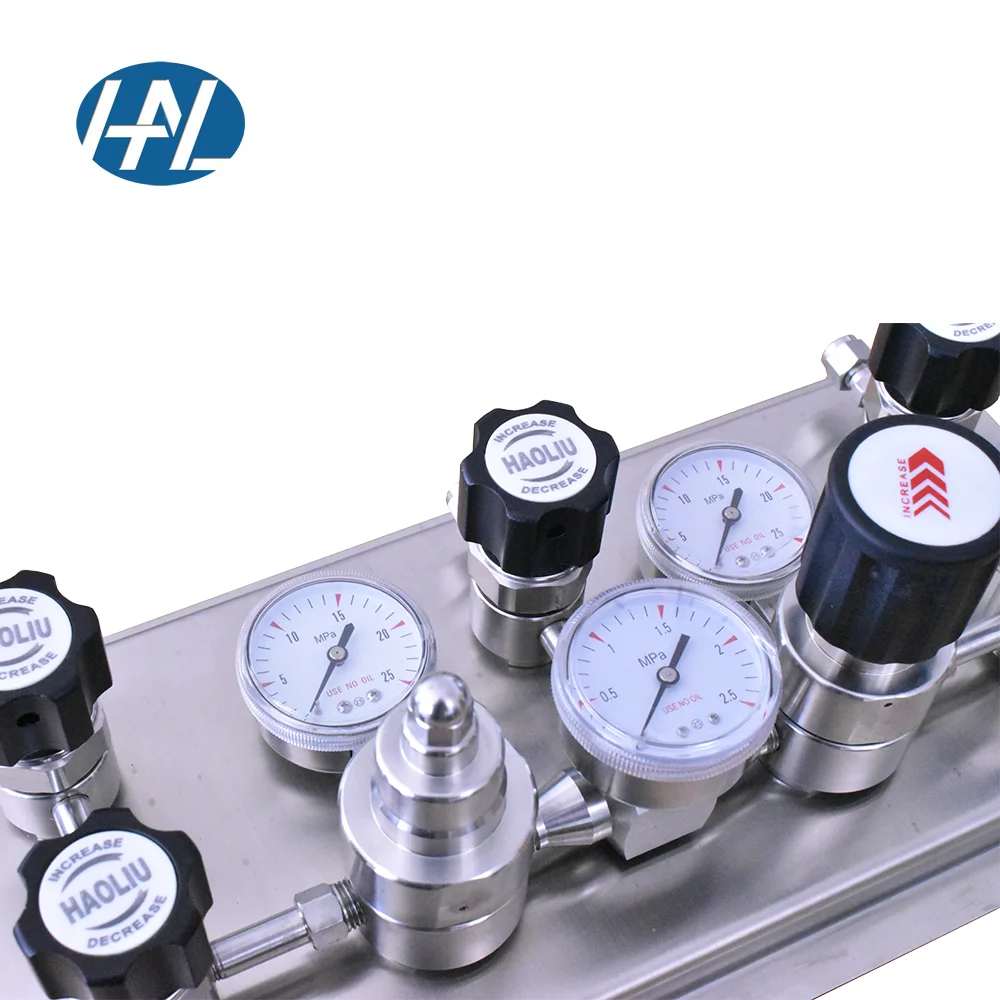

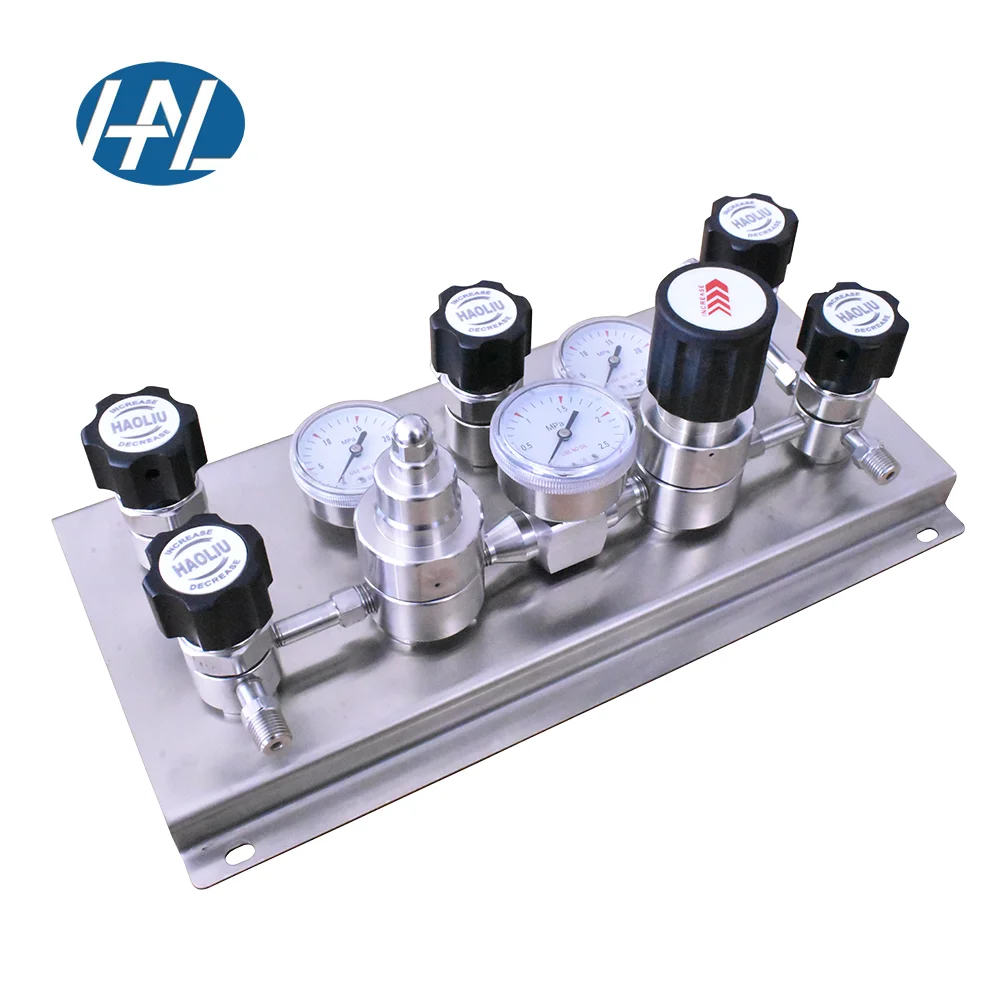

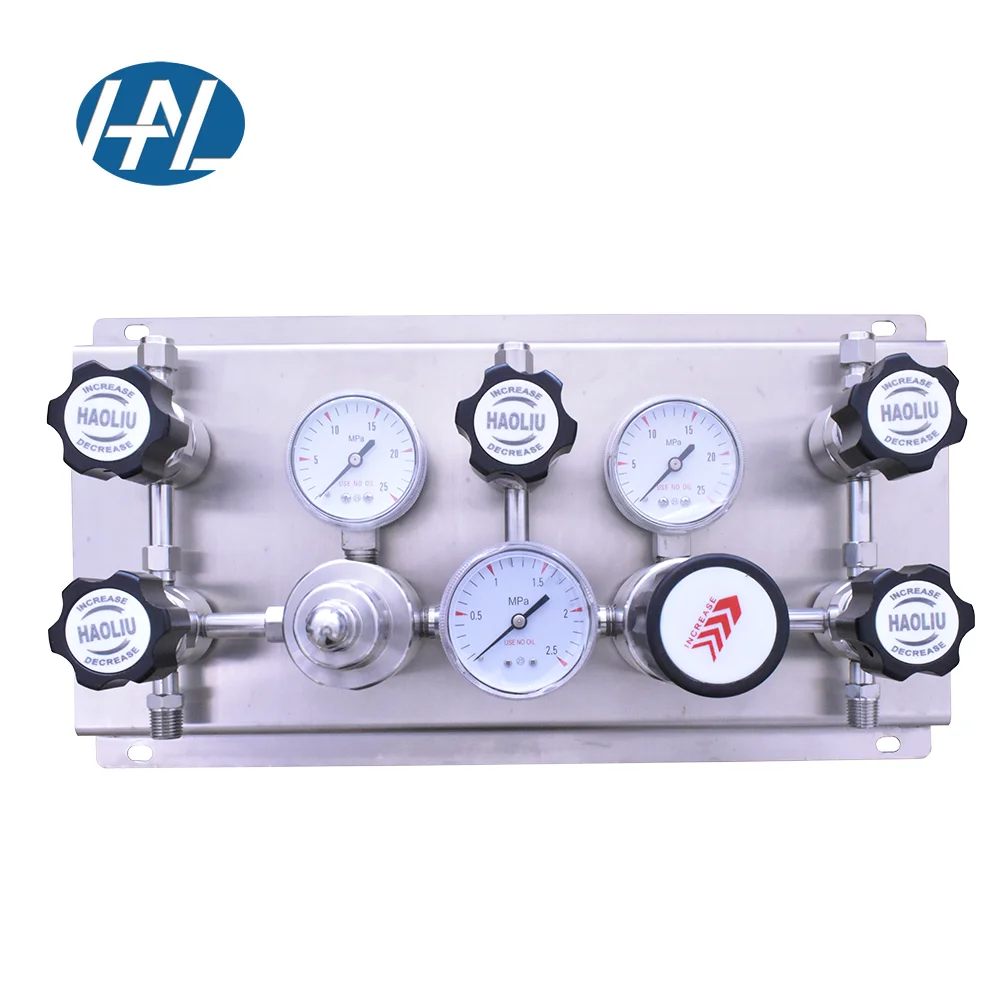

Высококачественный регулятор обратного давления из нержавеющей стали с панелью
- Категория товара: >>>
- Поставщик (Оптовый магазин): Shanghai,Haoliu,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

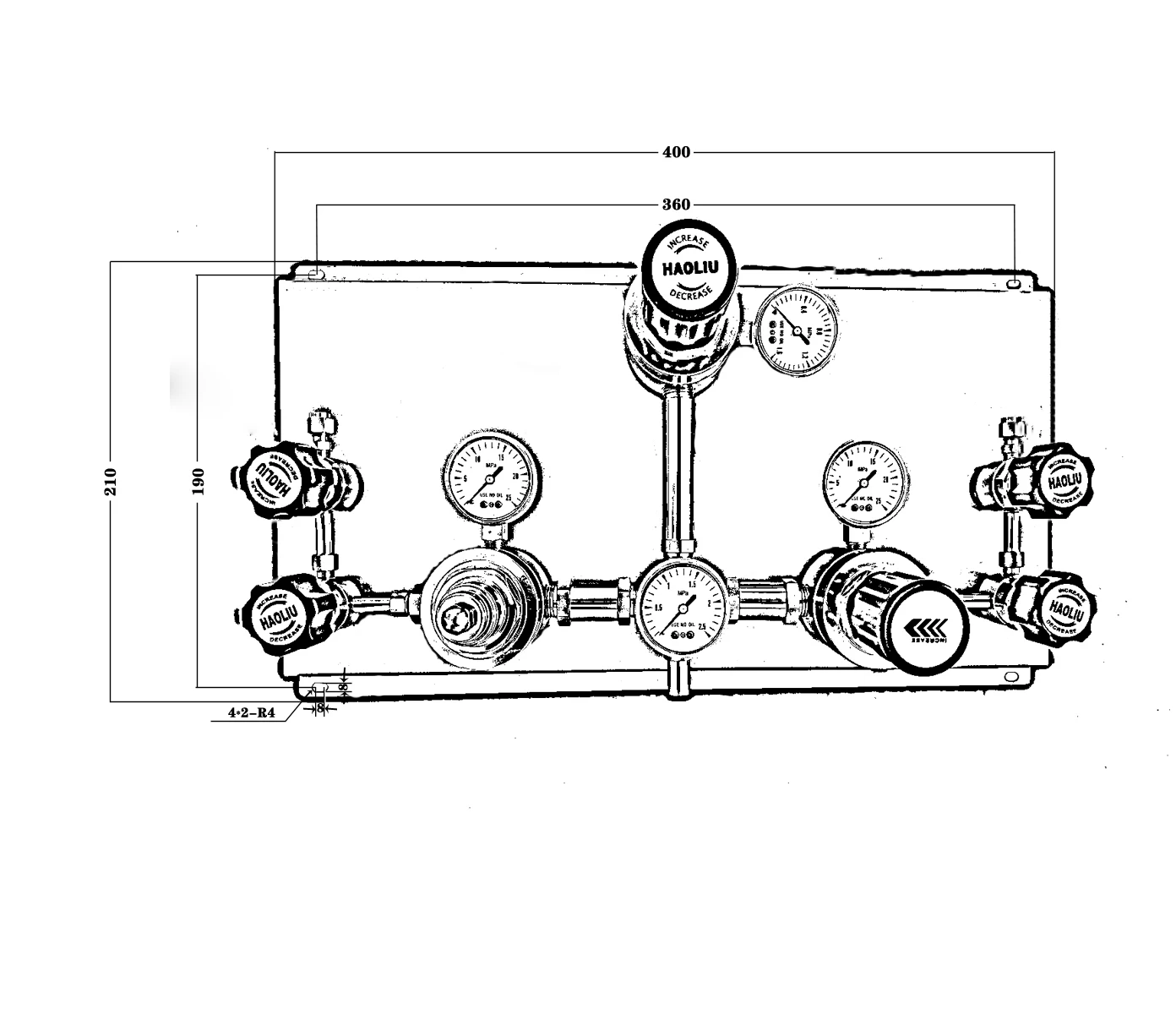

Product Paramenters
Structural features
The pressure reducer and pipeline pass the pressure and leakage test. Automatic switching on both sides, with purge function

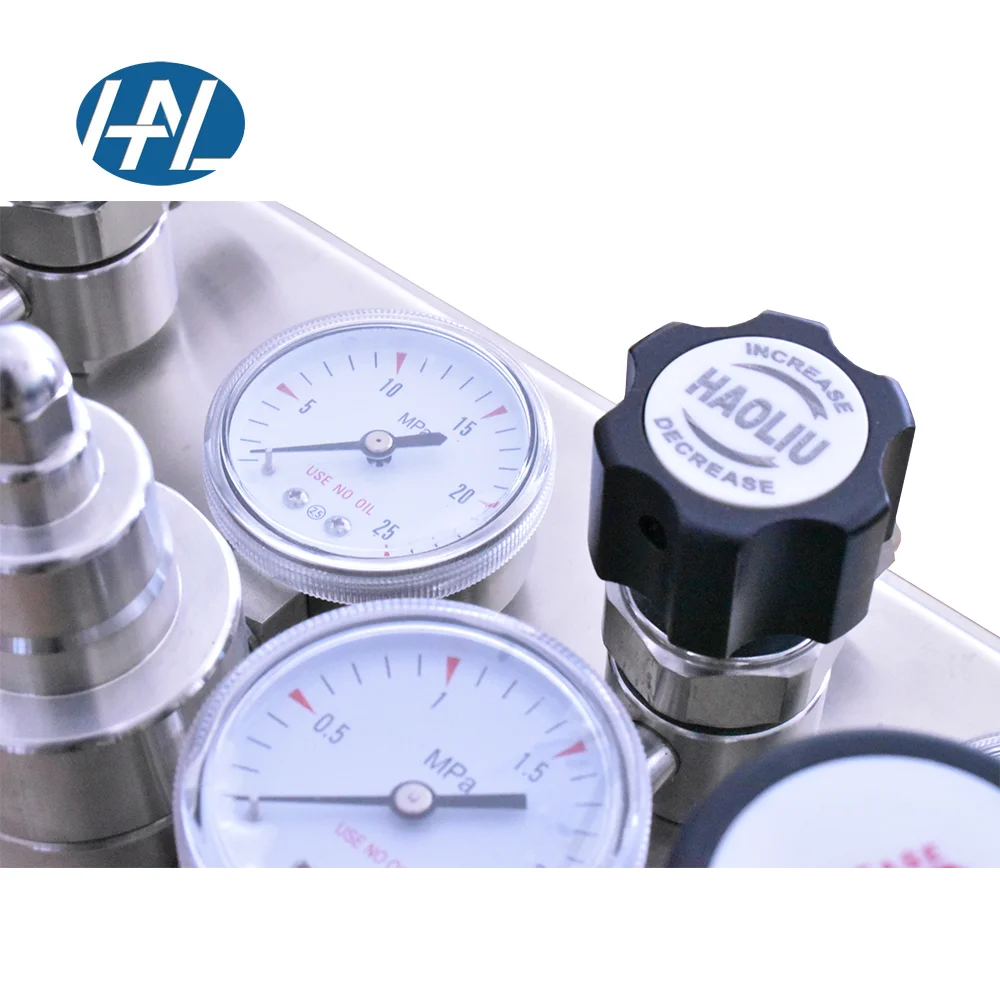

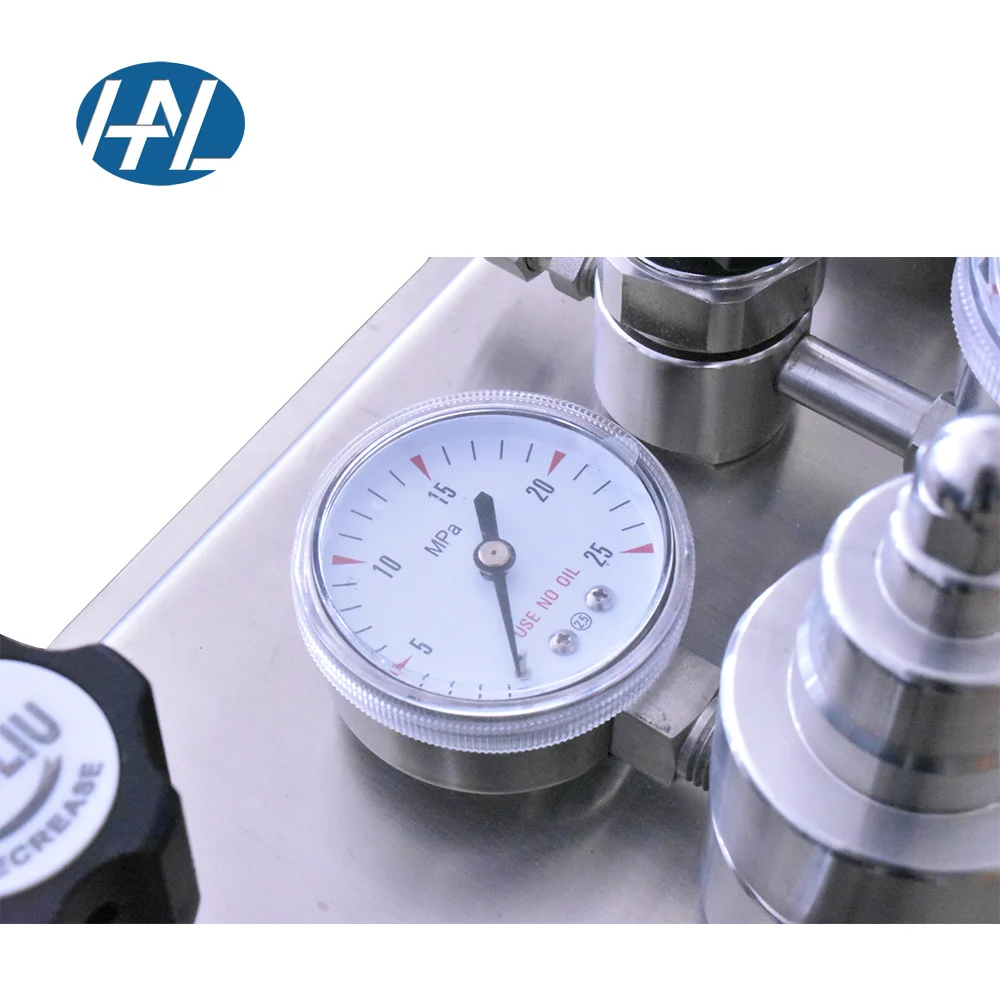

2" stainless steel pressure gauge with clear reading
Structural materials
Valve body: stainless steel
Valve seat: PTFE
Access link: 1/8", 1/4" ferrule
technical parameter
Maximum inlet pressure: 500PSI
Maximum outlet pressure: 20,50,100,150psi
Operating temperature: -40°C~74°C(-40°F-165°F)
Leakage rate ofpressure reducer:Two times ten to the negative eighth power atm.cc/sec He
Cv:0.14
Place of origin | Shanghai |
MQQ | 1 |
Payment method | T/T |
Estimated delivery time | 15 days |
Supply Capacity | 10000 pieces/month |
Packing | Carton |
Products Show
Common sense
Decompression device uses common sense：
1. Install the product on the cylinder, leak detection with soapy water or detection fluid.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.
2. Confirm that the pointer to the pressure gauge is to "0" without pressurization. If you do not point to "0", please stop
the use of the pressure gauge, the product needs to be inspected.
3. Check if impurities or fat dust is left before using theproduct, if impurities and grease remains, please purge.
4. Confirm whether the pressure regulating handle of the gas depression before being placed in the gas in a relaxed state, if thepressure handle of the gas depression is tightened, adjust the handle.
5. When installing the decompression in the gas cylinder, please do not stand in front of the gas depression, need to slowly openthe gas bottle valve.
Product packaging

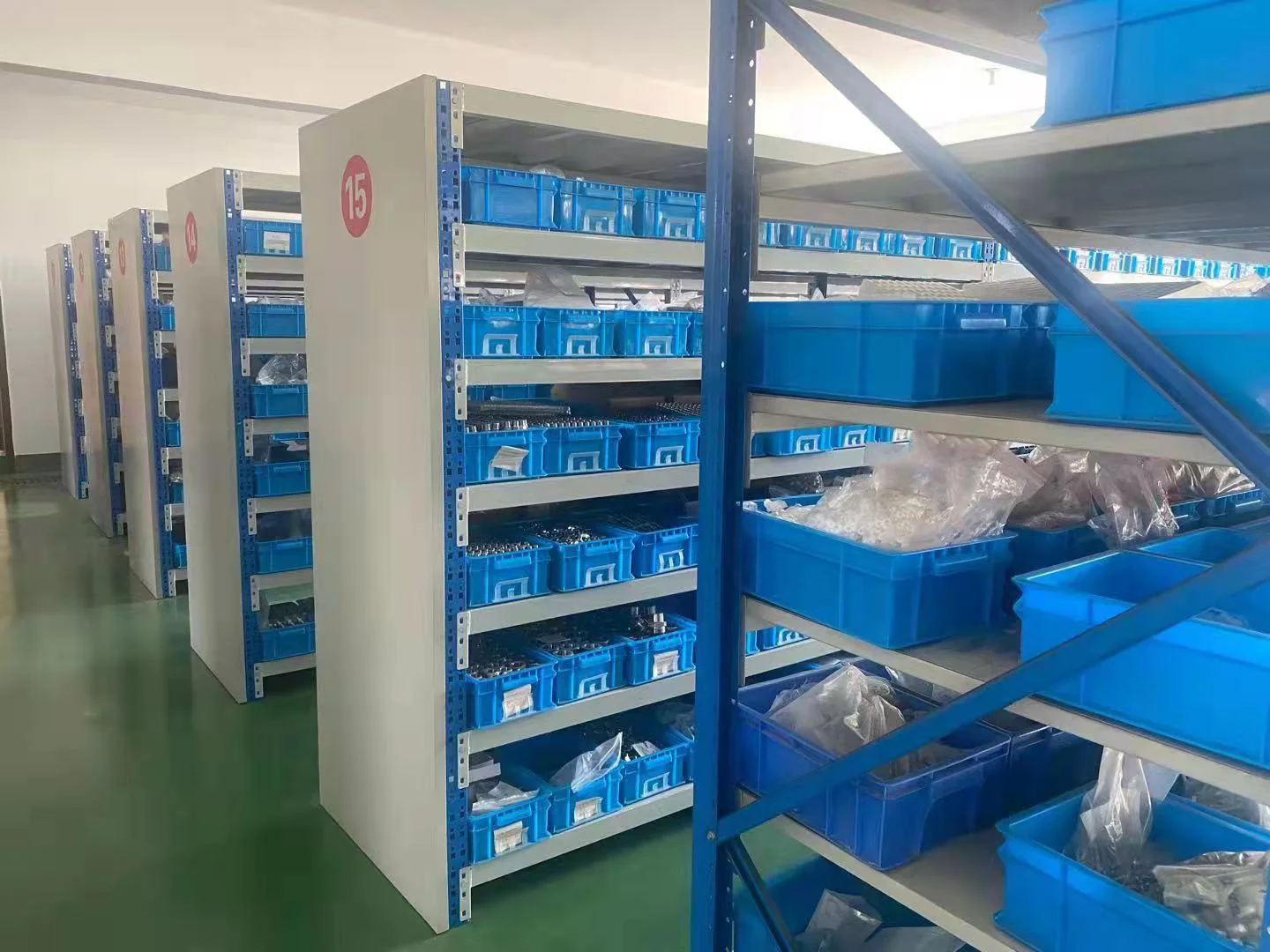

Company Profile

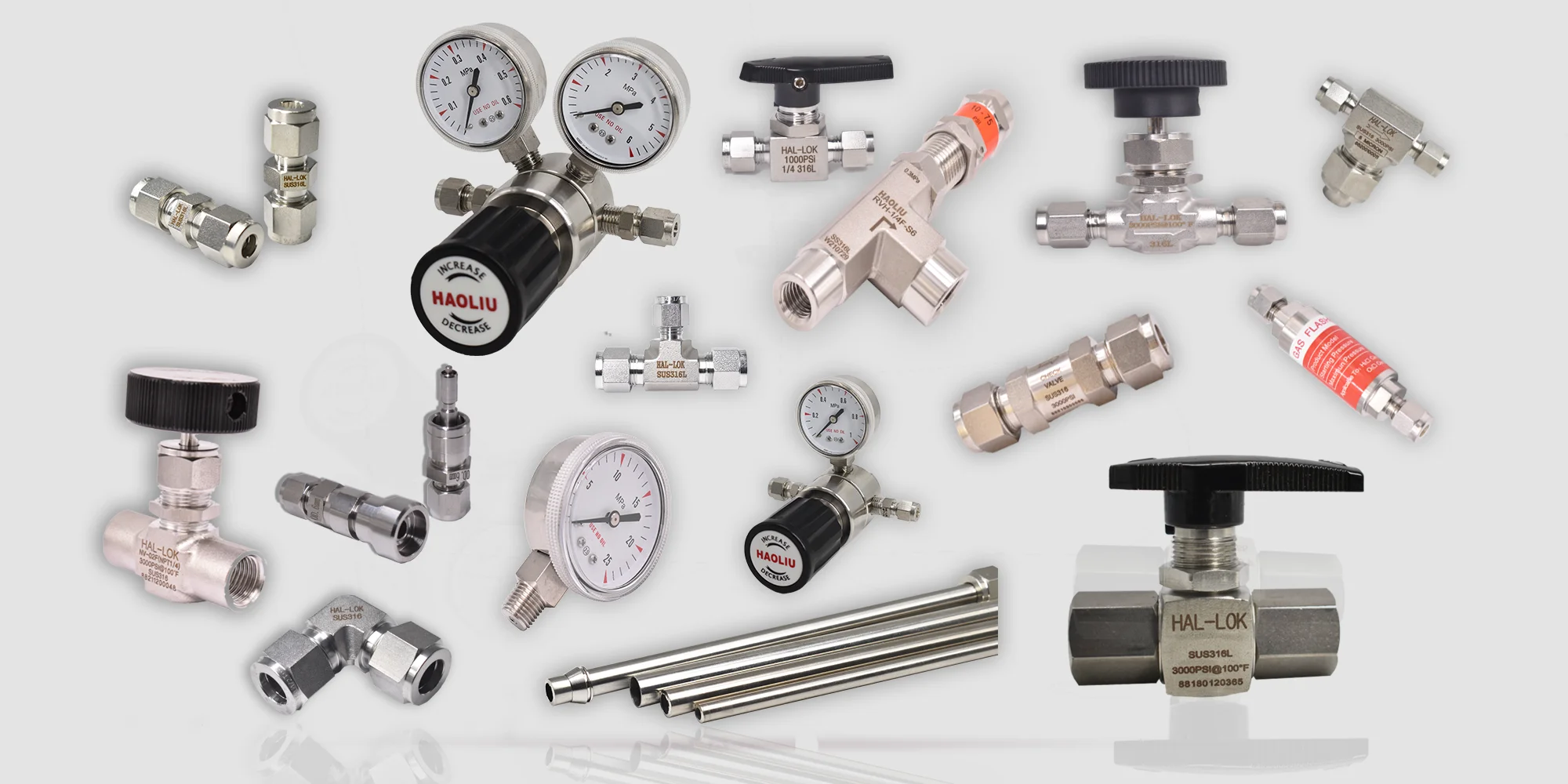

Shanghai haoliu mechanical equipment Co., Ltd.: mainly R & D and production of ferrule joint, ball valve, needle valve, one-way valve, safety valve, stainless steel pressure reducer, seamless steel pipe, gas pipeline engineering installation, etc. The company has a group of high-quality engineering quality technical personnel and management personnel, constantly introduces advanced technical experience, production equipment and testing instruments, and is committed to becoming a leading enterprise in China's machinery industry.
Certifications
Application industry
The products are widely used in petroleum, chemical, shipping, energy, metallurgy, laboratory and other industries.
photovoltaic
chemical industry
laboratory
steel
energy
Chemistry
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
5. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
