Высокоэффективный 15 лет гарантии на материалы 450 Вт 455 Вт 460 Вт 470 Вт комплект полуэлементных солнечных панелей для дома
- Категория товара: >>>
- Поставщик (Оптовый магазин): Anhui,Gift,Sun,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

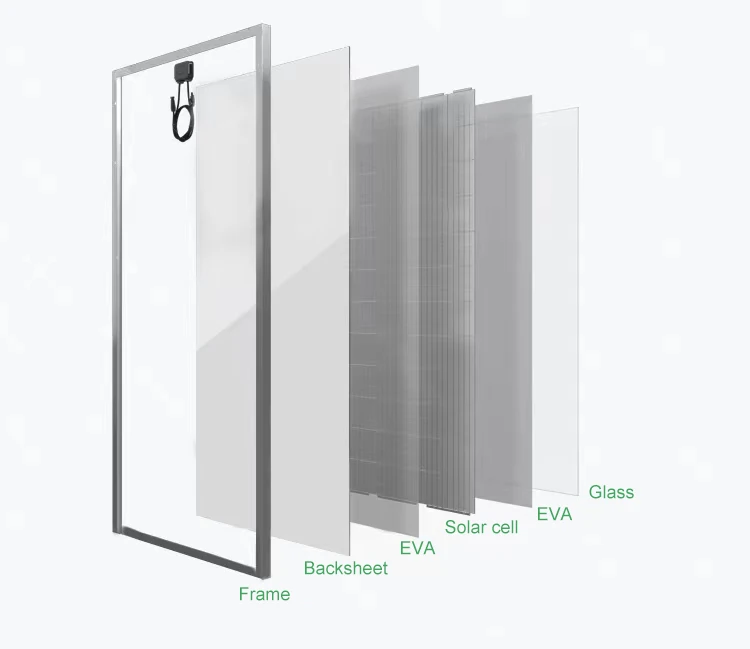

MECHANICAL CHARACTERISTICS | ||||||||||
Place of Origin | China | |||||||||
Brand | GiftSun | |||||||||
Business Type | Manufacturer | |||||||||
Product Type | Mono Half Cut Cell Solar Panel | |||||||||
Cell Type | Mono 182*182mm | |||||||||
Component size | 1909x1134x35 mm | |||||||||
Number of cells | 120(6*20) | |||||||||
Weight | 23 kg | |||||||||

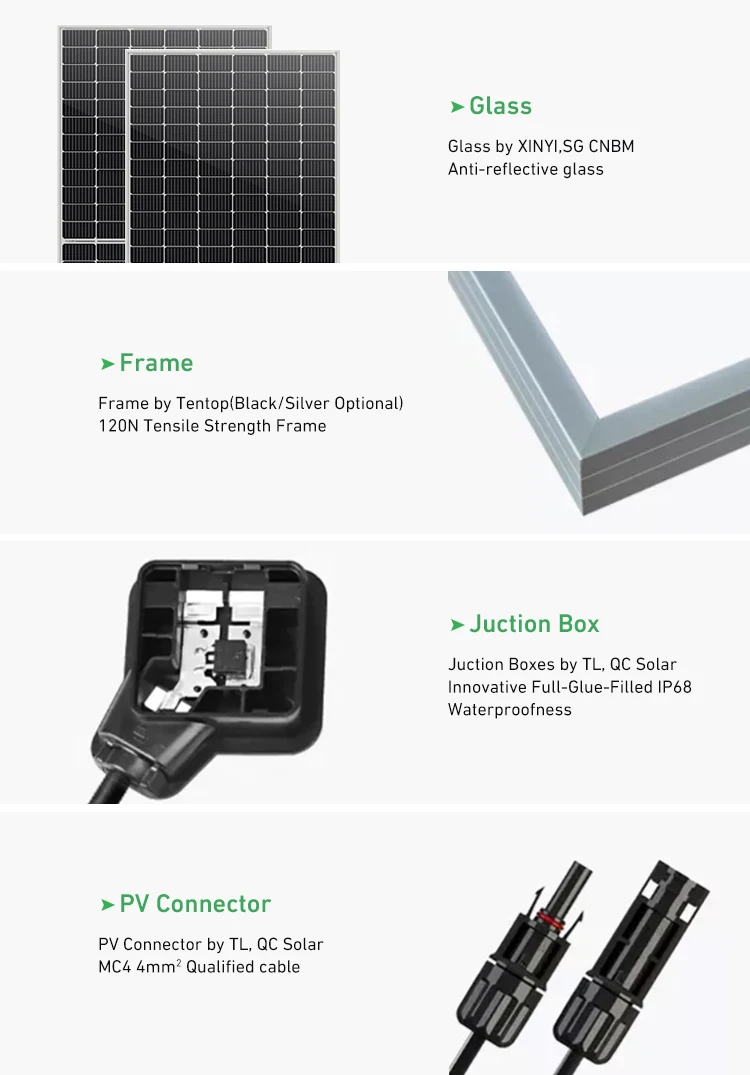

Glass Thickness | 3.2mm | |||||||||
Glass Type | Anti-reflective coating | |||||||||
Type of sealing material | POE | |||||||||
Border Type | Anodized aluminum alloy | |||||||||
Junction box protection class | IP 68 | |||||||||
connector type | MC4 | |||||||||
Cable cross section | 4mm2 | |||||||||
Warranty | 15 years materials warranty,25 years power warranty | |||||||||
ELECTRICAL PARAMETERS AT STC | ||||||||||
Product number | GS-450W | GS-455W | GS-460W | GS-465W | GS-470W | |||||
Peak power (Pmax/W) | 450 | 455 | 460 | 465 | 470 | |||||
Peak working voltage (Vmpp) | 33.91 | 34.06 | 34.20 | 34.35 | 34.49 | |||||
Peak operating current (Impp) | 13.27 | 13.36 | 13.40 | 13.54 | 13.63 | |||||
Open circuit voltage (Voc/V) | 41.18 | 41.33 | 41.48 | 41.63 | 41.78 | |||||
Short circuit current (Isc/A) | 13.85 | 13.93 | 14.01 | 14.09 | 14.17 | |||||
Component efficiency(%) | 20.85 | 21.08 | 21.32 | 21.47 | 21.71 | |||||
Operating Temperature | -40~85 °C | |||||||||
Temperature Coefficient Of Lsc | +0.048%/°C | |||||||||
Temperature Coefficient Of Voc | -0.28%/°C | |||||||||
Temperature Coefficient Of Pmax | -0.35%/°C | |||||||||
STC | Irradiance 800W/m2 ,Cell Temperature 20°C,Air Mass 1.5 | |||||||||
WORLING CONDITION | ||||||||||
Maximum System Voltage | DC 1500V | |||||||||
Maximum Series Fuse | 30A | |||||||||
Maximum Static Load,Front | 5400Pa | |||||||||
Maximum Static Load,Back | 2400Pa | |||||||||
Application Class | Class A | |||||||||
Product Details

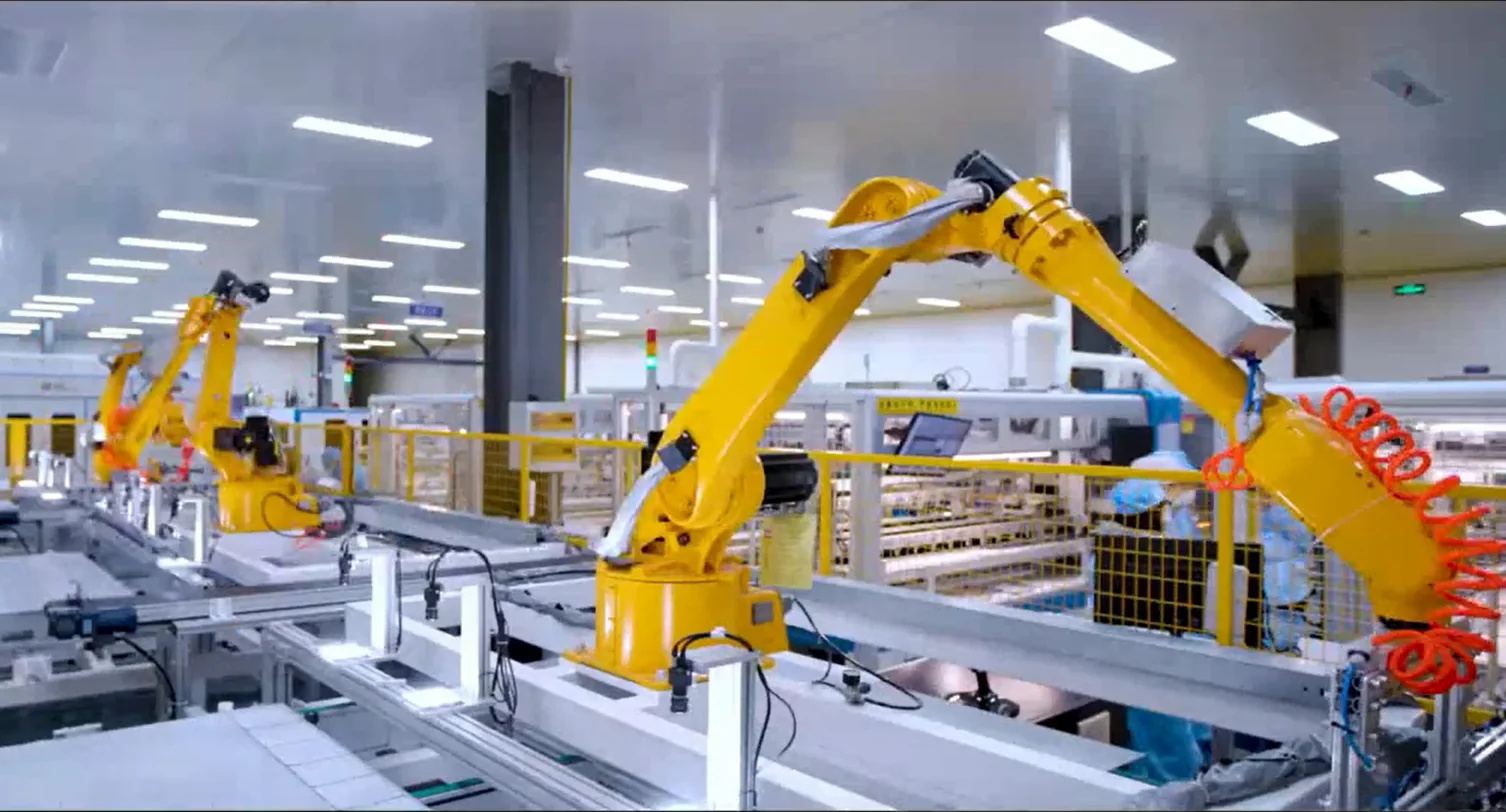

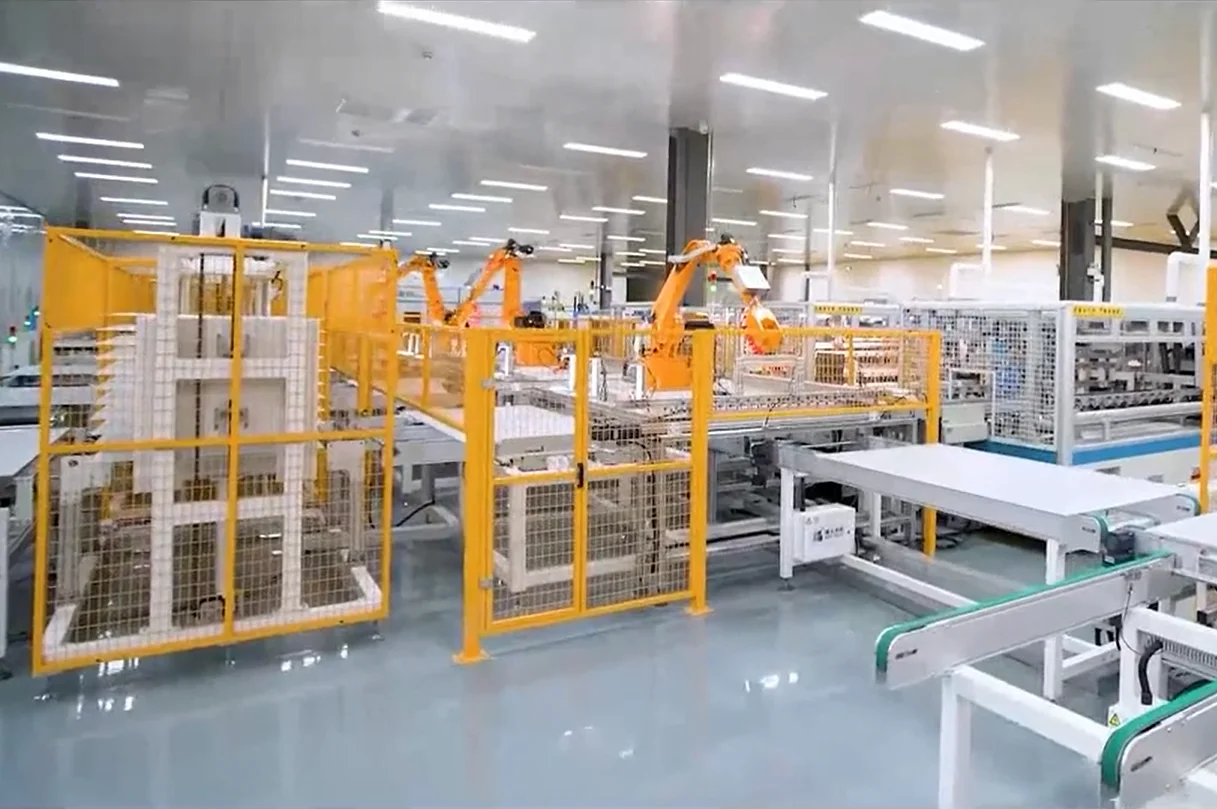

Automatic Production

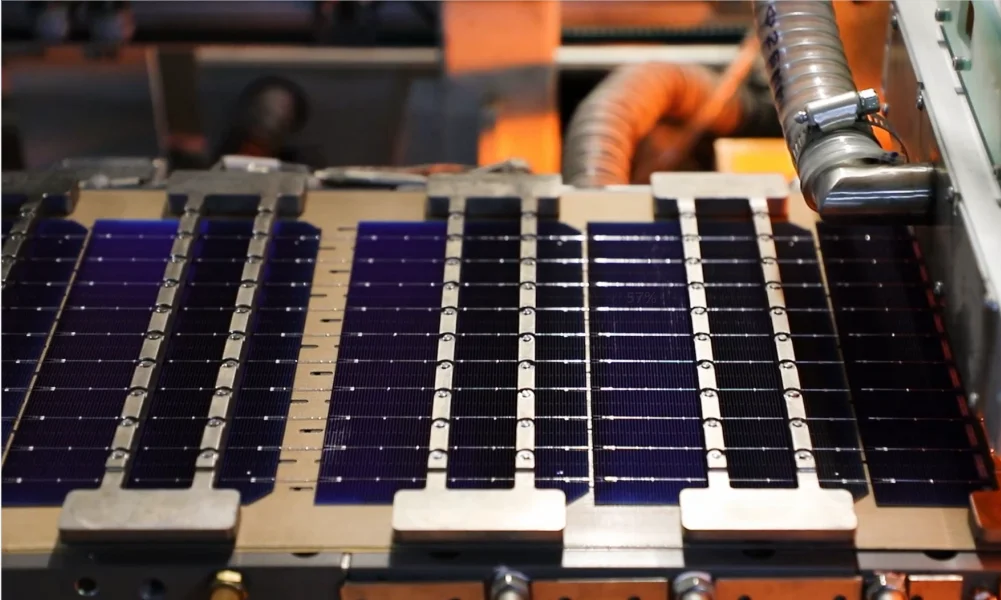

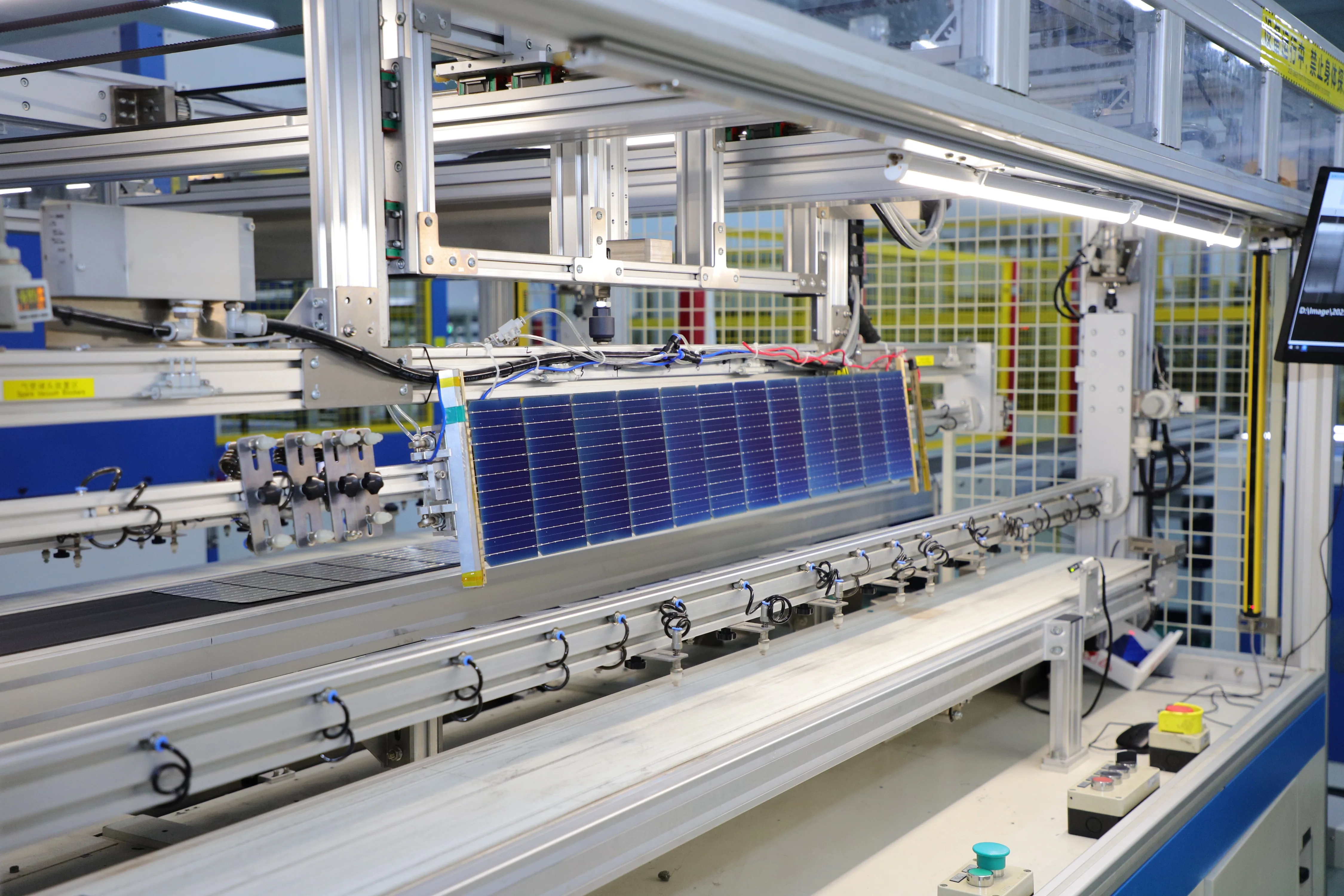

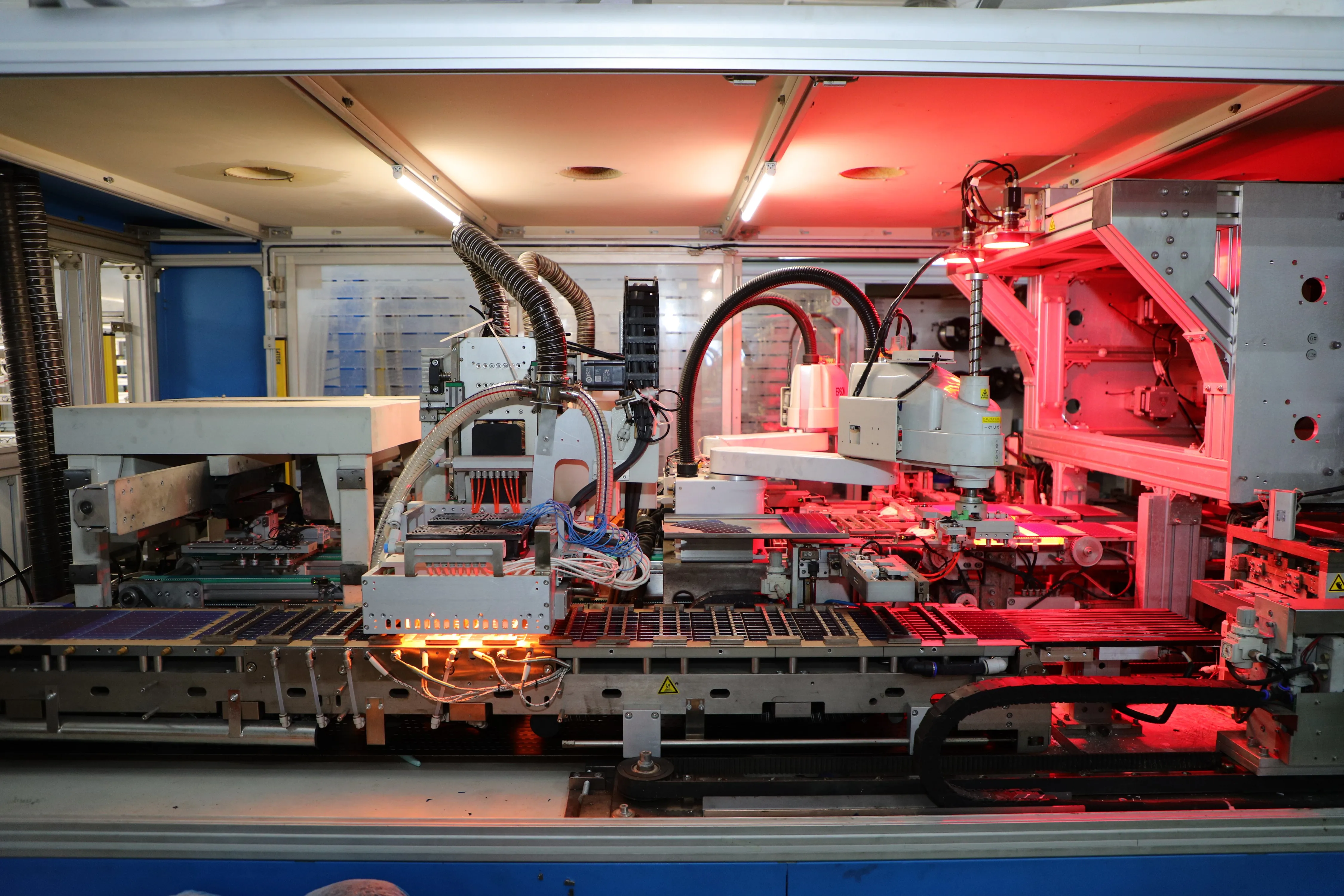

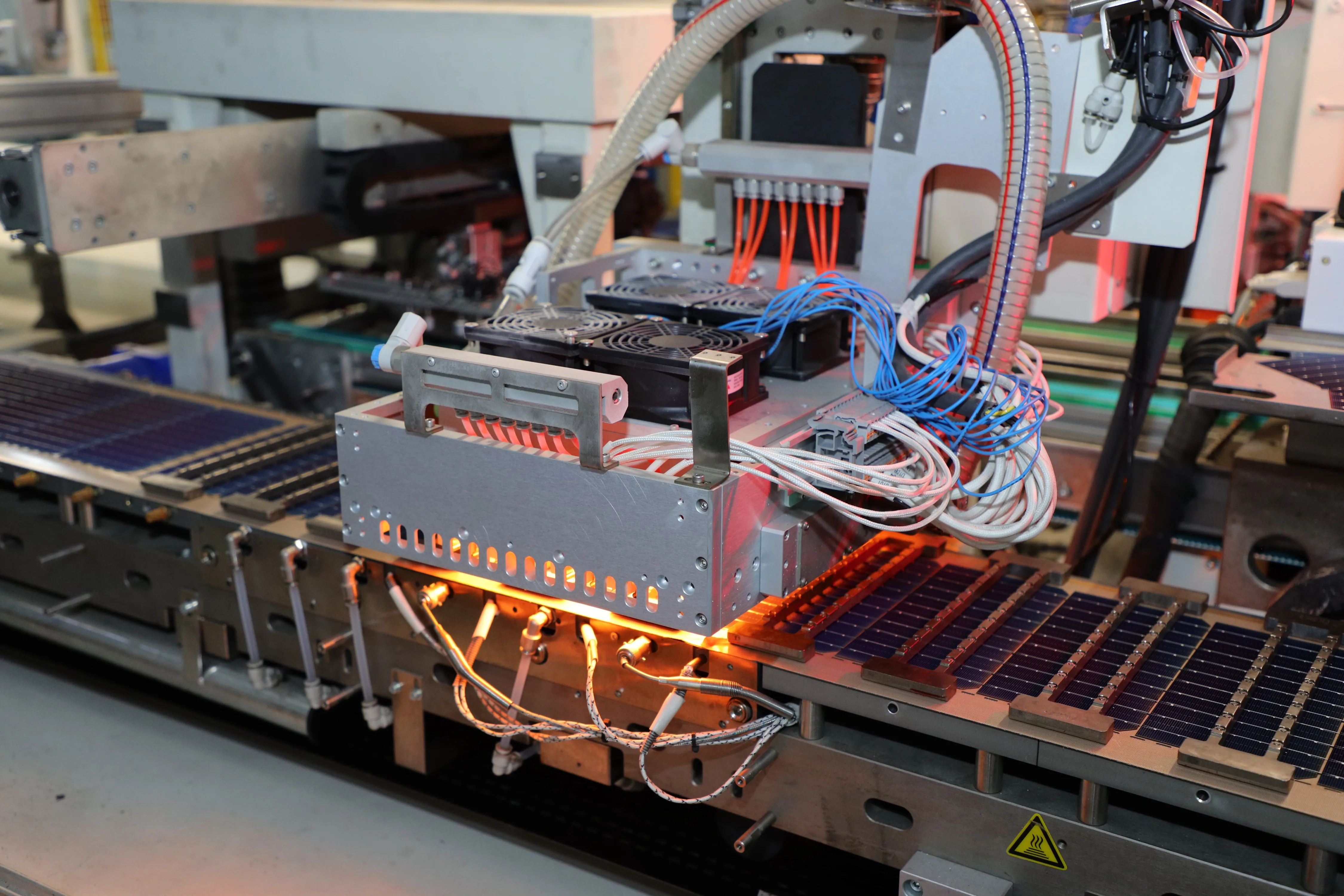

Solar cell Welding
Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar

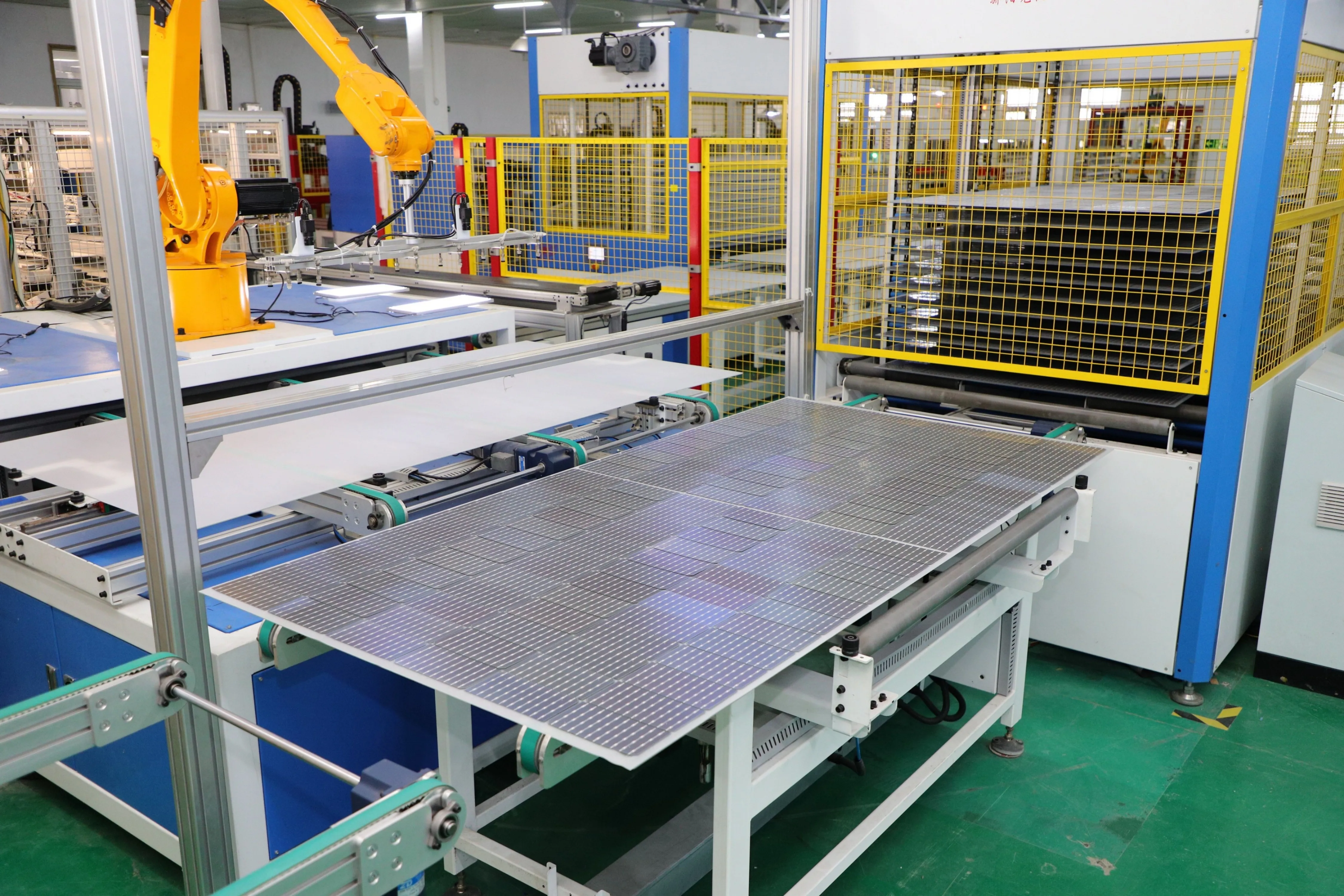

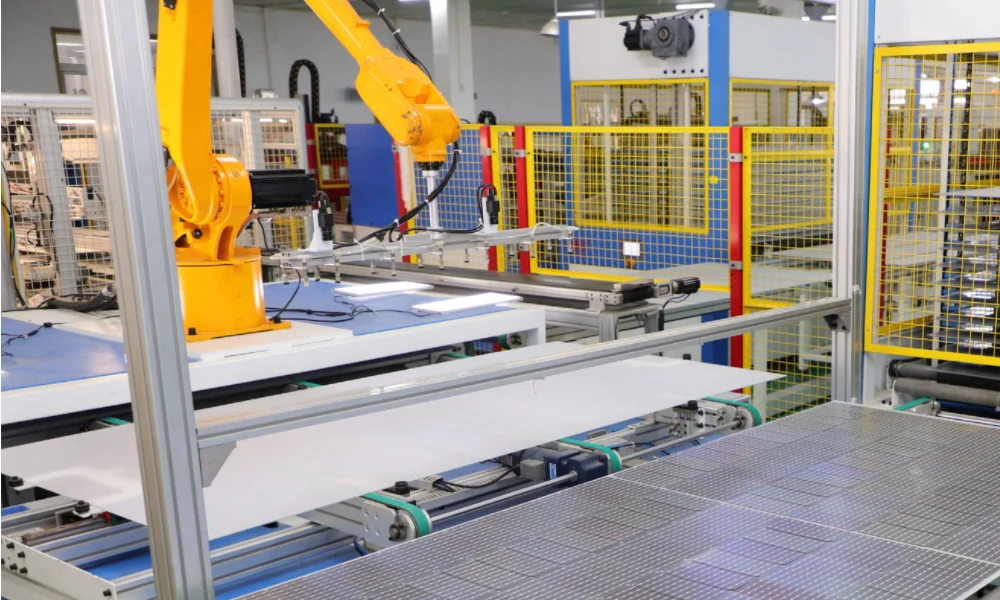

After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate

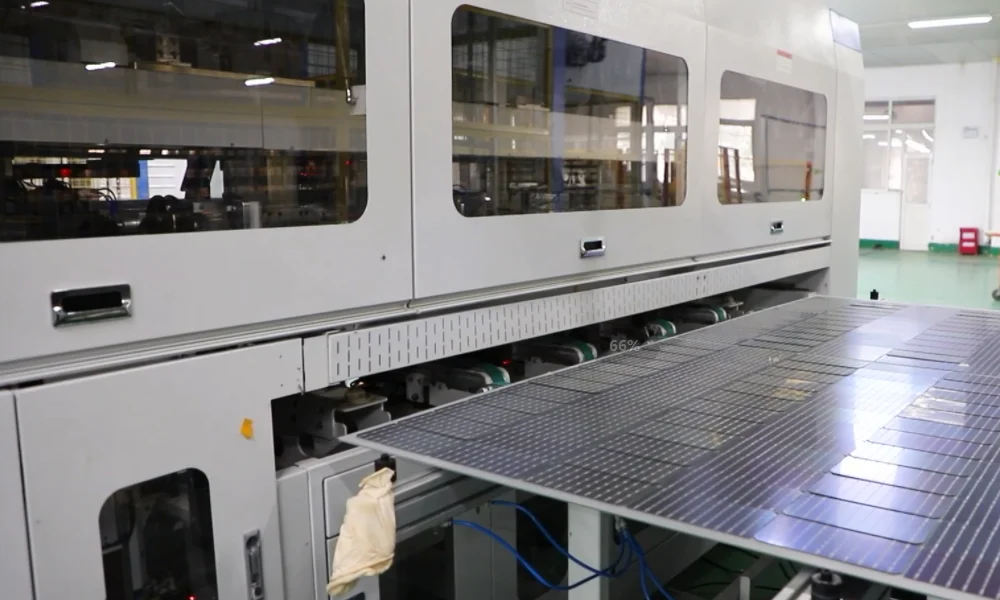

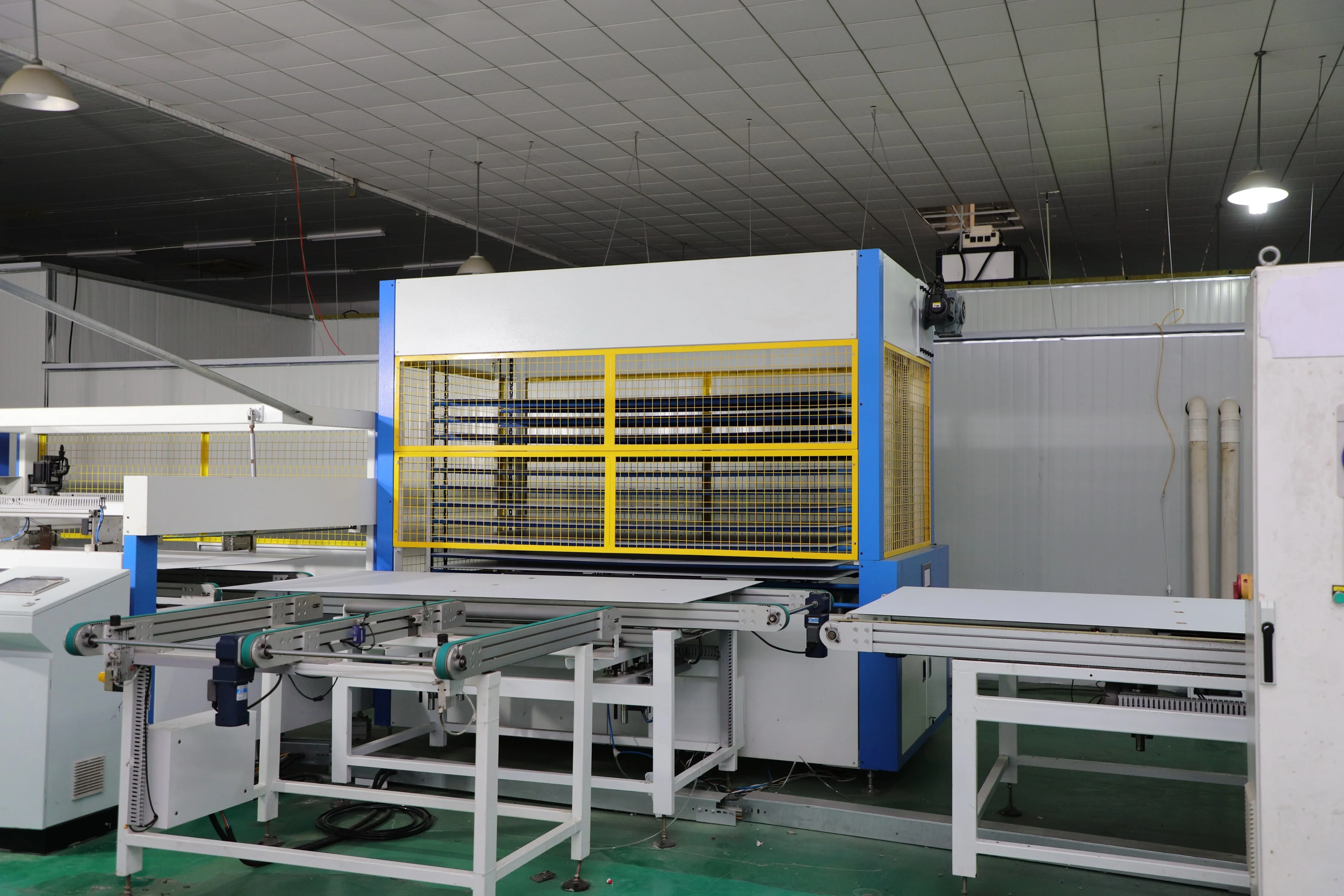

Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

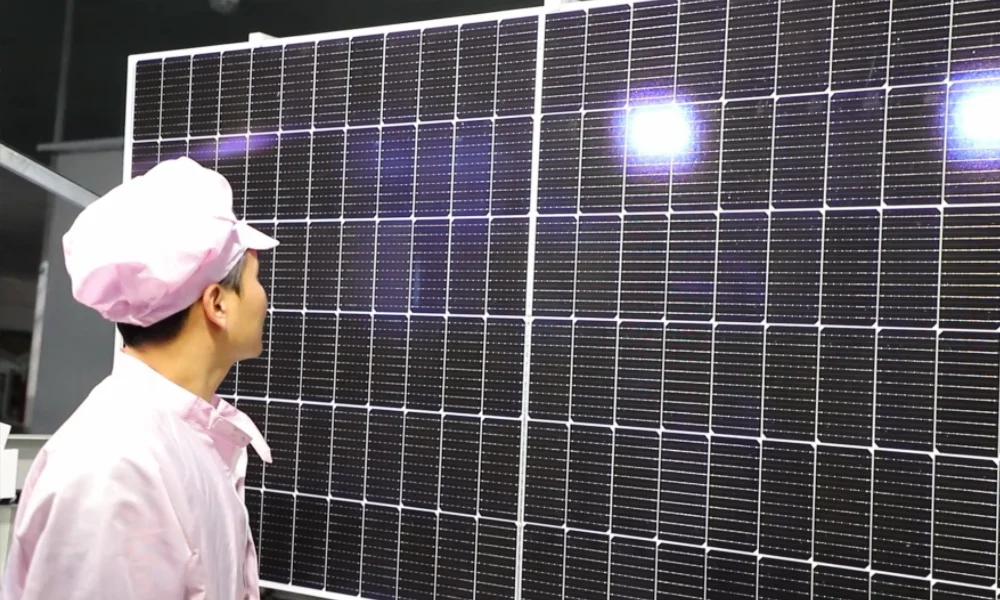

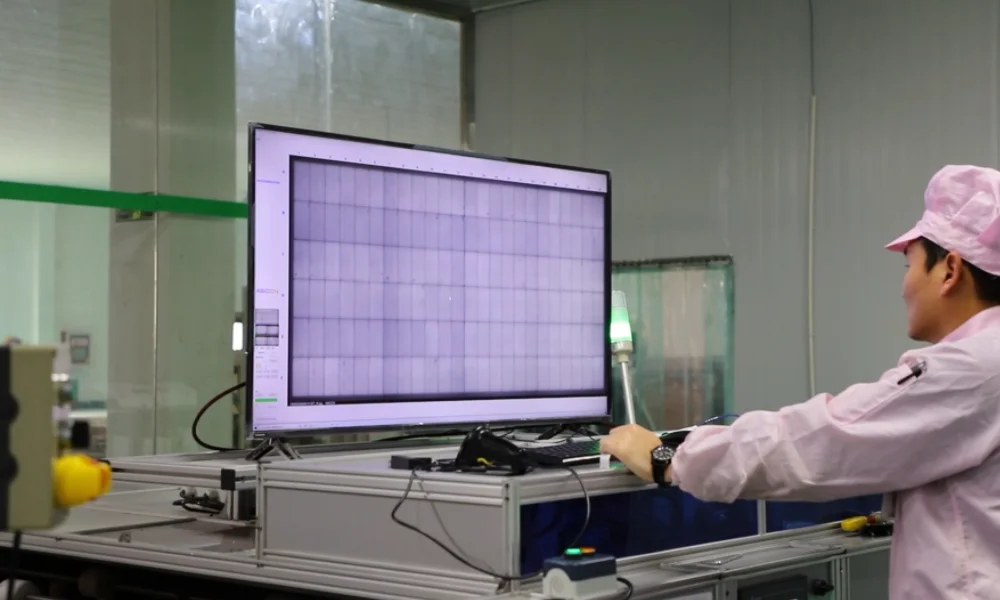

Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective;

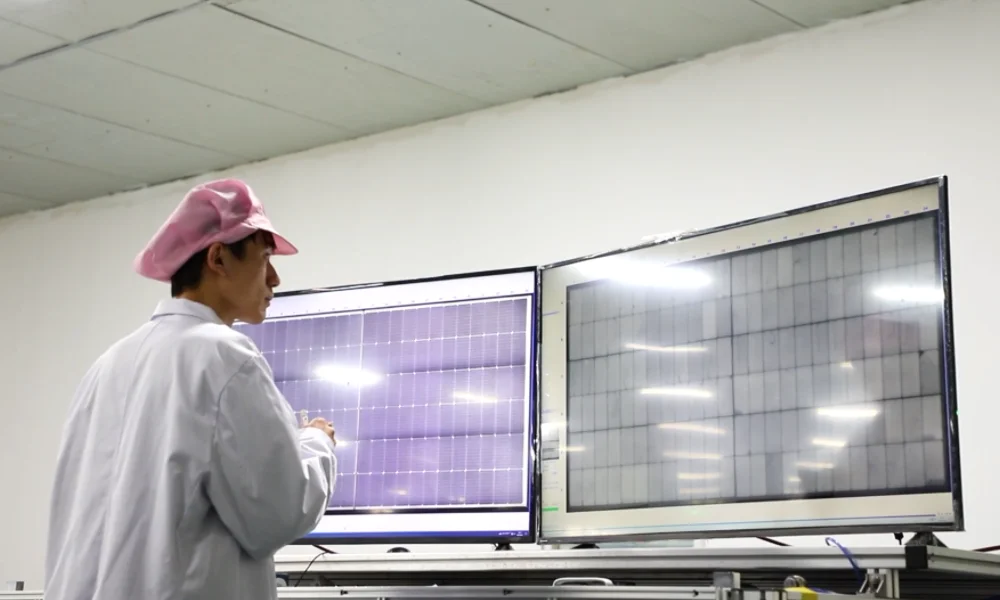

Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
Flash Testing
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
Company Profile
222
Anhui GiftSun Photovoltaic Technology Co., Ltd. is a professional enterprise specializing in the research, development, production, and sales of solar panels. Our factory is headquartered in Anhui, China and has a modern production base and advanced production equipment, committed to providing high-quality solar products and excellent service to customers worldwide.

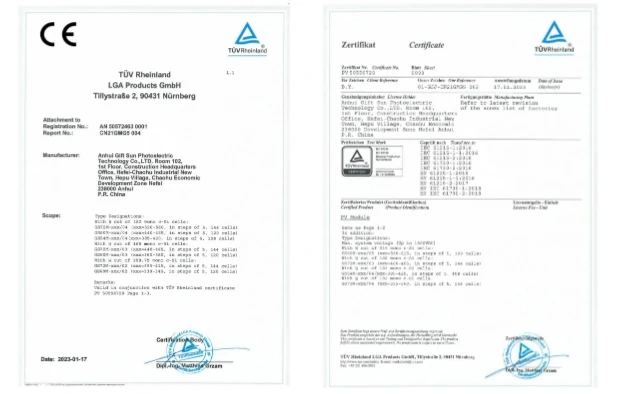

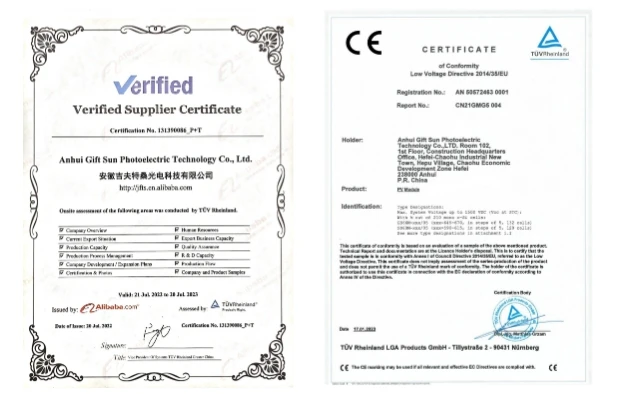

Certifications

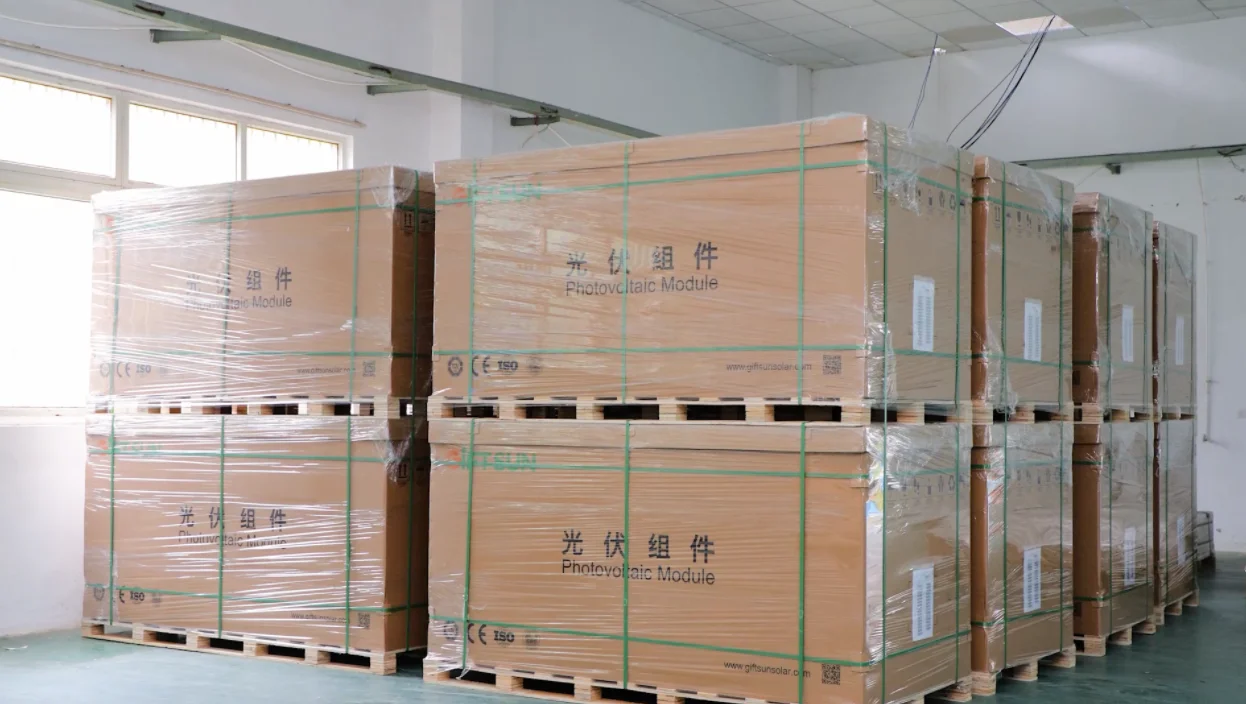

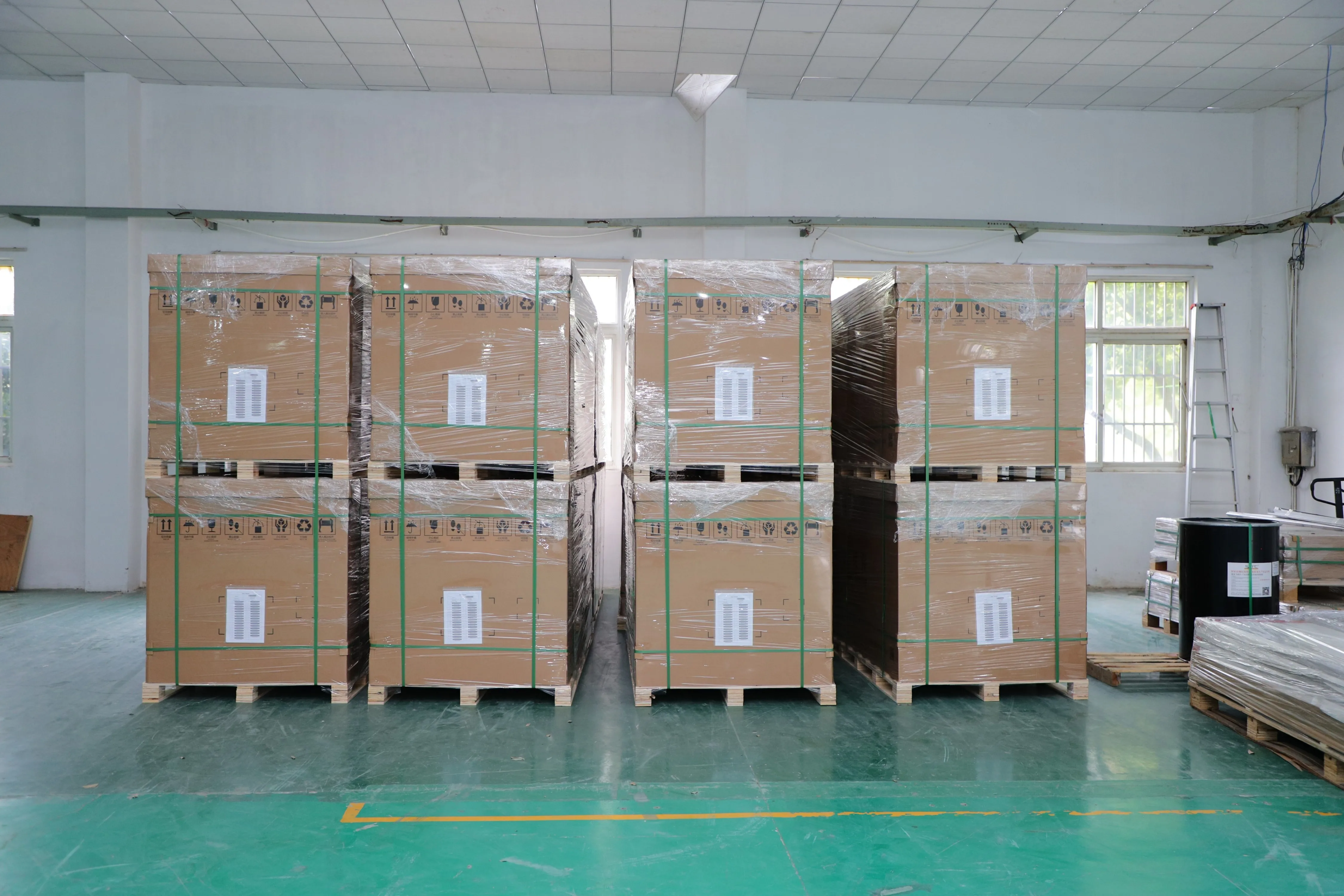

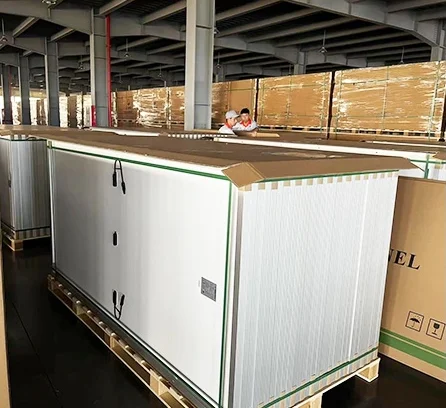

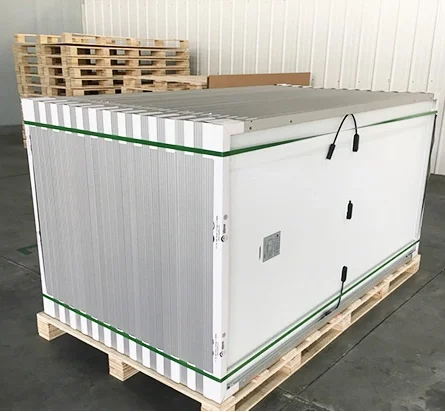

Product packaging
Project Case
FAQ
Q1: Are you manufacturer? | ||||||||
A: Yes, we are professional brand manufacturer with many years experience. | ||||||||
Q2: What kind of Solar Cells we have? | ||||||||
A:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm. | ||||||||
Q3: What is your monthly capacity? | ||||||||
A:Monthly capacity is about 200MW. | ||||||||
Q4: Can you do the design for us? | ||||||||
A: Yes. We have a professional designing team provide free desing for you, just tell us your ideas and we will help to carry out your ideas into perfect products. It is also ok if you do not have the complete files. Send us high resolution images, we can design the layout you want,until you are satisfied. | ||||||||
Q5:What is the warranty period, how many years? | ||||||||
A: 15years product warranty, 25years 80% power output warranty for monofacial solar panel, 25years 80% power output warranty for bifacial solar panel. | ||||||||
Q6: What is your terms of delivery? | ||||||||
A: We accept EXW, FOB, CIF, . You can choose the one which is the most convenient or cost effective for you. | ||||||||
Q7: How is your technical support? | ||||||||
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary. | ||||||||
Q8: Can I visit your company and factory in China? | ||||||||
A: Sure. We are happy to receive you and show you around our workplaces. | ||||||||
