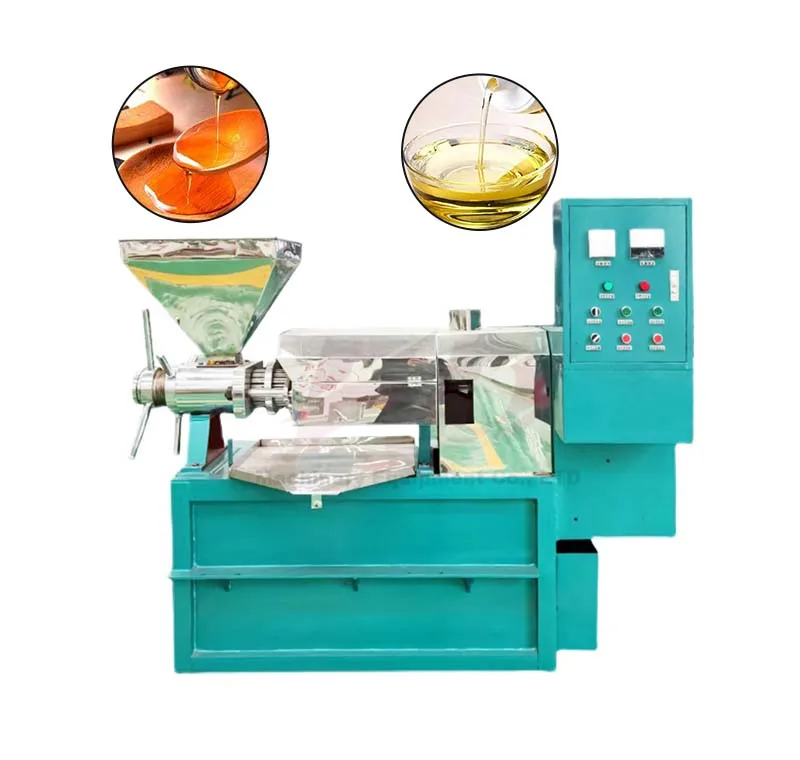

Промышленная машина для холодного отжима оливкового масла ценовые прессы винтовой пресс
- Категория товара: Oil Pressers >>>
- Поставщик (Оптовый магазин): Zhengzhou,Fude,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

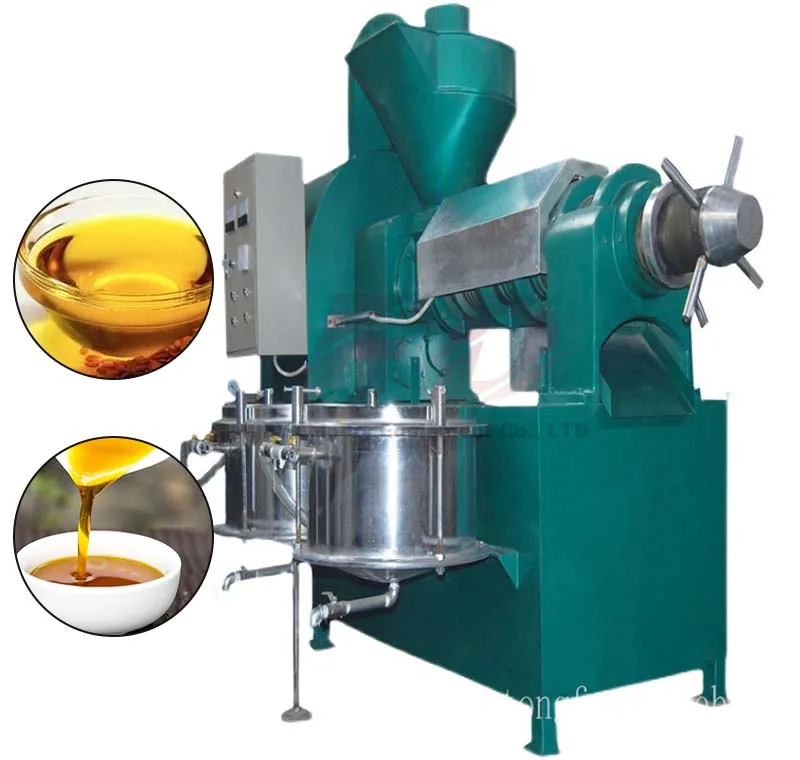

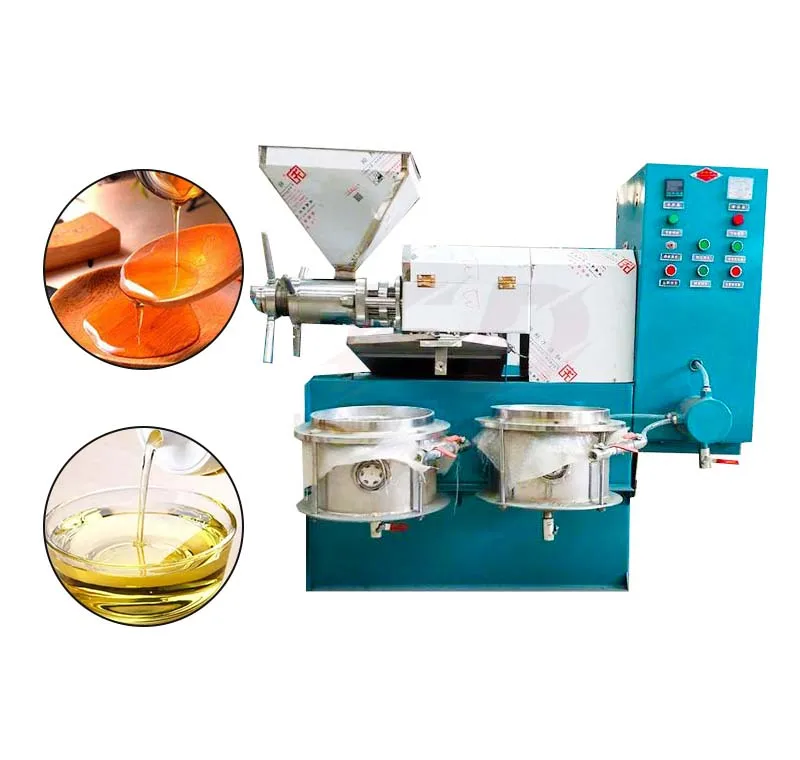

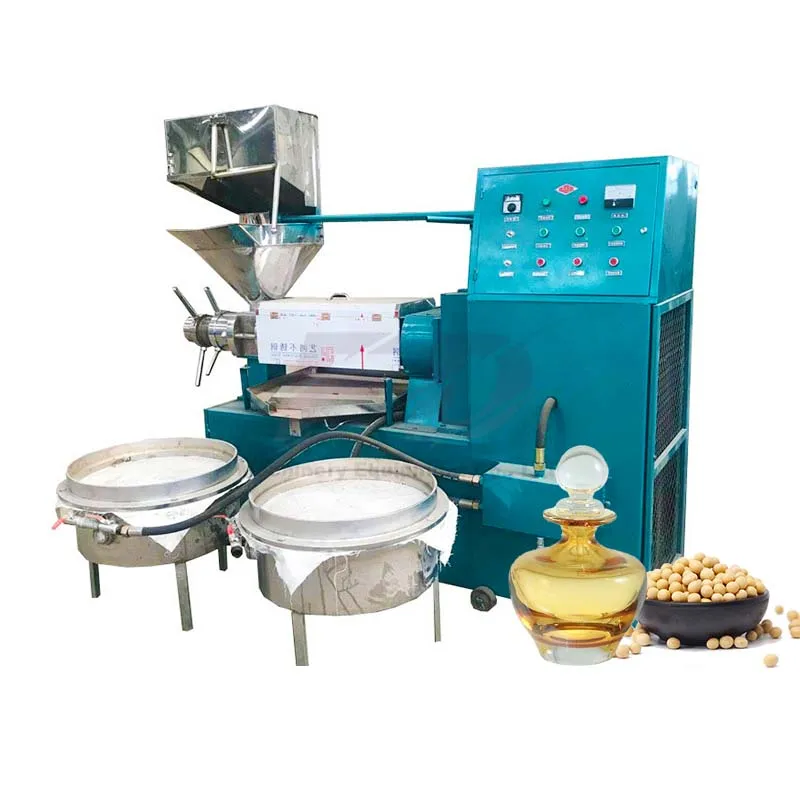

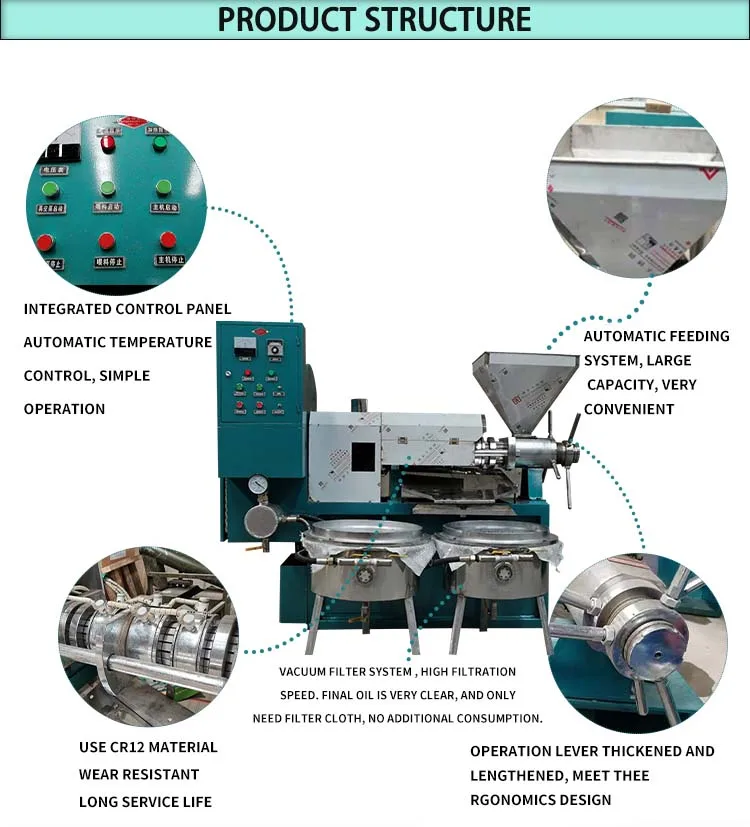

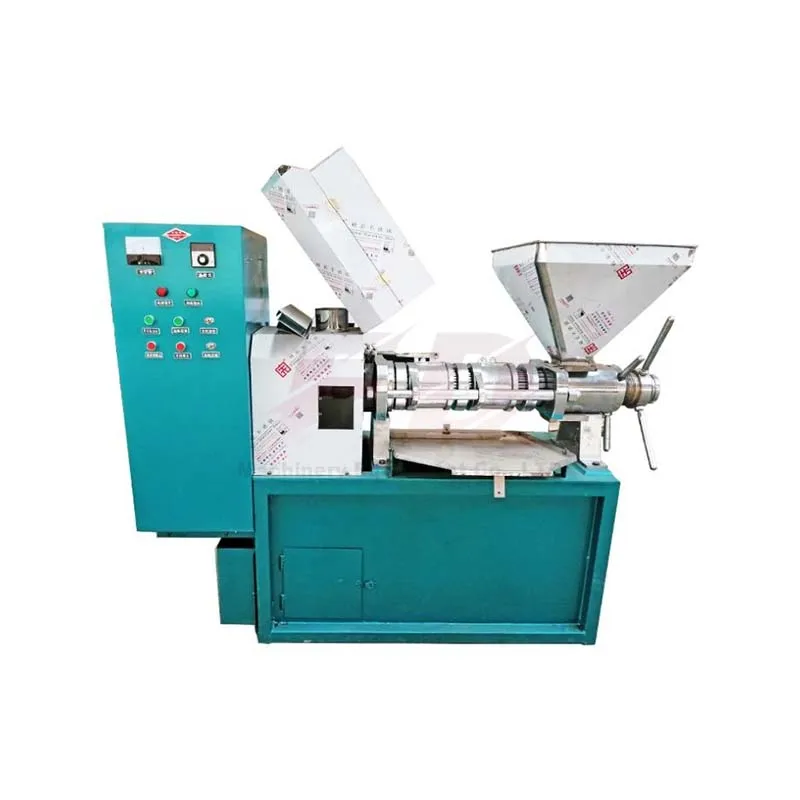

industrial olive oil cold press machine price oil pressers avocado screw shaft press machine
Multi-function oil press equipment is my company's new products that introduce foreign technology and independent research. The machine has a high degree of automation and adopt automatic temperature control pressing process and high pressure vacuum filtration system. It is currently on the market more advanced oil extraction machinery.

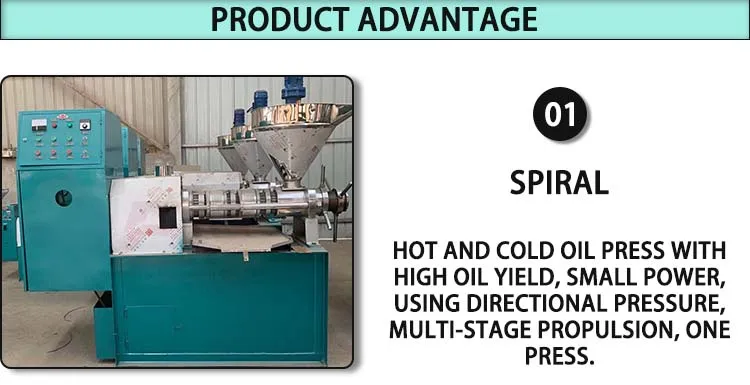

Multi-function automatic screw oil press machine adopt a squeeze net, save time and labor, the oil rate is high, with a small power, pure oil, machine with multiple functions. There are more than 20 kinds of oil plants can be processed, such as sesame,peanuts, rapeseed, soybean, sunflower, flax. After finish Automatic oil press’s supporting and then plug. It is easy to operate and is required products in the oil industry. It provide a way of getting rich and re-employment opportunities for the majority of urban and rural unemployed and laid-off workers.
FEATURES AT A GLANCE
Oil press machine with the help of mechanical force so that the oil of distributed inside and outside of blank and the heat generated by the screw shaft to push after the heat, get rid of the adsorption of material embryo and overflow. This process of squeezing out from the oil is called oil manufacture. The design principle of multi-function oil press is by far the most advanced in the world and can press and slagging automatically. According to the level of press, Screw oil press equipment’ divide into first press, second press and multi-stage press.
PRODUCT SPECIFICATIONS
Parameters | FD-60 | FD-80 | FD-100 | FD-125 | FD-150 | ||
Screw diameter | Φ55mm | Φ80mm | Φ100mm | Φ125mm | Φ150mm | ||
Screw speed | 52r/min | 63r/min | 43r/min | 36r/min | 33-42r/min | ||
Screw inner diameter | Φ52mm | Φ82mm | Φ102mm | Φ125mm | Φ152mm | ||
power | Main machine | 2.2kw | Y112M-6 5.5KW | Y132M-6 7.5KW | Y160M-4 11KW | Y160S-4 15KW | |
Vacuum pump | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 4kw | ||
Heater | 0.9kw | 3kw | 3.5kw | 4kw | 4.1kw | ||
Handling capacity | 15-30kg/h | 35-65kg/h | 80-200kg/h | 200-300kg/h | 300-450kg/h | ||
Handling capacity | 220kg | 780kg | 1100kg | 1500kg | 1950kg | ||
Dimension | 1200×780×1100mm | 1650×1440×1700mm | 1960×1630×1900mm | 2100×1680×1900mm | 2380×1850×2000mm | ||
APPLICATION
Raw Material | Weight (kg) | Oil Rate (%) | Oil Rate (%) | Cake Capacity (kg) |
Peanut | 200 | 42-53 | 96 | 102 |
Soybean | 200 | 12-18 | 30 | 168 |
Rapeseed | 200 | 32-43 | 76 | 122 |
Sunflower seed | 200 | 36-42 | 76 | 122 |
Sesame | 200 | 45-54 | 96 | 102 |
Many kinds of oil plants can be pressed by oil presses, including mainly: Peanut, rapeseed, sesame seeds, sunflower seeds,soybeans, peppers, flaxseed, camellia seeds, pepper seeds, olives, palm fruits, coconuts, etc. Peanut oil, soybean oil, rapeseed oil and palm oil is currently most widely edible oil in the world.

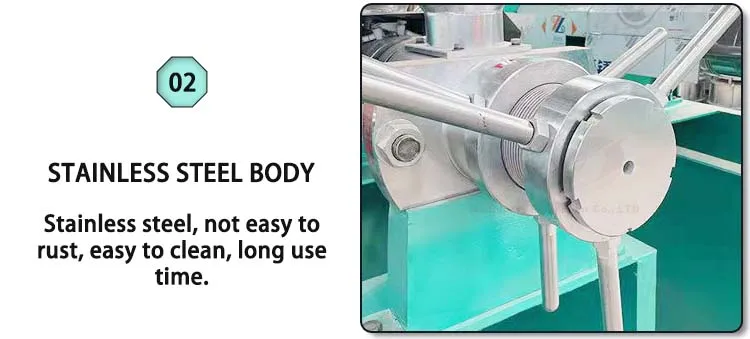

PRODUCT CONFIGURATION
SIMILAR PRODUCTS

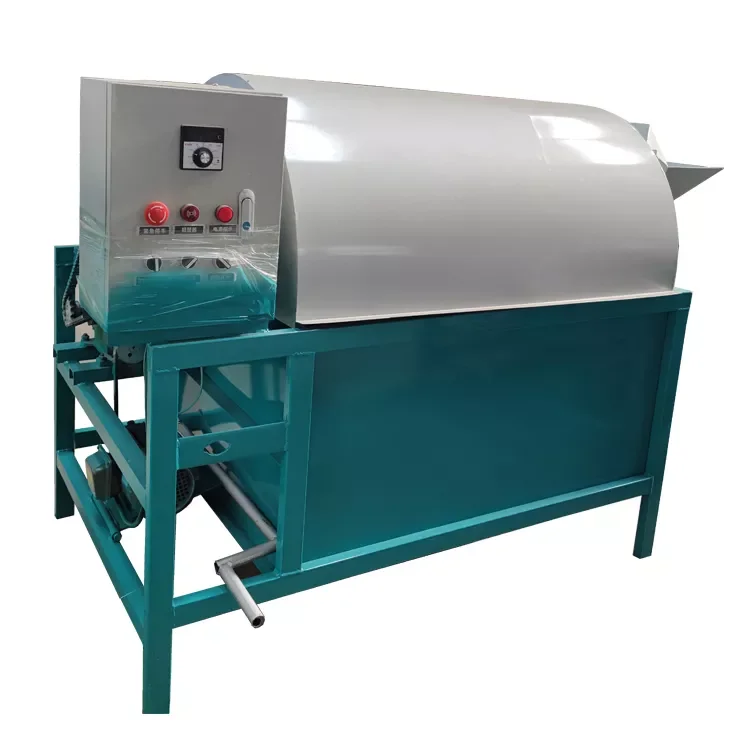

This machine is of advanced one-piece infrared accelerating burner which consists of the computer controlled pulse igniting system, the flame and temperature monitoring system and the rolling drums. The machine having advantages as automatic thermostat
control, safety and hygiene and easy operation etc, is an ideal new generation replacing the old traditional generation of baking machines.

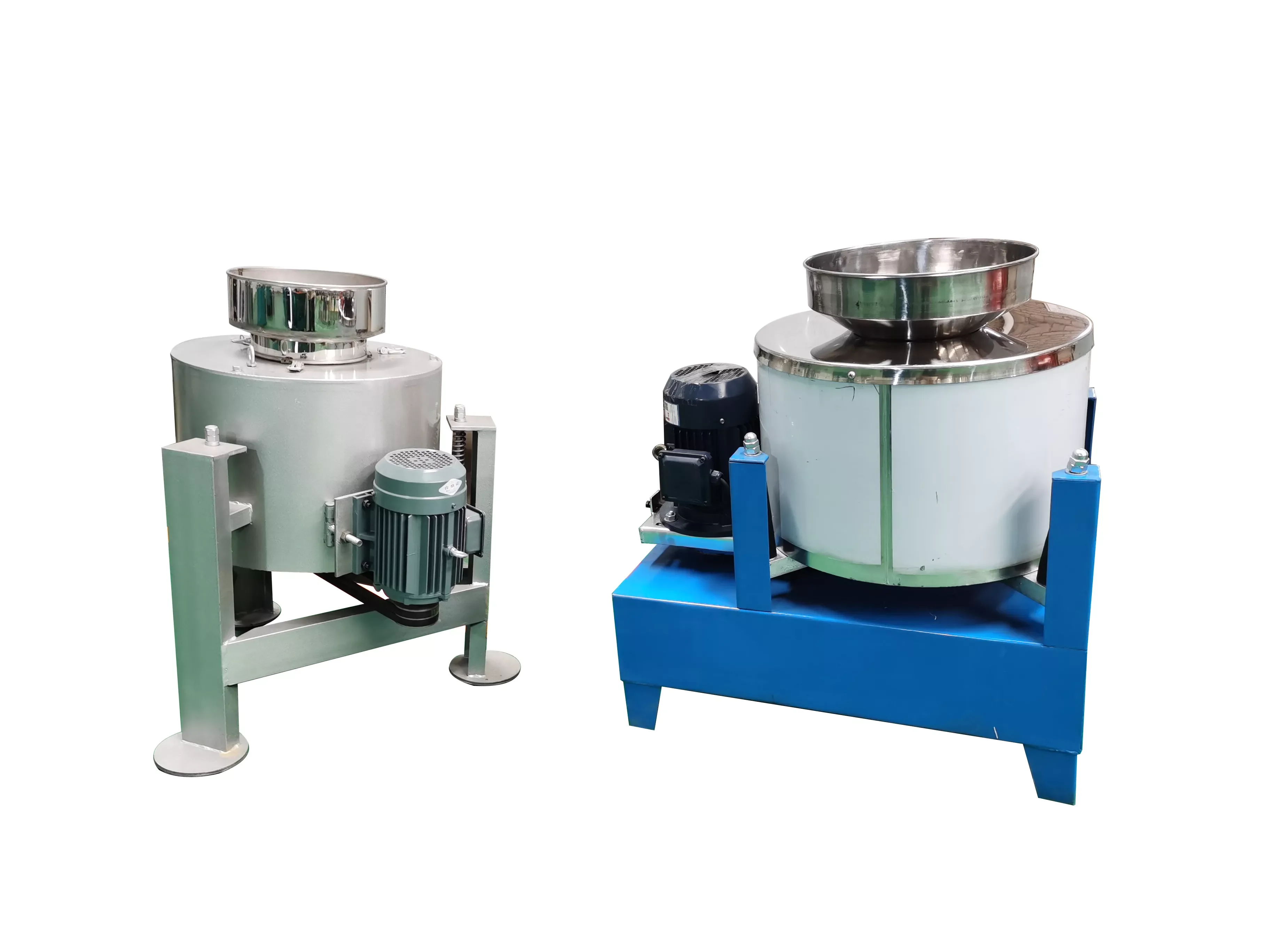

1.This machine separates sediment and oil with centrifugal force produced by high-speed drum to achieve Liquid solid separation.
2.Absolute oil slide from drum when the drum stops rotating.
3.Then pure oil can experienced on the fire, can not afford to foam and overflow pan.
2.Absolute oil slide from drum when the drum stops rotating.
3.Then pure oil can experienced on the fire, can not afford to foam and overflow pan.
Automatic Spiral Feeding Machine
Automatic Spiral feeding machine is mainly used to transport the fried material to the Auxiliary machine of oil press machine,Spiral material grade stainless steel manufacturing, clean and sanitary, easy to clean and so on.
