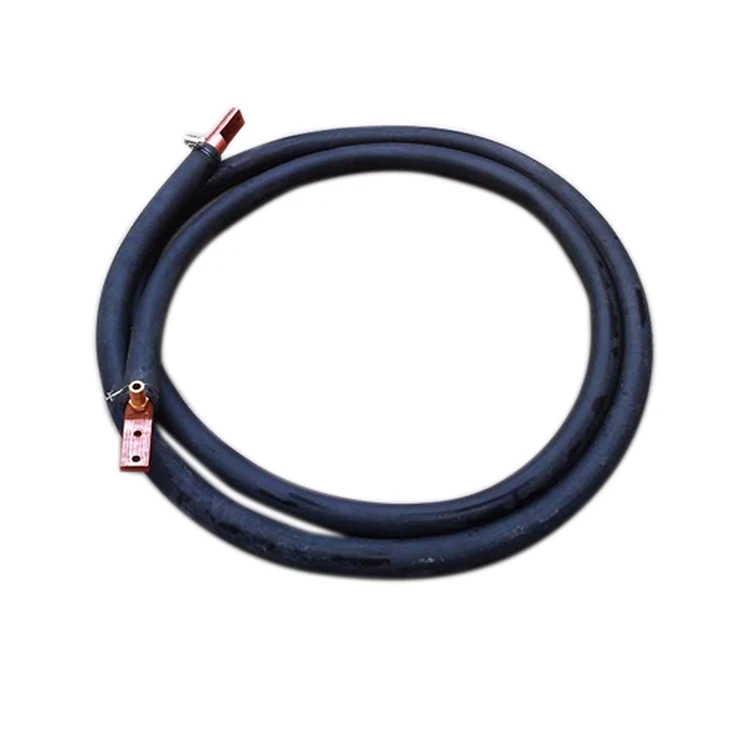

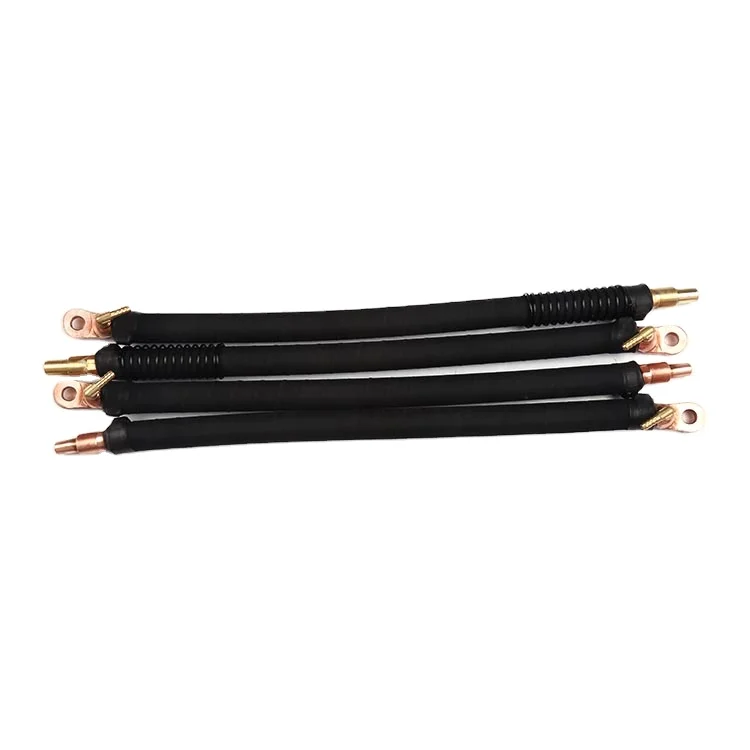

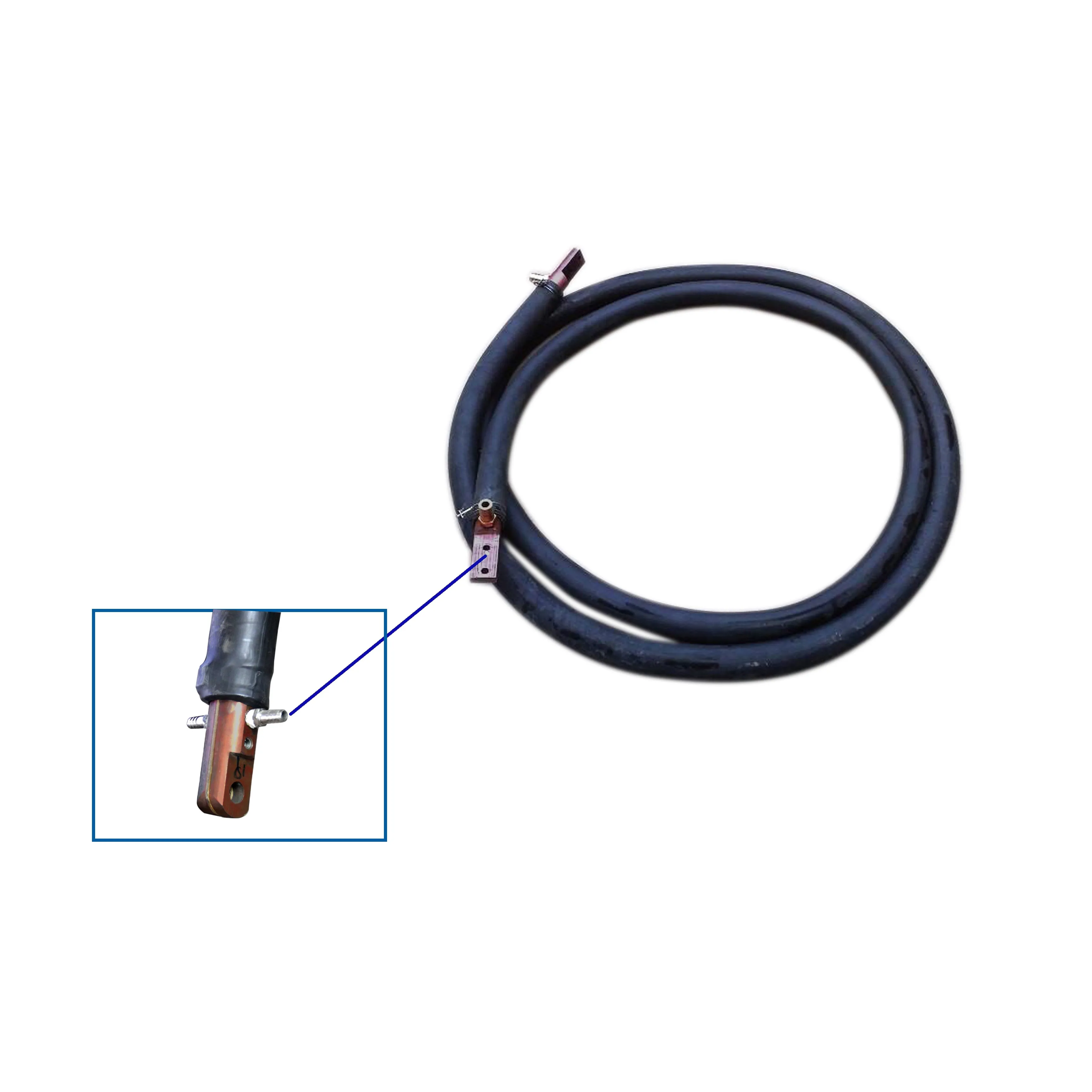

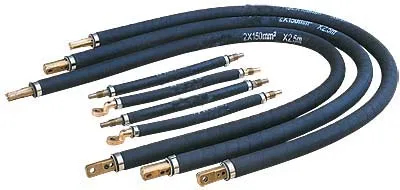

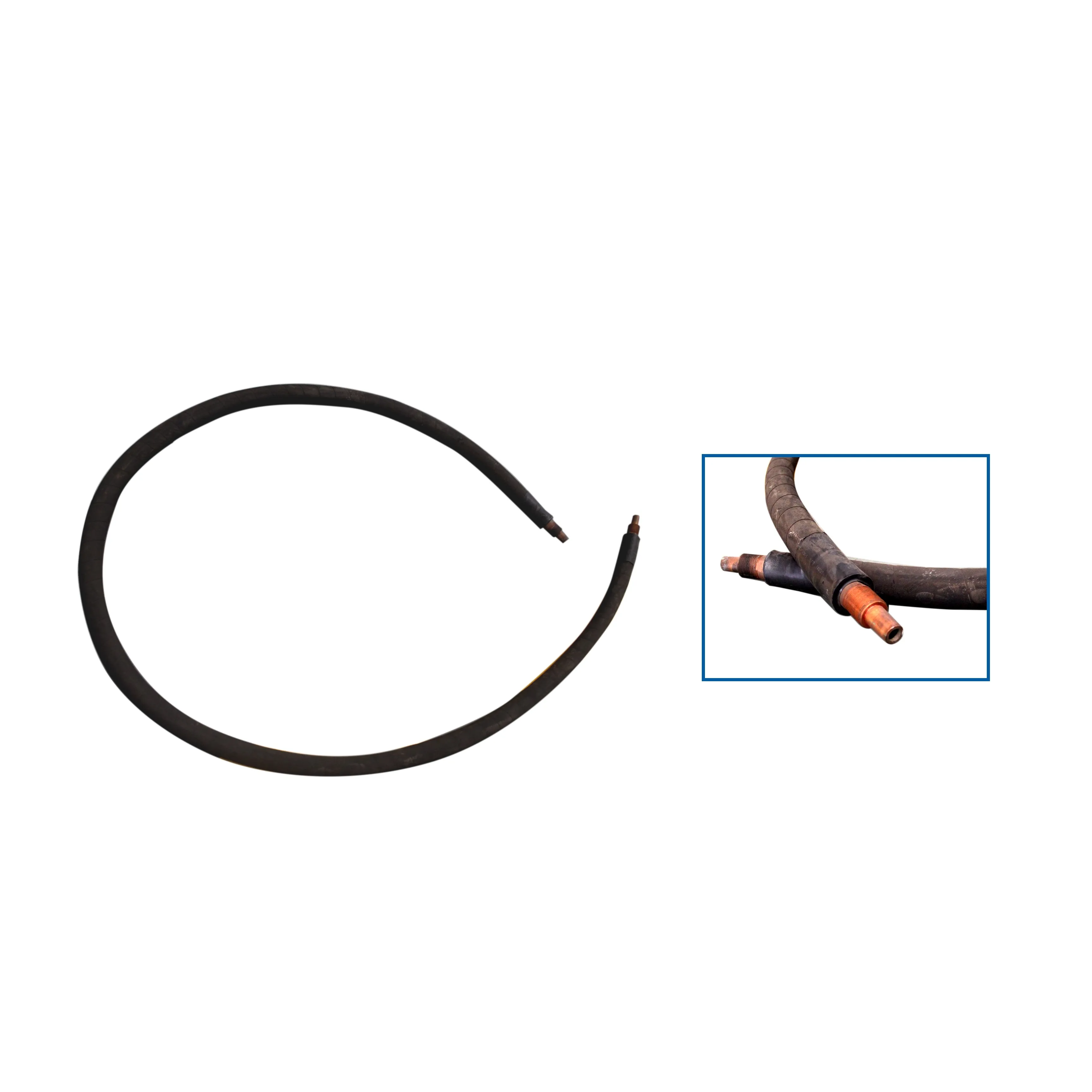

Мм2 китайская фабрика точечная сварка вторичное водяное охлаждение кабель с откидной ножкой
- Категория товара: Other Wires, Cables & Cable Assemblies >>>
- Поставщик (Оптовый магазин): Chengdu,Xingweihan,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Item \\ specifiction | 300mm² | 400mm² | |
Impedance | 2.0M | 480±15μΩ | 358±15μΩ |
2.4M | 593±15μΩ | 445±15μΩ | |
Dc impedance value | 2.0M | 475μΩ | 355μΩ |
2.4M | 587μΩ | 440μΩ | |
Resistance | 2.0M | 78μΩ | 74μΩ |
2.4M | 82μΩ | 88μΩ | |
Power | =0.99 | =0.99 | |
Cooling water capacity | 7.0L/Min | 7.0L/Min | |
Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A |
2.4M | 45℃/5400A | 45℃/6200A | |
Weight | 2.0M | 10.4kg | 13.2kg |
2.4M | 12.2kg | 15.3kg |
Features:
1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun
2.Great flexibility during the work
3.Smallest water pressure drop and good cooling effect
4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance
5. lowest magnetic induction impact.
6. Easy to be replaced
7. Long life span and economic
