Сертифицированная CE Вакуумная сушилка для замораживания сушильная машина с хорошим качеством и низкой
- Категория товара: Chemical Machinery & Equipment >>>
- Поставщик (Оптовый магазин): Qingdao,Huicheng,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

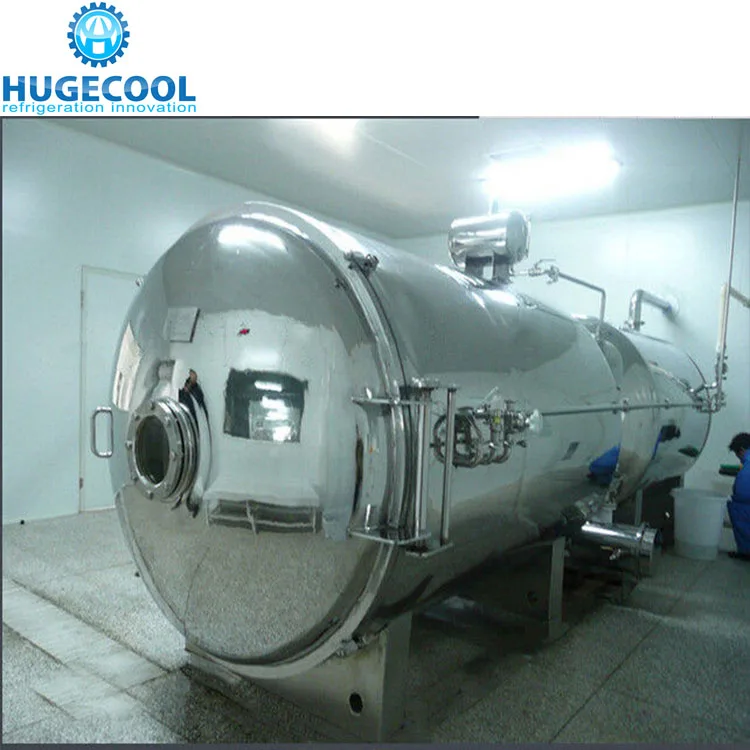

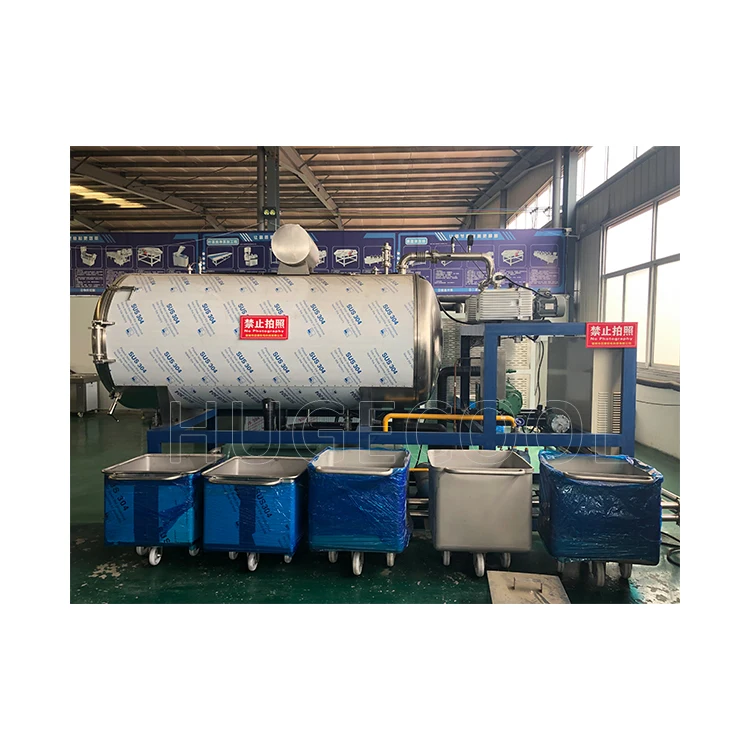

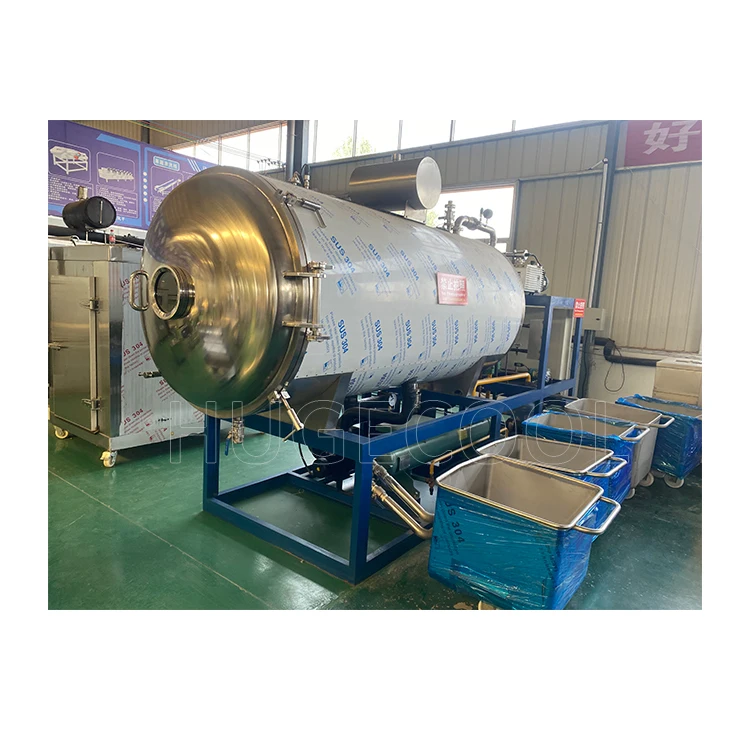

Vacuum Freeze Dryer
Product Description
| Basic specification | |
| Drying area | 20.16m2 |
| Installed power: | 415v/50hz/3ph |
| Overall dimensions : | 5800*1800*2800mm |
| Weight about | 7.5T |
| Compressed air | 0.5-0.6mpa |
| Cooling method | Air-cooled condenser |

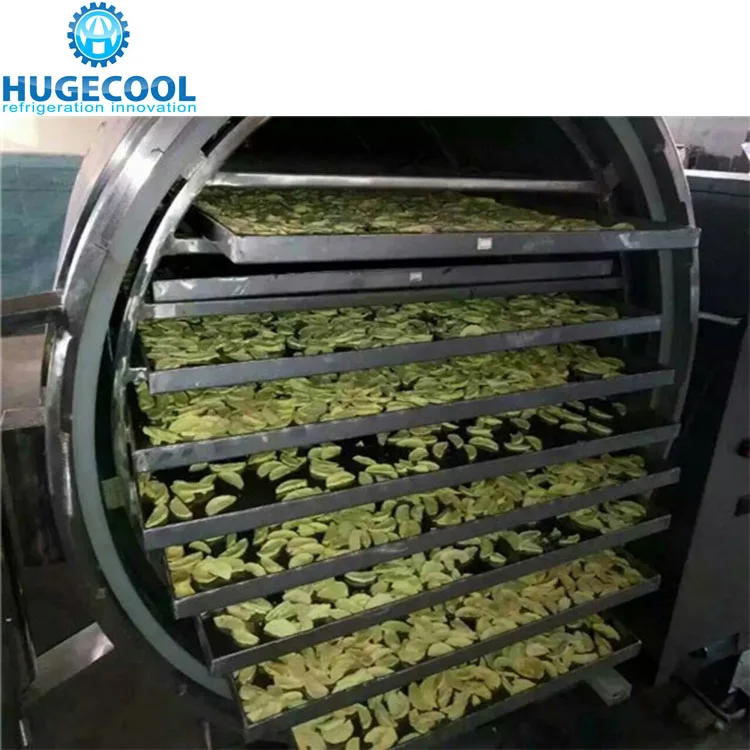

| Drying chamber | |
| Box shape: | round |
| Door opening direction: | clockwise/counterclockwise, manually(top view, customize) |
| Box material: | 304 stainless steel, 5mm thickness |
| Door material: | 304 stainless steel (part) |
| observation window on door : | 1 |
| observation window on chamber : | 2 (with lighting) |
| Outer decoration: | 304 stainless steel: 1.2mm |

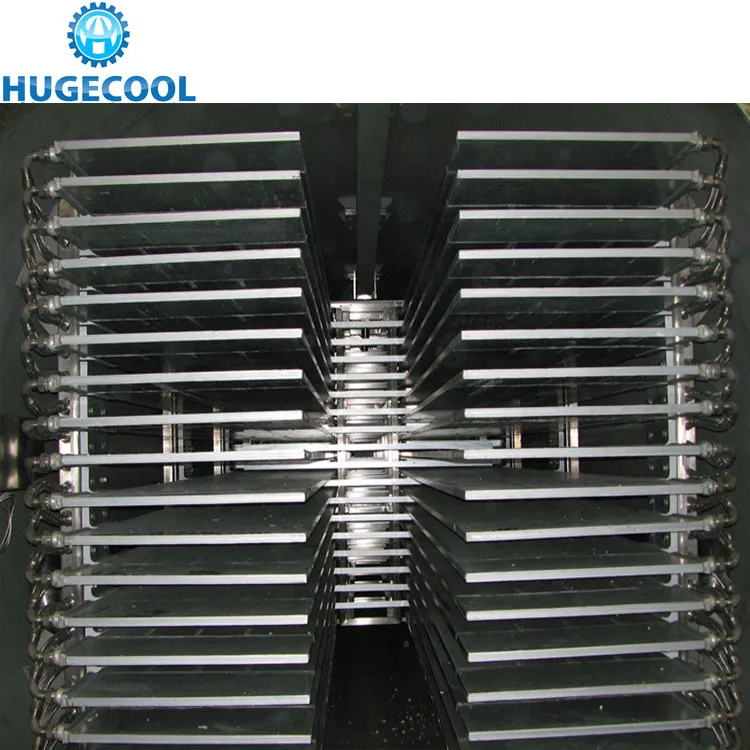

| Cooling Shelfs specification: | |
| Tray material | SUS304 stainless steel |
| Tray quantity and size: | 56 pcs, 550*650*30 |
| shelf material: | aluminum material (surface oxidation treatment) |
| Effective area of the board layer: | 20.16m2 |
| Layer spaci | 60mm |
| Layer cooling rate: | +20°C to -35°C / within 60 minutes (no load, silicone oil inlet) |
| Layer heating rate: | -40°C to +20°C / within 60 minutes (no load, silicone oil inlet) |
| Minimum temperature of the board layer: | -35°C to -40°C (no load, silicone oil inlet) |
| The maximum temperature of the board layer: | +100℃ (no load, silicone oil inlet) |
| Layer temperature difference: | ≤ ±1℃ (after stabilization) |
| Cold trap components | |
| Compact structure, strong ice catching ability, easy to defrost and clean | |
| Cold trap material: | 304 stainless steel |
| Coil material: | 304 stainless steel |
| The amount of ice condensation in the cold trap: | ≥ 450 Kg |
| Cooling down the cold trap: | +20°C down to -35°C / within 60 minutes |
| Cold trap minimum temperature: | -35℃ to -40℃ |
| Cold trap observation window: | Yes (with light) |
| Defrost method: | Water flooding/hot water spray |
| Insulation material: | Polyurethane foam |
