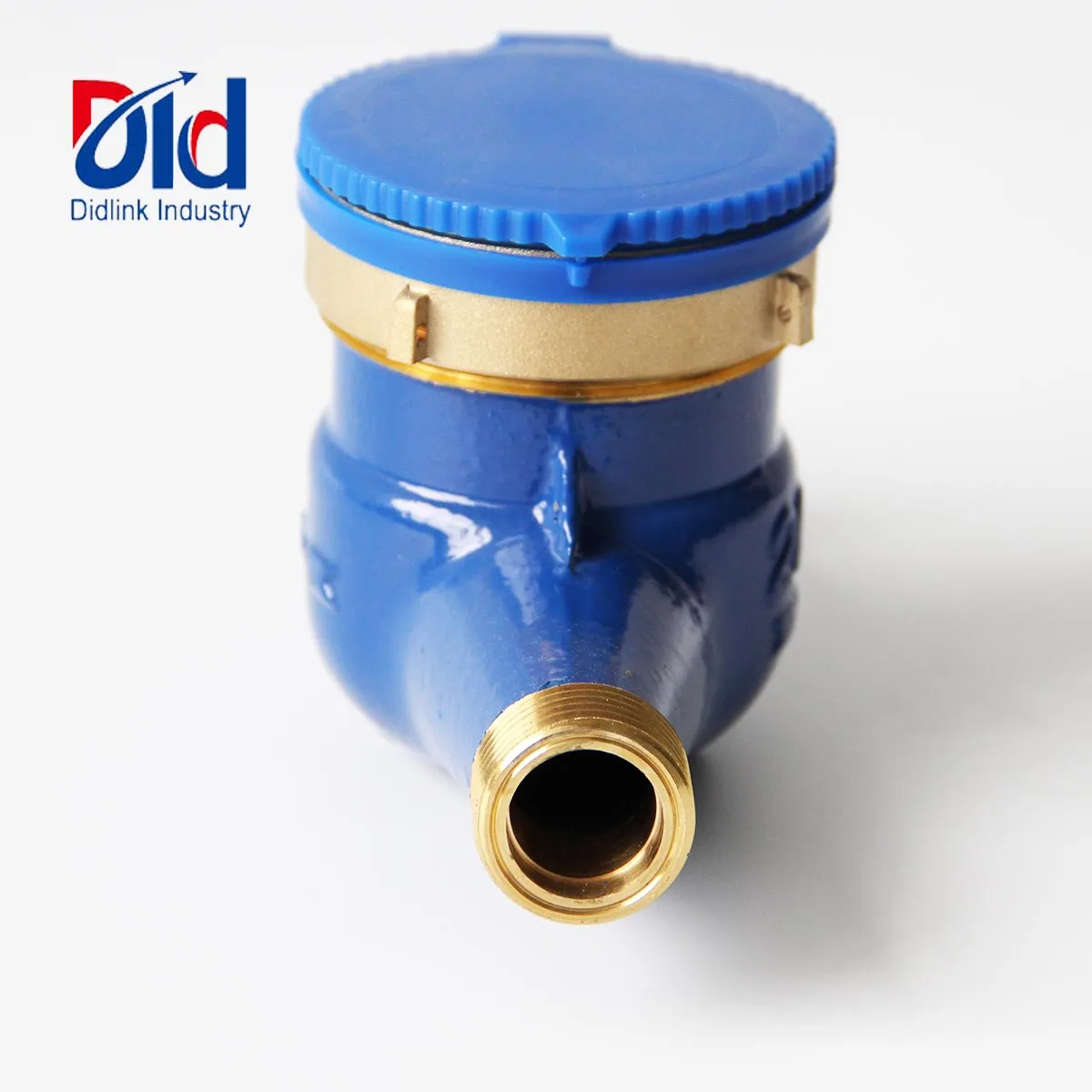

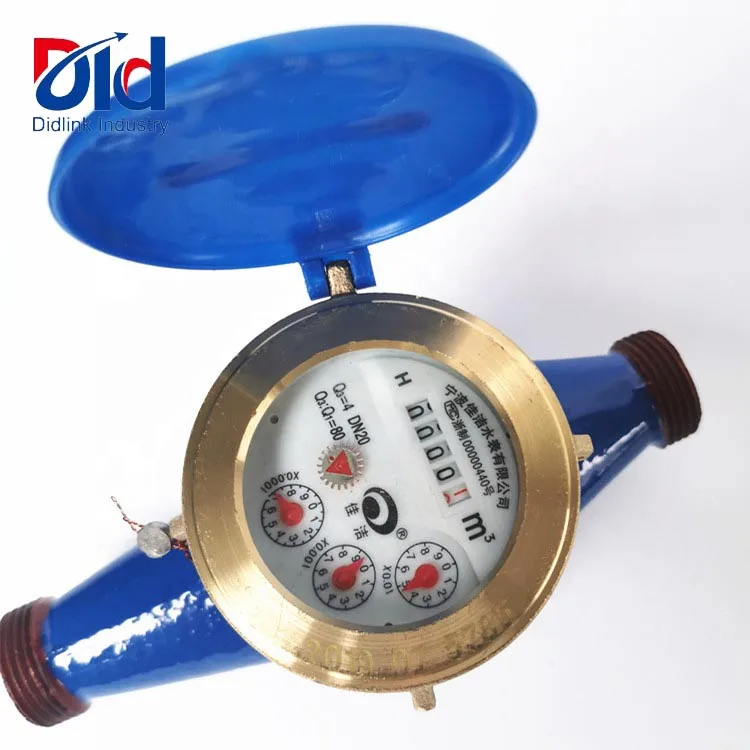

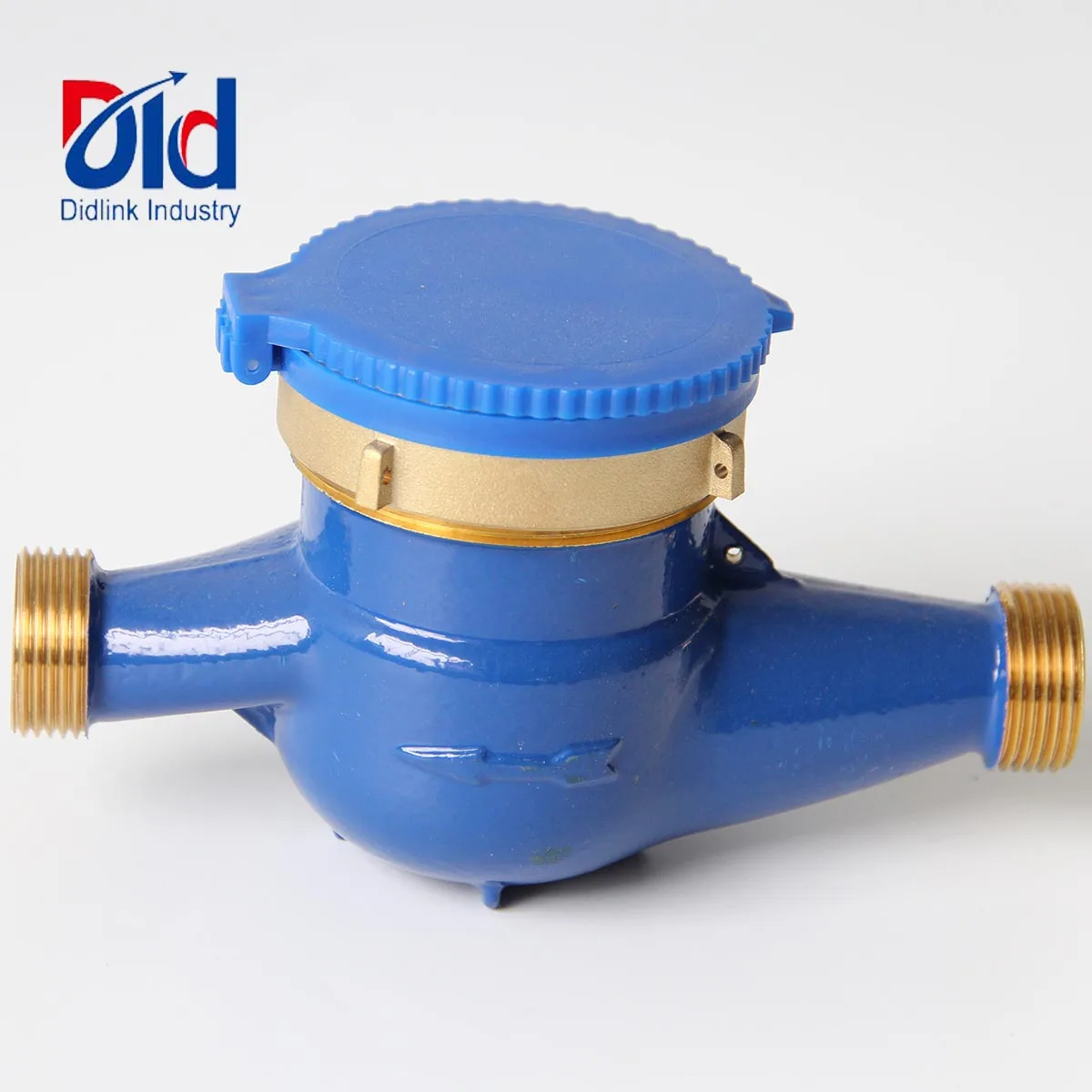

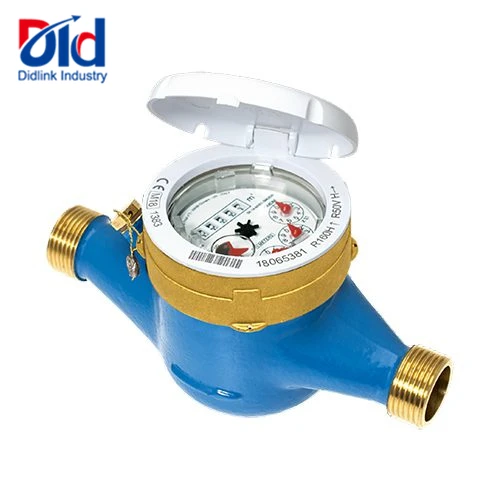

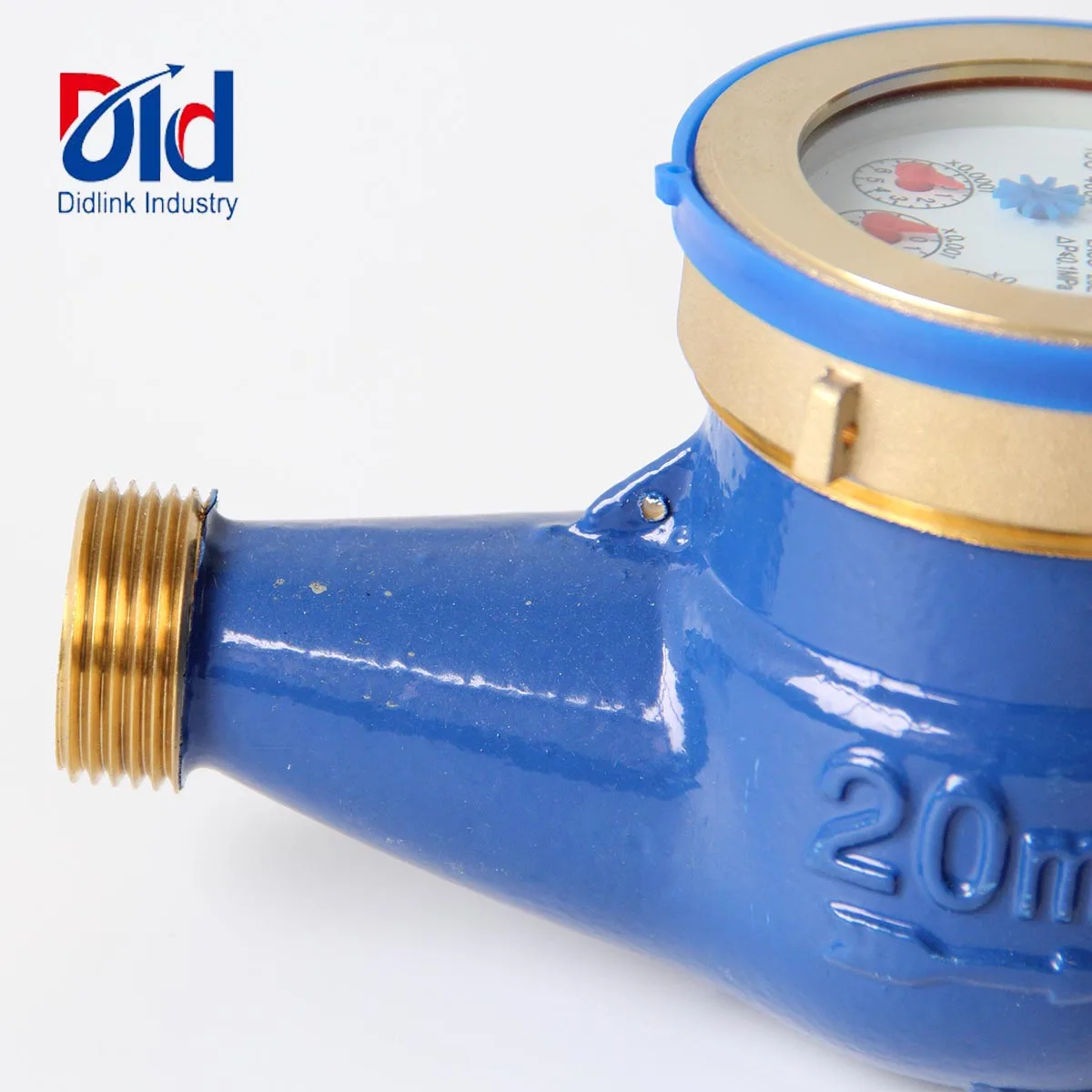

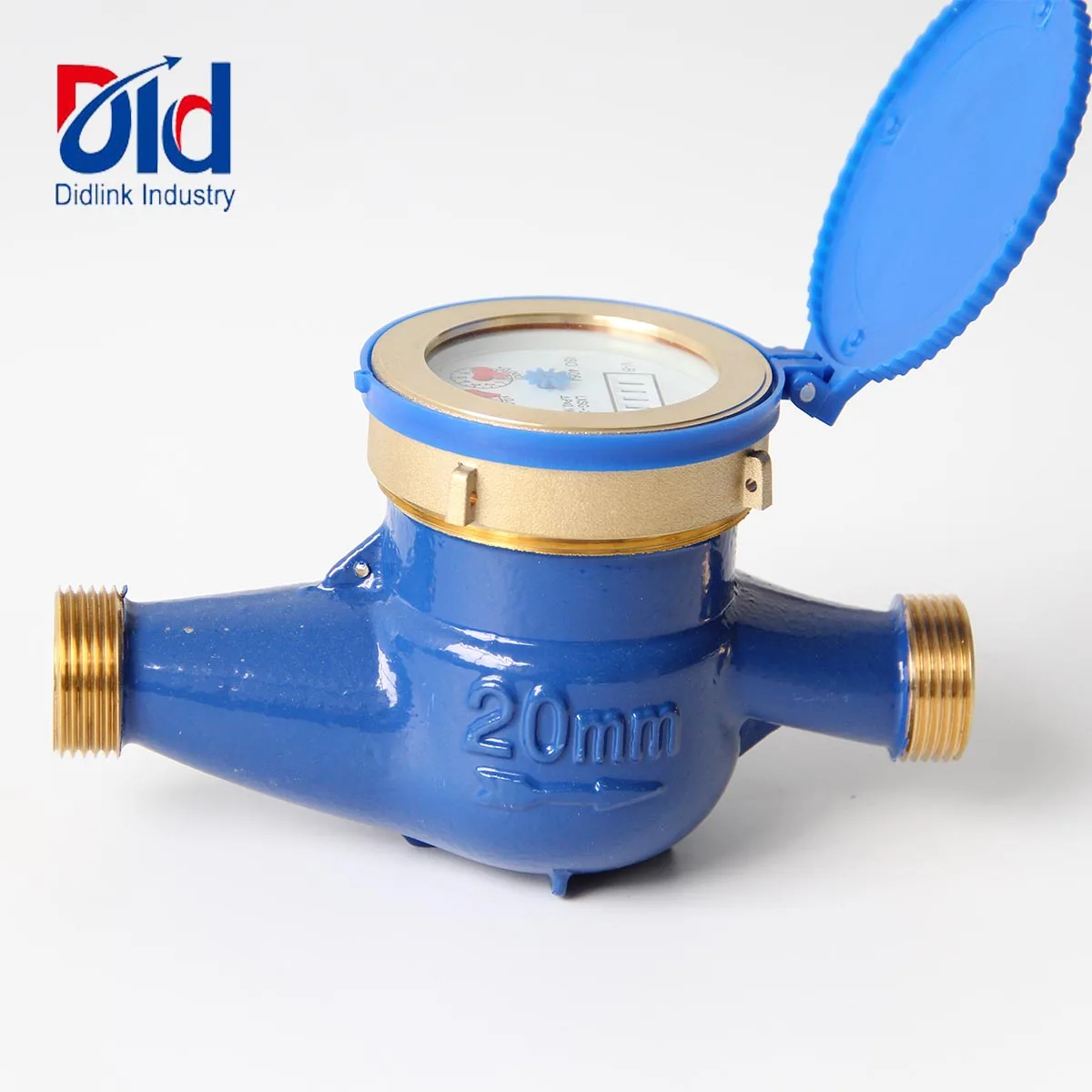

Чугунный синий счетчик воды/пластиковый механический
- Категория товара: Water Meters >>>
- Поставщик (Оптовый магазин): Hebei,Didlink,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The series of water meter is used to measure the total quantity of potable water, consumed in household or a resident unit, passing through the pipeline.
FEATURES:
1.Cast iron body
2.Dry-dial
3.Multiple-jet
4.Magnetic drive
5.Vacuum sealed register.
The reading can be kept clear in longterm service.
6.Antimagnetic construction
7.Measuring accuracy is up to class B of ISO4064 Standard.
8.Selected high quality materials. Steady & reliable characteristics
9.Sizes:15mm-50mm Material: brassPacking: carton
DEMENSIONS AND WEIGHT
| Meter Sizes | DN(mm) | 15 | 20 | 25 | 25 | 32 | 40 | 50 |
| Length | L(mm) | 259 | 294 | 310 | 310 | 384 | 375 | 280 |
| L1(mm) | 165 | 195 | 190 | 225 | 230 | 245 | ||
| Width | B(mm) | 98 | 98 | 103 | 103 | 103 | 125 | 160 |
| Height | H(mm) | 114 | 114 | 114 | 114 | 127 | 144 | 180 |
| connectting | d | R 1/2 | R3/4 | R1 | R1 | R1 1/4 | R1 1/4 | Flange |
| Thread | D | G 3/4 | G1 | G1 1/4 | G1 1/4 | G1 | G2 | |
| Weight | kg | 1.6 | 2.3 | 3 | 3 | 3.6 | 4.5 | 12 |
ERROR CURVE:
a. at low Zone is ±5 %from Qmin to Qt( not contain boundary)
b. at high zone is ±2 % from transitional flow(Qt)to maximum flow ( Qmax)
Working Conditions :
Water temperature≤35°c
Water pressure ≤1 Mpa
